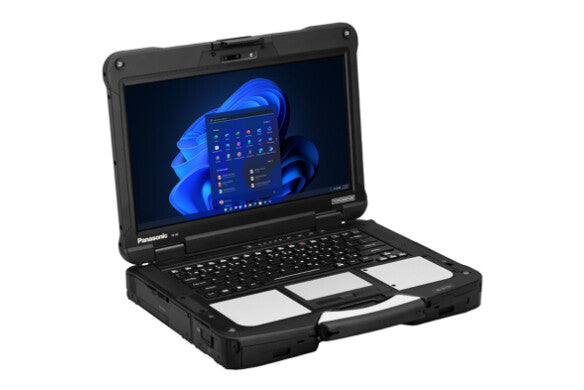

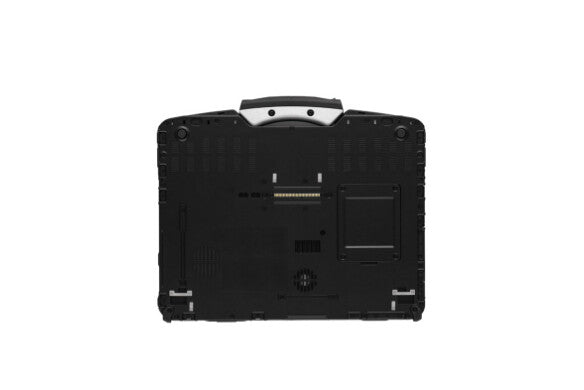

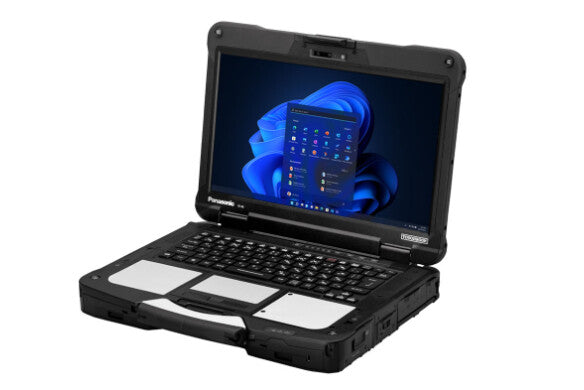

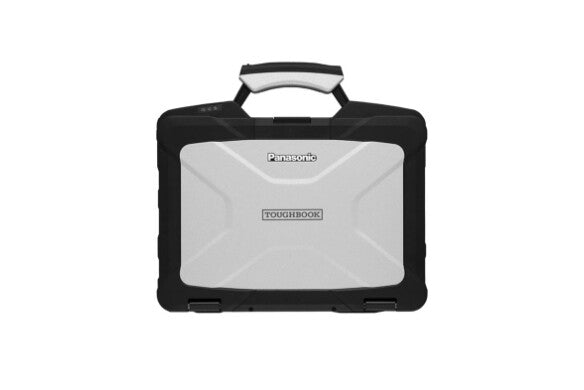

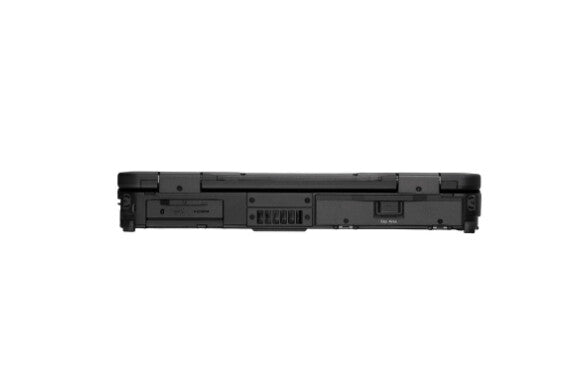

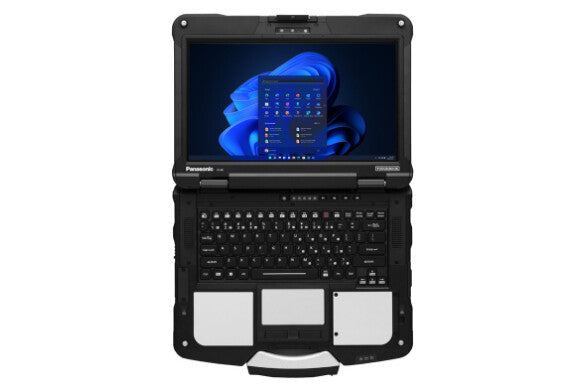

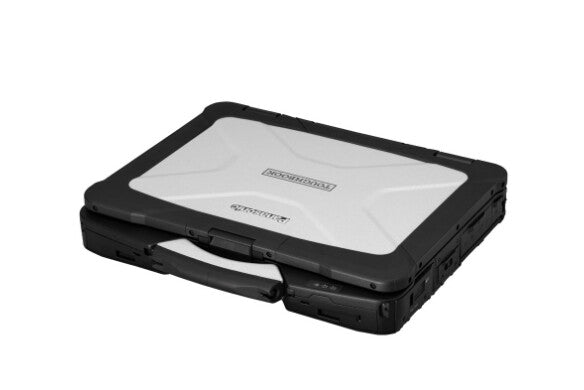

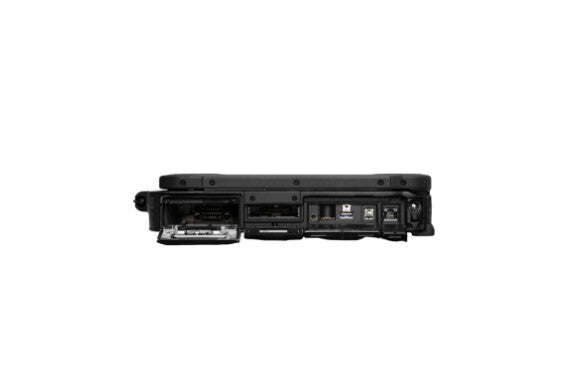

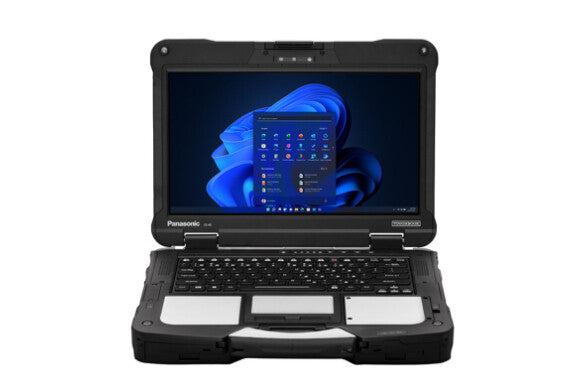

The 14” fully-rugged Panasonic TOUGHBOOK® 40 laptop breaks new ground offering unrivaled flexibility in even the most demanding and unpredictable environments with its class leading eight modular areas including its innovative modular expansion packs (xPAK’s). Optical drives, authentication readers, IO ports and even the Barcode Reader xPAK are all user upgradeable. Its state-of-the-art design optimizes thermals for maximum performance and its latest technology will ensure the TOUGHBOOK 40 will withstand the test of time. If features an optional dedicated GPU (late availability), up to 64GB of RAM, up to 3TB of storage, all-day battery life, four microphones, color-selectable backlit keyboard, 95db speakers, dual SIM (physical + eSIM) and choice of two cellular modems. The 4G modem provides up to 2Gbps and the 5G modem (late availability) adds support of 5G Sub6, C-band and mmWave with speeds up to 5.5Gbps and the ability to seamless connect to the best available network without any disruption or loss of connectivity.
Class Leading 8 Modular Areas

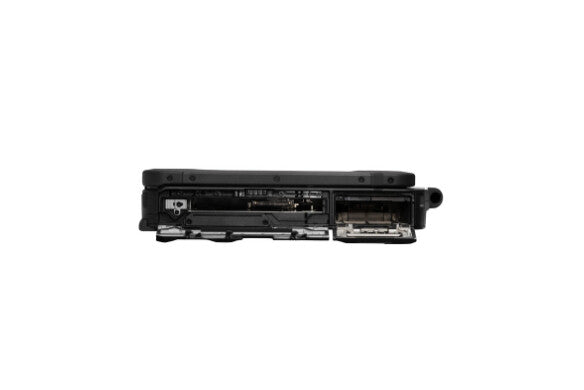

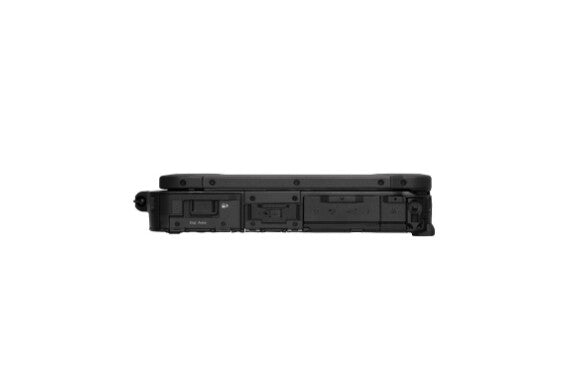

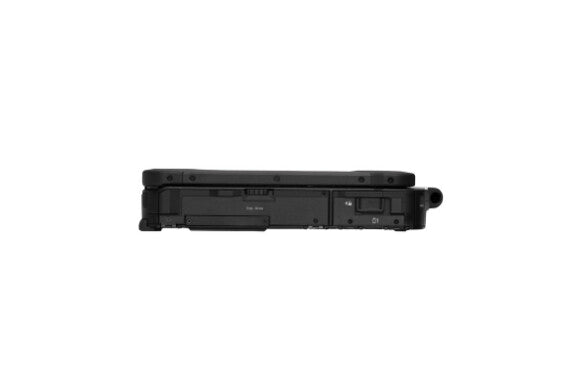

The TOUGHBOOK 40 features eight user-replaceable locations including the battery, memory, storage, keyboard and four expansion areas. The expansion area features several different types of xPAK’s including a barcode reader, optical drives, authentication readers, additional I/O, batteries and storage. All of the options in the eight modular areas provide 6,048 combinations to choose from. This unparalleled customization enables organizations to help futureproof, simplify ordering, shorten lead times and decrease downtime.
Choice of 4G or 5G Modem
The 4G modem supports LTE, LTE-A and speeds up to 2 Gbps. The 5G modem supports 4G (LTE, LTE-A) as well as 5G (Sub6, C-band, mmWave) and speeds up to 5.5 Gbps. It seamlessly connects to the best available network without any disruption or intervention by the user. Both 4G and 5G modems support FirstNet® (band 14), CBRS Private LTE (band 48) and have dual SIM (physical SIM + eSIM) for maximum flexibility.
5MP Infrared Webcam
With the increased use of video conferencing – whether for telehealth or remote services – the TOUGHBOOK 40 boasts the first 5MP webcam in its class. It features a privacy cover for security and infrared capability to support Windows Hello facial recognition.
Tetra-array Microphones
Featuring four microphones that offer class leading speech recognition and up to 3x the accuracy in noisy environments. Additionally, users can select the optimal AI noise cancellation that best suits their needs.
Design | |
---|---|
Rugged design | Yes |
Form factor | Clamshell |
Product colour | Black, Silver |
Product type | Laptop |
Display | |
---|---|
Display brightness | 1200 cd/m² |
Anti-glare screen | Yes |
Panel type | IPS |
HD type | Full HD |
Touchscreen type | Capacitive |
Touchscreen | Yes |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 35.6 cm (14") |
Processor | |
---|---|
Configurable TDP-down frequency | 1.1 GHz |
Configurable TDP-down | 12 W |
Configurable TDP-up | 28 W |
Configurable TDP-up frequency | 2.6 GHz |
Processor cache type | Smart Cache |
Processor cache | 8 MB |
Processor cores | 4 |
Processor boost frequency | 4.4 GHz |
Processor model | i5-1145G7 |
Processor generation | 11th gen Intel® Core™ i5 |
Processor family | Intel® Core™ i5 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 64 GB |
Memory slots | 2x SO-DIMM |
Memory clock speed | 3200 MHz |
Internal memory type | DDR4-SDRAM |
Internal memory | 16 GB |
Storage | |
---|---|
Compatible memory cards | MicroSDXC |
Card reader integrated | Yes |
SSD form factor | M.2 |
SSD interface | NVMe |
NVMe | Yes |
SSD capacity | 512 GB |
Number of SSDs installed | 1 |
Storage media | SSD |
Total storage capacity | 512 GB |
Graphics | |
---|---|
On-board graphics card model | Intel Iris Xe Graphics |
On-board GPU manufacturer | Intel |
Discrete graphics card model | Not available |
Discrete graphics card | No |
On-board graphics card | Yes |
Audio | |
---|---|
Built-in microphone | Yes |
Camera | |
---|---|
Front camera | No |
Network | |
---|---|
Bluetooth version | 5.1 |
Bluetooth | Yes |
Ethernet LAN data rates | 1000 Mbit/s |
Ethernet LAN | Yes |
WLAN controller model | Intel Wi-Fi 6 AX201 |
WLAN controller manufacturer | Intel |
Wi-Fi standards | Wi-Fi 6 (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |

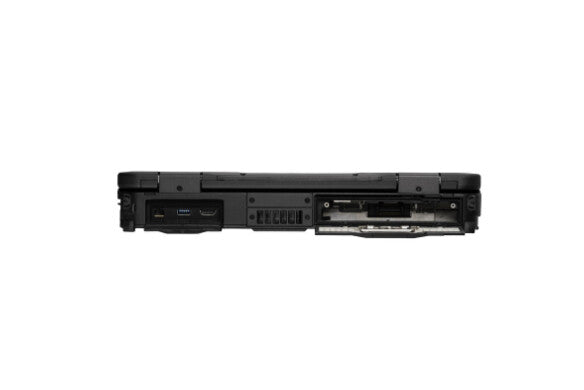

Ports & interfaces | |
---|---|
Combo headphone/mic port | Yes |
Thunderbolt 4 ports quantity | 1 |
Intel® Thunderbolt 4 | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Keyboard | |
---|---|
Numeric keypad | No |
Pointing device | Touchpad |
Software | |
---|---|
Operating system architecture | 64-bit |
Operating system installed | Windows 11 Pro |
Processor special features | |
---|---|
Intel Stable Image Platform Program (SIPP) | Yes |
Intel Software Guard Extensions (Intel SGX) | No |
Idle States | Yes |
Intel Trusted Execution Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
CPU configuration (max) | 1 |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Battery | |
---|---|
Battery recharge time | 3 h |
Battery life (max) | 18 h |
Battery capacity | 6500 mAh |
Battery technology | Lithium-Ion (Li-Ion) |
Power | |
---|---|
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50/60 Hz |
Security | |
---|---|
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Operational conditions | |
---|---|
Drop proof | 180 cm |
Operating temperature (T-T) | -29 - 63 °C |
Weight & dimensions | |
---|---|
Height | 301 mm |
Depth | 54.4 mm |
Width | 354 mm |
Weight | 3.35 kg |
General | |
---|---|
Product Family | Toughbook |
