Stay Home, Stay Connected

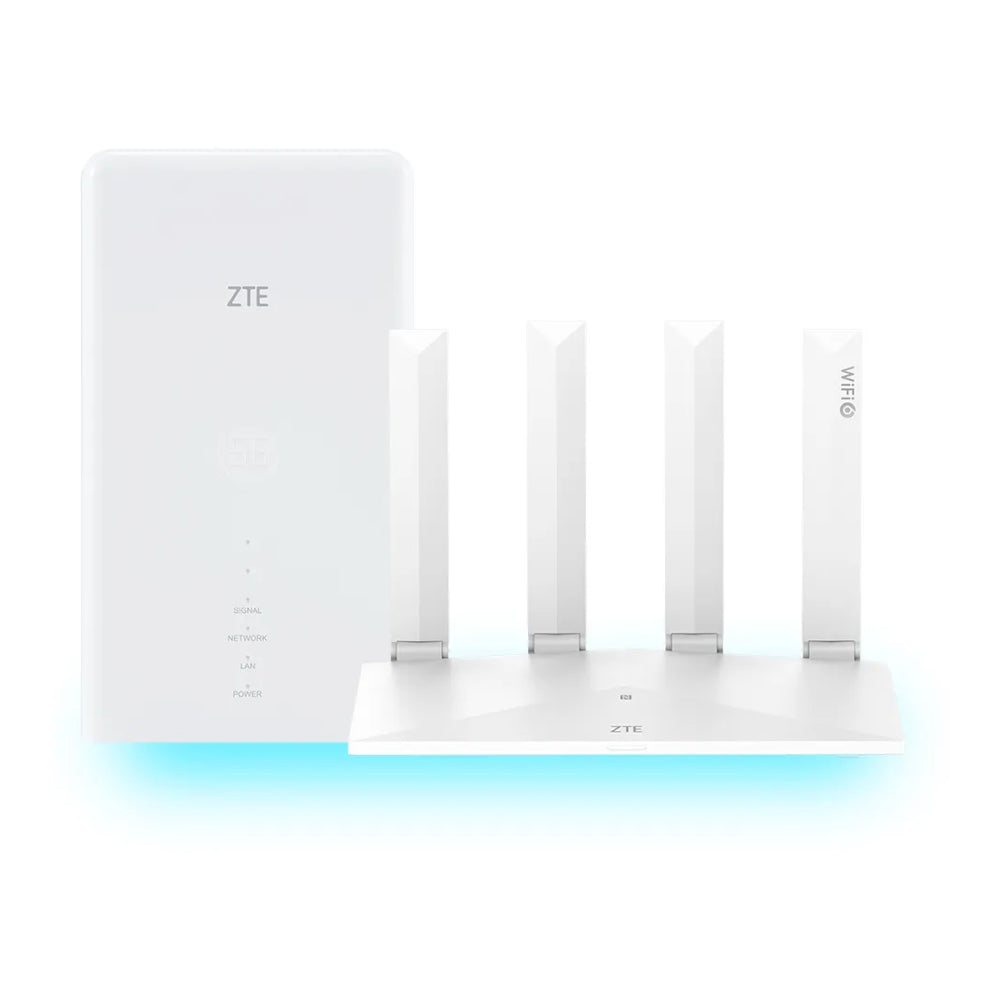

With the GH Telcom 5G CPE Pro 3, you can set up a whole-home mesh network system, offering seamless Wi-Fi throughout your home. As you walk around the house, the connected device will automatically switch to the strongest signal in the system.
Easy to set up for a variety of scenarios including, home broadband, small and medium business. It is also is convenient when you need to create an impromptu network in areas without traditional broadband.
If you want to watch 4K TV and enjoy high upload speed, then the 5G CPE Pro 3 is perfect. It offers download speeds of up to 1.8 Gbps and upload speeds of 250 Mbps.
There is one SSID for both 2.4GHz and 5GHz, the latter being the priority. 5GHz Wi-Fi offers up to 1201Mbps, while 2.4GHz Wi-Fi gives 574Mbps. Pressing the Optimize button ensures you always have the best Wi-Fi performance.
Dynamic Spectrum Sharing Supported. In different deployment phases of the LTE and NR networks, LNR shared spectrum can be dynamically allocated to the two RATs (minute-level) based on their network load. Only one RAT can use the shared spectrum at a time.
One-Name Wi-Fi, Seamless Roaming
One-Click Pairing WPS key to enter the mesh
1+5 - supports one CPE and five Wi-Fi routers
Wi-Fi coverage - 500m2
Switching time when travelling among mesh units - <100ms
Auto Sync - once changed Wi-Fi name or password
Game Turbo, Improve Your Gaming Experience Vastly
Near & middle field - >100ms latency reduced
Far field - > 100ms latency reduce
Experience the highest quality and speed of connection with this combination of 5G outdoor CPE antenna and miracle Wi-Fi 6 Router T300. They create a reliable, high-speed connection protected with an advanced firewall.
Enjoy the wide coverage for up to 256 users which is perfect for both homes and offices. The peak rate of Wi-Fi is increased to 3000Mbps and the T3000 has a bandwidth of 1260MHz.
The device is super easy to install as it is lightweight and compact and includes signal indicators plus an app to support you in positioning CPE and router.
Experience the highest quality and speed of connection with this combination of 5G outdoor CPE antenna and miracle Wi-Fi 6 Router T300. They create a reliable, high-speed connection protected with an advanced firewall.
Enjoy the wide coverage for up to 256 users which is perfect for both homes and offices. The peak rate of Wi-Fi is increased to 3000Mbps and the T3000 has a bandwidth of 1260MHz.
The device is super easy to install as it is lightweight and compact and includes signal indicators plus an app to support you in positioning CPE and router.
This is a product designed for the UK/European market and may not work as described outside this region.
LTE B1/3/7/8/20/28/32/38/40/42/43
5G N1/3/7/8/20/28/38/40/75/77/78

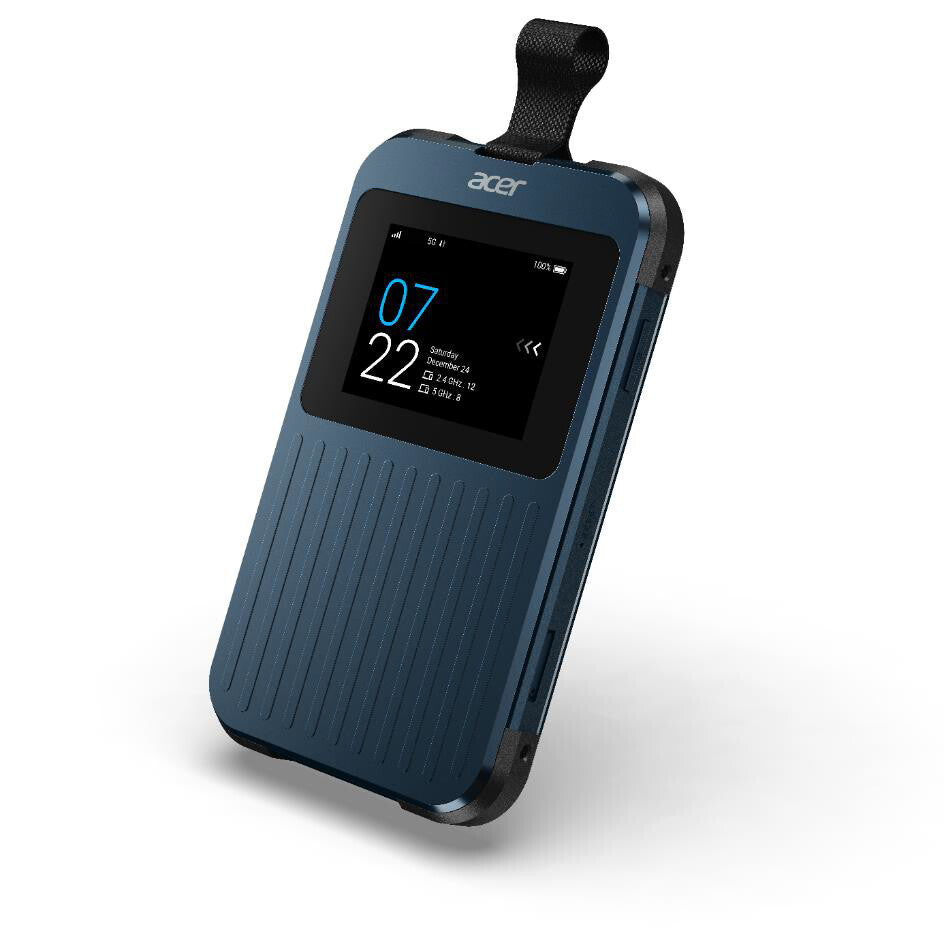

When you’re working on the go, you need a mobile hotspot that can keep up. The Acer ENDURO Connect M3 and its ruggedized design is protected against drops, bumps, water, and more – giving you the freedom to take you and your work anywhere.
Superior 5G Coverage with SignalScan™
No SIM card necessary - with vSIM technology and SignalScan™, your device can flexibly connect to the strongest 5G or 4G signal from any network and ensures your connection stays strong and stable.[1]
Connect All Your Devices
No matter if you’re traveling with colleagues or family, this device has you covered. Connect devices on the go over Wi-Fi 6 2x2 MIMO wireless technology.
Ruggedized Design
Certified MIL-STD-810H durable and with IP54 protection against dust and water, this rugged mobile hotspot is designed to stand up to all the unexpected bumps and drops of everyday travel.
Designed for All Day Connectivity
The 6500 mAh high-capacity battery lets you stay focused on your travels without worrying about charging your device.
Secure Your Data
This mobile hotspot uses WPA3 to simplify your Wi-Fi security by enabling robust authentication and cryptographic strength while also providing built-in VPN functionality to ensure your data stays anonymous.
Design | |
---|---|
Reset button | Yes |
Display diagonal | 6.1 cm (2.4") |
Display type | TFT |
Built-in display | Yes |
Housing material | Polycarbonate (PC) |
Product colour | Blue |
Device type | Cellular network modem/router |
Ethernet LAN features | |
---|---|
Ethernet LAN | No |
Wireless LAN features | |
---|---|
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Wi-Fi | Yes |
Mobile network | |
---|---|
SIM card type | NanoSIM |
Number of SIM cards | 1 |
4G standard | LTE-TDD & LTE-FDD |
Data network | 5G |
Ports & interfaces | |
---|---|
USB port | Yes |
USB port type | USB Type-C |
Security | |
---|---|
Security algorithms | WPA3 |
Performance | |
---|---|
Internal storage capacity | 8 GB |
RAM capacity | 3 GB |
Processor frequency | 2.4 GHz |
Built-in processor | Yes |
Antenna | |
---|---|
Antenna type | 2x2 |
Power | |
---|---|
Battery capacity | 6500 mAh |
Built-in battery | Yes |
Power source type | USB |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 20 - 60% |
Weight & dimensions | |
---|---|
Weight | 245 g |
Height | 17.1 mm |
Depth | 83 mm |
Width | 138 mm |

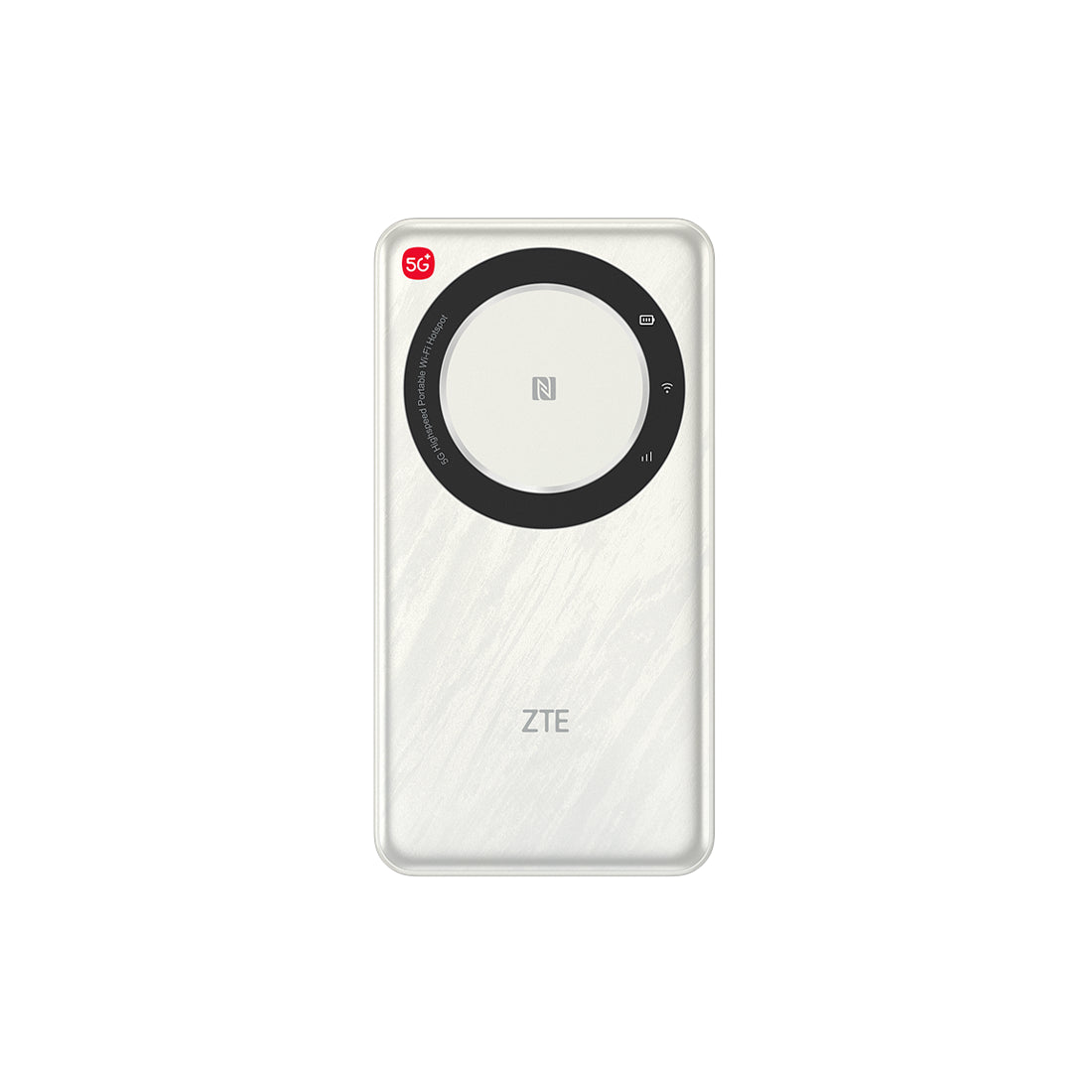

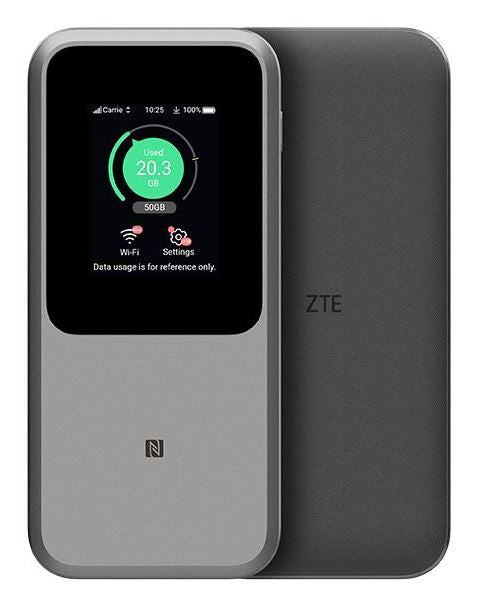

The ZTE 5G Mobile Wi-Fi Router is a compact product with incredible features. It offers 5G connectivity with NSA and SA compatibility. For peak download speeds of up to 5.7 Gbps. The 2.4” touchscreen display makes it easy and convenient to access all features of the router without needing any extra hardware.
Interfaces include a USB Type-C connector in addition to the Wi-Fi 802.11a/b/g/n/ac, which is 2*2 MIMO dual-band compatible and able to support up to 32 users.
The 4,500mAh battery should keep the data flowing for up to 8 hours, depending on usage.
Network NSA&SA
5G NR+LTE EN-DC
N1, N3, N7, N8, N28, N78
4G LTE FDD and TDD
B1_3_7_8_28/W B1_8,
CAT 2, 8LTE Streams support, ENDC Support
MIMO
5G + LTE
- sub6G DL: 4MIMO
- 4G DL: 8layers
LTE: 4MIMO on 5CA (4G only)
Bandwidth (MHz)
Sub6G 200M, mmW 800M
Chipset
SDX55+QCA6391
Modulation
Sub6G DL256QAM, UL256QAM;mmw DLK/UL 64QAM
5G NR + LTE EN-DC Peak Rate
mmW 5.7 Gbps; sub6G 4.6 Gbps
WiFi
80211 a/b/g/n/ac, 2*2 MIMO, dual-band 32 users
Size
133 x 73 x 18.5mm
Interface
1 * USB3.1 type C (GEN2)
Battery
4500mAh, quick charge
Display
2.4” touch screen, 320 *240

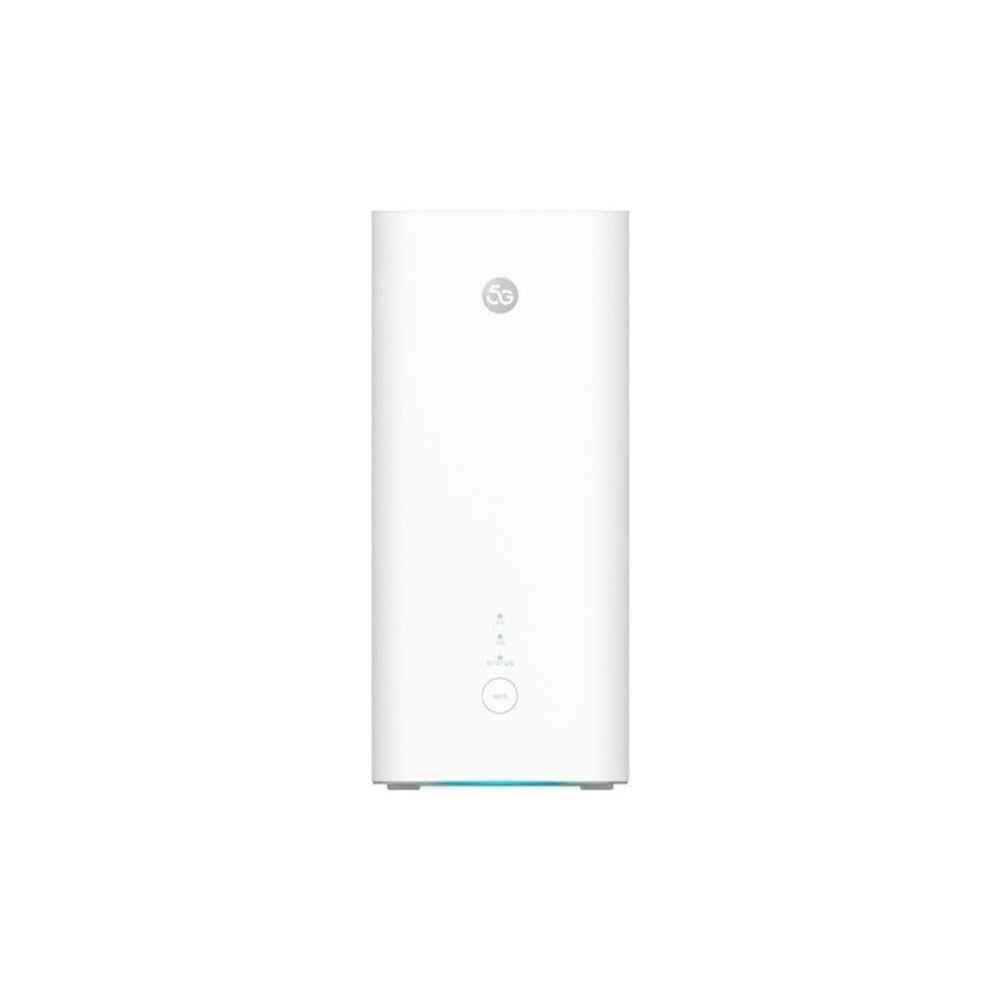

Combining the latest technologies including Huawei Super Uplink, 5G Network Slicing and Wi-Fi 6 Plus it is possible to download and upload data incredibly fast, stream content and more.
The efficient 30 dB cooling minimises disturbance to your environment.
With innovative HUAWEI 5G Super Uplink, merging TDD with FDD, the Huawei 5G CPE Pro 2 offers incredibly fast upload speeds. Allowing for the fast uploading of media-rich content and movies in an instant. It is also possible to live stream 8K /4K high-definition graphics and unlock the full potential of AR/VR.
Customise the characteristics of your 5G network like low latency for ultra-smooth gaming, or high bandwidth for watching 8K movies, this is possible with Network Slicing on the Huawei 5G CPE Pro 2.
While you are working or enjoying entertainment media you don’t want to be disturbed by unnecessary noise. For this reason, a 30 dB cooling fan is used significantly reducing the disturbance you encounter, even with heavy usage.
The speed of your Wi-Fi can see a speed increase of 150%, boosted to 2976 Mbps on dual bands using Wi-Fi 6. It is also possible to for Huawei Fi-Fi 5 enabled phone to take full advantage of the 1060 Mhz wide frequency bandwidth.
Technical Specification
Dimensions and Weight
Dimensions: 90 mm x 96.6 mm x 178 mm
Weight: About 600 g (excluding the power adapter)
5G/4G
Communication Standard: 3GPP Release 15
Applicable Network: 5G/4G
Network Mode: NSA/SA
5G Transmission Rate: 3.6 Gbps/250 Mbps (Theoretical value. The actual rate depends on the operator)
4G Transmission Rate: 1.6 Gbps/150 Mbps (Theoretical value. The actual rate depends on the operator)
Antenna Type: Built-in 5G/4G primary and secondary antennas
Wireless
Transmission Standard: Wi-Fi 6, compatible with 802.11ac/n/g/b/a
Transmission Rate: DBDC 2976 Mbps, 5 GHz 2402 Mbps (theoretical value), 2.4 GHz 574 Mbps (theoretical value)
Frequency Band: 2.4 GHz & 5 GHz
Antenna Type: Built-in dual-band Wi-Fi antennas
Processors
Balong 5000 chipset, Gigahome Wi-Fi chipset
Interface
1 Wan/Lan GE port, 1 Lan GE port, 1 power adapter port, 1 SIM card slot (Nano-SIM)
Button
Power/Reset/H, support HUAWEI HiLink device password-free access, modify Wi-Fi name/password auto sync
LED Indicator
5G/4G/Wi-Fi/Ambient Light Strip
Power Supply
Power: <24 W
AC / DC Power Supply: AC: 100 V - 240 V 50 Hz / 60 Hz, DC: 12V/2A
Software Functions
APP: HUAWEI AI Life APP (Android), HUAWEI Smart Home APP (iOS)
More Functions: Mobile network (5G/4G) access, Ethernet access, 5 GHz preferred, SMS service, firewall, PIN protection, MAC address filtering, Wi-Fi encryption authentication, VPN tunnel/VPN penetration, IPv4 and IPv6/IPv4 dual stack, multi-APN, WebUI, HOTA, etc
Environment
Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C
Humidity: 5% ~ 95% (non-condensing)
With this powerful, high-performance portable 5G hotspot based on new generation snapdragon X62, you can have fast and reliable Wi-Fi anywhere! The impressive 10000mAh 27W quick-charge battery with an 18W reverse charger gives you 16 hours of battery life and more possibilities whether you are home or away. The flawless 2.4” Touch Screen display guarantees smooth and easy access to all features of the device whenever you need it. To make it even simpler, just turn on the NFC one-touch networking function on your mobile to access the Wi-Fi network without a password.
NSA&SA
5G NR+LTE EN-DC
Global 5G NR band
4G LTE FDD and TDD
NR CA
SDX62/65 + WCN6856
158x73x18mm
sub6G DL256QAM, UL 256QAM
802.11a/b/g/n/ac/ax
2*2MIMO
160MHz, dual-band
32 users
AX3600
1*USB3.1 type C(Gen2), 1*USB A for battery bank
10000mAh, quick charge
Feature | Description | ||||||||||||||
Artwork | Dimensions | 18*118*72 mm | |||||||||||||
Weight | 163.7g | ||||||||||||||
Picture |
|
||||||||||||||
Form factor | 5G uFi(SA & NSA) Support: 5G NR 5G NR + LTE EN-DC |
||||||||||||||
User manual | |||||||||||||||
Quick guide | |||||||||||||||
Warranty cards | |||||||||||||||
Battery | 4500mAh | ||||||||||||||
AC adapter | 5V/2A | ||||||||||||||
Network cable | |||||||||||||||
EAN | |||||||||||||||
TAC | |||||||||||||||
Solution | Wireless chipset supplier | Qualcomm | |||||||||||||
Routing and WiFi chipset supplier | Qualcomm | ||||||||||||||
Wireless chipset model | SDX55 | ||||||||||||||
Wireless processor info | SDX55M Arm Cortex-A7 up to 1.4GHz | ||||||||||||||
Routing and WiFi chipset model | QCA6391 | ||||||||||||||
Routing and WiFi processor info | QCA6391 Dual-Band 2x2 MIMO DBS 802.11ax | ||||||||||||||
USIM/SIM slot | Standard 6PIN SIM card interface 3V SIM card and 1.8V SIM card |
||||||||||||||
Memory(SDRAM/NAND) | 512MB/512MB | ||||||||||||||
MICRO SD slot | |||||||||||||||
USB interface | 1 | ||||||||||||||
RJ45 interface | 1 | ||||||||||||||
RJ11 interface | |||||||||||||||
WiFi users access | 2.4GHz + 5GHz = 32 | ||||||||||||||
Maximum power consumption | TBD | ||||||||||||||
LCD | |||||||||||||||
Power indication LED | |||||||||||||||
WIFI indication LED | |||||||||||||||
Network mode indication LED | |||||||||||||||
WAN signal strength indication LED | |||||||||||||||
Ethernet signal strength indication LED | |||||||||||||||
RF | Chipset | SDX55 | |||||||||||||
SRS | |||||||||||||||
Waveform | CP-OFDM for UL&DL DFT-s-OFDM for UL |
||||||||||||||
Sub Carrier | Sub6G: 30KHz, 15KHz mmW: 120KHz |
||||||||||||||
Main antenna | Internal antenna | ||||||||||||||
GSM band | Doesn't support 2G. | ||||||||||||||
UMTS band | B1/8 | ||||||||||||||
LTE band | B1/3/7/8/20/28/32/38/40/42/43 | ||||||||||||||
5G Sub6 Band | n1/3/7/8/20/28/38/40/77/78 | ||||||||||||||
5G mmWave Band | Doesn't support mmWave. | ||||||||||||||
MIMO for wireless | 5G Sub6: N78 supports 4*4MIMO LTE: 1/3/7 supports 4MIMO |
||||||||||||||
transmitter power for wireless | 26dBm for N78 23dBm for other bands |
||||||||||||||
WiFi band | 2.4G & 5G | ||||||||||||||
MIMO for WiFi | 2*2 MIMO for both 2.4G&5G | ||||||||||||||
MU-MIMO | |||||||||||||||
Max. transmitter power for WiFi | 20dBm(Max) in 2.4G 23dBm(Max) in 5G |
||||||||||||||
Technical standard | WCDMA | WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) DL 42Mb/s(Category 24) HSUPA: UL 5.76Mb/s(Category 6) |
|||||||||||||
LTE | LTE FDD(DL Category 20, UL Category20): DL 2Gb/s UL 150MbpsMb/s LTE TDD(DL Category 20, UL Category18) DL 1.46Gb/s UL 30Mb/s |
||||||||||||||
NSA 5G Sub + LTE Band | 5G Sub6G - LTE FDD DL 2.63 Gb/s UL 525Mb/s 5G Sub6G - LTE TDD DL 2.31 Gb/s UL 465 Mb/s |
||||||||||||||
Bandwidth of Sub6G | 20MHz, 40MHz, 50MHz, 60MHz, 80MHz, 90MHz, 100MHz | ||||||||||||||
Modulation | LTE:DL 256QAM/UL 256QAM sub-6:DL 256QAM/UL 256QAM |
||||||||||||||
BWP | |||||||||||||||
Network Slicling | |||||||||||||||
3GPP release | Release 15 | ||||||||||||||
WiFi standard | 802.11b/g/n/a/ac/ax | ||||||||||||||
WiFi Band | 2.4G: 20M/40M 5G: 20M/40M/80M |
||||||||||||||
WiFi Speed | 2.4GHz 2MIMO 575Mbps 5GHz 2MIMO 1.2Gbps The totoal spped can up to 1.775Gbps |
||||||||||||||
WiFi security | WPA-PSK/WPA2-PSK | ||||||||||||||
WPS | PBC(Push Button Config) & station PIN | ||||||||||||||
IP protocols | RFC 791 (IP) | ||||||||||||||
RFC 793 (TCP) | |||||||||||||||
RFC 768 (UDP) | |||||||||||||||
RFC 792 (ICMP) | |||||||||||||||
RFC 826 (ARP) | |||||||||||||||
RFC 1661 (PPP) | |||||||||||||||
RFC 1332 (IPCP) | |||||||||||||||
RFC 1334 (PAP) | |||||||||||||||
RFC 1994 (CHAP) | |||||||||||||||
NAT/NAPT | RFC 3022 | ||||||||||||||
Browser | IE | ||||||||||||||
Firefox | |||||||||||||||
Safari | |||||||||||||||
Opera | |||||||||||||||
Chrome | |||||||||||||||
ZTE Link | Andraiod and iOS APP to management the device. | ||||||||||||||
Router | Port forwarding | ||||||||||||||
IP filter | |||||||||||||||
DMZ | |||||||||||||||
UPnP | |||||||||||||||
VPN passthrough | PP2P/L2TP/IPSec | ||||||||||||||
VPN Client | |||||||||||||||
Voice | |||||||||||||||
Fax | |||||||||||||||
SMS | |||||||||||||||
MMS | |||||||||||||||
Phonebook | |||||||||||||||
Network lock | |||||||||||||||
IPv4/IPv6 | |||||||||||||||
Language | English | ||||||||||||||
Firewall switch | Enable/Disable IP/MAC/Port filter | ||||||||||||||
TR069 | |||||||||||||||
Online update | FOTA | ||||||||||||||
HW buttons &switches | Power button | ||||||||||||||
Reset button | To restore factory default configurations after pressing for 3 seconds | ||||||||||||||
WPS button | To activate the PBC(Push Button Config) function | ||||||||||||||
Approvals &Certification | CE | ||||||||||||||
ROHS | |||||||||||||||
WEEE | |||||||||||||||
GCF | |||||||||||||||
FCC | |||||||||||||||
WiFi certification | |||||||||||||||
PTCRB | |||||||||||||||
REACH | |||||||||||||||
Operating temperature | -20 to 55° C | ||||||||||||||
Storage temperature | -40 to 70° C | ||||||||||||||
Humidity | 5% to 95% |

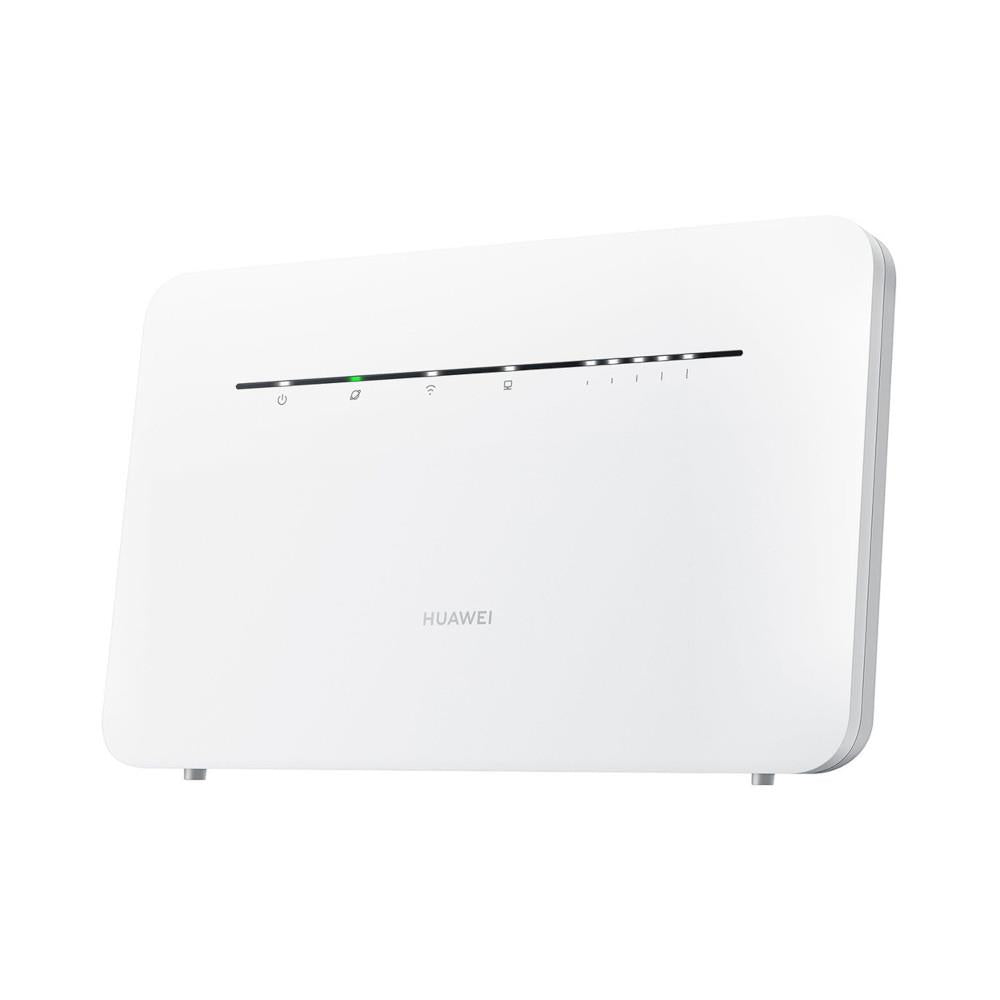

The Huawei 4G Router 3 Pro - B535-333 makes it possible to easily add an internet connection to an entire house or meeting room. Meaning there is no need to arrange for a physical broadband connection. Instead, you can insert a regular 4G SIM card, and you are ready to go.
The dual-core Balong chipset ensures you achieve incredible download speeds of up to 300 Mbps and upload speeds of up to 100 Mbps, so you and your entire family can enjoy the internet without needing a physical broadband connection.
With two built-in high gain 4G antennas and two external antennas interface, the Wi-Fi signal stability and strength are improved.
Not only does the Huawei 4G Router 3 Pro support dual Wi-Fi bands of 2.4GHz and 5 GHz, but it also combines them into one visible signal. Meaning it can provide a smooth and stable Wi-Fi experience without the hassle of manually having to select the best signal.
Dimensions 219mm x 138mm x 25.6mm
Weight About 325g
Communication Standard: 3GPP Release 11, LTE CAT7
Applicable Network: 4G
4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)
Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8
Antenna Type: LTE / UMTS main and diversity antennas
Wi-Fi
Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
Wireless Transmission Rate: DBDC, 1167Mbps
Wireless Frequency Band: 2.4GHz & 5GHz, band steering
Antenna Type: Dual-band Wi-Fi antenna
Antenna
Two 4G antenna extension ports, allowing users to purchase antennas
Processors
Balong chip, Gigahome dual-band Wi-Fi chip
Network Port
1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)
Button
Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS
Led Indicator
4G / Wi-Fi / Lan / Power / Signal Strength indicators
Power Supply
Power: < 12W
AC / DC Power Supply: AC: 100V - 240V 50Hz / 60Hz, DC: 12V / 1A
Environment
Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C
Humidity: 5% ~ 95% (non-condensing)
The Huawei 4G Router 3 Pro - B535-333 makes it possible to easily add an internet connection to an entire house or meeting room. Meaning there is no need to arrange for a physical broadband connection. Instead, you can insert a regular 4G SIM card, and you are ready to go.
The dual-core Balong chipset ensures you achieve incredible download speeds of up to 300 Mbps and upload speeds of up to 100 Mbps, so you and your entire family can enjoy the internet without needing a physical broadband connection.
With two built-in high gain 4G antennas and two external antennas interface, the Wi-Fi signal stability and strength are improved.
Not only does the Huawei 4G Router 3 Pro support dual Wi-Fi bands of 2.4GHz and 5 GHz, but it also combines them into one visible signal. Meaning it can provide a smooth and stable Wi-Fi experience without the hassle of manually having to select the best signal.
Dimensions 219mm x 138mm x 25.6mm
Weight About 325g
Communication Standard: 3GPP Release 11, LTE CAT7
Applicable Network: 4G
4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)
Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8
Antenna Type: LTE / UMTS main and diversity antennas
Wi-Fi
Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
Wireless Transmission Rate: DBDC, 1167Mbps
Wireless Frequency Band: 2.4GHz & 5GHz, band steering
Antenna Type: Dual-band Wi-Fi antenna
Antenna
Two 4G antenna extension ports, allowing users to purchase antennas
Processors
Balong chip, Gigahome dual-band Wi-Fi chip
Network Port
1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)
Button
Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS
Led Indicator
4G / Wi-Fi / Lan / Power / Signal Strength indicators
Power Supply
Power: < 12W
AC / DC Power Supply: AC: 100V - 240V 50Hz / 60Hz, DC: 12V / 1A
Environment
Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C
Humidity: 5% ~ 95% (non-condensing)
Connectivity
The ZTE U30 Air 5G Router delivers seamless, high-speed connectivity, making it an ideal choice for homes and businesses alike. Equipped with advanced 5G technology, it provides ultra-fast internet speeds with low latency, ensuring a stable and reliable connection for multiple devices.
Design
The ZTE U30 Air 5G Router combines sleek design with practicality, making it a stylish addition to any home or office. Its compact and lightweight form factor ensures it fits seamlessly into any space without being obtrusive. .
Battery Life
Equipped with a powerful 4500mAh battery, the ZTE U30 Air ensures up to 10 hours of continuous usage, keeping you connected throughout your journey.
Unlocked for Ultimate Flexibility
Enjoy the freedom to use any SIM card with the unlocked ZTE U30 Air. As a bonus, it comes with a complimentary WorldSIM Data SIM card, providing low-cost data in 188 countries. You can opt for prepaid credit or international data bundles at your convenience.
Cellular network | 3GPP Release | 3GPP Release15 | Yes | |
Network | 5G SA/NSA/LTE/3G | Yes | ||
Modulation | Sub6G DL: 256QAM UL: 256QAM LTE DL:256QAM UL: 64QAM |
Yes | ||
Bandwidth | Sub6G: 40MHz, 50MHz, 60MHz, 80MHz, 90MHz,100MHz | Yes | ||
Network Slicling | No | |||
Transmitter power | 25dBm(inerfull) for n78, 23dBm for other bands |
Yes | n78 support PC2 | |
5G Sub6 Bands | n1/n3/n7/n8/n20/n28/n40/n77/n78 | Yes | ||
5G mmWave Bands | No | |||
4G Bands | B1/B2/B3/B4/B7/B8/B20/B28/B38/ | Yes | ||
3G Bands | B1/2/4/5/8 | Yes | ||
2G Bands | No | |||
MIMO for wireless |
5G Sub6:n1,n3,n7,n40,n77,n78 supports 4*4MIMO; LTE: B1,B3,B7,B38supports 4MIMO |
Yes | ||
Default antenna | Internal antenna for all bands | Yes | ||
Antenna Gain | 700-960MHz: 0.6- 1.2dBi 1400-2700MHz: 0.3-1.9dBi 3300~4200MHz: 0.5- 1.1dbi |
Yes | ||
Bands supported by External Antenna Ports | No | |||
Theoretical Max Rate | 5G ENDC LTE FDD + Sub6G DL 1.83Gb/s UL 155Mb/s |
Yes | LTE FDD + Sub6G DL:LTE 4layer/256QAM + NR 100M /256QAM +75% DL duty cycle; UL:LTE 2CA/64QAM + NR 100M/256QAM +25% UL duty cycle; |
|
5G SA 5G Sub6G -TDD DL 1.43 Gb/s UL 80Mb/s |
Yes | DL peak rates requires: 100MHz + 256QAM + 4MIMO 75% DL duty cycle; UL peak rates requires: 100MHz + 256QAM + 1MIMO 25% duty cycle. |
||
5G mmWave DL: UL: |
No | |||
LTE LTE FDD (DL Category15, UL Category13): DL 800Mb/s UL 75Mb/s LTE TDD DL 280Mb/s UL 30Mb/s |
Yes |
FDD peak rates require DL: 256QAM + 3CA(8 layers); UL: 64QAM + no CA TDD peak rates require DL: 256QAM + 2CA(4 layers); UL: 64QAM + 2CA intra-bands. And TDD frame config 2 (DL/UL ratio 7:2) |
||
UMTS: WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) DL 42Mb/s(Category 24) HSUPA: UL 5.76Mb/s(Category 6) UL 11.5Mb/s(Category 7) |
Yes | |||
WiFi network | Standard | WiFi5, 802.11b/g/n/a/ac | Yes | |
Band & MIMO | 2.4G or 5G MIMO:5GHz 2*2 2.4GHz 2*2 |
Yes | ||
Speed |
2.4GHz MIMO 2*2 20M:>140Mbps(UDP) 5GHz MIMO 2*2 80M:>650Mbps(UDP) |
Yes | ||
Bandwidth | 2.4G: 20M 5G: 80M |
Yes | ||
Modulation | Up to 256QAM | Yes | ||
Default antenna | Internal antenna for all bands | Yes | ||
Antenna Gain | 2.4GHz 1.37dbi;5GHz: 2.34dbi | Yes | ||
Access number | up to 10 | Yes | ||
Interface | RJ45 interface | No | ||
RJ11 interface | No | |||
USB interface | 1 TypeC USB 3.0 | Yes | ||
External Antenna Ports | No | |||
USIM/SIM slot | 1*4FF, Standard 6PIN SIM card interface for 3V/1.8V SIM card | Yes | ||
Button | Power button | Yes | ||
Reset button | Yes | |||
WiFi 2.4G/5G Switch button | Yes | |||
WPS button | No | |||
LED | Power/Battery: White/Blue/Red | Yes | ||
WiFi: White/Blue | Yes | |||
Network: White/Blue/Red | Yes | |||
Singal Strength | No | |||
RJ45 port's LED | No | |||
Screen | Type: TFT Size: 2.44 inch Resolution: 128*128 |
No | ||
Battery | 4500mAh Li-ion battery, Removable | Yes | ||
Power consumption | Maximum power consumption | TBD | Yes | |
Environment Specifications | Ingress Protection | No | ||
Operating temperature | 0 to 35° C | Yes | ||
Storage temperature | -20 to 45° C | Yes | ||
Humidity | 5% to 95% | Yes | ||
Certification | Certification | CE, WEEE,ROHS,REACH,WiFi | Yes | |
Package contents | AC Adapter | No | ||
USB Cable | Yes | |||
Quick Start Guide | Yes | |||
User Manuel | Optional | |||
Warranty card | Optional | |||
EAN | Optional | |||
TAC | Optional | |||
Software Feature | Device Mode | Automatically mode (wireless or wire auto switch) | No | |
Daul WAN | No | |||
Hybird mode (wireless and wired are used at same time) | No | |||
Wireless mode | Yes | |||
Bridge mode | No | |||
Cable Broadband Mode | No | |||
IP networking | IPv4/IPv6 dual stack (NDP IPv6) | Yes | ||
DHCP server | Yes | |||
VPN pass-through(L2TP/PPTP/IPSec) | No | |||
VPN L2TP | No | |||
VPN PPTP | No | |||
VPN IPSec | No | |||
VPN GRE | No | |||
NAT/NAPT | Yes | |||
Sip ALG | No | |||
Multiple APNs | Optional | |||
Firewall | Port Forwarding | No | ||
Port Filtering | No | |||
Port Mapping | No | |||
Domain Filtering | No | |||
Upnp | No | |||
DMZ | No | |||
Remote Access/Ping switch | No | |||
MAC address filtering | No | |||
WiFi | WiFi Switch | Yes | ||
Bandsteering | No | |||
Security mode: WPA2-PSK/WPA3-PSK, WPA2-PSK, WPA3-PSK | Yes | |||
WiFi Broadcast | Yes | |||
WiFi Isolation | No | |||
Auto channel selection | Yes | |||
WPS | No | |||
EasyMesh | No | |||
GuestSSID support | No | |||
WiFi Sleep Mode | Yes | |||
Voice | VoNR | No | ||
VoLTE | No | |||
CSFB | No | |||
VoIP | No | |||
Device Managemnt | Connected device Management | Yes | ||
SMS | Yes | |||
PIN/PUK management | Yes | |||
APN management | Yes | |||
Lock Frequency/Lock Cell | Yes | |||
TR069 with TR181 data model default | No | |||
Upgrade: FOTA | Yes | |||
ZTE Smartlife APP | Yes | |||
Multiple languages: Arabic, Chinese, Danish, English, Finnish, French, German, Italian, Norwegian, Portuguese, Portuguese (Brazil), Russian, Spanish, Spanish (Latin America), Swede | Yes | |||
Device can FOTA/TR069/remotely access on bridge mode | No | |||
Special Feature | Green Mode: user can set the device to save the power | No | ||
Preferred Position:Can help user to find a good position | No | |||
NFC:Andriod phone touch can access the Router WiFi | Yes | support NFC Tag | ||
Device Diagnosis will list all device running key status and give fix solution | Yes | |||
PC/Phone/PAD WebUI management self-adaptation | Yes | |||
OpenWrt | No |
The Huawei 4G Router 3 Pro - B535-333 makes it possible to easily add an internet connection to an entire house or meeting room. Meaning there is no need to arrange for a physical broadband connection. Instead, you can insert a regular 4G SIM card, and you are ready to go.
The dual-core Balong chipset ensures you achieve incredible download speeds of up to 300 Mbps and upload speeds of up to 100 Mbps, so you and your entire family can enjoy the internet without needing a physical broadband connection.
With two built-in high gain 4G antennas and two external antennas interface, the Wi-Fi signal stability and strength are improved.
Not only does the Huawei 4G Router 3 Pro support dual Wi-Fi bands of 2.4GHz and 5 GHz, but it also combines them into one visible signal. Meaning it can provide a smooth and stable Wi-Fi experience without the hassle of manually having to select the best signal.
Dimensions 219mm x 138mm x 25.6mm
Weight About 325g
Communication Standard: 3GPP Release 11, LTE CAT7
Applicable Network: 4G
4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)
Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8
Antenna Type: LTE / UMTS main and diversity antennas
Wi-Fi
Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
Wireless Transmission Rate: DBDC, 1167Mbps
Wireless Frequency Band: 2.4GHz & 5GHz, band steering
Antenna Type: Dual-band Wi-Fi antenna
Antenna
Two 4G antenna extension ports, allowing users to purchase antennas
Processors
Balong chip, Gigahome dual-band Wi-Fi chip
Network Port
1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)
Button
Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS
Led Indicator
4G / Wi-Fi / Lan / Power / Signal Strength indicators
Power Supply
Power: < 12W
AC / DC Power Supply: AC: 100V - 240V 50Hz / 60Hz, DC: 12V / 1A
Environment
Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C
Humidity: 5% ~ 95% (non-condensing)
Create super-fast ad hoc networks capable of up to 300Mbps download speeds using the Huawei E5785-320. Connecting up to 10 devices for easy setup in a home or small office is possible, and the long-lasting 3000mAh battery offers up to 12 hours of internet access.
A 1.45-inch LCD shows helpful information, including the connection status and consumed data.
Connect up to 16 devices to a super fast, portable, 4G Wi-Fi hotspot with the Huawei E5577-320. It is ideal for creating an ad hoc network in a home or small office and can even be outside for internet access virtually anywhere.
Speed Download: 300 Mbps | Upload: 50 Mbps
Simultaneous Connections 10 Devices
Battery 3000mAh
Connect your team or friends to a reliable internet connection virtually anywhere with the CAT Q10 Rugged Mobile Hotspot. With its durable design, you can take it outside without worrying about rain, dust and drops.
The CAT Q10 is IP68 weatherproof and resistant to rain, snow, sand, dust, and dirt. In addition to being built to Military specification MIL-SPEC 810H for drop testing of up to 1.8 metres. Take it camping, onto construction sites, set up a temporary hotspot outside and more, as there is no need to worry about using and transporting this Mi-Fi.
It is easy to set up as it is possible to connect new devices using a QR code with the management of settings being accessible using a web portal.
Connect up to 32 devices and quickly move between hotspots using advanced security.
Stay connected for a day with the 5300 mAh battery, offering up to 10 hours on a single charge. It supports fast charging, and the battery is swappable so you can take a spare with you.
CAT Q10 Rugged Mobile Internet Hotspot
The HUAWEI Mobile Wi-Fi 3s is a low cost 4G mobile Wi-Fi hotspot with super-fast download speeds. It can keep you connected wherever and whenever with its lightning-fast 300Mbps LTE category 6 connection.
It is possible to connect up to 16 other devices to an LTE connection using the HUAWEI Mobile Wi-Fi 3s. Allowing you to share the internet with your friends and family and enjoy your time with them. It also lets you use your phone, tablet and other Wi-Fi devices at the same time.
A powerful 1500mAh battery and intelligent battery-saving make it more energy-efficient. So, you get enormous power in a compact body, which allows you to play for longer on the go.
Speed Download: 300Mbps
Upload: 50Mbps
Battery 1500mAh
3 x Internal Antennas
1 x Micro USB Interface
1 x SIM Card Slot (3FF)
Frequency Bands LTE: B1/B3/B7/B8/B20/B28/B32/B38/B40
