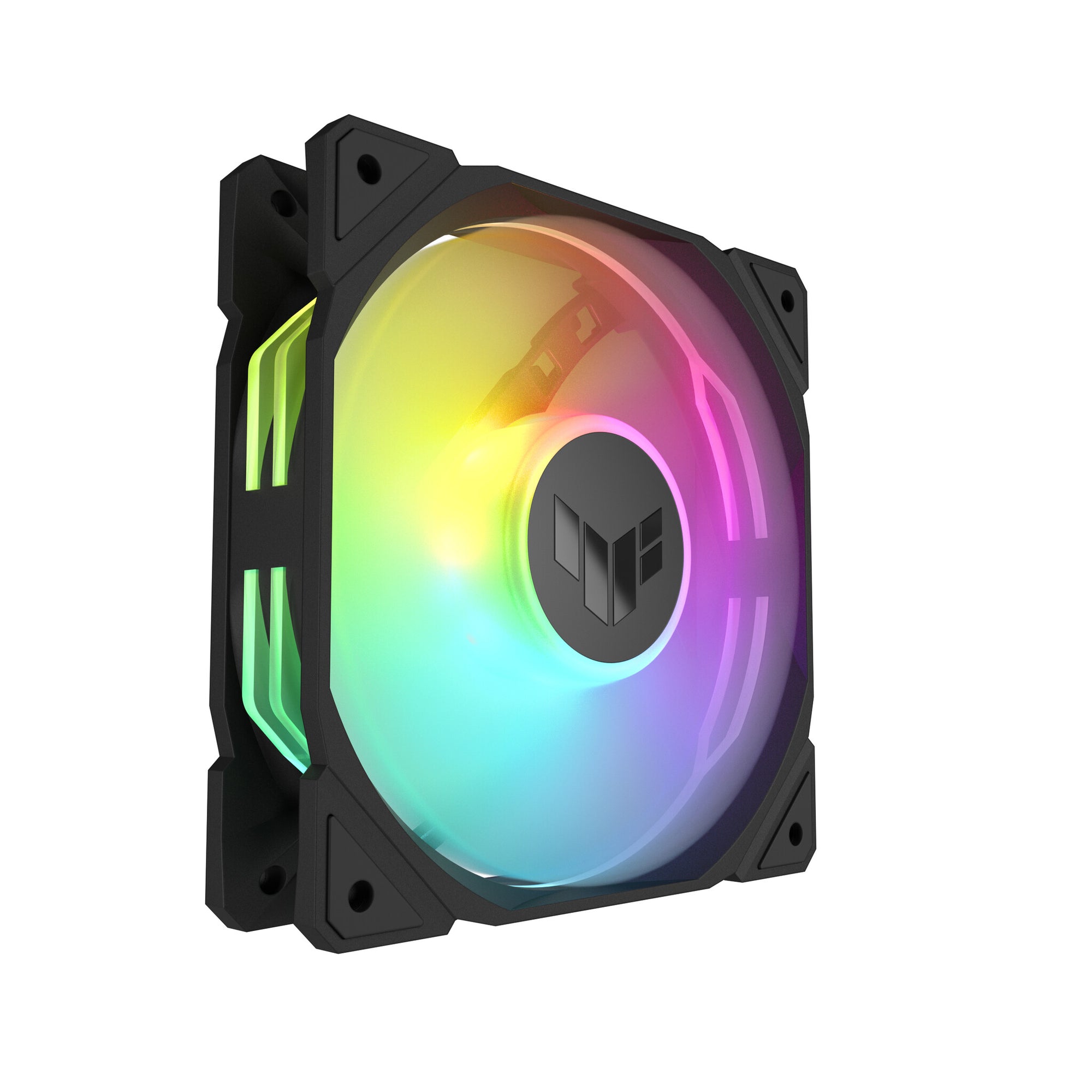

TUF GAMING TR120 ARGB REVERSE
This case fan stands out with its extra-thick 28mm fan frame, and it is meticulously crafted to provide optimal static pressure and airflow, ensuring heightened cooling performance. Its double-layered LED array and flexible side patterns, synchronized through Aura Sync, are tailor-made for your panoramic chassis or radiators. TUF Gaming TR120 ARGB Reverse offers dual colors and orientations, giving you the versatility to master both cooling efficiency and style for your gaming rigs.
Performance | |
---|---|
Fan static pressure | 2.75 mmH2O |
Fan speed (min) | 1800 RPM |
Fan speed (max) | 2200 RPM |
Bearing type | Hydraulic |
Pulse-width modulation (PWM) support | Yes |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Illumination colour | Multi |
Number of LEDs | 16 |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Product colour | Black |
Weight & dimensions | |
---|---|
Package weight | 695 g |
Package height | 90 mm |
Package depth | 125 mm |
Package width | 172 mm |
Fan dimensions (W x D x H) | 120 x 120 x 28 mm |
Weight | 515 g |
Packaging content | |
---|---|
Package type | Hanging box |
Other features | |
---|---|
Noise level | 29 dB |
Fan performance | 76.3 cfm |
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Performance | |
---|---|
Quantity per pack | 3 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.85 mmH2O |
Airflow | 82.91 m³/h |
Maximum airflow | 48.8 cfm |
Rotational speed (max) | 2000 RPM |
Compatible processor series | Not supported |
Supported processor sockets | Not supported |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Number of LEDs | 12 |
Illumination LED | Yes |
Number of fans | 1 fan(s) |
Material | Plastic |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.11 A |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 560 g |
Package height | 86 mm |
Package depth | 124 mm |
Package width | 127 mm |
Cable length | 0.48 m |
Weight | 131 g |
Height | 25 mm |
Depth | 120 mm |
Width | 120 mm |
Packaging content | |
---|---|
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

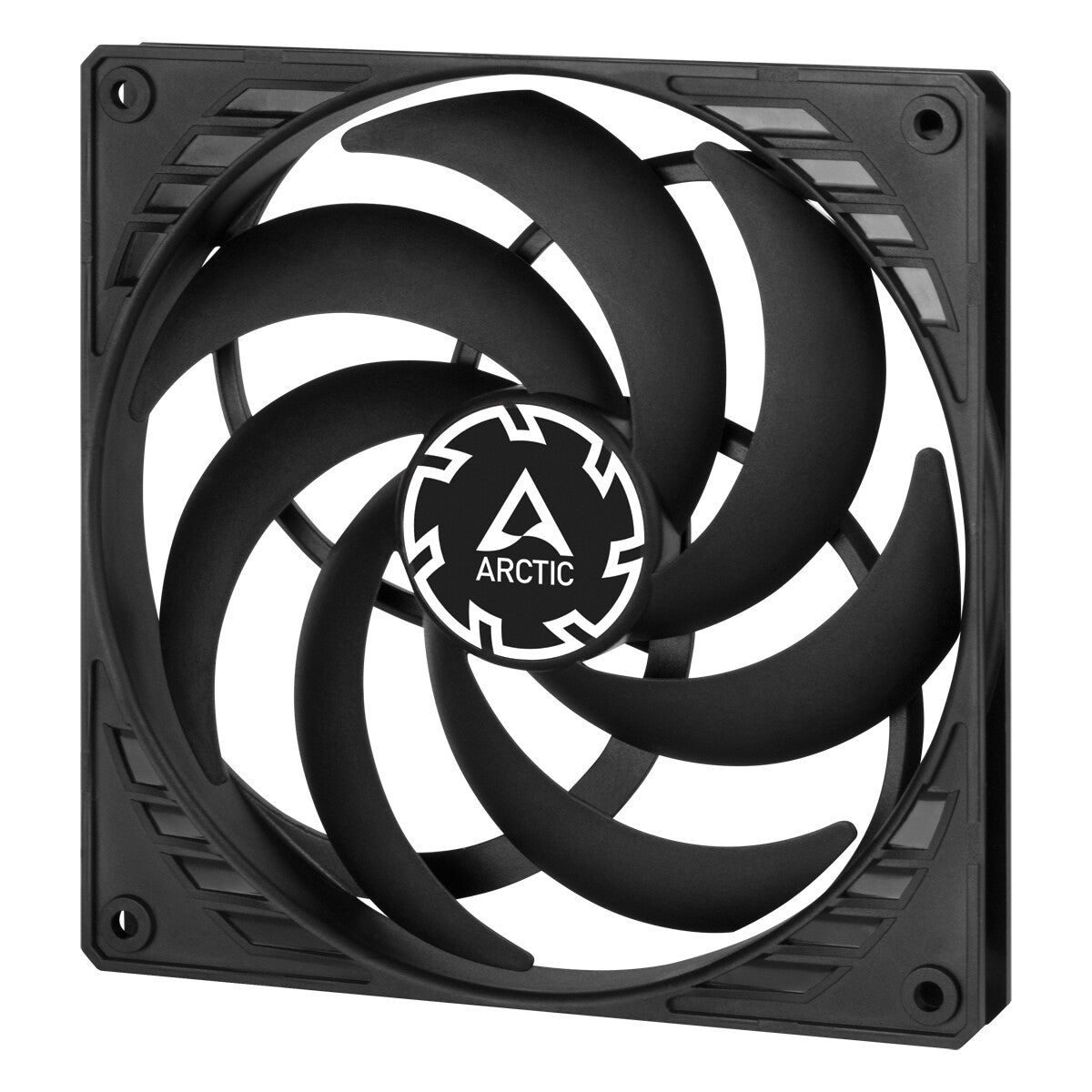

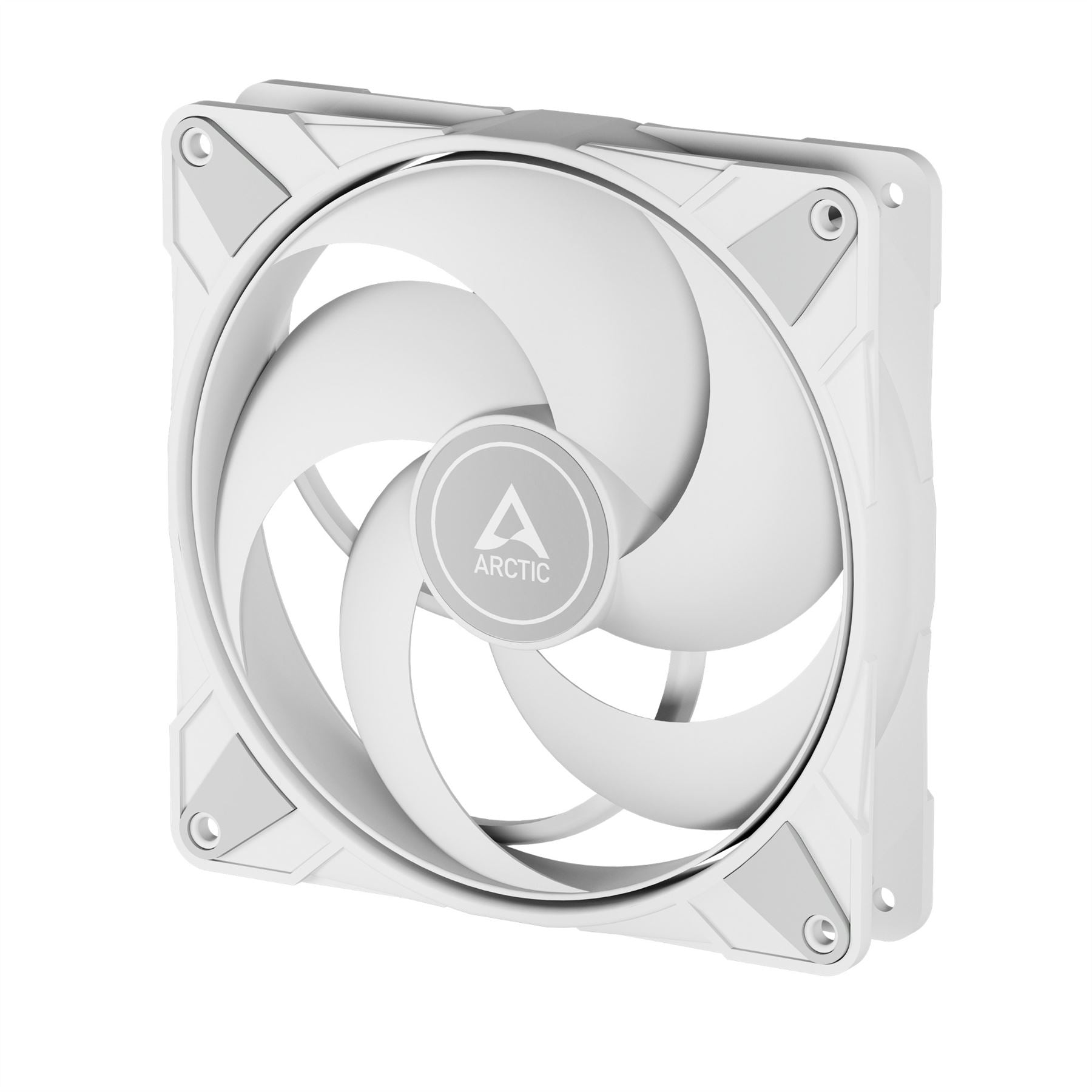

ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.55 mmH2O |
Airflow | 88.35 m³/h |
Maximum airflow | 52 cfm |
Noise level | 0.3 sone |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 150 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Product colour | Black |
Power | |
---|---|
Fan current | 0.19 A |
Starting voltage | 4 V |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Package height | 17 mm |
Package depth | 156 mm |
Package width | 143 mm |
Cable length | 0.48 m |
Fan weight | 109 g |
Fan dimensions (W x D x H) | 140 x 140 x 16 mm |
Weight | 109 g |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

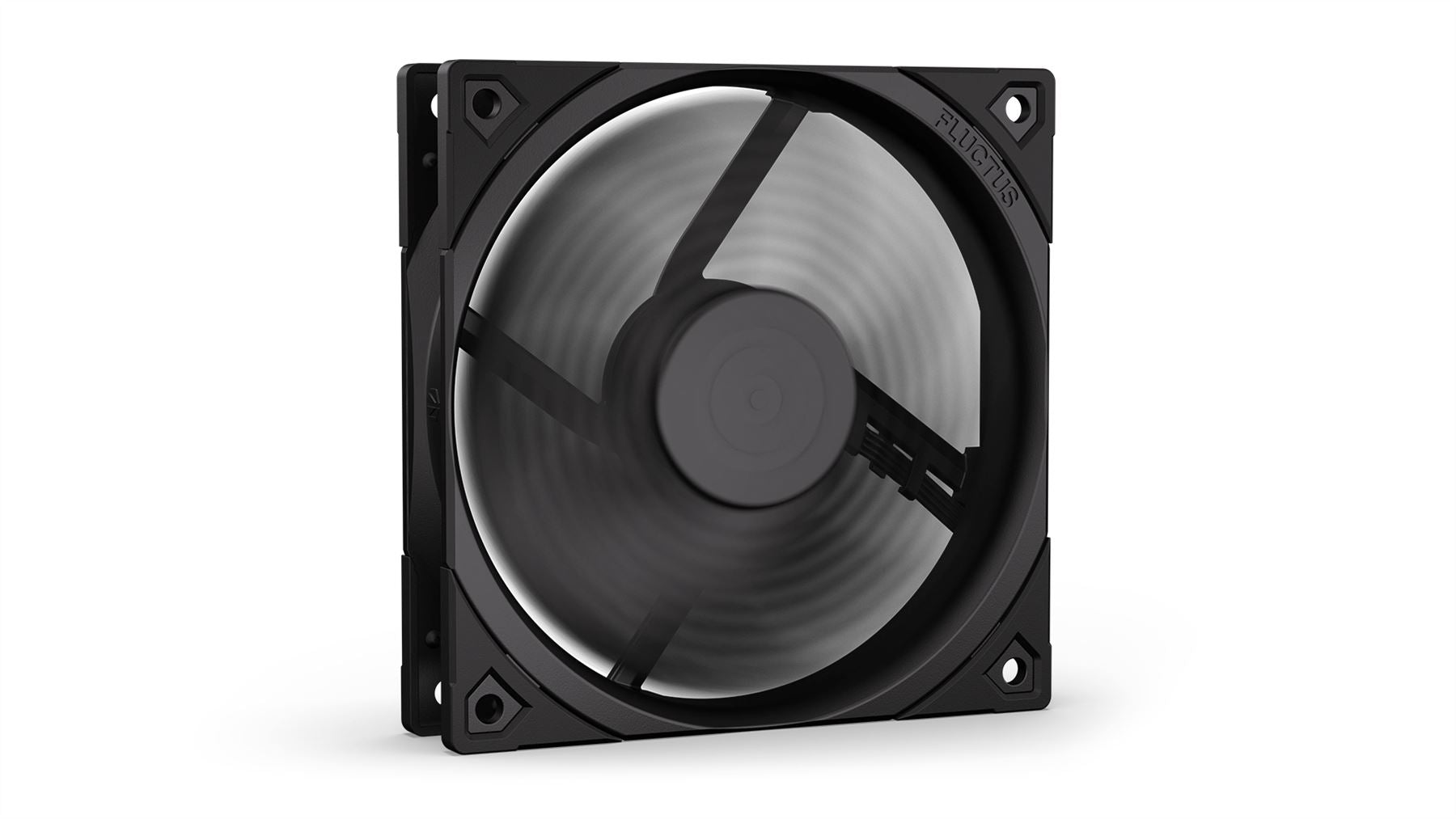

Discreet. Dynamic. Well-built. With the Fluctus 120 PWM, you will feel a cool breeze in your computer.
The Fluctus 120 PWM is a fan with an optional semi-passive mode. Although it’s just 12 cm tall, it could easily compete with larger opponents in a cooling power duel. It would probably also win in the "convenient size for almost any housing" category.
This device keeps its cool (literally!) when handling not only densely finned radiators in liquid cooling systems but also chassis with dust filters. It provides high efficiency and excellent performance in each case. It's also easy to install - even if you haven’t done that before. Just think about your friends’ jealous looks when you show them your piece of art!
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Bearing type | Fluid Dynamic Bearing (FDB) |
Type | Fan |
Fan diameter | 12 cm |
Mean time between failures (MTBF) | 100000 h |
Fan speed (min) | 250 RPM |
Fan speed (max) | 1800 RPM |
Design | |
Fan connector | 4-pin |
Product colour | Black |
Technical details | |
Type | Fan |
Fan diameter | 12 cm |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Fan voltage | 12 V |
Fan current | 0.3 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
Endurance | |
Mean time between failures (MTBF) | 100000 h |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Installation instruction | Yes |

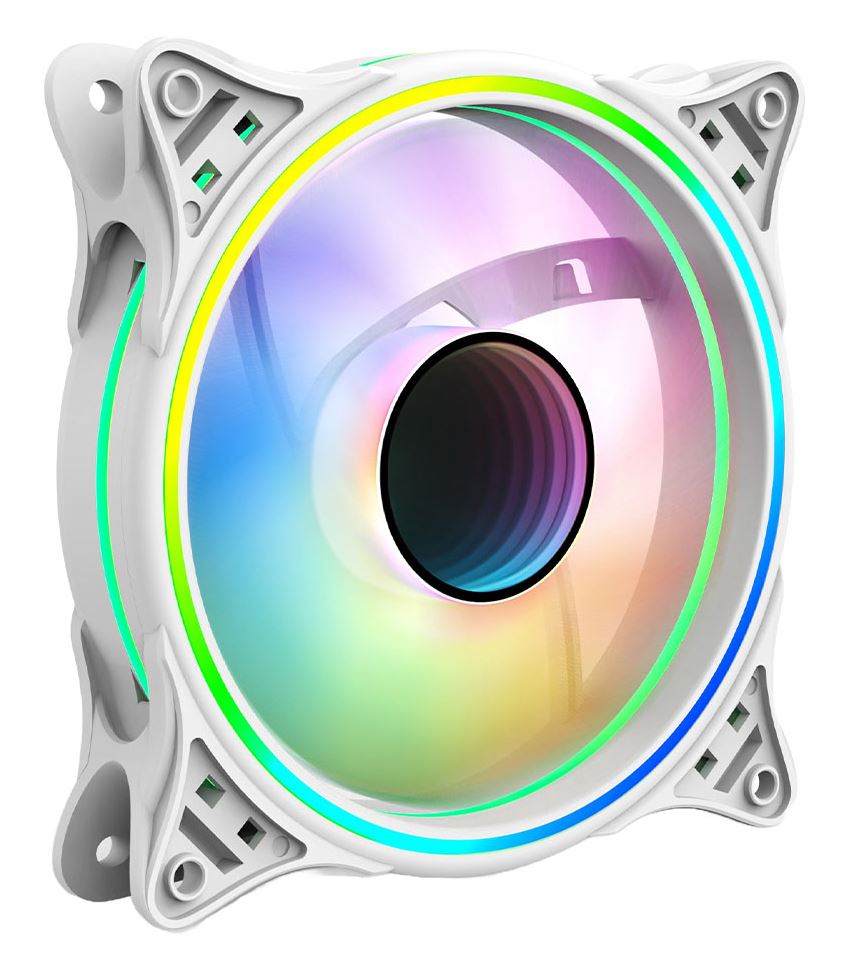

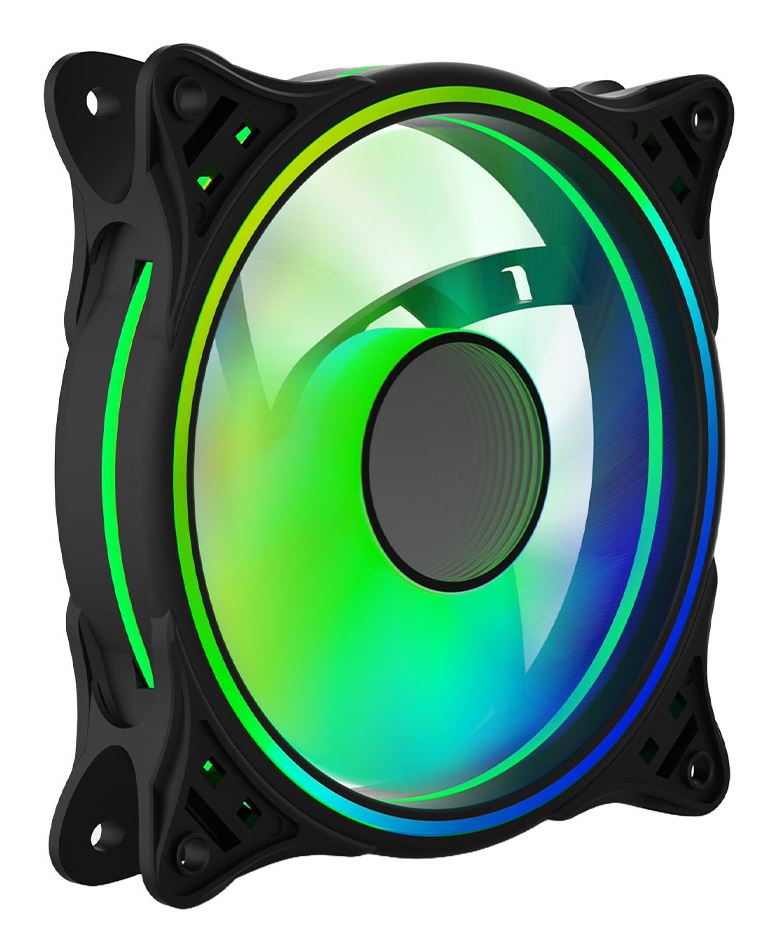

Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.
Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.
PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 - 1350 RPM.
Quiet operation
8 anti-vibration rubber pads and hydro bearing help the fan run quietly.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Rotational speed (min) | 240 RPM |
Rotational speed (max) | 1350 RPM |
Bearing type | Hydraulic |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 66.25 cfm |
Maximum airflow | 73.61 cfm |
Minimum air pressure | 1.3 mmH2O |
Maximum air pressure | 1.6 mmH2O |
Quantity per pack | 1 pc(s) |
Fan noise level (min) | 14.2 dB |
Fan noise level (max) | 29.9 dB |
Fan's mean time to failure (MTTF) | 30000 h |
Design | |
Fan connector | 4-pin |
Product colour | Black |
LED connector type | 3-pin |
Technical details | |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 66.25 cfm |
Maximum airflow | 73.61 cfm |
Minimum air pressure | 1.3 mmH2O |
Maximum air pressure | 1.6 mmH2O |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 7 - 13.8 V |
Rated current | 0.08 A |
Maximum current | 0.18 A |
LED voltage | 5 V |
Colour | |
Product colour | Black |
Weight & dimensions | |
Width | 140 mm |
Depth | 25 mm |
Height | 140 mm |
Other features | |
LED voltage | 5 V |

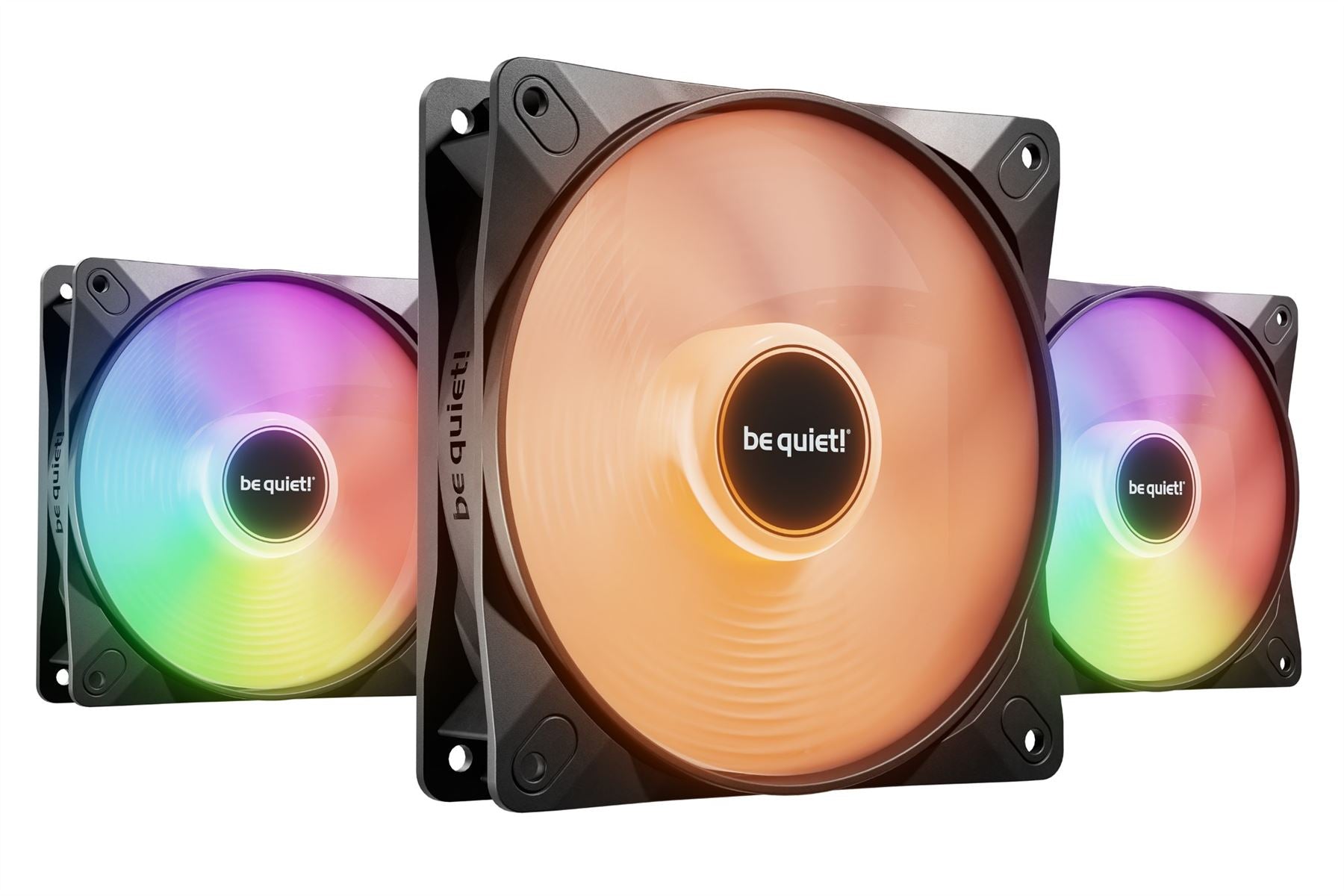

Great performance and impressive lighting
The Light Wings LX 140mm PWM Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
SHOW WHAT YOU GOT
A fan made for show cases
Light Wings LX 140mm PWM undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your showcase and let friends and family gaze in awe.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
16 LEDs are located inside the hub of the impeller of the Light Wings LX 140mm PWM and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
YOUR CASE FAN OF CHOICE
Optimized fan blades and frame
Light Wings LX 140mm PWM features a fan frame outlet that minimizes air leaks. In addition, the fan blades are optimized for maximum airflow, making this fan the best-in-class choice for virtually any case configuration.
DAISY CHAIN IT!
One connector for all your Light Wings LX fans
The ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX a long-lasting companion
Light Wings LX 140mm PWM is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1200 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 22.9 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 56 cfm |
Maximum air pressure | 0.9 mmH2O |
Airflow | 95 m³/h |
Number of fans | 3 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Number of fan blades | 7 |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 7 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 22.9 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 56 cfm |
Maximum air pressure | 0.9 mmH2O |
Airflow | 95 m³/h |
Number of fans | 3 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.3 A |
Fan power consumption | 3.6 W |
Fan current | 0.09 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Package depth | 184 mm |
Package width | 80 mm |
Package height | 142 mm |
Fan weight | 169 g |
Package weight | 580 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 184 mm |
Package width | 80 mm |
Package height | 142 mm |
Package weight | 580 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 30.9 cm |
Shipping (inner) case length | 42.8 cm |
Shipping (inner) case height | 36 cm |
Shipping (inner) case gross weight | 12.4 kg |
Products per shipping (inner) case | 20 pc(s) |

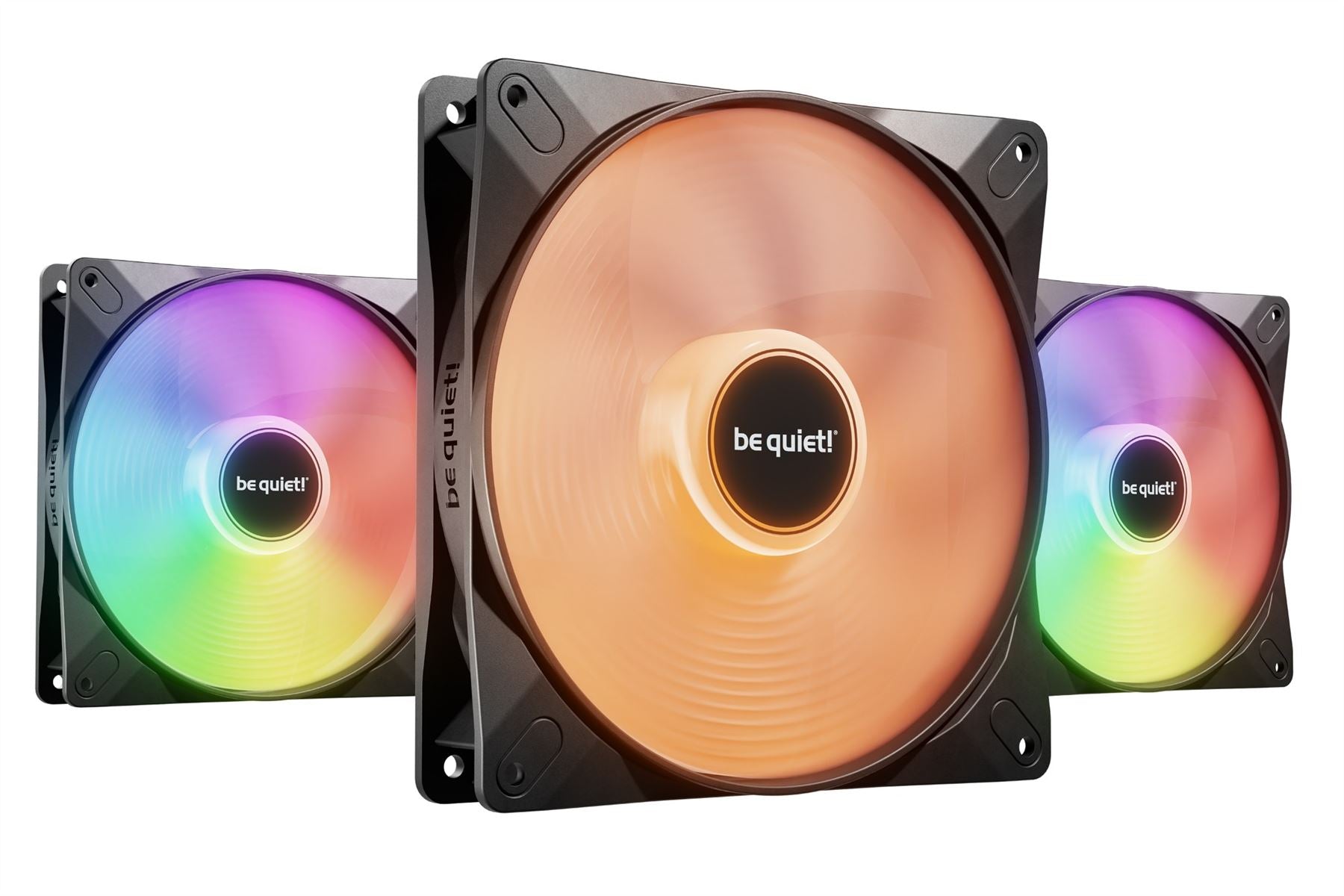

Great performance and impressive lighting
The Light Wings LX 140mm PWM White Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
SHOW WHAT YOU GOT
A fan made for show cases
Light Wings LX 140mm PWM White undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your showcase and let friends and family gaze in awe.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
16 LEDs are located inside the hub of the impeller of the Light Wings LX 140mm PWM White and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
YOUR CASE FAN OF CHOICE
Optimized fan blades and frame
Light Wings LX 140mm PWM White features a fan frame outlet that minimizes air leaks. In addition, the fan blades are optimized for maximum airflow, making this fan the best-in-class choice for virtually any case configuration.
DAISY CHAIN IT!
One connector for all your Light Wings LX fans
The ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX a long-lasting companion
Light Wings LX 140mm PWM White is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1200 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 22.9 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 56 cfm |
Maximum air pressure | 0.9 mmH2O |
Airflow | 95 m³/h |
Number of fans | 3 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Number of fan blades | 7 |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Illumination colour | Multi |
Product colour | White |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 7 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 22.9 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 56 cfm |
Maximum air pressure | 0.9 mmH2O |
Airflow | 95 m³/h |
Number of fans | 3 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.3 A |
Fan power consumption | 3.6 W |
Fan current | 0.09 A |
Colour | |
Product colour | White |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Package depth | 184 mm |
Package width | 80 mm |
Package height | 142 mm |
Fan weight | 169 g |
Package weight | 580 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 184 mm |
Package width | 80 mm |
Package height | 142 mm |
Package weight | 580 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 30.9 cm |
Shipping (inner) case length | 42.8 cm |
Shipping (inner) case height | 36 cm |
Shipping (inner) case gross weight | 12.4 kg |
Products per shipping (inner) case | 20 pc(s) |
Great performance and impressive lighting
The Light Wings LX 140mm PWM high-speed Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1800 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 30.5 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 75.3 cfm |
Maximum air pressure | 2.45 mmH2O |
Airflow | 127.9 m³/h |
Number of fans | 3 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Number of fan blades | 9 |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 9 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 30.5 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 75.3 cfm |
Maximum air pressure | 2.45 mmH2O |
Airflow | 127.9 m³/h |
Number of fans | 3 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.45 A |
Fan power consumption | 5.4 W |
Fan voltage | 12 V |
Fan current | 0.18 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Package depth | 184 mm |
Package width | 80 mm |
Package height | 142 mm |
Fan weight | 169 g |
Package weight | 590 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 184 mm |
Package width | 80 mm |
Package height | 142 mm |
Package weight | 590 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 30.9 cm |
Shipping (inner) case length | 42.8 cm |
Shipping (inner) case height | 36 cm |
Shipping (inner) case gross weight | 12.6 kg |
Products per shipping (inner) case | 20 pc(s) |
Great performance and impressive lighting
The Light Wings LX 120mm PWM boasts optimized fan blades and an illuminated impeller for great performance and lighting.
SHOW WHAT YOU GOT
A fan made for show cases
Light Wings LX 120mm PWM undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your showcase and let friends and family gaze in awe.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
16 LEDs are located inside the hub of the impeller of the Light Wings LX 120mm PWM and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
YOUR CASE FAN OF CHOICE
Optimized fan blades and frame
Light Wings LX 120mm PWM features a fan frame outlet that minimizes air leaks. In addition, the fan blades are optimized for maximum airflow, making this fan the best-in-class choice for virtually any case configuration.
DAISY CHAIN IT!
One connector for all your Light Wings LX fans
The ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX a long-lasting companion
Light Wings LX 120mm PWM is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1600 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 25.5 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 51.5 cfm |
Maximum air pressure | 1.34 mmH2O |
Airflow | 87.5 m³/h |
Number of fans | 1 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Number of fan blades | 7 |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 7 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 25.5 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 51.5 cfm |
Maximum air pressure | 1.34 mmH2O |
Airflow | 87.5 m³/h |
Number of fans | 1 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.32 A |
Fan power consumption | 3.8 W |
Fan current | 0.1 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 27 mm |
Fan weight | 133 g |
Package weight | 170 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 27 mm |
Package weight | 170 g |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Logistics data | |
Shipping (inner) case width | 31.9 cm |
Shipping (inner) case length | 43.3 cm |
Shipping (inner) case height | 29 cm |
Shipping (inner) case gross weight | 10.8 kg |
Products per shipping (inner) case | 60 pc(s) |
Great performance and impressive lighting
The Light Wings LX 120mm PWM Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1600 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 25.5 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 51.5 cfm |
Maximum air pressure | 1.34 mmH2O |
Airflow | 87.5 m³/h |
Number of fans | 3 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Number of fan blades | 7 |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 7 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 25.5 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 51.5 cfm |
Maximum air pressure | 1.34 mmH2O |
Airflow | 87.5 m³/h |
Number of fans | 3 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.32 A |
Fan power consumption | 3.8 W |
Fan voltage | 12 V |
Fan current | 0.1 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 80 mm |
Fan weight | 133 g |
Package weight | 470 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 80 mm |
Package weight | 470 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 26.9 cm |
Shipping (inner) case length | 42.8 cm |
Shipping (inner) case height | 32 cm |
Shipping (inner) case gross weight | 10.2 kg |
Products per shipping (inner) case | 20 pc(s) |

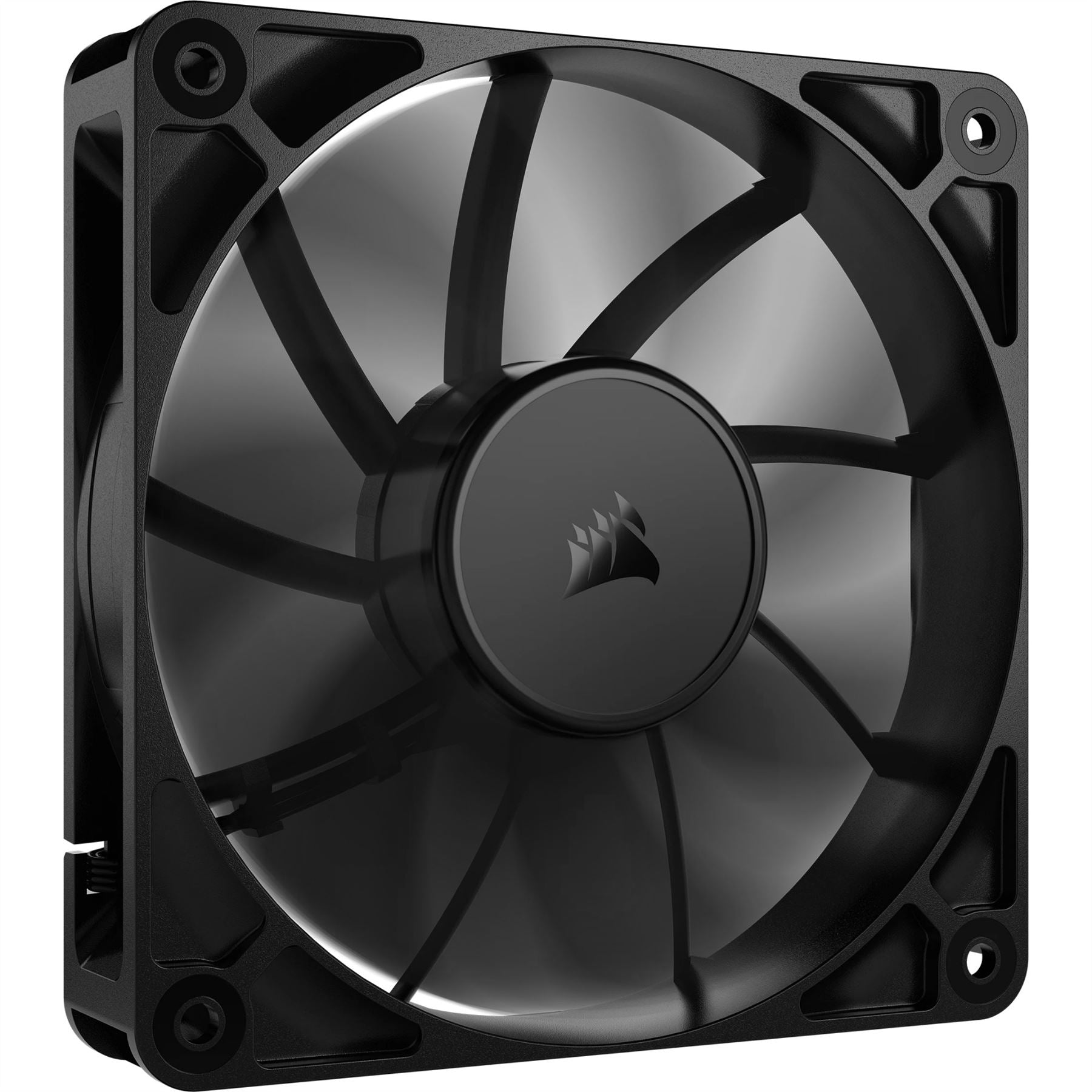

DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.

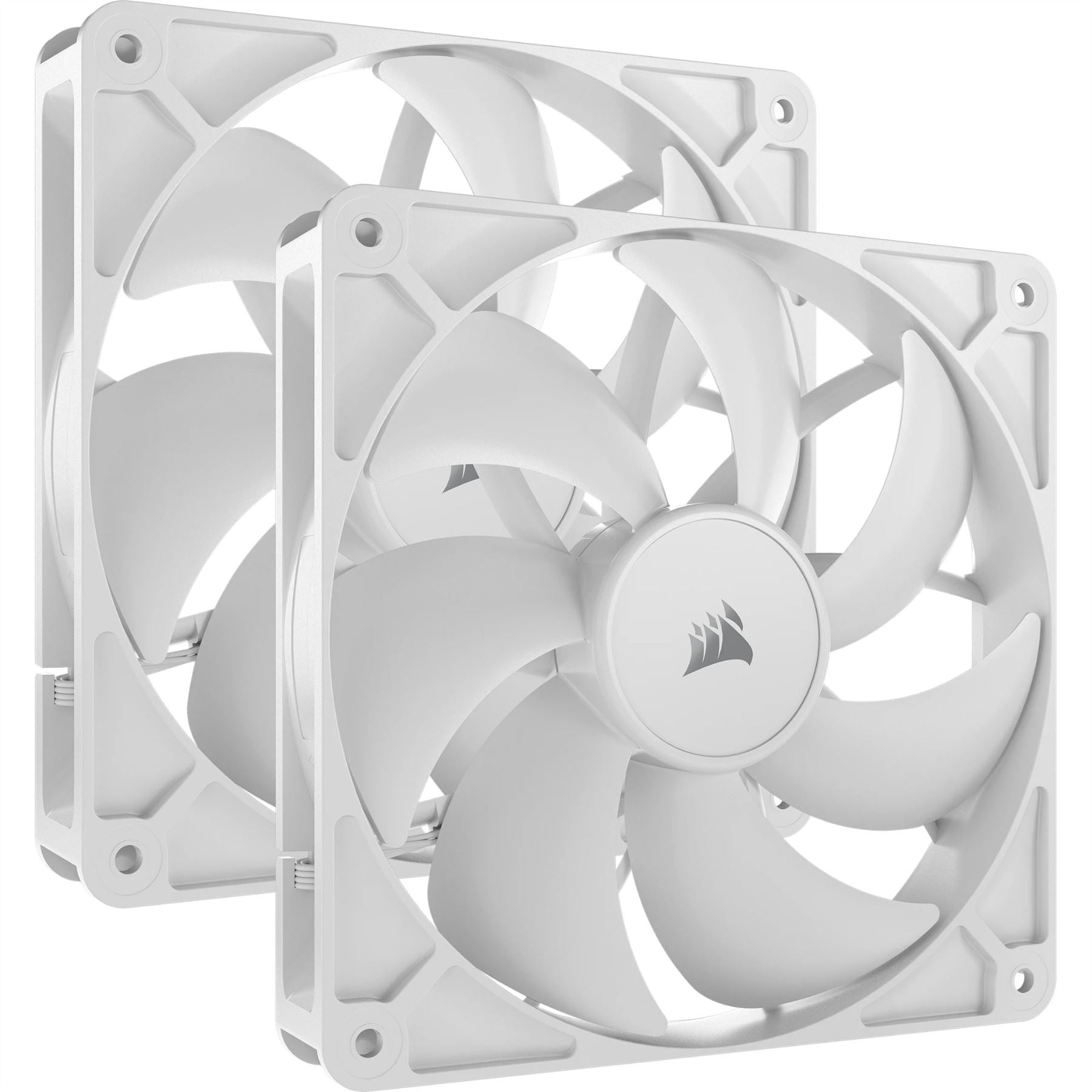

Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 330 RPM |
Rotational speed (max) | 1700 RPM |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 14.6 cfm |
Maximum airflow | 95.5 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 3.46 mmH2O |
Number of fans | 2 fan(s) |
Quantity per pack | 2 pc(s) |
Design | |
Fan connector | 4-pin |
Number of fans | 2 fan(s) |
Product colour | White |
Technical details | |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 14.6 cfm |
Maximum airflow | 95.5 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 3.46 mmH2O |
Number of fans | 2 fan(s) |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Fan current | 0.45 A |
Colour | |
Product colour | White |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Fan weight | 624 g |
Packaging data | |
Package type | Box |
Packaging content | |
Screws included | Yes |
Number of screws | 8 |
Package type | Box |
Great performance and impressive lighting
The Light Wings LX 140mm PWM boasts optimized fan blades and an illuminated impeller for great performance and lighting.
SHOW WHAT YOU GOT
A fan made for show cases
Light Wings LX 140mm PWM undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your showcase and let friends and family gaze in awe.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
16 LEDs are located inside the hub of the impeller of the Light Wings LX 140mm PWM and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
YOUR CASE FAN OF CHOICE
Optimized fan blades and frame
Light Wings LX 140mm PWM features a fan frame outlet that minimizes air leaks. In addition, the fan blades are optimized for maximum airflow, making this fan the best-in-class choice for virtually any case configuration.
DAISY CHAIN IT!
One connector for all your Light Wings LX fans
The ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX a long-lasting companion
Light Wings LX 140mm PWM is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1200 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 22.9 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 56 cfm |
Maximum air pressure | 0.9 mmH2O |
Airflow | 95 m³/h |
Number of fans | 1 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Number of fan blades | 7 |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 7 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 22.9 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 56 cfm |
Maximum air pressure | 0.9 mmH2O |
Airflow | 95 m³/h |
Number of fans | 1 fan(s) |
Fan connector | 4-pin |
Illumination LED | Yes |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.3 A |
Fan current | 0.09 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Package depth | 184 mm |
Package width | 142 mm |
Package height | 27 mm |
Fan weight | 165 g |
Package weight | 200 g |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 184 mm |
Package width | 142 mm |
Package height | 27 mm |
Package weight | 200 g |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Logistics data | |
Shipping (inner) case width | 37.8 cm |
Shipping (inner) case length | 49.4 cm |
Shipping (inner) case height | 33 cm |
Shipping (inner) case gross weight | 15.8 kg |
Products per shipping (inner) case | 72 pc(s) |

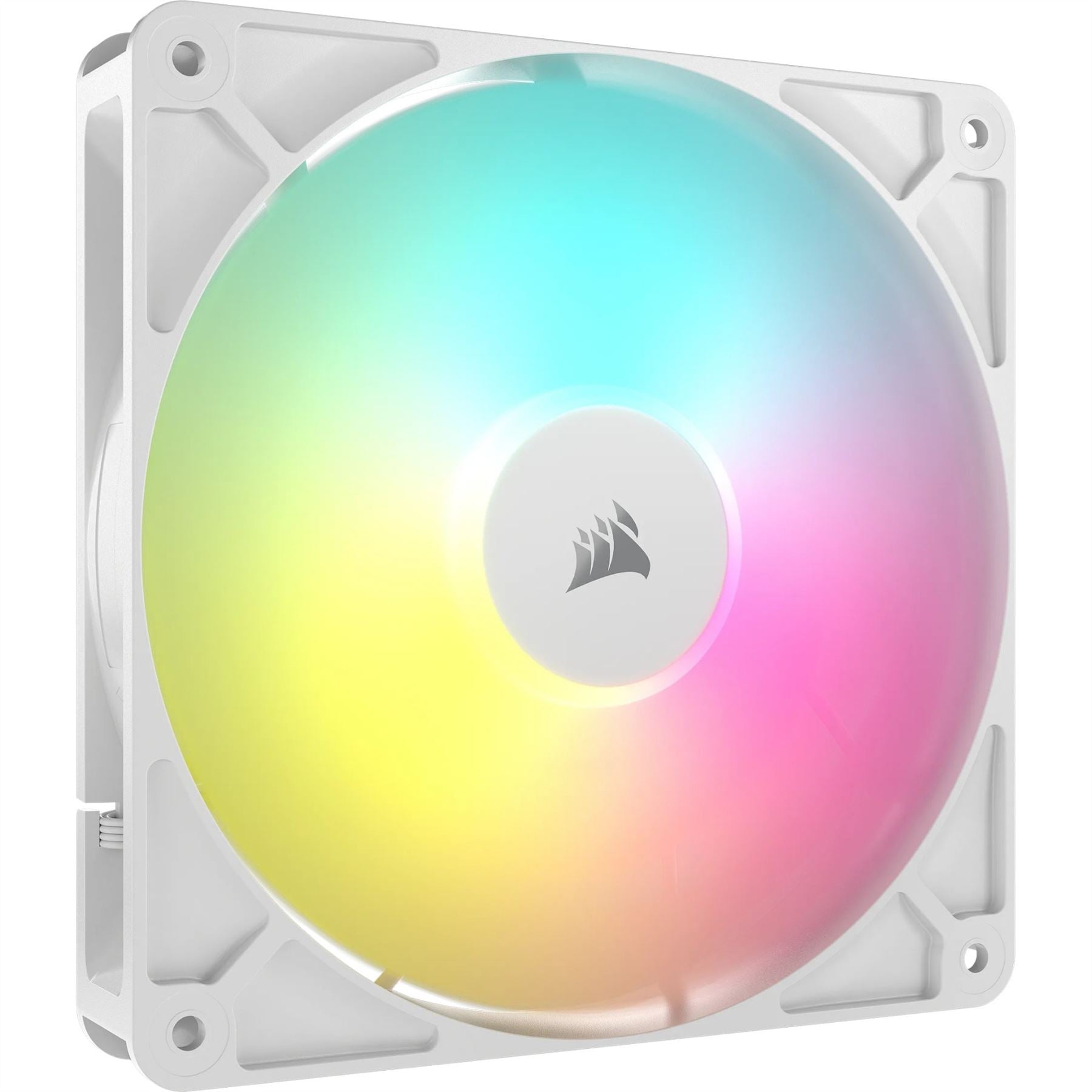

DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 420 RPM |
Rotational speed (max) | 2100 RPM |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 12 cm |
Minimum airflow (imperial) | 13.3 cfm |
Maximum airflow | 72.8 cfm |
Minimum air pressure | 0.2 mmH2O |
Maximum air pressure | 4.15 mmH2O |
Number of fans | 3 fan(s) |
Quantity per pack | 3 pc(s) |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Product colour | White |
Technical details | |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 12 cm |
Minimum airflow (imperial) | 13.3 cfm |
Maximum airflow | 72.8 cfm |
Minimum air pressure | 0.2 mmH2O |
Maximum air pressure | 4.15 mmH2O |
Number of fans | 3 fan(s) |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Fan current | 0.4 A |
Colour | |
Product colour | White |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan weight | 704 g |
Packaging data | |
Package type | Box |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Great performance and impressive lighting
The Light Wings LX 120mm PWM White Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1600 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 25.5 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 51.5 cfm |
Maximum air pressure | 1.34 mmH2O |
Airflow | 87.5 m³/h |
Number of fans | 3 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Number of fan blades | 7 |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Illumination colour | Multi |
Product colour | White |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 7 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 25.5 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 51.5 cfm |
Maximum air pressure | 1.34 mmH2O |
Airflow | 87.5 m³/h |
Number of fans | 3 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.32 A |
Fan power consumption | 3.8 W |
Fan voltage | 12 V |
Fan current | 0.1 A |
Colour | |
Product colour | White |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 80 mm |
Fan weight | 133 g |
Package weight | 470 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 80 mm |
Package weight | 470 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 26.9 cm |
Shipping (inner) case length | 42.8 cm |
Shipping (inner) case height | 32 cm |
Shipping (inner) case gross weight | 10.2 kg |
Products per shipping (inner) case | 20 pc(s) |
Great performance and impressive lighting
The Light Wings LX 120mm PWM high-speed boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 2100 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 30.9 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 61.8 cfm |
Maximum air pressure | 2.51 mmH2O |
Airflow | 105.1 m³/h |
Number of fans | 1 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Number of fan blades | 9 |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 9 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 30.9 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 61.8 cfm |
Maximum air pressure | 2.51 mmH2O |
Airflow | 105.1 m³/h |
Number of fans | 1 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Voltage | 5 - 13.2 V |
Maximum current | 0.45 A |
Fan power consumption | 5.4 W |
Fan voltage | 12 V |
Fan current | 0.15 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 27 mm |
Width | 120 mm |
Package weight | 210 g |
Depth | 120 mm |
Height | 25 mm |
Weight | 135 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 27 mm |
Package weight | 210 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 31.9 cm |
Shipping (inner) case length | 43.3 cm |
Shipping (inner) case height | 29 cm |
Shipping (inner) case gross weight | 10.9 kg |
Products per shipping (inner) case | 60 pc(s) |

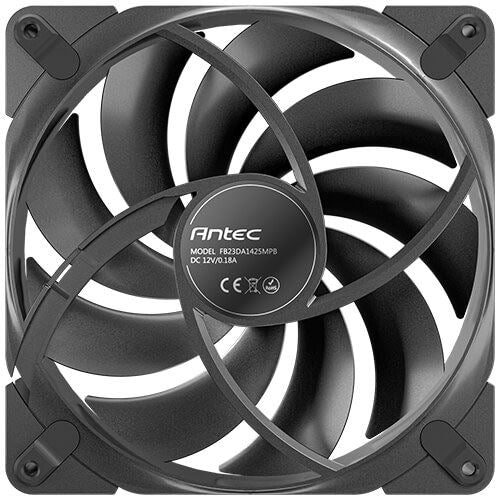

TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.
EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.
Fluid Dynamic Bearing
Reduces friction between shaft and bearing for longer life and minimal noise.
VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 21.13 cfm |
Maximum airflow | 85.96 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 1.79 mmH2O |
Quantity per pack | 1 pc(s) |
Fan noise level (min) | 18.6 dB |
Fan noise level (max) | 27.5 dB |
Fan speed (min) | 450 RPM |
Fan speed (max) | 1500 RPM |
Fan's mean time to failure (MTTF) | 50000 h |
Design | |
Fan connector | 4-pin |
Product colour | Black |
Technical details | |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 21.13 cfm |
Maximum airflow | 85.96 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 1.79 mmH2O |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 7 - 13.8 V |
Rated current | 0.12 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Width | 140 mm |
Depth | 25 mm |
Height | 140 mm |
Packaging data | |
Package type | Box |
Packaging content | |
Cables included | 4-pin |
Package type | Box |
Great performance and impressive lighting
The Light Wings LX 140mm PWM high-speed boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1800 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 30.5 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 75.3 cfm |
Maximum air pressure | 2.45 mmH2O |
Airflow | 127.9 m³/h |
Number of fans | 1 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Number of fan blades | 9 |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 9 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 30.5 dB |
Type | Fan |
Fan diameter | 14 cm |
Maximum airflow | 75.3 cfm |
Maximum air pressure | 2.45 mmH2O |
Airflow | 127.9 m³/h |
Number of fans | 1 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.45 A |
Fan power consumption | 5.4 W |
Fan voltage | 12 V |
Fan current | 0.18 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Package depth | 184 mm |
Package width | 142 mm |
Package height | 27 mm |
Width | 140 mm |
Package weight | 210 g |
Depth | 140 mm |
Height | 25 mm |
Weight | 169 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 184 mm |
Package width | 142 mm |
Package height | 27 mm |
Package weight | 210 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 37.8 cm |
Shipping (inner) case length | 49.4 cm |
Shipping (inner) case height | 33 cm |
Shipping (inner) case gross weight | 16.1 kg |
Products per shipping (inner) case | 72 pc(s) |
Great performance and impressive lighting
The Light Wings LX 120mm PWM high-speed Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 2100 RPM |
Bearing type | Rifle bearing |
Noise level (high speed) | 30.9 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 61.8 cfm |
Maximum air pressure | 2.51 mmH2O |
Airflow | 105.1 m³/h |
Number of fans | 3 fan(s) |
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 3 pc(s) |
Number of fan blades | 9 |
Design | |
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Cable length | 0.5 m |
Illumination LED | Yes |
Number of LEDs | 16 |
Number of fan blades | 9 |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 30.9 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 61.8 cfm |
Maximum air pressure | 2.51 mmH2O |
Airflow | 105.1 m³/h |
Number of fans | 3 fan(s) |
Cable length | 0.5 m |
Fan connector | 4-pin |
Illumination LED | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, RoHS, UKCA, WEEE |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated voltage | 12 V |
Voltage | 5 - 13.2 V |
Maximum current | 0.45 A |
Fan power consumption | 5.4 W |
Fan voltage | 12 V |
Fan current | 0.15 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 80 mm |
Fan weight | 135 g |
Package weight | 480 g |
Cable length | 0.5 m |
Endurance | |
Mean time between failures (MTBF) | 60000 h |
Packaging data | |
Package depth | 164 mm |
Package width | 122 mm |
Package height | 80 mm |
Package weight | 480 g |
Package type | Box |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 12 |
Package type | Box |
Logistics data | |
Shipping (inner) case width | 26.9 cm |
Shipping (inner) case length | 42.8 cm |
Shipping (inner) case height | 32 cm |
Shipping (inner) case gross weight | 10.3 kg |
Products per shipping (inner) case | 20 pc(s) |
DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 330 RPM |
Rotational speed (max) | 1700 RPM |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 14.6 cfm |
Maximum airflow | 95.5 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 3.46 mmH2O |
Number of fans | 1 fan(s) |
Quantity per pack | 1 pc(s) |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | White |
Technical details | |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 14.6 cfm |
Maximum airflow | 95.5 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 3.46 mmH2O |
Number of fans | 1 fan(s) |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Fan current | 0.45 A |
Colour | |
Product colour | White |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Fan weight | 293 g |
Packaging data | |
Package type | Box |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Package type | Box |

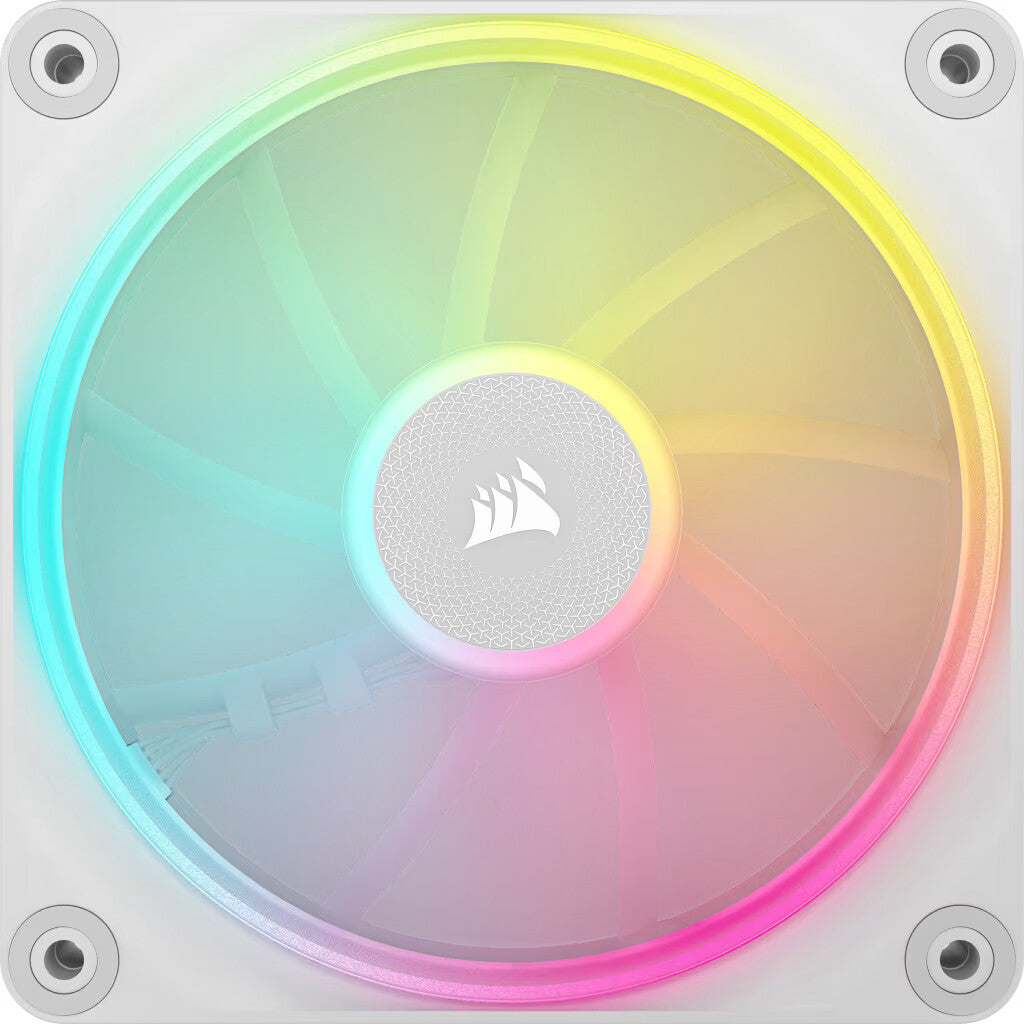

DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS ARGB Series fans in sequence and control them all through just one 4-pin PWM connector and one +5V ARGB connector on your motherboard.
LIGHTING MADE EASY
Just plug in and start customizing with your motherboard’s ARGB software suite, including ASUS Aura Sync, MSI Mystic Light Sync, ASRock RGB, and Gigabyte RGB Fusion.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS ARGB fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS ARGB fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 330 RPM |
Rotational speed (max) | 1700 RPM |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 14.6 cfm |
Maximum airflow | 95.5 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 3.46 mmH2O |
Number of fans | 1 fan(s) |
Quantity per pack | 1 pc(s) |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | White |
Illumination LED | Yes |
Number of LEDs | 8 |
Technical details | |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 14 cm |
Minimum airflow (imperial) | 14.6 cfm |
Maximum airflow | 95.5 cfm |
Minimum air pressure | 0.11 mmH2O |
Maximum air pressure | 3.46 mmH2O |
Number of fans | 1 fan(s) |
Fan connector | 4-pin |
Illumination LED | Yes |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Rated current | 0.45 A |
Colour | |
Product colour | White |
Weight & dimensions | |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Fan weight | 293 g |
Indication | |
Illumination colour | Multi |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency.
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
STRENGTH IN NUMBERS
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 420 RPM |
Rotational speed (max) | 2100 RPM |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 12 cm |
Minimum airflow (imperial) | 13.3 cfm |
Maximum airflow | 72.8 cfm |
Minimum air pressure | 0.2 mmH2O |
Maximum air pressure | 4.15 mmH2O |
Number of fans | 1 fan(s) |
Quantity per pack | 1 pc(s) |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | Black |
Technical details | |
Noise level (low speed) | 10 dB |
Noise level (high speed) | 36 dB |
Type | Fan |
Fan diameter | 12 cm |
Minimum airflow (imperial) | 13.3 cfm |
Maximum airflow | 72.8 cfm |
Minimum air pressure | 0.2 mmH2O |
Maximum air pressure | 4.15 mmH2O |
Number of fans | 1 fan(s) |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Fan current | 0.4 A |
Colour | |
Product colour | Black |
Weight & dimensions | |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan weight | 239 g |
Packaging data | |
Package type | Box |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Package type | Box |
Introducing the Vida Infinity 120mm ARGB Case Fan – where brilliance knows no bounds! This fan is a visual marvel, featuring both an outer and inner ring of addressable RGB lighting that creates a mesmerizing and infinite play of colours. Beyond its stunning aesthetics, the Infinity fan is engineered for peak performance, delivering optimal airflow for effective cooling. Designed with a standard 120mm size, it seamlessly integrates into various setups while making a bold statement. Illuminate your PC experience with the Vida Infinity fan, where style meets substance. Backed by Vida's commitment to excellence, this fan is the perfect choice for those who seek an immersive and visually captivating addition to their gaming or work environment.
Performance | |
---|---|
Suitable location | Processor |
Fan connector | 3-pin + 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 500 RPM |
Rotational speed (max) | 2000 RPM |
Bearing type | Hydraulic |
Noise level (high speed) | 12 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 48 cfm |
Number of fans | 1 fan(s) |
Design | |
Fan connector | 3-pin + 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | Black |
Illumination LED | Yes |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 12 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 48 cfm |
Number of fans | 1 fan(s) |
Fan connector | 3-pin + 4-pin |
Illumination LED | Yes |
Warranty period | 1 year(s) |
Ports & interfaces | |
Fan connector | 3-pin + 4-pin |
Colour | |
Product colour | Black |
Weight & dimensions | |
Width | 123 mm |
Depth | 28 mm |
Height | 140 mm |
Indication | |
Illumination colour | Multi |
Introducing the Vida Infinity 120mm ARGB Case Fan – where brilliance knows no bounds! This fan is a visual marvel, featuring both an outer and inner ring of addressable RGB lighting that creates a mesmerizing and infinite play of colours. Beyond its stunning aesthetics, the Infinity fan is engineered for peak performance, delivering optimal airflow for effective cooling. Designed with a standard 120mm size, it seamlessly integrates into various setups while making a bold statement. Illuminate your PC experience with the Vida Infinity fan, where style meets substance. Backed by Vida's commitment to excellence, this fan is the perfect choice for those who seek an immersive and visually captivating addition to their gaming or work environment.
Performance | |
---|---|
Suitable location | Processor |
Fan connector | 3-pin + 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 500 RPM |
Rotational speed (max) | 2000 RPM |
Bearing type | Hydraulic |
Noise level (high speed) | 12 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 48 cfm |
Number of fans | 1 fan(s) |
Design | |
Fan connector | 3-pin + 4-pin |
Number of fans | 1 fan(s) |
Illumination colour | Multi |
Product colour | White |
Illumination LED | Yes |
LED connector type | 3-pin |
Technical details | |
Noise level (high speed) | 12 dB |
Type | Fan |
Fan diameter | 12 cm |
Maximum airflow | 48 cfm |
Number of fans | 1 fan(s) |
Fan connector | 3-pin + 4-pin |
Illumination LED | Yes |
Warranty period | 1 year(s) |
Ports & interfaces | |
Fan connector | 3-pin + 4-pin |
Colour | |
Product colour | White |
Weight & dimensions | |
Width | 123 mm |
Depth | 28 mm |
Height | 140 mm |
Indication | |
Illumination colour | Multi |
ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.
Performance | |
---|---|
Suitable location | Computer case |
Fan connector | 4-pin |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (min) | 400 RPM |
Rotational speed (max) | 2800 RPM |
Bearing type | Fluid Dynamic Bearing (FDB) |
Type | Fan |
Operating temperature (T-T) | 0 - 40 °C |
Fan diameter | 14 cm |
Supported processor sockets | Not supported |
Compatible processor series | Not supported |
Maximum airflow | 95 cfm |
Maximum air pressure | 4.18 mmH2O |
Airflow | 161.4 m³/h |
Number of fans | 1 fan(s) |
Number of fan blades | 5 |
Design | |
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Product colour | White |
Cable length | 0.4 m |
Number of fan blades | 5 |
Technical details | |
Type | Fan |
Fan diameter | 14 cm |
Supported processor sockets | Not supported |
Compatible processor series | Not supported |
Maximum airflow | 95 cfm |
Maximum air pressure | 4.18 mmH2O |
Airflow | 161.4 m³/h |
Number of fans | 1 fan(s) |
Cable length | 0.4 m |
Fan connector | 4-pin |
Ports & interfaces | |
Fan connector | 4-pin |
Power | |
Starting voltage | 3.9 V |
Voltage | 12 V |
Rated current | 0.35 A |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Colour | |
Product colour | White |
Weight & dimensions | |
Package depth | 167 mm |
Package width | 167 mm |
Package height | 34 mm |
Width | 140 mm |
Package weight | 303 g |
Depth | 140 mm |
Height | 27 mm |
Weight | 254 g |
Cable length | 0.4 m |
Packaging data | |
Package depth | 167 mm |
Package width | 167 mm |
Package height | 34 mm |
Package weight | 303 g |
Package type | Box |
Packaging content | |
Screws included | Yes |
Number of screws | 4 |
Package type | Box |
