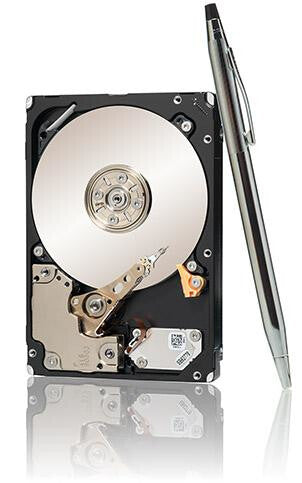

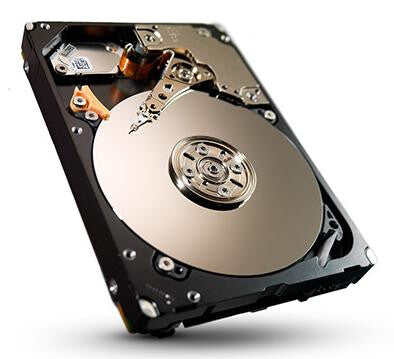

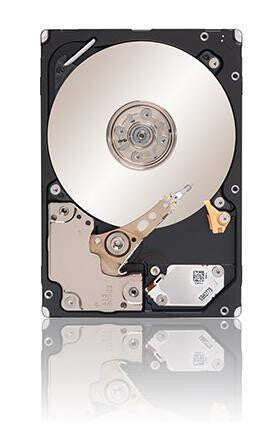

The Seagate® Savvio® 10K.5 hard drive enables OEMs, system builders and data centers to:
- Improve storage efficiency;
- Ease capacity, interface and form factor transitions;
- Ensure data integrity and protection throughout the storage process even if the device is lost or stolen.
Key Features and Benefits
- Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives;
- First SFF drive to offer four capacity points on a single platform;
- Industry-leading 0.44% AFR for field-proven reliability;
- Improves performance for faster data storage and access;
- Reduces power consumption and enables green IT initiatives;
- PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption;
- Reduces system design, qualification and inventory costs for OEMs;
- Enables data centers to better manage hard drive transitions;
- Protection Information protects against inadvertent data change;
- Optional Self-Encrypting Drive (SED) models help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired;
- Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards.
Features | |
---|---|
Mean time between failures (MTBF) | 2000000 h |
Average latency | 3 ms |
Read seek time | 3.7 ms |
Write seek time | 4.1 ms |
HDD number of heads | 6 |
Storage drive buffer size | 64 MB |
Component for | Server/workstation |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 900 GB |
HDD size | 2.5" |
Power | |
---|---|
Start-up current | 1 A |
Operating voltage | 5 V |
Power consumption (idle) | 4.42 W |
Operational conditions | |
---|---|
Non-operating shock | 400 G |
Operating shock | 40 G |
Non-operating vibration | 3.0 Gs |
Operating vibration | 0.5 Gs |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
General | |
---|---|
Product Family | Savvio |
Weight & dimensions | |
---|---|
Weight | 205 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 70.1 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Acoustic pressure emissions | 3 dB |
Sustained data rate | 168 MB/s |
Internal | Yes |
Data transfer rate | 6 Gbit/s |
