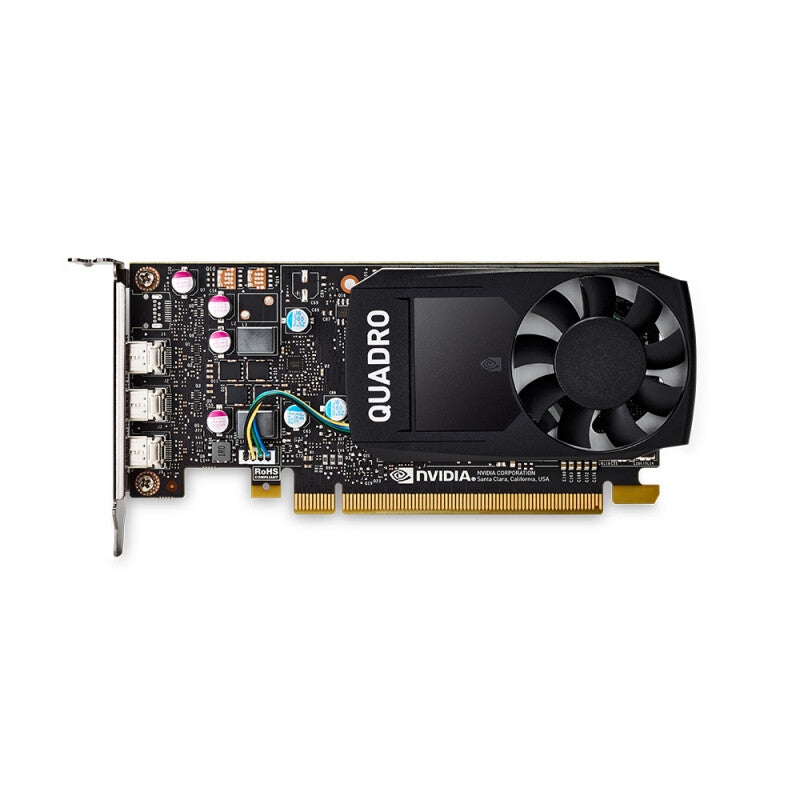

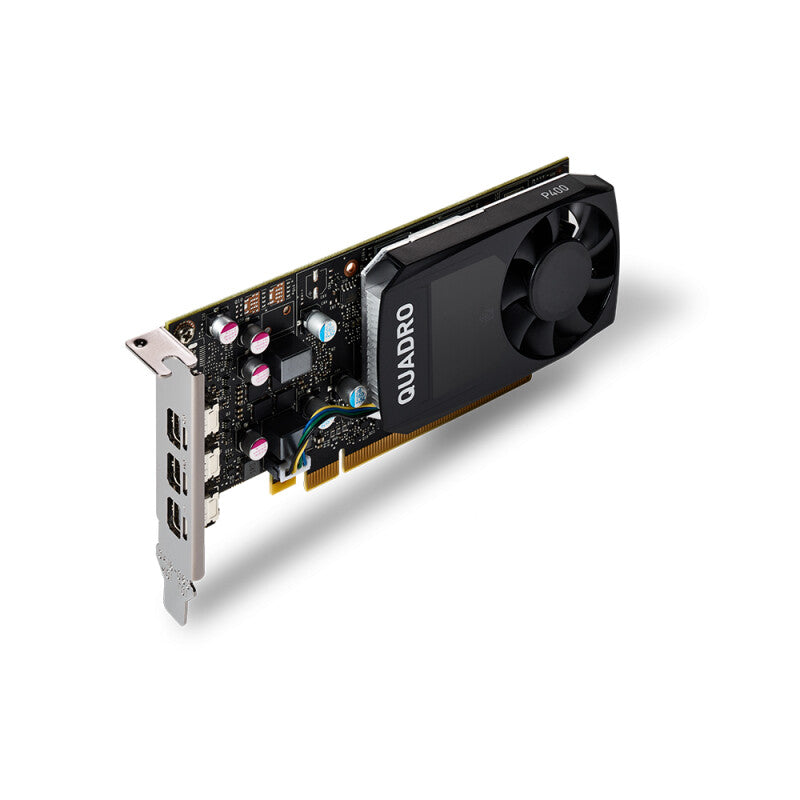

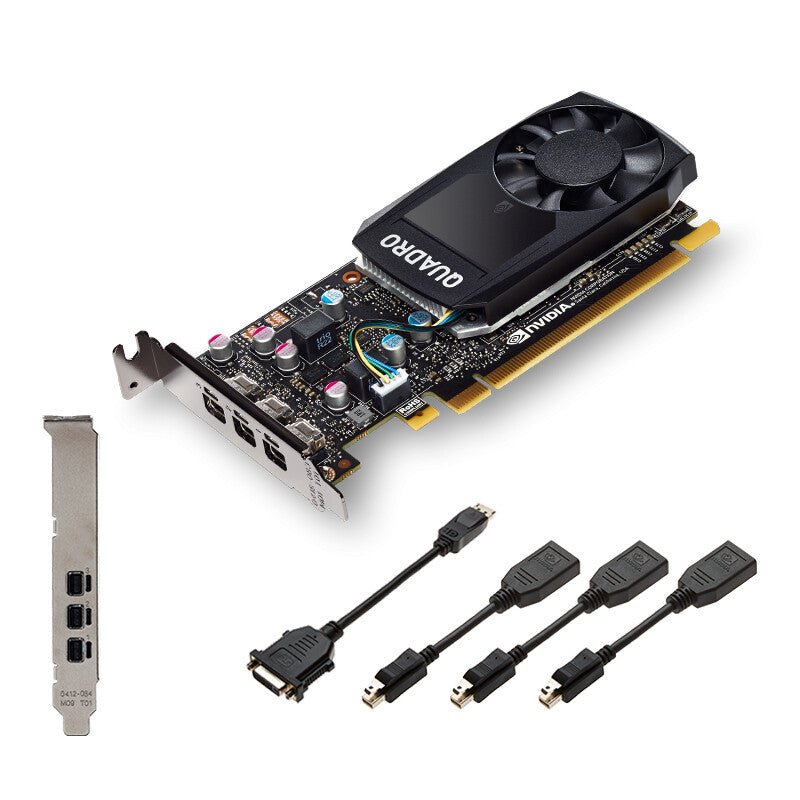

NVIDIA Quadro P400 V2 — Essential Professional Graphics For Maximum Productivity.
The NVIDIA Quadro P400 combines a 256 CUDA core Pascal GPU, large on-board memory and advanced display technologies to deliver great performance for a range of professional applications. 2 GB of ultra-fast GPU memory makes it easy to manage complex 2D and 3D models and the single-slot, lowprofile form factor makes it compatible with even the most space and power-constrained chassis.
Support for three 4K displays (4096x2160 @ 60Hz) with HDR color gives you a wide visual workspace to view your work in extremely high resolution.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
Processor | |
---|---|
Maximum displays per videocard | 3 |
CUDA cores | 256 |
CUDA | Yes |
Maximum resolution | 5120 x 2880 pixels |
Graphics processor | Quadro P400 V2 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 32 GB/s |
Memory bus | 64 bit |
Graphics card memory type | GDDR5 |
Discrete graphics card memory | 2 GB |
Ports & interfaces | |
---|---|

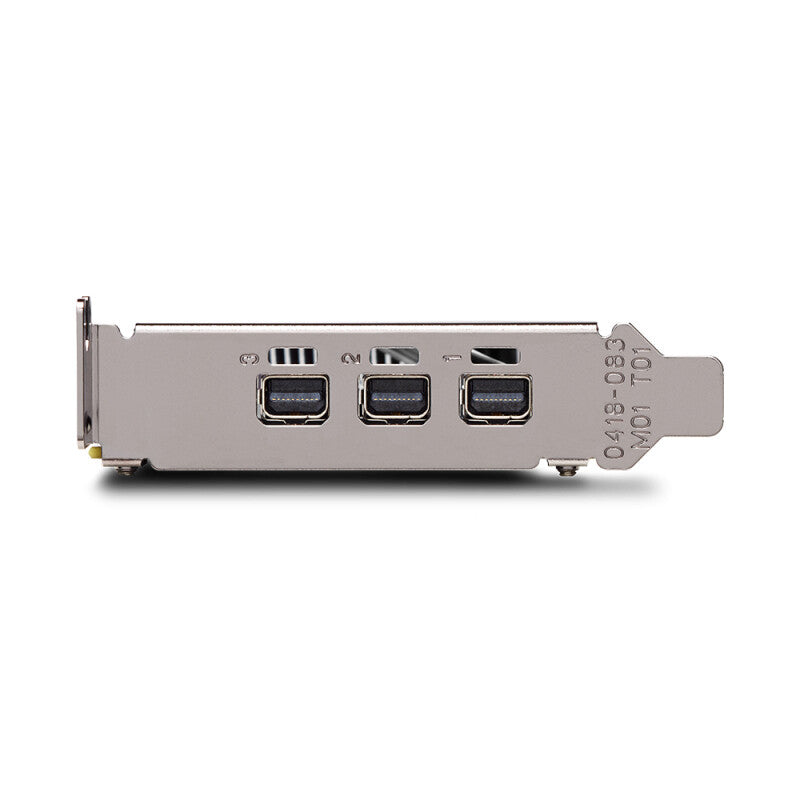

Mini DisplayPorts quantity | 3 |
DisplayPort version | 1.4 |
Interface type | PCI Express x16 3.0 |
Performance | |
---|---|
HDCP | Yes |
OpenGL version | 4.5 |
Shader model version | 5.1 |
DirectX version | 12.0 |
Design | |
---|---|
Number of slots | 1 |
Form factor | Half-Height/Half-Length (HH/HL) |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power consumption (max) | 30 W |
System requirements | |
---|---|
Minimum system requirements | Windows 10, Windows 8.1, Windows 8, 7, Linux, or SolarisPCIe x16 expansion slot1GB or more of system memory, 2GB recommended200MB of available disk space for full driver installationBlu-ray or DVD-ROM drive |
Windows operating systems supported | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Technical details | |
---|---|
Sustainability certificates | ENERGY STAR |
Weight & dimensions | |
---|---|
Height | 68.9 mm |
Length | 145 mm |
