The GeForce RTX™ 3060 is powered by the NVIDIA Ampere architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
The all-new NVIDIA Ampere architecture features new 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput. The NVIDIA Ampere streaming multiprocessors are the building blocks for the world’s fastest, most efficient GPU for gamers and creators. GeForce RTX™ 30 Series GPUs are powered by NVIDIA’s 2nd gen RTX architecture, delivering the ultimate performance, ray-traced graphics, and AI acceleration for gamers and creators.
EPIC-X RGB™ offers brilliant RGB design combined with ultimate performance, taking your PC to the next level. Not only can you destroy the competition, but your system can look good while doing so.
NVIDIA Ampere Streaming Multiprocessors
The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency
2nd Generation RT Cores
Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance
3rd Generation Tensor Cores
Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities
Processor | |
---|---|
Maximum displays per videocard | 4 |
Processor boost clock speed | 1777 MHz |
Processor frequency | 1320 MHz |
CUDA cores | 3584 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3060 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 15 GB/s |
Memory bus | 192 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 12 GB |
Ports & interfaces | |
---|---|

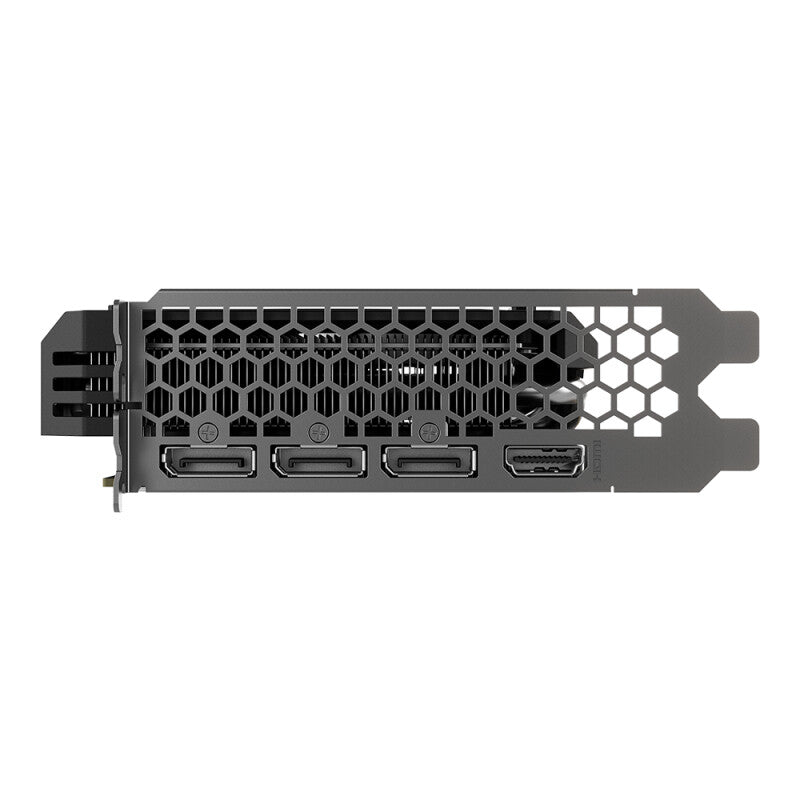

DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x16 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
Design | |
---|---|
Product colour | Black |
Number of slots | 2 |
Form factor | Full-Height/Half-Length (FH/HL) |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Thermal Design Power (TDP) | 170 W |
Minimum system power supply | 550 W |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 39.8 mm |
Height | 125 mm |
Length | 170 mm |
