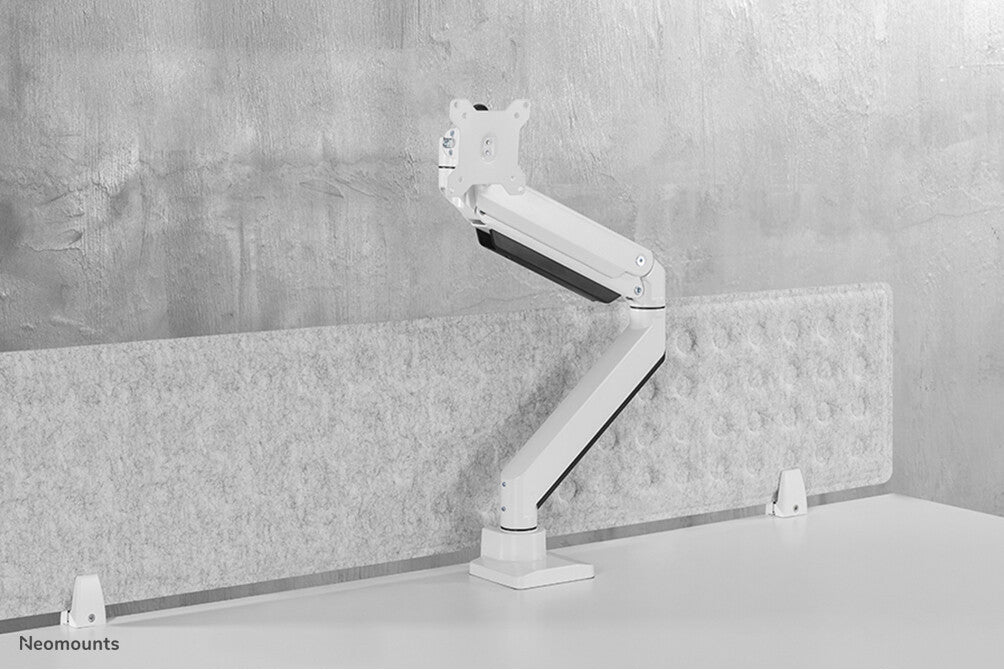

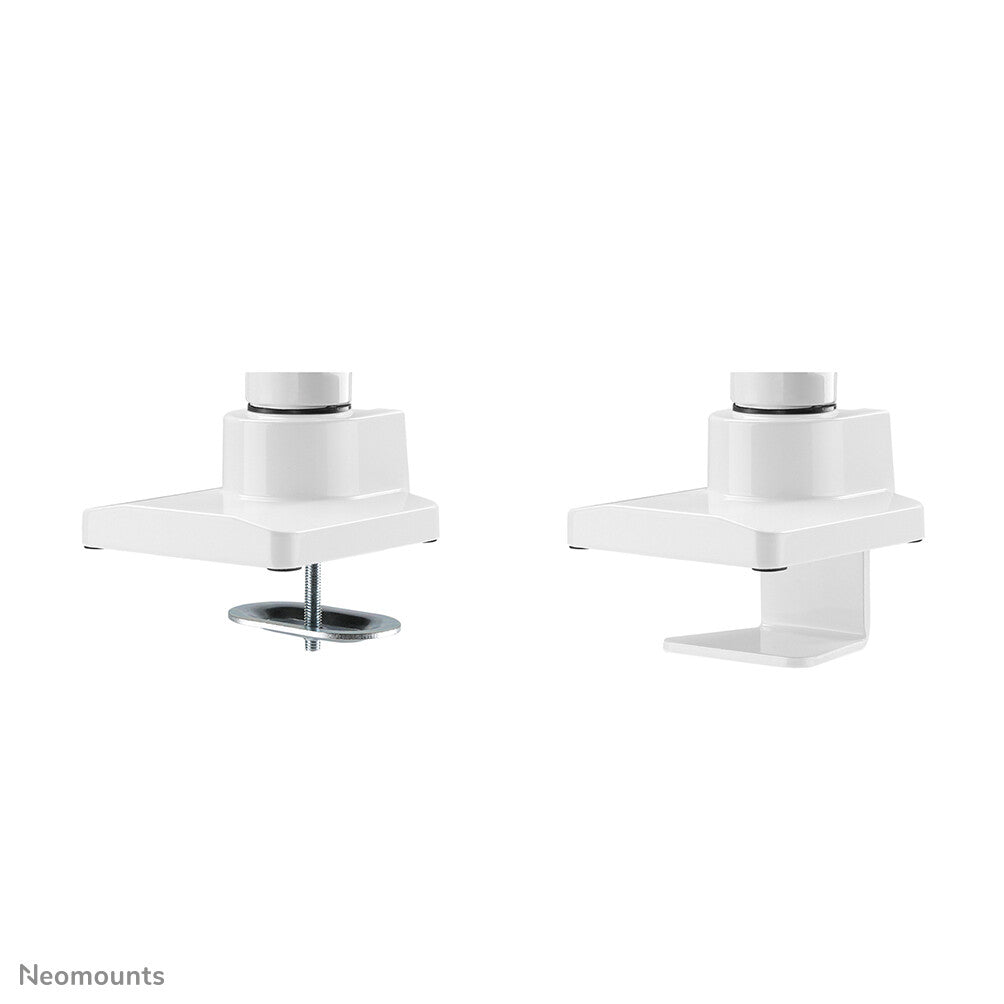

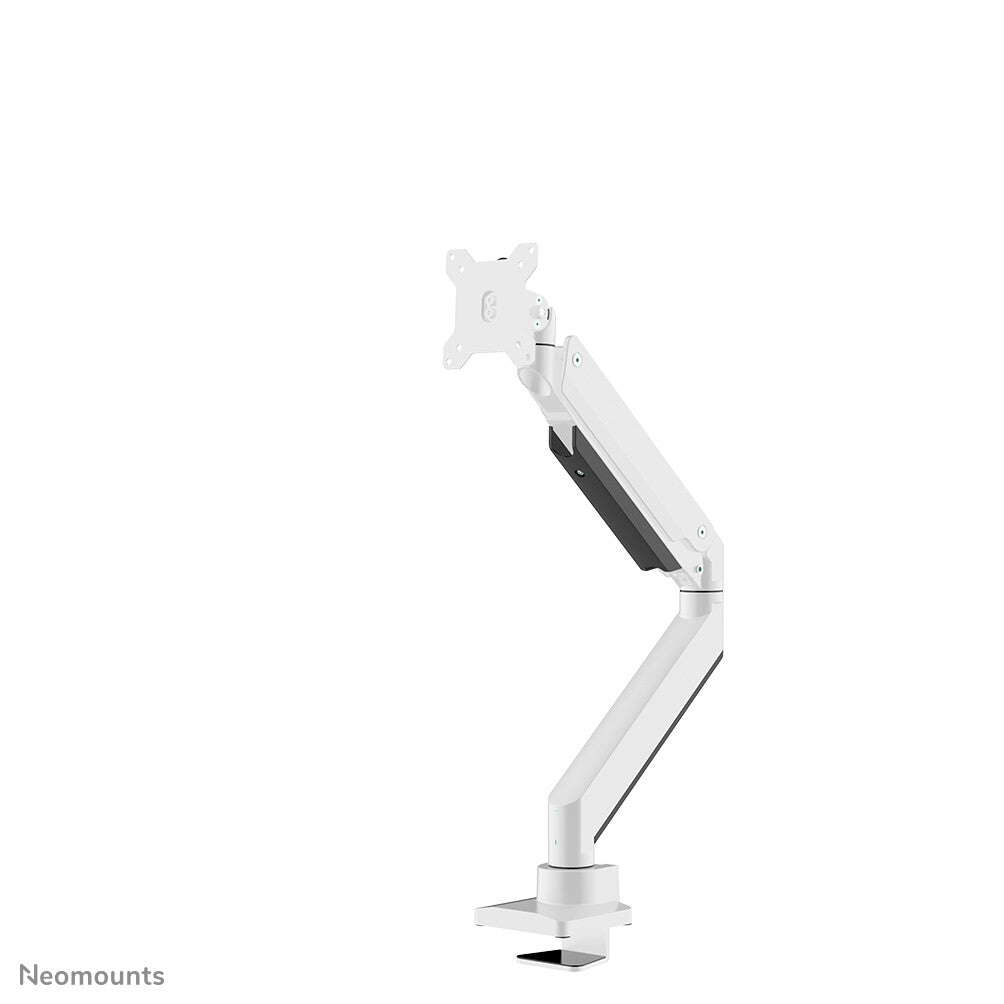

The Neomounts NM-D775WHITEPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.

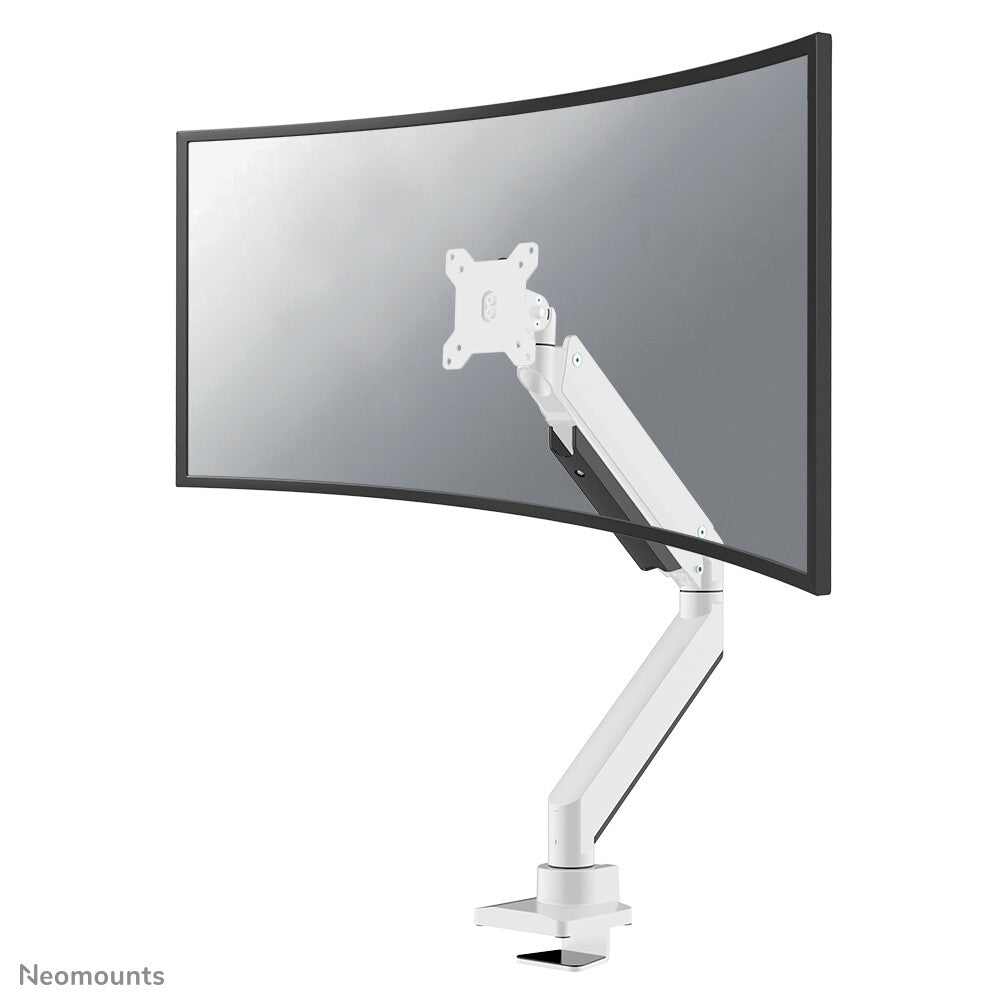

The NM-D775WHITEPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.

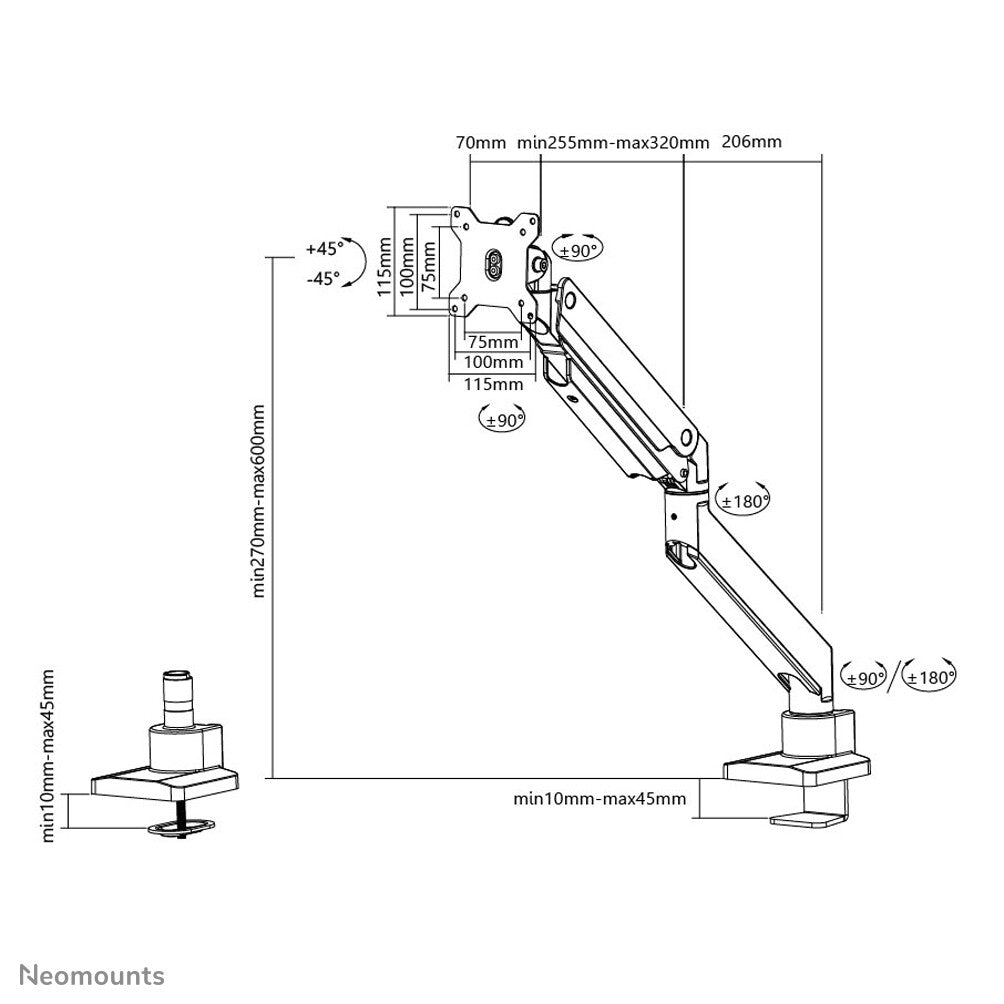

Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

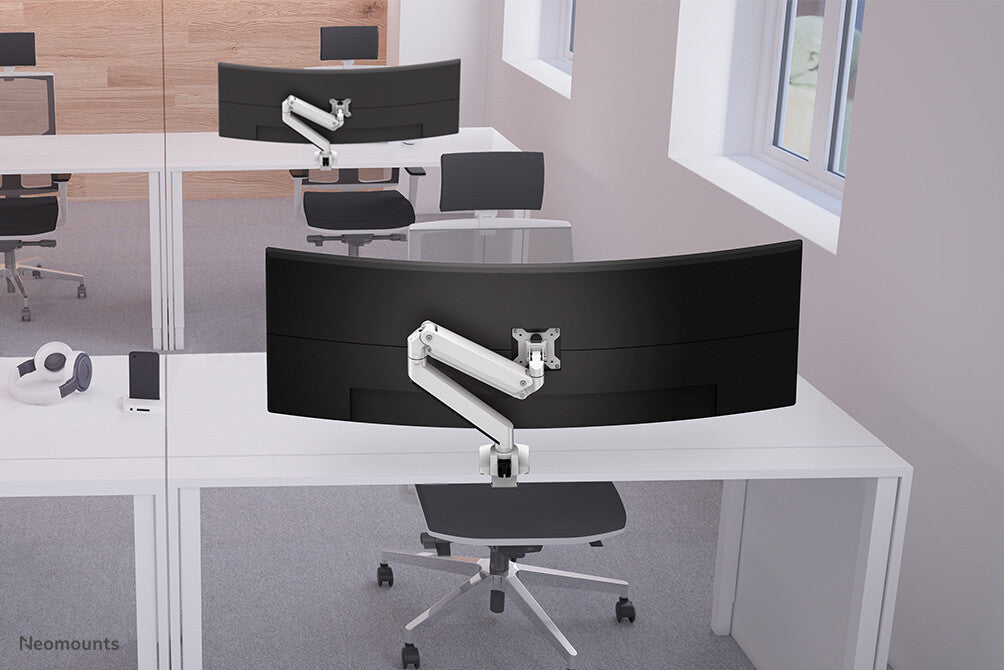

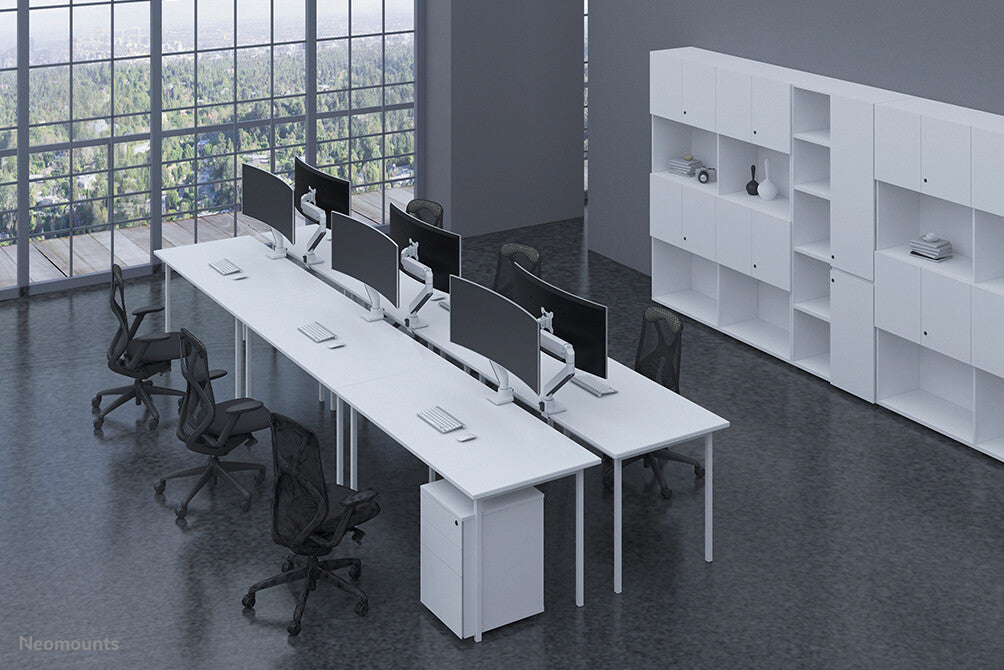

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775WHITEPLUS desk mounts are ideal for use in offices, on counters and in reception areas.

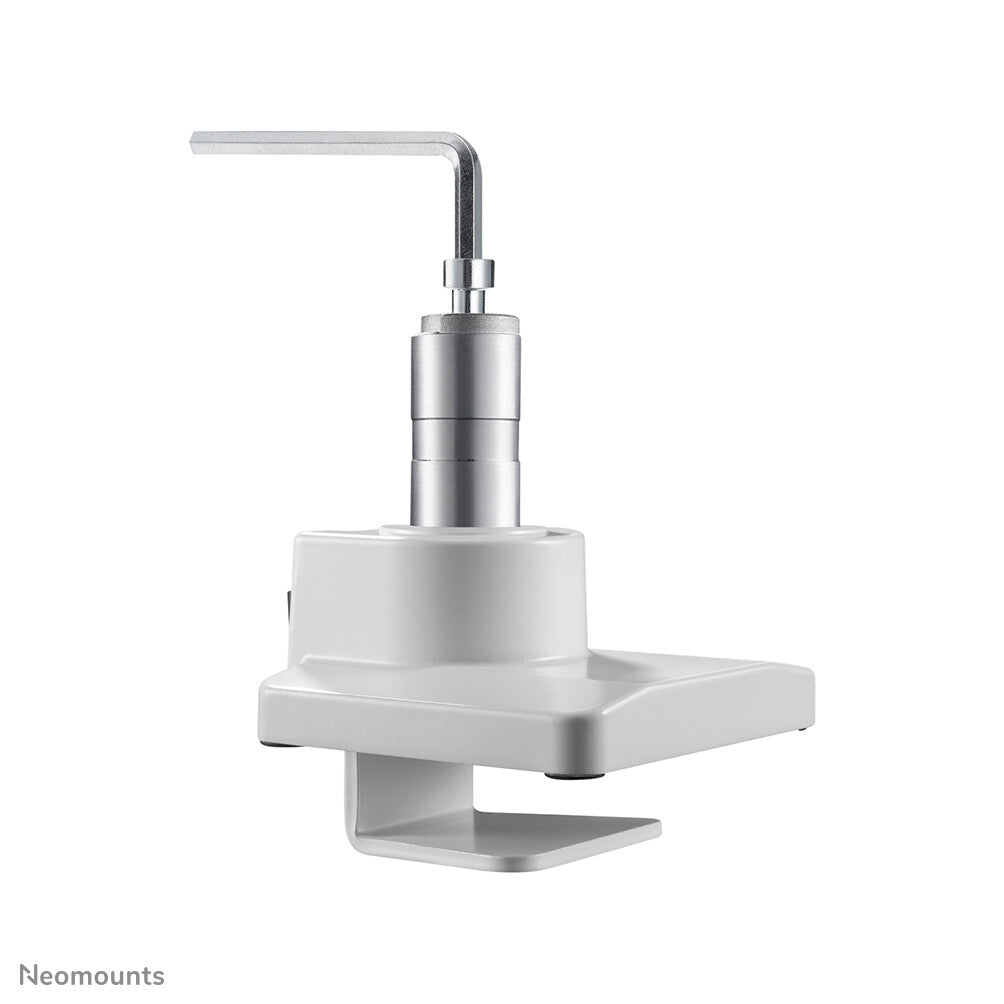

All installation material is included with the product.
Mounting | |
---|---|
Number of displays supported | 1 |
Panel mounting interface | 75 x 75,100 x 100 mm |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Maximum screen size | 124.5 cm (49") |
Minimum screen size | 25.4 cm (10") |
Maximum weight capacity | 18 kg |
Ergonomics | |
---|---|
Cable management | Yes |
Angle of rotation | 180° |
Swivel angle | 360° |
Tilt angle range | 0 - 90° |
Depth adjustment range | 0 - 630 mm |
Adjustable depth | Yes |
Height adjustment range | 270 - 600 mm |
Height adjustment type | Gas spring |
Height adjustment | Yes |
Design | |
---|---|
Product colour | White |
Weight & dimensions | |
---|---|
Package net weight | 5.2 kg |
Package height | 555 mm |
Package depth | 123 mm |
Package width | 240 mm |
Height | 600 mm |
Depth | 630 mm |
Logistics data | |
---|---|
Master (outer) case net weight | 4.8 kg |
Products per pallet (EU) | 72 pc(s) |
Harmonized System (HS) code | 7326909890 |
Products per master (outer) case | 4 pc(s) |
Master (outer) case gross weight | 5.2 kg |
Master (outer) case height | 575 mm |
Master (outer) case length | 265 mm |
Master (outer) case width | 500 mm |
Other features | |
---|---|
Country of origin | China |
