THE ULTIMATE PC GAMING PLATFORM
Get Game Ready with GeForce® GTX.
GeForce GTX graphics cards are the most advanced ever created. Discover unprecedented performance, power efficiency, and next-generation gaming experiences.
THE LATEST GAMING TECHNOLOGIES
Pascal is built to meet the demands of next generation displays, including ultra-high-resolution and multiple monitors. It features NVIDIA GameWorks™ technologies for extremely smooth gameplay and cinematic experiences. Plus, it includes revolutionary new 360-degree image capture.
PERFORMANCE
Pascal-powered graphics cards give you superior performance and power efficiency, built using ultra-fast FinFET and supporting DirectX® 12 features to deliver the fastest, smoothest, most power-efficient gaming experiences.
PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.
MILITARY CLASS 4 COMPONENTS
One of the deciding factors in performance is the quality of the components used. That is why MSI only uses MIL-STD-810G certified components for AERO ITX cards. These components have proven durable enough to withstand the torturous circumstances of extreme gaming and overclocking for extended usage.
AFTERBURNER
MSI Afterburner is the world’s most recognized and widely used graphics card overclocking utility which gives you full control of your graphics cards. It also provides an incredibly detailed overview of your hardware and comes with some additional features such as customizing fan profiles, benchmarking and video recording.
Processor | |
---|---|
FireStream | No |
Maximum displays per videocard | 3 |
Processor boost clock speed | 1455 MHz |
Processor frequency | 1341 MHz |
CUDA cores | 768 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce GTX 1050 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory clock speed | 7008 MHz |
Memory bus | 128 bit |
Graphics card memory type | GDDR5 |
Discrete graphics card memory | 4 GB |

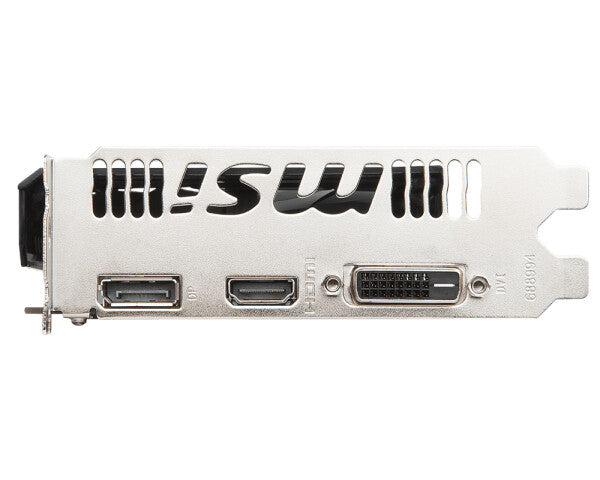

Ports & interfaces | |
---|---|
DisplayPort version | 1.4 |
HDMI version | 2.0 |
DVI-D ports quantity | 1 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
Interface type | PCI Express x16 3.0 |
Performance | |
---|---|
NVIDIA GameStream | Yes |
NVIDIA G-SYNC | Yes |
NVIDIA GameWorks VR | Yes |
Dual Link DVI | Yes |
HDCP | Yes |
OpenGL version | 4.5 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black, White |
Form factor | Full-Height/Half-Length (FH/HL) |
Bracket height | Full-Height (FH) |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 75 W |
Minimum system power supply | 300 W |
General | |
---|---|
Product Family | AERO ITX |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 39 mm |
Height | 111 mm |
Length | 170 mm |
Weight | 317 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 717 g |
Manual | Yes |
Drivers included | Yes |
