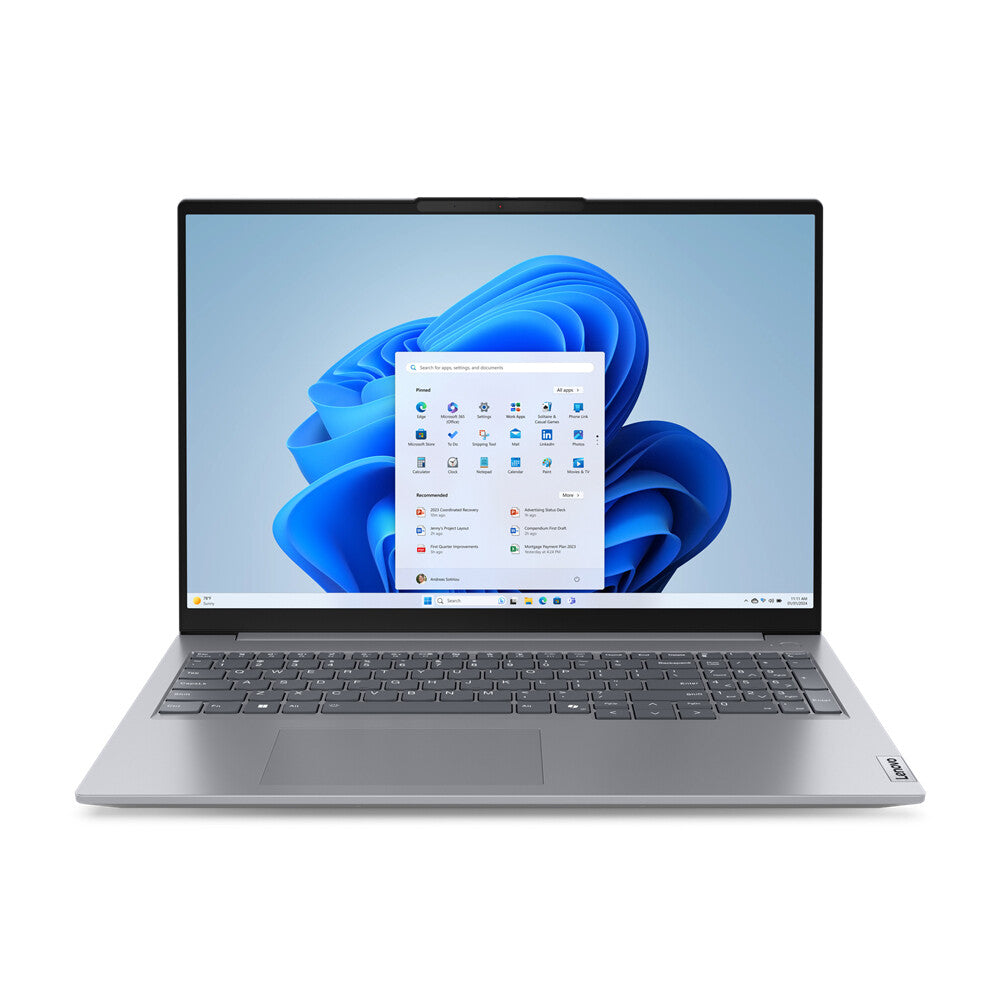

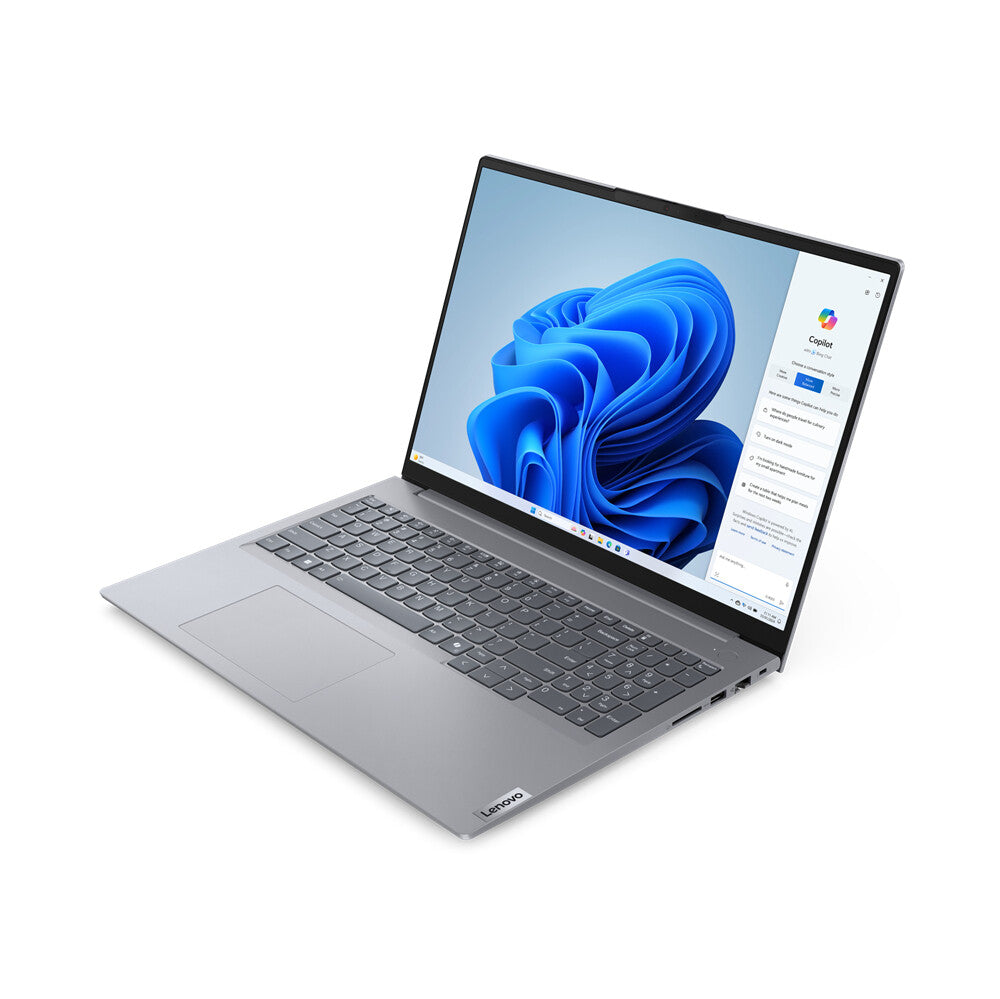

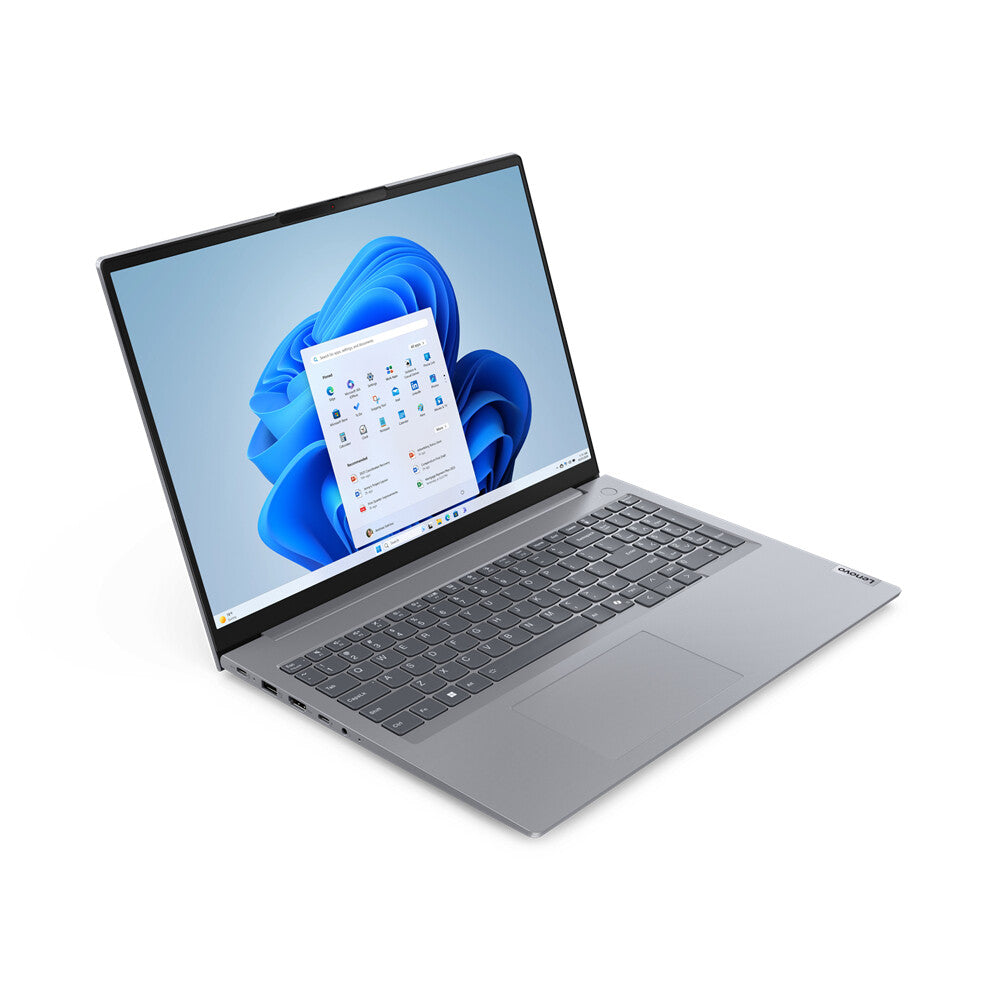

Redefined Mobility at Work — Peak Performance & Power
- Huge 16″ SMB laptop with AI-accelerated Intel® Core™ Ultra processors
- Speedy response time, all-day battery life, & instant wake with Intel Evo™ Edition
- Includes numeric pad for convenient data entry & number crunching
- Enables seamless video calls with rich visuals & noise-canceling audio
- Ideal for demanding tasks like data analysis, financial modeling, and video conferencing
Design | |
---|---|
Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
Form factor | Clamshell |
Colour name | Arctic Grey |
Product colour | Grey |
Product type | Laptop |
Display | |
---|---|
Maximum refresh rate | 60 Hz |
RGB colour space | NTSC |
Colour gamut | 45% |
Display brightness | 300 cd/m² |
Anti-glare screen | Yes |
LED backlight | Yes |
Native aspect ratio | 16:10 |
Panel type | IPS |
HD type | WUXGA |
Touchscreen | No |
Display resolution | 1920 x 1200 pixels |
Display diagonal | 40.6 cm (16") |
Processor | |
---|---|
Processor base power | 15 W |
Maximum turbo power | 57 W |
Motherboard chipset | Intel SoC |
Processor cache type | Smart Cache |
Processor cache | 12 MB |
Processor cores | 12 |
Performance cores | 2 |
Efficient cores | 8 |
Performance-core Max Turbo Frequency | 4.3 GHz |
Efficient-core Max Turbo Frequency | 3.6 GHz |
Processor boost frequency | 4.3 GHz |
Performance-core base frequency | 1.3 GHz |
Efficient-core base frequency | 0.8 GHz |
Processor model | 125U |
Processor generation | Intel Core Ultra (Series 1) |
Processor family | Intel Core Ultra 5 |
Processor manufacturer | Intel |
Neural processor unit (NPU) | |
---|---|
AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
AI datatype support on NPU | FP16, FP32, Int8 |
Windows Studio effects support | Yes |
Sparsity support | Yes |
Maximum frequency NPU | 1.4 GHz |
Neural processor unit (NPU) | Intel AI Boost |
Memory | |
---|---|
Maximum internal memory | 64 GB |
Memory slots | 2x SO-DIMM |
Memory layout (slots x size) | 1 x 16 GB |
Memory clock speed | 5600 MHz |
Memory form factor | SO-DIMM |
Internal memory type | DDR5-SDRAM |
Internal memory | 16 GB |
Storage | |
---|---|
Compatible memory cards | SD |
Card reader integrated | Yes |
Optical drive type | No |
SSD form factor | M.2 |
SSD interface | PCI Express 4.0 |
NVMe | Yes |
SSD capacity | 512 GB |
Number of SSDs installed | 1 |
Total SSDs capacity | 512 GB |
Storage media | SSD |
Total storage capacity | 512 GB |
Graphics | |
---|---|
On-board graphics card model | Intel Graphics |
On-board GPU manufacturer | Intel |
Discrete graphics card model | Not available |
Discrete graphics card | No |
On-board graphics card | Yes |
Audio | |
---|---|
Number of microphones | 2 |
Built-in microphone | Yes |
Speaker power | 2 W |
Number of built-in speakers | 2 |
Audio system | Dolby Audio |
Audio chip | Realtek ALC3287 |
Camera | |
---|---|
Privacy type | Privacy shutter |
Privacy camera | Yes |
Infrared (IR) camera | Yes |
Front camera resolution | 1920 x 1080 pixels |
Front camera HD type | Full HD |
Front camera | Yes |
Network | |
---|---|
WWAN | Not installed |
Bluetooth version | 5.3 |
Bluetooth | Yes |
Ethernet LAN | Yes |
Antenna type | 2x2 |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Mobile network connection | No |

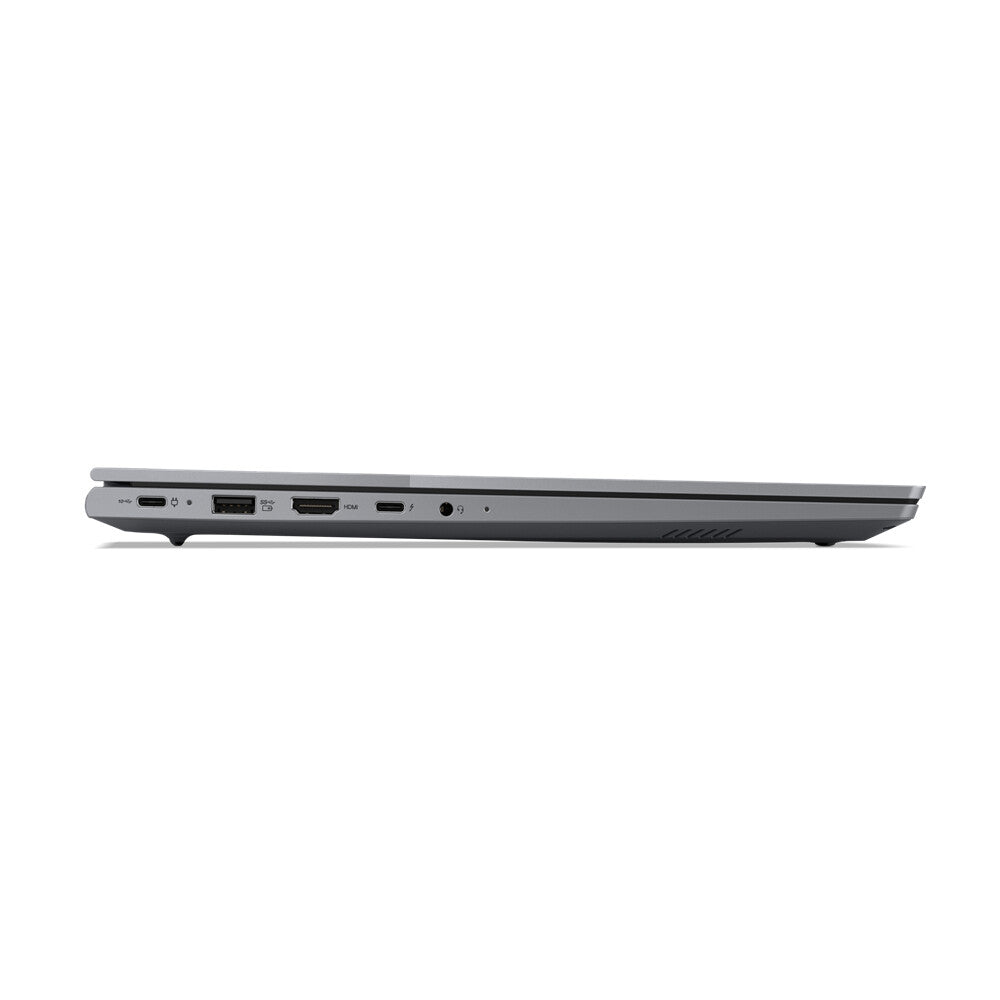

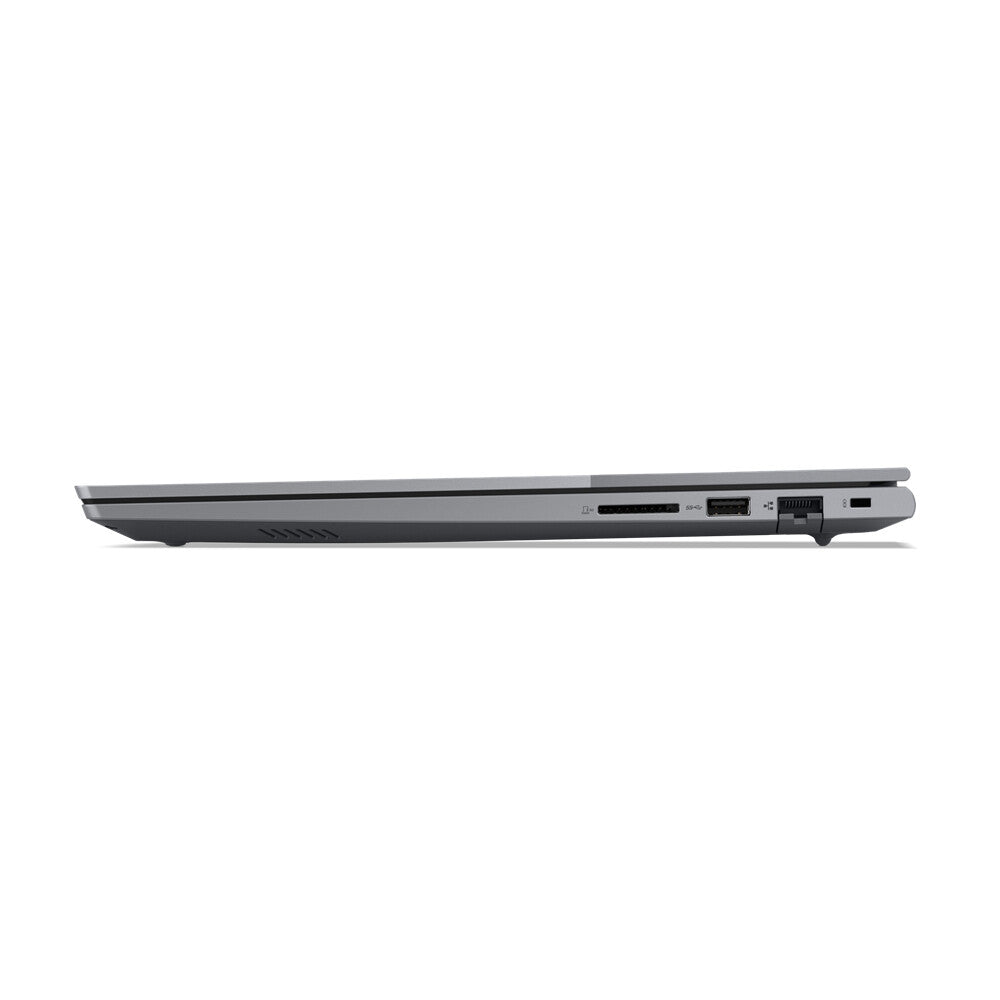

Ports & interfaces | |
---|---|
USB Sleep-and-Charge | Yes |
Combo headphone/mic port | Yes |
Thunderbolt 4 ports quantity | 1 |
Intel® Thunderbolt 4 | Yes |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Keyboard | |
---|---|
Keyboard backlit | Yes |
Numeric keypad | Yes |
Keyboard language | English |
Pointing device | Touchpad |
Software | |
---|---|
Trial software | Office |
Operating system architecture | 64-bit |
Operating system installed | Windows 11 Pro |
Battery | |
---|---|
Battery capacity | 45 Wh |
Battery technology | Lithium Polymer (LiPo) |
Power | |
---|---|
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50/60 Hz |
AC adapter power | 65 W |
Security | |
---|---|
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Windows Hello | Yes |
Fingerprint reader | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Operational conditions | |
---|---|
Maximum shipping altitude | 3048 m |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 8 - 95% |
Storage temperature (T-T) | 5 - 43 °C |
Operating temperature (T-T) | 5 - 35 °C |
Certificates | |
---|---|
Compliance certificates | RoHS |
Sustainability | |
---|---|
Sustainability certificates | ENERGY STAR, TCO, EPEAT Gold |
Weight & dimensions | |
---|---|
Height | 17.5 mm |
Depth | 253.5 mm |
Width | 356 mm |
Weight | 1.7 kg |
General | |
---|---|
Product Family | ThinkBook |
