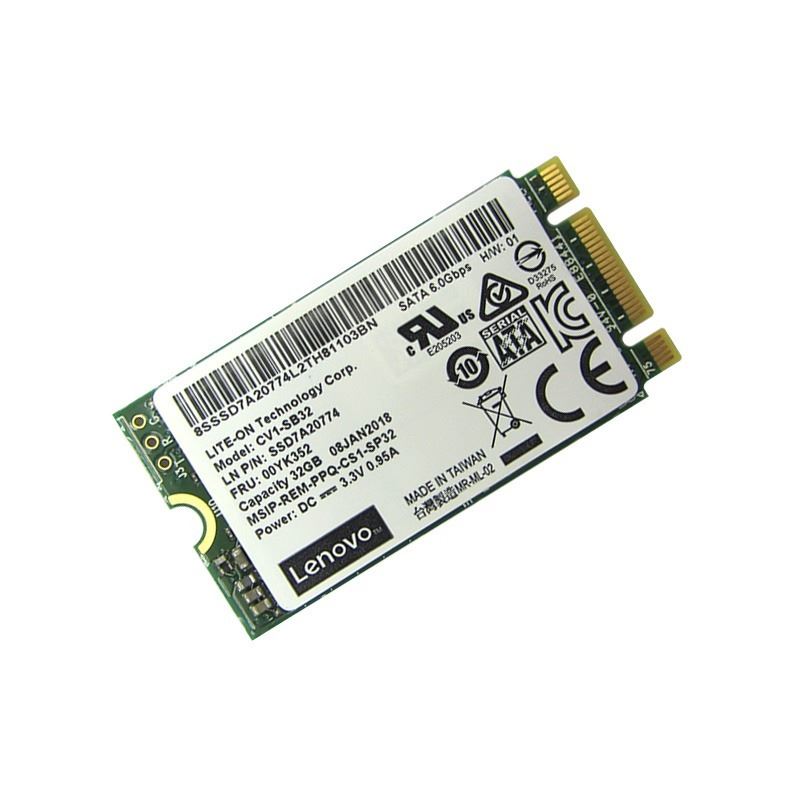

M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives either with the addition of a supported M.2 adapter or directly on the system board. This product guide provides essential presales information to understand the ThinkSystem M.2 offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the M.2 drives and adapters, and consider their use in IT solutions.
Hard drive | |
---|---|
SSD capacity | 32 GB |
Memory type | MLC |
Data transmission | |
Read speed | 260 MB/s |
Write speed | 40 MB/s |
Random write (4KB) | 10500 IOPS |
Random read (4KB) | 25000 IOPS |
Data transfer rate | 6 Gbit/s |
Performance | |
Interface | Serial ATA III |
Component for | Server/workstation |
Controller type | Marvell 88SE9230 |
SSD capacity | 32 GB |
Read speed | 260 MB/s |
Write speed | 40 MB/s |
Memory type | MLC |
Random write (4KB) | 10500 IOPS |
Random read (4KB) | 25000 IOPS |
Data transfer rate | 6 Gbit/s |
Design | |
Component for | Server/workstation |
SSD form factor | M.2 |
Features | |
Interface | Serial ATA III |
Component for | Server/workstation |
Controller type | Marvell 88SE9230 |
SSD capacity | 32 GB |
Read speed | 260 MB/s |
Write speed | 40 MB/s |
Memory type | MLC |
Random write (4KB) | 10500 IOPS |
Random read (4KB) | 25000 IOPS |
Data transfer rate | 6 Gbit/s |
SSD form factor | M.2 |
Harmonized System (HS) code | 84717070 |
Technical details | |
Interface | Serial ATA III |
SSD form factor | M.2 |
Weight & dimensions | |
Width | 22 mm |
Weight | 5 g |
Depth | 42 mm |
Logistics data | |
Harmonized System (HS) code | 84717070 |
