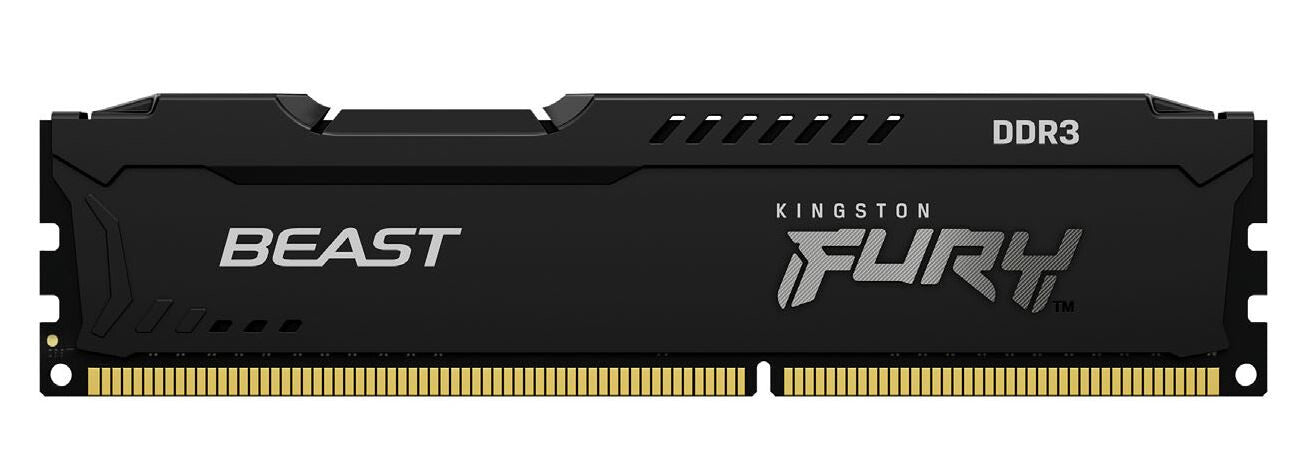

FURY KF316C10BBK2/16 is a kit of two 1G x 64-bit (8GB) DDR3-1600 CL10 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module has been tested to run at DDR3-1600 at a low latency timing of 10-10-10 at 1.5V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 240-pin DIMM uses gold contact fingers.
Features | |
---|---|
JEDEC standard | Yes |
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
Backlight | No |
Cooling type | Heatsink |
Country of origin | Taiwan |
Row active time | 37.5 ns |
Refresh row cycle time | 260 ns |
Row cycle time | 48.125 ns |
Module configuration | 512M x 8 |
Memory voltage | 1.5 V |
Memory channels | Dual-channel |
CAS latency | 10 |
ECC | No |
Memory form factor | 240-pin DIMM |
Component for | PC/Server |
Memory clock speed | 1600 MHz |
Internal memory type | DDR3 |
Memory layout (modules x size) | 2 x 8 GB |
Internal memory | 16 GB |
Operational conditions | |
---|---|
Storage temperature (T-T) | -55 - 100 °C |
Operating temperature (T-T) | 0 - 85 °C |
Weight & dimensions | |
---|---|
Height | 34 mm |
Depth | 7.1 mm |
Width | 133.3 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
