Using all-imported industrial-grade LED screen, Designed for CCTV. High brightness, High contrast, High definition. Adapt newest 3D digital filtering and 3D digital noise reduction technology.
Picture fast response; 178 ° wide viewing angle; Ensure that the image display is not deformed. 7/24 working Status; Continue working 5 years.
Metal chassis design, Anti-static, Anti-magnetic field, Anti-interference, no radiation.
Support IR Touching Screen.

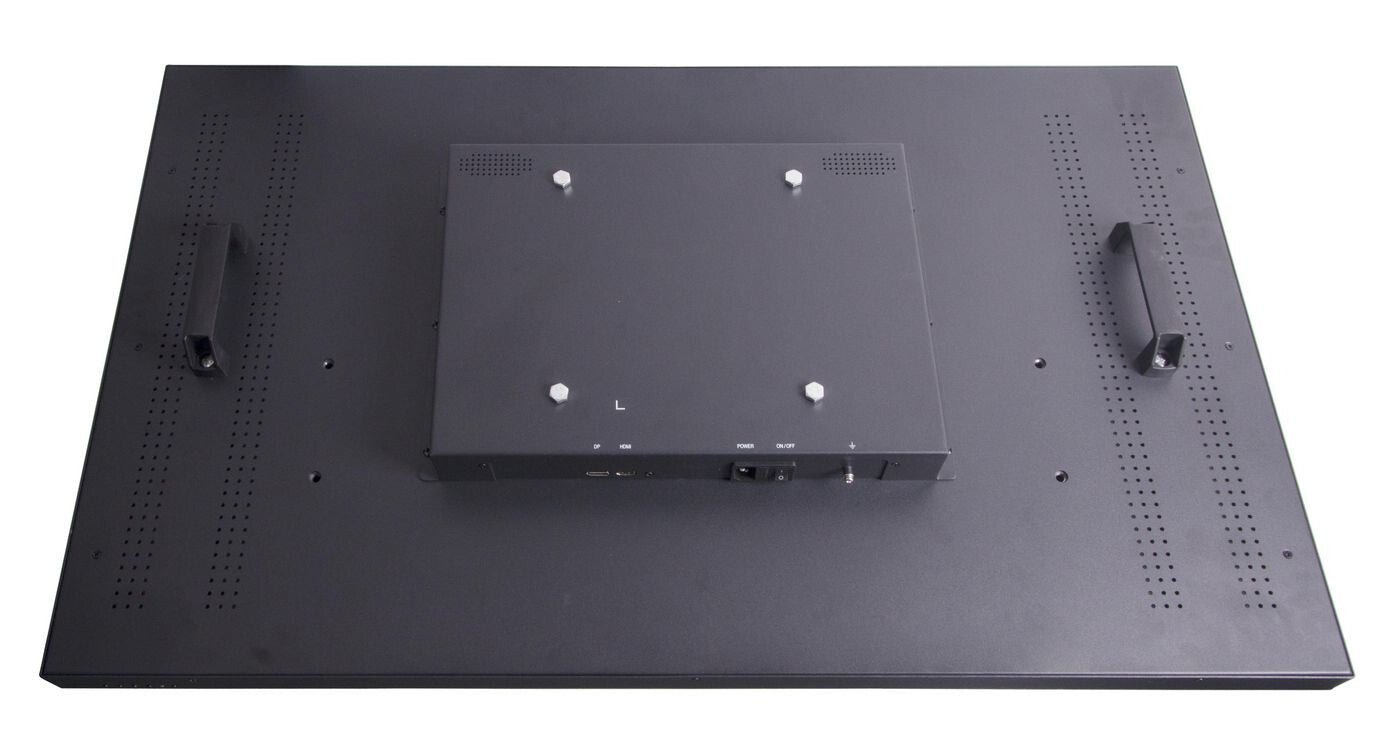

VESA size: 700x400
DISPLAY CHARACTERISTICS
Screen Size 86'’
Active Display Area (mm) 1860mm(W)×1057mm(H)
Display Mode 16:9
LED Type TFT-LED
Resolution 3840 × 2160
Display Color 1.073G
Pixel Pitch(mm) 0.248(H)×0.248(V)
Brightness(nits) 350cd/㎡
Contrast Ratio 5000:1
Viewing Angle 178(H) /178(V)
Touching No Support
Backlight LED

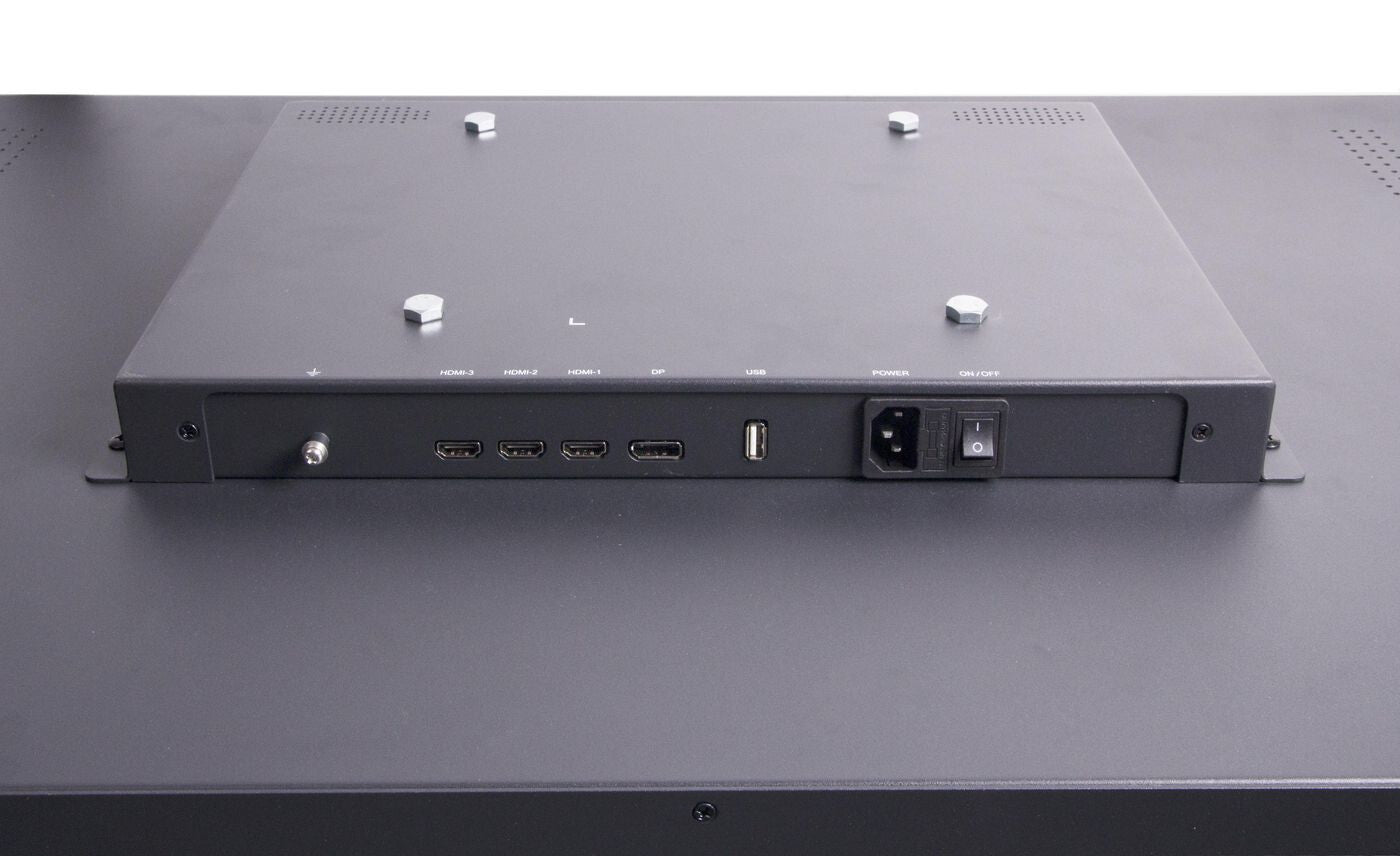

INPUT&OUTPUT
DP x 1
HDMI 2.0 x 3
Speaker 2x3W(Stereo)
VIDEO
PAL/NTSC/SECAM
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock,
phase, Color, Language.
POWER
AC100V~240V,50/60Hz
-30 to +85 ℃
≦110W
English
VESA mount/56kg
50000Hours
INCLUDED ACCESSORIES, Screw, Cable holder, Quick start guide
Display | |
---|---|
Screen shape | Flat |
Display brightness (typical) | 500 cd/m² |
Backlight type | LED |
Panel type | TFT |
HD type | 4K Ultra HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 3840 x 2160 pixels |
Display diagonal | 2.18 m (86") |
Multimedia | |
---|---|
RMS rated power | 6 W |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
Design | |
---|---|
Product colour | Black |
Market positioning | Business |
Ports & interfaces | |
---|---|
DisplayPorts quantity | 1 |
HDMI ports quantity | 3 |
HDMI | Yes |
USB Type-A downstream ports quantity | 1 |
Built-in USB hub | No |
Ergonomics | |
---|---|
VESA mounting | Yes |
Power | |
---|---|
AC input frequency | 50/60 Hz |
AC input voltage | 230 V |
Energy consumption (HDR) per 1000 hours | 151 kWh |
Energy consumption (SDR) per 1000 hours | 145 kWh |
Energy efficiency class (HDR) | E |
Energy efficiency class (SDR) | E |
Packaging data | |
---|---|
Package weight | 95 kg |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1805403 |
Other features | |
---|---|
Weight | 75 kg |
