WITH THE INCREDIBLE SUM OF ITS PARTS

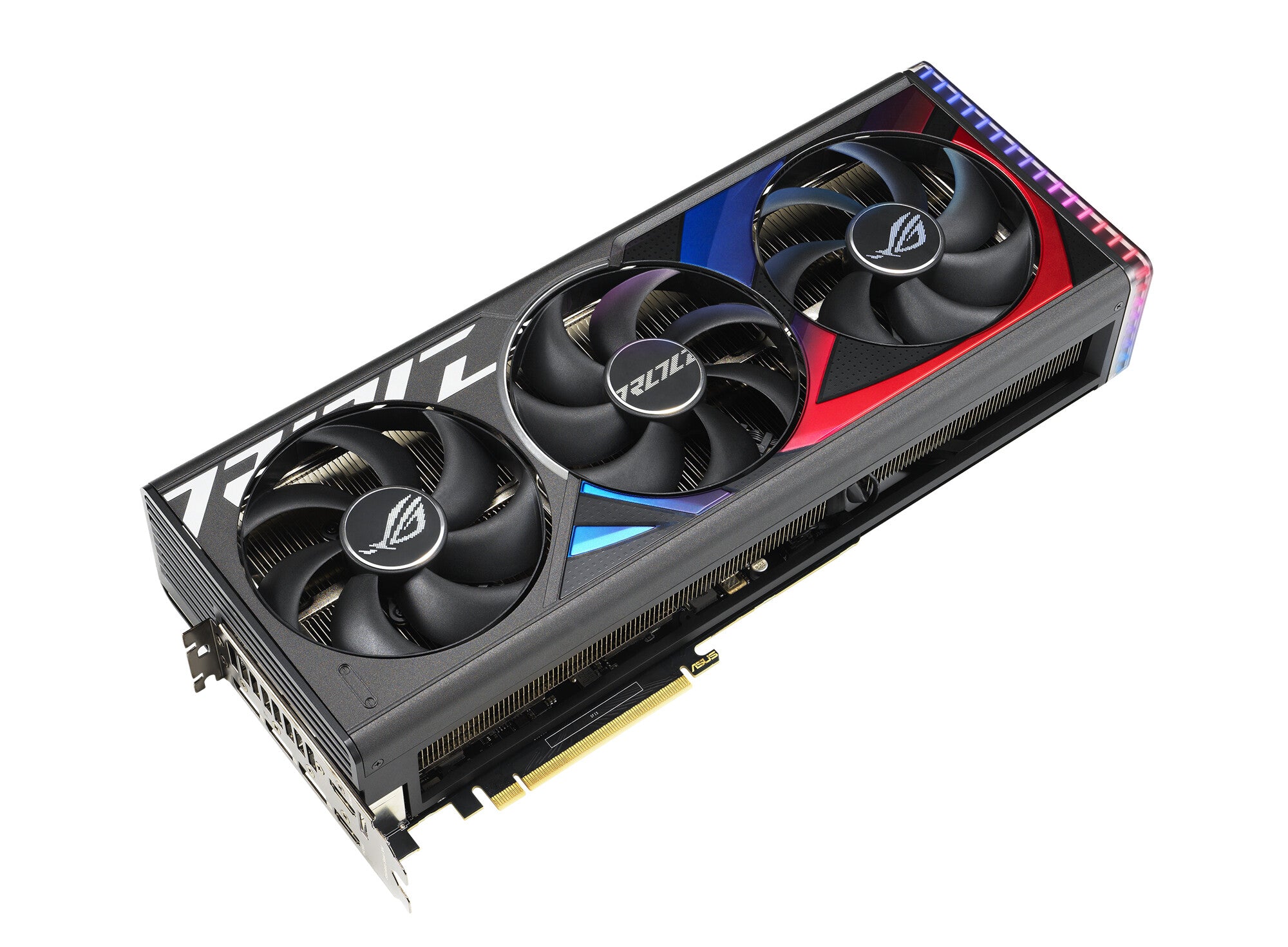

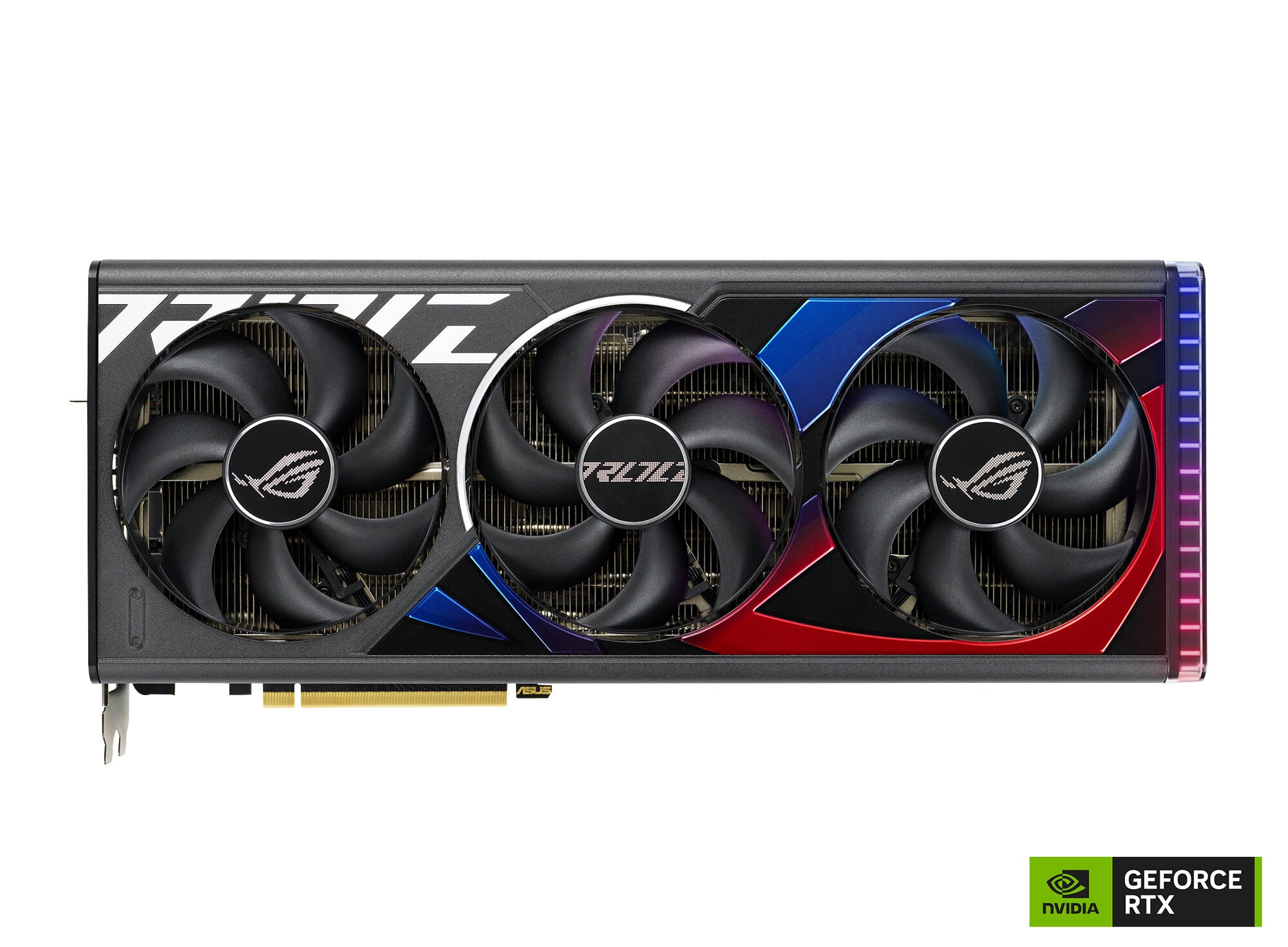

The ROG Strix GeForce RTX® 4090 brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance. The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor frequency (OC mode) | 2640 MHz |
Processor boost clock speed | 2610 MHz |
CUDA cores | 16384 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4090 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bus | 384 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 24 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |
DisplayPorts quantity | 3 |
HDMI ports quantity | 2 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
HDCP version | 2.3 |
OpenGL version | 4.6 |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Illumination | Yes |
Illumination colour | Blue, Green, Red |
Number of slots | 3.5 |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of fans | 3 fan(s) |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 16-pin |
Minimum system power supply | 1000 W |
General | |
---|---|
Product Family | ROG |
Product Series | Strix |
Weight & dimensions | |
---|---|
Depth | 149.3 mm |
Height | 70.1 mm |
Width | 357.6 mm |
Packaging data | |
---|---|
Cables included | DC |
