PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
DUAL BALL FAN BEARINGS

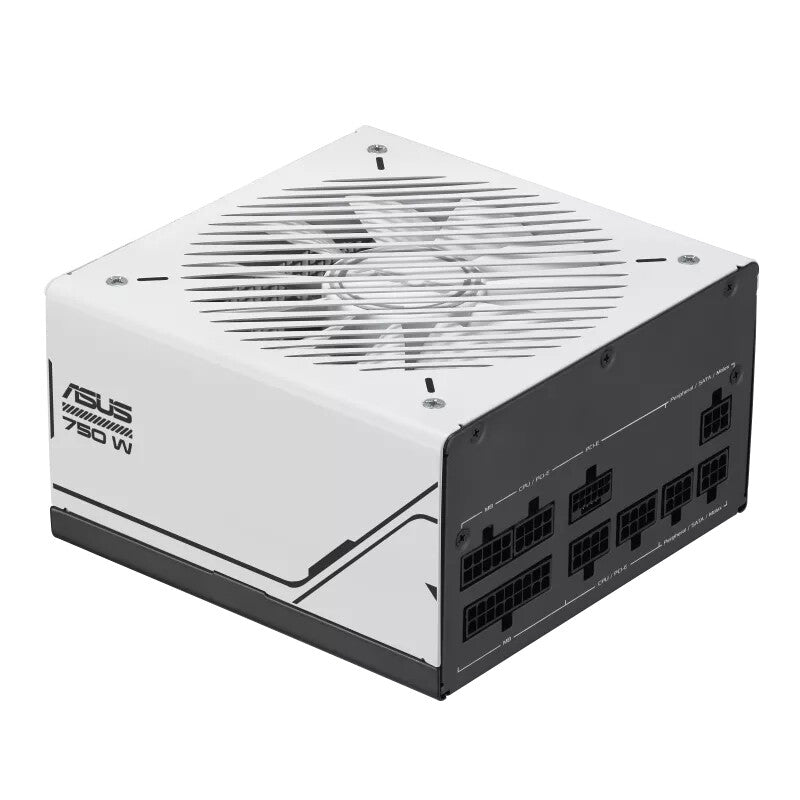

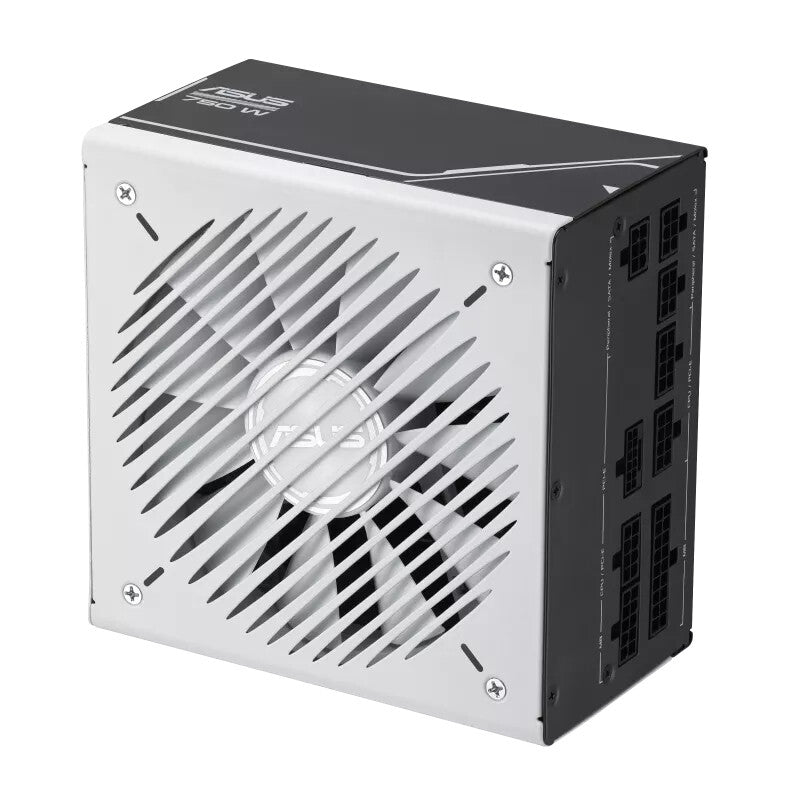

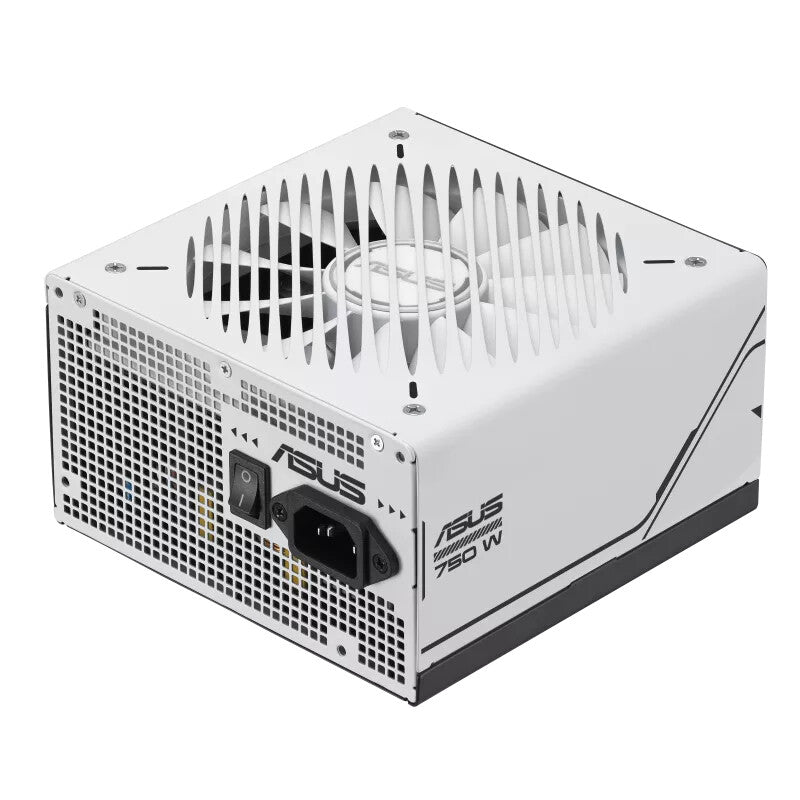

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION

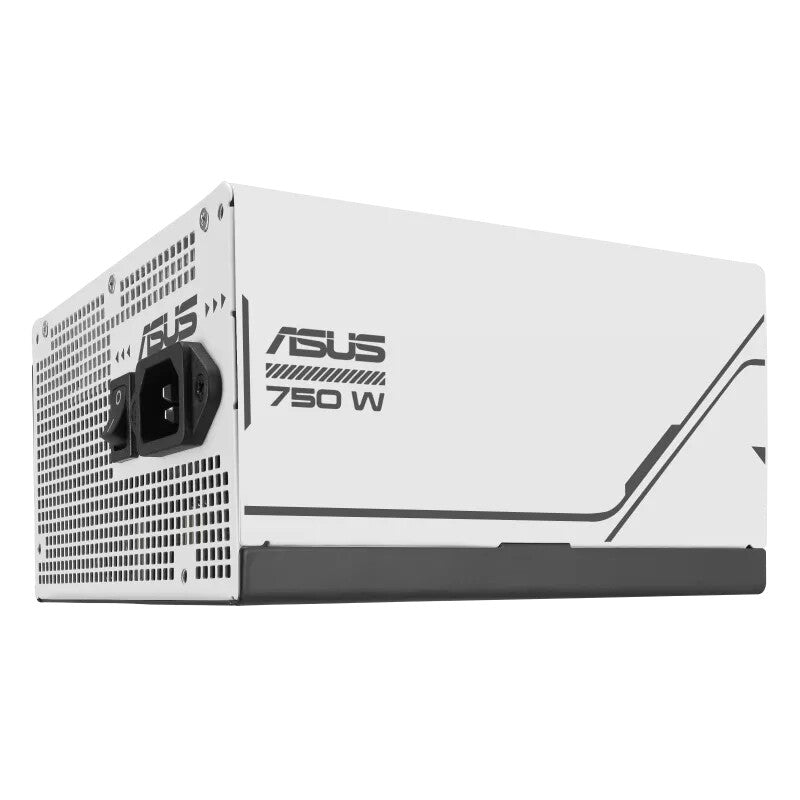

The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 110 W |
Power Factor Correction (PFC) type | Active |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|

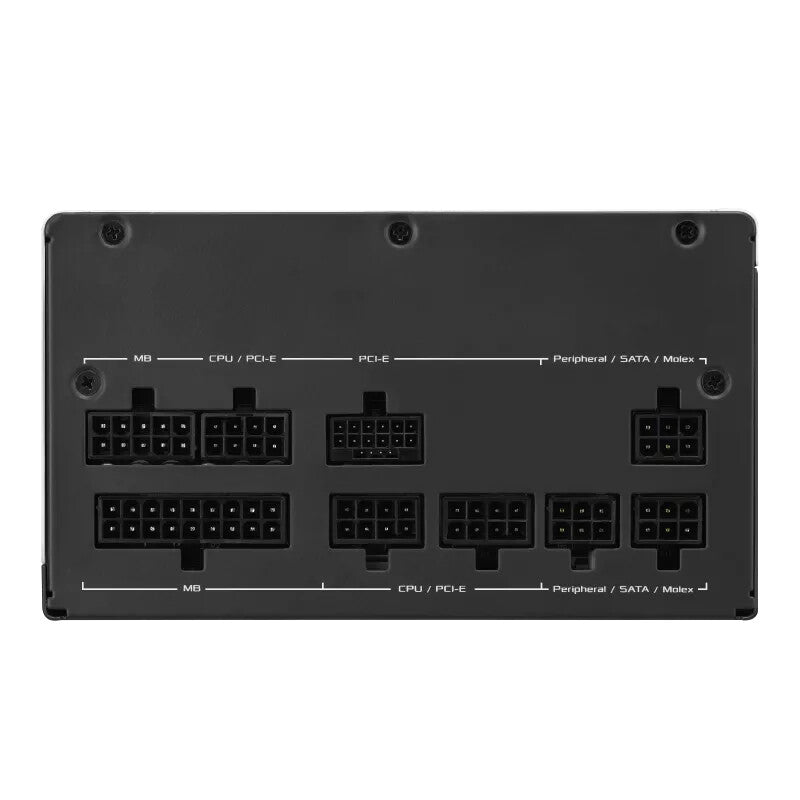

Cabling type | Fully-Modular |
CPU power cable length | 65 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 67.5 cm |
PCI Express power connectors (8-pin) | 3 |
PCI Express power connectors (16-pin) | 1 |
Peripheral (Molex) power cable length | 400,150 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 400,120 mm |
Number of SATA power connectors | 5 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Bearing technology | DBB |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|

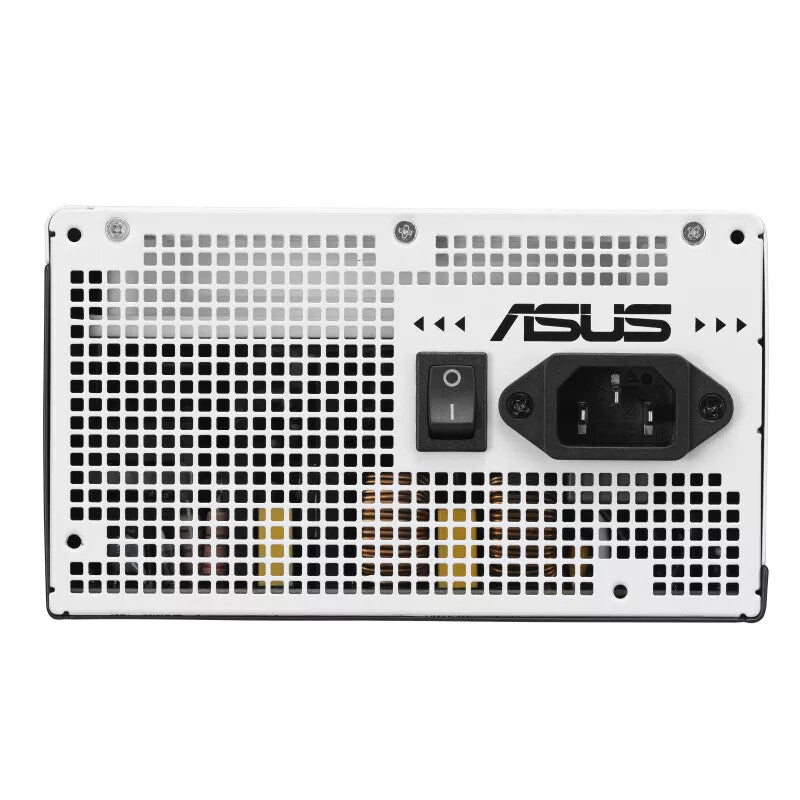

On/off switch | Yes |
Illumination | No |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black, White |
Packaging content | |
---|---|
Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
Weight & dimensions | |
---|---|
Weight | 1.47 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.72 kg |
Technical details | |
---|---|
Compliance certificates | RoHS |
