Let’s ROLL!!

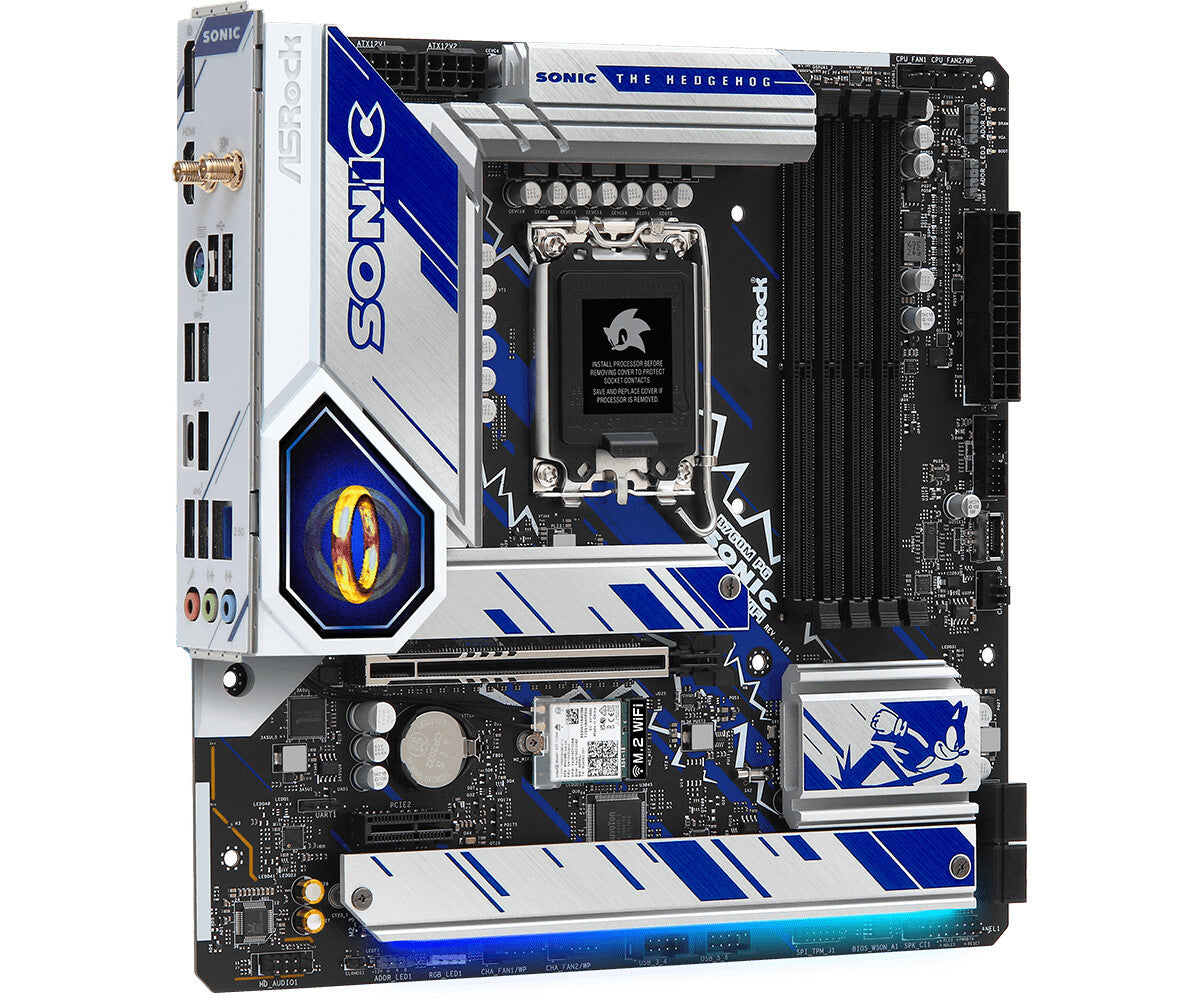

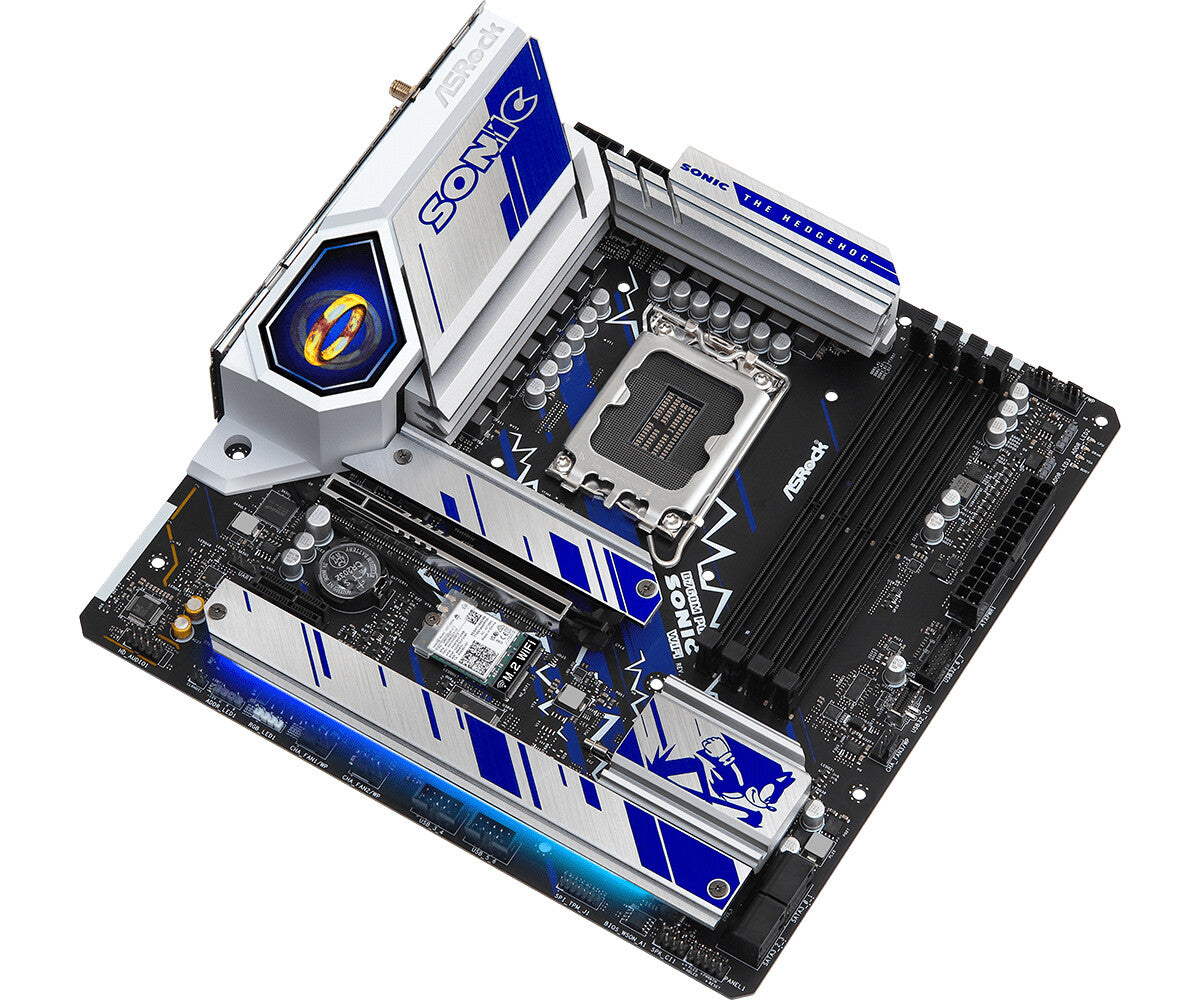

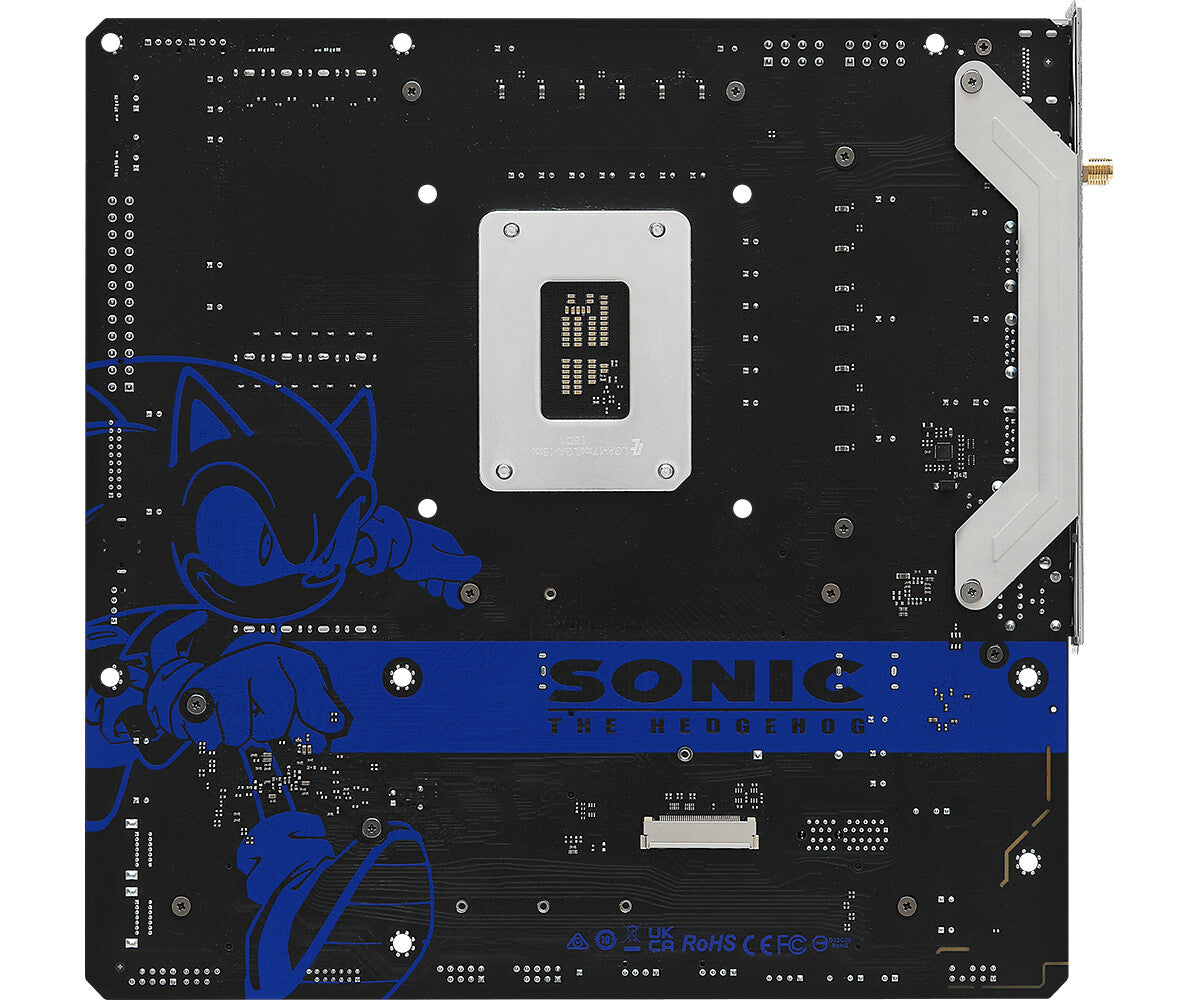

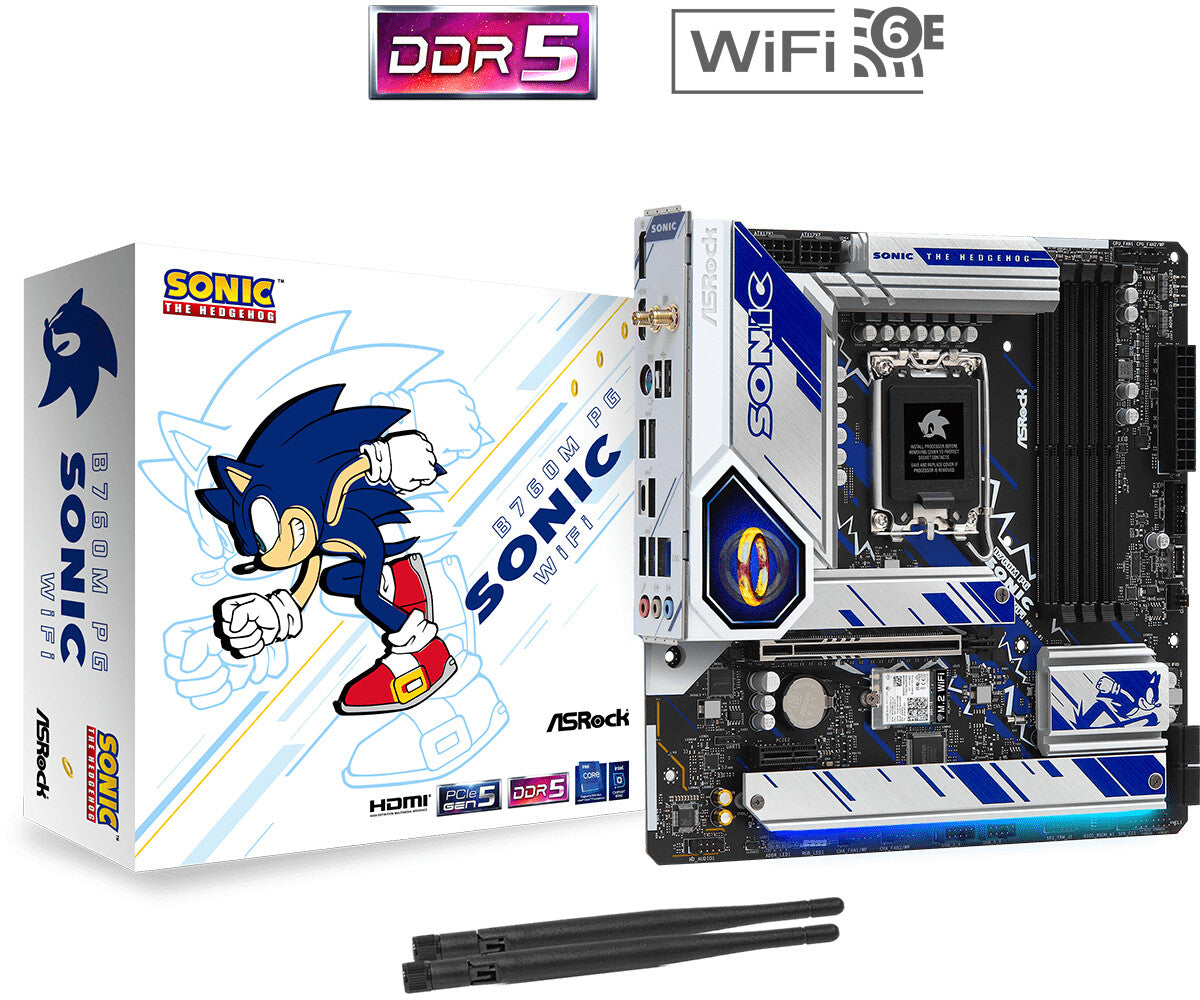

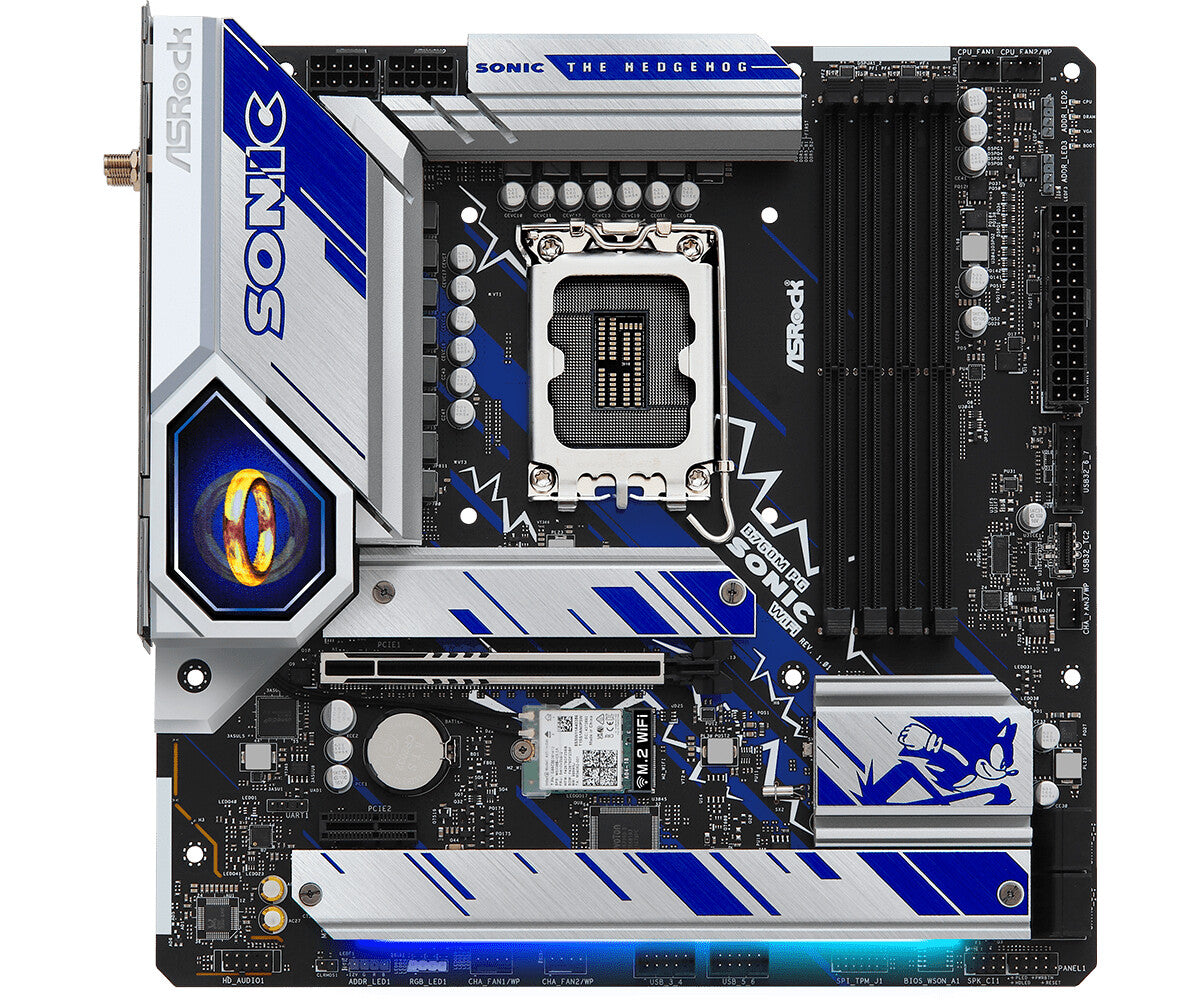

ASRock B760M PG SONIC WiFi, an officially licensed motherboard featuring SEGA’s Sonic the Hedgehog. A 16-bit spinning ring emblazons the rear IO cover, while on the rear side you’ll even catch a glimpse of Sonic mid-run. The ASRock motherboard is co-launched to celebrate the release of SEGA’s new Sonic Frontiers game.
Designed to bring back epic memories of catching rings in Green Hill Zone, the motherboard echoes Sonic’s lightning speed with its fast blue and silver shards and Sonic silhouette.
Processor | |
---|---|
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
TPM connector | Yes |
Chassis intrusion connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |
Rear panel I/O ports | |
---|---|
Microphone in | Yes |
Line-in | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
LAN controller | Dragon RTL8125BG |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset | Intel B760 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
PCI Express x1 (Gen 4.x) slots | 1 |
BIOS | |
---|---|
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 244 mm |
Packaging content | |
---|---|
Cables included | SATA |
