CPU Water Cooler
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices, without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
COMPATIBILITY WITH LGA1700
With the LGA 1700 mounting kit, the entire Liquid Freezer II Series is compatible with Intel's new Alder Lake processors. Even if the socket and heat-spreader are larger compared to the predecessor, the CPU surface has been reduced and remains centered. The Liquid Freezer II cooler completely covers this area. ARCTIC will provide the required mounting kit free of charge to customers who submit proof of purchase of a processor with an LGA 1700 socket.
All Liquid Freezer II models ordered from the webshop already include the LGA1700 mounting kit.
Performance | |
---|---|
Fan static pressure | 2 mmH2O |
VRM fan speed (min) | 1000 RPM |
VRM fan speed (max) | 3000 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2000 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.3 sone |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | Yes |
Number of fan blades | 5 |
Number of fans | 3 fan(s) |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.17 A |
LED voltage | 5 V |
VRM fan power consumption | 2.7 W |
Pump power consumption | 0.5 W |
Weight & dimensions | |
---|---|
Package weight | 2.79 kg |
Package height | 328 mm |
Package depth | 447 mm |
Package width | 158 mm |
Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
Weight | 2.02 kg |
Pump height | 9.8 cm |
Pump depth | 7.8 cm |
Pump width | 5.3 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
Tube length | 45 cm |
Radiator height | 13.8 cm |
Radiator depth | 45.8 cm |
Radiator width | 5.3 cm |

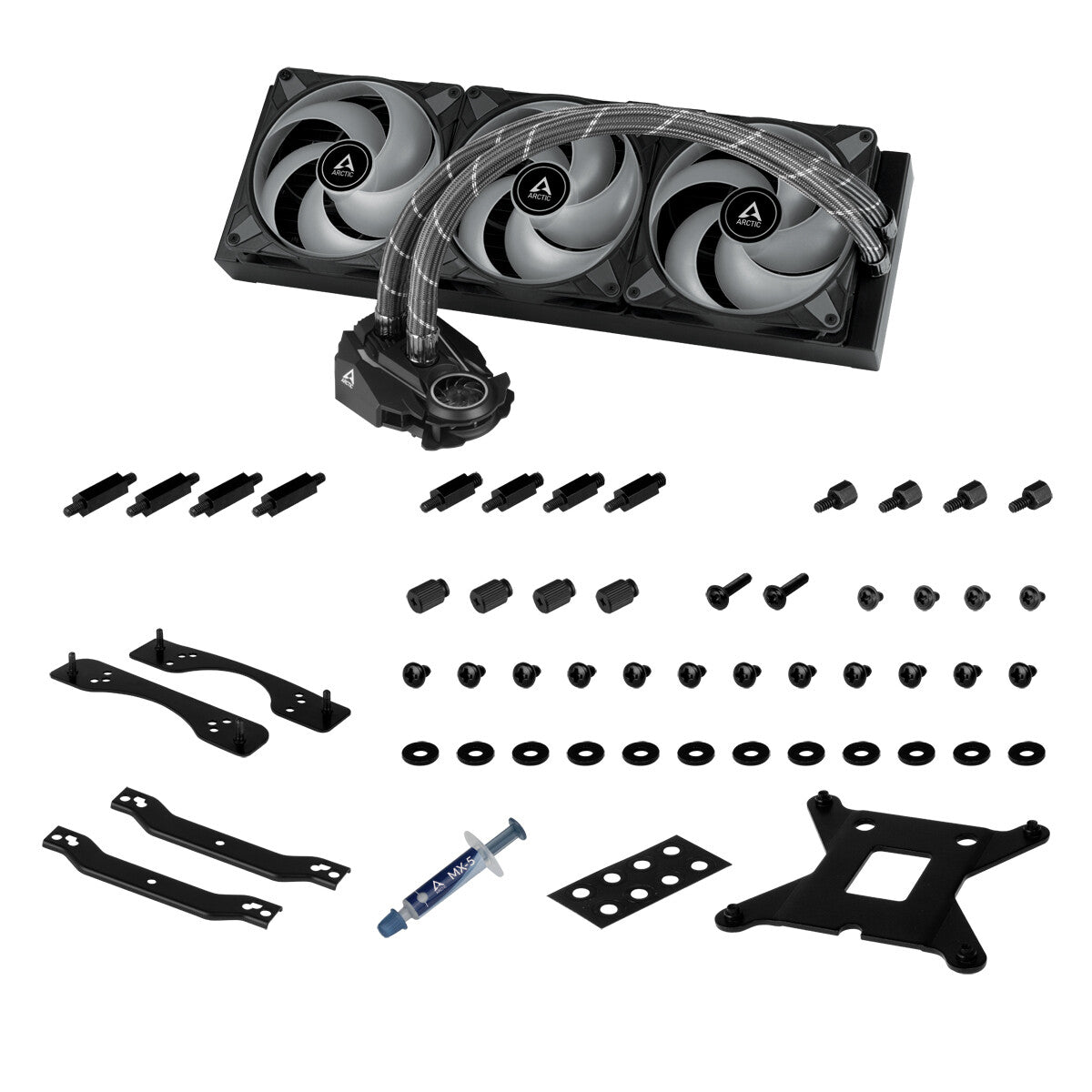

Packaging content | |
---|---|
CPU socket spacer(s) | Yes |
CPU bracket(s) | Yes |
Thermal pad included | Yes |
Mounting kit | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
