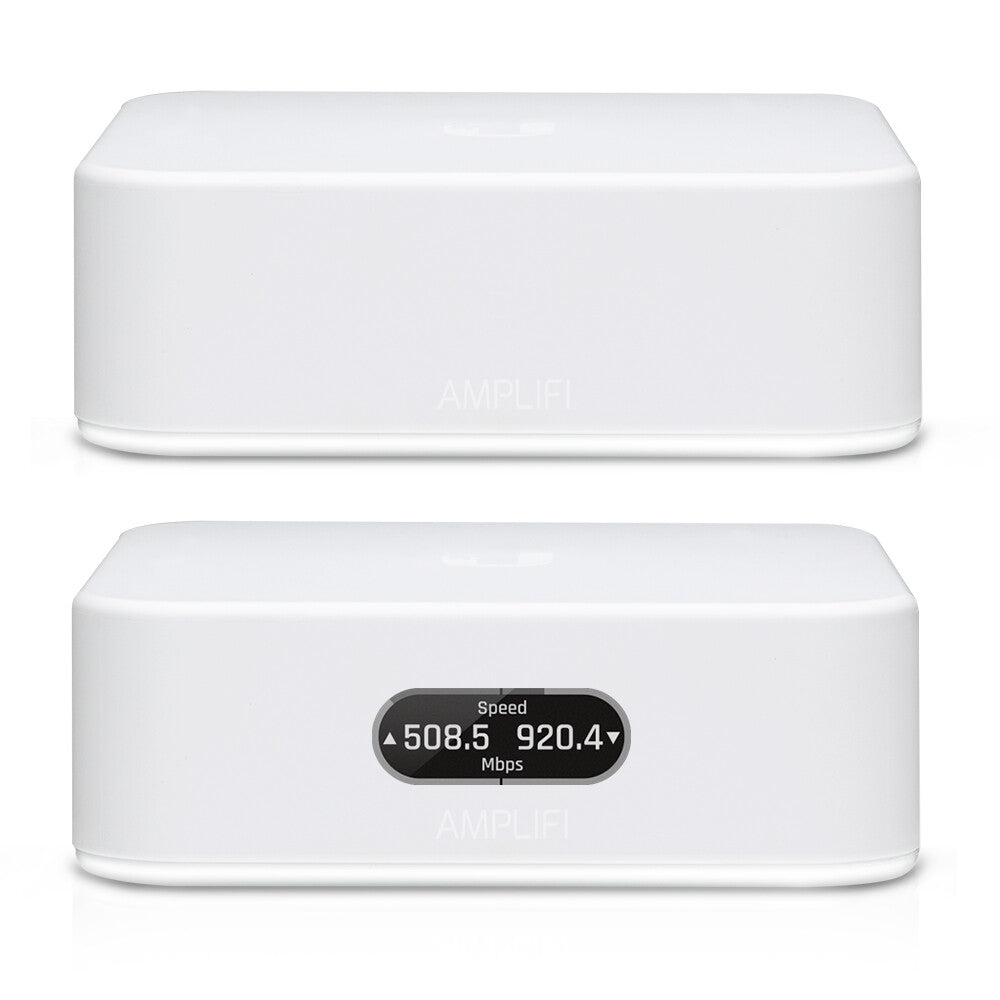

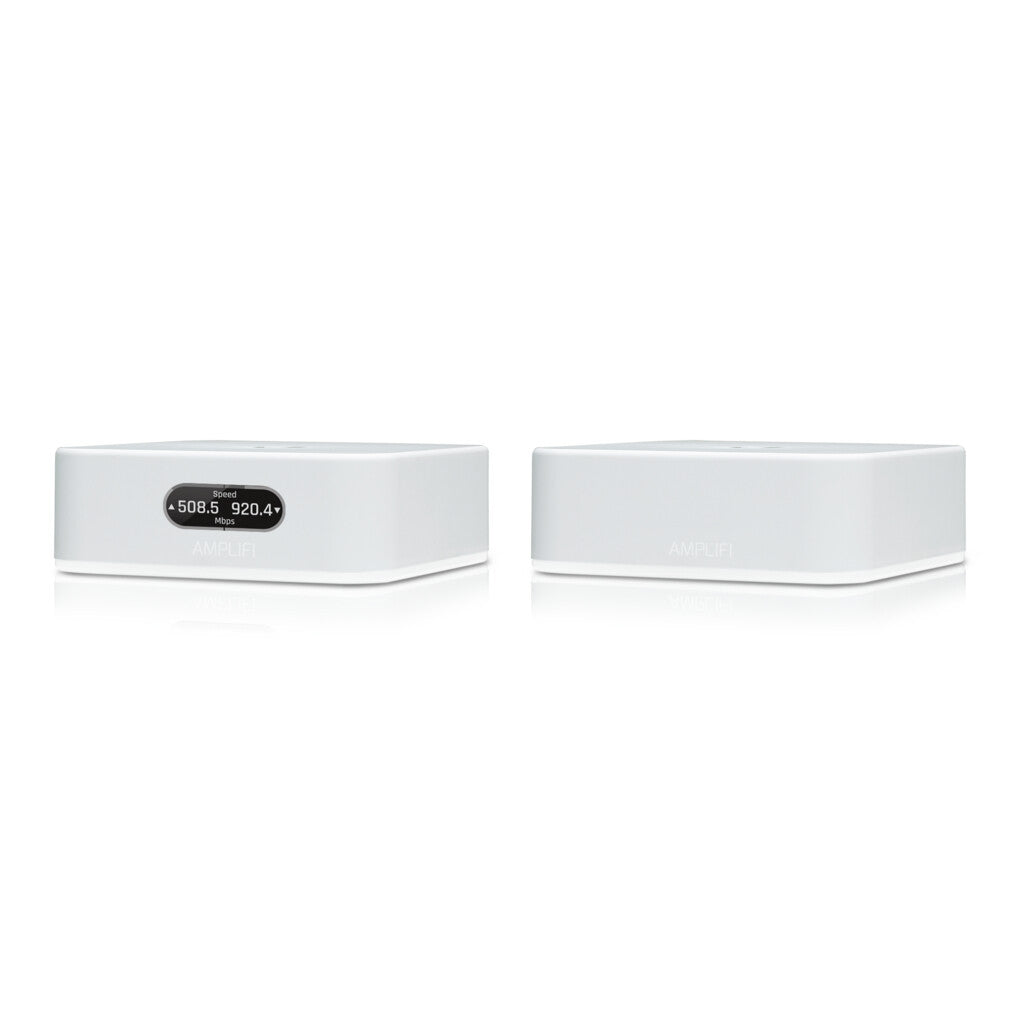

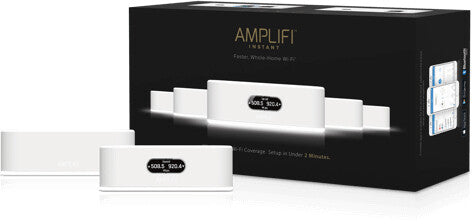

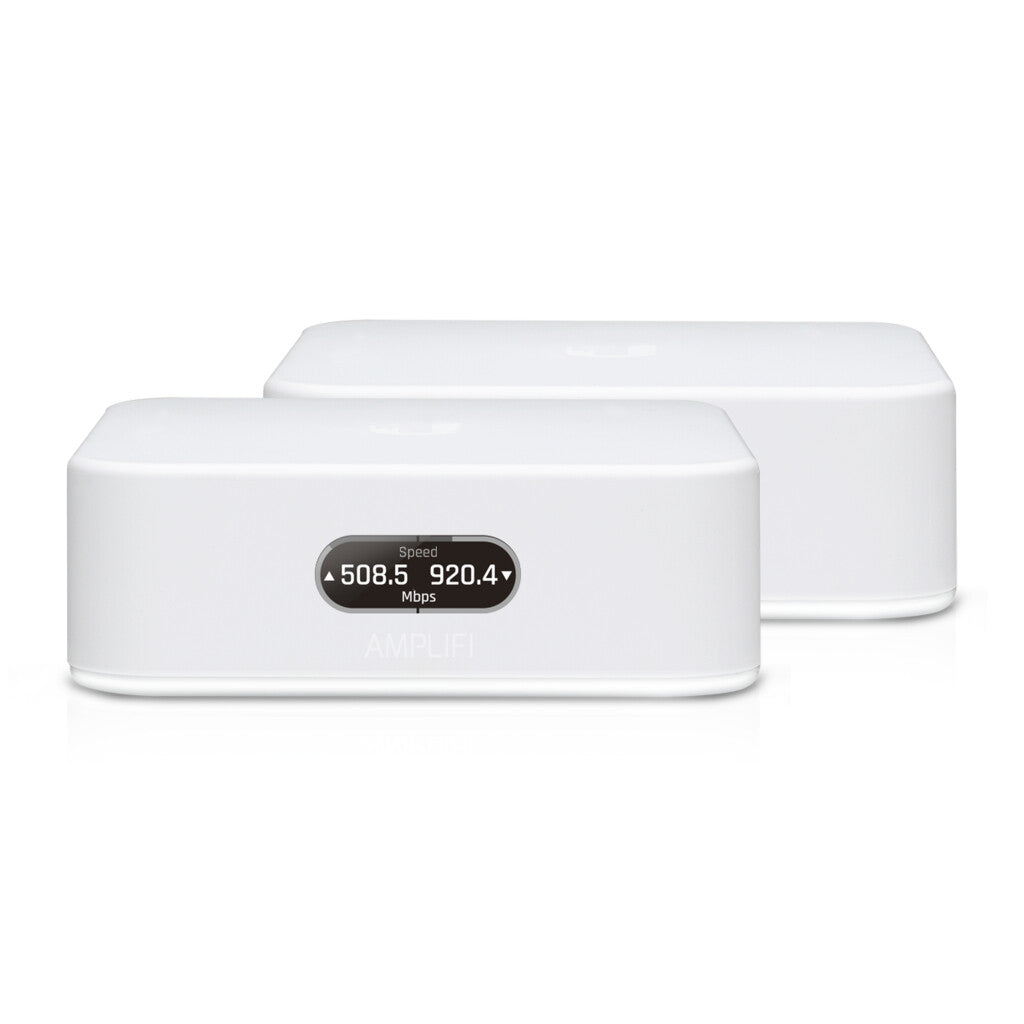

The AmpliFi Instant Wi-Fi System includes a router with an easy-to-use touchscreen display, 1 Gigabit Ethernet port, a WAN port, an Ethernet cable, and one MeshPoint with an Ethernet port to maximize coverage and eliminate dead zones in your home.
The AmpliFi Instant Wi-Fi system provides superior coverage with a range of up to 4,000 sq. ft and quick setup for whole home coverage with seamless Wi-Fi.
Say hello to a fresh design aesthetic
And goodbye to trying to discreetly hide your router. You need your router where you use your devices the most; like your office, family room or bedroom. The AmpliFi Instant is designed to complement your home’s interior both functionally and aesthetically. Now you can place your router on your desk, side table or nightstand without messing up your home’s decor.
Features you want from a system you can understand
The AmpliFi Instant has the features you want, like device status and guest access, with a simple interface that doesn’t require advanced technical degrees. Its glowing LED light indicates the system status while the AmpliFi App puts you in control of your WiFi.
AmpliFi Instant Mesh System
Mix and match your mesh technology to strengthen Wi-Fi signals in the areas of your home where you need it the most. In addition to the AmpliFi Instant kit, which features an Instant MeshPoint, you can add AmpliFi HD MeshPoints or AmpliFi HD Routers to ensure complete coverage.
WAN connection | |
---|---|
WAN connection type | RJ-45 |
3G/4G USB modem compatibility | No |
SIM card slot | No |
DSL WAN | No |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
WLAN data transfer rate (second band) | 867 Mbit/s |
WLAN data transfer rate (first band) | 300 Mbit/s |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
WLAN data transfer rate (max) | 867 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Network | |
---|---|
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Mobile network | |
---|---|
3G | No |
4G | No |
Ports & interfaces | |
---|---|
Memory card slot(s) | No |
USB port | Yes |
Ethernet LAN (RJ-45) ports | 2 |
Management features | |
---|---|
Reset button | Yes |
Security | |
---|---|
Security algorithms | WPA2-PSK, WPA2-TKIP |
Design | |
---|---|
Product colour | White |
Product type | Tabletop router |
Packaging content | |
---|---|
AC adapter included | Yes |
Cables included | LAN (RJ-45) |
Antenna | |
---|---|
Transmit power | 22 dBmW |
Antennas quantity | 1 |
Antenna design | Internal |
Power | |
---|---|
Power consumption (typical) | 9 W |
Power source type | AC |
Operational conditions | |
---|---|
Operating temperature (T-T) | -10 - 55 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
---|---|
Width | 995 mm |
Depth | 978 mm |
Height | 330.5 mm |
Weight | 215 g |
Packaging data | |
---|---|
Number of products included | 2 pc(s) |
Logistics data | |
---|---|
Harmonized System (HS) code | 85176990 |
