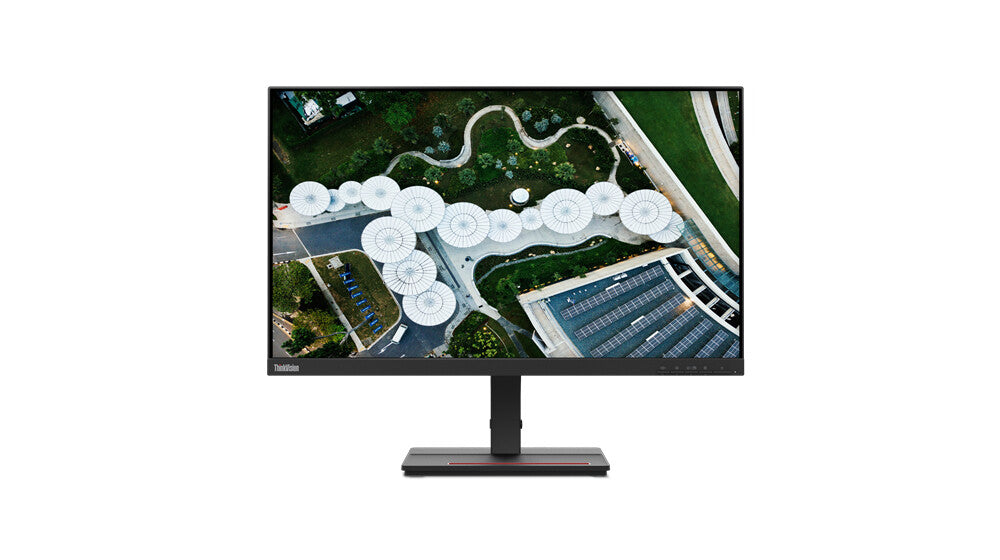

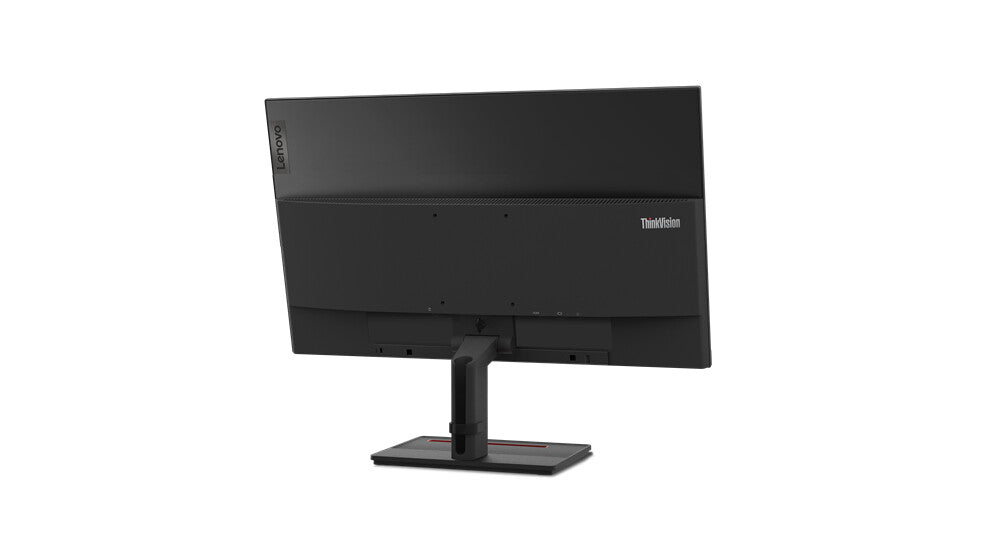

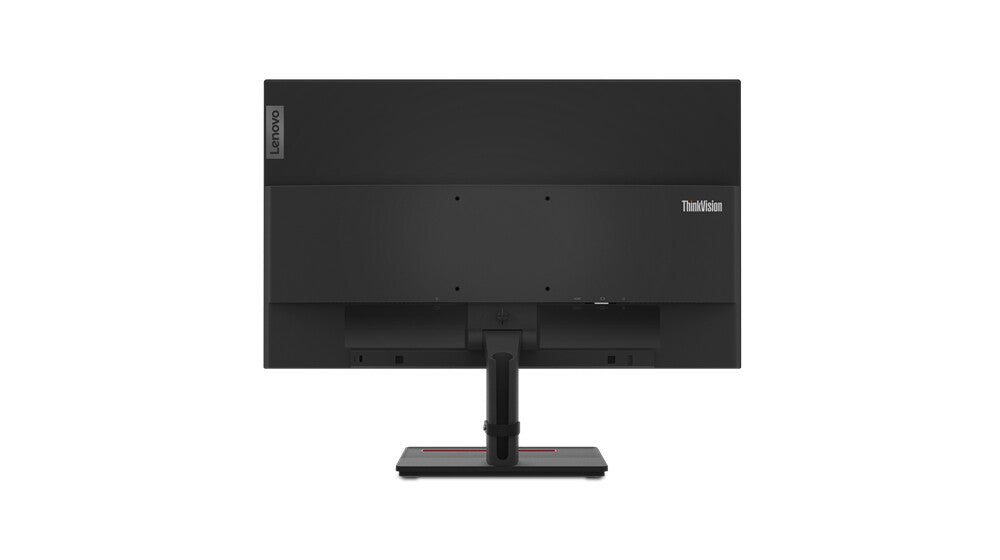

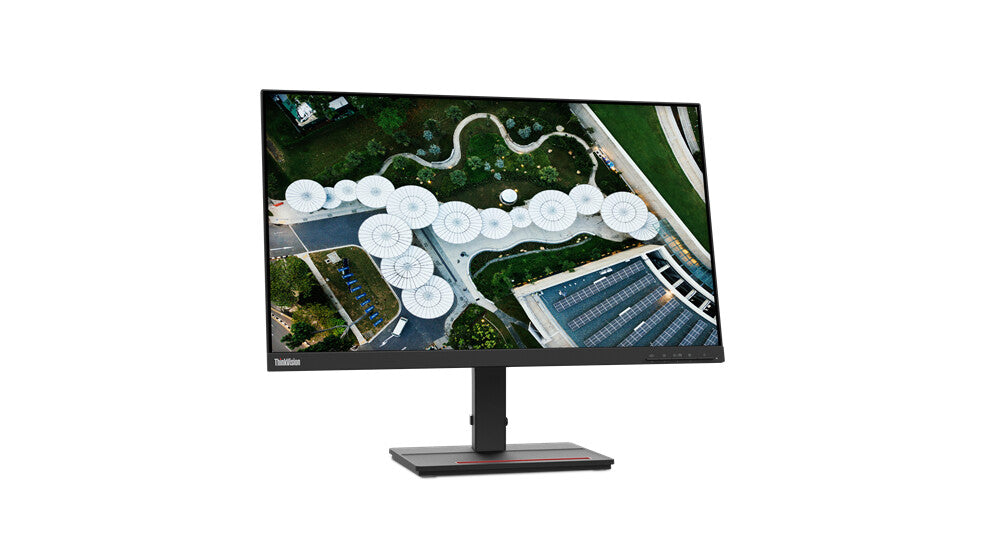

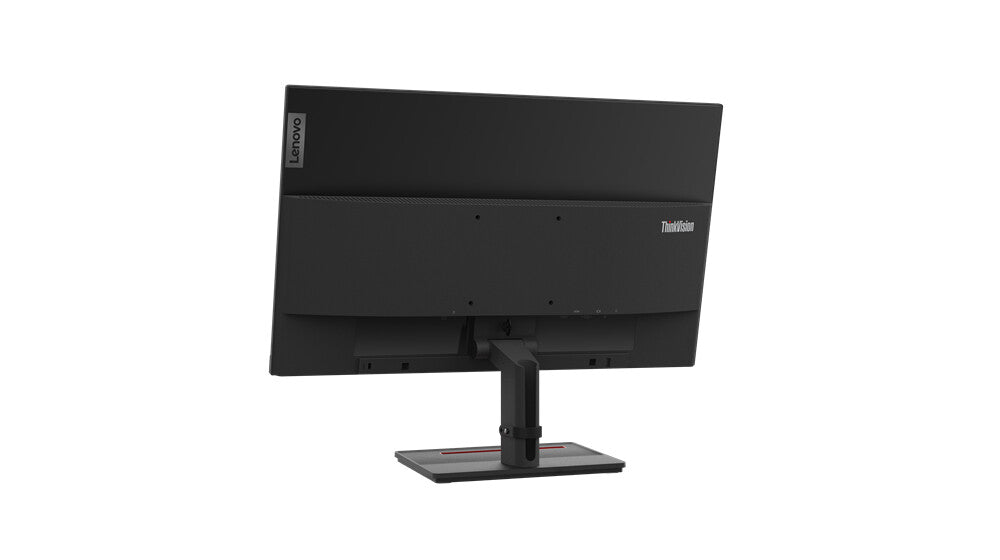

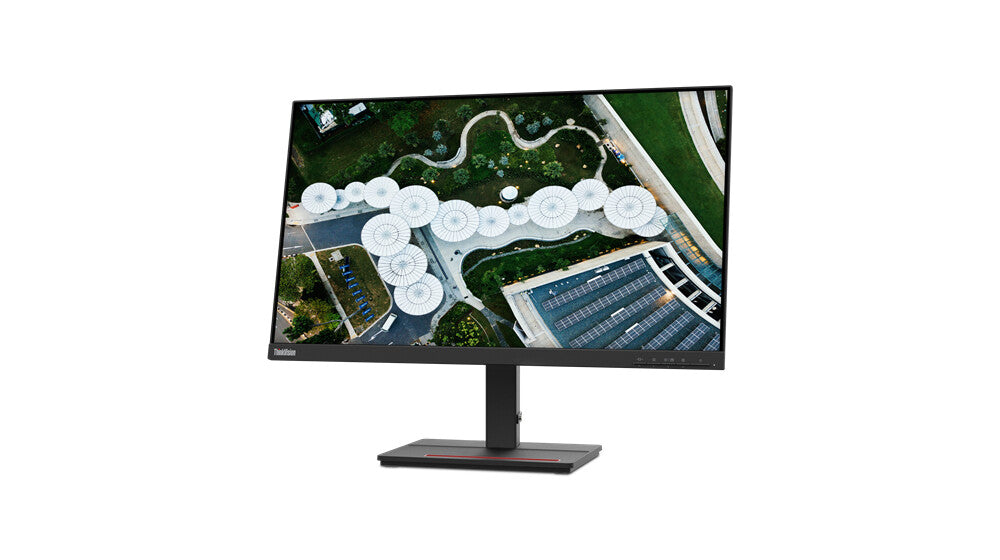

The ThinkVision S24E-20 is an excellent performer that delivers core functionality with a sleek new form factor. Its 1920 x 1080 FHD resolution VA panel rotates up to angles as extreme as 178°. The compact screen head is twice as slim as its previous generation and sits within a compact 3-side NearEdgeless frame. The stand’s built-in cable management system keeps wires out of sight and out of mind. This is a good thing, because with HDMI, VGA and Audio Out ports, the S24e-20 can connect to a whole range of mission-critical devices. And because your staff are your most precious asset, S24E-20 has TÜV Rheinland Eye Comfort Certified technology to protect them from eye fatigue.
Your 3-side NearEdgeless edge
Make multitasking near-effortless with 3-side NearEdgeless display. Compare files side-by-side on two screens with an almost uninterrupted visual continuity. Share content with colleagues standing up, sitting down or far off to the side as much as 178°; everyone sees the same quality image thanks to a 23.8-inch, FHD 1920 x 1080 resolution, VA panel display. Its 7.1 mm slim head design has less than half the screen thickness of the model it replaces but will still hold a Lenovo Tiny or Nano PC tucked away on its back.
Visibly safe and comfortable

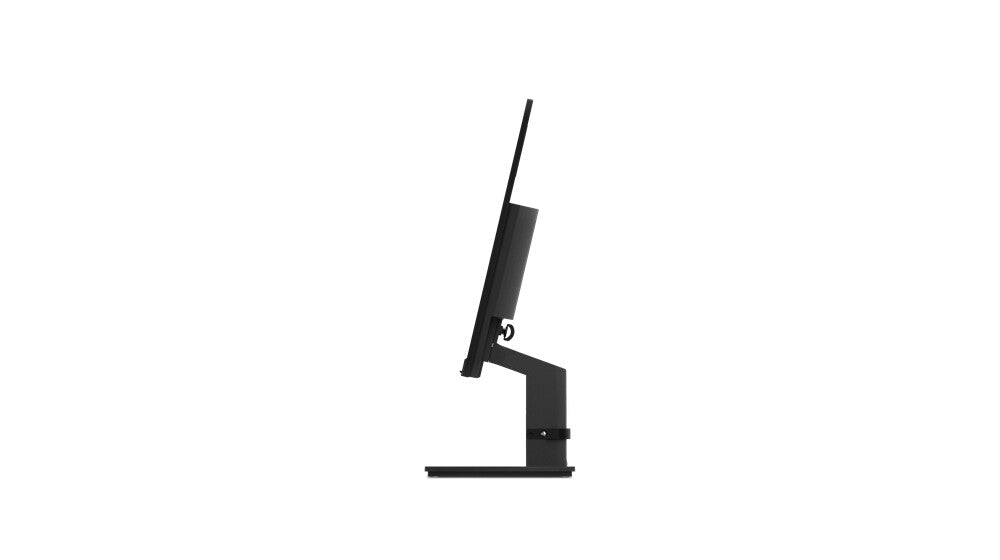

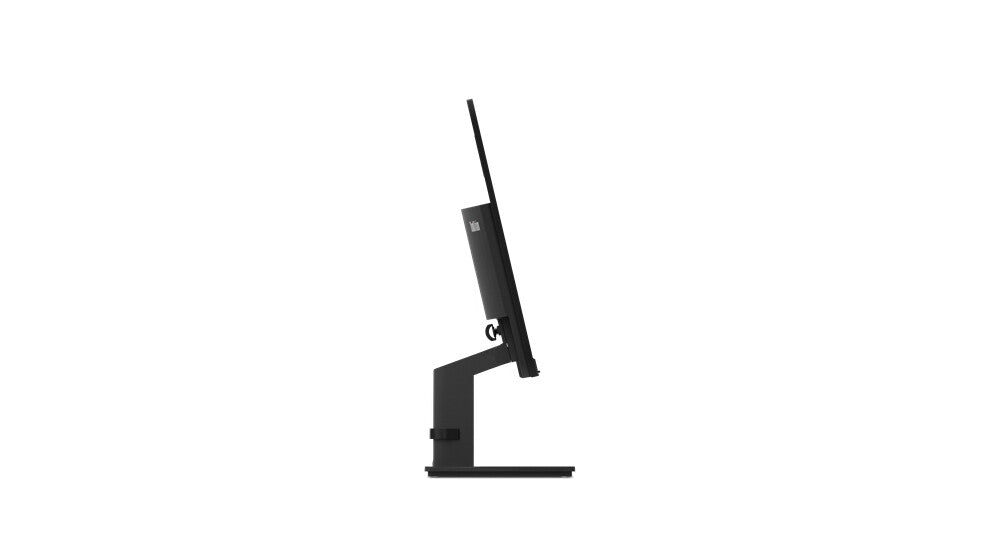

S24E-20 has TÜV Eye Comfort certified technology to protect your employees’ eyes even during long stretches of work. And for greater user comfort, the screen can tilt on its stand to the perfect angle to suit each individual user. Or simply take the monitor off the desk altogether and place onto the wall with its 100 x 100 mm VESA wall mount capability that can also hold a Tiny or Nano PC unseen behind the screen.
Connection, connection, connection
Connect to your fleet of other devices thanks to extensive compatibility. Through HDMI 1.4, VGA and even Audio Out ports, S24e-20 works with PCs laptops and even headphones or external speakers. And you’ll never be troubled by those devices’ wires because the integrated cable management system tucks them tidily out of your way. And an extra touch that staff will appreciate is the new integrated phone holder right in the base of the stand.
Display | |
---|---|
NTSC coverage (typical) | 72% |
RGB colour space | NTSC |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Pixel density | 93 ppi |
Pixel pitch | 0.2745 x 0.2745 mm |
Response time (fast) | 4 ms |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 3000000:1 |
Contrast ratio (typical) | 3000:1 |
Screen shape | Flat |
Response time | 6 ms |
Display brightness (typical) | 250 cd/m² |
Backlight type | W-LED |
Panel type | VA |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
AMD FreeSync | Yes |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Product colour | Black |
Market positioning | Home |
Ports & interfaces | |
---|---|
Headphone out | No |
Audio output | Yes |
Audio input | No |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
HDMI | Yes |
DVI port | No |
VGA (D-Sub) ports quantity | 1 |
Built-in USB hub | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | -5 - 22° |
Height adjustment | No |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (max) | 23.5 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 17.5 W |
Packaging content | |
---|---|
Cables included | HDMI |
Stand included | Yes |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 2.24 cm |
Bezel width (top) | 2.5 mm |
Bezel width (side) | 2.5 mm |
Weight (without stand) | 3.02 kg |
Height (without stand) | 327.2 mm |
Depth (without stand) | 45.5 mm |
Width (without stand) | 540.4 mm |
Weight (with stand) | 3.82 kg |
Height (with stand) | 434.5 mm |
Depth (with stand) | 173.1 mm |
Width (with stand) | 540.4 mm |
Packaging data | |
---|---|
Package weight | 5.42 kg |
Package height | 124 mm |
Package depth | 415 mm |
Package width | 624 mm |
General | |
---|---|
Product Family | ThinkVision |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
