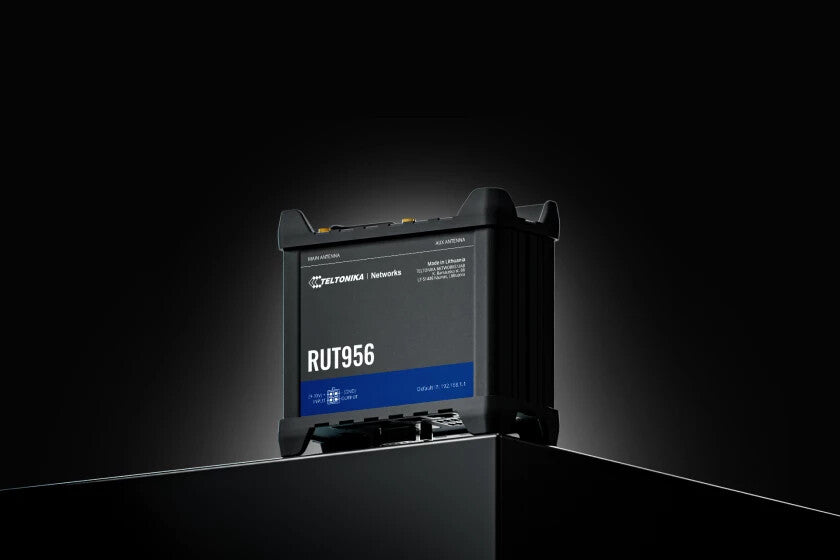

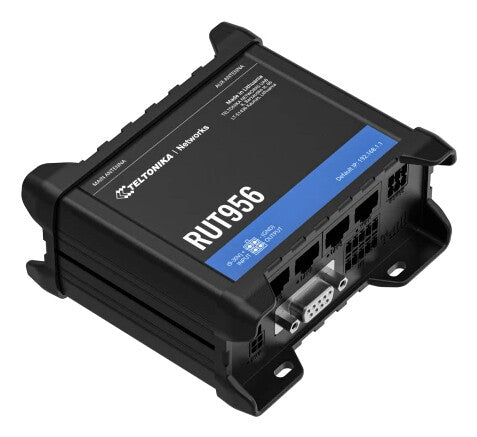

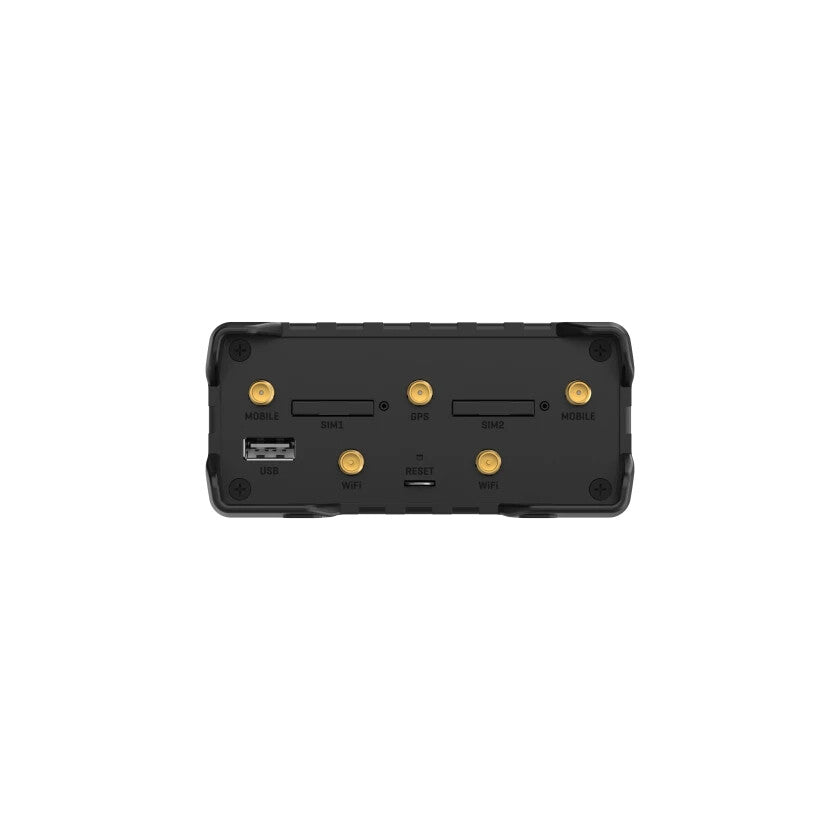

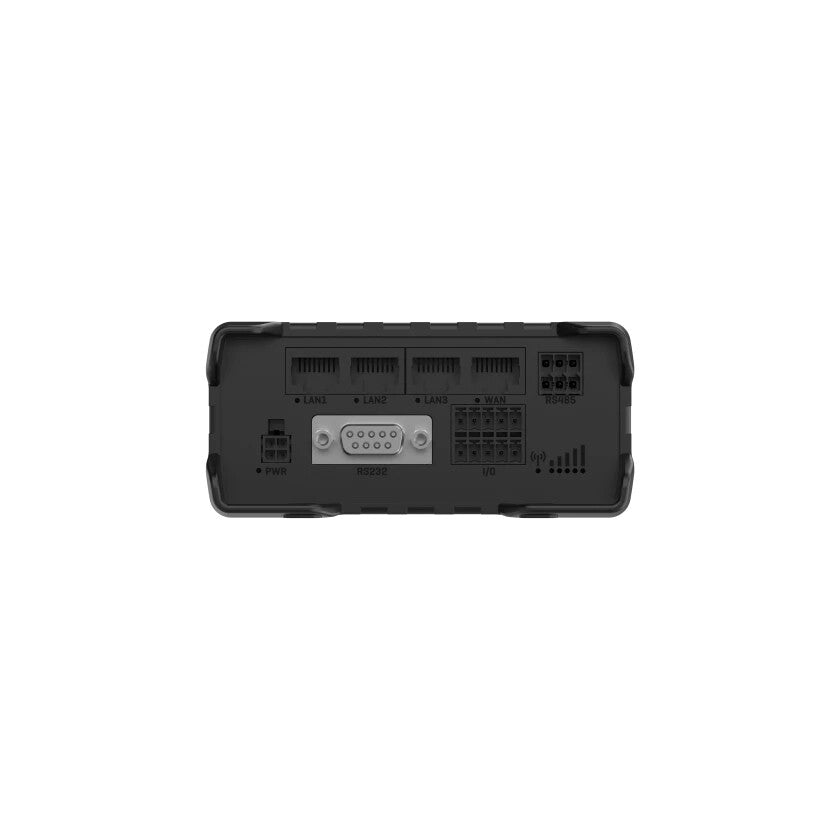

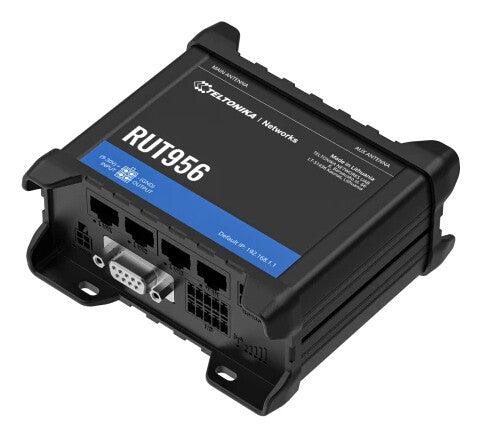

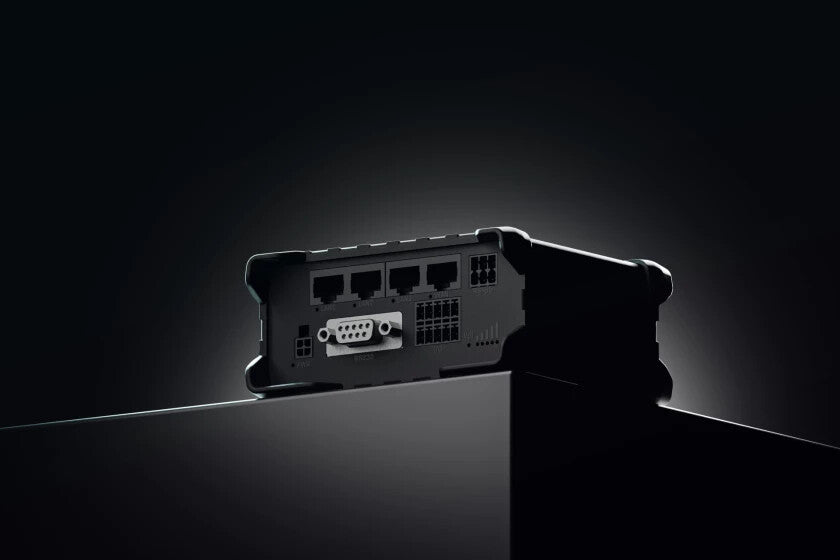

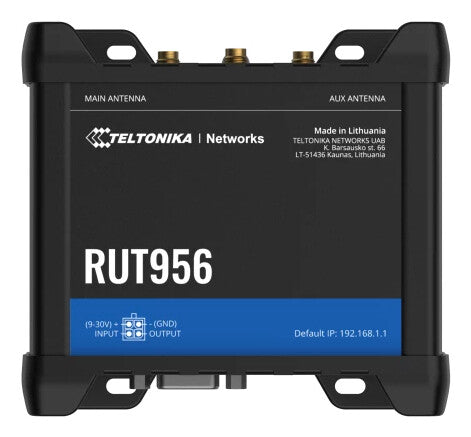

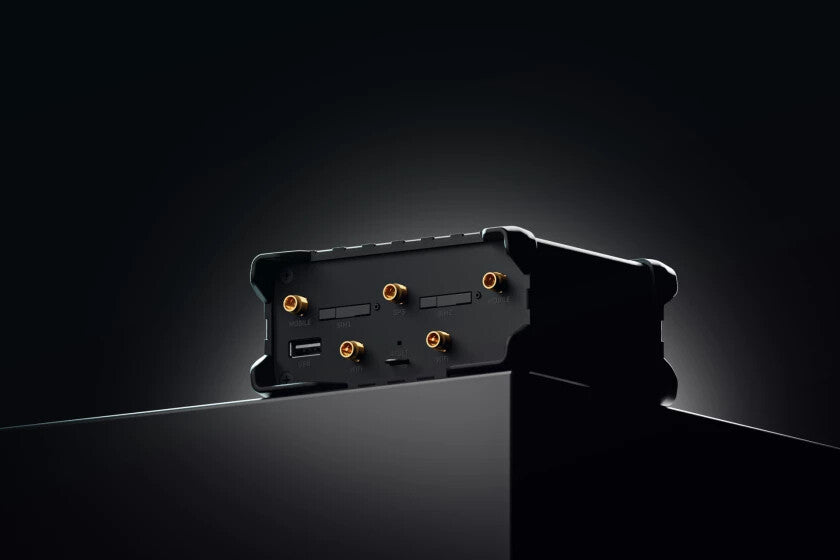

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.
Design | |
---|---|
LED indicators | Yes |
Reset button | Yes |
Market positioning | Industrial |
Mounting | DIN-rail |
Housing material | Aluminium, Plastic |
Product colour | Black |
Device type | Cellular network router |
Ethernet LAN features | |
---|---|
Auto MDI/MDI-X | Yes |
Networking standards | IEEE 802.3, IEEE 802.3u |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet LAN interface type | Fast Ethernet |
Ethernet LAN | Yes |
Wireless LAN features | |
---|---|
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Wi-Fi | Yes |
Mobile network | |
---|---|
Short Message Service (SMS) | Yes |
Number of SIM cards | 2 |
4G standard | LTE |
Data network | 2G, 3G, 4G |
Ports & interfaces | |
---|---|
USB 2.0 ports quantity | 1 |
USB port | Yes |
Ethernet LAN (RJ-45) ports | 3 |
Serial interface | |
---|---|
Serial interface type | RS-232, RS-485 |
Serial ports quantity | 2 |
Security | |
---|---|
Port forwarding | Yes |
DMZ support | Yes |
Firewall | Yes |
Network address translation (NAT) | Yes |
Security algorithms | HTTPS, SSH, SSL/TLS, TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
GPS Performance | |
---|---|
Quasi-Zenith Satellite System (QZSS) | Yes |
Galileo | Yes |
GLONASS | Yes |
BeiDou | Yes |
Embedded GNSS | Yes |
GPS (satellite) | Yes |
Performance | |
---|---|
Operating system installed | RutOS |
RAM type | DDR2 |
RAM capacity | 0.128 GB |
Processor frequency | 0.58 GHz |
Processor manufacturer | Mediatek |
Built-in processor | Yes |
Management features | |
---|---|
Web-based management | Yes |
Antenna | |
---|---|
Antennas quantity | 5 |
Antenna type | External |
Power | |
---|---|
Power source type | DC |
Operational conditions | |
---|---|
Operating temperature (T-T) | -40 - 75 °C |
Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
---|---|
Weight | 287 g |
Height | 50 mm |
Depth | 100 mm |
Width | 110 mm |
