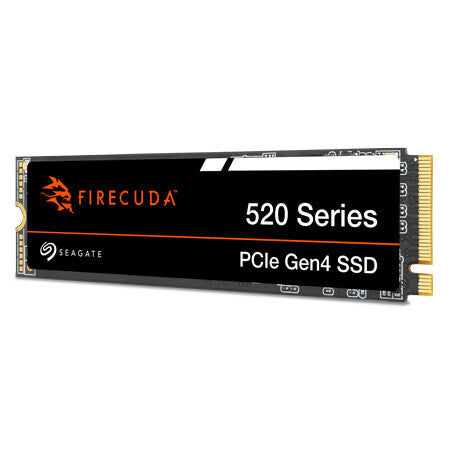

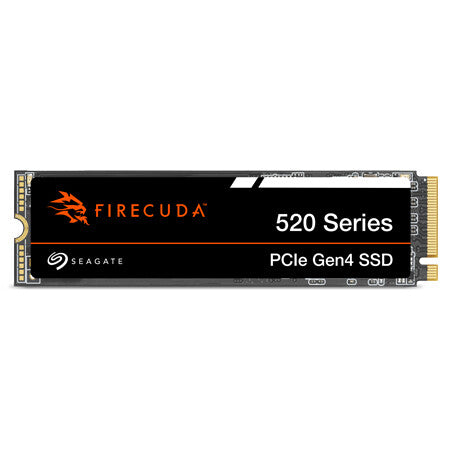

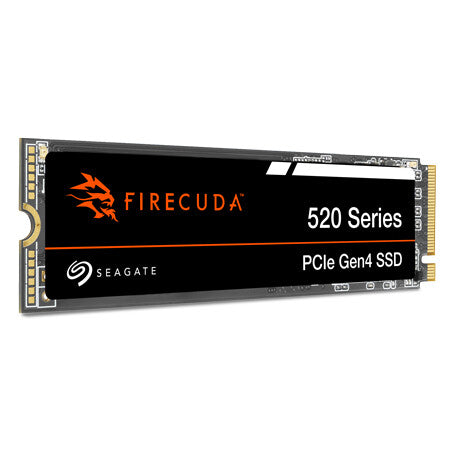

Accelerate and dominate with the Seagate® FireCuda® 520 PCIe Gen4 SSD. Featuring blazing fast read/write speeds of up to 5000/4850MB/s, this FireCuda 520 SSD is nearly 50% faster than its previous version. Powered by the latest 3D TLC NAND technology, this plug-and-play SSD is equipped with staying power—handling upwards of 1200TB total bytes written with ease.
Upgrade Your Gaming Experience
Go further with a gaming SSD built for industry-leading speed, sustained abuse, lowest latency and superior gaming.
Faster Gaming with PCIe Gen4
Pro-level gaming that’s nearly 45% faster than PCIe Gen3 M.2 NVMe SSD.
Beyond Acceleration
Upgrade to PCIe Gen4, with sequential read/write up to 5,000/4,400 MB/s.
Enviable Endurance
With 1.8M hours MTBF, this SSD can play harder for longer.
A Winning Combo
Our FireCuda 520 SSD is built to provide you with more cores, more cache, more tech and more I/O. This gaming drive is out-of-the-box compatible with the latest generation of powerful AMD Ryzen™ processors.
DiscWizard and SeaTools — Making Drive Management Easier
Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard, and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
We’ve Got Your Back
When the unexpected happens — like water damage or natural disaster — Rescue Services help you defend against data loss and retrieval costs so you can rest easier.
Features | |
---|---|
TBW rating | 1200 |
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
Mean time between failures (MTBF) | 1800000 h |
S.M.A.R.T. support | Yes |
TRIM support | Yes |
PCI Express interface data lanes | x4 |
Random write (4KB) | 950000 IOPS |
Random read (4KB) | 800000 IOPS |
Write speed | 4750 MB/s |
Read speed | 4850 MB/s |
Component for | PC/Laptop |
NVMe | Yes |
Memory type | 3D TLC |
Interface | PCI Express 4.0 |
SSD capacity | 2 TB |
SSD form factor | M.2 |
Power | |
---|---|
Power consumption (idle) | 0.02 W |
Power consumption (average) | 4.3 W |
General | |
---|---|
Product Family | FireCuda |
Operational conditions | |
---|---|
Operating shock | 1500 G |
Storage temperature (T-T) | -40 - 85 °C |
Operating temperature (T-T) | 0 - 70 °C |
Technical details | |
---|---|
Doesn't contain | Halogen |
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 8 g |
Height | 2.23 mm |
Depth | 80.2 mm |
Width | 22.1 mm |
Packaging data | |
---|---|
Package weight | 71 g |
Package height | 24 mm |
Package depth | 155 mm |
Package width | 109 mm |
