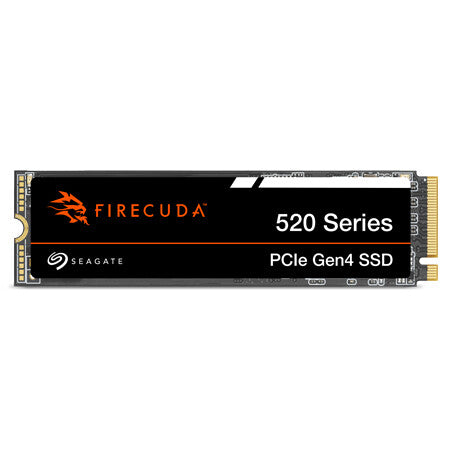

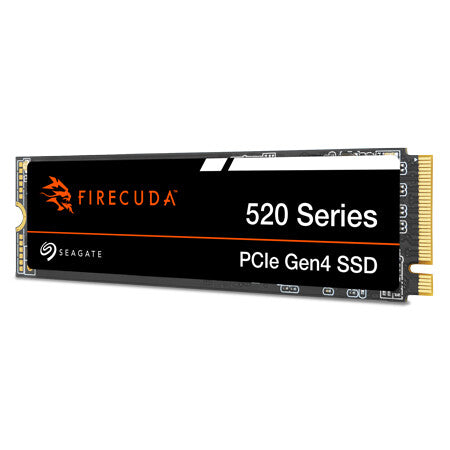

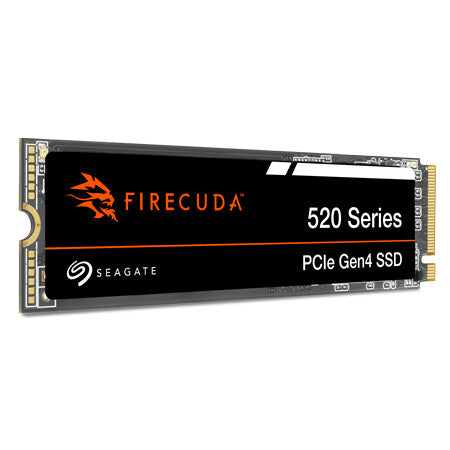

Accelerate and dominate with the Seagate® FireCuda® 520 PCIe Gen4 SSD. Featuring blazing fast read/write speeds of up to 5,000/4,850 MB/s, this FireCuda 520 SSD is nearly 50% faster than its previous version. Powered by the latest 3D TLC NAND technology, this plug-and-play SSD is equipped with staying power — handling upwards of 1,200 TB total bytes written with ease.
Upgrade Your Gaming Experience
Go further with a gaming SSD built for industry-leading speed, sustained abuse, lowest latency and superior gaming.
Beyond Acceleration
Features blazing fast sequential read/write speeds of up to 5,000/4,850 MB/s.
Hold On Tight
Transfer speeds up to 45% faster than PCIe Gen3 NVMe SSDs and up to 9× faster than SATA SSDs.
Built to Last
Up to 1,200 TB TBW means the 2 TB drive can write and delete 600 GB a day, every day, for five years.
Seek and Deploy
Host Memory Buffer boosts performance by targeting extra memory resources from the CPU.
Latest Hardware
Seagate-qualified IG5220 controller combines leading edge performance with NAND for high-speed gaming.
Game and Create Like a Pro
Up to 2 TB of space lets you accumulate and keep your most important files on your boot drive — ready to fire up in seconds.
We’ve Got Your Back
When the unexpected happens — like water damage or natural disaster — Rescue Services help you defend against data loss and retrieval costs so you can rest easier.
Features | |
---|---|
Linux operating systems supported | Yes |
Windows operating systems supported | Windows 10, Windows 11 |
Mean time between failures (MTBF) | 1800000 h |
S.M.A.R.T. support | Yes |
TRIM support | Yes |
Random write (4KB) | 950000 IOPS |
Random read (4KB) | 830000 IOPS |
Write speed | 4850 MB/s |
Read speed | 5000 MB/s |
Component for | PC/Laptop |
NVMe version | 1.3 |
NVMe | Yes |
Memory type | 3D TLC NAND |
Interface | PCI Express 4.0 |
SSD capacity | 1 TB |
SSD form factor | M.2 |
Power | |
---|---|
Power consumption (idle) | 17 W |
Power consumption (average) | 3.9 W |
General | |
---|---|
Product Family | FireCuda |
Operational conditions | |
---|---|
Non-operating shock | 1500 G |
Storage temperature (T-T) | -40 - 85 °C |
Operating temperature (T-T) | 0 - 70 °C |
Technical details | |
---|---|
Doesn't contain | Halogen |
Sustainability compliance | Yes |
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 71 g |
Height | 2.23 mm |
Depth | 80.2 mm |
Width | 22.1 mm |
Packaging data | |
---|---|
Package weight | 71 g |
Package height | 24 mm |
Package depth | 155 mm |
Package width | 109 mm |
