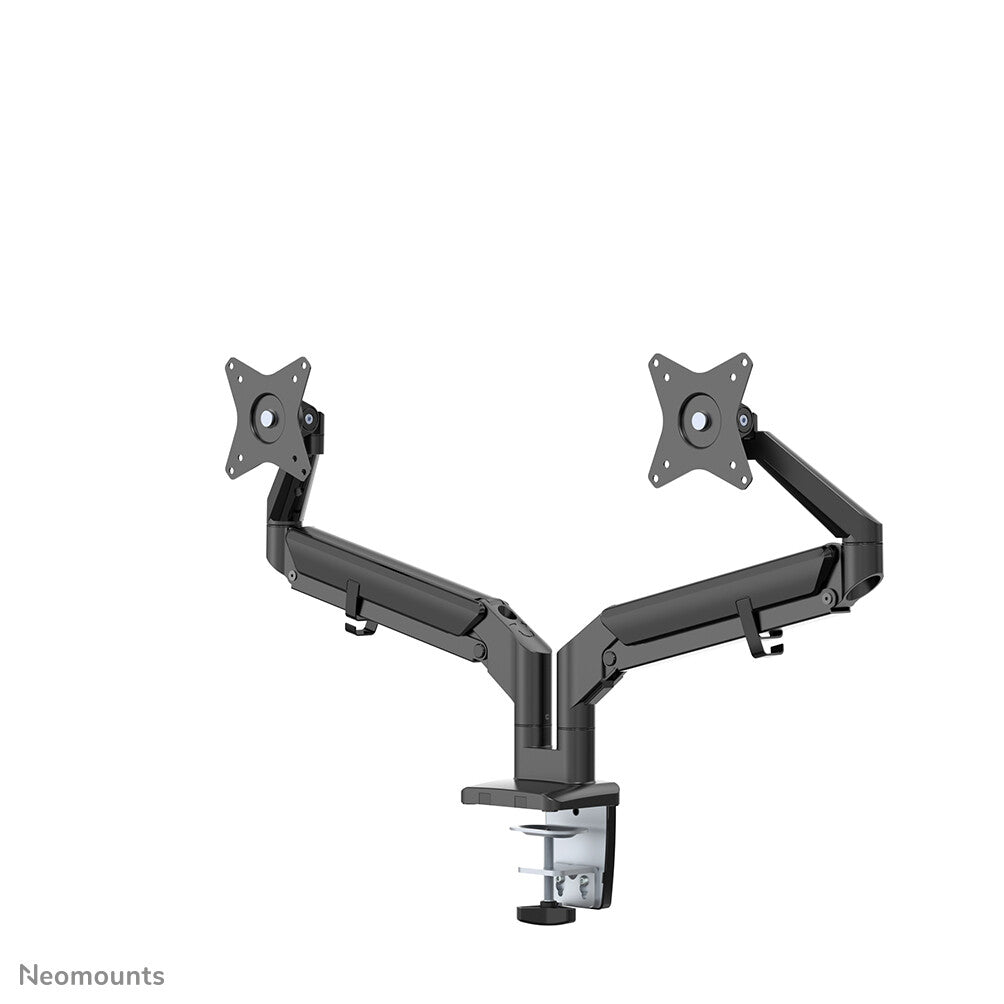

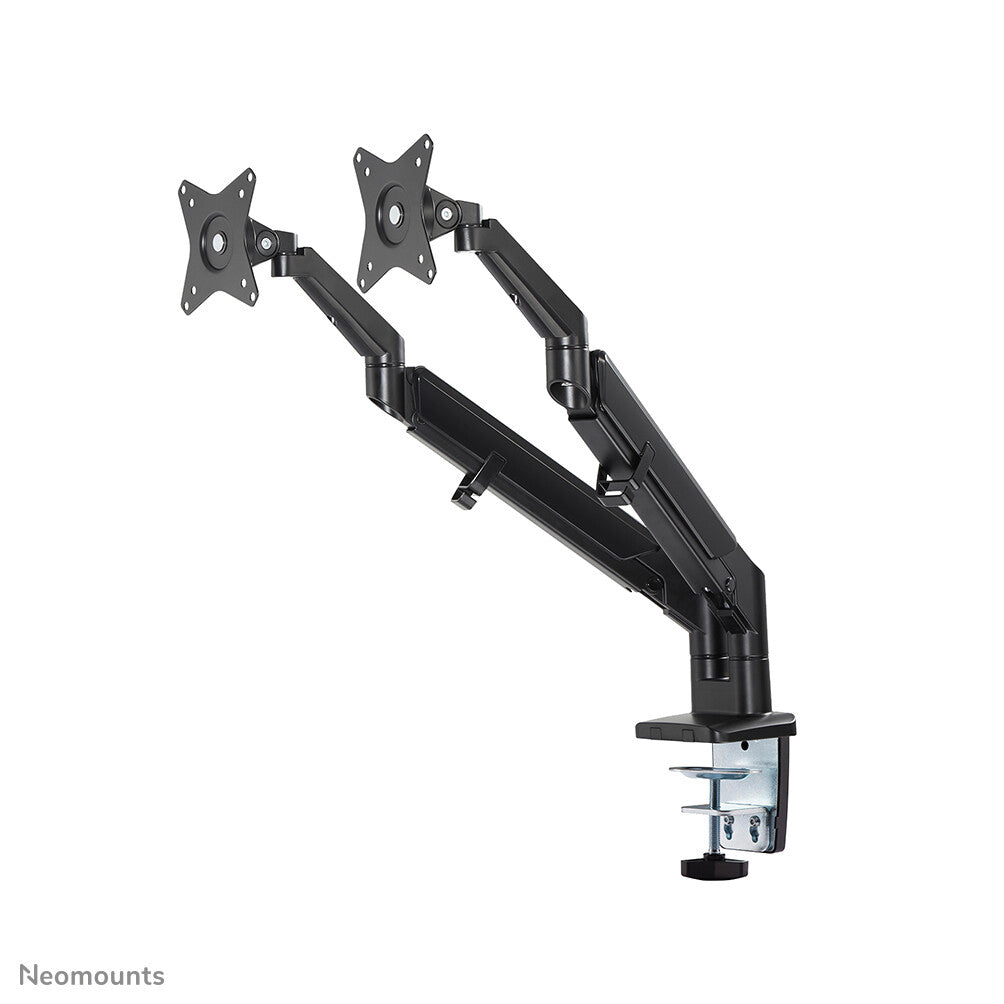

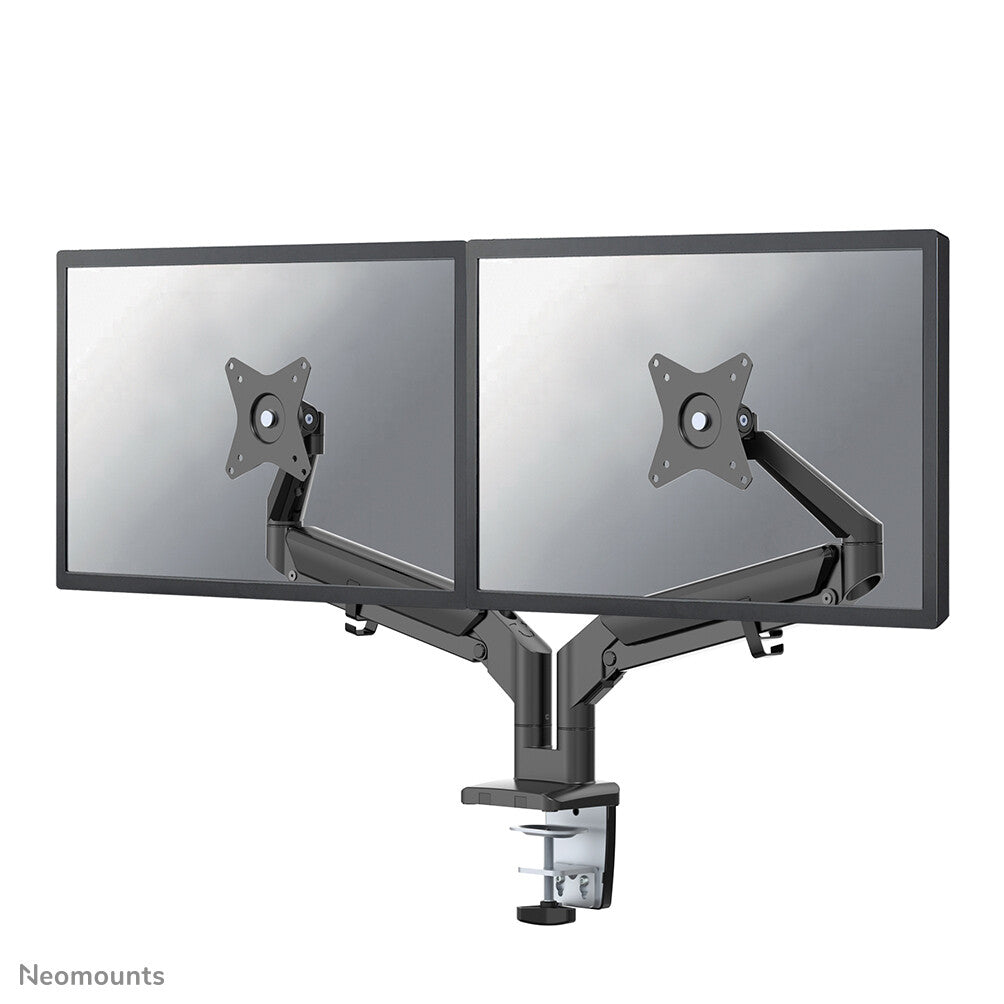

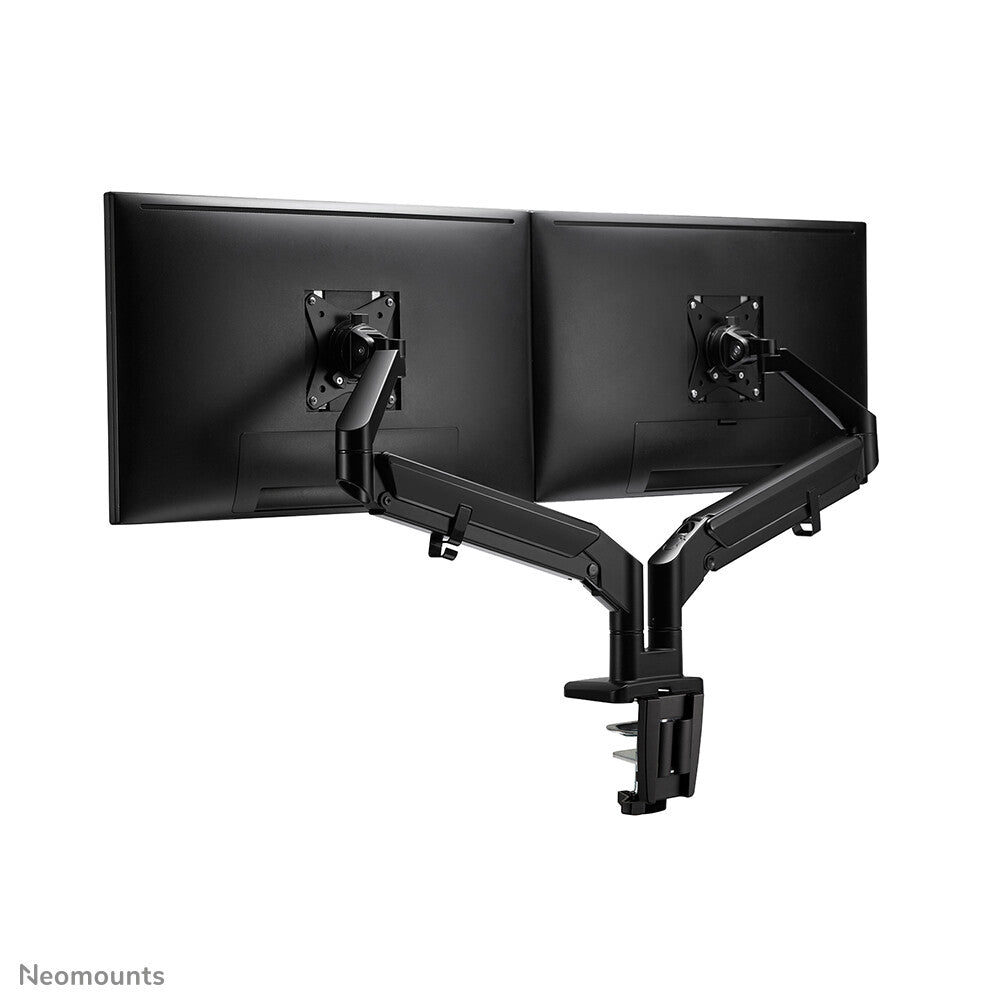

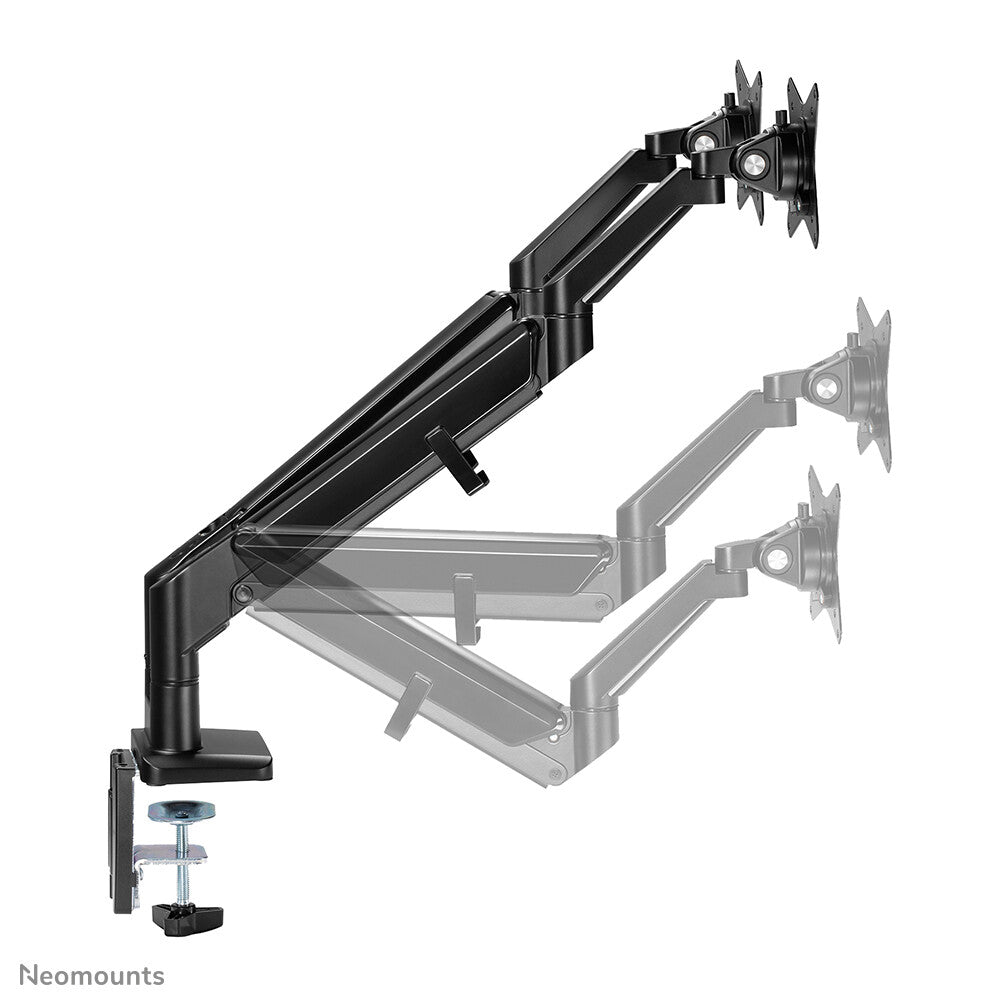

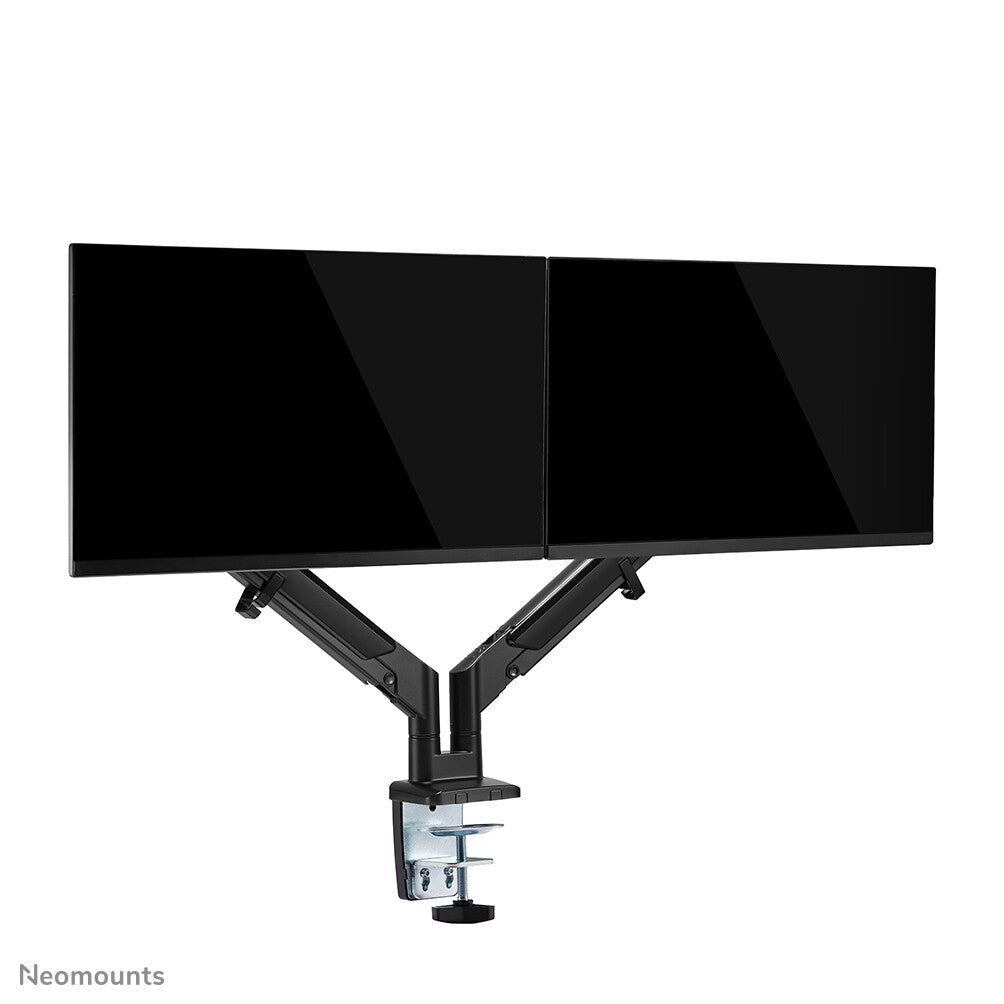

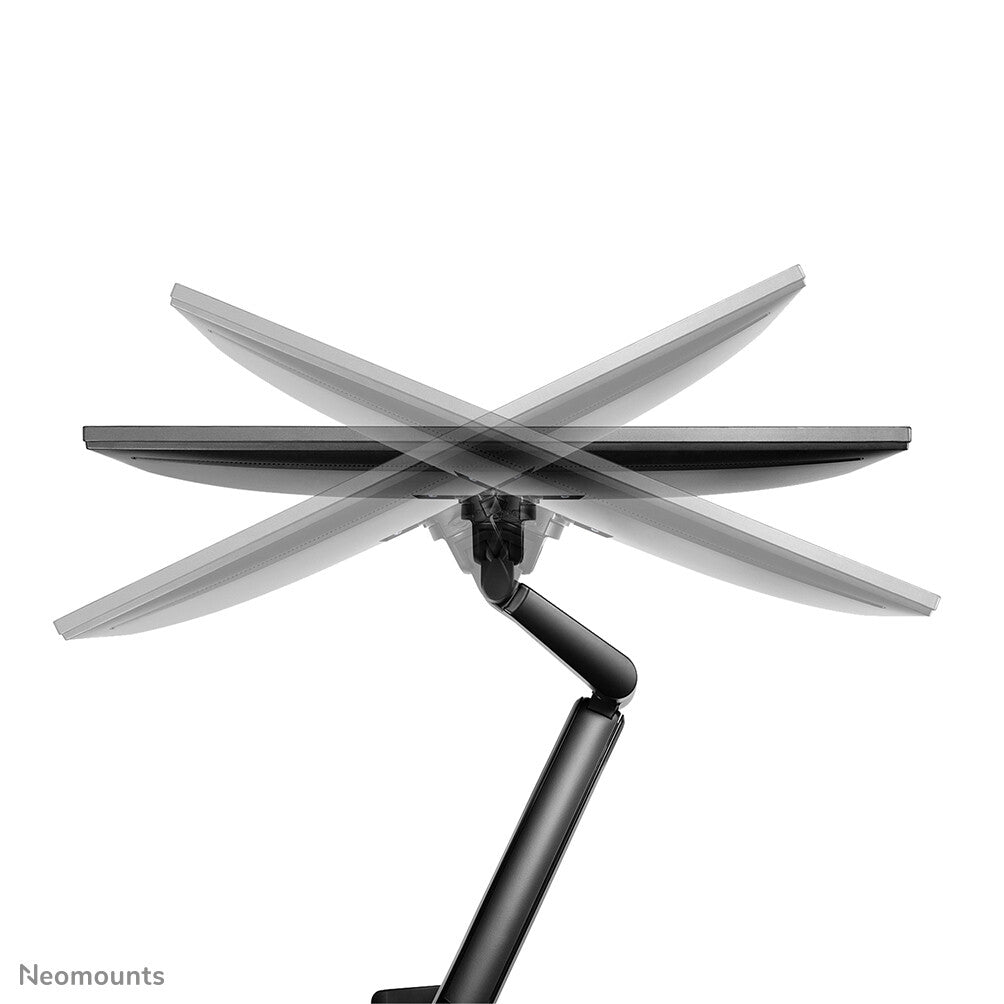

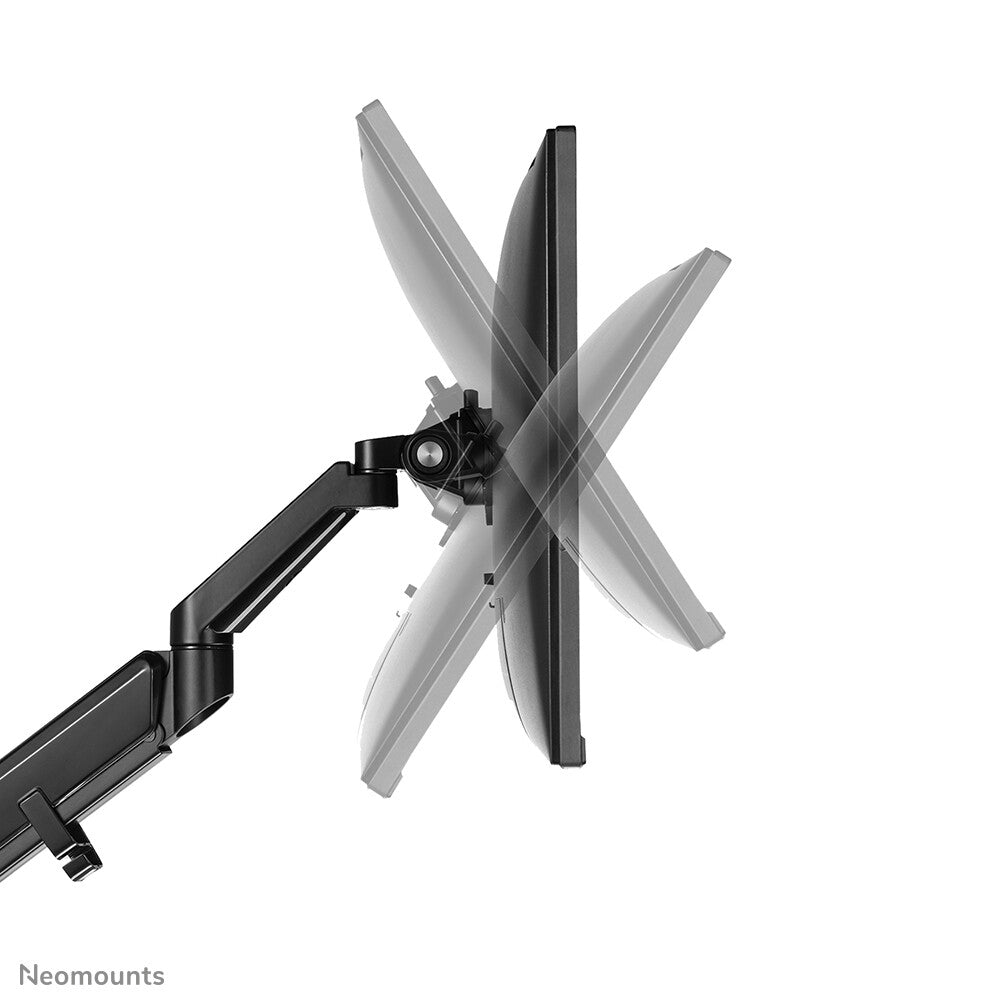

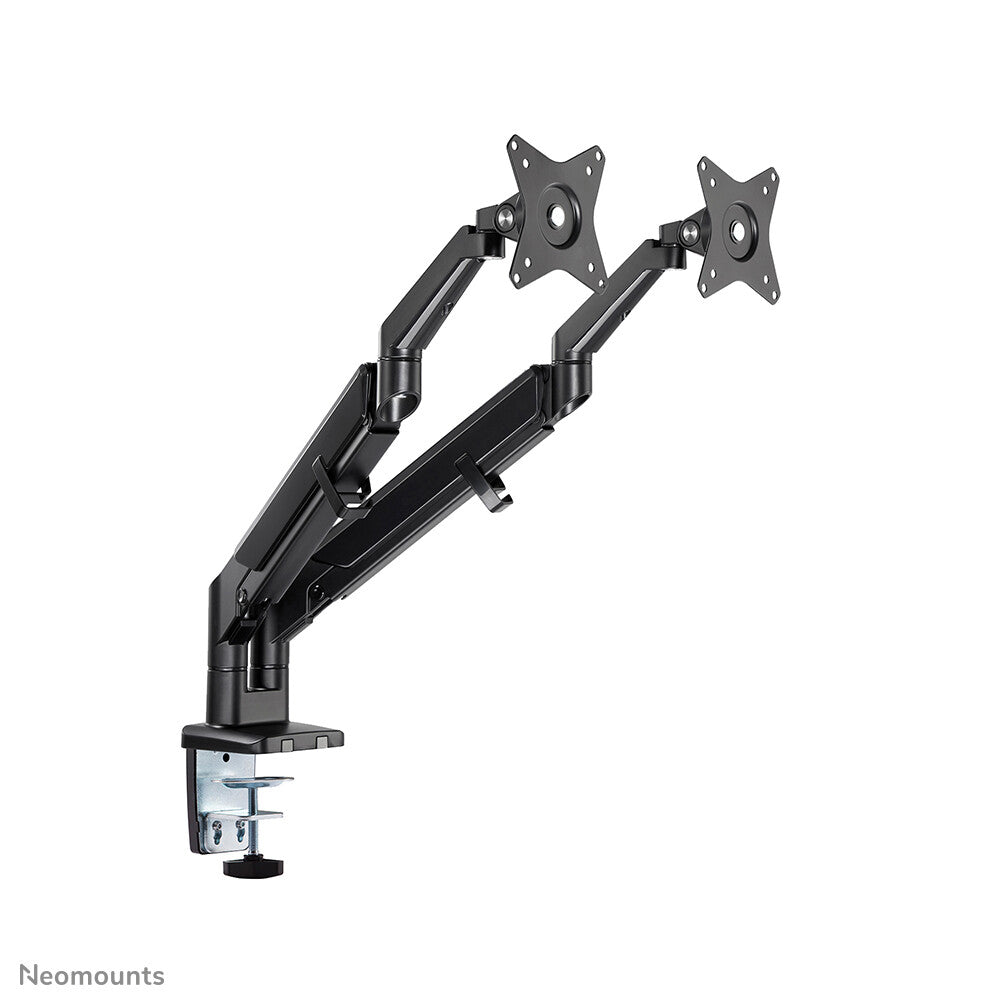

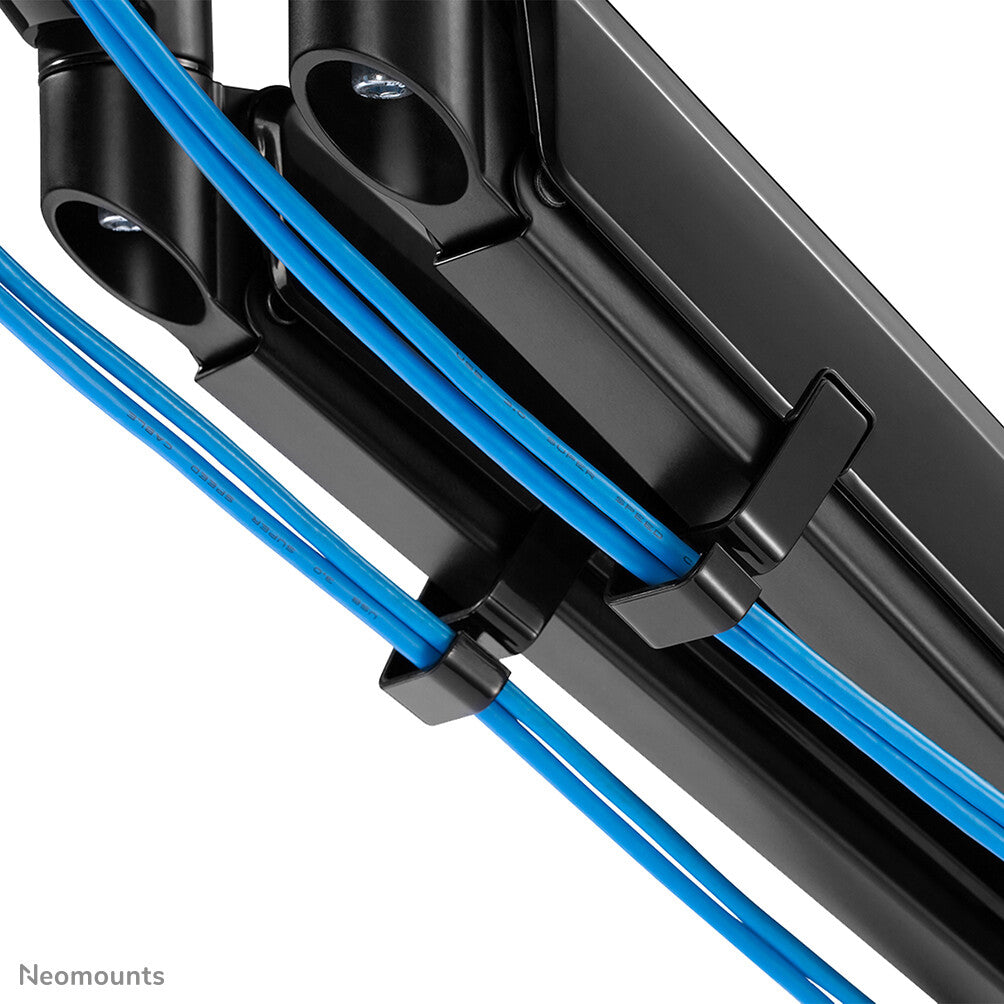

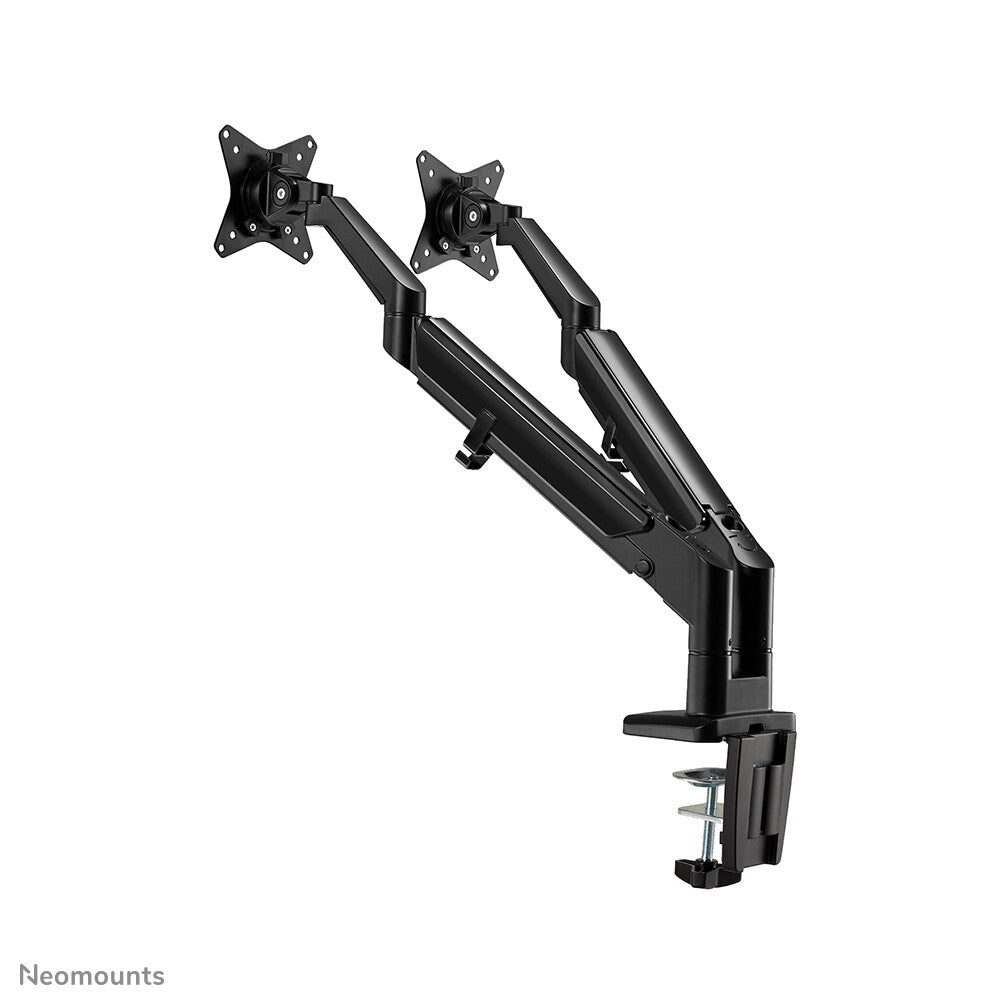

The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.

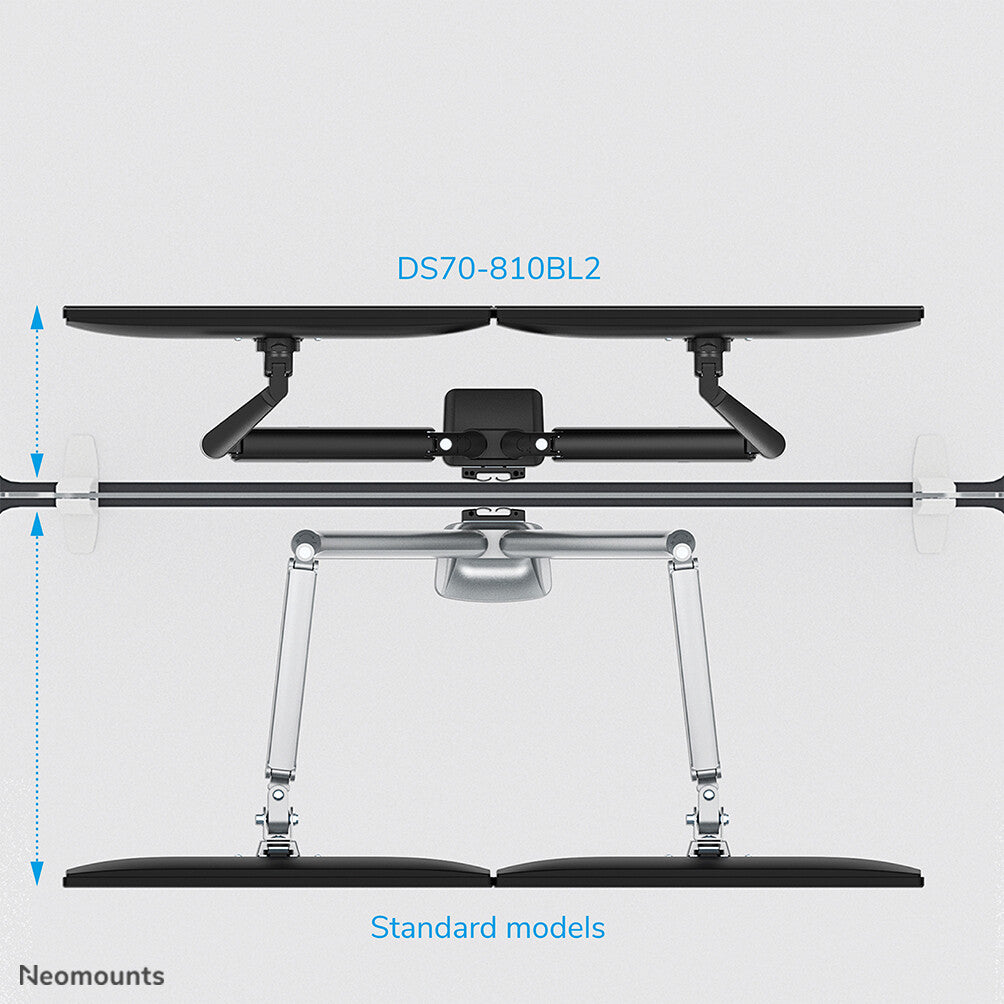

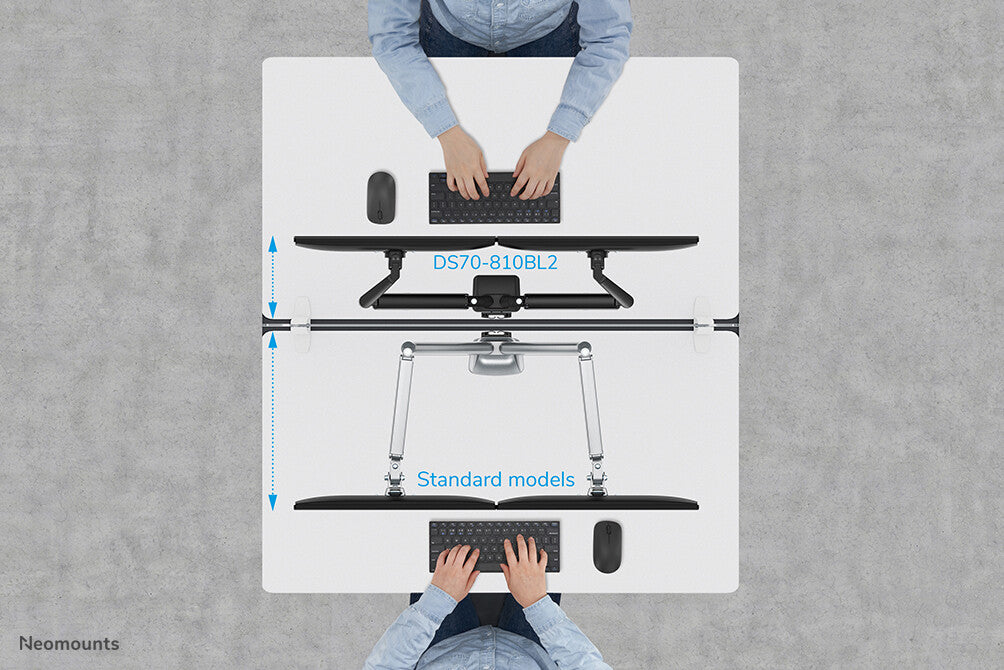

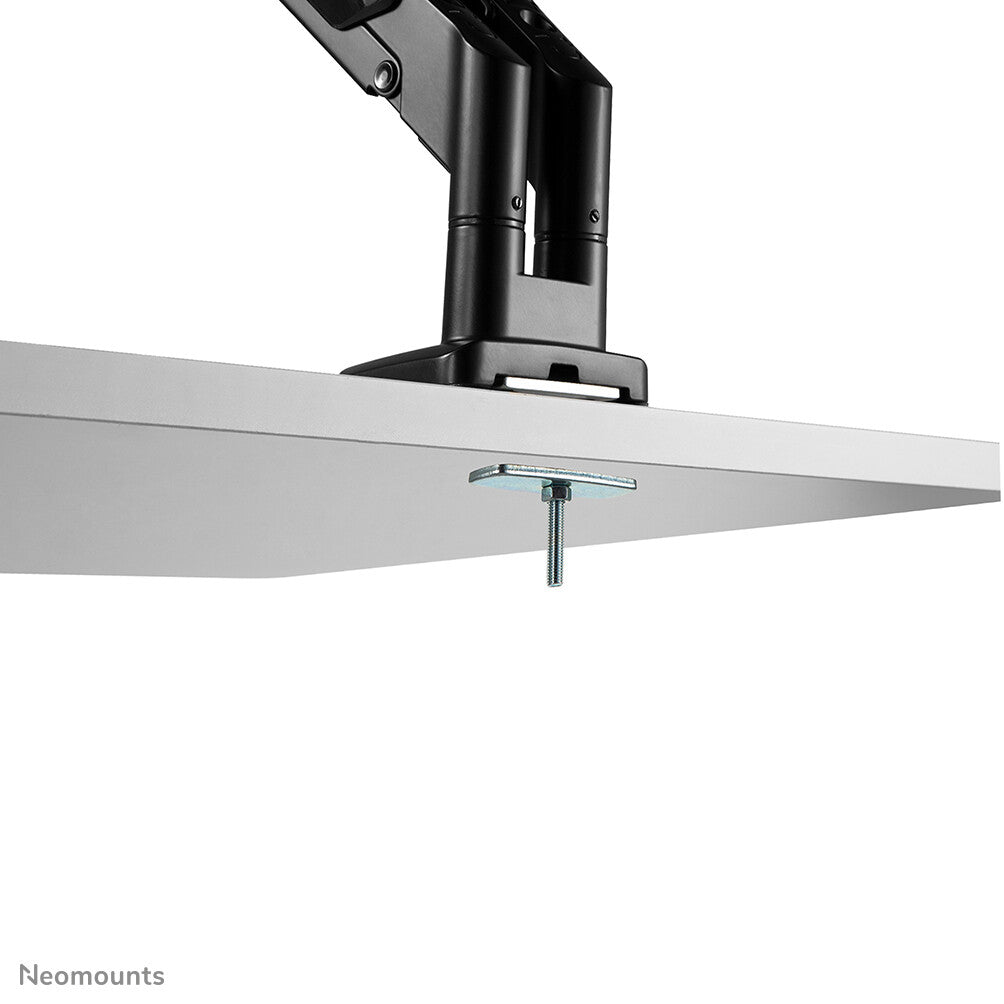

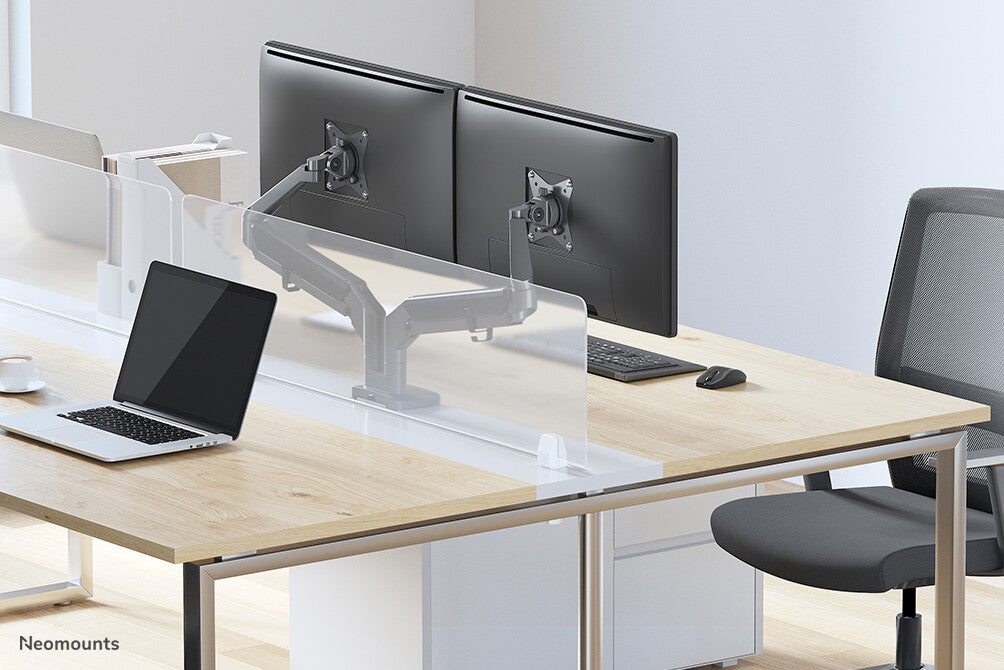

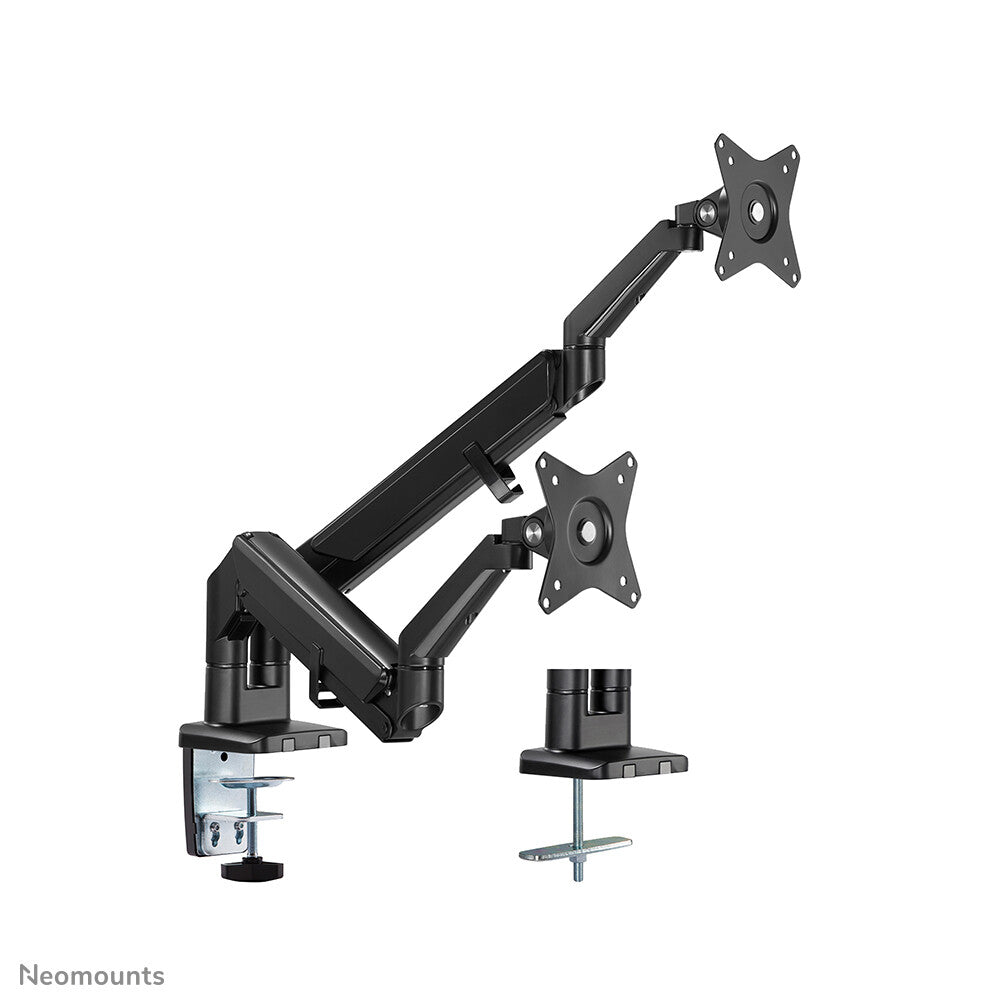

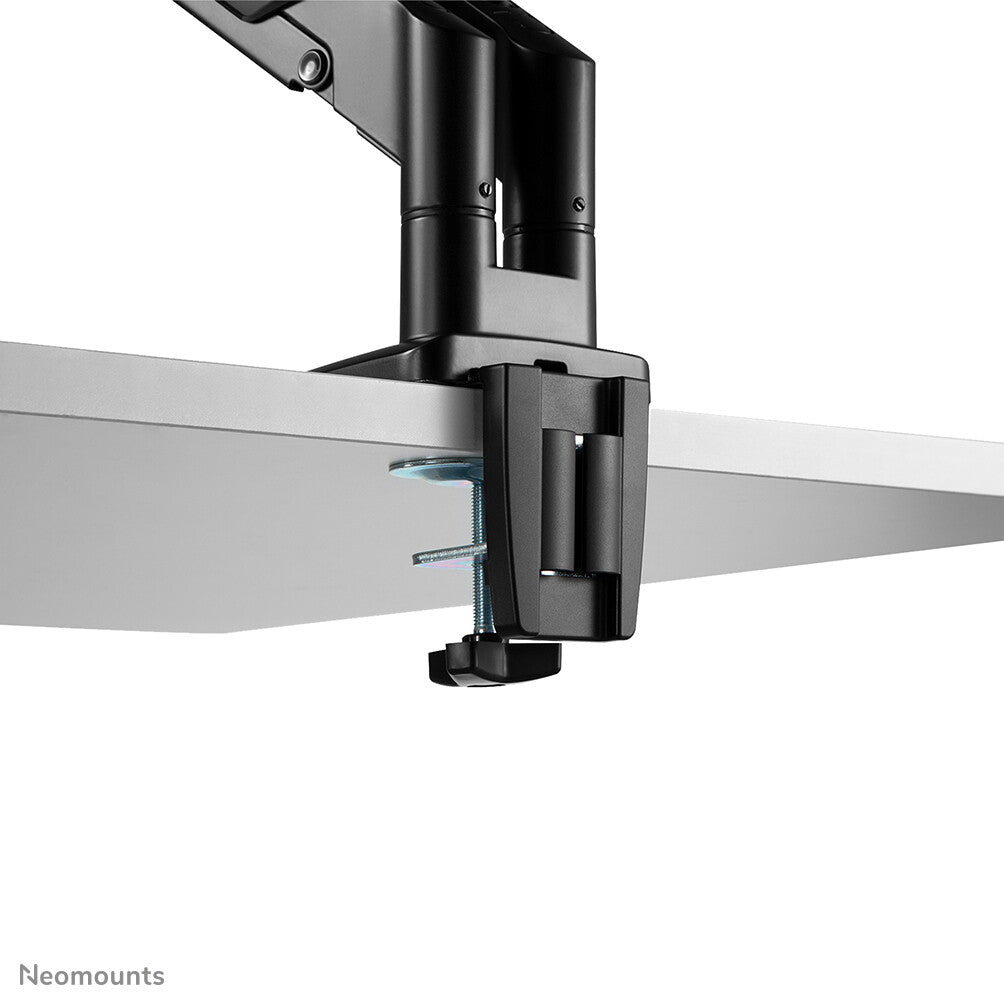

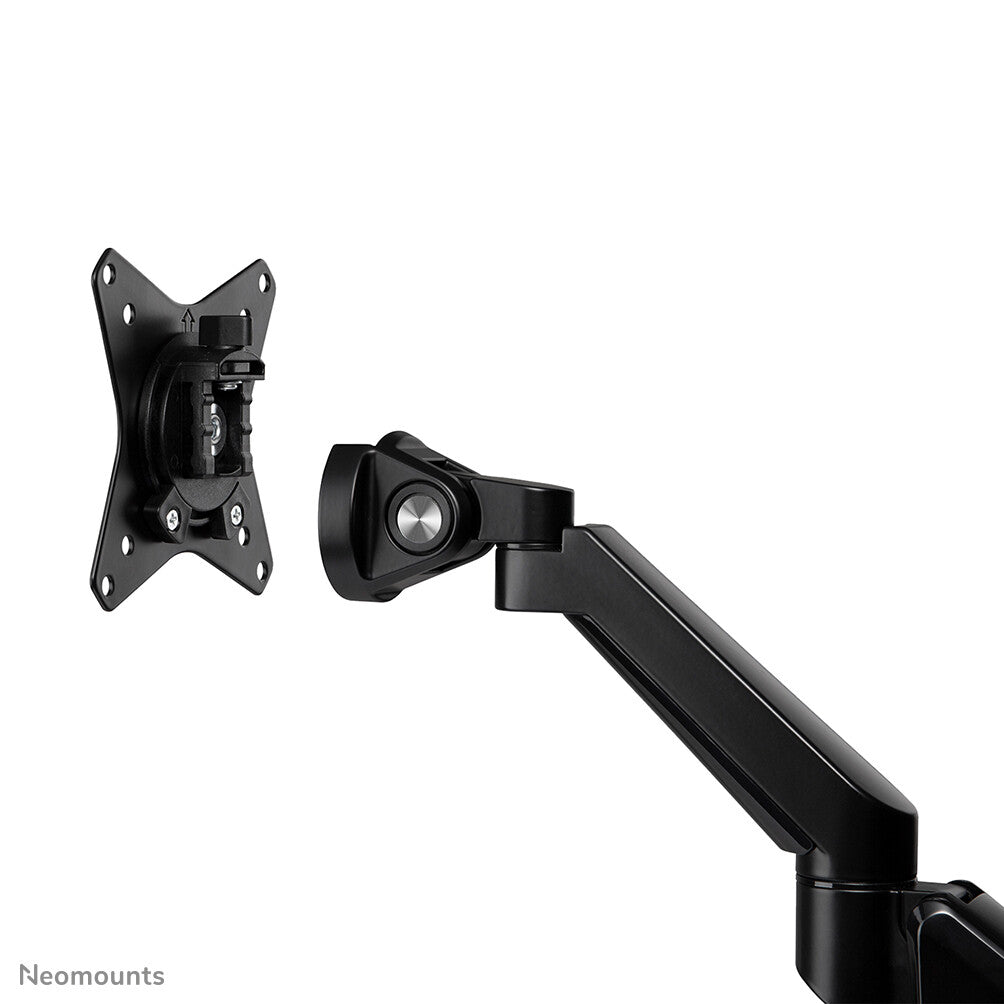

Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.

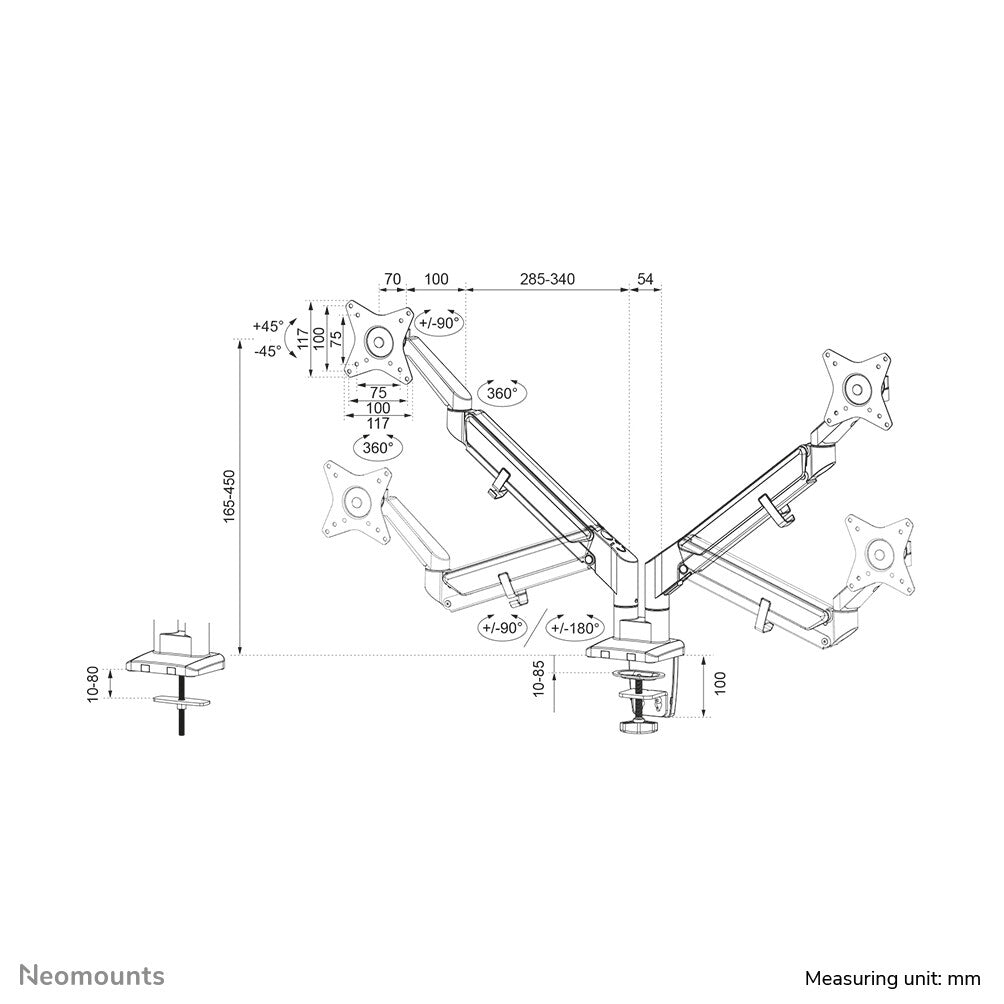

Mounting | |
---|---|
Number of displays supported | 2 |
Panel mounting interface | 100 x 100 mm |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Maximum weight capacity (per display) | 9 kg |
Mounting type | Desk |
Maximum screen size | 81.3 cm (32") |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 9 kg |
Ergonomics | |
---|---|
Rotating | Yes |
Tilt adjustment | Yes |
Cable management | Yes |
Angle of rotation | 180° |
Swivel angle range | -90 - 90° |
Tilt angle range | -45 - 45° |
Depth adjustment range | 0 - 490 mm |
Adjustable depth | Yes |
Height adjustment range | 265 - 550 mm |
Height adjustment type | Gas spring |
Height adjustment | Yes |
Design | |
---|---|
Orientation | Landscape/Portrait |
Product colour | Black |
Weight & dimensions | |
---|---|
Package net weight | 6 kg |
Package height | 395 mm |
Package depth | 142 mm |
Package width | 265 mm |
Height | 615 mm |
Depth | 555 mm |
Width | 117 mm |
Packaging data | |
---|---|
Quantity per pack | 1 pc(s) |
Logistics data | |
---|---|
Master (outer) case net weight | 21 kg |
Products per pallet (EU) | 72 pc(s) |
Harmonized System (HS) code | 7326909890 |
Products per master (outer) case | 4 pc(s) |
Master (outer) case height | 305 mm |
Master (outer) case length | 410 mm |
Master (outer) case width | 550 mm |
Other features | |
---|---|
Country of origin | China |
