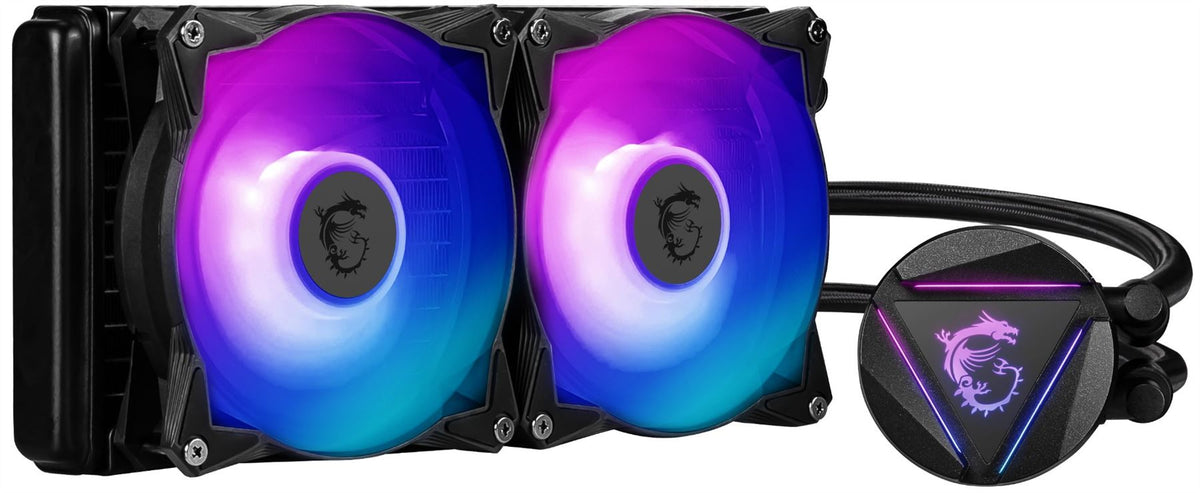

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Performance | |
---|---|
Pump motor speed | 4200 RPM |
Fan speed (min) | 500 RPM |
Fan speed (max) | 2000 RPM |
Bearing type | Dual ball bearing |
Maximum airflow | 78.73 cfm |
Minimum airflow (imperial) | 21.63 cfm |
Noise level (high speed) | 34.3 dB |
Noise level (low speed) | 14.3 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Blue, Green, Red |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Rated voltage | 12 V |
Power consumption (typical) | 5.88 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Height | 48.6 mm |
Depth | 66.8 mm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 27.4 cm |
Width | 80.6 mm |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
