20 YEARS IN THE MAKING
While striving for the SUperior gaming experience, our PRofound journey across decades took us to destinations previously thought IMpossible. Across years of high-performance circuit design, MSI is proud to bring its latest masterpiece to life. SUPRIM is the next leap in graphic cards design.
CHISELED TO PERFECTION
Built upon two decades of award-winning graphics cards, the time to evolve beyond Gaming has come. A new design philosophy takes shape to pave the way for a new prestigious series.

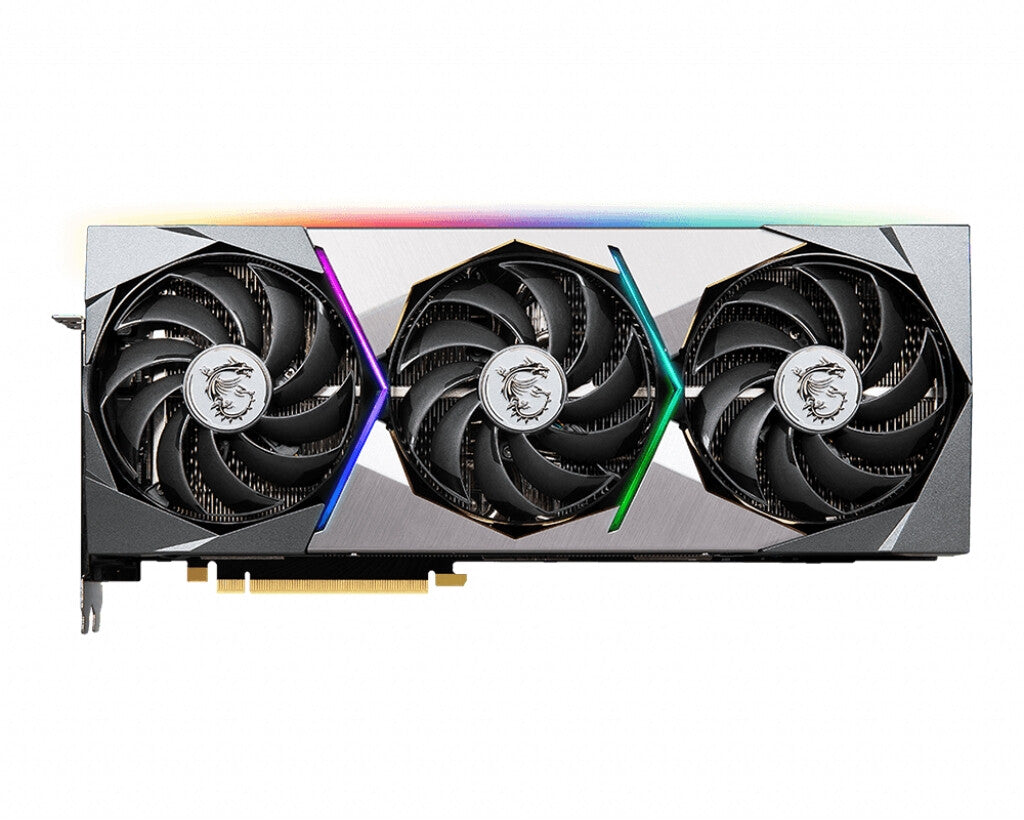

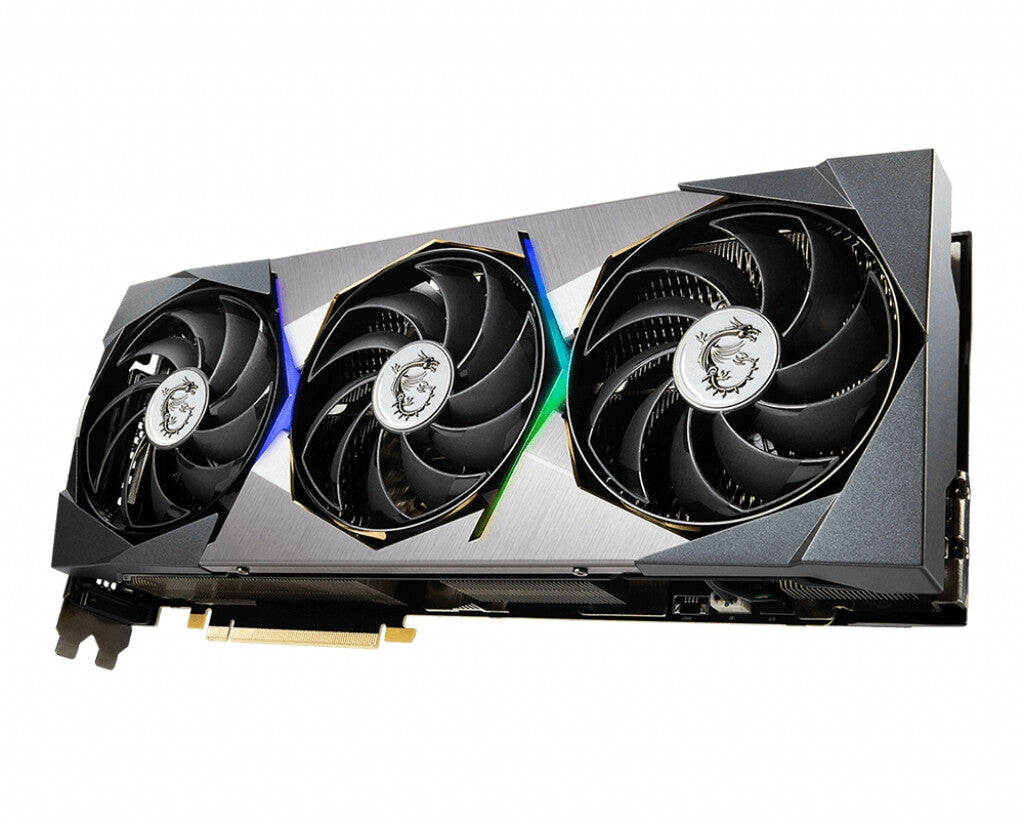

TRI FROZR 2S stays cool in style. Thermals are kept in check in masterful ways under a sculpted SUPRIM exterior, letting you focus on enjoying your games in all their glory.
FOCUS ON WHAT’S IMPORTANT
TORX FAN 4.0 is a masterpiece built on teamwork, with pairs of fan blades linked together with a revolutionary ring design to focus airflow and air pressure into the heatsink.
FACING THE HEAT HEAD-ON
Heat from the GPU is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heatpipes. This widening of the thermal transfer systems with highly efficient mechanisms starting at the base improves overall efficiency.
A SYMPHONY OF SILENT DESIGN
Don’t sweat it. Airflow Control improves airflow dynamics through the heatsink for improved thermals and quieter acoustics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
UTTERLY UNSTOPPABLE
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions in zero noise.
THE FINISHING TOUCH
An abundance of thermal pads provide additional heat dissipation for board components.
COOL ALL AROUND

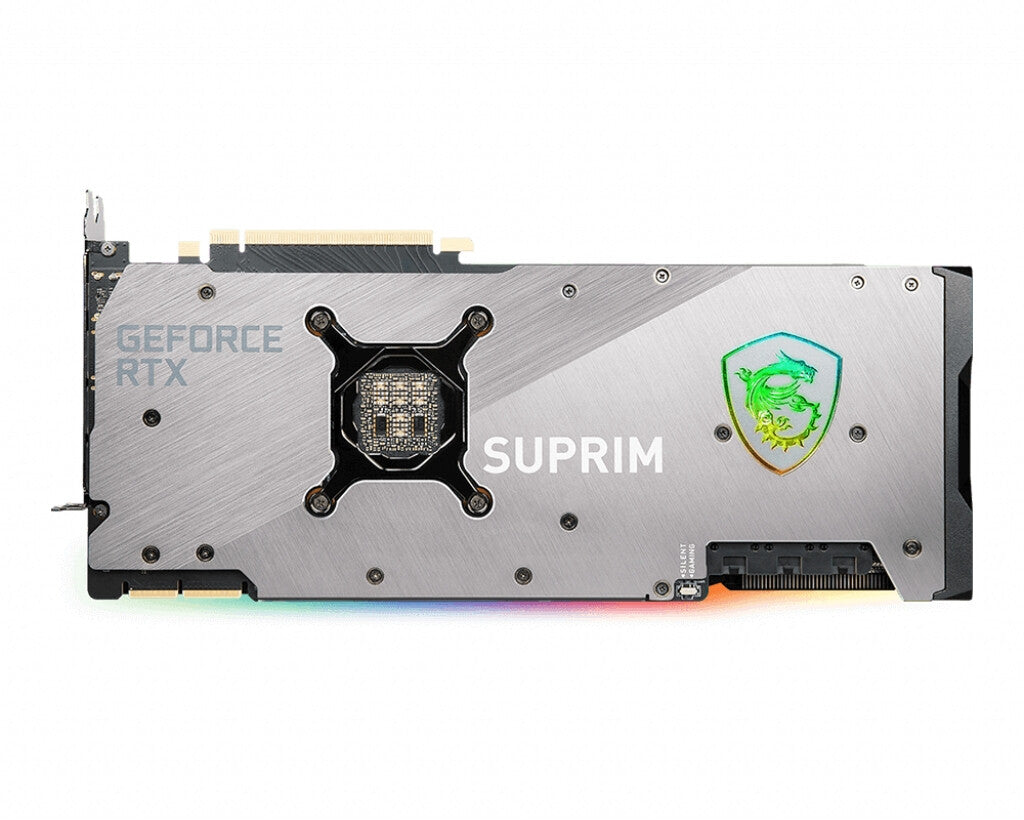

There's more than meets the eye. Heatpipes beneath the sturdy brushed-finish metal backplate provide additional cooling for the memory modules on the rear of the PCB.
Go Big or Go Stealthy
Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Upgraded Foundations
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and high-performance reliability.
DEFYING GRAVITY
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
UNYIELDING SUPPORT
A bundled support stand provides additional graphics card reinforcement.
BRINGING IT ALL TOGETHER
MSI's exclusive Dragon Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
SPLASH ON SOME COLOR
Mystic Light gives you complete control of the RGB lighting for both MSI devices and compatible third-party RGB products both inside and outside your system.
GET READY TO GAME
Create game profiles with personalized graphics card settings including performance, True Color, and more.
TAKE BACK CONTROL
MSI GAMING LAN Manager automatically classifies and prioritizes latency-sensitive applications, giving you great low latency online gaming experiences.
AUTOMATE ALL THE FANS
Link and unify cooling throughout the whole system with Frozr AI Cooling.
System fans can be programmed to react to CPU and/or GPU temperatures.
PRECISION CONTROLS, UNLIMITED POWER
MSI Afterburner is the most recognized and widely used graphics card overclocking software in the world. Take full control of the graphics card while monitoring key system metrics in real-time. It’s free to use and compatible with most other vendor graphics cards.
ONE-CLICK OVERCLOCKING
OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.
YOUR MOBILE GAMING ADVANTAGE
Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless PC experience for mobile gaming.
Processor | |
---|---|
Parallel processing technology support | NVLink |
FireStream | No |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1860 MHz |
CUDA cores | 10496 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3090 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 19.5 Gbit/s |
Memory bus | 384 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 24 GB |
Ports & interfaces | |
---|---|

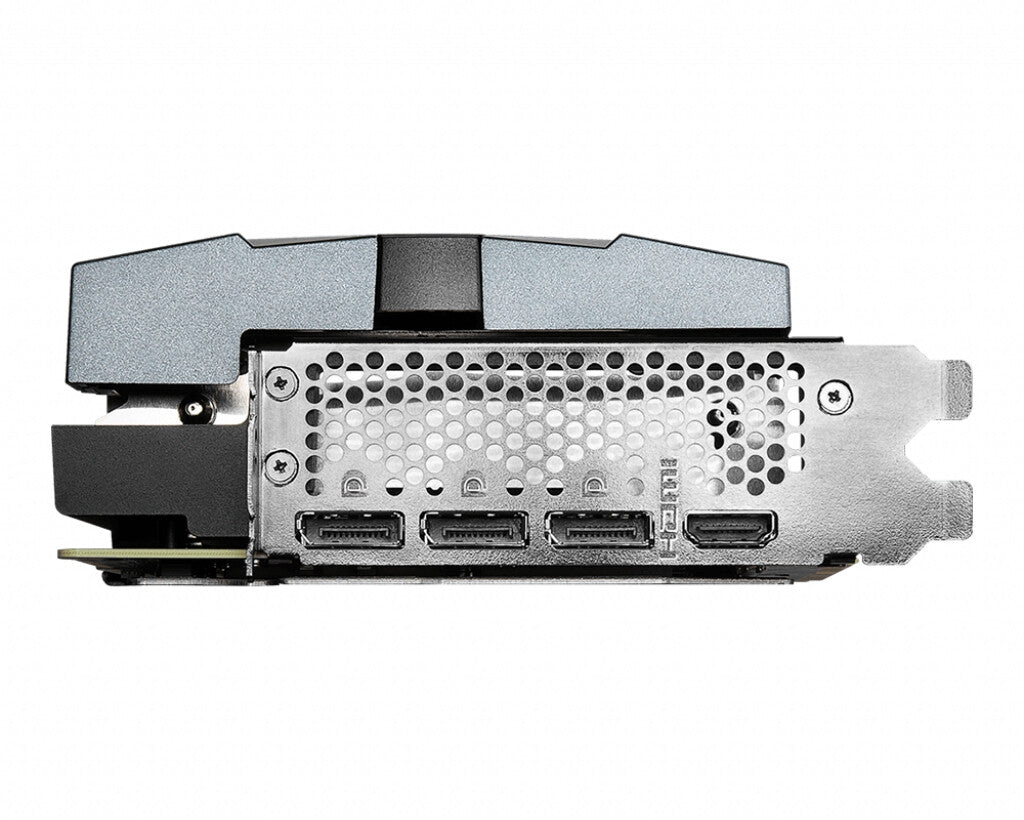

DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x16 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Grey, Stainless steel |
Illumination | Yes |
Illumination colour | Multi |
Form factor | Full-Height/Full-Length (FH/FL) |
Bracket height | Full-Height (FH) |
Number of fans | 3 fan(s) |
Cooling technology | MSI TORX Fan 4.0 |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 420 W |
Supplementary power connectors | 3x 8-pin |
Minimum system power supply | 850 W |
General | |
---|---|
Product Family | SUPRIM |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 61 mm |
Height | 140 mm |
Length | 336 mm |
Weight | 1.9 kg |
Packaging data | |
---|---|
Package type | Box |
User guide | Yes |
