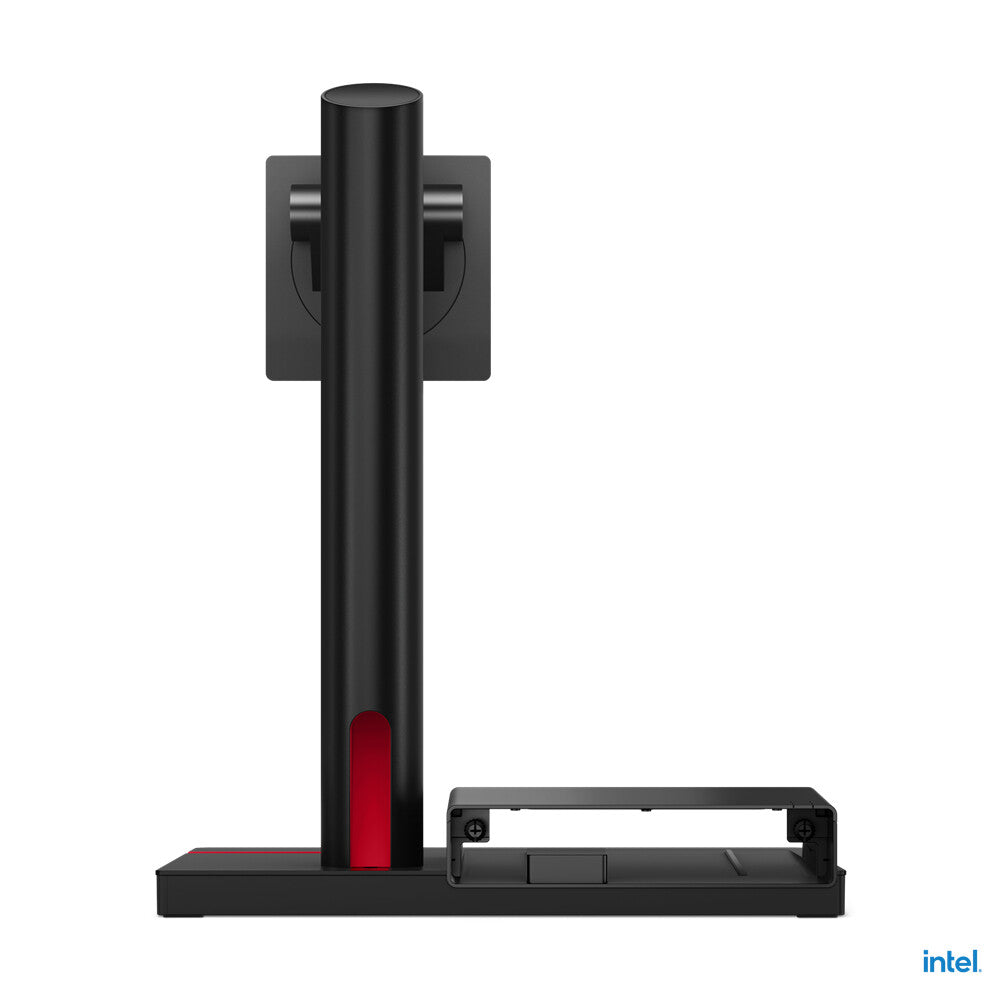

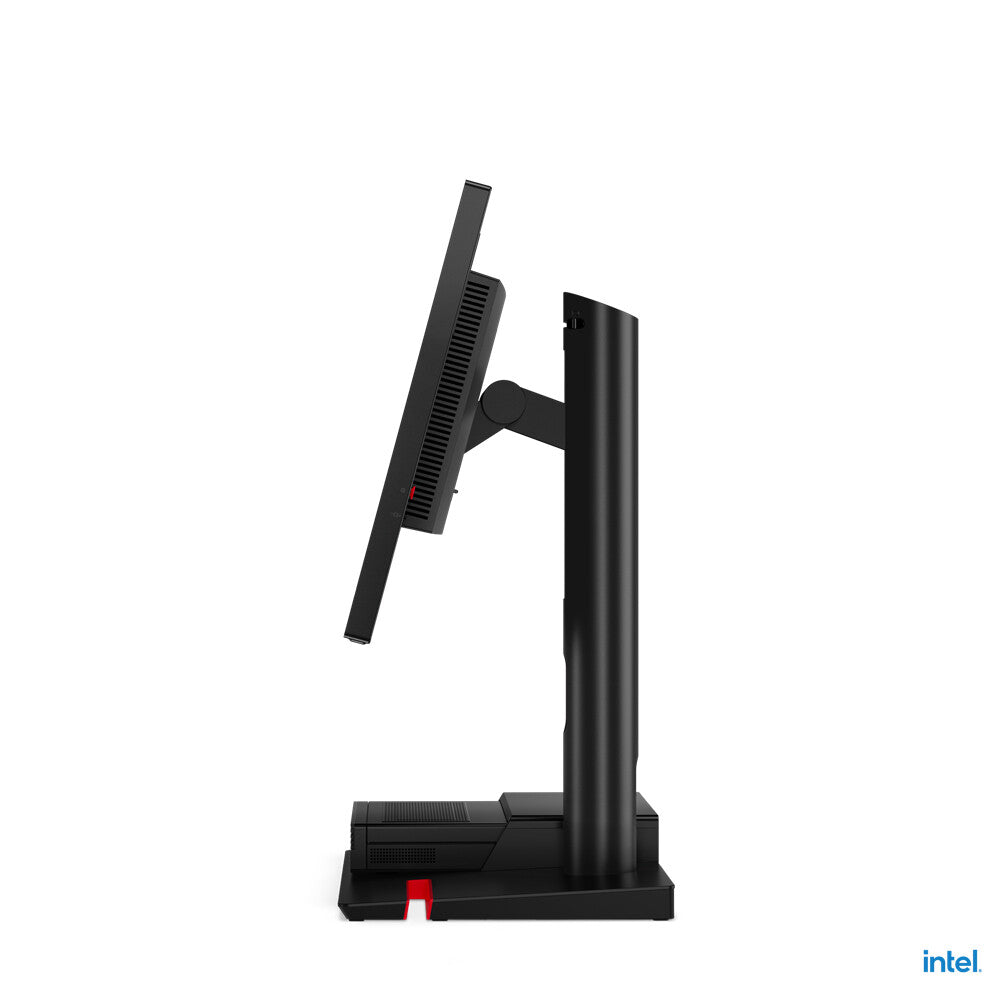

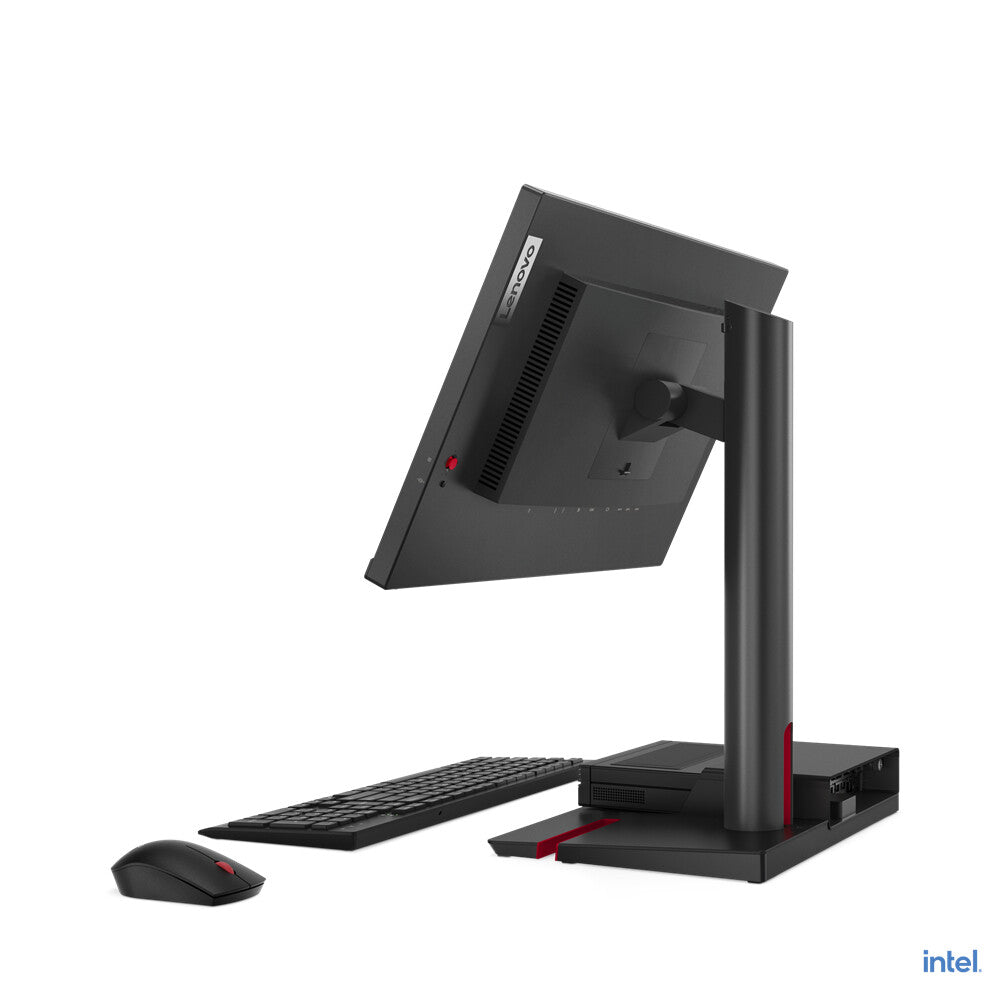

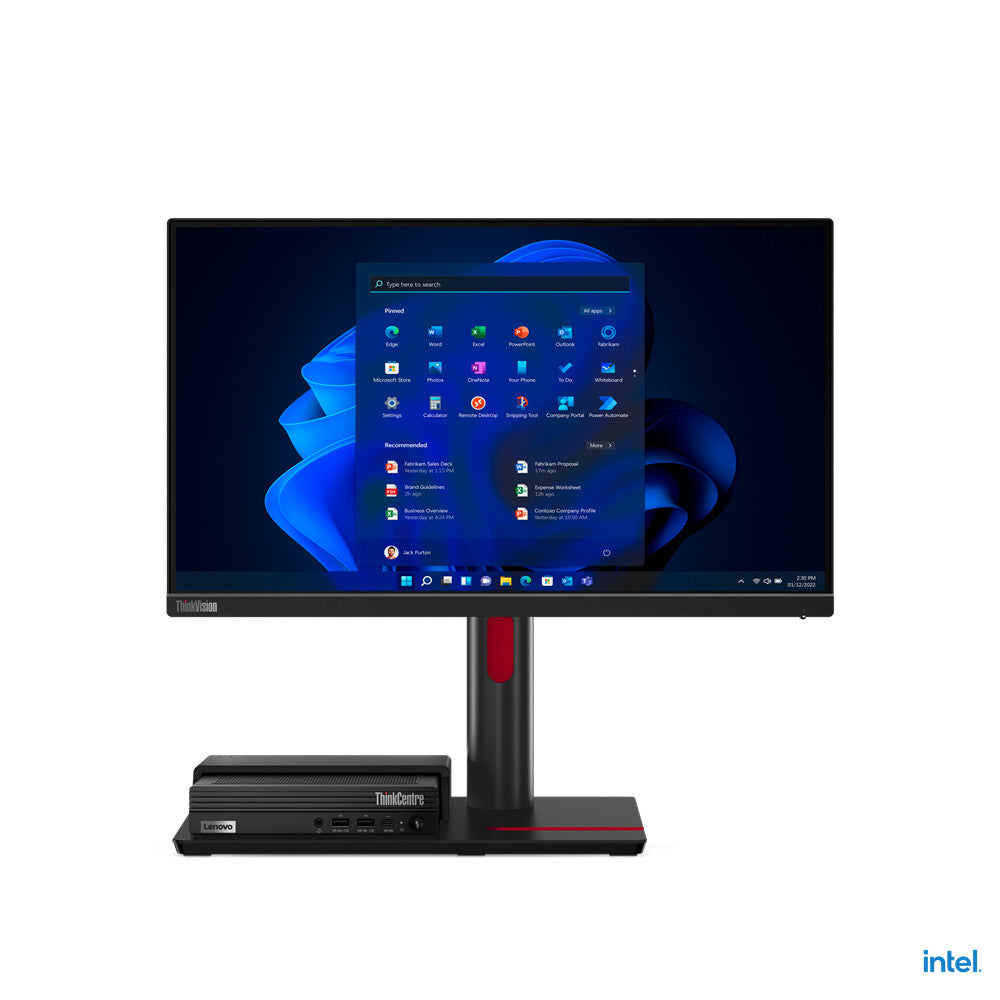

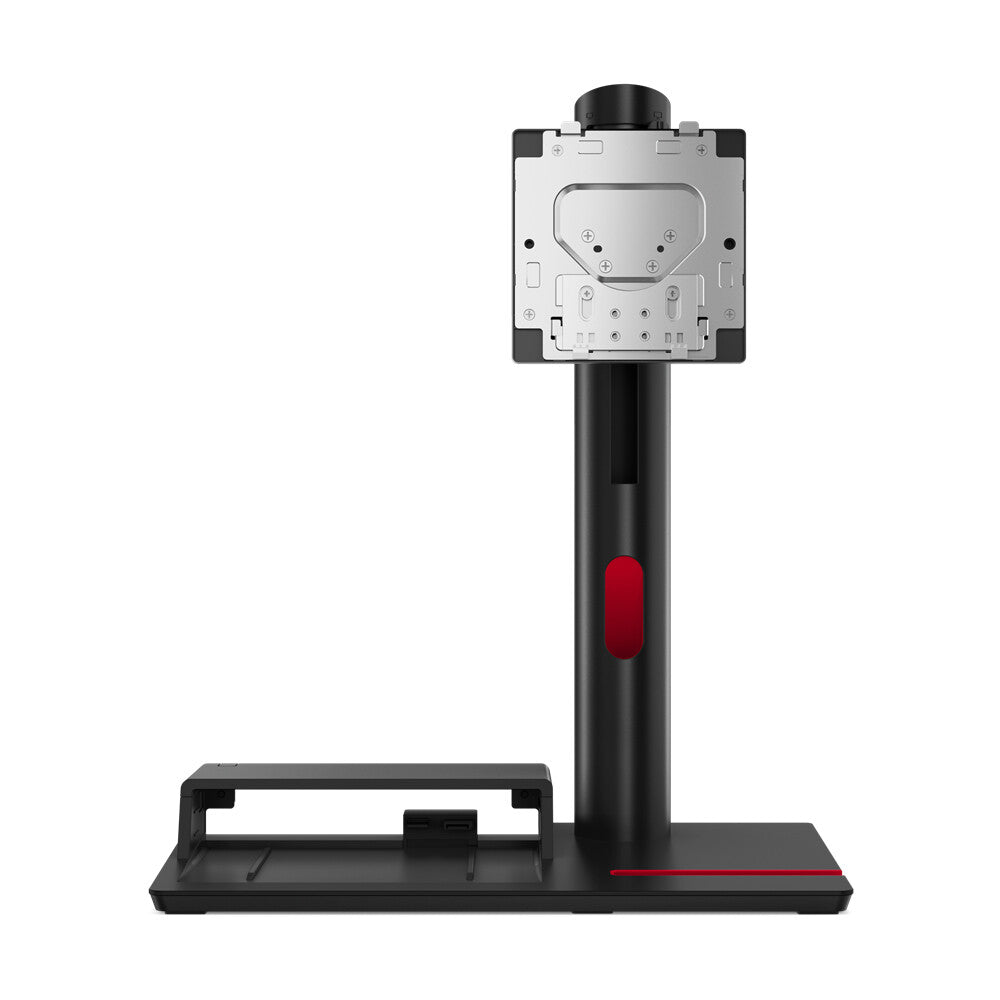

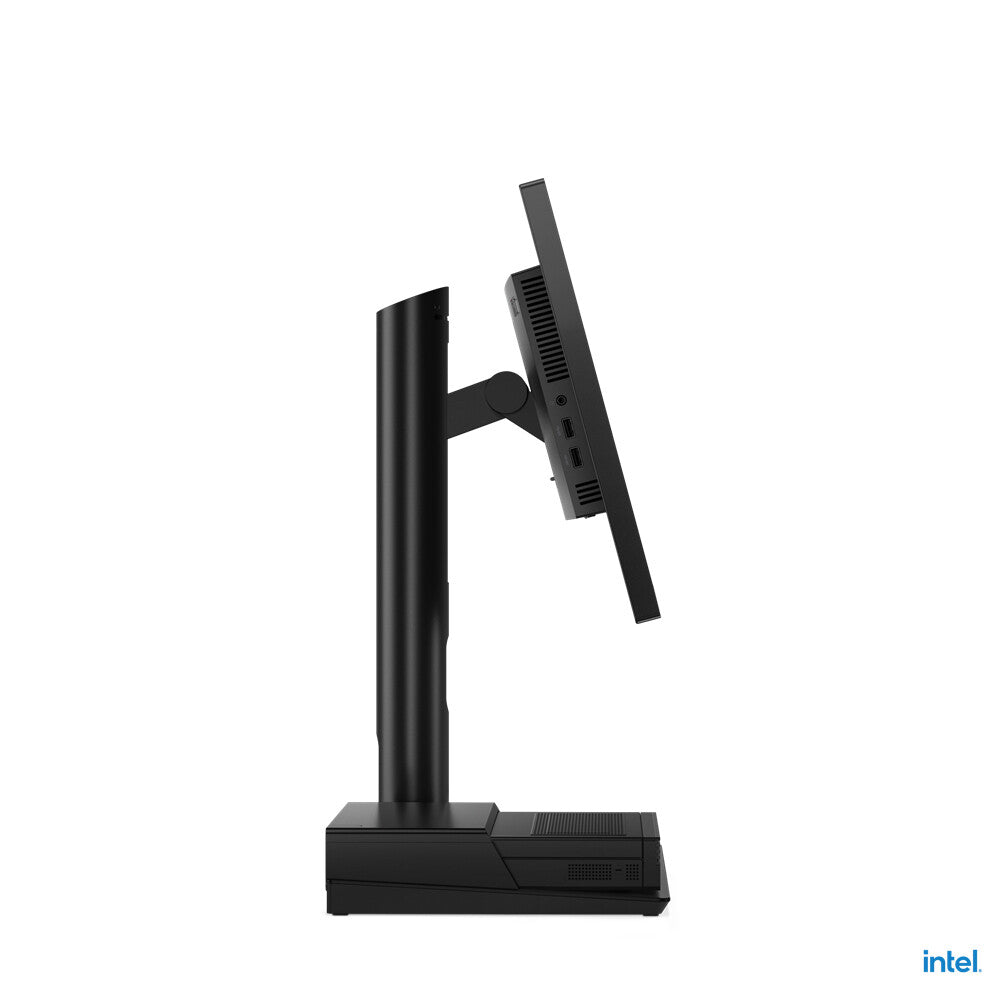

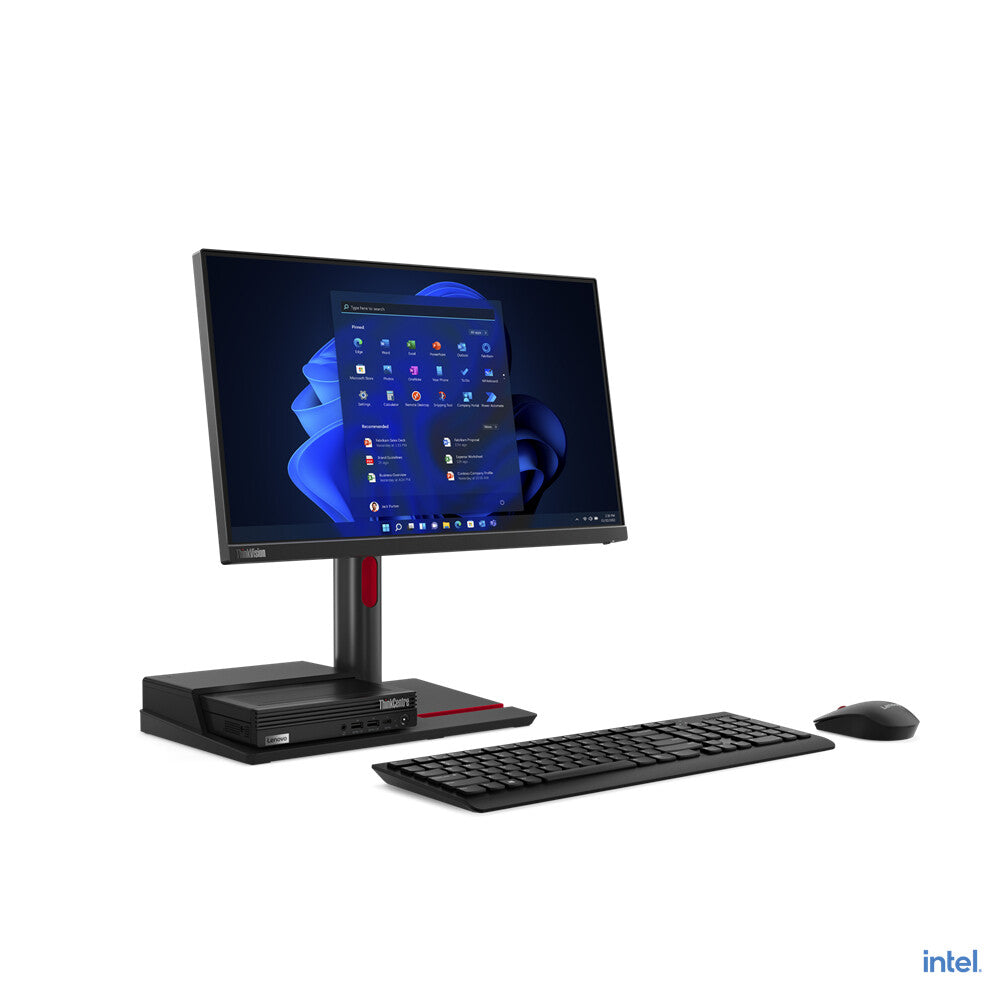

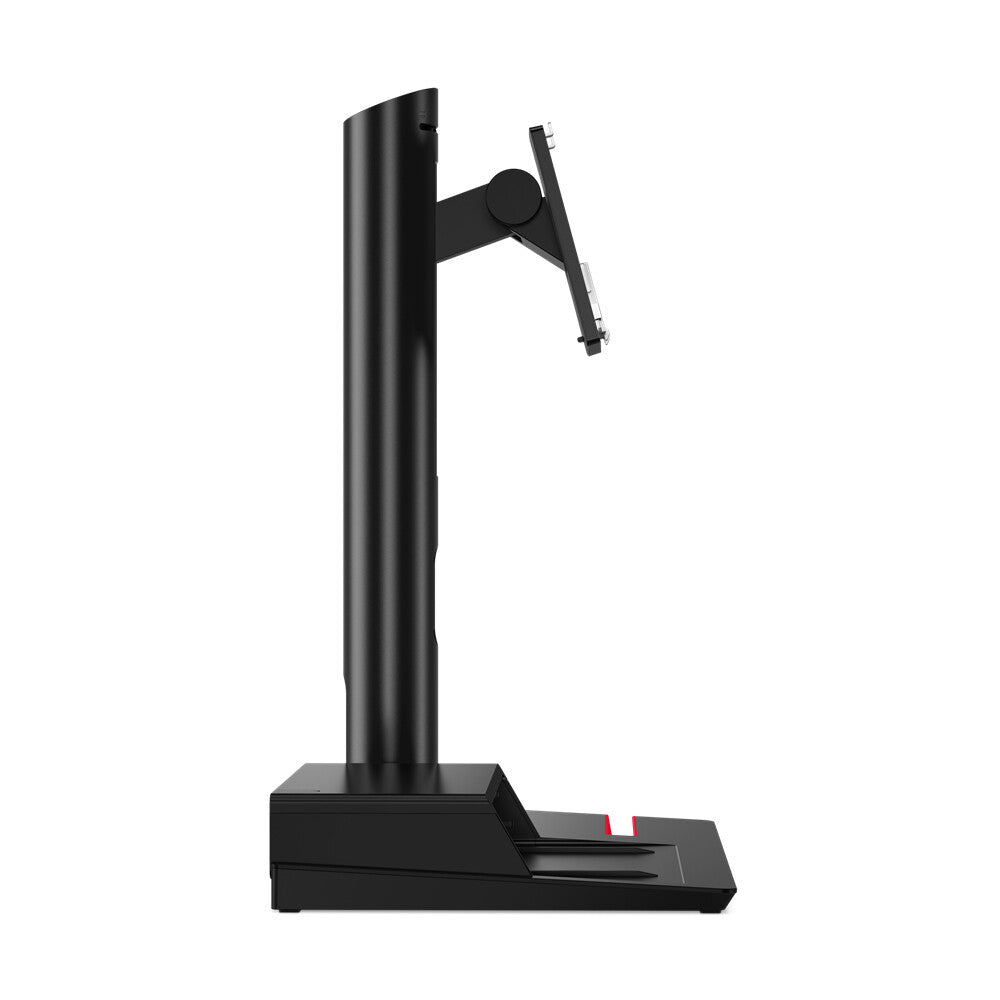

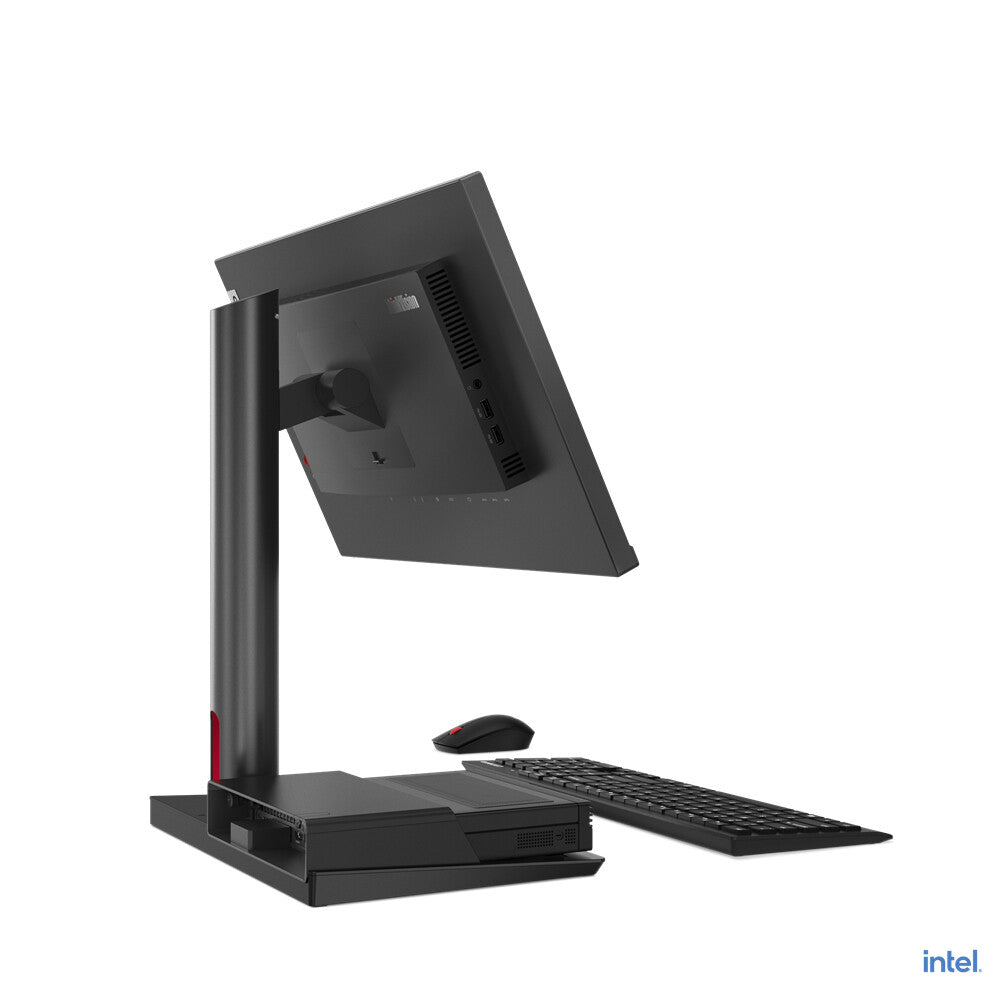

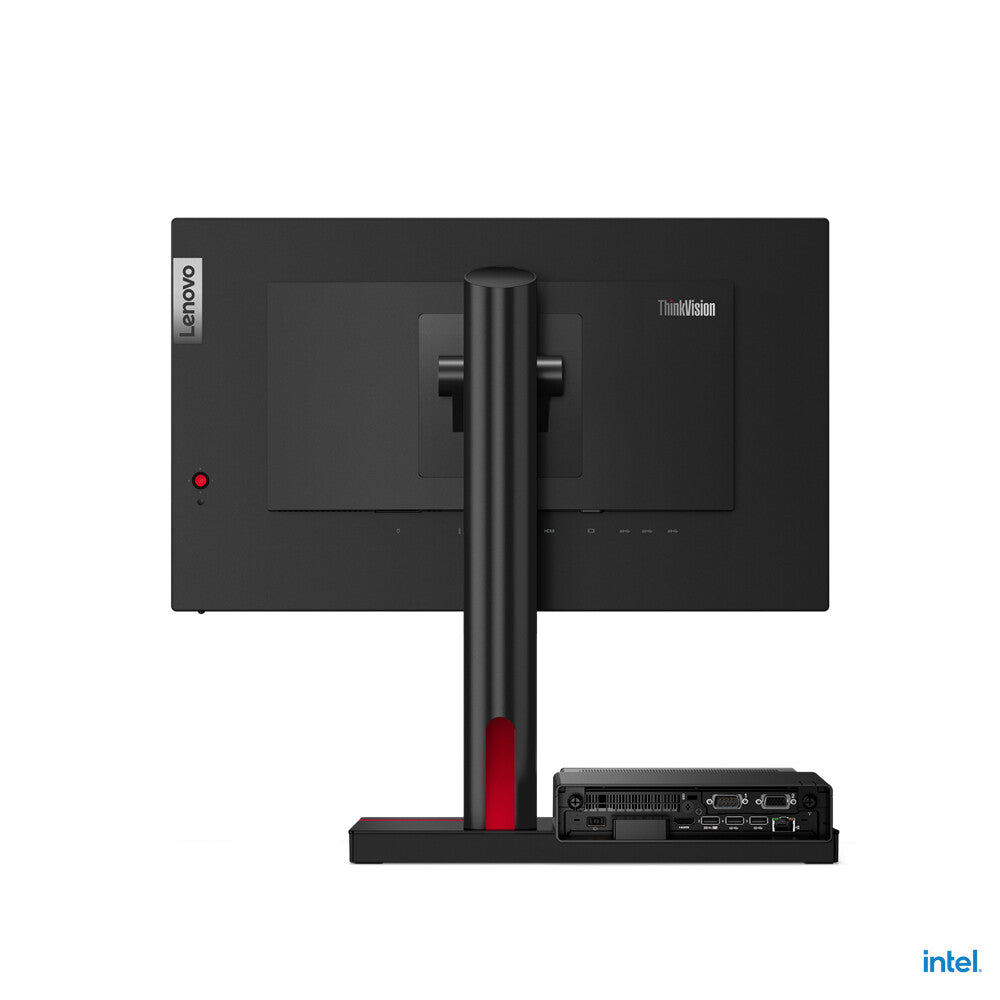

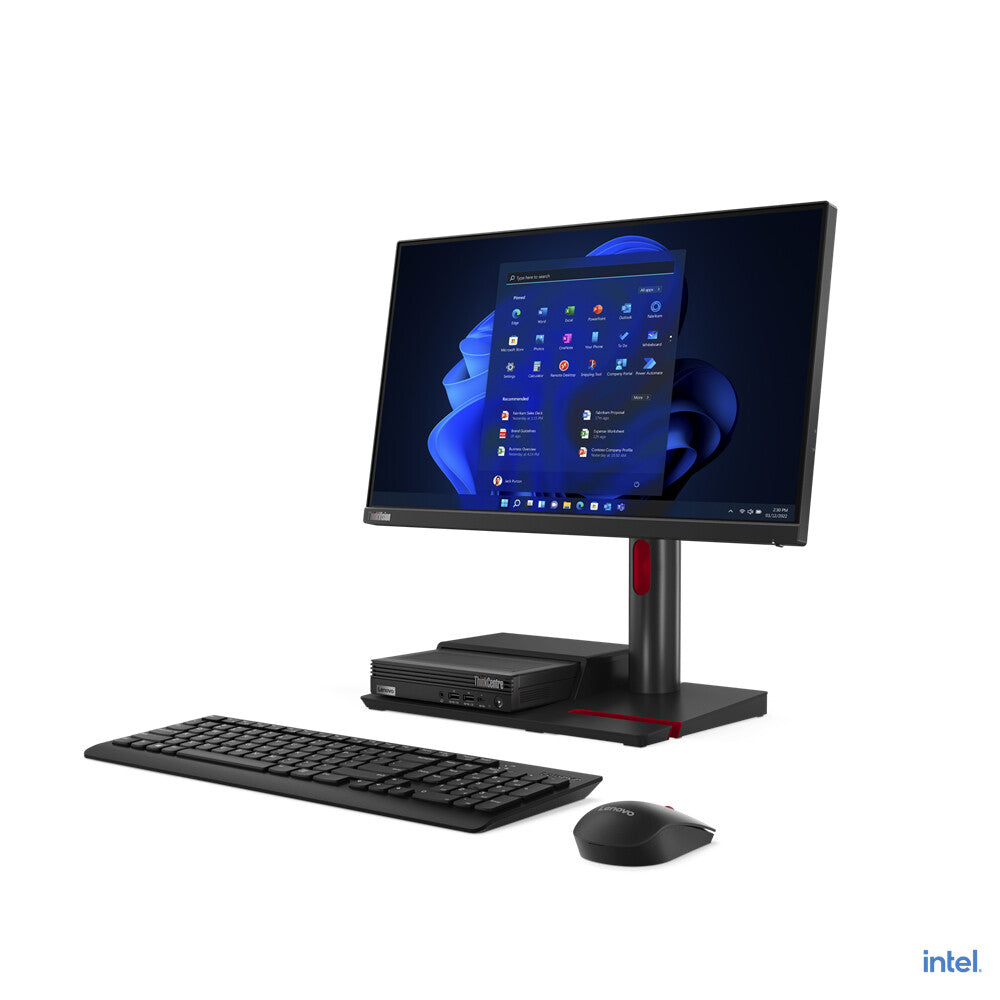

The flexible compatibility of the new ThinkCentre TIO Flex makes it the perfect solution for your existing infrastructure while supporting future upgrades and expansions. Engineered to efficiently stow the Tiny 1L PC, this latest Tiny-in-One comes standard with one of four different 22" to 27" ThinkVision monitors, breaking the TIO industry mould. Now with an elegant design that presents a clean aesthetic from both the user and customer perspective, including an efficient cord management system and mobile phone dock, the ThinkCentre TIO Flex refines the modern workspace. One-step installation with any current generation of Tiny—and those yet to come—keeps things simple, as does the single button to simultaneously power up both the Tiny and monitor.
FLEXIBLE MODULARITY AND SIMPLICITY
Easily refresh the PC, monitor, or both with the versatile ThinkCentre TIO Flex. Compatible with past, current, and future Tiny PCs, this cost-e ective solution comes with one of four stunning Lenovo T series ThinkVision monitors, including T22i-30, T24i-30, T24v-30, and T27i-30. Plus, with the optional VESA bracket, this TIO also supports other monitors with this industry-standard 100x100mm brace. Moreover, it takes only one step for the TIO Flex-Tiny installation, which makes the whole solution super easy to deploy, service and refresh.
EXCEPTIONAL USER EXPERIENCE

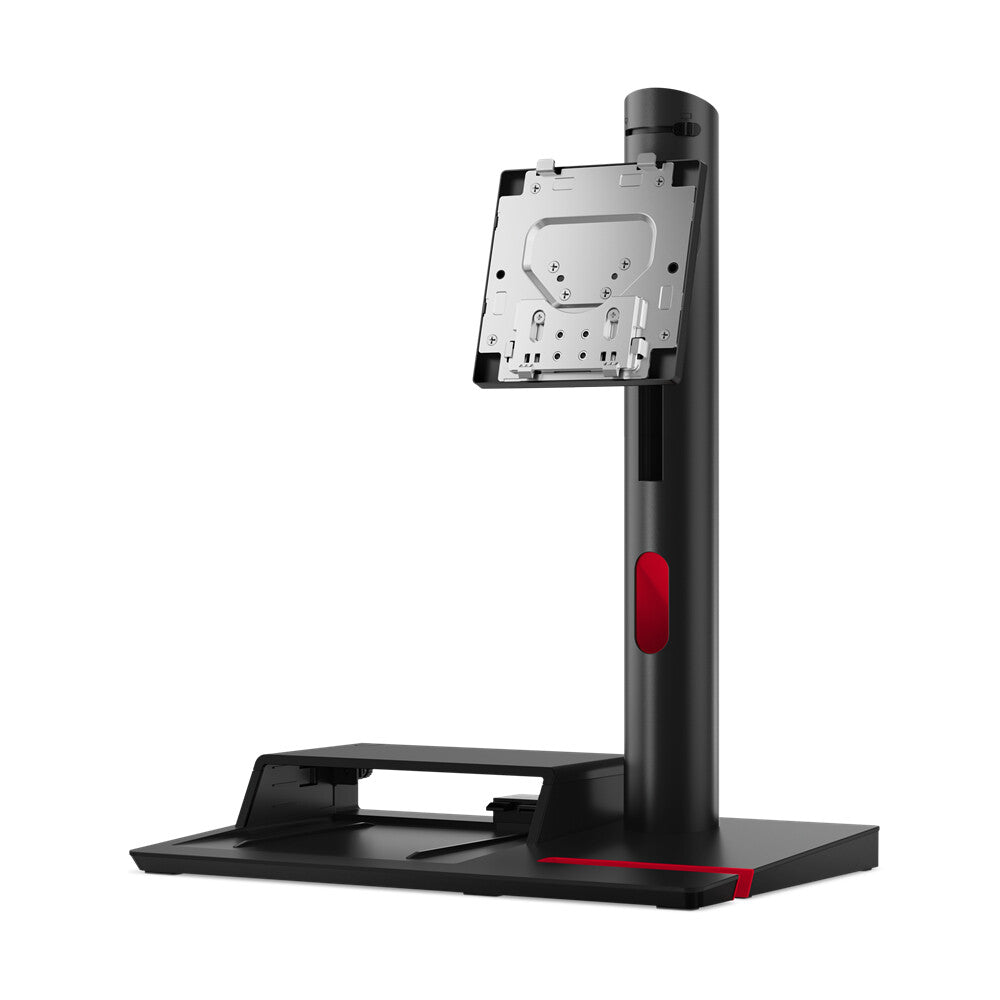

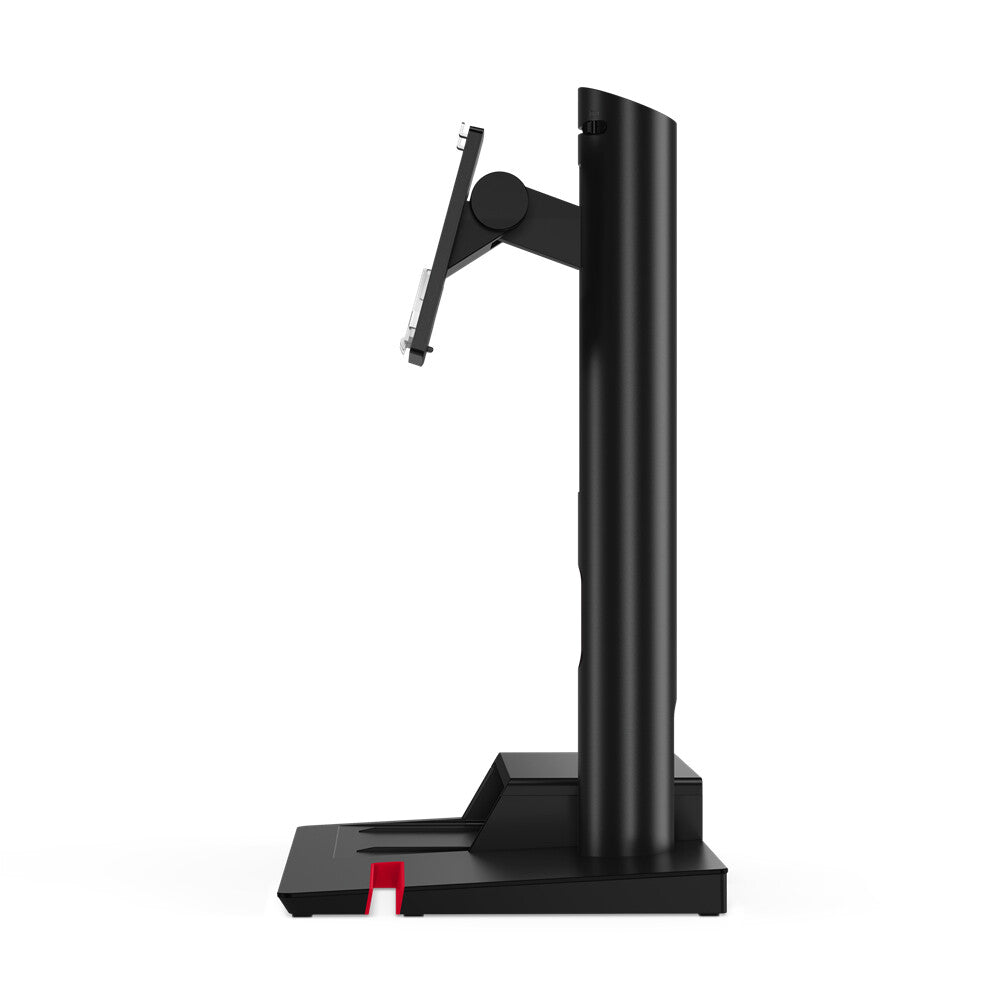

The new ThinkCentre TIO Flex lets you power up the Tiny and monitor at once with a single button. The full-function monitor stand adjusts for on-point ergonomics and includes a wide tilt range and a lift extension of 130mm. And because our cellphones stay within reach, this fl exible solution features a phone-docking bar integrated into the base for even more space e ciency.
CLEAN AESTHETIC
Fresh, elegant design brings a professional aesthetic from every angle, so when the ThinkCentre TIO Flex is used for customer interaction, the customer-facing appearance is sure to breed confidence. Plus, with a two-in-one cable connection, a tangled cable mess is a thing of the past.
Display | |
---|---|
sRGB coverage (typical) | 99% |
Colour gamut | 99% |
RGB colour space | sRGB |
Colour depth | 8 bit |
Viewable size, vertical | 26.8 cm |
Viewable size, horizontal | 47.6 cm |
Pixel density | 102 ppi |
Pixel pitch | 0.2479 x 0.2579 mm |
Response time (fast) | 4 ms |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Anti-glare screen | Yes |
Response time | 6 ms |
Display brightness (typical) | 250 cd/m² |
Backlight type | W-LED |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 54.6 cm (21.5") |
Performance | |
---|---|
Compatible operating systems | Windows 10, Windows 11 |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in microphone | No |
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Certification | ENERGY STAR Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHSEyesafe Display, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort |
Colour name | Raven black |
Product colour | Black |
Ports & interfaces | |
---|---|
Headphone connectivity | 3.5 mm |
Headphone outputs | 1 |
Headphone out | Yes |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
USB Type-A downstream ports quantity | 4 |
Number of USB Type-B upstream ports quantity | 1 |
Number of upstream ports | 1 |
USB upstream port type | USB Type-B |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | -5 - 23° |
Height adjustment | 12.5 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | Internal |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 48 W |
Power consumption (typical) | 15 W |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | DisplayPort, USB Type-A to USB Type-B |
Stand included | Yes |
Weight & dimensions | |
---|---|
Bezel width (side) | 2 mm |
Weight (with stand) | 6.05 kg |
Height (with stand) | 494.4 mm |
Depth (with stand) | 223 mm |
Width (with stand) | 489.3 mm |
Packaging data | |
---|---|
Package weight | 7.58 kg |
Package height | 442 mm |
Package depth | 187 mm |
Package width | 577 mm |
