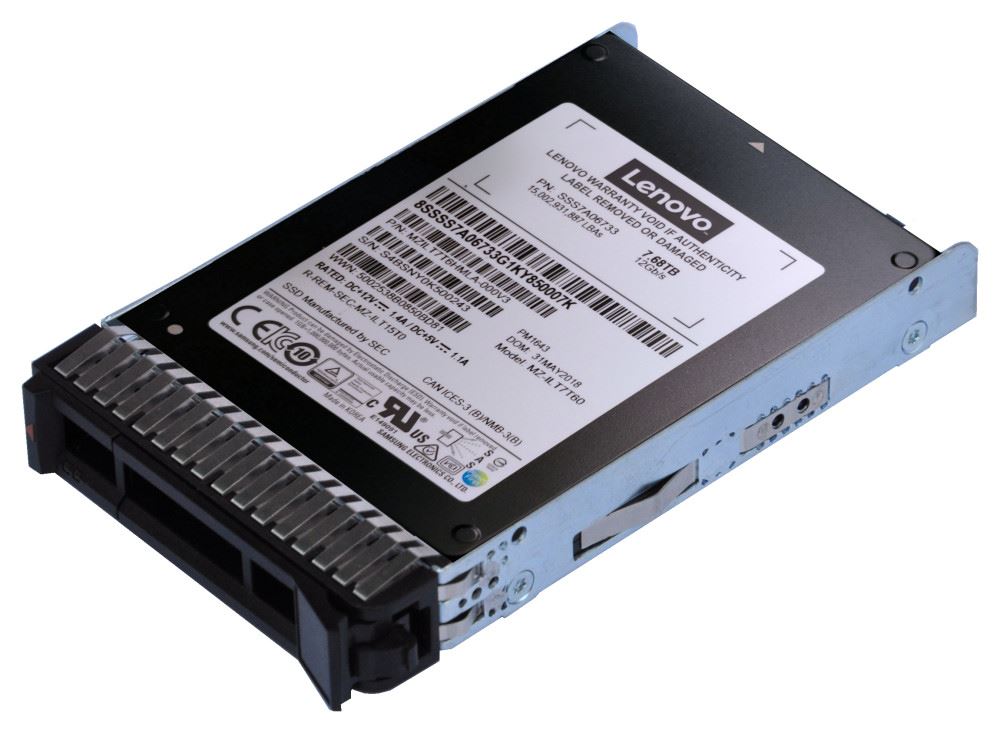

The PM1643a Entry SAS 12Gb solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations. This product guide provides essential presales information to understand the PM1643a Entry SAS 12Gb SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions. The ThinkSystem PM1643a Entry SAS 12Gb solid-state drives (SSDs) are next-generation SSDs suitable for a wide range of applications. The PM1643a SAS SSDs are designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
Hard drive | |
---|---|
SSD capacity | 960 GB |
Memory type | V-NAND TLC |
Data transmission | |
Read speed | 1000 MB/s |
Write speed | 1000 MB/s |
Random write (4KB) | 40 IOPS |
Random read (4KB) | 230 IOPS |
Write latency | 220 µs |
Read latency | 240 µs |
Data transfer rate | 12 Gbit/s |
Endurance | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Mean time between failures (MTBF) | 2000000 h |
Performance | |
Interface | SAS |
Component for | Server/workstation |
Hot-swap | Yes |
SSD capacity | 960 GB |
S.M.A.R.T. support | Yes |
Read speed | 1000 MB/s |
Write speed | 1000 MB/s |
Memory type | V-NAND TLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Random write (4KB) | 40 IOPS |
Random read (4KB) | 230 IOPS |
Mean time between failures (MTBF) | 2000000 h |
Write latency | 220 µs |
Read latency | 240 µs |
Data transfer rate | 12 Gbit/s |
Design | |
Component for | Server/workstation |
SSD form factor | 2.5" |
Features | |
Interface | SAS |
Component for | Server/workstation |
Hot-swap | Yes |
SSD capacity | 960 GB |
S.M.A.R.T. support | Yes |
Read speed | 1000 MB/s |
Write speed | 1000 MB/s |
Memory type | V-NAND TLC |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Random write (4KB) | 40 IOPS |
Random read (4KB) | 230 IOPS |
Mean time between failures (MTBF) | 2000000 h |
Write latency | 220 µs |
Read latency | 240 µs |
Data transfer rate | 12 Gbit/s |
SSD form factor | 2.5" |
Harmonized System (HS) code | 84717070 |
Power | |
Power consumption (write) | 12 W |
Power consumption (read) | 9 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Technical details | |
Interface | SAS |
Hot-swap | Yes |
S.M.A.R.T. support | Yes |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
SSD form factor | 2.5" |
Sustainability certificates | RoHS |
Weight & dimensions | |
Weight | 158 g |
Logistics data | |
Harmonized System (HS) code | 84717070 |
Other features | |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
