Key Features
- Gaming 114.3 cm (45") LED VA
- Dual QHD 5120 x 1440 pixels 32:9
- 165 Hz 0.8 ms 450 cd/m² 3000:1
- AMD FreeSync Flicker-free technology
- F 37 kWh 37 W
45" DQHD, 5120x1440, 165Hz, VA, 1500R, 450cd/m², 3000:1, 80M:1, 0.8ms, 32:9, 178°/178°, 30-260kHz, 2 x 3W Audio, KVM, 2x HDMI 2.1, 1x DisplayPort 1.4, 3x USB 3.2Gen.1 Type-A, 1x USB 3.2 Gen.1 Type-C, RJ45, HDCP, 3.5mm Audio Out, Blue light reducer, Flicker free, FreeSync, HDR400, Kensington-Lock, VESA 200x100, 100-240V, 50/60Hz, 37W, 1090x275x409mm, 11.2kg

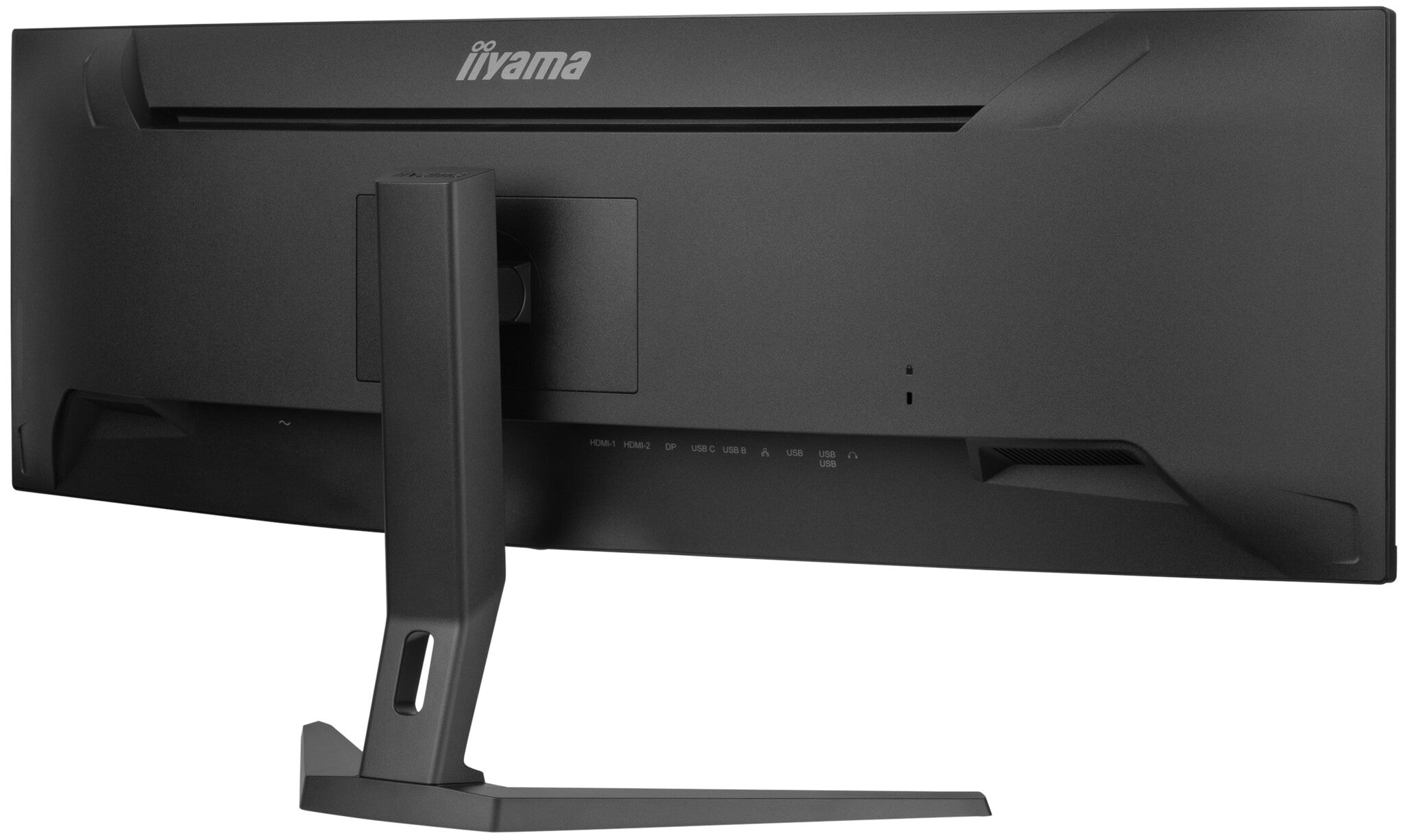

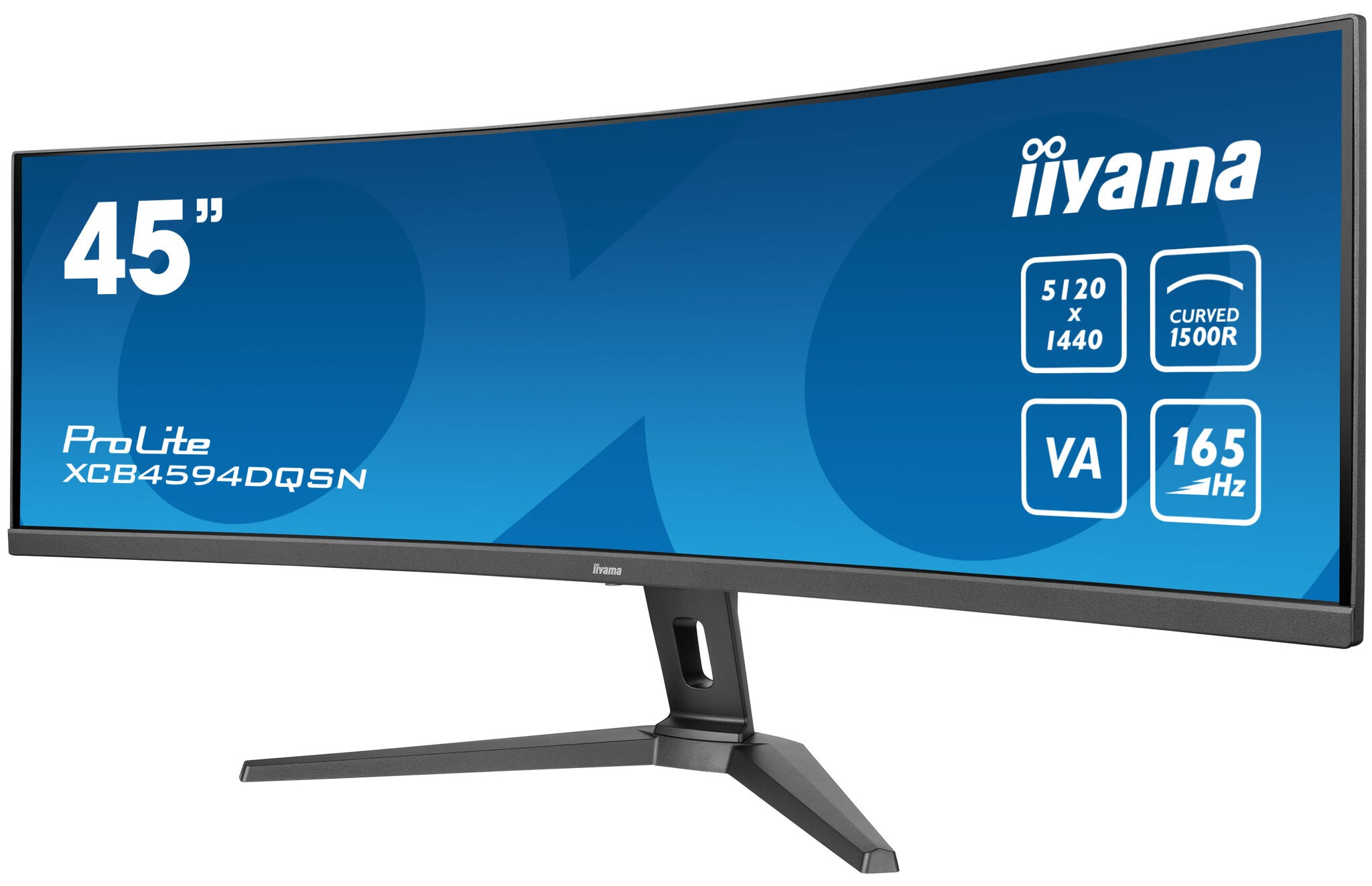

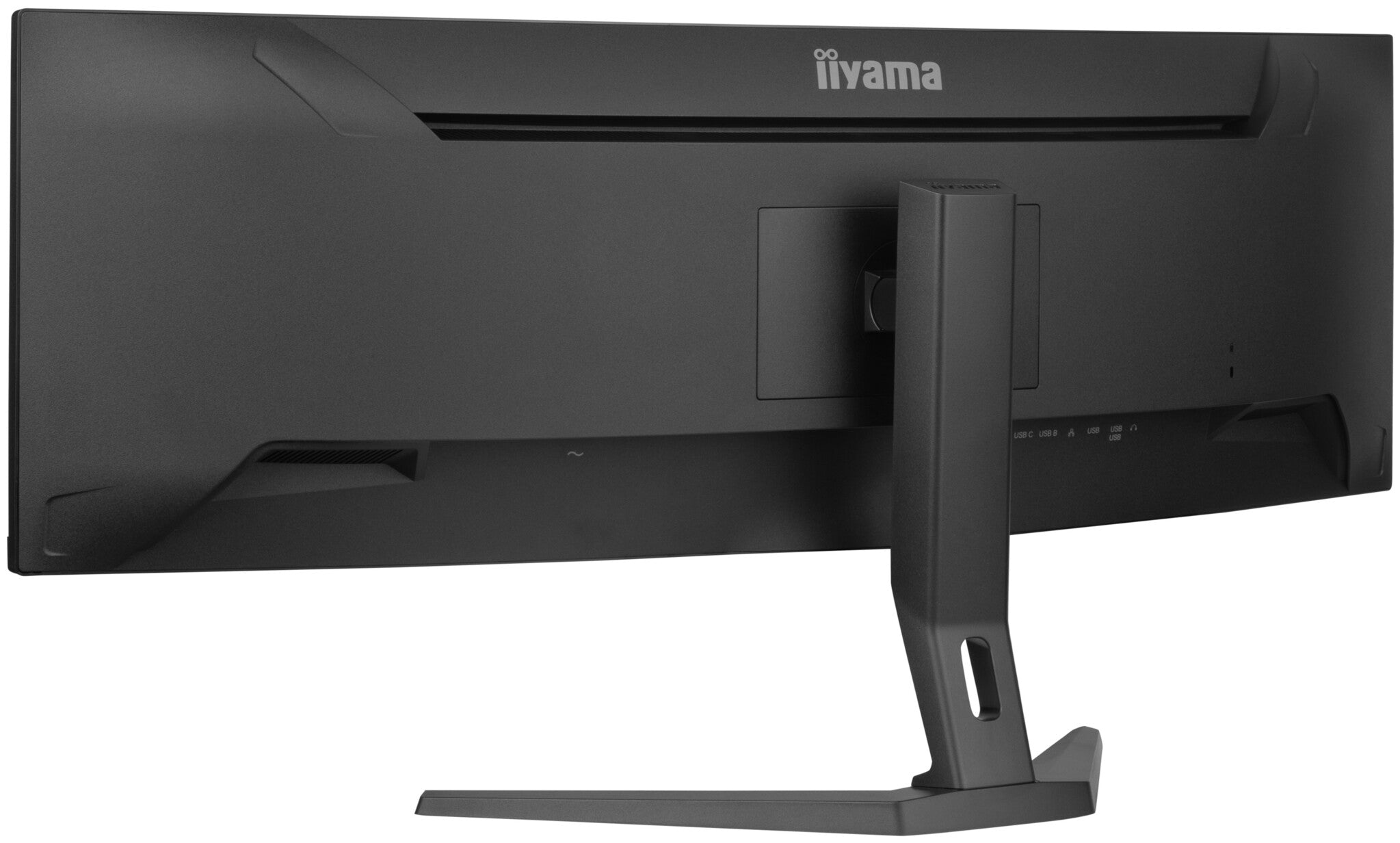

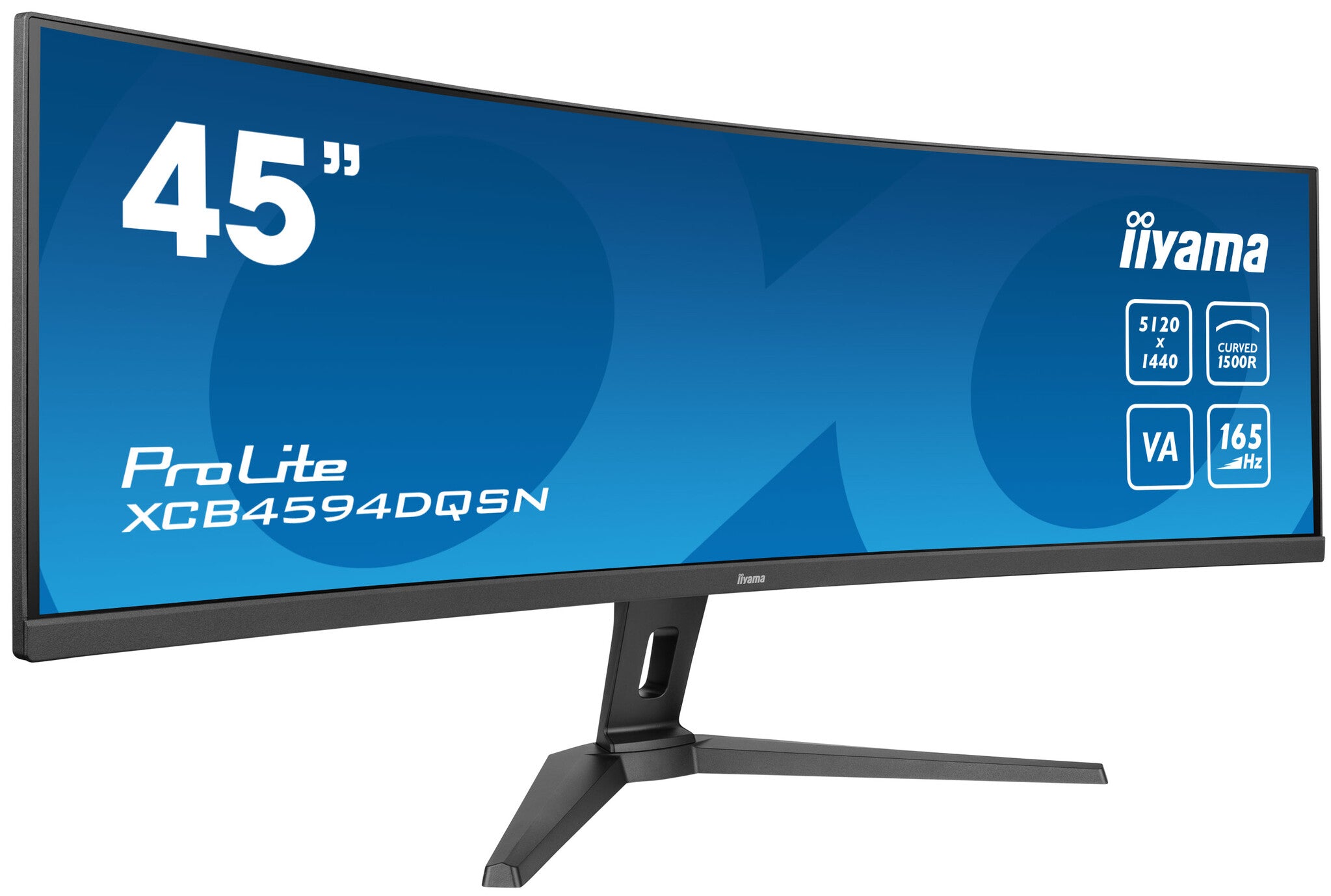

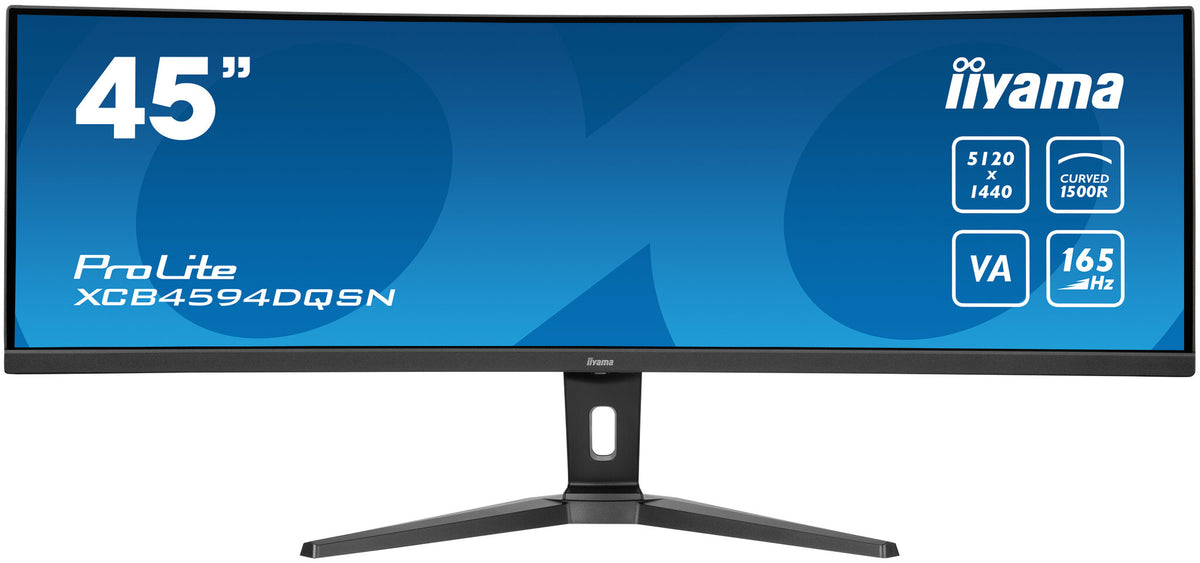

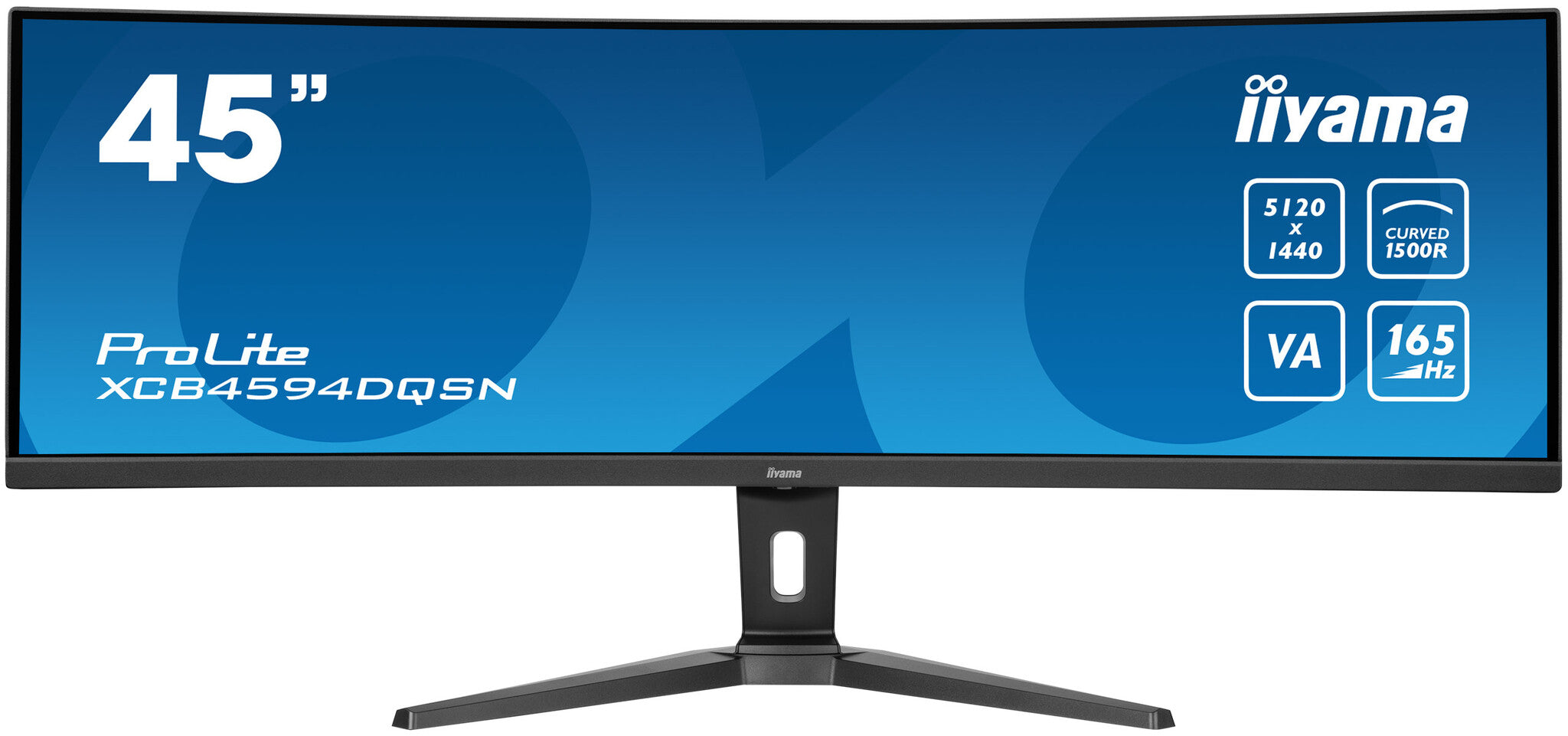

45’’ Dual QHD VA panel with KVM switch, USB-C dock and RJ45 (LAN) and height adjustable stand
The XCB4594DQSN features a 1500R curved VA panel with a 165Hz refresh rate, 0.8ms MPRT, and a 5120x1140 (DQHD) resolution for superb image quality. The KVM switch allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock simplifies setup with one cable for laptop signal transmission, power, and charging. Connecting to the Internet via LAN automatically links your notebook to the network. The VA panel ensures expansive viewing angles and vivid colours, and the 1500R curvature minimizes eye strain for a lifelike and fully immersive gaming experience. The dual QHD resolution provides sharp visuals, and the height-adjustable stand adds a comfortable and highly ergonomic experience.
DQHD
Ultra-wide 32:9 monitors with a DQHD 5120x1440 resolution, also called dual QHD, deliver razor-sharp images. They make it possible to divide the workspace into multiple windows and simultaneously open all the documents you need.

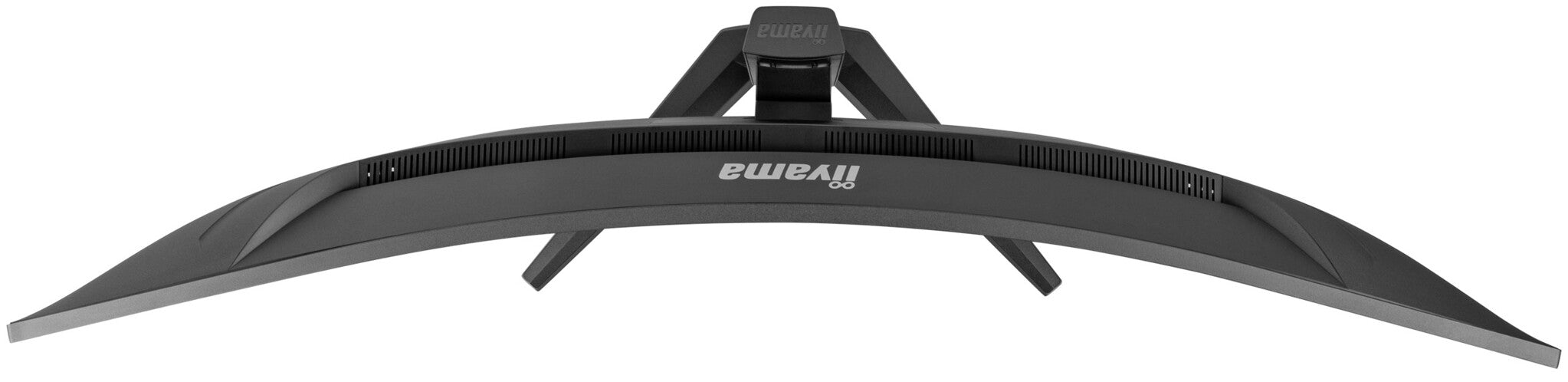

CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
| Display |
|---|
| High Dynamic Range (HDR) technology |
High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Display diagonal (metric) |
113 cm |
| Digital horizontal frequency |
30 - 260 kHz |
| Viewable size, vertical |
108.8 cm |
| Viewable size, horizontal |
30.6 cm |
| Pixel pitch |
0.212 x 0.212 mm |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
165 Hz |
| Contrast ratio (dynamic) |
80000000:1 |
| Contrast ratio (typical) |
3000:1 |
| Screen curvature rating |
1500R |
| Screen shape |
Curved |
| Display surface |
Matt |
| Response time |
0.8 ms |
| Display brightness (typical) |
450 cd/m² |
| Backlight type |
LED |
| Panel type |
VA |
| HD type |
Dual QHD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
32:9 |
| Display resolution |
5120 x 1440 pixels |
| Display diagonal |
114.3 cm (45") |
| Performance |
|---|
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| ConnectShare (USB) |
Yes |
| Brand specific technologies |
Black Equalizer, Eye Saver |
| AMD FreeSync |
Yes |
| Multimedia |
|---|
| RMS rated power |
6 W |
| Number of speakers |
2 |
| Built-in camera |
No |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Feet colour |
Black |
| Detachable stand |
Yes |
| Product colour |
Black |
| Market positioning |
Gaming |

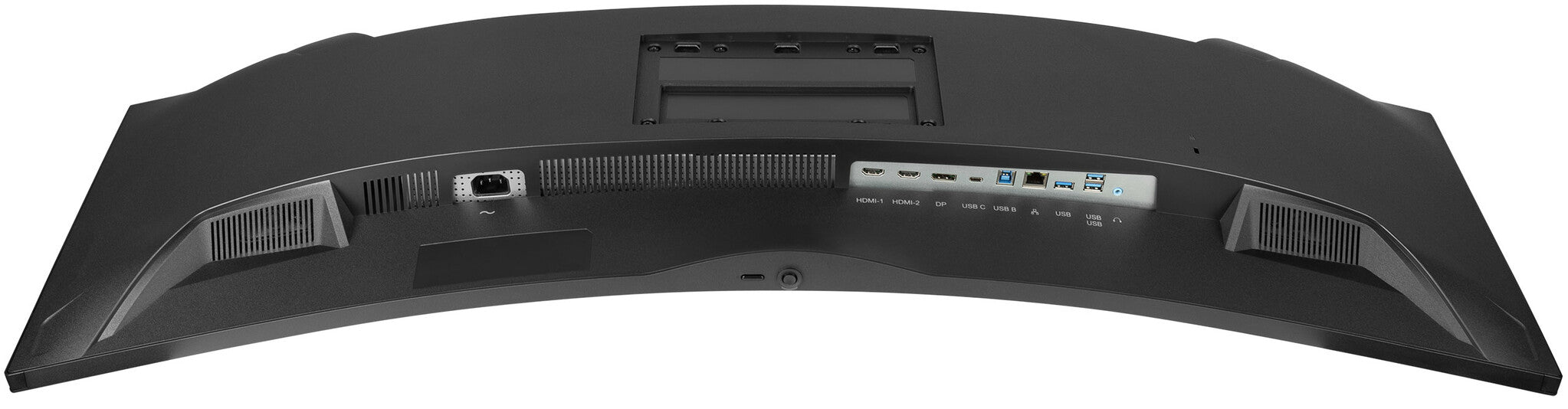

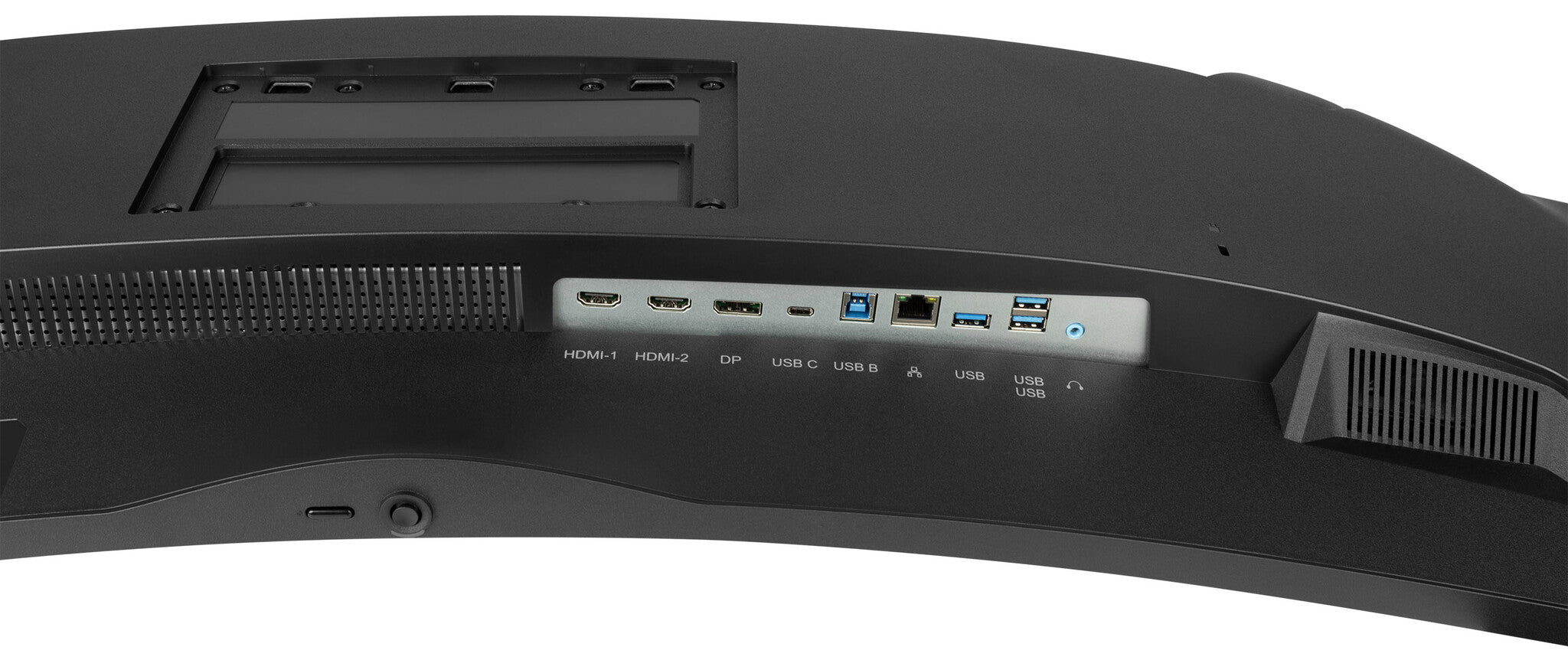

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| HDCP |
Yes |
| KVM switch ports quantity |
1 |
| Built-in KVM switch |
Yes |
| Headphone outputs |
1 |
| Headphone out |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
2 |
| HDMI |
Yes |
| USB Power Delivery up to |
90 W |
| USB Power Delivery |
Yes |
| USB Type-C downstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
3 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |

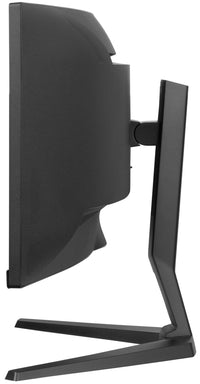

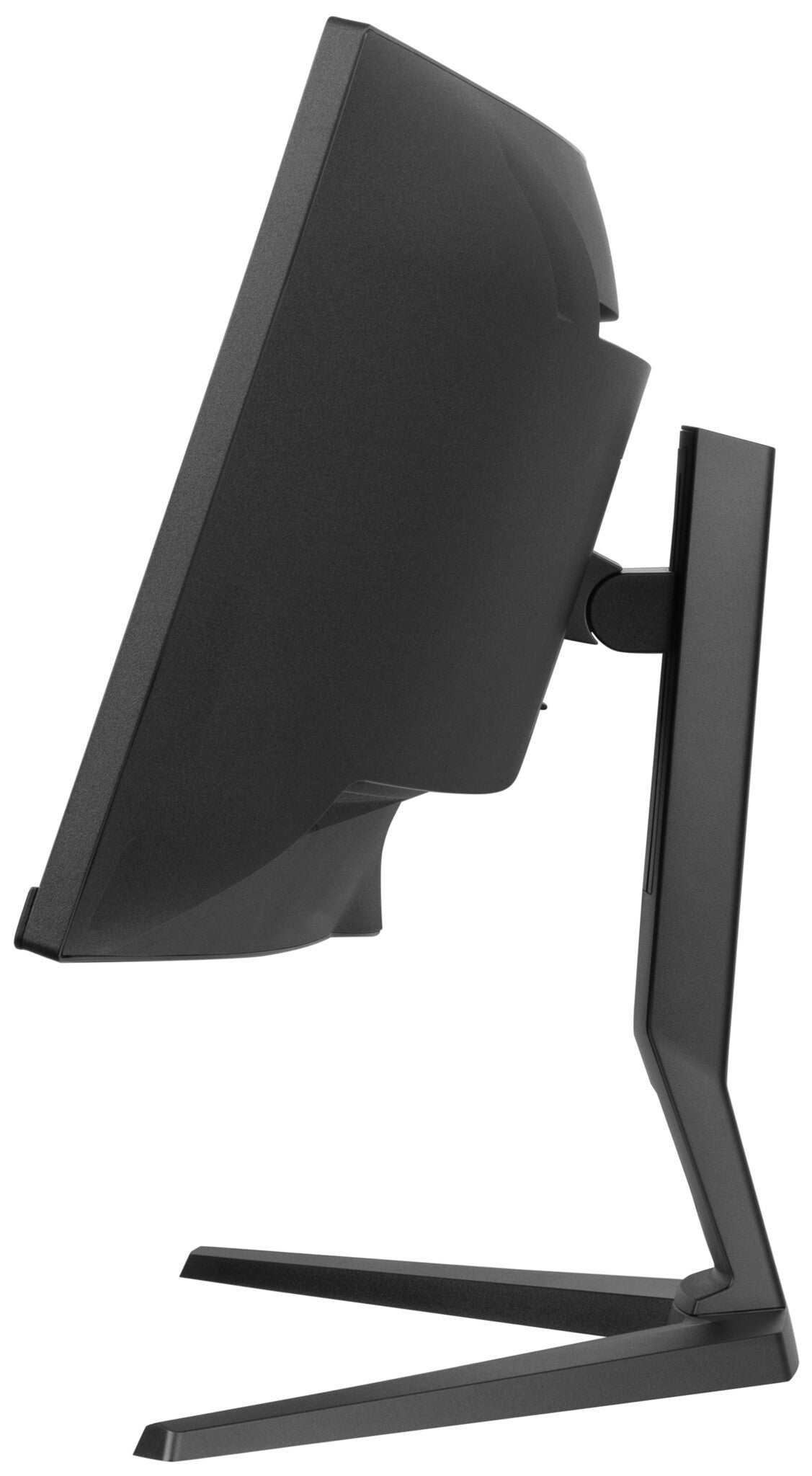

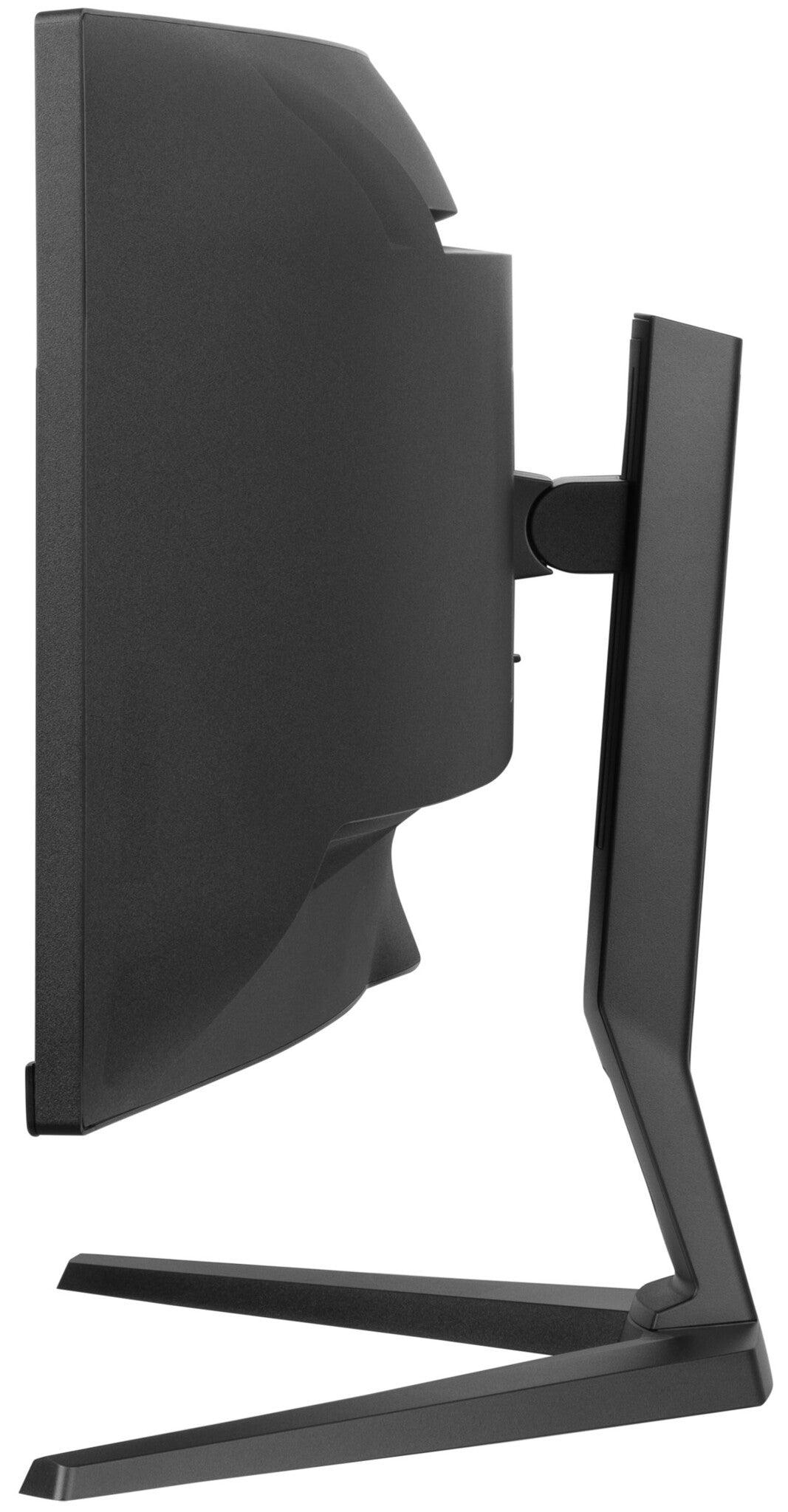

| Ergonomics |
|---|
| Tilt adjustment |
Yes |
| Number of OSD languages |
9 |
| On Screen Display (OSD) languages |
Czech, German, English, French, Hungarian, Italian, Japanese, Polish, Russian |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
3 - 20° |

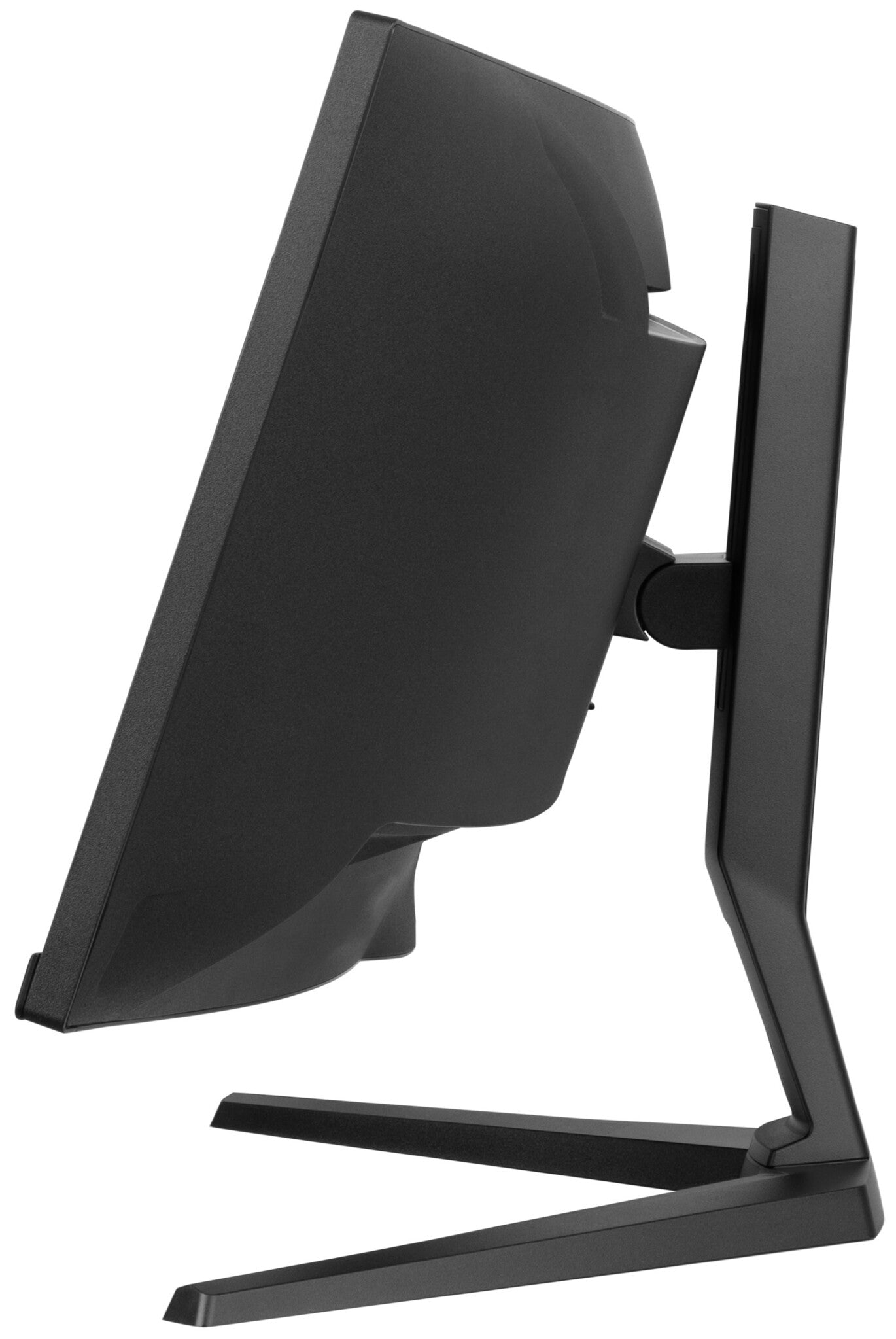

| Height adjustment |
13 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Wall mountable |
Yes |

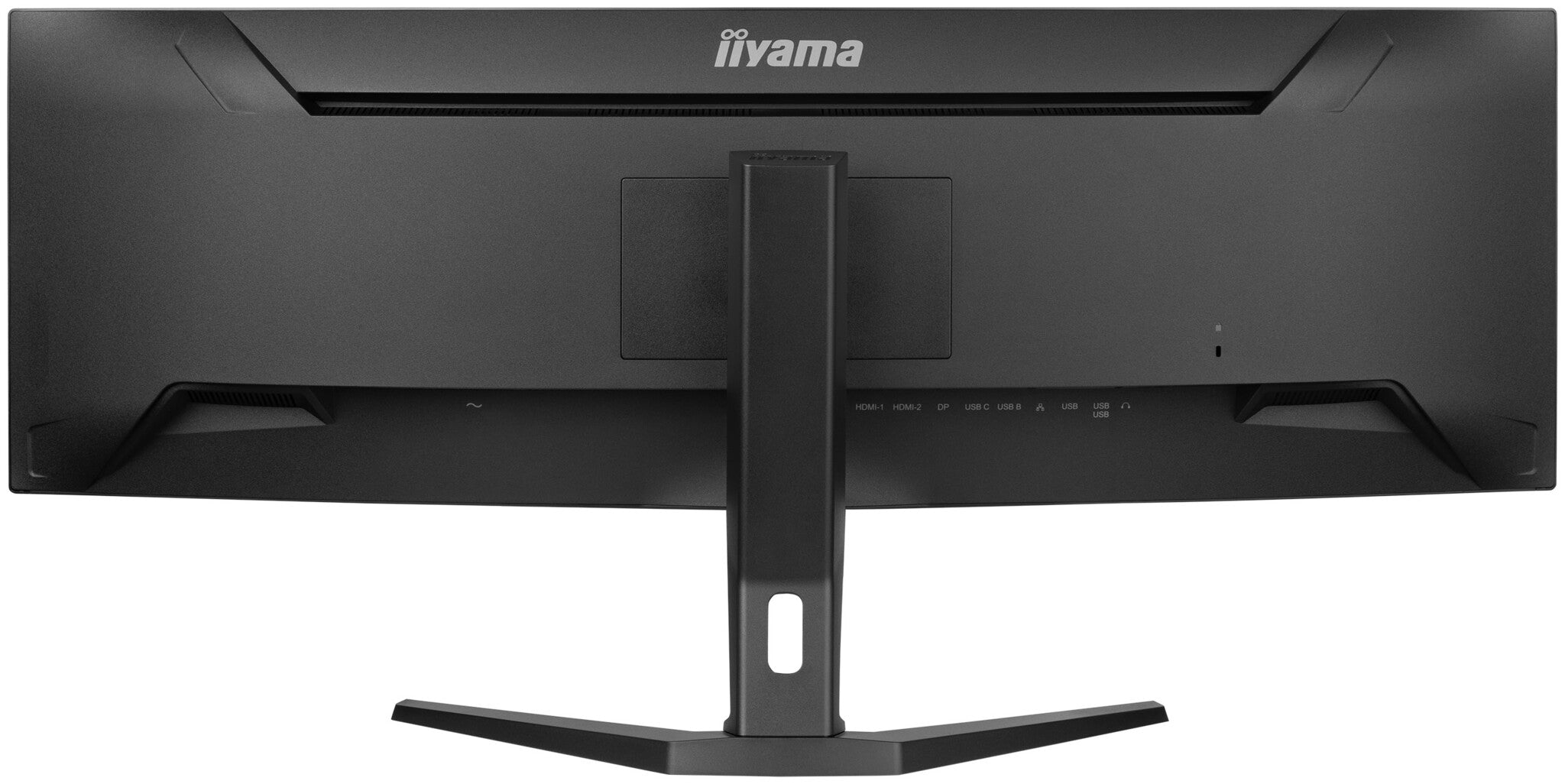

| Panel mounting interface |
200 x 100 mm |
| VESA mounting |
Yes |
| Power |
|---|
| Energy efficiency scale |
A to G |
| Power supply type |
External |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
37 W |
| Energy consumption (HDR) per 1000 hours |
67 kWh |
| Energy consumption (SDR) per 1000 hours |
37 kWh |
| Energy efficiency class (HDR) |
G |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Packaging content |
|---|
| Manual |
Yes |
| Quick start guide |
Yes |
| Power adapter included |
Yes |
| Cables included |
DisplayPort, HDMI, Power, USB |
| Stand included |
Yes |
| Weight & dimensions |
|---|
| Weight (with stand) |
11.2 kg |
| Height (with stand) |
409 mm |
| Depth (with stand) |
275 mm |
| Width (with stand) |
1090 mm |
| Packaging data |
|---|
| Package weight |
16.4 kg |
| Package height |
470 mm |
| Package depth |
315 mm |
| Package width |
1260 mm |
| Sustainability |
|---|
| European Product Registry for Energy Labelling (EPREL) code |
1774068 |
| Sustainability certificates |
CE, ErP, PSE, REACH, RoHS, TUV, UKCA, VCCI, WEEE |
| Sustainability compliance |
Yes |
| General |
|---|
| Product Family |
G-MASTER |
| Other features |
|---|
| Volume control |
Buttons |
