MASTERBOX NR600 WITHOUT ODD
FORM & FUNCTION STEAMLINED
MINIMALISTIC DESIGN

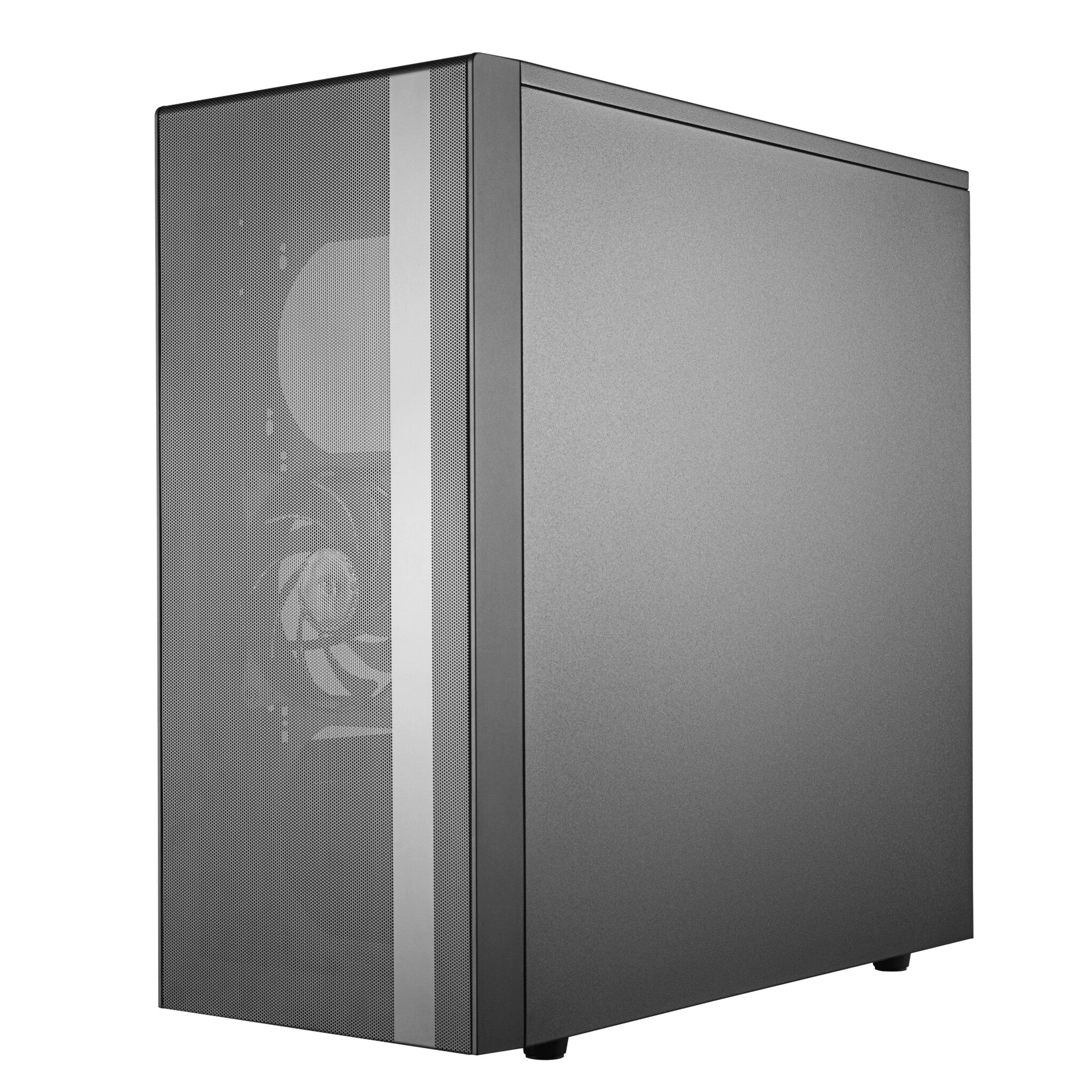

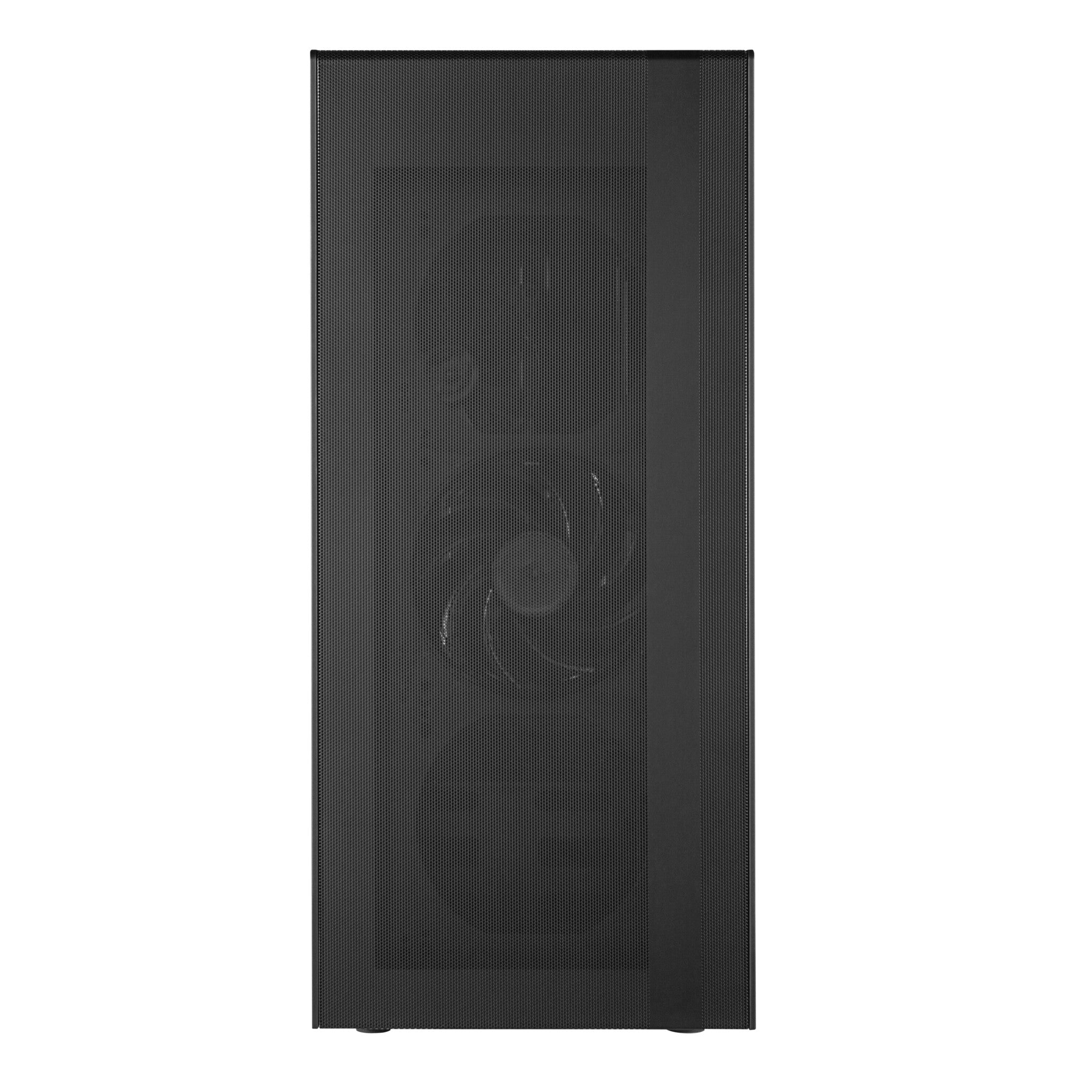

The MasterBox NR600 is a pure and simple design that is focused on airflow performance. A single-layer, fine mesh makes up the entire front panel, achieving efficient airflow while also acting as a dust filter.

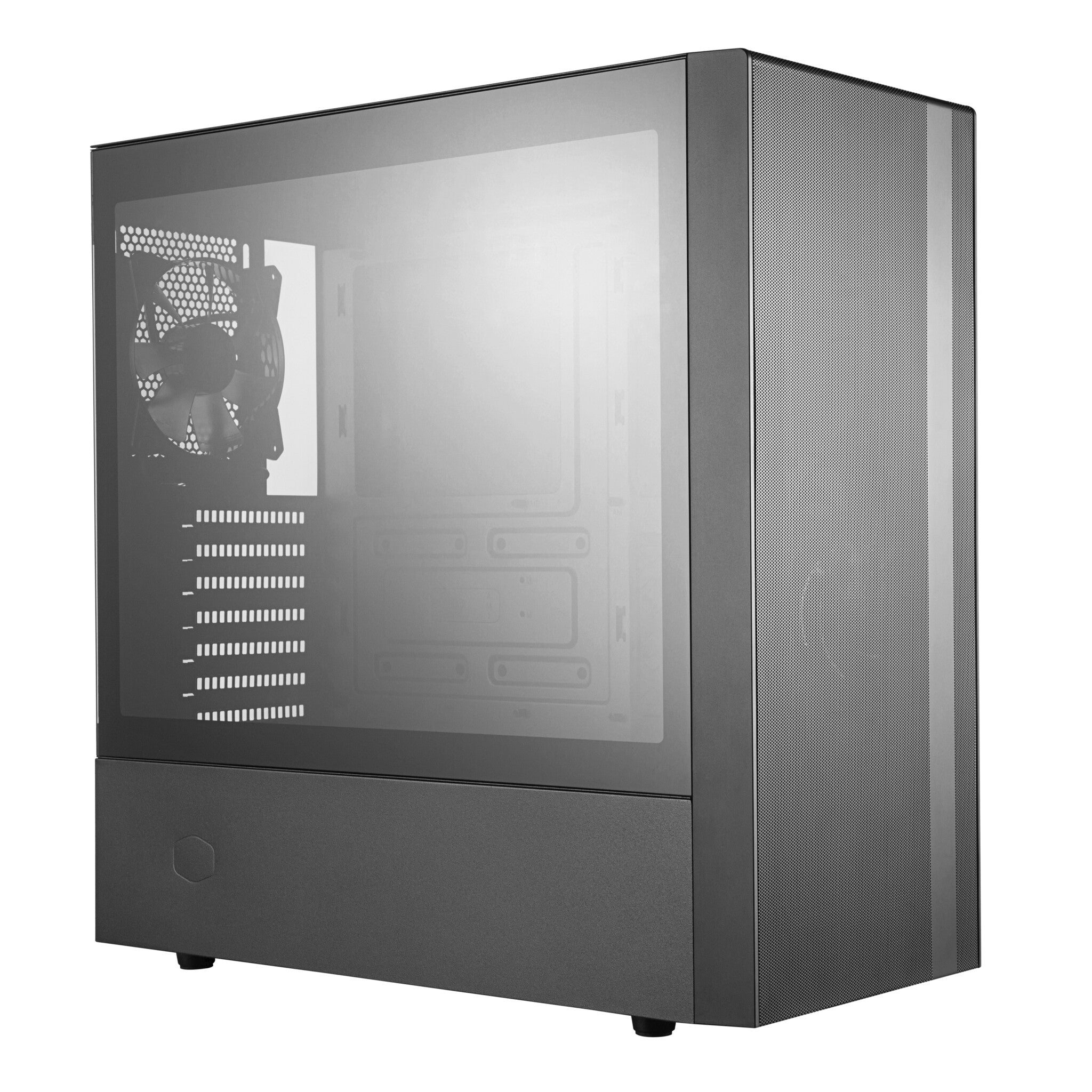

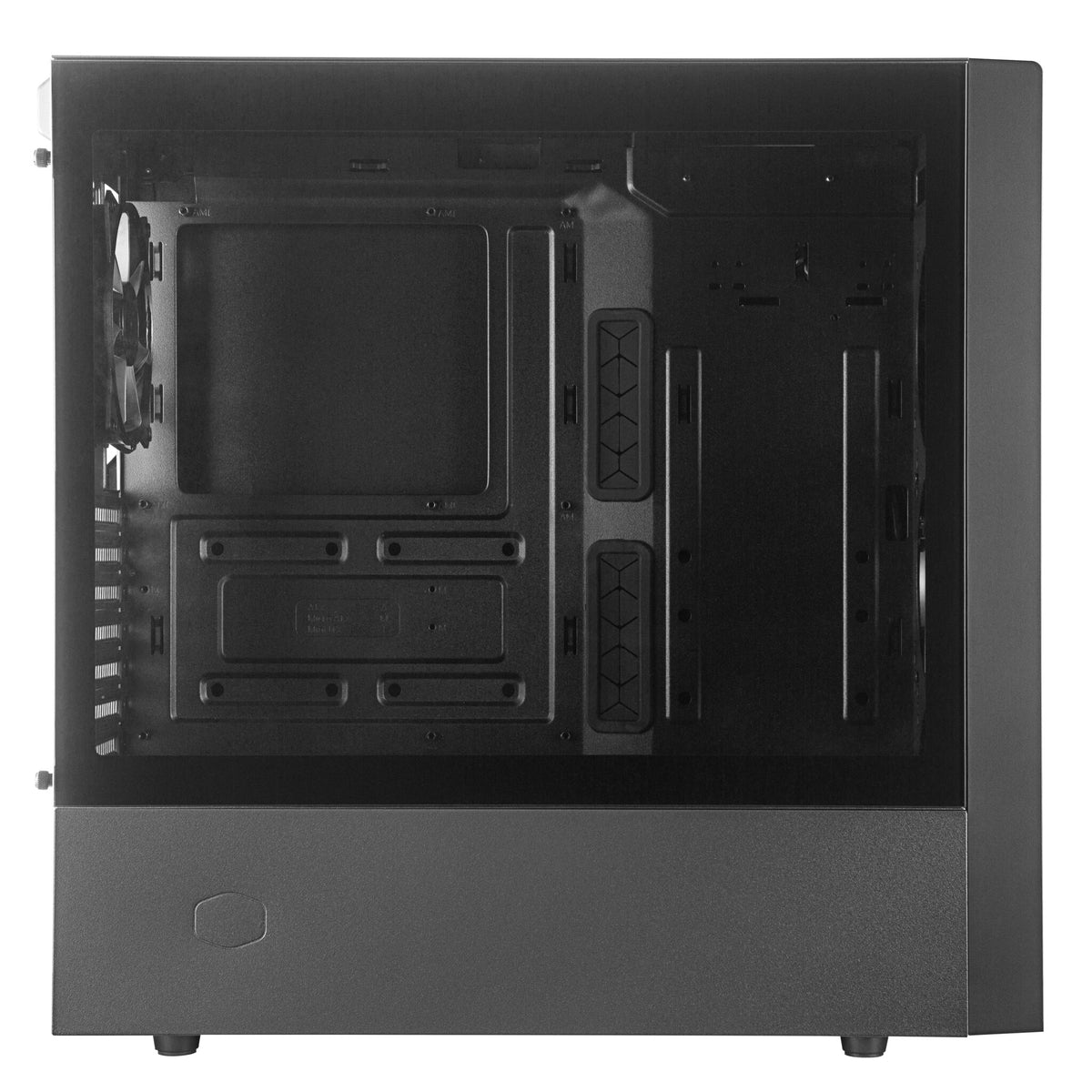

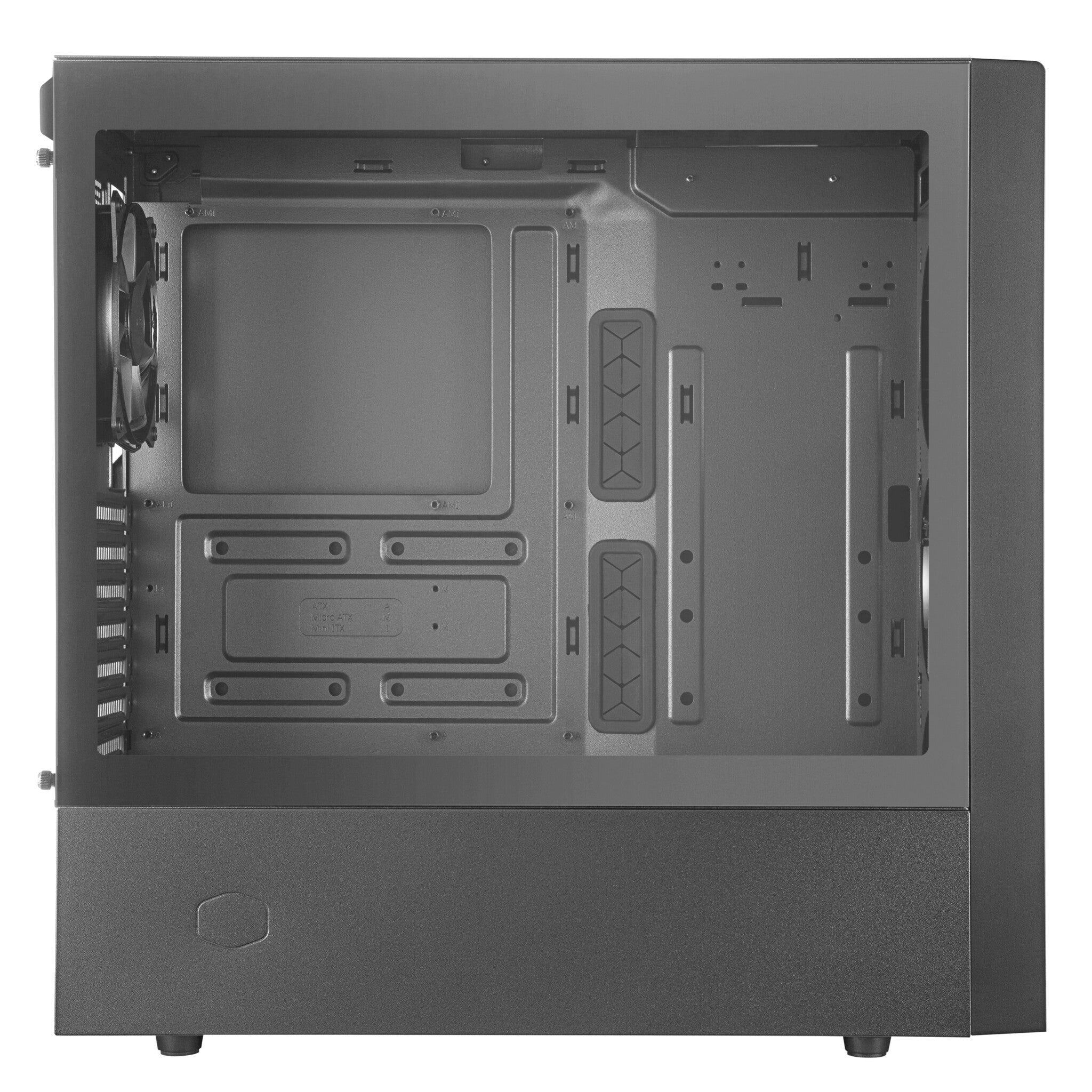

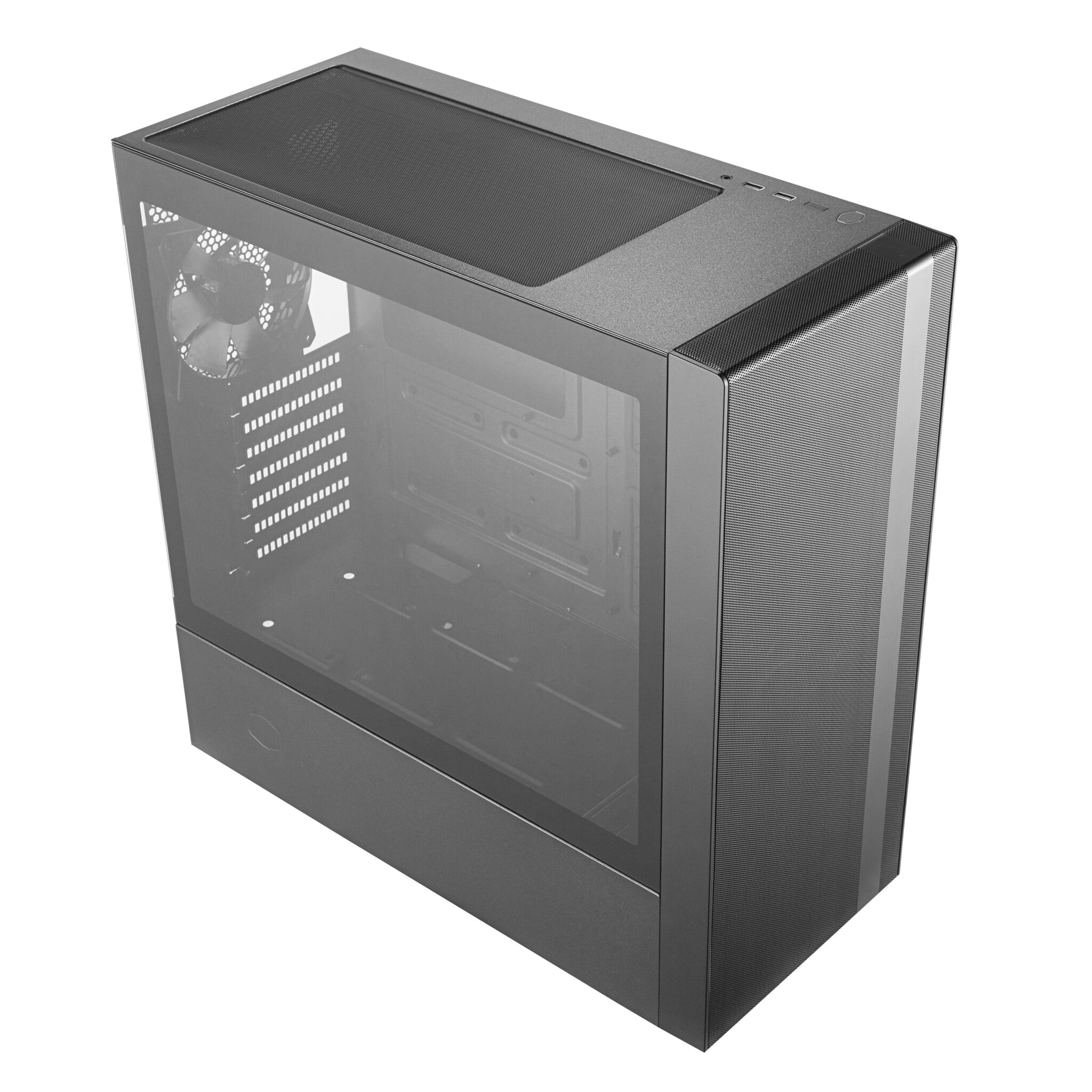

SEAMLESS TEMPERED GLASS
The tempered glass side panel sits completely flush against the chassis, mounted securely and discreetly by a system of tabs and thumbscrews.
AMPLE STORAGE SUPPORT

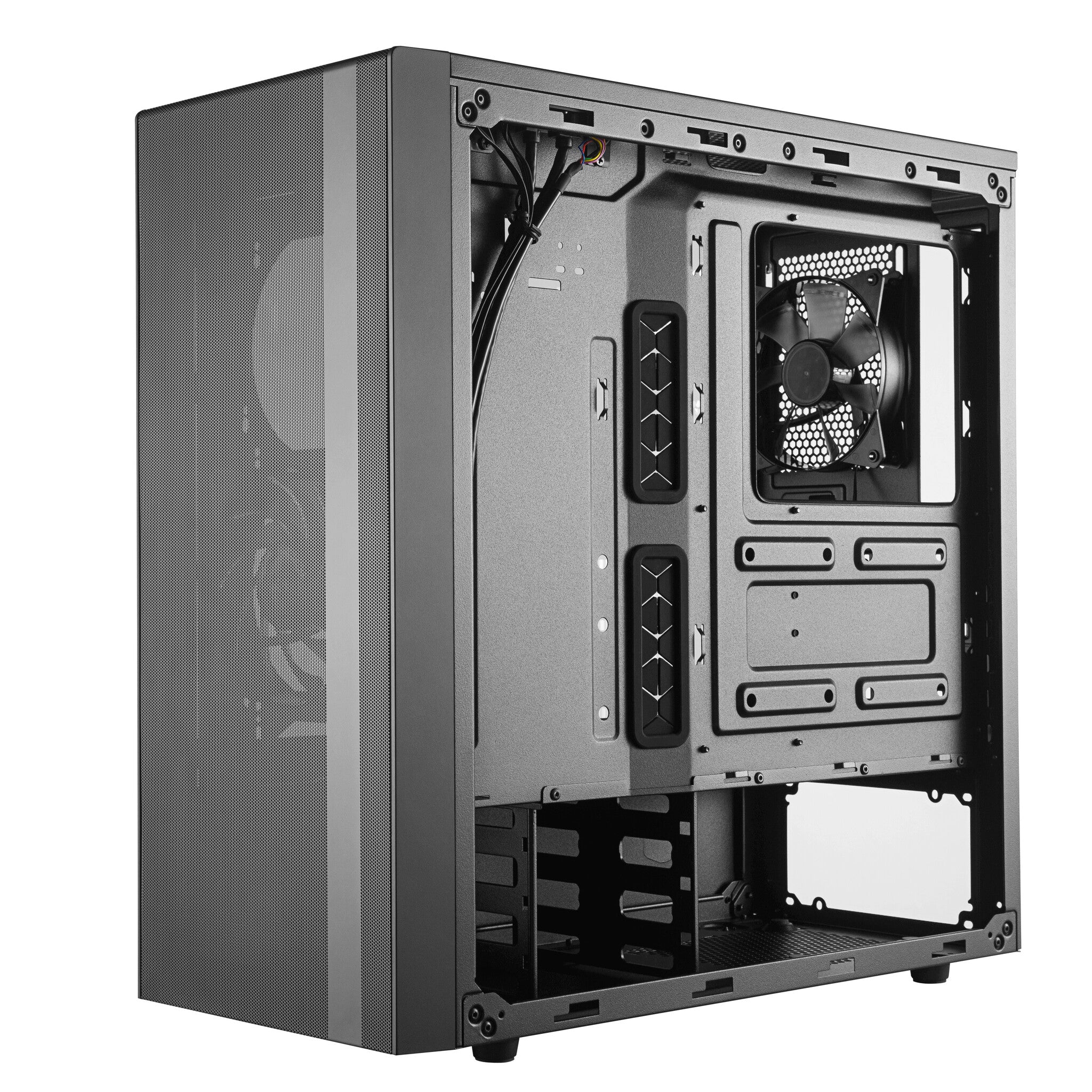

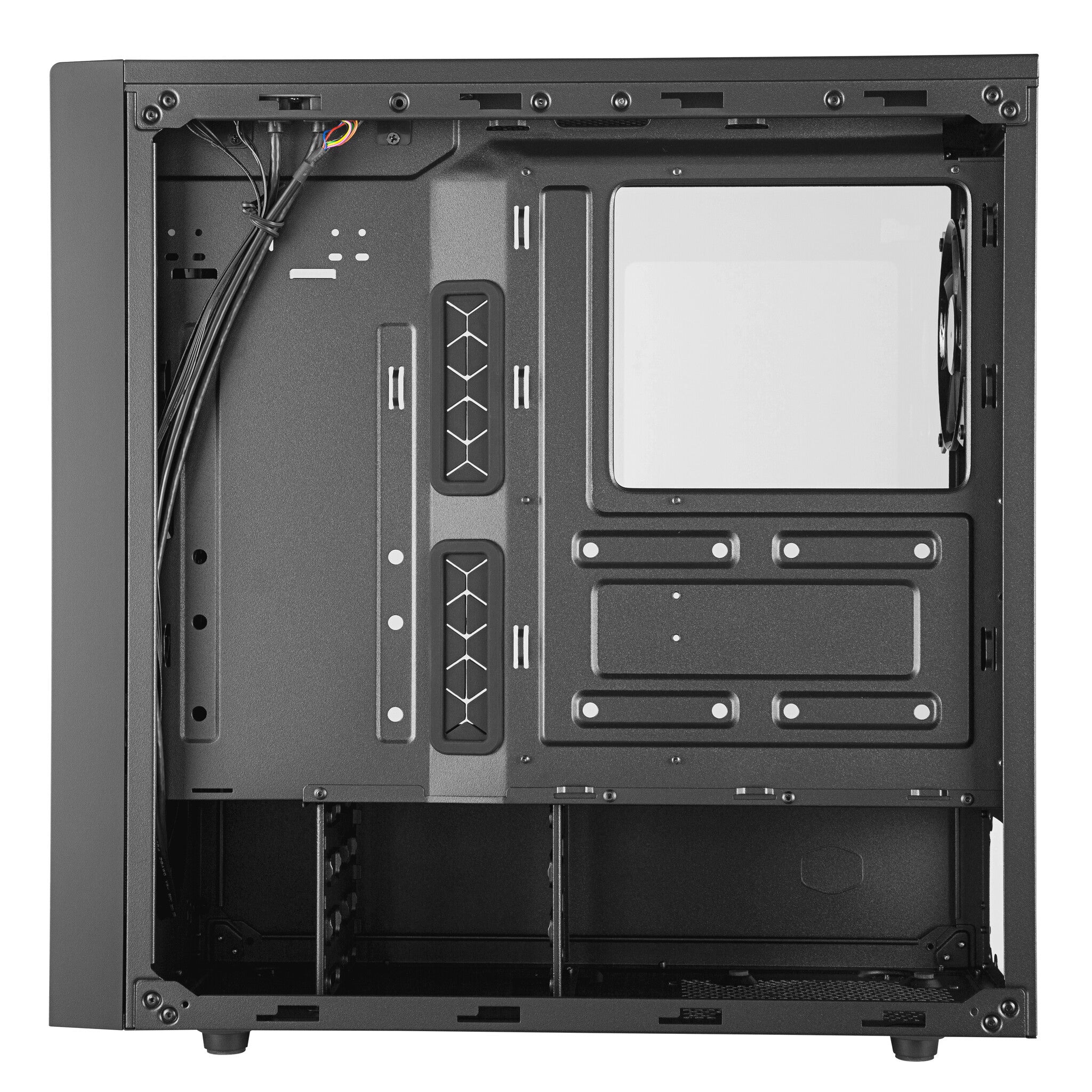

A total of 5 x 2.5" and 4 x 3.5" drives can be mounted using a tool-less system. Storage can be mounted on the PSU shroud, behind the motherboard tray, and in the HDD cage.

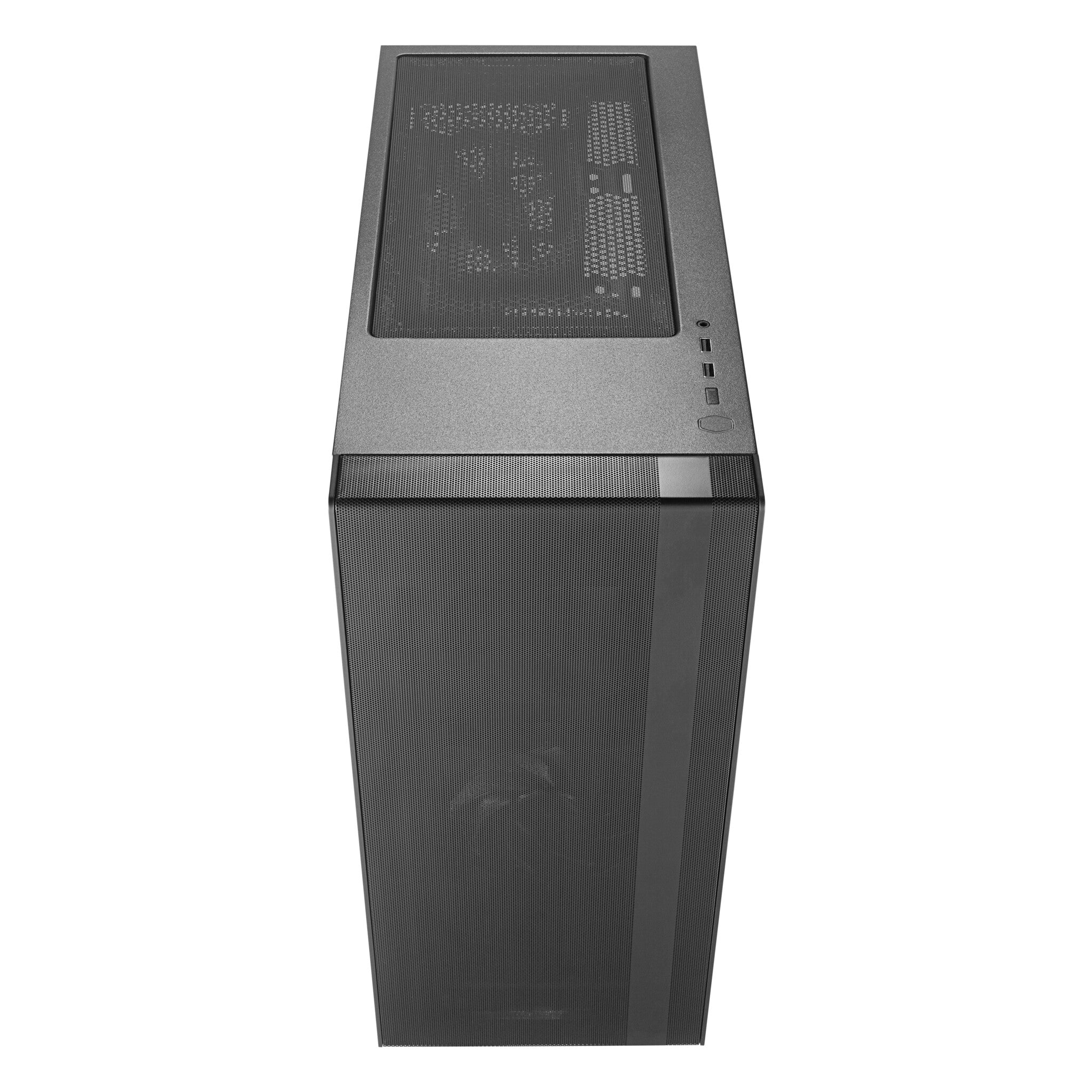

HEADSET JACK
The single 4 pole headset jack features both Audio and Microphone capabilities simultaneously so that separate jacks are not needed.
FAN SUPPORT
Front: 140mm x2 / 120mm x3
Top: 140mm x2 / 120mm x2
Rear: 120mm x1
*non ODD version
RADIATOR SUPPORT
Front: 360/280/240/140/120mm
Top: 120/240mm
Rear: 120mm
*non ODD version
Design | |
---|---|
Maximum PSU length | 18 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.6 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 5 |
Number of 3.5" bays | 4 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Plastic, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 140,240,280,360 mm |
Liquid cooling capability | Yes |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 1x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
General | |
---|---|
Product Family | MasterBox |
Weight & dimensions | |
---|---|
Weight | 6.57 kg |
Height | 473 mm |
Depth | 478 mm |
Width | 209 mm |
Packaging data | |
---|---|
Package weight | 7.86 kg |
Package height | 552 mm |
Package depth | 550 mm |
Package width | 290 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
