BUILT TO LAST

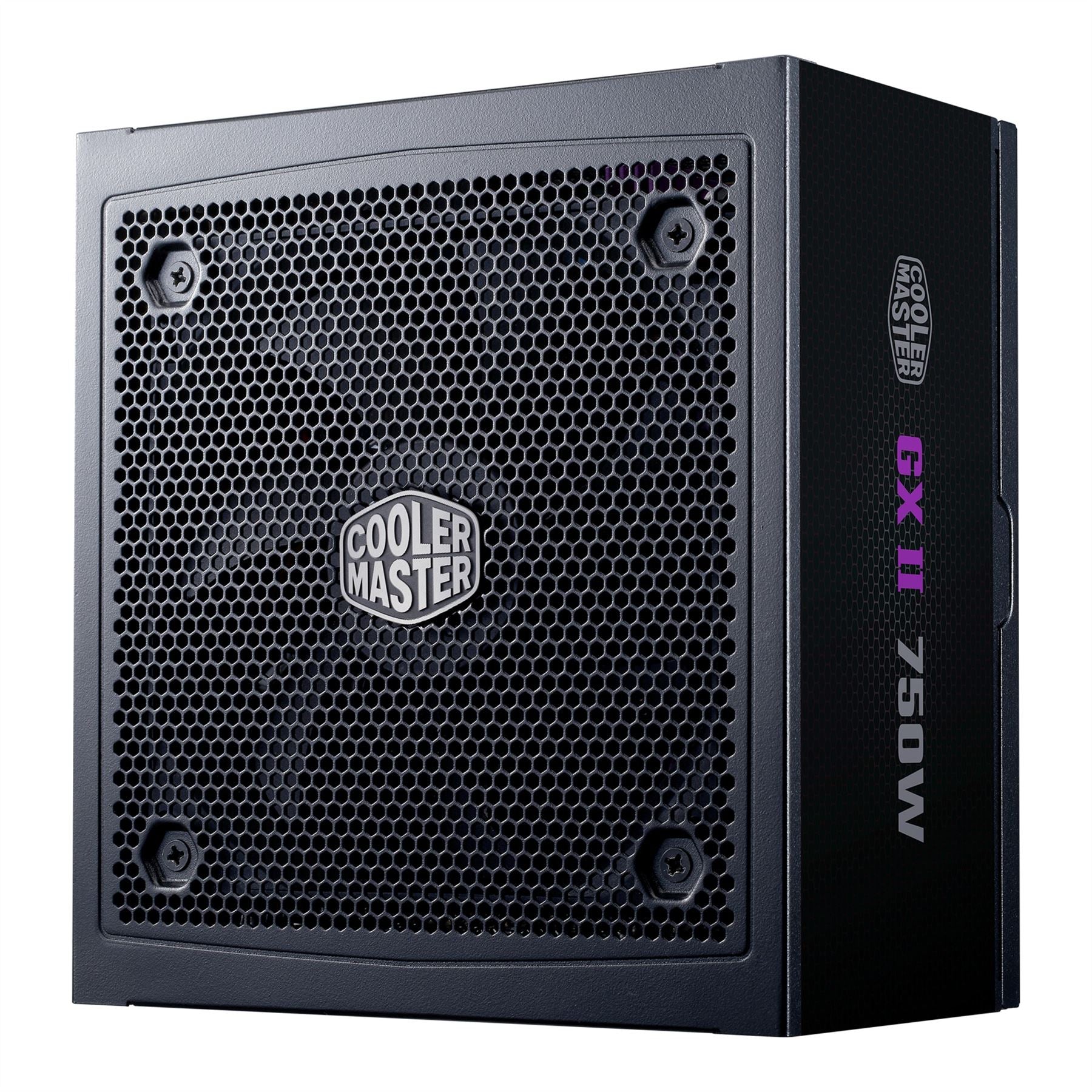

The GX II Gold brings a new standard of durability and efficiency to Cooler Master’s lineup of power supply units combined with ATX 3.0 support.
ATX 3.0 support & a durable 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
CERTIFIED EFFICIENCY
The GX II Gold is certified to achieve more than 90% efficiency at typical loads.
SILENT FAN PERFORMANCE
WITH A ZERO-RPM MODE
A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature.
Separated thermal technologies
Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.
Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
PSU CALCULATOR
Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.
Cooling | |
---|---|
Fan diameter | 12 cm |
Number of fans | 1 fan(s) |
Fan speed | 0 - 2500 RPM |
Cooling type | Active |
Performance | |
On/off switch | Yes |
Power supply unit (PSU) form factor | ATX |
80 PLUS certification | 80 PLUS Gold |
Purpose | PC |
ATX version | 3.0 |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | HDB |
Design | |
80 PLUS certification | 80 PLUS Gold |
Product colour | Black |
Fan diameter | 12 cm |
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan speed | 0 - 2500 RPM |
Cooling type | Active |
Power | |
Total power | 750 W |
Power Good signal delay range | 100 - 150 ms |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Input current | 10 - 5 A |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 0.3 W |
Combined power (+5Vsb) | 3 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 90% |
Ports & interfaces | |
Motherboard power cable length | 55 cm |
SATA power cable length | 500,620,740,860 mm |
Peripheral (Molex) power cable length | 860,740,620,500 mm |
PCI Express power cable length | 62 cm |
Motherboard power connector | 24-pin ATX |
Number of SATA power connectors | 6 |
Peripheral (Molex) power connectors (4-pin) | 2 |
EPS power connector (8-pin) | Yes |
PCI Express power connectors (6+2 pin) | 4 |
Cabling type | Fully-Modular |
EPS power connector (4+4 pin) | Yes |
EPS cable length | 60 cm |
PCI Express power connectors (12+4 pin) | 1 |
PCI Express power connectors (12+4 pin) cable length | 650 mm |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Width | 150 mm |
Depth | 160 mm |
Height | 86 mm |
Weight | 2.58 kg |
Packaging data | |
Package depth | 195 mm |
Package width | 320 mm |
Package height | 125 mm |
Package type | Box |
Package weight | 2.97 kg |
Technical details | |
Sustainability compliance | Yes |
Sustainability certificates | ErP |
Compliance certificates | BIS, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, TÜV mark, UKCA |
Certificates | |
80 PLUS certification | 80 PLUS Gold |
Logistics data | |
Products per pallet | 24 pc(s) |
Master (outer) case width | 335 mm |
Master (outer) case length | 520 mm |
Master (outer) case height | 231 mm |
Products per master (outer) case | 4 pc(s) |
Other features | |
EPS cable length | 60 cm |
