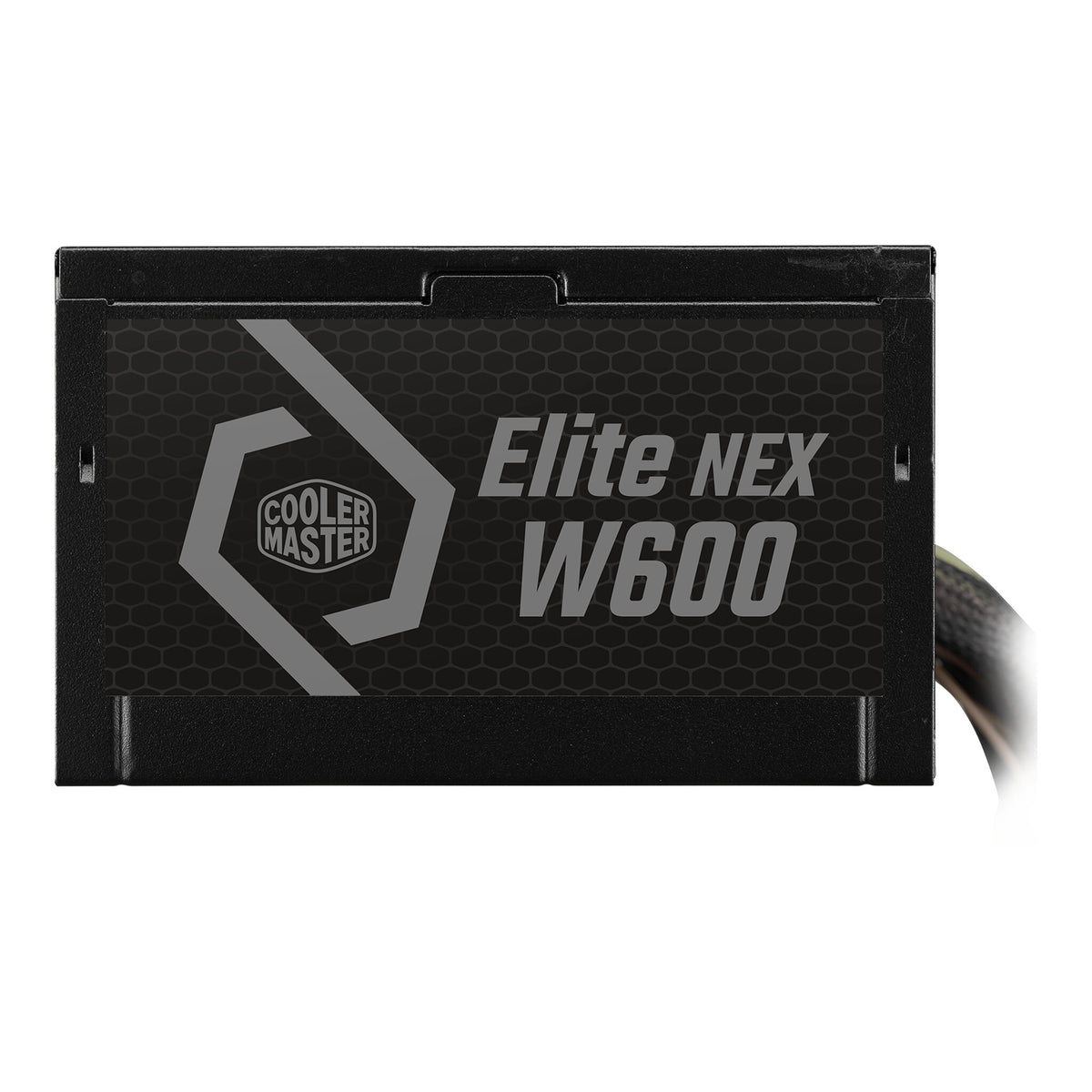

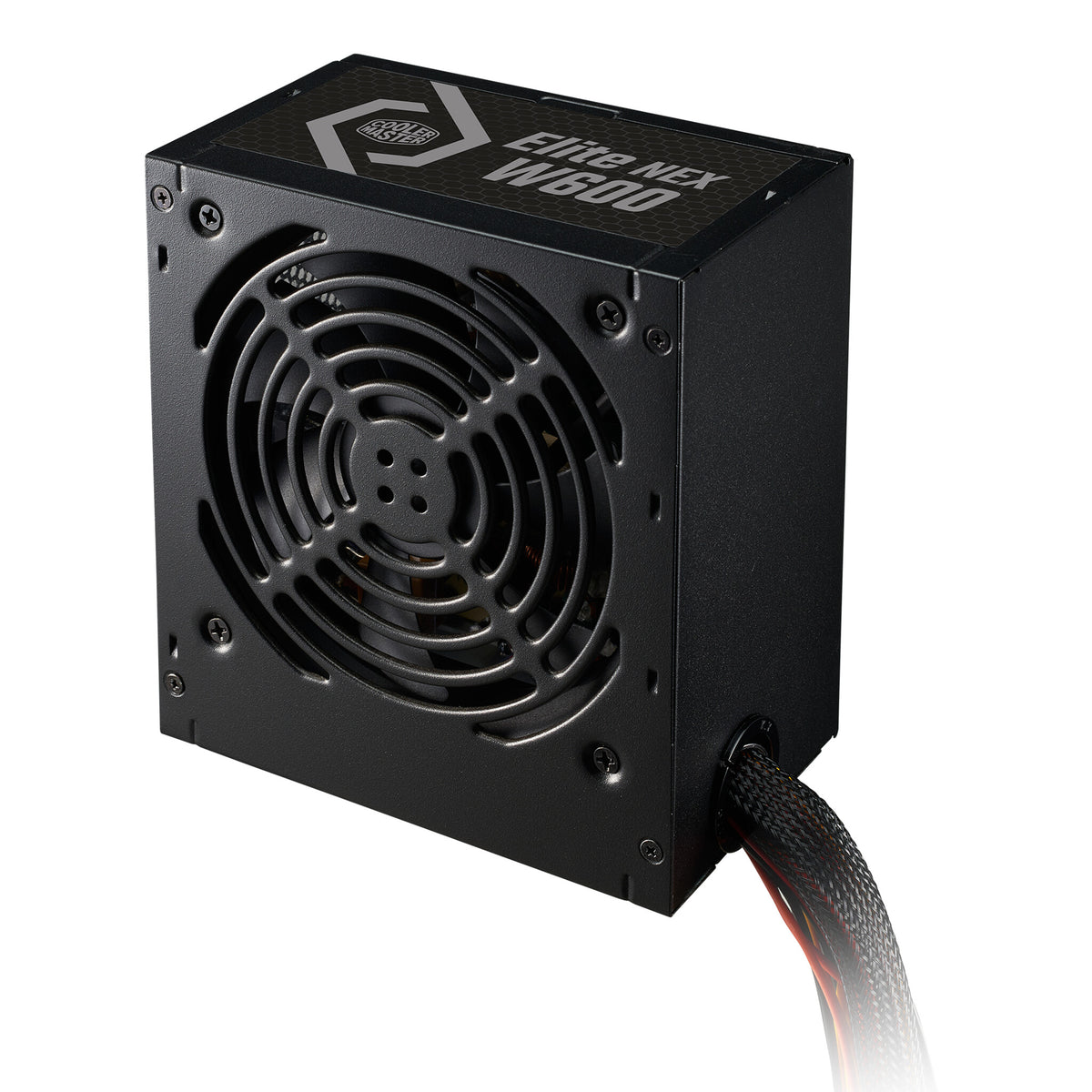

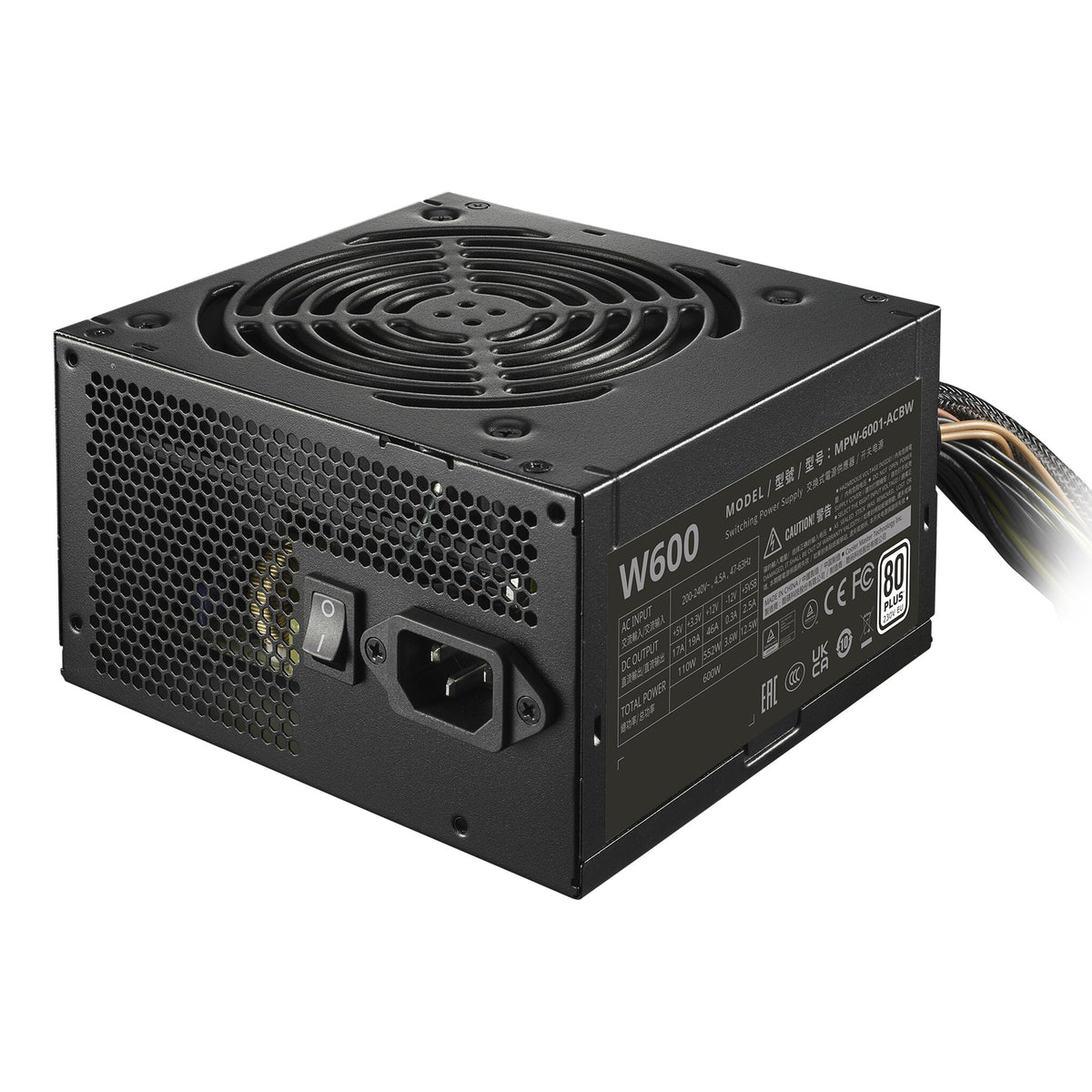

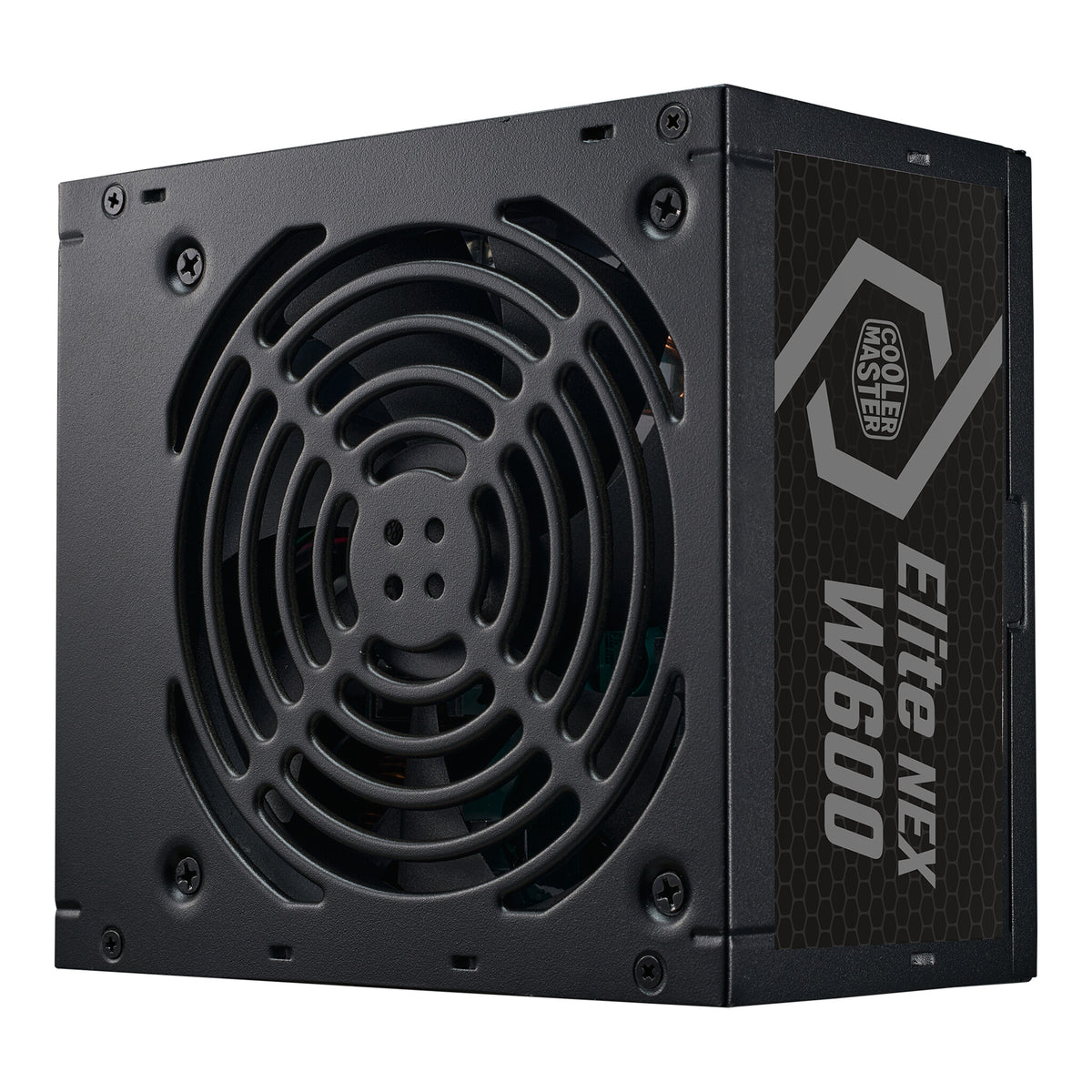

NEX Level ATX Power Supply
NEX Level Power
The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, active PFC and 3 years warranty deliver a complete power solution at a popular price.

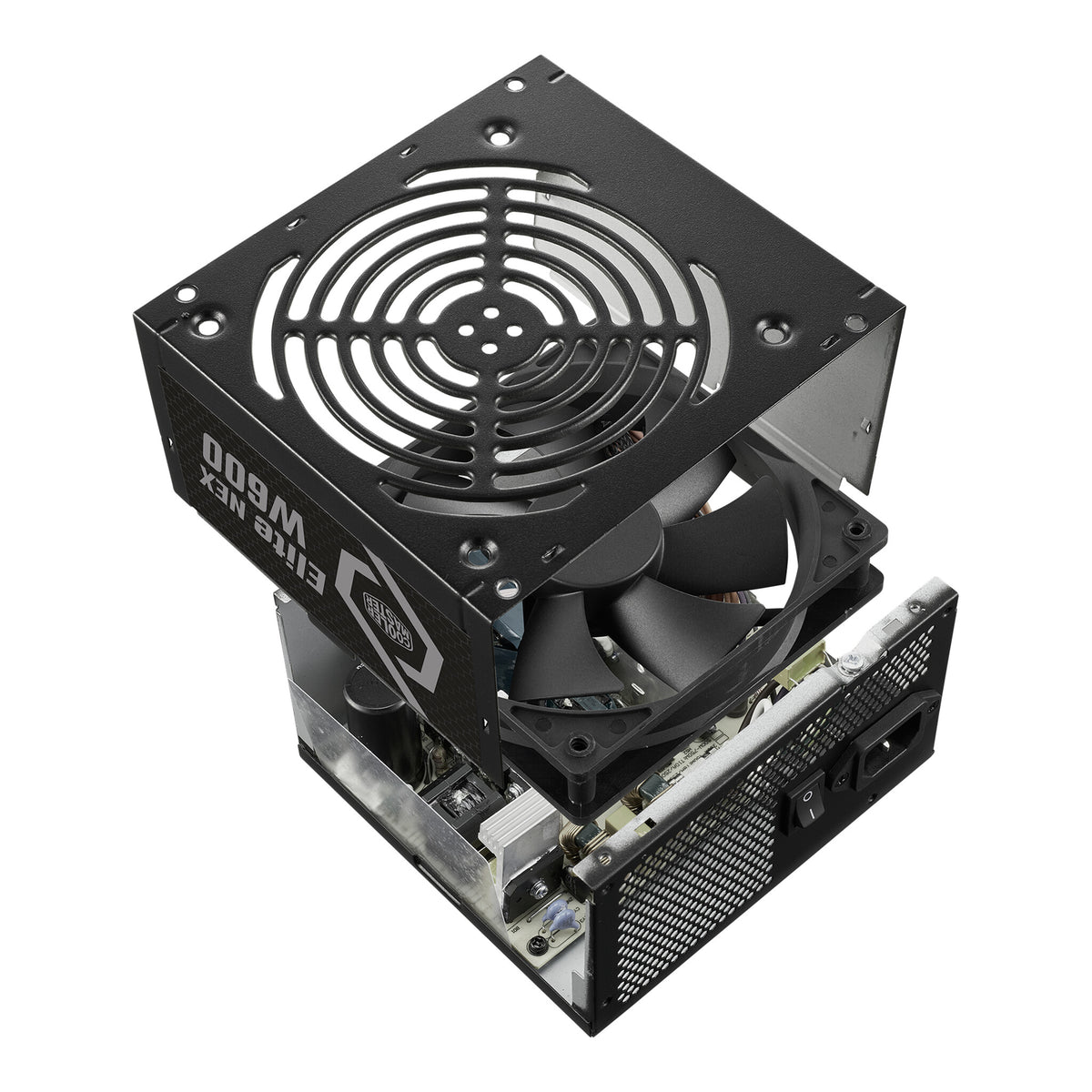

Active PFC + Dual Forward Topology Design
Constructed with the active PFC for high-end power supply and the dual forward topology design, it can not only reduce interference and increase power quality, but reduce power loss to increase efficiency.
High Temperature Resistance
It's capable of operating at 40°C under full load, allowing a longer lifespan in warmer environments.
Peak Power Tolerance
This unit can reliably push an additional 100W at peak power load for up to 20 seconds.
82% Efficiency
The power supply achieves an average efficiency of 82% at typical loads.
Power | |
---|---|
Power protection features | Over power, Overheating, Over voltage, Under voltage, Short circuit |
Hold time | 10 ms |
Efficiency | 85% |
Power Good signal delay range | 100 - 500 ms |

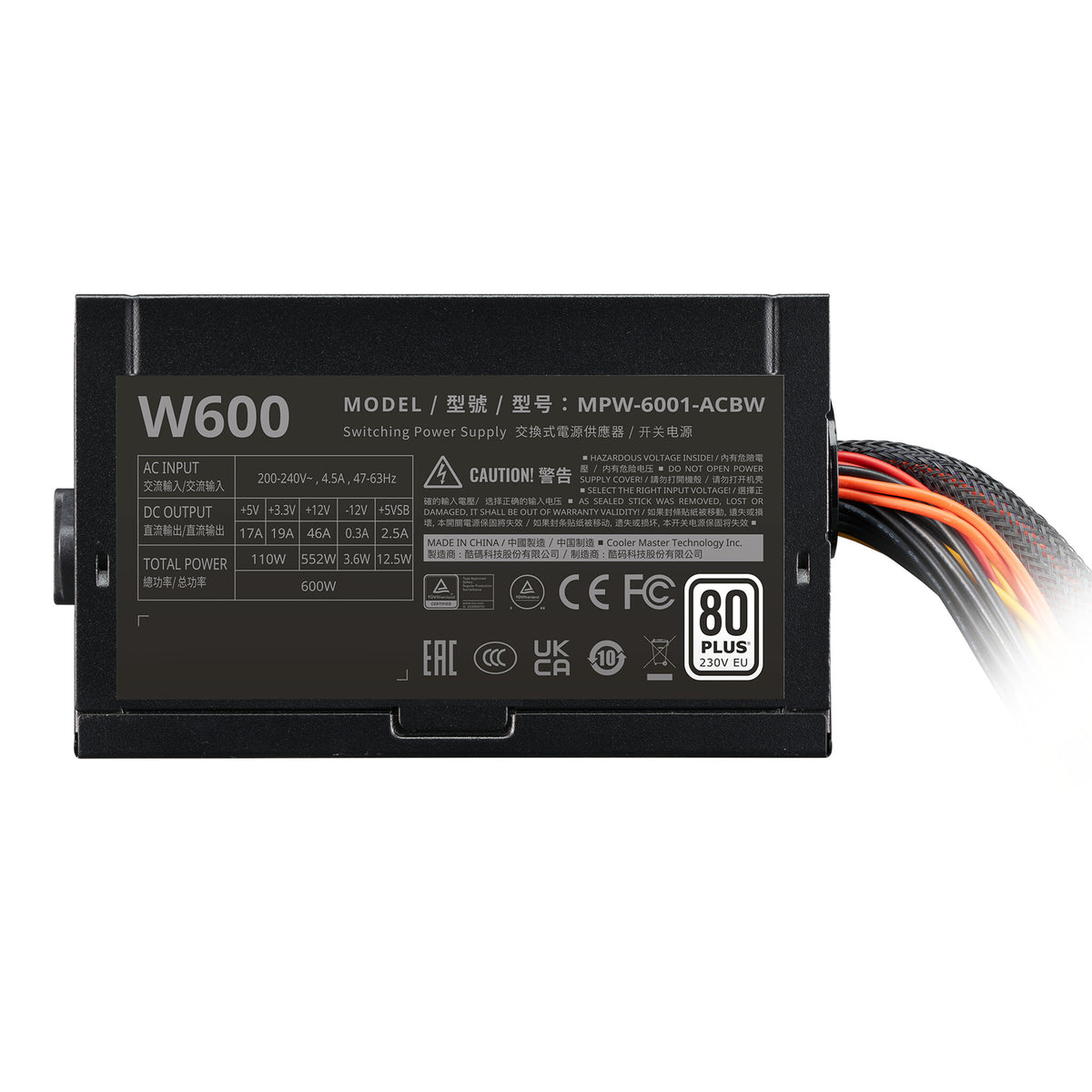

Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 17 A |
Max output current (+12V) | 46 A |
Max output current (+3.3V) | 19 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 552 W |
Combined power (+3.3V) | 110 W |
Power Factor Correction (PFC) type | Active |
AC input frequency | 50/60 Hz |
AC input voltage | 200 - 240 V |
Total power | 600 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
PCI Express power cable length | 62 cm |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 550,700,400 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 400,550,700 mm |
Number of SATA power connectors | 5 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
ATX version | 2.41 |
80 PLUS certification | 80 PLUS |
Power supply unit (PSU) form factor | ATX |
Purpose | PC/Server |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.49 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 1.9 kg |
Package height | 95 mm |
Package depth | 245 mm |
Package width | 190 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Compliance certificates | CCC, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), REACH, TÜV mark, cTUVus |
Other features | |
---|---|
EPS cable length | 55 cm |
