Impressive lighting, exceptional airflow

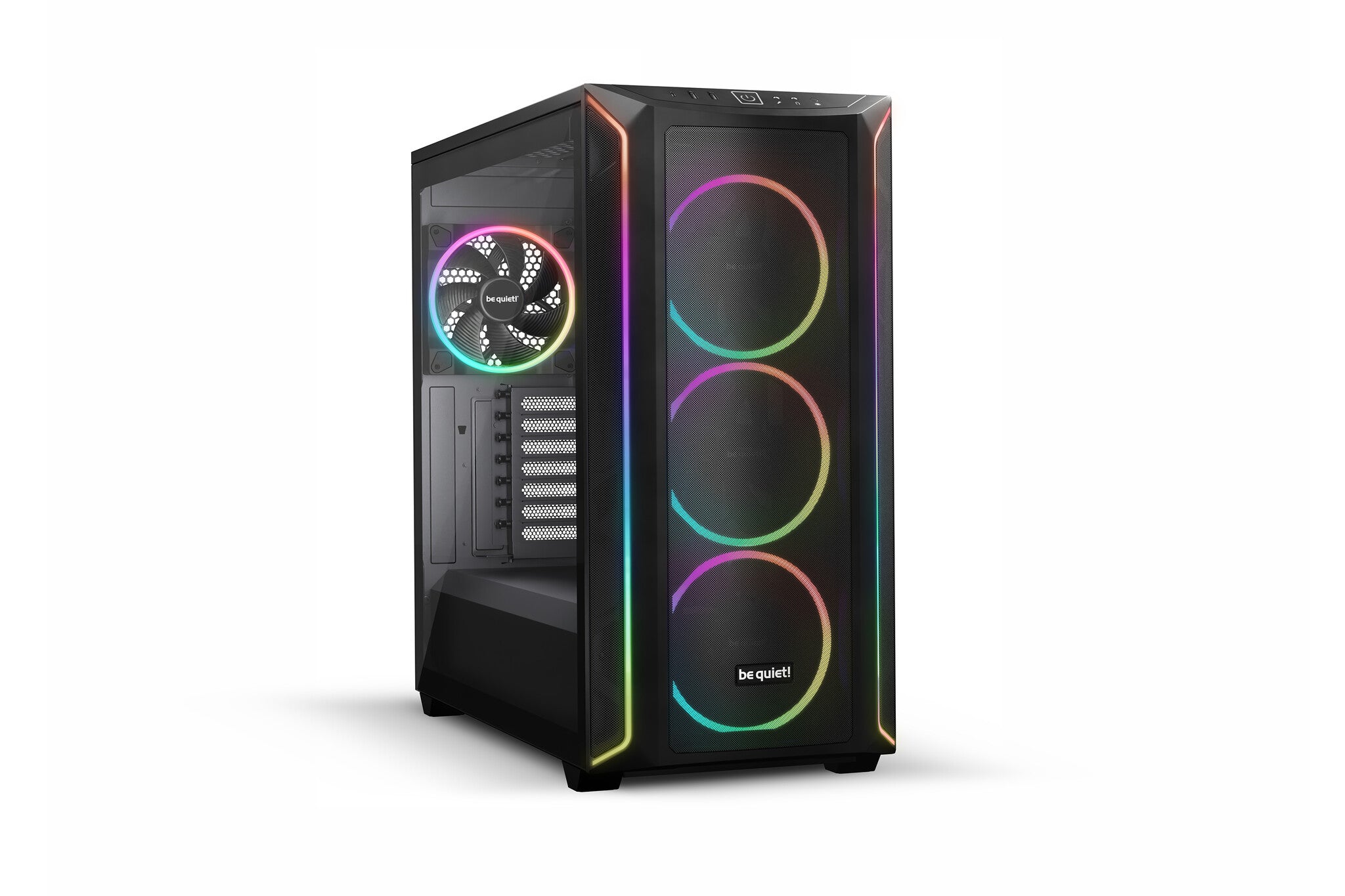

Shadow Base 800 FX Black is an airflow-optimized case that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards. Shadow Base 800 FX with its vast capacity and ARGB illumination lets you unfold your creativity in PC building.
IMPRESSIVE LIGHTING
Lots of illumination possibilities

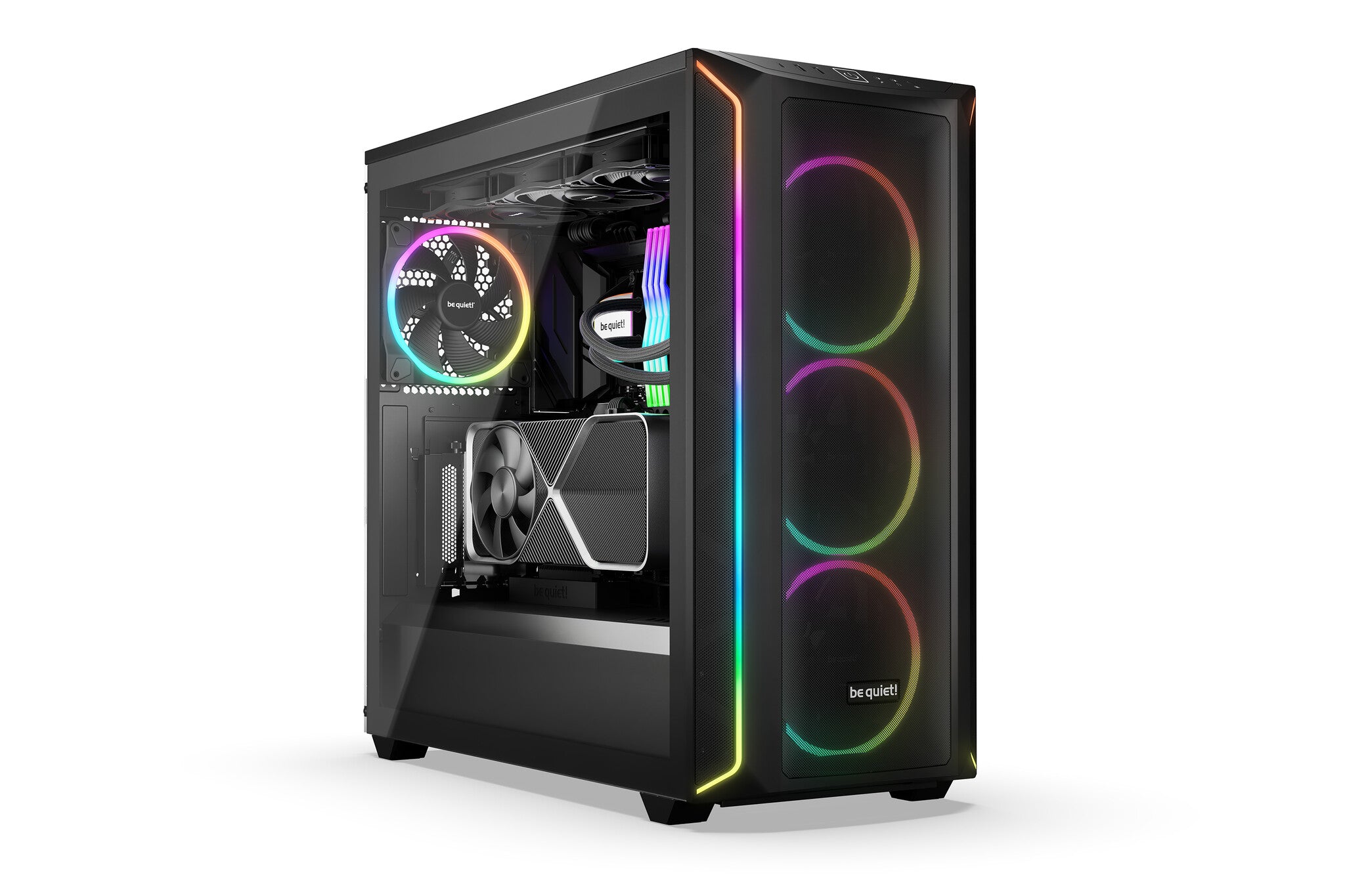

Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.

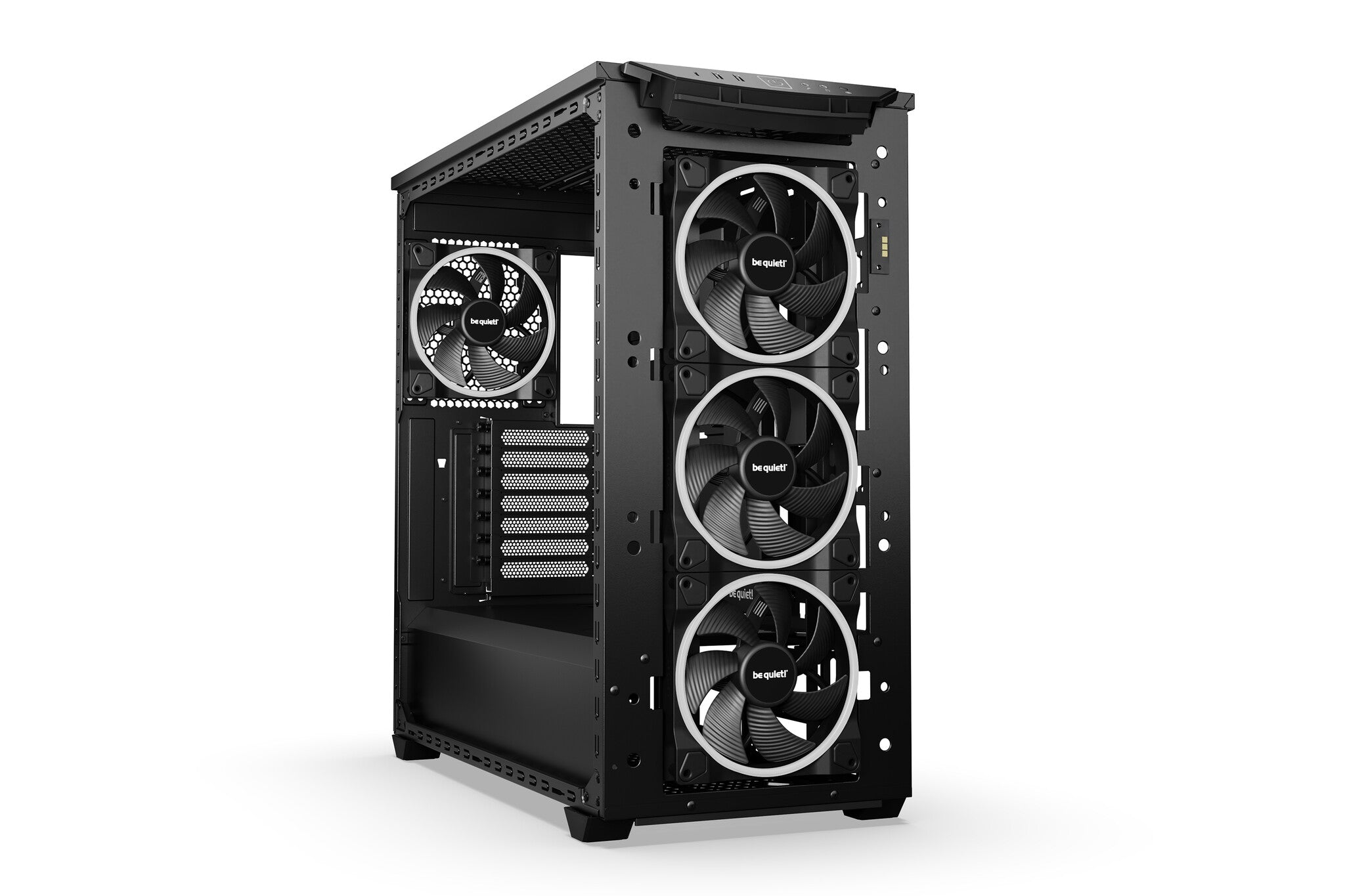

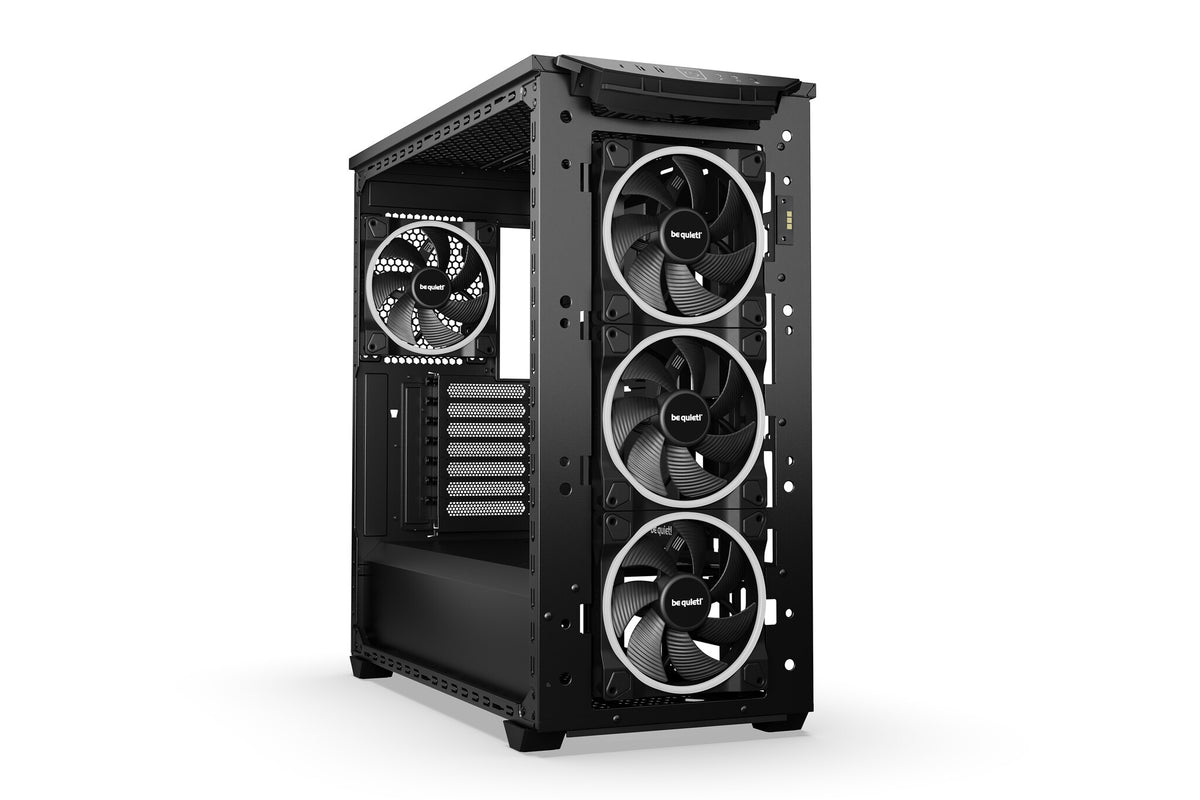

PERFECT AIRFLOW
Thanks to 4 PWM fans

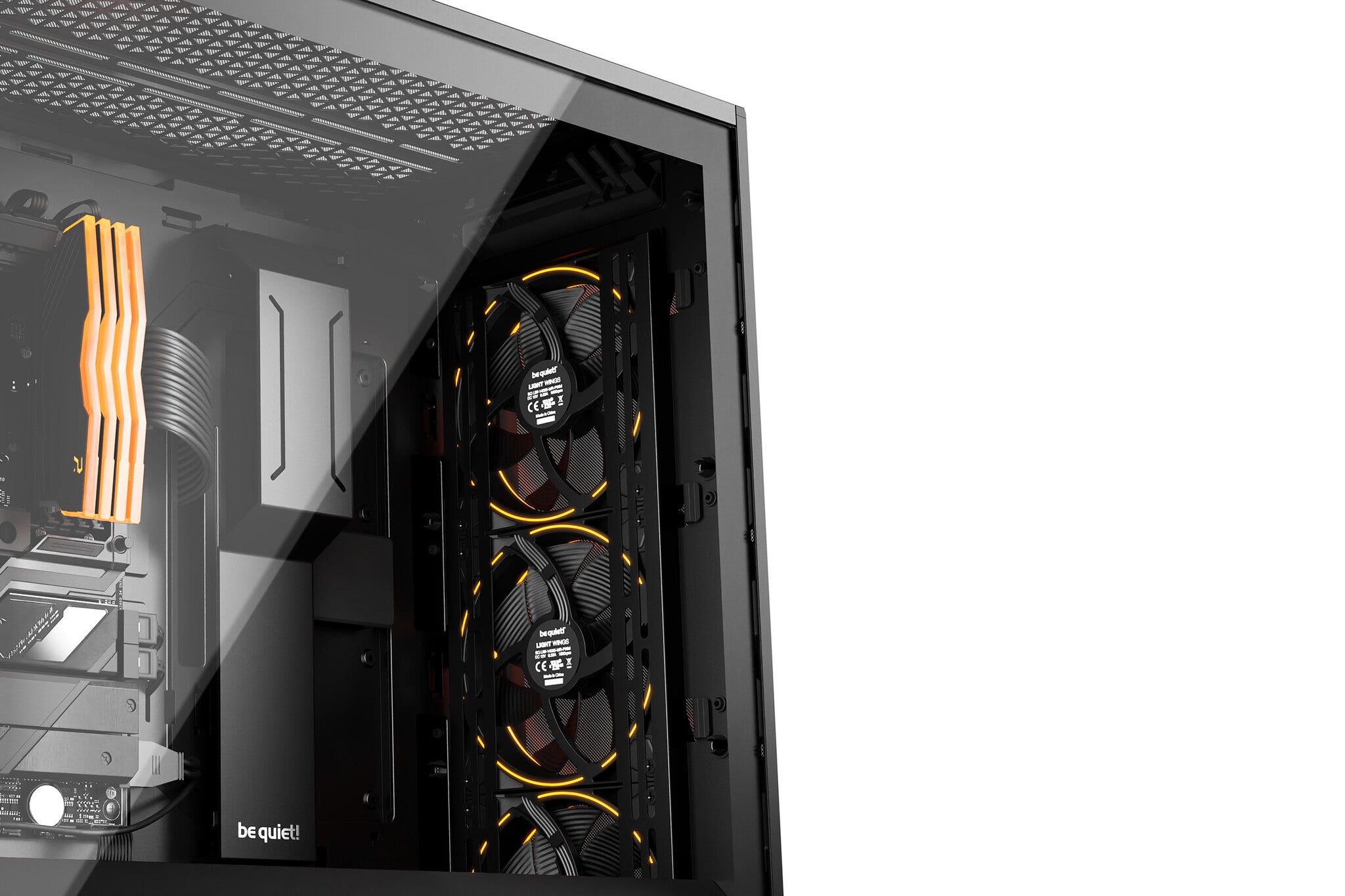

With optimization for maximum airflow, the Light Wings 140mm PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan provides the performance that is needed, even in demanding configurations. The fans are connected to a combined PWM and ARGB hub for up to 8 ARGB devices.

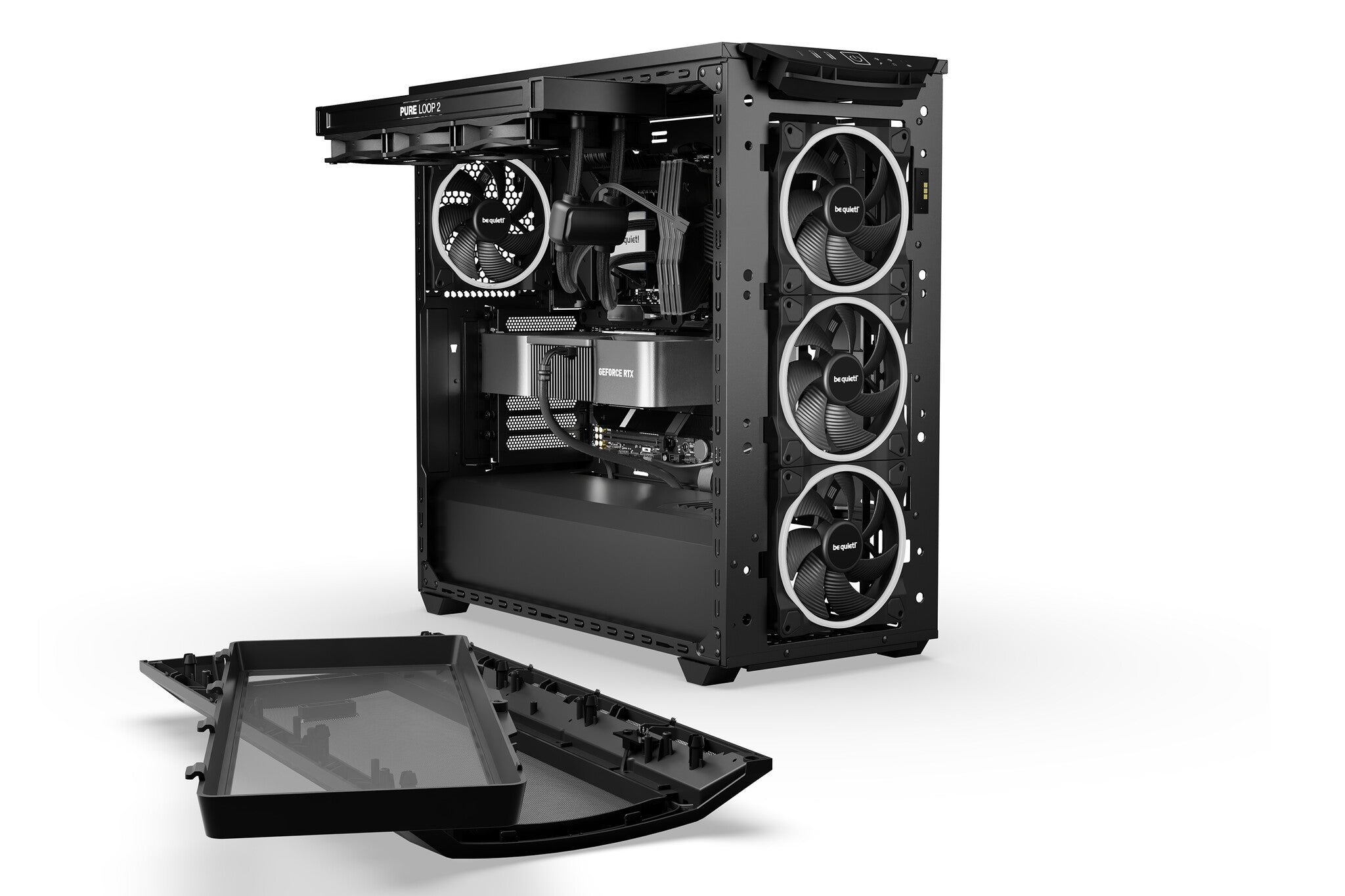

HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
SIZE MATTERS
Generous dimensions for radiators up to 420mm

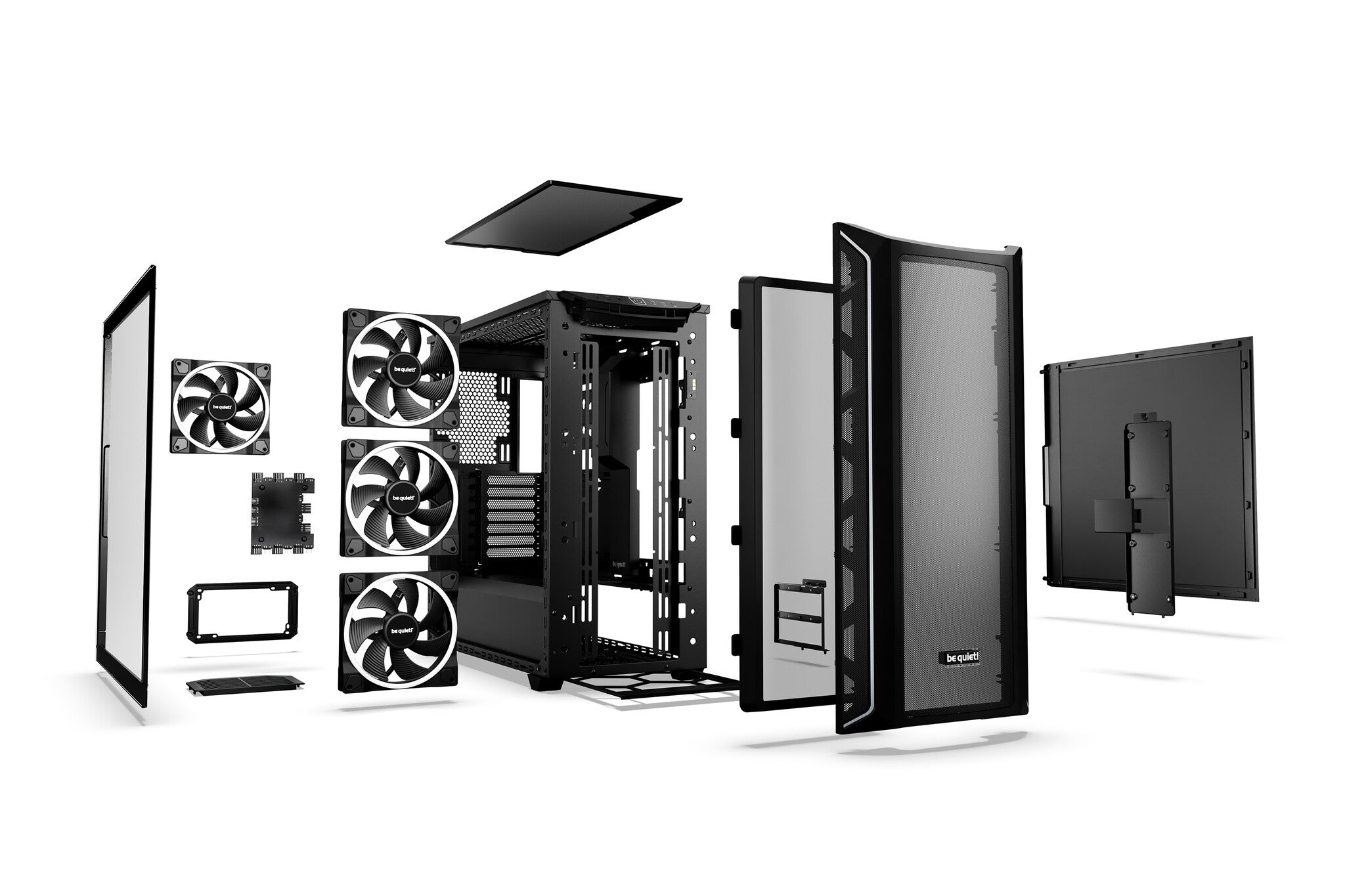

With its remarkably large dimensions, Shadow Base 800 FX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.

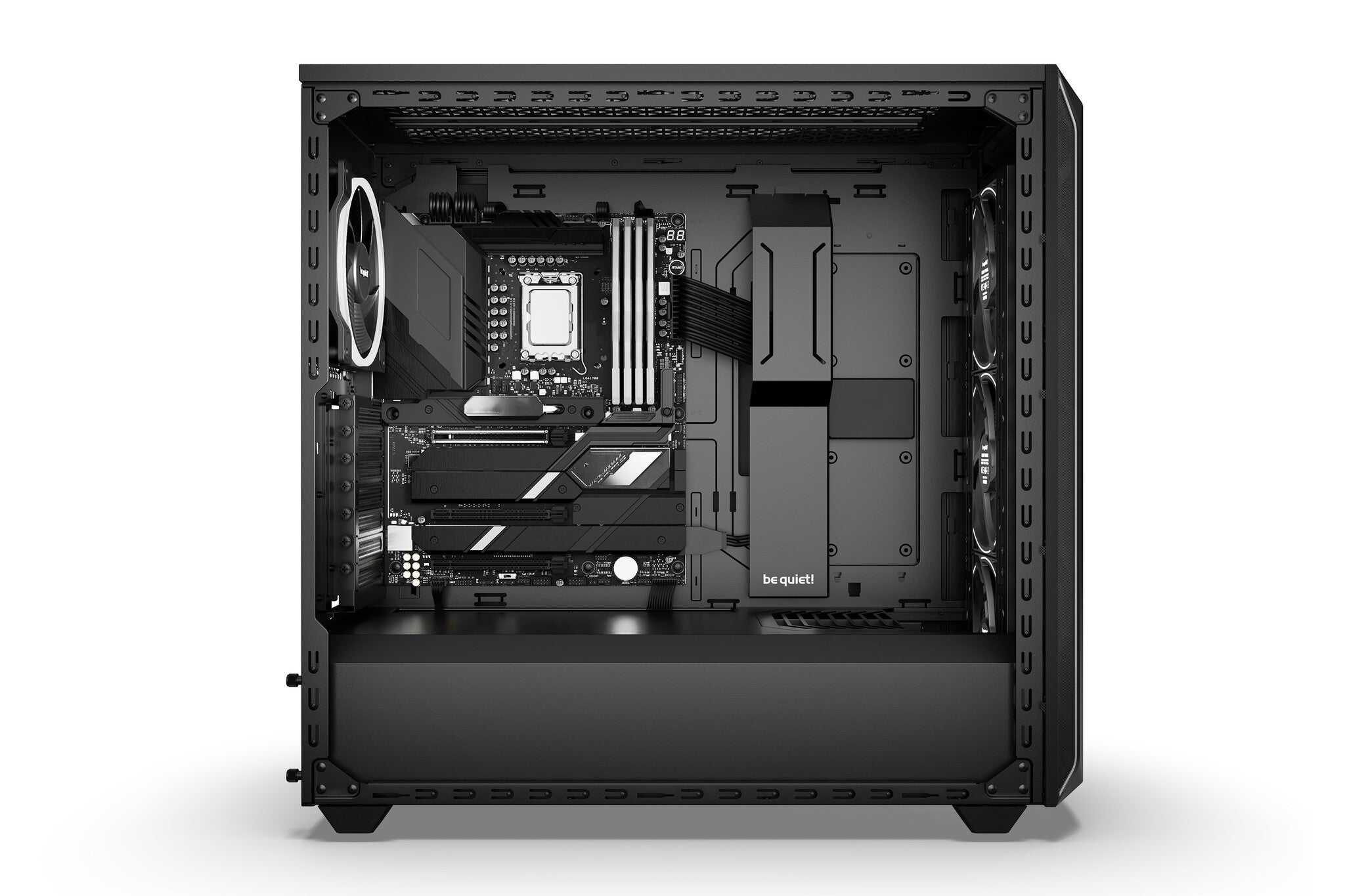

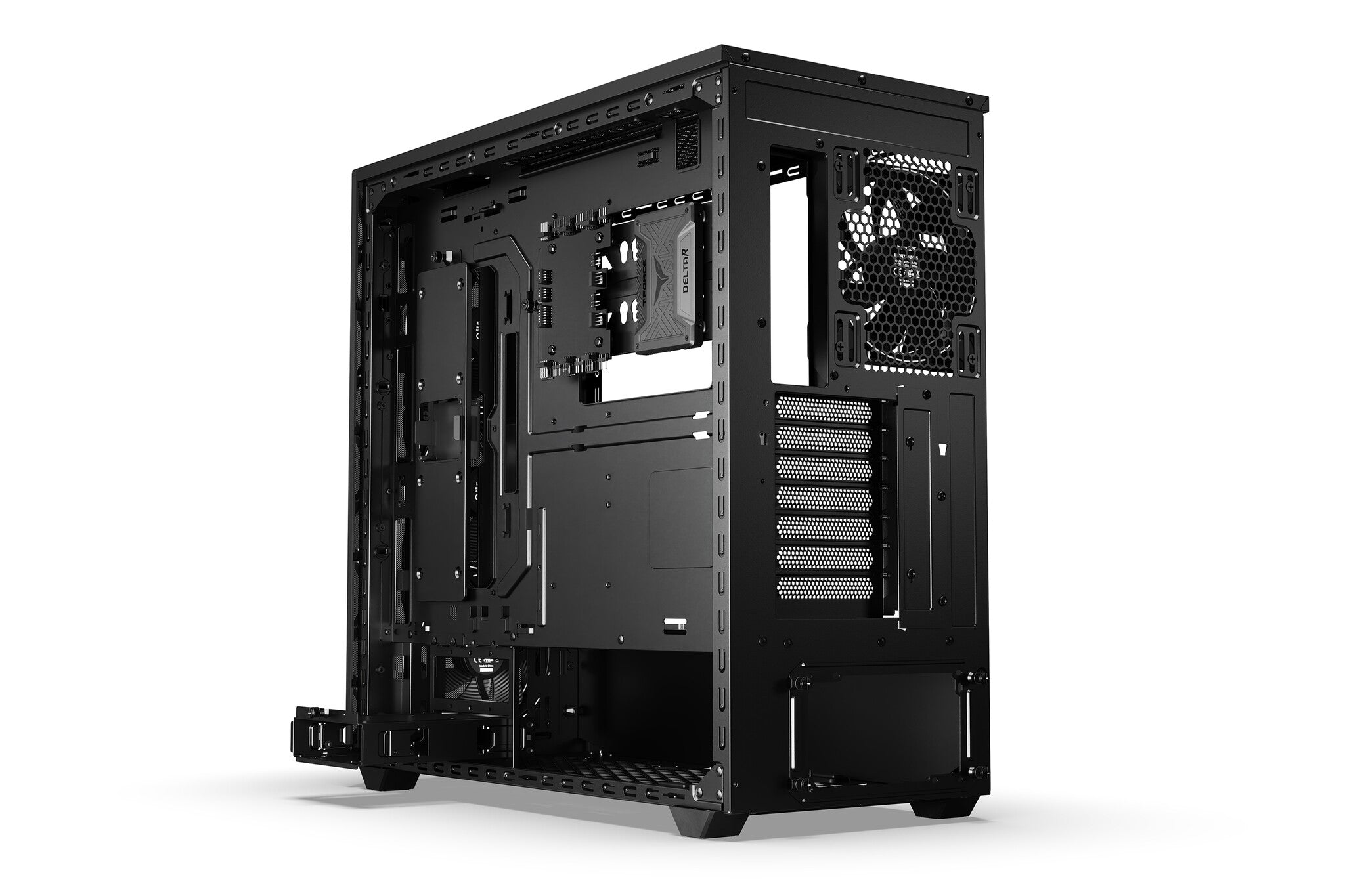

NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 FX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.

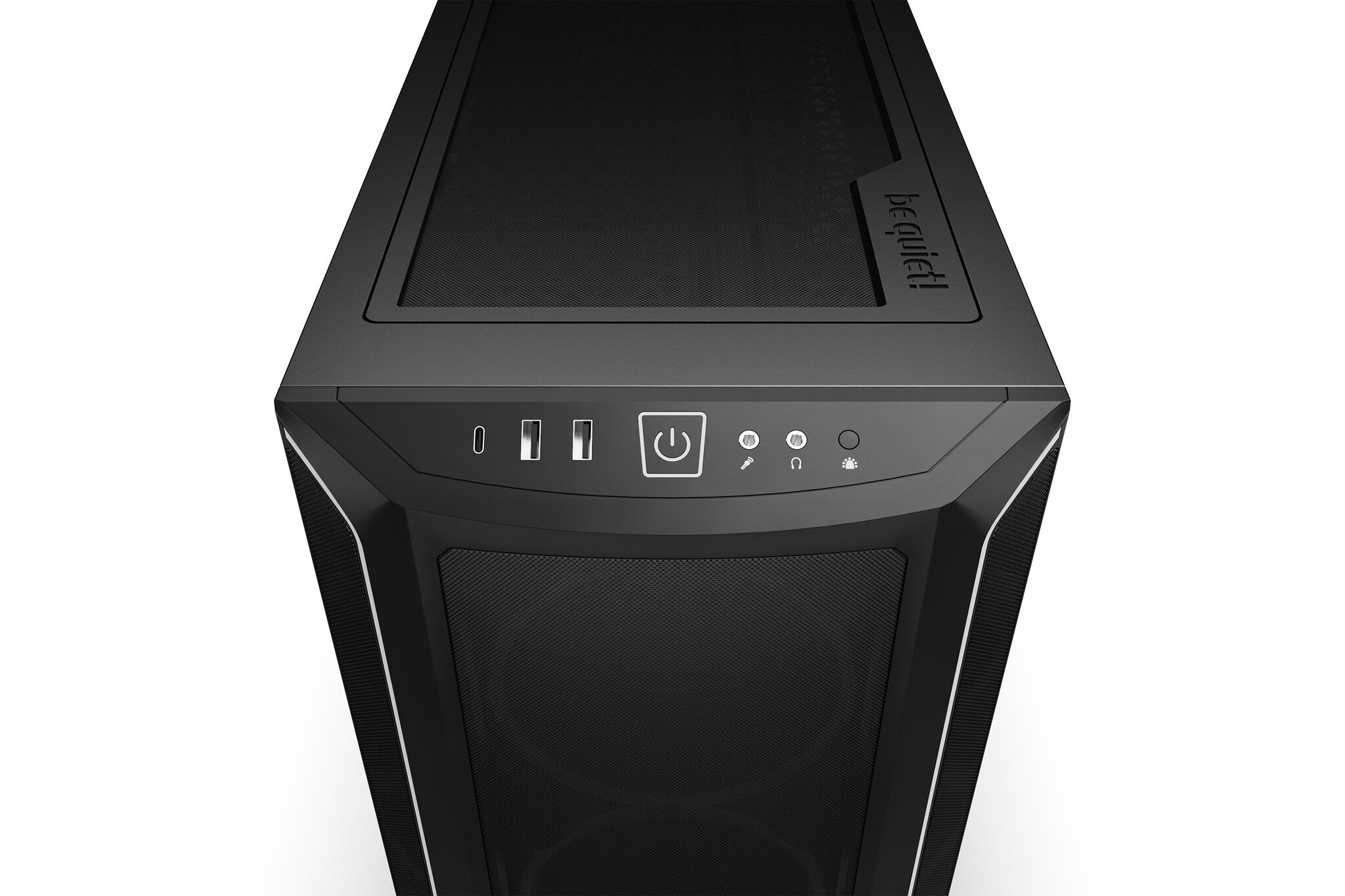

MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Design | |
---|---|
Maximum PSU length | 30.5 cm |
Maximum graphics card length | 43 cm |
Maximum CPU cooler height | 18 cm |
On/off button | Yes |
Reset button | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans, Front |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX, PS2 |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 140,240,360,120,280,420 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280,360,420 mm |
Liquid cooling capability | Yes |
Fan speed | 0 - 1700 RPM |
Maximum airflow | 41.51 cfm |
Maximum air pressure | 1.66 mmH2O |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 1 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, REACH, RoHS, Triman, UKCA, WEEE |

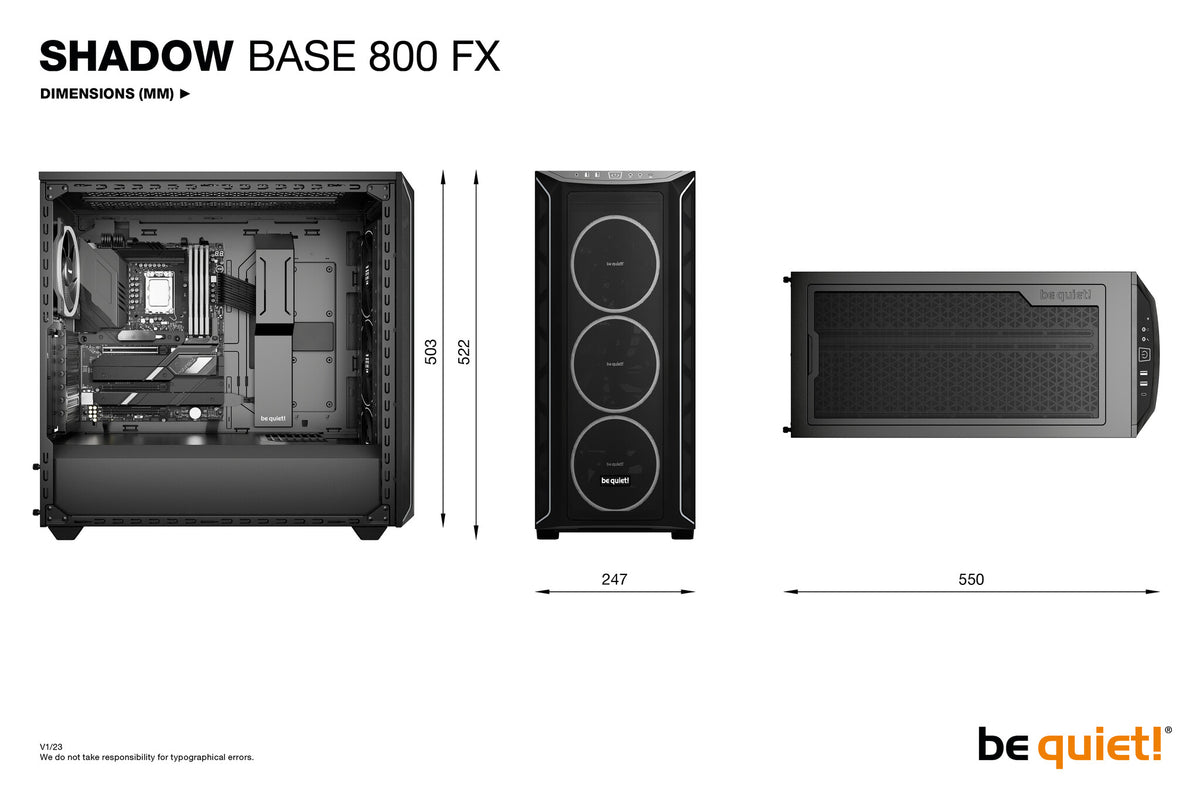

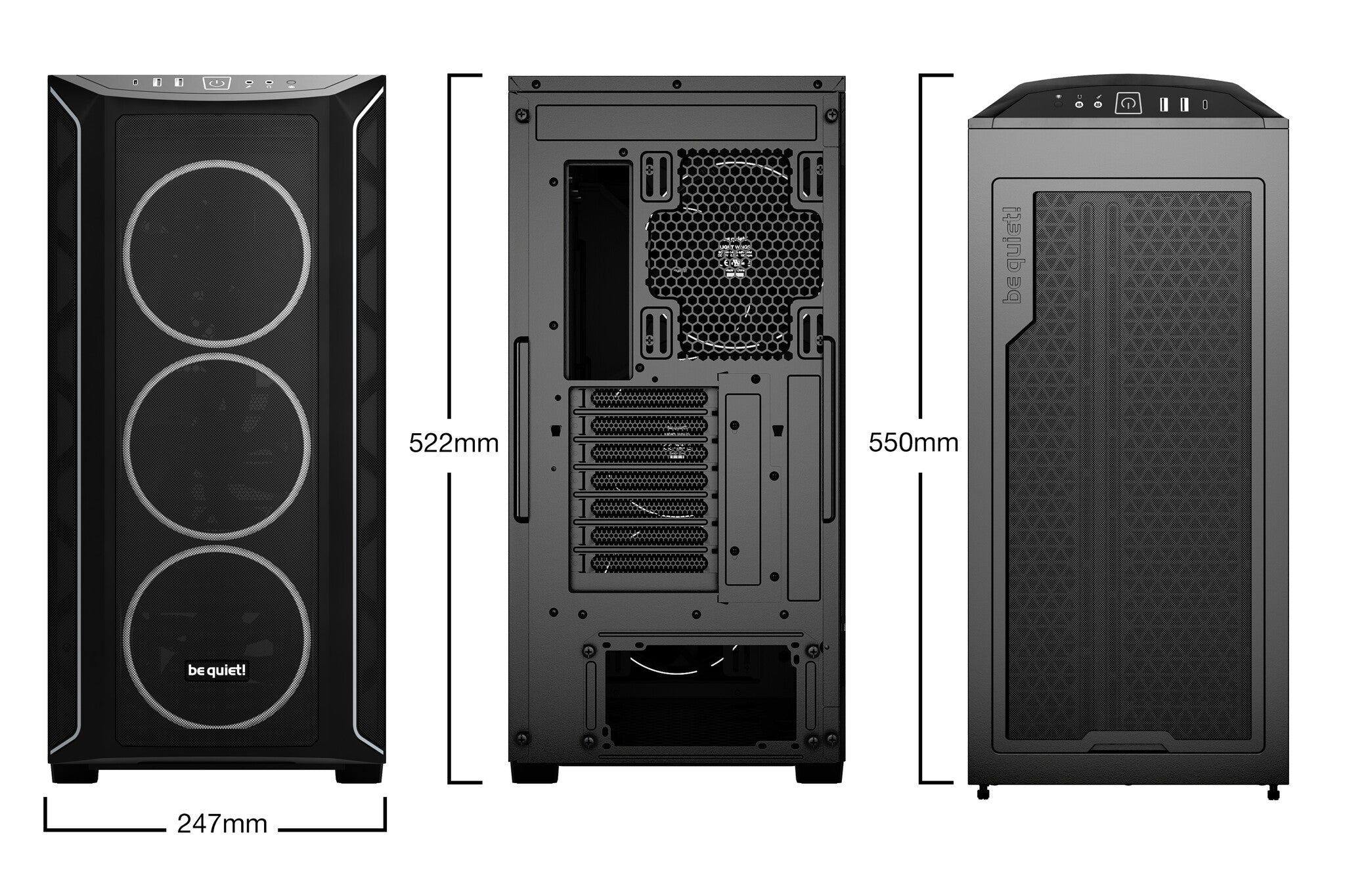

Weight & dimensions | |
---|---|
Weight | 12.3 kg |
Height | 522 mm |
Depth | 550 mm |
Width | 247 mm |
Packaging data | |
---|---|
Package weight | 13.8 kg |
Package height | 628 mm |
Package depth | 575 mm |
Package width | 319 mm |
LED controller | Yes |
