Processor | |
---|---|
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 128 GB |
Supported memory clock speed (max) | 5333 MHz |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Number of HDDs supported | 4 |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
TPM connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 2 |
CPU fan connector | Yes |
Power fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
S/PDIF out connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
USB 2.0 connectors | 3 |
Rear panel I/O ports | |
---|---|
DisplayPorts quantity | 1 |
HDMI ports quantity | 2 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10, Windows 11 |
Cooling type | Passive |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset | Intel B660 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 244 mm |

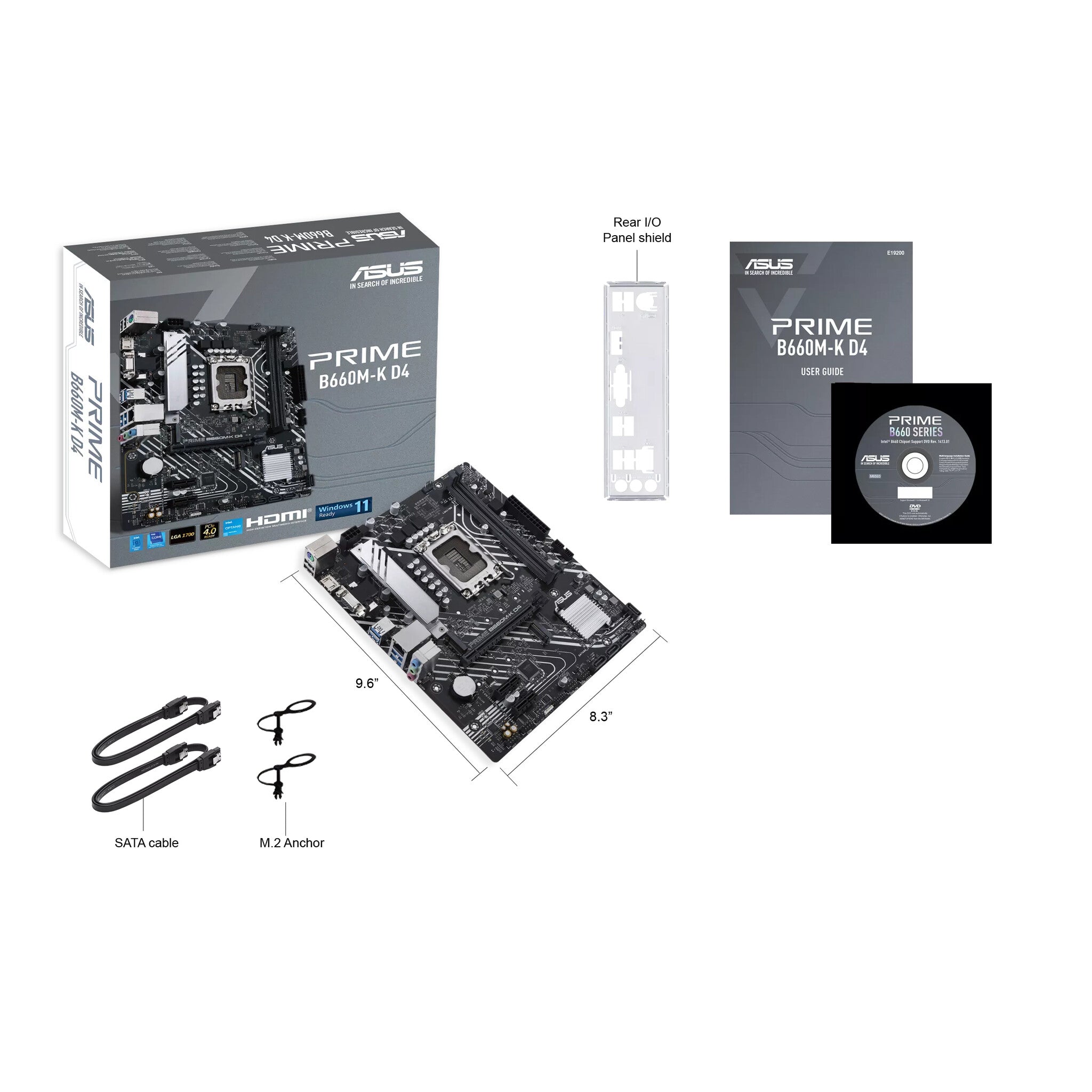

Packaging content | |
---|---|
Cables included | SATA |
