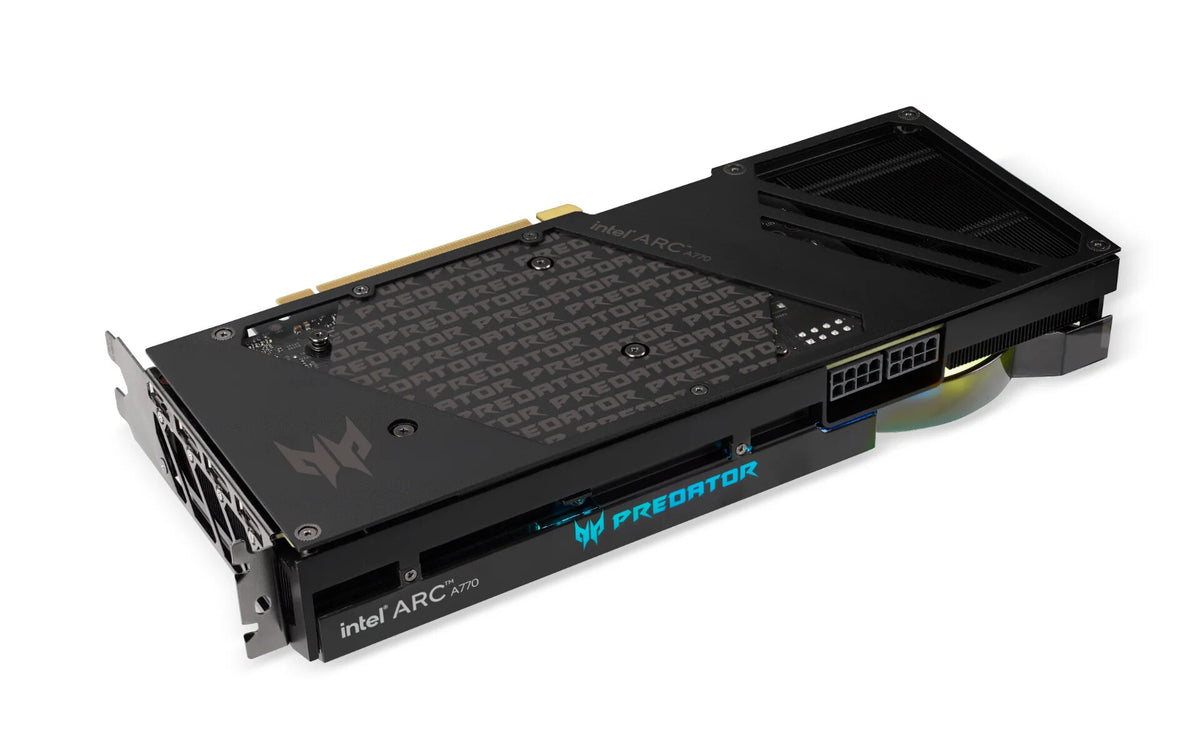

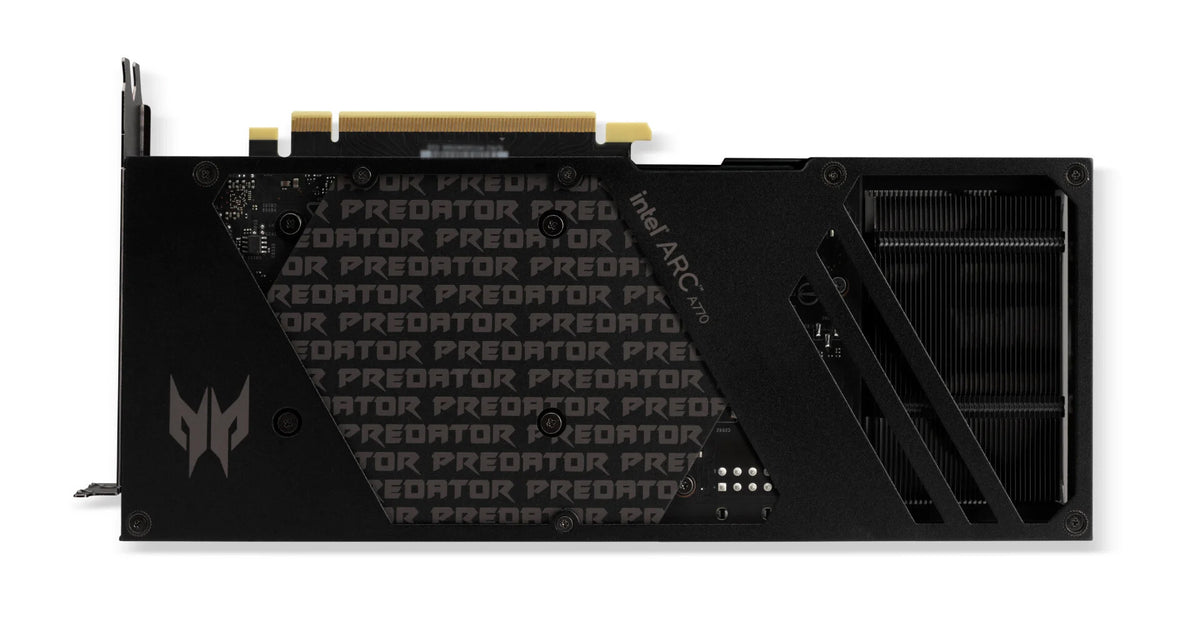

- GPU Clock: Graphics Clock 2.2GHz | OC Boost Clock 2.4GHz
- Memory Spec: 16GB GDDR6 VRAM Memory | 256bit Memory Bandwidth | 18Gbps Memory Speed

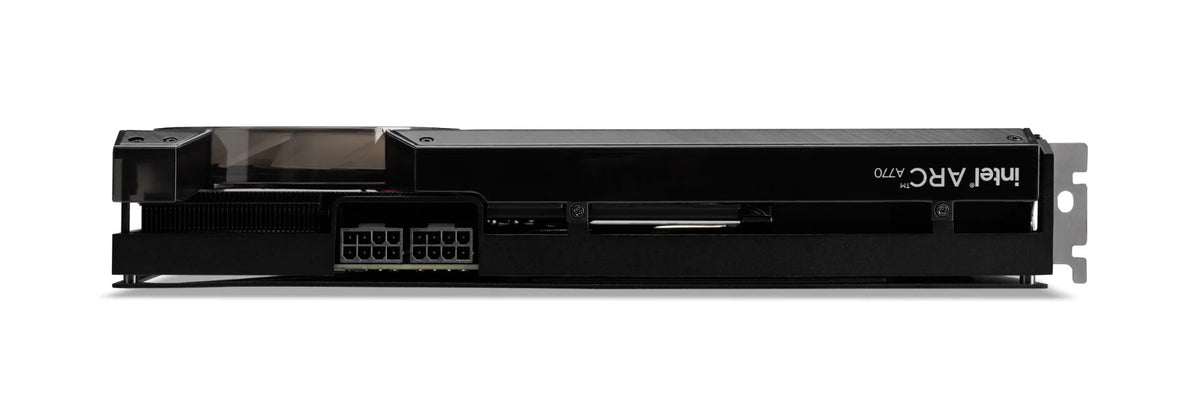

- GPU Power/Thernal: TPD (Total Design Power) 250W | PCIe Power: PCIe 8+8

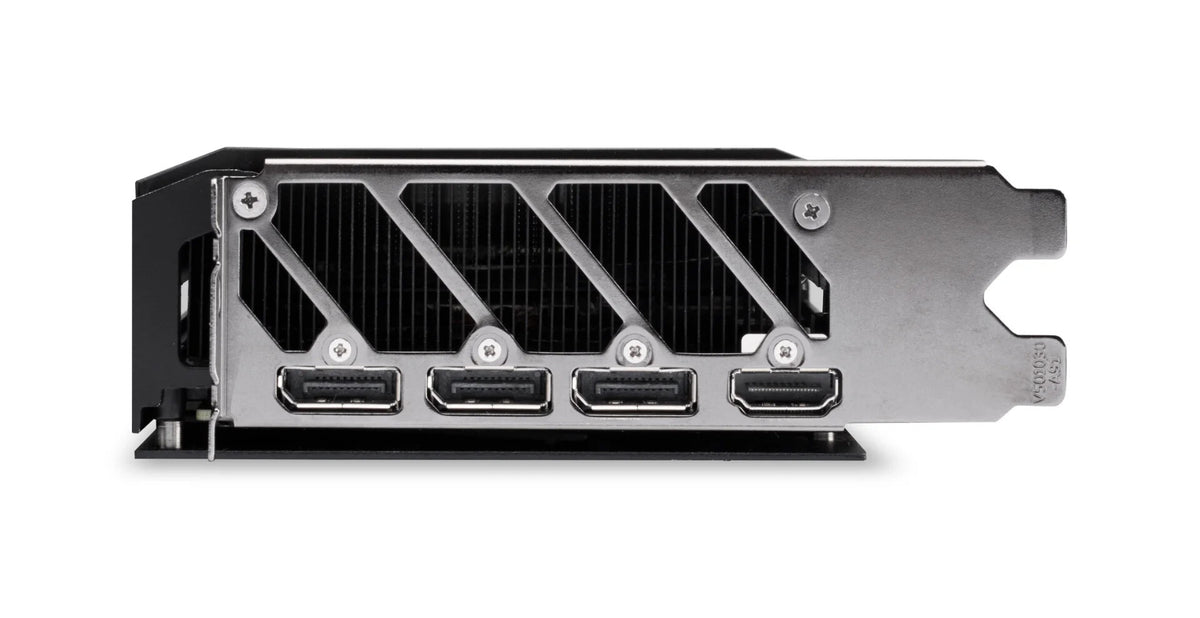

- Max Resolution: 7680 x 4320 | Ports: 1 x HDMI 2.1 and 3 x DisplayPort 2.0 | Connect Up To 4 Displays

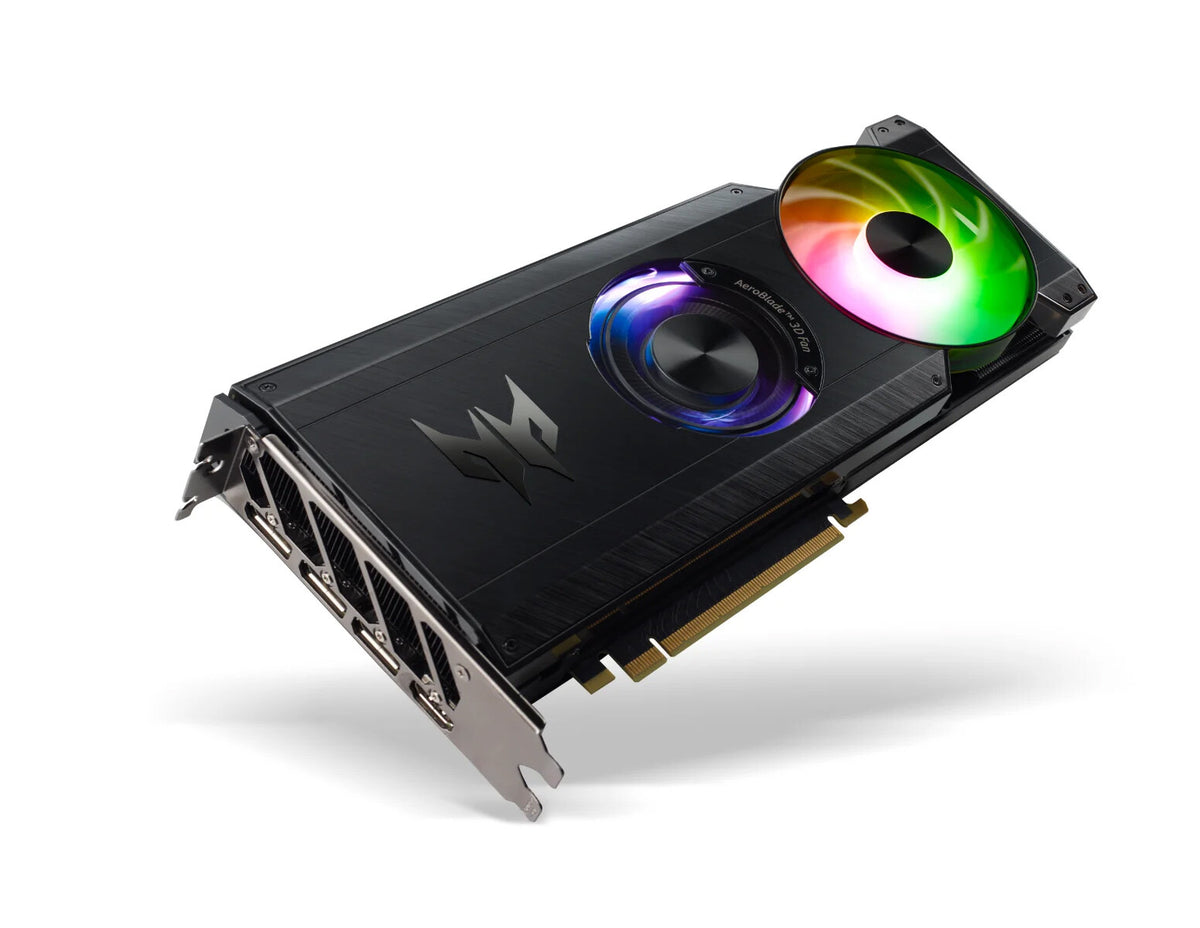

- RGB Lighting: Customize RGB lighting colors and effects and bring your Predator BiFrost Intel Arc A770 OC graphics card to life
- AI-Enhanced Upscaling with Xe Super Sampling | DirectX 12 Ultimate and Ray Tracing

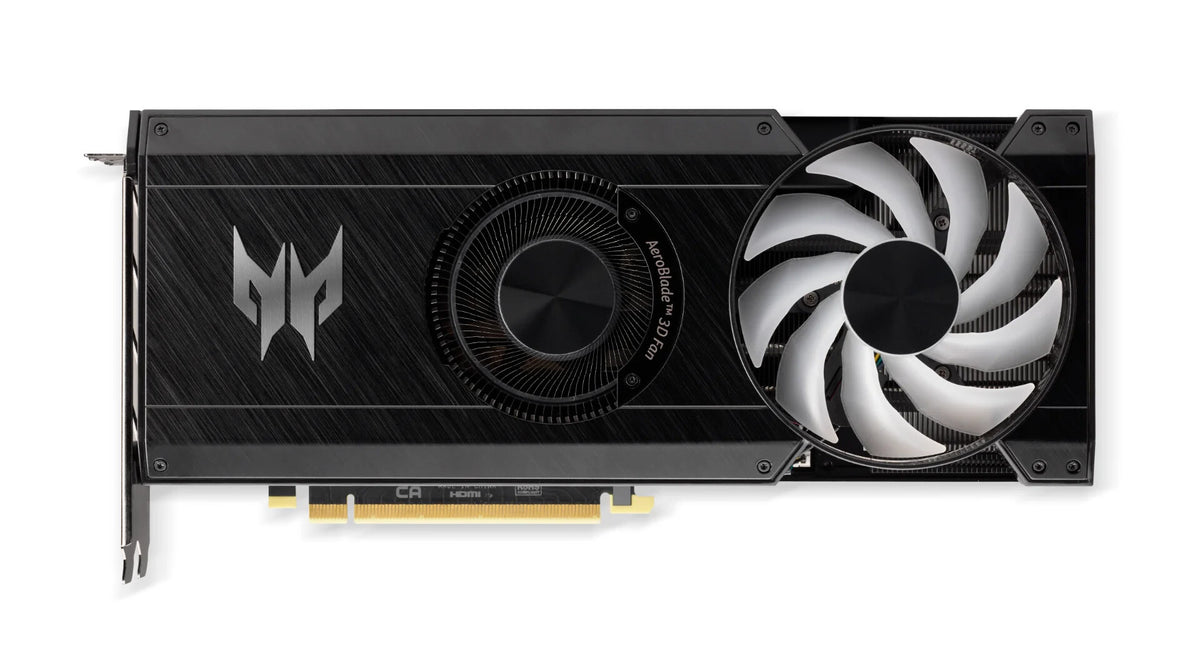

- 92mm FrostBlade 2.0 Fan, 5th Gen AeroBlade 3D fan & Vapor Chamber Streamlining Airflow
- Predator BiFrost Utility APP
Processor | |
---|---|
Maximum displays per videocard | 4 |
Processor frequency | 2200 MHz |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | Arc A770 |
Graphics processor family | Intel |
Memory | |
---|---|
Memory bandwidth (max) | 560 GB/s |
Data transfer rate | 17.5 Gbit/s |
Memory bus | 256 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 16 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 2.0 |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
Xe-cores | 32 |
OpenCL version | 3.0 |
OpenGL version | 4.6 |
DirectX version | 12.0 |
Design | |
---|---|
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 250 W |
Weight & dimensions | |
---|---|
Height | 117.8 mm |
Length | 267 mm |
Packaging data | |
---|---|
Package height | 400 mm |
Package depth | 288 mm |
Package width | 455 mm |
