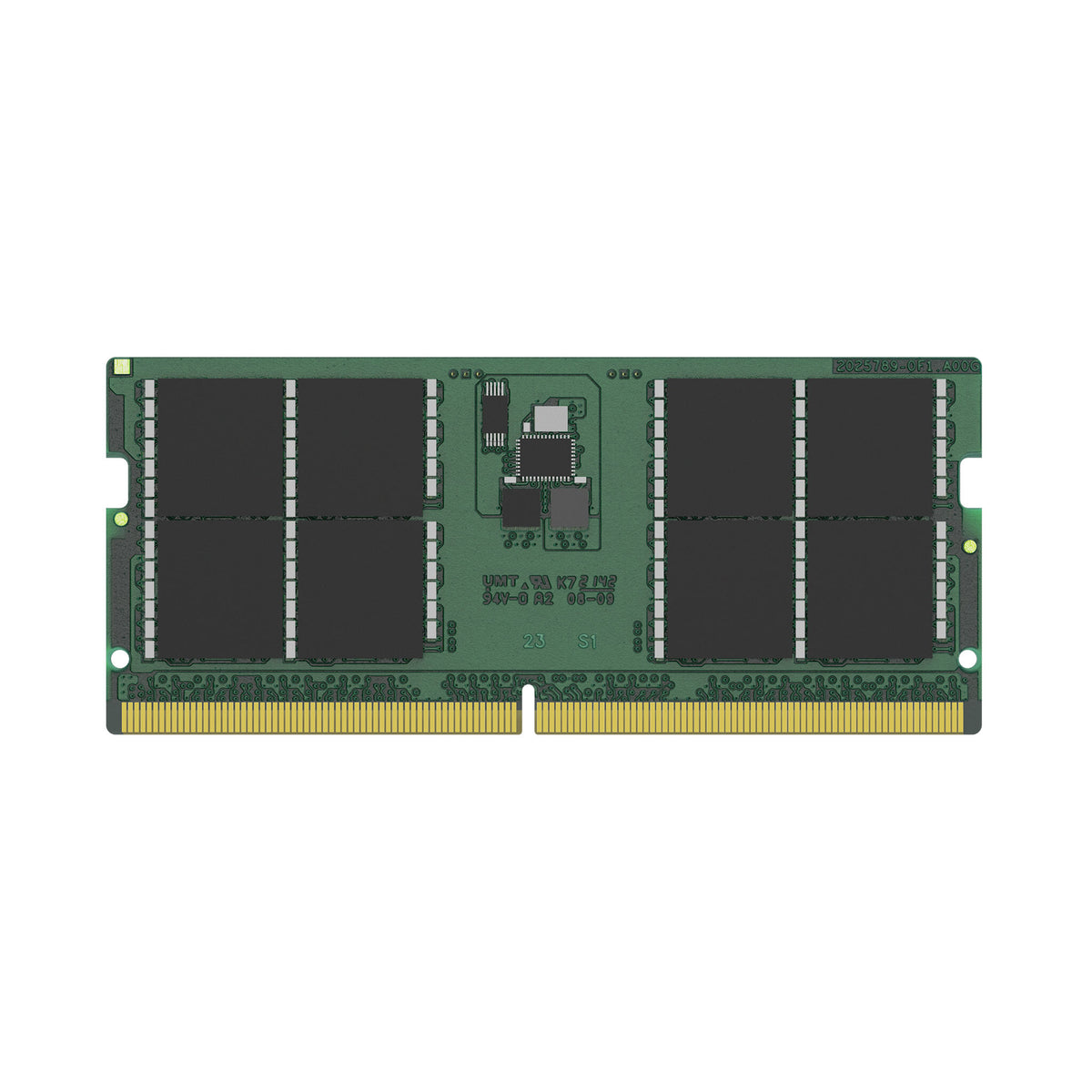

This document describes ValueRAM's KVR52S42BD8-32 is a 4G x 64-bit (32GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
Features | |
---|---|
Lead plating | Gold |
SPD profile | Yes |
Module configuration | 4096M x 64 |
Memory voltage | 1.1 V |
Memory ranking | 2 |
CAS latency | 42 |
On-Die ECC | Yes |
ECC | No |
Memory form factor | 262-pin SO-DIMM |
Component for | Laptop |
Memory clock speed | 5200 MHz |
Internal memory type | DDR5 |
Memory layout (modules x size) | 1 x 32 GB |
Internal memory | 32 GB |
Buffered memory type | Unregistered (unbuffered) |
Operational conditions | |
---|---|
Storage temperature (T-T) | -55 - 100 °C |
Operating temperature (T-T) | 0 - 85 °C |
General | |
---|---|
Product Family | ValueRAM |
Sustainability | |
---|---|
Doesn't contain | Halogen |
Sustainability certificates | RoHS |
Technical details | |
---|---|
Compliance certificates | RoHS |
Weight & dimensions | |
---|---|
Height | 30 mm |
Width | 69.6 mm |
