Pre-Configured for Maximum Efficiency
Our provisioning service further simplifies the inherently straightforward setup of Ruijie networking devices, ensuring they are ready for immediate use with minimal effort. Although Ruijie products are already designed for easy installation, our service enhances this by taking care of firmware upgrades, configuring key WAN, LAN, or WLAN settings, and implementing robust security measures to optimise your network's performance and security.
Designed for maximum efficiency, our pre-configured approach ensures that devices are ready to seamlessly integrate into your Ruijie cloud account upon delivery, enabling you to offer a quicker, more effective service to your clients. This service not only aligns with the user-friendly design of Ruijie devices but also adds significant value by reducing the time and effort required for on-site installation, freeing you to concentrate on your core business activities.
Advanced Hardware for Seamless Connectivity

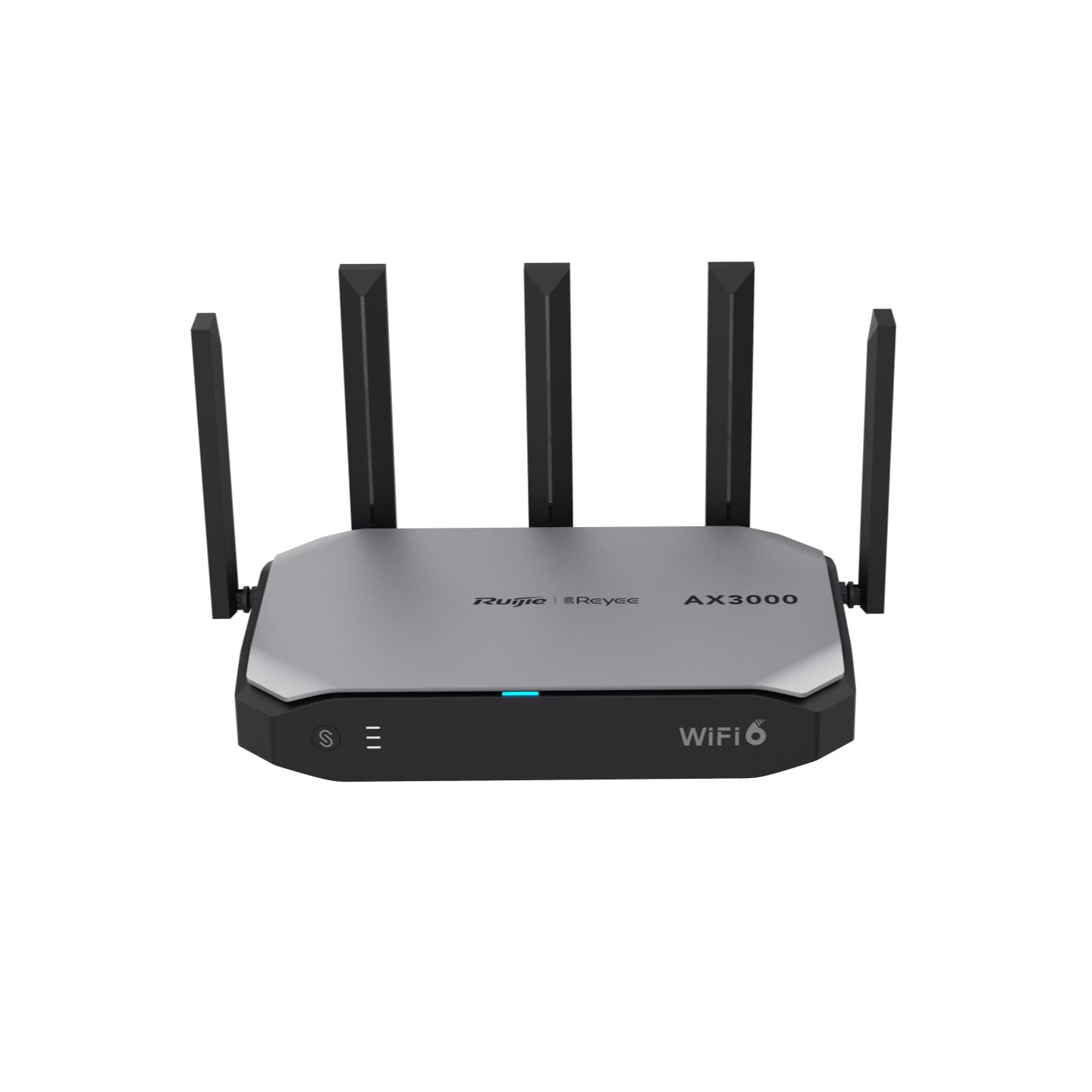

Equipped with a robust set of hardware features, the RG-EG105GW-X ensures unparalleled performance. The router boasts five (5) versatile service ports, including USB 3.0 for enhanced connectivity options. With 512MB of SDRAM and 128MB of flash memory, it provides ample resources for efficient data processing and storage. The radio design incorporates both 2.4GHz and 5GHz bands with 2x2 MU-MIMO technology, achieving wireless data rates of 574Mbps on the 2.4GHz band and an impressive 2402Mbps on the 5GHz band. The external antennas with 5dBi gain ensure extended coverage and stability, making it ideal for small businesses seeking a reliable, high-speed wireless solution.
Smart Software for Enhanced Management
Beyond its powerful hardware, the RG-EG105GW-X introduces a suite of intelligent software features to elevate network management. With support for up to 180 clients, including 80 wireless clients, and a recommended ISP bandwidth of 1.2 Gbps, it caters to the evolving connectivity needs of modern businesses. The router incorporates advanced features such as flow control, traffic audit, and fault diagnosis for efficient network monitoring. Additionally, the comprehensive VPN capabilities, with support for L2TP, PPTP, IPsec, and OpenVPN, ensure secure and seamless remote access.
Ethernet LAN features | |
---|---|
Ethernet WAN | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
DSL features | |
DSL WAN | No |
Mobile network | |
SIM card slot | No |
3G/4G USB modem compatibility | No |
Network | |
Network address translation (NAT) | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Static route | Yes |
Load balancing system | Yes |
Dynamic DNS (DDNS) | Yes |
Management features | |
Universal Plug and Play (UPnP) | Yes |
MU-MIMO technology | Yes |
MIMO | Yes |
Number of data streams | 2x2 |
Performance | |
Built-in processor | Yes |
WAN connection | |
Ethernet WAN | Yes |
DSL WAN | No |
SIM card slot | No |
3G/4G USB modem compatibility | No |
WAN connection type | RJ-45 |
Wireless LAN features | |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (max) | 2976 Mbit/s |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
WLAN data transfer rate (first band) | 574 Mbit/s |
WLAN data transfer rate (second band) | 2402 Mbit/s |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
Ports & interfaces | |
USB port | Yes |
Ethernet LAN (RJ-45) ports | 5 |
Security | |
Security algorithms | IPSec |
Network address translation (NAT) | Yes |
Firewall | Yes |
DoS attack prevention | Yes |
Access Control List (ACL) | Yes |
Protocols | |
Universal Plug and Play (UPnP) | Yes |
DHCP client | Yes |
Design | |
Product type | Tabletop router |
Product colour | Black, Grey |
Certificates | |
Compliance certificates | CE, RoHS |
Antenna | |
Antenna design | External |
Antennas quantity | 5 |
Antenna gain level (max) | 5 dBi |
Features | |
Built-in processor | Yes |
Power | |
Power source type | AC |
Power consumption (typical) | 20 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Operational conditions | |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 283 mm |
Weight | 2 kg |
Height | 46 mm |
Depth | 172 mm |
Technical details | |
Compliance certificates | CE, RoHS |
