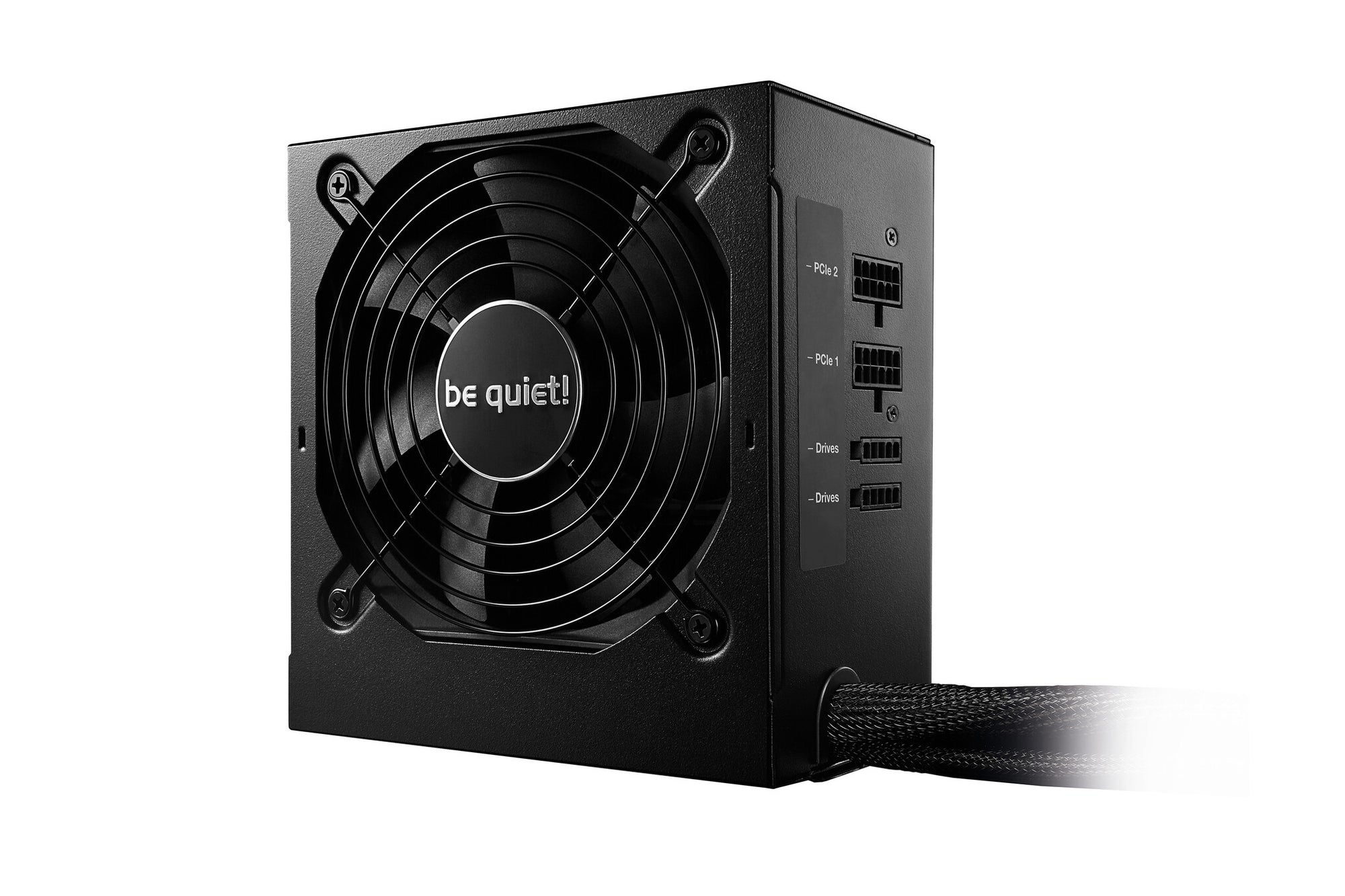

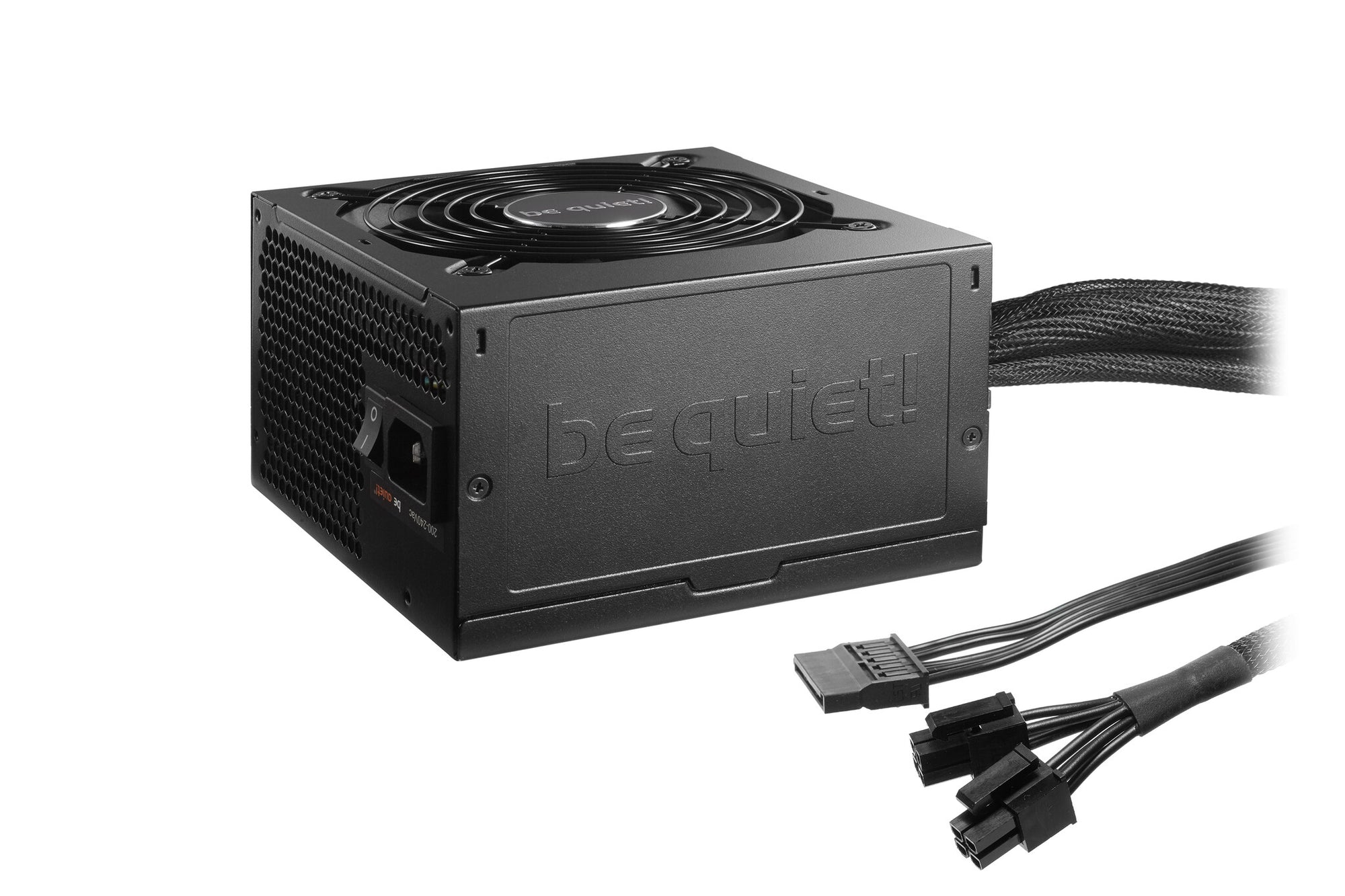

PROVEN RELIABILITY, QUIET OPERATION
System Power 10 650W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 650W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise
System Power 10 650W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 650W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 650W with an efficiency rating of up to 88.5% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 650W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 88.5% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 54.17 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 5 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
CPU P4 connector (4-pin) | 1 |
PCI Express power cable length | 50 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 790 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 450,550,570,670,690,790 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 1 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Country of origin | Germany |
Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
Noise level | 30.7 dB |
EPS version | 2.92 |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 2100 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -20 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.86 kg |
Height | 150 mm |
Depth | 86 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package weight | 2.3 kg |
Package height | 97 mm |
Package depth | 268 mm |
Package width | 195 mm |
Manual languages | German, English, Spanish, French, Polish, Russian |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
Warranty period | 5 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 30.7 dB |
Noise level (quiet mode, 50%) | 11.2 dB |
Noise level (silent mode, | 8.9 dB |
Screws included | Yes |
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Power | |
---|---|
Power protection features | Over current, Over voltage, Short circuit |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 100 W |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 70 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 690 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 6 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |

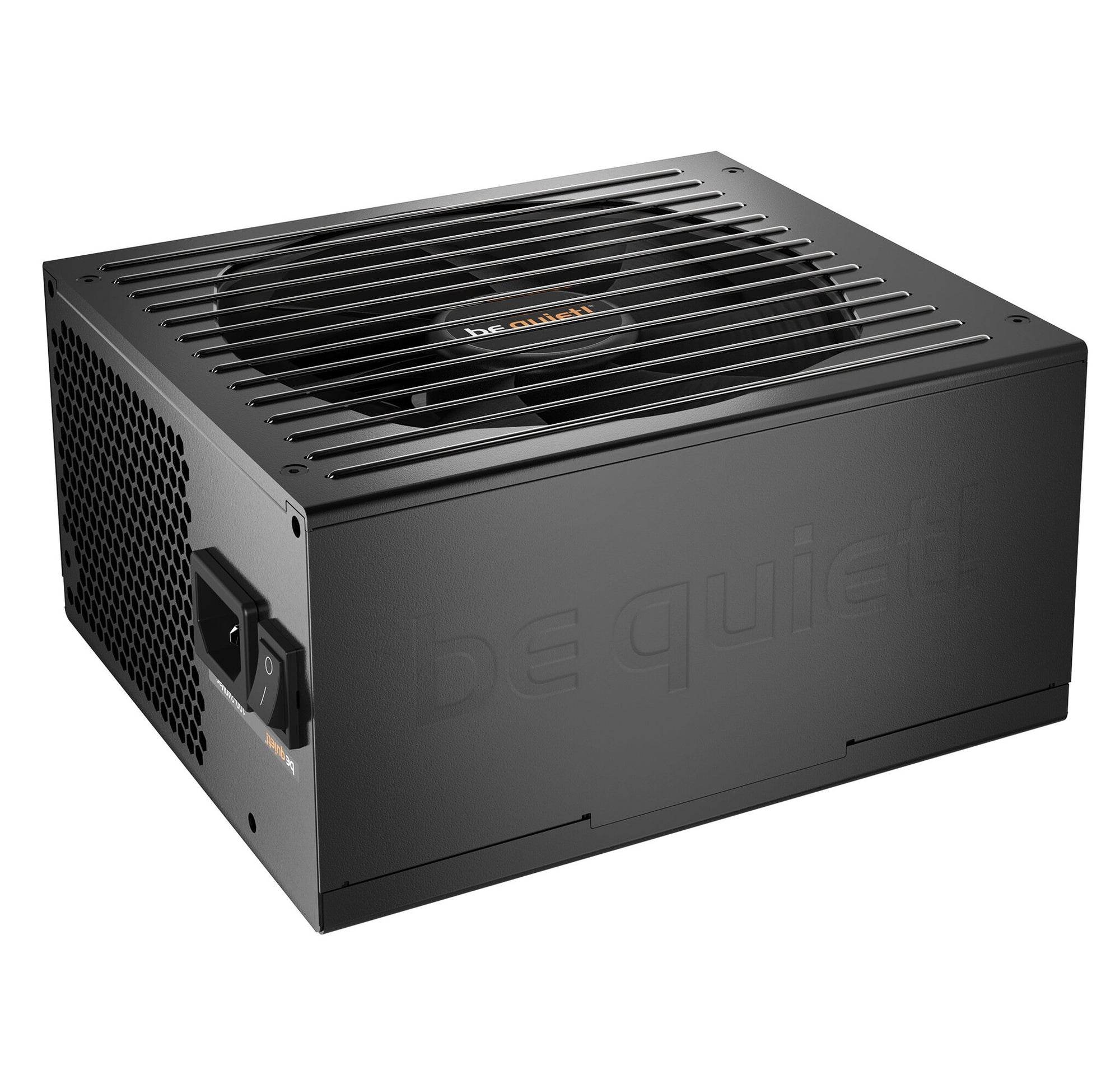

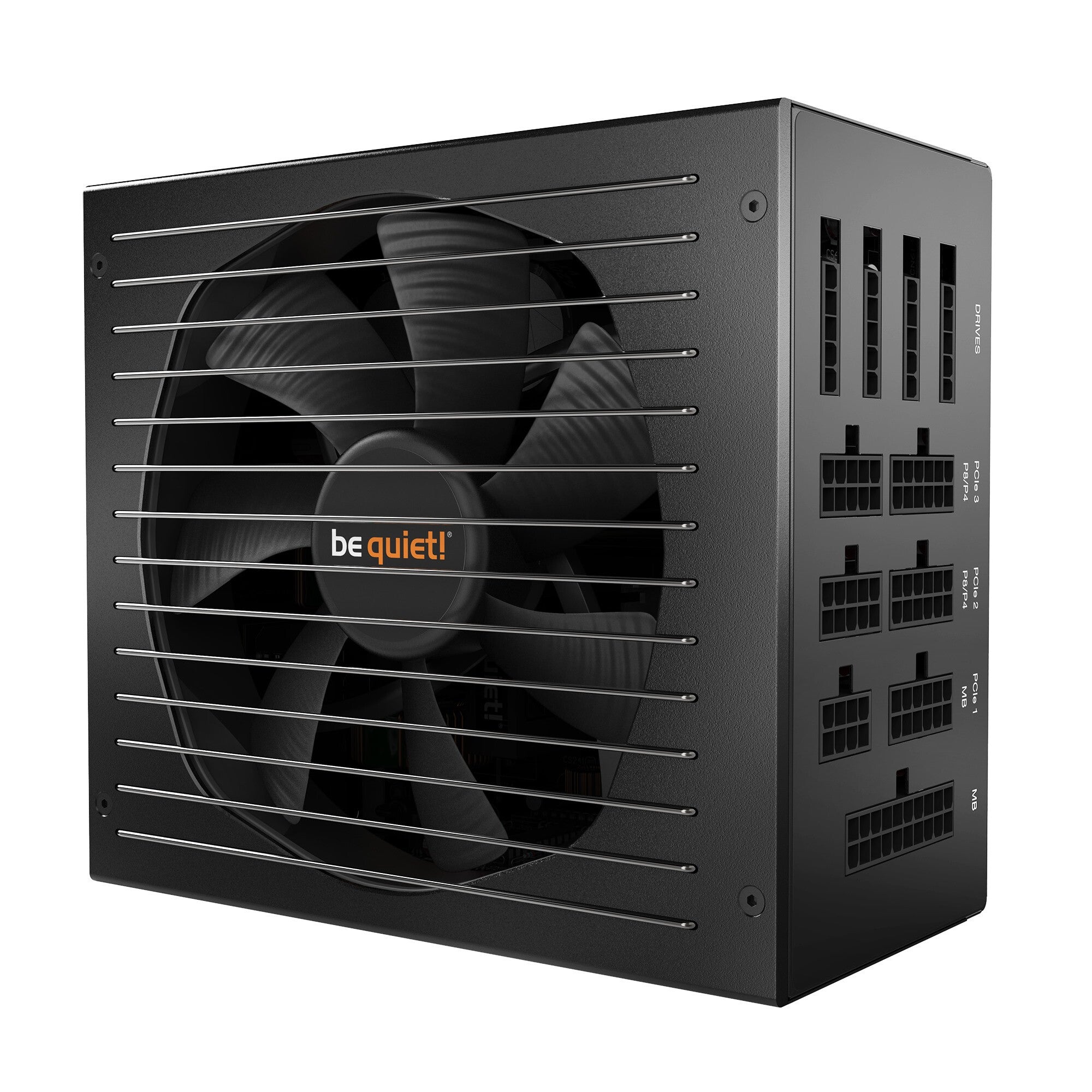

World Class Quiet and Efficiency
be quiet! Straight Power 11 750W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.

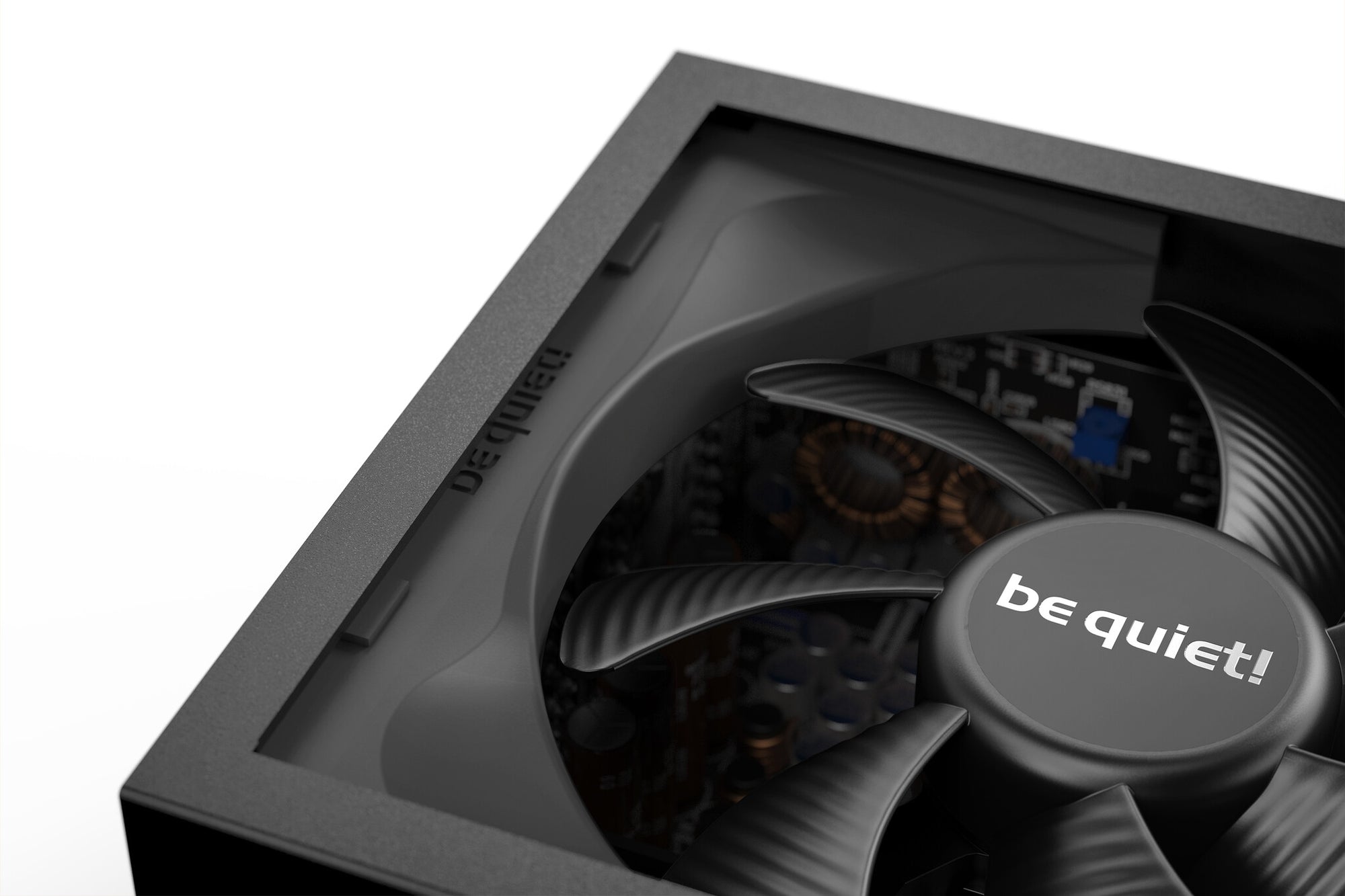

SILENT WINGS 3 FAN
Provides virtually inaudible operation
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and
minimal power consumption.
FUNNEL-SHAPED FAN OPENING
Higher cooling performance
The fan inlet of the Straight Power 11 750W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.
WIRE-FREE INSIDE THE PSU
Pushing the longevity of components to a maximum
An absolute innovation: The Straight Power 11 750W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.
80 PLUS® GOLD CERTIFIED
Impressively high efficiency
Straight Power 11 750W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.
HIGH-CLASS TECHNOLOGIES
Compatibility for the systems of tomorrow
The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Straight Power 11 750W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 19.6 ms |
Efficiency | 93% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 25 A |
Max output current (+12V3) | 24 A |
Max output current (+12V4) | 24 A |
Max output current (+12V2) | 20 A |
Max output current (+12V1) | 20 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 6 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 150 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.99 |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 820 W |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy disk drive connector | Yes |
CPU power cable length | 70 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 4 |
SATA power cable length | 550 mm |
Number of SATA power connectors | 11 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | CE, FCC, TÜV, cTUVus, RCM, BSMI, CU |
Bearing technology | FDB |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | No |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.78 kg |
Height | 86 mm |
Depth | 170 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 3.34 kg |
Package height | 102 mm |
Package depth | 328 mm |
Package width | 248 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | RoHS, ENERGY STAR |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Other features | |
---|---|
Cable management | Yes |
Noise level (full-load mode, 100%) | 21.23 dB |
Noise level (quiet mode, 50%) | 9.01 dB |
Noise level (silent mode, | 8.4 dB |
Cable ties included | Yes |
Screws included | Yes |
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power Pro 13 1600W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power Pro 13 1600W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Dark Power Pro 13 offers 1600W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1600W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
STATE-OF-THE-ART DIGITAL TECHNOLOGY
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power Pro 13 1600W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR EXTREME OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power Pro 13 1600W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only the best components are used in Dark Power Pro 13 1600W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
HIGHEST CONVENIENCE
Modular cables for maximum utility
Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
MAGNIFICENT APPEARANCE
No compromises
Dark Power Pro 13 1600W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1600W also on the outside.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 18 ms |
Efficiency | 94.5% |
Max output current (+5Vsb) | 3.5 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 25 A |
Max output current (+12V3) | 45 A |
Max output current (+12V4) | 45 A |
Max output current (+12V2) | 40 A |
Max output current (+12V1) | 40 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 17.5 W |
Combined power (-12V) | 6 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1600 W |
Combined power (+3.3V) | 150 W |
Power factor | 0.99 |
Input current | 15 - 9 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 115 - 240 V |
Peak power | 1700 W |
Total power | 1600 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 70 cm |
PCI Express power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 6 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 600,750,900,1050 mm |
SATA power cable length | 500,600,750,800,900,950,1050 mm |
Number of SATA power connectors | 16 |
Number of PATA power connectors | 5 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 31.1 dB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Titanium |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 2.44 kg |
Height | 86 mm |
Depth | 200 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 6.9 kg |
Package height | 152 mm |
Package depth | 417 mm |
Package width | 253 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, Triman, UKCA, WEEE |
Warranty period | 10 year(s) |
Logistics data | |
---|---|
Shipping (inner) case length | 44 cm |
Shipping (inner) case width | 32.5 cm |
Shipping (inner) case height | 28.3 cm |
Products per shipping (inner) case | 2 pc(s) |
Shipping (inner) case net weight | 14.6 kg |
80 PLUS® Platinum certified
80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
Supports the latest ATX 2.52 standard with improved start-up time and transient load response
Great electrical output quality with tight voltage regulation and low ripple and noise
Premium capacitors
Premium Japanese 105°C capacitors provide superior reliability and durability
Fully modular design
Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new otherboards
Premium storage bags for cables and PSU
Custom-tailored fan
Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing
Compact advantages
Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
Extensive 10-year warranty and a full electrical protection suite provides peace of mind
Semi-passive mode
User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit, Under power |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V) | 63.3 A |
Max output current (+3.3V) | 22 A |
Combined power (+5V) | 120 W |
Combined power (+3.3V) | 120 W |
Input current | 10/5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 760 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
CPU power cable length | 70 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 6 |
Peripheral (Molex) power cable length | 150,400 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 150,400,650 mm |
Number of SATA power connectors | 10 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
EPS version | 2.92 |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan diameter | 14 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 2.53 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 3.06 kg |
Package height | 110 mm |
Package depth | 325 mm |
Package width | 210 mm |

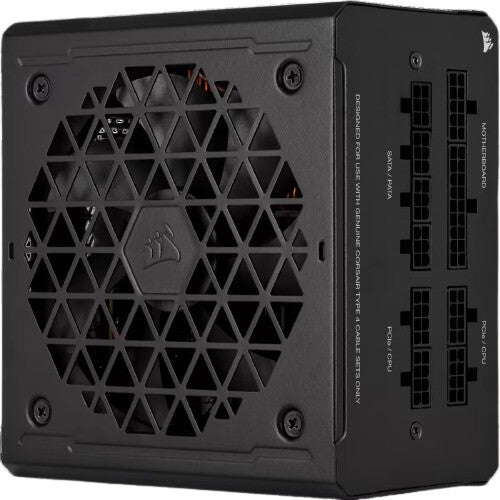

GOLD-CERTIFIED QUIET POWER

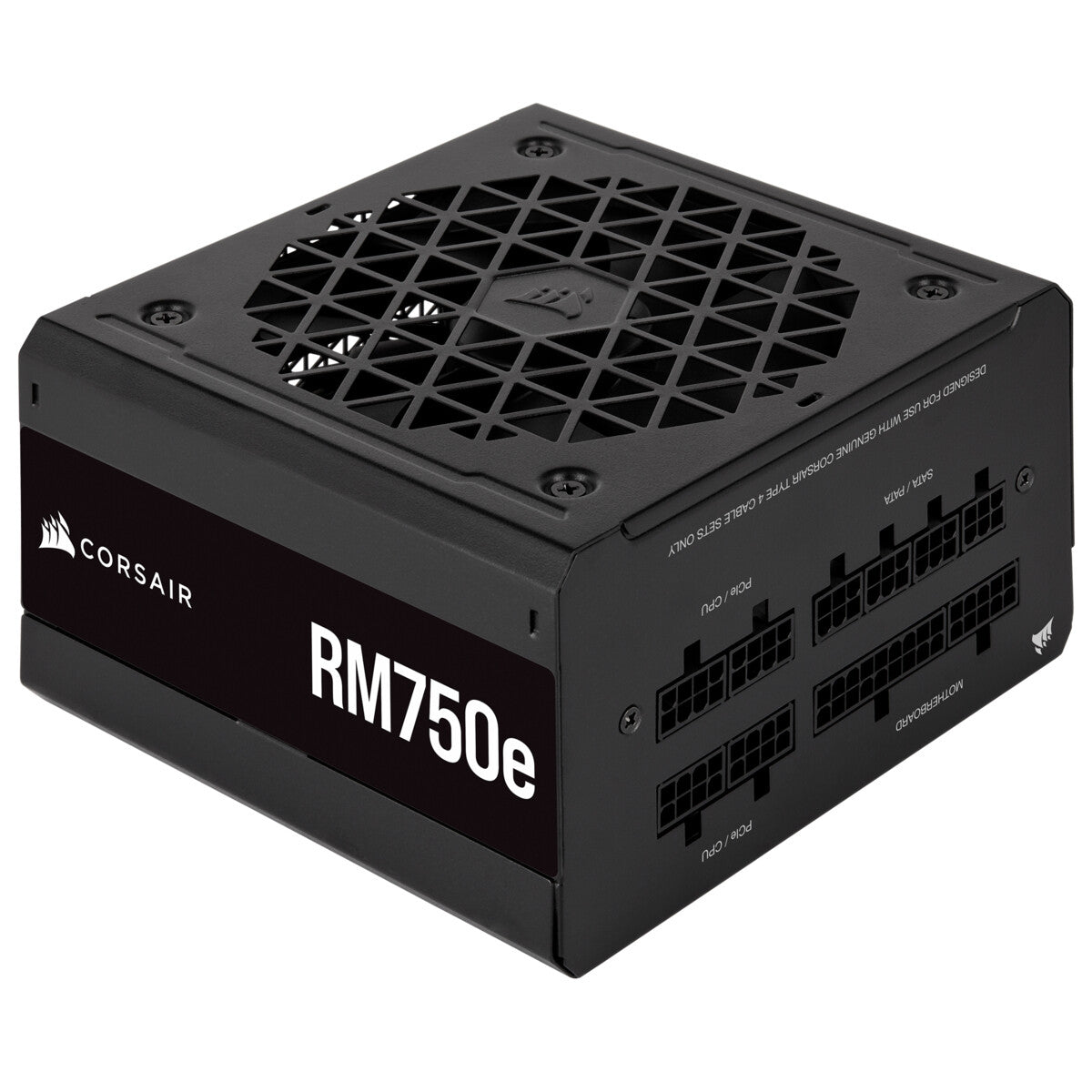

CORSAIR RM Series Fully Modular Ultra-Low Noise Power Supplies with multiple EPS12V connectors deliver consistent 80 PLUS Gold efficient power to your PC and have all the connections needed to power today’s most demanding PC upgrades.
AVAILABLE IN BLACK OR WHITE
Going for a stealthy look or modern minimalism? RM Series PSUs are available in black or white variants to fit your build style.
TUNED FOR LOW NOISE OPERATION
A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
HIGH EFFICIENCY
With upwards of 90% peak efficiency, RM produces less noise and less heat, which means less time worrying and more time gaming.
FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards. Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation. Once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C rated industrial-grade capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations. The "Gold" efficiency rating is defined as ≥87% to <91% (depending on input voltage). The "A-" noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.
TEN-YEAR WARRANTY
CORSAIR provides a ten-year warranty on all RM Series power supplies; your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.
YOUR BUILD, YOUR WAY
Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.
Power | |
---|---|
Efficiency | 91% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 850 W |
Combined power (+3.3V) | 150 W |
Maximum input current (@220V) | 10 A |
Maximum input current (@110V) | 5 A |
Input current | 10 - 5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX Power connector (24-pin) | Yes |
PCI Express power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
SATA power cable length | 750,850 mm |
Number of SATA power connectors | 14 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | Cybenetics "Gold", Cybenetics "A -" |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Rifle |
Noise level | 30 dB |
ATX version | 2.4 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 14 cm |
Product colour | White |
Packaging content | |
---|---|
Cables included | AC, DC, PATA, PCIe, SATA |
Weight & dimensions | |
---|---|
Weight | 1.65 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 160 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
THE REVELATION OF LEGEND
The MEG series is revealed as a legend that represents the ultimate elegance in gaming.
With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.
The mysterious triangle is a symbolic icon of MEG's infinite power, with the triangle's slope further extending the three pillars of MEG's core characteristics: legendary, loyalty, and luxurious.
ATX 3.0 READY
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for all high performing future graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
80 PLUS PLATINUM CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Platinum certification promises lower energy consumption and higher efficiency.
GAMING INTELLIGENCE
Gaming Intelligence is dedicated to providing many unique and useful features to improve the gamer's experience.
REAL-TIME MONITOR
Through the MSI Center, this power supply help monitors the real-time status of the percentage of power supply to GPU and CPU and the total system wattage used.
MULTI/SINGLE RAIL SWITCH
It can switch between single and multi-rail according to the needs of users while taking into account high current output and safety protection.
GPU SUPPORT FOR ALL
The power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MEG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
JAPANESE CAPACITORS
Aiming for unwavering product quality and performance stability, the power supply comes with 100% Japanese 105° C capacitors and solid capacitors.
COMPACT SIZING
Compared with the general platinum power supply on the market. The power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.
COMPACT SIZING
Compared with the general platinum power supply on the market. The power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

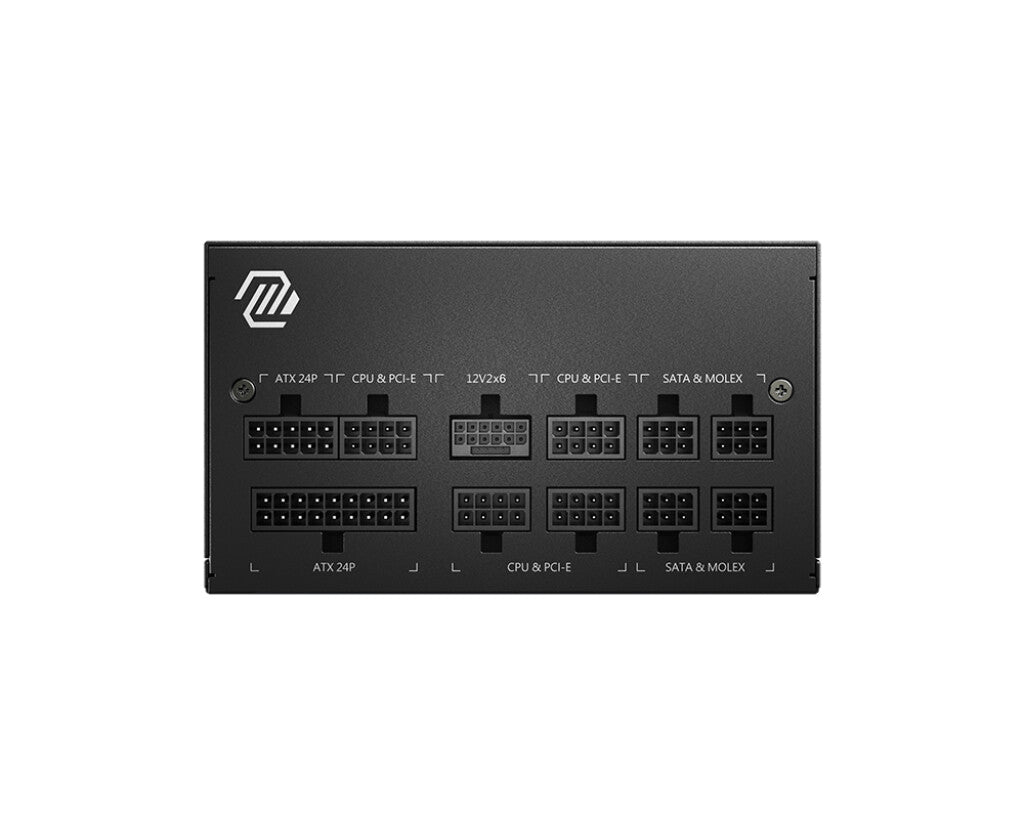

USE WHAT YOU NEED
The power supply’s full modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.
CABLE MANAGER
Comes with cable manager in two sizes ( 24 pin and 8 pin ). They help you organize the cables and keep them tidy for better visuals.
MAGNETIC MARK
The magnetic plates can be attached according to different installation orientation of the power supply, giving this power supply the appearances that you like. ( The yellow frame labels the place that can be adjusted. )
FAN DESIGN
Redefine the power supply's fan design and optimize its utility as the power supply's best operational support.
LCP ( LIQUID CRYSTAL POLYMER ) FAN BLADE
The MEG SILENT GALE P12’s fan blades are constructed by LCP (liquid crystal polymer), a compound that reduces vibration while the fan is running at maximum speed and has a high strength that can withstand thermal expansion.
CONCENTRATED AIRFLOW
The fan blades are also carefully crafted to maximize airflow performance, optimized at a 32-degree angle to retain 58% of the airflow.
HDB ( HYDRO-DYNAMIC ) BEARING
The HDB (hydro-dynamic) bearing effectively reduces friction noise as well as increases the fan’s life expectancy.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Efficiency | 92% |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 25 A |
Max output current (+3.3V) | 25 A |
Combined power (+5V) | 130 W |
Combined power (+12V) | 1300 W |
Combined power (+3.3V) | 130 W |
Power Factor Correction (PFC) type | Active |
Maximum input current (@220V) | 5 A |
Maximum input current (@110V) | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1300 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy disk drive connector | Yes |
ATX Power connector (24-pin) | Yes |
PCI Express power connectors (6+2 pin) | 8 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 16 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Country of origin | China |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Illumination | No |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 16 mm |
Width | 150 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |

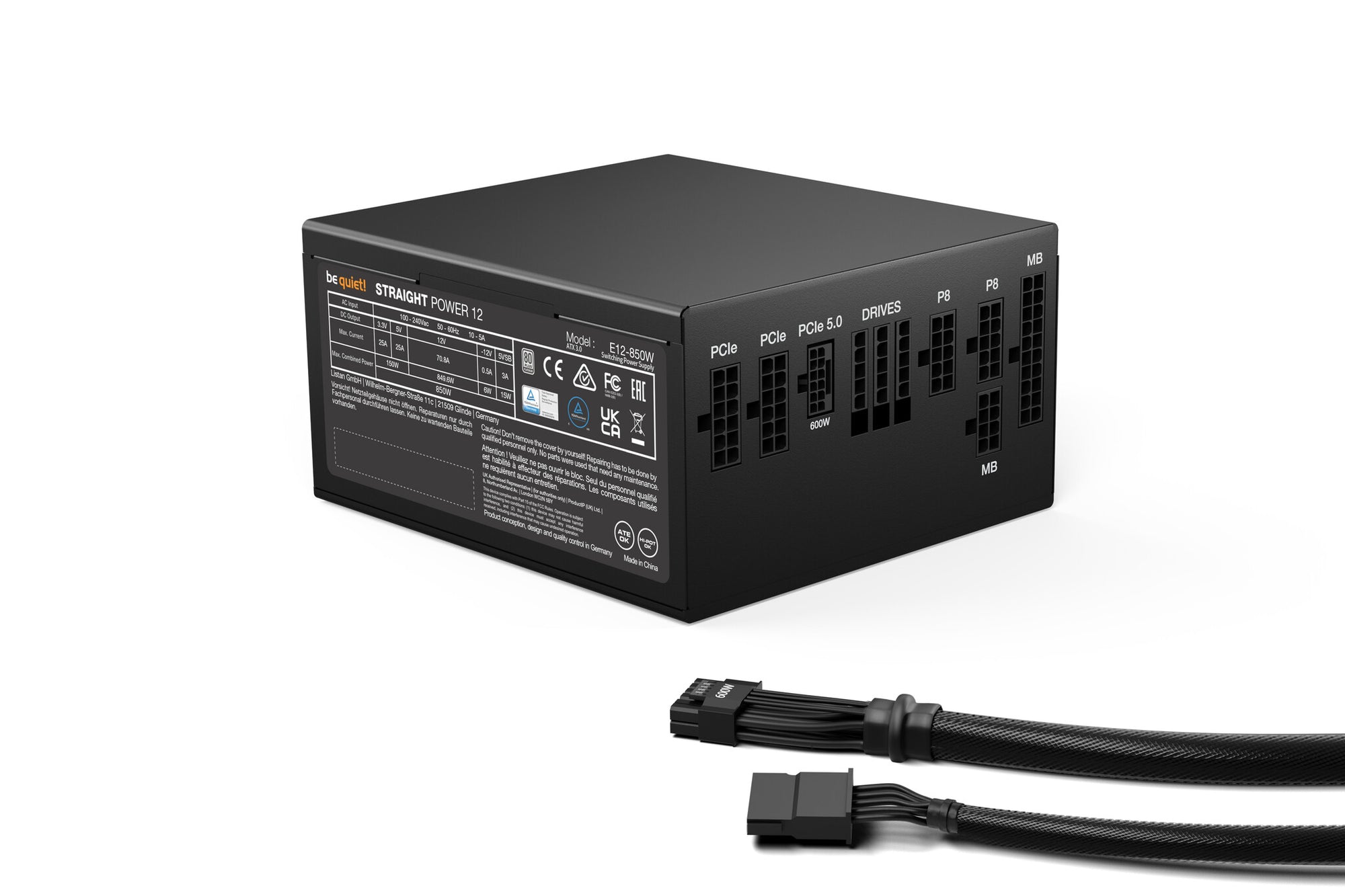

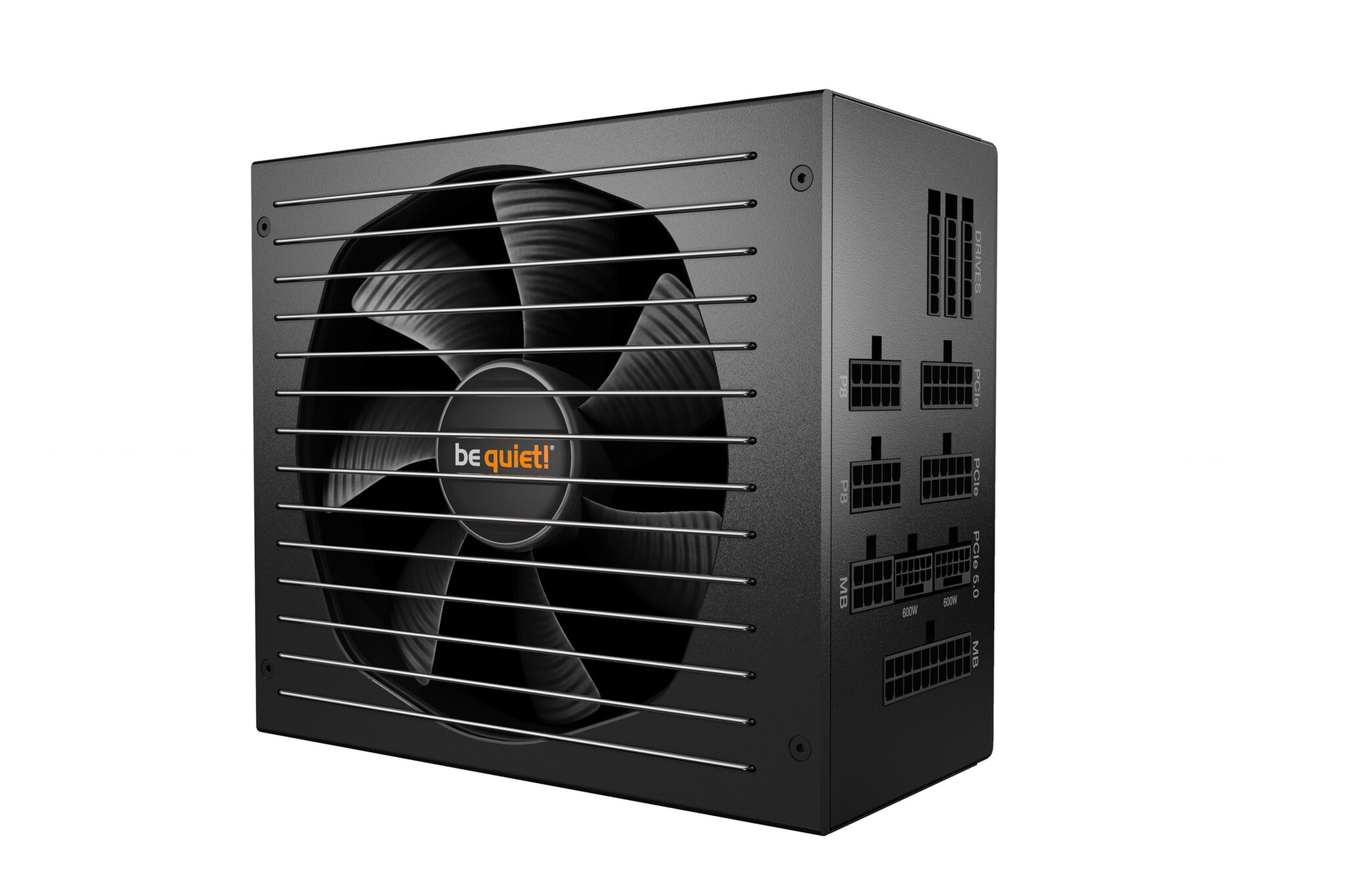

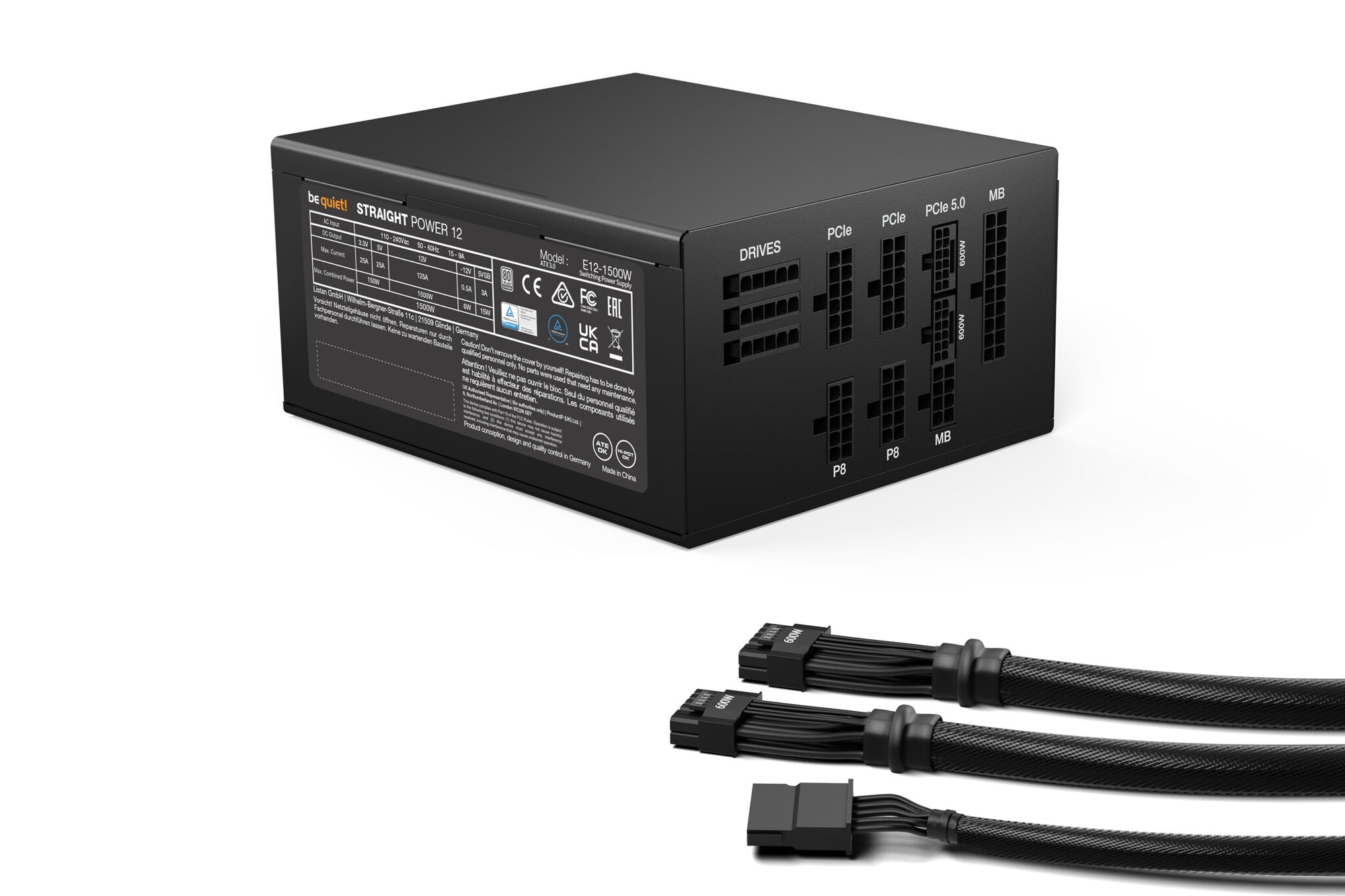

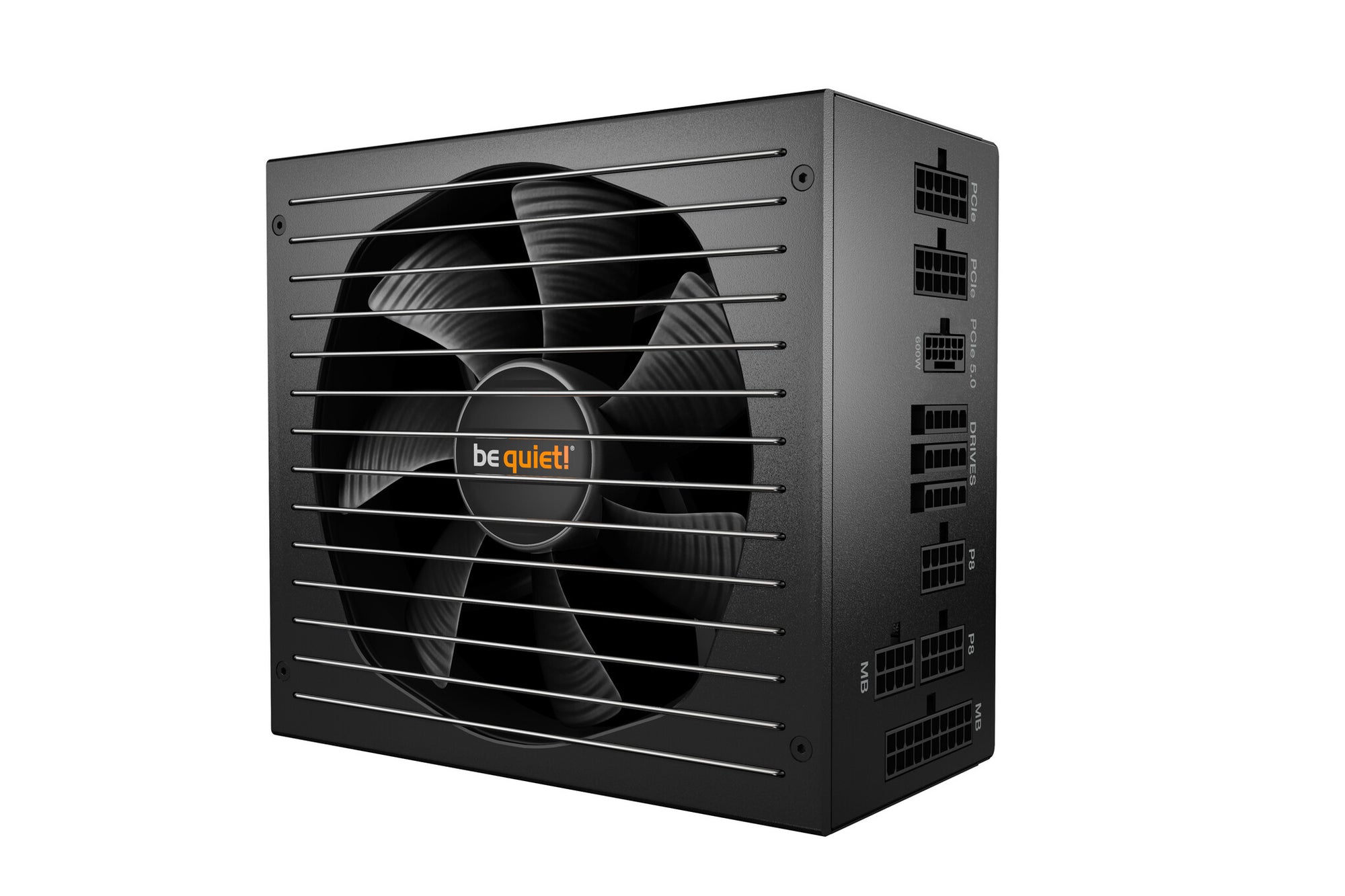

World Class Quiet and Efficiency
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1500W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1500W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 23 ms |
Efficiency | 92.4% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 25 A |
Max output current (+12V1) | 100 A |
Max output current (+3.3V) | 25 A |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 150 W |
Power factor | 0.99 |
Input current | 15/7.5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 110 - 240 V |
Peak power | 1270 W |
Total power | 1200 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power cable length | 70 cm |
PCI Express power cable length | 60 cm |
PCI Express power connectors (16-pin) | 2 |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 1000,850 mm |
SATA power cable length | 550,700,850,1000 mm |
Number of SATA power connectors | 9 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 32.2 dB |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 2600 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | CPU, SATA |
Weight & dimensions | |
---|---|
Weight | 2.04 kg |
Height | 86 mm |
Depth | 180 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 3.89 kg |
Package height | 102 mm |
Package depth | 328 mm |
Package width | 248 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | RoHS, Federal Communications Commission (FCC), Triman, UKCA, ENERGY STAR, WEEE, CE, ErP |
Warranty period | 10 year(s) |
Logistics data | |
---|---|
Shipping (inner) case length | 44.7 cm |
Shipping (inner) case width | 28.2 cm |
Shipping (inner) case height | 34.6 cm |
Products per shipping (inner) case | 4 pc(s) |
Shipping (inner) case net weight | 17 kg |
MAGNETIC LEVITATION COOLING MEETS HIGH EFFICIENCY
CORSAIR RMx Series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC with the cooling power of potent Magnetic Levitation fans.
135MM MAGNETIC LEVITATION FAN
Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low bearing noise, and superior reliability.
HIGH EFFICIENCY
With upwards of 90% peak efficiency, RMx produces less noise and less heat, which means less time worrying and more time gaming.
FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.
Also compatible with the 12-pin GPU Power Cable for the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation, but once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMx Series power supply features a robust resonant LLC topology with DC-DC conversion, and 105°C rated 100% Japanese capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.
The "Gold" efficiency rating is defined as ≥87% to <91% (depending on input voltage).
The "A-" noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.
Power | |
---|---|
Power protection features | Over voltage, Overheating, Overload, Short circuit, Under voltage |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 83.3 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 999.6 W |
Combined power (+3.3V) | 150 W |
Input current | 12-6 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 8 |
Peripheral (Molex) power connectors (4-pin) | 12 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | AC, DC, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 2 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.
Includes Zero RPM Fan Mode for near-silent operation at lower loads.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
Power | |
---|---|
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 83.3 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1000 W |
Combined power (+3.3V) | 150 W |
Input current | 12 - 6 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX Power connector (24-pin) | Yes |
PCI Express power cable length | 75 cm |
PCI Express power connectors (6+2 pin) | 6 |
EPS power connector (4+4 pin) | Yes |
SATA power cable length | 800 mm |
Number of SATA power connectors | 7 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Silent mode | Yes |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Built-in display | No |
Number of fans | 1 fan(s) |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | AC |
Weight & dimensions | |
---|---|
Weight | 3.05 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 140 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, Low Voltage Directive (LVD), RoHS, UKCA |
SF-L SERIES™
SF1000L POWER SUPPLY
FULLY MODULAR LOW-NOISE SFX POWER SUPPLIES
YOUR SMALL FORM X-FACTOR
CORSAIR SF-L Series Fully Modular SFX Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide the continuous high wattages demanded by the latest PC hardware, all in a space-saving SFX-L form-factor.
LOOKS CAN BE DECEIVING
COMPACT SFX-L FORM FACTOR
Ideal for small form factor (SFF) PCs that don’t skimp on power, or for saving space in a larger build, SF-L Series PSUs pack a huge punch for their size.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF-L Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
120mm FAN WITH ZERO RPM MODE SUPPORT
Cooled by a powerful and quiet 120mm rifle bearing fan, with support for Zero RPM mode to ensure your PSU stays virtually silent when not under high load.
80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.
TAKES THE HEAT
40°C MAXIMUM OPERATING TEMPERATURE
Capable of 100% output at temperatures up to 40°C, for reliable power even under high-stress conditions.
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Power protection features | Over voltage, Overheating, Short circuit |
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 83.3 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1000 W |
Combined power (+3.3V) | 150 W |
Input current | 12 - 6 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (12+4 pin) | No |
PCI Express power connectors (6+2 pin) | 5 |
EPS power connector (4+4 pin) | Yes |
SATA power cable length | 100,115 mm |
Number of SATA power connectors | 12 |
Number of PATA power connectors | 3 |
Motherboard power cable length | 30 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 43 dB |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | SFX-L |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, DC |
Weight & dimensions | |
---|---|
Weight | 1.14 kg |
Height | 63.5 mm |
Depth | 130 mm |
Width | 125 mm |
FULLY MODULARCABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Four universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RM supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 54 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 650 W |
Combined power (+3.3V) | 110 W |
Input current | 10 - 5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
SATA power cable length | 100,500 mm |
Number of SATA power connectors | 7 |
Number of PATA power connectors | 4 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
ATX version | 2.53 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 2.26 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
CORSAIR RMx SHIFT Series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.
SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.
CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
Power | |
---|---|
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 150 W |
Power Factor Correction (PFC) type | Active |
Input current | 5 - 10 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Peripheral (Molex) power connectors (4-pin) | 2 |
Number of SATA power connectors | 12 |
Number of PATA power connectors | 4 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
ATX version | 3.0 |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan diameter | 14 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 1.6 kg |
EXCEPTIONAL QUIET, SUPERIOR FEATURES

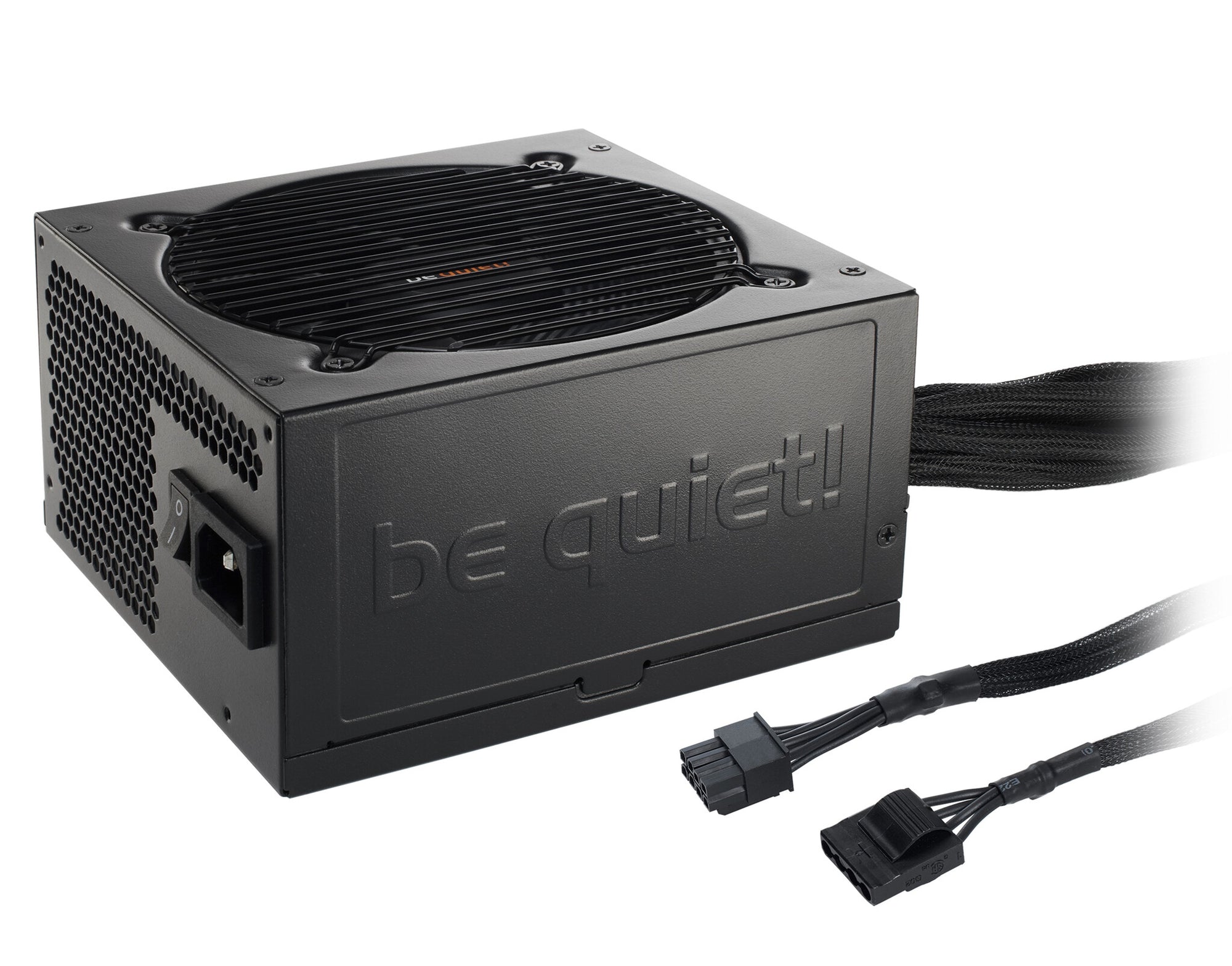

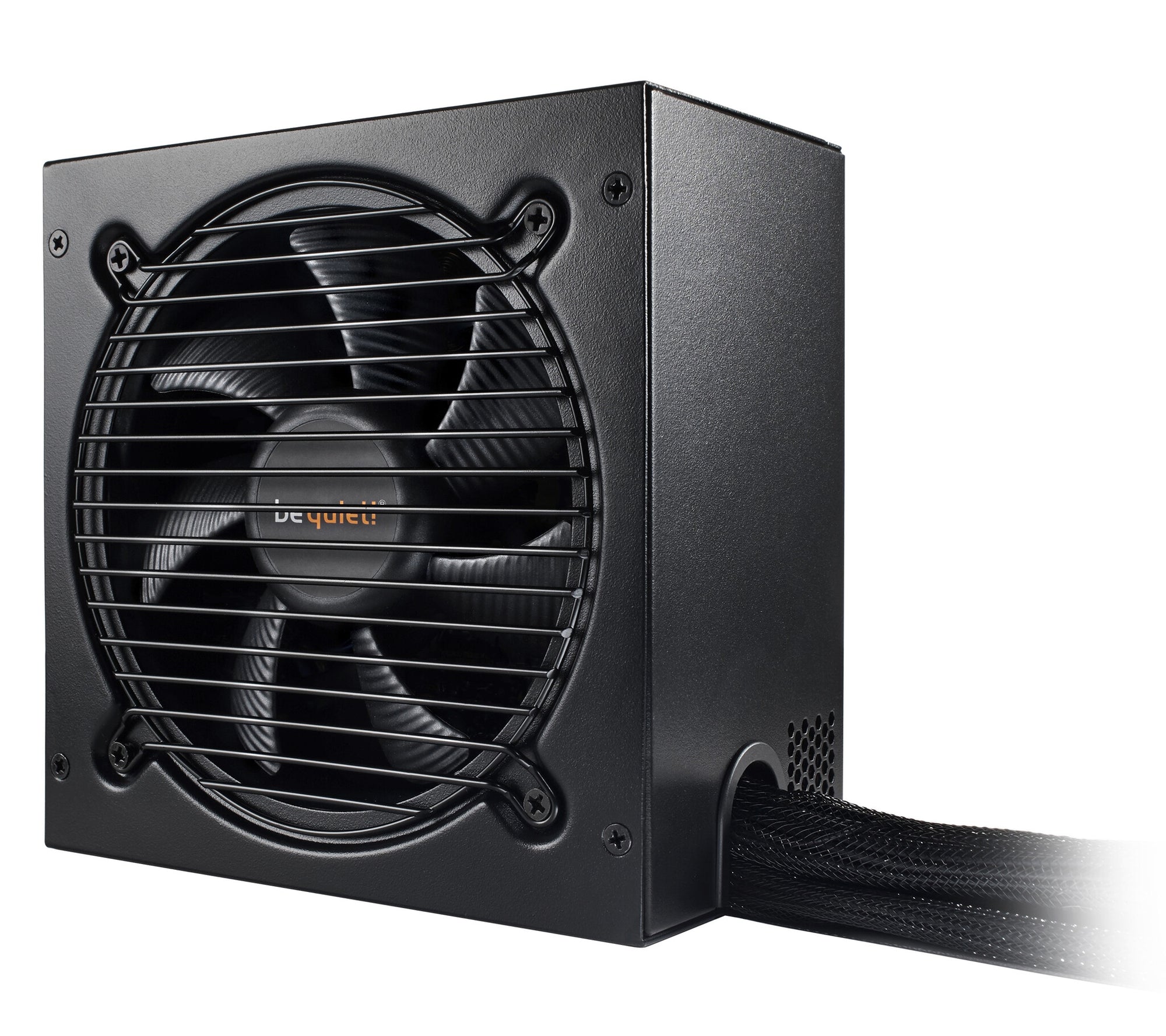

Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Efficiency | 92.7% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V2) | 28 A |
Max output current (+12V1) | 32 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 650 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.98 |
Input current | 10/5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 720 W |
Total power | 650 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU P4 connector (4-pin) | 1 |
PCI Express power connectors (6+2 pin) | 2 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 550 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 500,650,800,950 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Noise level | 19.9 dB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cables included | PATA, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 150 mm |
Width | 160 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR, ErP, RoHS |
Warranty period | 10 year(s) |
Other features | |
---|---|
Noise level (full-load mode, 100%) | 19.9 dB |
Noise level (quiet mode, 50%) | 9.1 dB |
Noise level (silent mode, | 8.1 dB |
Cable ties included | Yes |
Number of screws | 5 |
Screws included | Yes |
THE WORLD’S BEST PSU GETS BETTER
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
1600W OF ULTIMATE POWER
Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power.
TOP TIER COMPONENTS
100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
THE ONLY CONSUMER PSU WITH GALLIUM NITRIDE TRANSISTORS
Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
WORLD CLASS ELECTRICAL PERFORMANCE
Incredibly stable voltages and ultra-low ripple noise.
SOFTWARE MONITORING
CORSAIR LINK software provides in-depth monitoring for PSU temperature, fan speed, voltages, current, AC/DC wattage and efficiency, with the ability to log everything for easy troubleshooting.
TAKE CONTROL
CORSAIR LINK lets you adjust cooling fan speed, RPM curves and switch between single or multi-rail overcurrent protection (OCP), all from your desktop.
140MM PATENTED FDB COOLING FAN
Delivers low-noise operation even at demanding loads.
ZERO RPM FAN MODE
For near-silent operation at low to medium loads.
CHOOSE YOUR COLOR
Three-color customizable magnetic side labels let you choose your PSU’s style to match your build.
FULLY MODULAR CABLES
Use only the cables you need for quick and easy installation. Unused cables can be stored in the included roll-up cable bag.
BUILT TO LAST
Ten-Year comprehensive CORSAIR warranty.
Power | |
---|---|
Max output current (+5Vsb) | 3.5 A |
Max output current (-12V) | 0.8 A |
Max output current (+5V) | 30 A |
Max output current (+12V) | 133.3 A |
Max output current (+3.3V) | 30 A |
Combined power (+5Vsb) | 17.5 W |
Combined power (-12V) | 9.6 W |
Combined power (+5V) | 180 W |
Combined power (+12V) | 1600 W |
Combined power (+3.3V) | 180 W |
Input current | 15-9 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1600 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
Floppy drive power connector | 2 |
ATX Power connector (24-pin) | Yes |
PCI Express power connectors (6+2 pin) | 8 |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 5 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Continuous output rated temperature | 50 °C |
EPS version | 2.92 |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Titanium |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 14 cm |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 2.65 kg |
Height | 86 mm |
Depth | 150 mm |
Width | 200 mm |
Packaging data | |
---|---|
Manual | Yes |
Case badge included | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Other features | |
---|---|
Cable ties included | Yes |
80 PLUS® PLATINUM
The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Power | |
---|---|
Power protection features | Over power, Over voltage, Short circuit, Under power |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 125 W |
Combined power (+12V) | 744 W |
Combined power (+3.3V) | 125 W |
Input current | 10 - 5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 65 cm |
PCI Express power cable length | 75 cm |
PCI Express power connectors (16-pin) | 1 |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 470,690 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
SATA power cable length | 470,550,570,700,760,860,950 mm |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 150000 h |
Bearing technology | FDB |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Packaging content | |
---|---|
Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Technical details | |
---|---|
Sustainability certificates | ENERGY STAR, REACH, RoHS, WEEE |
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Power | |
---|---|
Power protection features | Over current, Over voltage, Short circuit |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 840 W |
Combined power (+3.3V) | 100 W |
Input current | 10 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Semi-Modular |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 70 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 690 mm |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 6 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Certification | cTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
POWERFUL CONNECTIONS
With three EPS12V connectors and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today’s most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
ON THE CUTTING-EDGE. ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION
HXi Series PSUs combine a 140mm fluid dynamic bearing fan with Zero RPM mode support for long-lasting fan performance and near-silent operation when the fan switches off at low and medium loads – only spinning as fast as it needs to.
UNWAVERING POWER AND QUALITY
80 PLUS Platinum certified with premium 100% Japanese 105°C electrolytic capacitors, HXi PSUs ensure up to 92% efficiency for exceptional power delivery and long-term reliability with low power consumption, less noise, and cooler temperatures.
POWER AT THE READY
As a fully digital power supply, each HXi Series PSU provides clean, consistent power while minimizing coil whine and noise for stable and quiet operation.
Supporting Modern Standby sleep mode, the HXi Series takes low-load efficiency to the next level with quiet operation and extremely fast wake-from-sleep times.
80 PLUS PLATINUM CERTIFIED
Steady power output at up to 92% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.
YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE Software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.
Power | |
---|---|
Efficiency | 92% |
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 25 A |
Max output current (+12V) | 83.3 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 999.6 W |
Combined power (+3.3V) | 150 W |
Input current | 13 - 6.5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 1000 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
ATX Power connector (24-pin) | Yes |
PCI Express power cable length | 77.5 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 750 mm |
SATA power cable length | 800 mm |
Number of SATA power connectors | 8 |
Number of PATA power connectors | 8 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Silent mode | Yes |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Built-in display | No |
Number of fans | 1 fan(s) |
Fan diameter | 14 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
USB cable length | 0.525 m |
Cable tie(s) included | Yes |
Cables included | AC |
Weight & dimensions | |
---|---|
Weight | 3.71 kg |
Technical details | |
---|---|
Warranty period | 10 year(s) |
Other features | |
---|---|
Screws included | Yes |
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
80 PLUS® TITANIUM CERTIFIED
The highest efficiency certificate available
Dark Power Pro 13 1300W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 94.5%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Dark Power Pro 13 1300W is an ATX 3.0 PSU and comes with both native integration of the two 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 6 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Dark Power Pro 13 offers 1600W of continuous power with 6 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power Pro 13 1300W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
STATE-OF-THE-ART DIGITAL TECHNOLOGY
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced digital full bridge LLC technology results in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
FRAMELESS SILENT WINGS FAN
Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT
For a longer lifespan
The split fan inlet of the Dark Power Pro 13 1300W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR EXTREME OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power Pro 13 1600W is particularly suitable for liquid nitrogen or helium overclocking, thanks to its state-of-the-art digital regulation. The overclocking key empowers you to manually switch between the default six 12V-rail mode and the alternative massive single-rail operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only the best components are used in Dark Power Pro 13 1300W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
HIGHEST CONVENIENCE
Modular cables for maximum utility
Individually sleeved cables of up to 120cm and cable combs simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling – even in the largest PC cases.
MAGNIFICENT APPEARANCE
No compromises
Dark Power Pro 13 1300W not only captivates with its inner values. An extraordinary aluminum case and individually sleeved cables emphasize the highest standards of Dark Power Pro 13 1600W also on the outside.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 18 ms |
Efficiency | 94.5% |
Max output current (+5Vsb) | 3.5 A |
Max output current (-12V) | 0.5 A |
Max output current (+5V) | 25 A |
Max output current (+12V3) | 40 A |
Max output current (+12V4) | 40 A |
Max output current (+12V2) | 35 A |
Max output current (+12V1) | 35 A |
Max output current (+3.3V) | 25 A |
Combined power (+5Vsb) | 17.5 W |
Combined power (-12V) | 6 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1300 W |
Combined power (+3.3V) | 150 W |
Power factor | 0.99 |
Input current | 15 - 9 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 115 - 240 V |
Peak power | 1400 W |
Total power | 1300 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 70 cm |
PCI Express power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 6 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 600,750,900,1050 mm |
SATA power cable length | 500,600,750,800,900,950,1050 mm |
Number of SATA power connectors | 16 |
Number of PATA power connectors | 5 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 23.2 dB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Titanium |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 13.5 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Weight | 2.41 kg |
Height | 86 mm |
Depth | 200 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package weight | 6.8 kg |
Package height | 152 mm |
Package depth | 417 mm |
Package width | 253 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CCC, CE, Federal Communications Commission (FCC), UKCA |
Warranty period | 10 year(s) |
Logistics data | |
---|---|
Shipping (inner) case length | 44 cm |
Shipping (inner) case width | 32.5 cm |
Shipping (inner) case height | 28.3 cm |
Products per shipping (inner) case | 2 pc(s) |
Shipping (inner) case net weight | 14.4 kg |
A Revolution to SFX
Leading the SFX power supply industry, the V SFX Platinum delivers not only the most powerful SFX power supply but fully compatable with ATX3.0, both ITX and ATX cases, bringing a revolution to SFX power supply.
High Power Density
Adopting with the components miniaturization technology by the improvement of materials engineering, manufacturing process and leading thermal technology, the V SFX Platinum has achieved one of the highest power density, 30% more than V SFX Gold 850W power supply, in the small form factor.
Miniaturized But Solid
Crafted with flat copper wire on Choke of DC-DC, flat transformer piling and aluminum plate dissipation structure on full-bridge LLC, it can effectively achieve components miniaturization. Adopting with advanced manufacturing process, it simultaneously keeps miniaturized but solid.
Enhanced Dissipation
With the integration of transformer and rectifier, full-bridge LLC heat dissipation structure, and the EMI-inhibited amorphous metal materials, the V SFX Platinum provideds advanced performance and heat dissipation.
Full & Flexible Compatibility
Designed to fully support ATX3.0 and provide backward compatibility, supporting both RTX 40 and 30 series graphics cards, and alongside with included bracket to support both ITX and ATX cases, the V SFX Platinum offers a PSU with the most complete compatibility.
100% Japanese capacitors
Implementing large and high-quality Japanese capacitors to increase efficiency and reduce ripple noise.
Fully Modular Cabling
Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 16 ms |
Efficiency | 92% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 91.6 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 1099.2 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Input current | 6.5 - 14 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 1100 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
ATX power connector (12+4 pin) | Yes |
PCI Express power cable length | 40 cm |
PCI Express power connectors (6+2 pin) | 3 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 100,220,340,460 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 100,250,400,550,700 mm |
Number of SATA power connectors | 8 |
Motherboard power cable length | 30 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | ErP 2014 Lot 3, TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, UKCA |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | SFX |
Purpose | PC/Server |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 9.2 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
---|---|
Weight | 1.95 kg |
Height | 63.5 mm |
Depth | 100 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package weight | 2.27 kg |
Package height | 100 mm |
Package depth | 272 mm |
Package width | 197 mm |
Logistics data | |
---|---|
Products per master (outer) case | 5 pc(s) |
Master (outer) case height | 235 mm |
Master (outer) case length | 525 mm |
Master (outer) case width | 290 mm |
Master (outer) cases per pallet | 32 pc(s) |
Other features | |
---|---|
EPS cable length | 45 cm |
CORSAIR RMx SHIFT Series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.
NO MORE FUMBLING AROUND
SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.
80 PLUS Gold certified
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.
CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.
Power | |
---|---|
Efficiency | 90% |
Max output current (+5Vsb) | 3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 10 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 150 W |
Input current | 10 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 250 V |
Total power | 1200 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power connectors (8-pin) | 780 |
PCI Express power connectors (6+2 pin) | 1 |
EPS power connector (4+4 pin) | Yes |
Peripheral (Molex) power cable length | 450,550,650,750 mm |
Peripheral (Molex) power connectors (4-pin) | 8 |
SATA power cable length | 455,570,685,800 mm |
Number of SATA power connectors | 16 |
Motherboard power cable length | 61 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 10000 h |
Bearing technology | FDB |
EPS version | 2.92 |
ATX version | 3.0 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 14 cm |
Cooling type | Active |
Product colour | Black |
Weight & dimensions | |
---|---|
Weight | 2 kg |
Technical details | |
---|---|
Warranty period | 10 year(s) |
ROG Loki 850W Platinum
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
Power | |
---|---|
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.8 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 9.6 W |
Combined power (+5V) | 110 W |
Combined power (+12V) | 850 W |
Combined power (+3.3V) | 110 W |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (8-pin) | 3 |
PCI Express power connectors (16-pin) | 1 |
Peripheral (Molex) power connectors (4-pin) | 4 |
Number of SATA power connectors | 6 |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Certification | OPP/OVP/UVP/SCP/OCP/OTP |
Silent mode | Yes |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | SFX |
Purpose | PC |
Design | |
---|---|
Illumination | Yes |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Product colour | Black, Silver |
Weight & dimensions | |
---|---|
Weight | 1.81 kg |
Height | 63.5 mm |
Depth | 125 mm |
Width | 125 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.5 kg |
Package height | 100 mm |
Package depth | 190 mm |
Package width | 285 mm |
Technical details | |
---|---|
Sustainability certificates | RoHS |
EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 1200W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.0 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 12 M 1200W offers the best combination of features in its class
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 12 M 550W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.8%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 550W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Pure Power 12 M 550W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 12 M offers 550W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 550W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION
Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 12 M 550W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 550W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage |
Hold time | 19 ms |
Efficiency | 91.5% |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 22 A |
Max output current (+12V2) | 50 A |
Max output current (+12V1) | 55 A |
Max output current (+3.3V) | 22 A |
Combined power (+5V) | 120 W |
Combined power (+12V) | 1200 W |
Combined power (+3.3V) | 120 W |
Power factor | 0.98 |
Input current | 15 - 7.5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Peak power | 1250 W |
Total power | 1200 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express connector | Yes |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 60 cm |
PCI Express power connectors (6+2 pin) | 4 |
EPS power connector (8-pin) | Yes |
Peripheral (Molex) power cable length | 800,950 mm |
SATA power cable length | 500,650,800,950 mm |
Number of SATA power connectors | 6 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Rifle |
Noise level | 34.3 dB |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 2700 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, CPU, PATA, PCIe, SATA |
Weight & dimensions | |
---|---|
Weight | 1.92 kg |
Height | 86 mm |
Depth | 160 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 3.19 kg |
Package height | 100 mm |
Package depth | 284 mm |
Package width | 220 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | BSMI, CB, CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, TUV, Triman, UKCA, WEEE, cTUVus |
Logistics data | |
---|---|
Shipping (inner) case length | 29.8 cm |
Shipping (inner) case width | 42.6 cm |
Shipping (inner) case height | 24.3 cm |
Products per shipping (inner) case | 4 pc(s) |
Shipping (inner) case net weight | 12.7 kg |
SF-L SERIES™
SF850L POWER SUPPLY
FULLY MODULAR LOW-NOISE SFX POWER SUPPLIES
YOUR SMALL FORM X-FACTOR
CORSAIR SF-L Series Fully Modular SFX Power Supplies with ATX 3.0 and PCIe 5.0 compliance provide the continuous high wattages demanded by the latest PC hardware, all in a space-saving SFX-L form-factor.
LOOKS CAN BE DECEIVING
COMPACT SFX-L FORM FACTOR
Ideal for small form factor (SFF) PCs that don’t skimp on power, or for saving space in a larger build, SF-L Series PSUs pack a huge punch for their size.
ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF-L Series PSUs are formally certified for ATX 3.0 compliance.
PCIe 5.0 12VHPWR GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.
120mm FAN WITH ZERO RPM MODE SUPPORT
Cooled by a powerful and quiet 120mm rifle bearing fan, with support for Zero RPM mode to ensure your PSU stays virtually silent when not under high load.
80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese primary electrolytic capacitors for unwavering power and reliability.
TAKES THE HEAT
40°C MAXIMUM OPERATING TEMPERATURE
Capable of 100% output at temperatures up to 40°C, for reliable power even under high-stress conditions.
SEVEN-YEAR WARRANTY
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Power | |
---|---|
Combined power (+5Vsb) | 15 W |
Combined power (+5V) | 150 W |
Combined power (+12V) | 850 W |
Combined power (+3.3V) | 150 W |
Input current | 10 - 5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Ports & interfaces | |
---|---|
Cabling type | Fully-Modular |
PCI Express power connectors (6+2 pin) | 3 |
EPS power connector (4+4 pin) | Yes |
EPS power connector (8-pin) | Yes |
SATA power cable length | 100,115 mm |
Number of SATA power connectors | 12 |
Number of PATA power connectors | 3 |
Motherboard power cable length | 30 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Bearing technology | FDB |
Noise level | 43 dB |
Silent mode | Yes |
EPS version | 2.92 |
ATX version | 3.0 |
Supported motherboard form factors | ATX |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | SFX-L |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan location | Top |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cable tie(s) included | Yes |
Cables included | AC, DC |
Weight & dimensions | |
---|---|
Weight | 1.12 kg |
Height | 63.5 mm |
Depth | 130 mm |
Width | 125 mm |
