Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.
Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.
Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.
Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
Optimised, In-House Developed Water Pump
The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.
Complete Control or Simple Control
Two connection cables - two control options:Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.
Native AMD Offset Mounting
For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.
Improved Radiator Design
The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.
High Static Pressure
ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation.
Limited Compatibility with Few Motherboards
Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.
Wide Range of Variants
The Liquid Freezer III offers outstanding cooling performance in four different sizes and three variants. While the Black version is completely black, the A-RGB versions are available in black or white and have digitally addressable lighting for the pump head and radiator fans. With radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers the ideal combination of performance, technology and design for everyone!
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Fan static pressure | 2 mmH2O |
VRM fan speed (min) | 400 RPM |
VRM fan speed (max) | 2500 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 1900 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Airflow | 117.06 m³/h |
Maximum airflow | 69.9 cfm |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 350 mA |
Fan voltage | 12 V |
Fan current | 0.17 A |
LED voltage | 5 V |
Weight & dimensions | |
---|---|
Package weight | 2.3 kg |
Package height | 155 mm |
Package depth | 355 mm |
Package width | 170 mm |
Cable length | 0.04 m |
Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
Weight | 1.77 kg |
Pump height | 6.85 cm |
Pump depth | 10.8 cm |
Pump width | 9.1 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
Tube length | 45 cm |
Radiator height | 3.8 cm |
Radiator depth | 31.7 cm |
Radiator width | 13.8 cm |
Packaging content | |
---|---|
Package type | Hanging box |
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.
Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.
Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.
Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
Optimised, In-House Developed Water Pump
The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.
Complete Control or Simple Control
Two connection cables - two control options:Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.
Native AMD Offset Mounting
For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.
Improved Radiator Design
The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.
High Static Pressure
ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation.
Limited Compatibility with Few Motherboards
Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.
Wide Range of Variants
The Liquid Freezer III offers outstanding cooling performance in four different sizes and three variants. While the Black version is completely black, the A-RGB versions are available in black or white and have digitally addressable lighting for the pump head and radiator fans. With radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers the ideal combination of performance, technology and design for everyone!
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Fan static pressure | 2.4 mmH2O |
VRM fan speed (min) | 400 RPM |
VRM fan speed (max) | 2500 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 1700 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Airflow | 123.76 m³/h |
Maximum airflow | 72.8 cfm |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 350 mA |
Fan voltage | 12 V |
Fan current | 0.12 A |
Weight & dimensions | |
---|---|
Package weight | 2.9 kg |
Package height | 158 mm |
Package depth | 447 mm |
Package width | 328 mm |
Cable length | 0.04 m |
Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
Weight | 2.23 kg |
Pump height | 6.85 cm |
Pump depth | 10.8 cm |
Pump width | 9.1 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
Tube length | 45 cm |
Radiator height | 3.8 cm |
Radiator depth | 45.8 cm |
Radiator width | 13 cm |
Packaging content | |
---|---|
Package type | Hanging box |
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.
Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.
Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.
Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
Optimised, In-House Developed Water Pump
The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.
Complete Control or Simple Control
Two connection cables - two control options:Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.
Native AMD Offset Mounting
For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.
Improved Radiator Design
The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.
High Static Pressure
ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation.
Limited Compatibility with Few Motherboards
Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.
Wide Range of Variants
The Liquid Freezer III offers outstanding cooling performance in four different sizes and three variants. While the Black version is completely black, the A-RGB versions are available in black or white and have digitally addressable lighting for the pump head and radiator fans. With radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers the ideal combination of performance, technology and design for everyone!
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Fan static pressure | 1.85 mmH2O |
VRM fan speed (min) | 400 RPM |
VRM fan speed (max) | 2500 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 2000 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Airflow | 82.91 m³/h |
Maximum airflow | 48.82 cfm |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 350 mA |
Fan voltage | 12 V |
Fan current | 0.11 A |
LED voltage | 5 V |
Weight & dimensions | |
---|---|
Package weight | 1.93 kg |
Package height | 142 mm |
Package depth | 294 mm |
Package width | 171 mm |
Cable length | 0.04 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.49 kg |
Pump height | 6.85 cm |
Pump depth | 10.8 cm |
Pump width | 9.1 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
Tube length | 45 cm |
Radiator height | 3.8 cm |
Radiator depth | 27.7 cm |
Radiator width | 12 cm |
Packaging content | |
---|---|
Package type | Hanging box |
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.
Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.
Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.
Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
Optimised, In-House Developed Water Pump
The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.
Complete Control or Simple Control
Two connection cables - two control options:Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.
Native AMD Offset Mounting
For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.
Improved Radiator Design
The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.
High Static Pressure
ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation.
Limited Compatibility with Few Motherboards
Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.
Addressable LEDs for all Requirements
ARCTIC uses standardised 3-pin cables instead of proprietary connectors. This not only ensures compatibility with most lighting systems for motherboards, cases, controllers and accessories, but also enables software-based control with the most common control programmes. The daisy-chain function also ensures that each LED can display an individual colour at any time, offering countless combination options for every preference.
Wide Range of Variants
The Liquid Freezer III offers outstanding cooling performance in four different sizes and three variants. While the Black version is completely black, the A-RGB versions are available in black or white and have digitally addressable lighting for the pump head and radiator fans. With radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers the ideal combination of performance, technology and design for everyone!
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Fan static pressure | 2 mmH2O |
VRM fan speed (min) | 400 RPM |
VRM fan speed (max) | 2500 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 1900 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Airflow | 117.06 m³/h |
Maximum airflow | 69.9 cfm |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 350 mA |
Fan voltage | 12 V |
Fan current | 0.17 A |
LED voltage | 5 V |
Weight & dimensions | |
---|---|
Package weight | 3 kg |
Package height | 158 mm |
Package depth | 447 mm |
Package width | 328 mm |
Cable length | 0.04 m |
Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
Weight | 2.33 kg |
Pump height | 6.85 cm |
Pump depth | 10.8 cm |
Pump width | 9.1 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
Tube length | 45 cm |
Radiator height | 3.8 cm |
Radiator depth | 45.8 cm |
Radiator width | 13.8 cm |
Packaging content | |
---|---|
Package type | Hanging box |
Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.
Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.
Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. ARCTIC customers don't need to worry that the new CPUs will also require new coolers. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.
Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.
Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The patent-pending mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
Optimised, In-House Developed Water Pump
The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.
Complete Control or Simple Control
Two connection cables - two control options:Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.
Native AMD Offset Mounting
For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.
Improved Radiator Design
The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.
High Static Pressure
ARCTIC relies on the well-proven P fans, which have already received several awards for their outstanding performance. The P series is particularly suitable for use on heat sinks and radiators with a high fin density. Thanks to their high static pressure, they achieve significantly better results compared to fans designed for high air circulation.
Limited Compatibility with Few Motherboards
Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.
Addressable LEDs for all Requirements
ARCTIC uses standardised 3-pin cables instead of proprietary connectors. This not only ensures compatibility with most lighting systems for motherboards, cases, controllers and accessories, but also enables software-based control with the most common control programmes. The daisy-chain function also ensures that each LED can display an individual colour at any time, offering countless combination options for every preference.
Wide Range of Variants
The Liquid Freezer III offers outstanding cooling performance in four different sizes and three variants. While the Black version is completely black, the A-RGB versions are available in black or white and have digitally addressable lighting for the pump head and radiator fans. With radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers the ideal combination of performance, technology and design for everyone!
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Fan static pressure | 1.85 mmH2O |
VRM fan speed (min) | 400 RPM |
VRM fan speed (max) | 2500 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 2000 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Airflow | 82.91 m³/h |
Maximum airflow | 48.82 cfm |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 350 mA |
Fan voltage | 12 V |
Fan current | 0.11 A |
LED voltage | 5 V |
Weight & dimensions | |
---|---|
Package weight | 2.43 kg |
Package height | 142 mm |
Package depth | 414 mm |
Package width | 167 mm |
Cable length | 0.04 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.87 kg |
Pump height | 6.85 cm |
Pump depth | 10.8 cm |
Pump width | 9.1 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
Tube length | 45 cm |
Radiator height | 3.8 cm |
Radiator depth | 39.8 cm |
Radiator width | 12 cm |
Packaging content | |
---|---|
Package type | Hanging box |
The ARCTIC Freezer 34 eSports DUO is a Tower CPU cooler with two 120 mm BioniX P-series fans in push-pull ®configuration. It is a powerful cooling solution for AMD & ®Intel CPU and recommended for CPU with a TDP up to 210 W. The push.pull-configuration allows ideal airflow.The pressure-optimised fans create a focused airstream for increased performance. A broad RPM range enables highest performance as well as low noise levels. With high-quality bearings and a new motor-generation, the fans are very quiet, efficient and durable.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.5 sone |
Noise level (high speed) | 20 dB |
Rotational speed (max) | 2100 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fins | 54 |
Number of fan blades | 5 |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | Black, Grey |
Power | |
---|---|
Rated current | 0.13 A |
Weight & dimensions | |
---|---|
Package weight | 955 g |
Package height | 187 mm |
Package depth | 107 mm |
Package width | 129 mm |
Fins thickness | 0.4 mm |
Heat pipes diameter | 6 mm |
Weight | 764 g |
Height | 157 mm |
Depth | 124 mm |
Width | 103 mm |
Packaging content | |
---|---|
Number of screws | 2 |
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Thermal grease | Yes |
Fan rated voltage | 12 V |
Number of fans supported | 2 |
Cooling capacity in watts (max) | 210 W |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

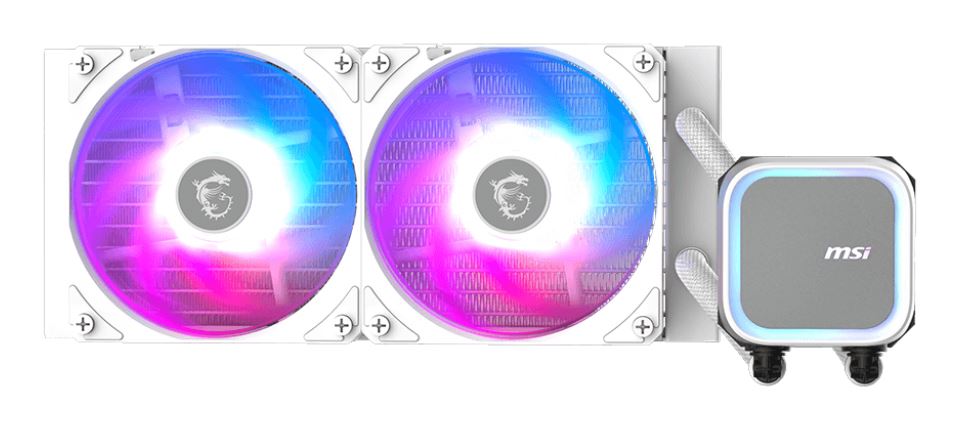

REBELLIOUS AND DISCREET
The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.
LGA 1700 COMPATIBLE
The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 70000 h |
Pump's mean time to failure (MTTF) | 100000 h |
Fan static pressure | 2.39 mmH2O |
Pump motor speed | 4200 RPM |
Fan bearing technology | Double ball bearing |
Fan noise level (max) | 34.3 dB |
Fan noise level (min) | 14.3 dB |
Bearing type | Dual ball bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 78.73 cfm |
Noise level (high speed) | 34.3 dB |
Noise level (low speed) | 14.3 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | No |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 0.34 mA |
Fan voltage | 12 V |
Fan current | 0.15 A |
Pump power consumption | 4.08 W |
Fan power consumption | 1.8 W |
Weight & dimensions | |
---|---|
Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Waterblock height | 5.2 cm |
Waterblock depth | 7.05 cm |
Waterblock width | 7.05 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 27.6 cm |
Other features | |
---|---|
Noise level | 14.3 dB |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.
The right configuration for everyone
Outstanding cooling performance through liquid cooling. The Liquid Freezer range offers impressively high performance at moderate prices.
Uncompromisingly quiet
Powerful fans for every need. Low noise levels and high airflow.
Multiple award-winning
Easy-to-use thermal paste and thermal pads with excellent thermal conductivity.
Perfect complements
The right accessories to fit our product range — SLI bridges, PST cables, case fan hubs, and more.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Number of LEDs | 12 |
Illumination LED | Yes |
Number of heat pipes | 4 |
Fins material | Aluminium |
Product colour | White |
Power | |
---|---|
Rated current | 0.11 A |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 1.26 kg |
Package height | 117 mm |
Package depth | 190 mm |
Package width | 186 mm |
Cable length | 0.28 m |
Weight | 917 g |
Height | 159 mm |
Depth | 104 mm |
Width | 126 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, REACH, RoHS, UKCA |
Compliance certificates | CE, REACH, RoHS, UKCA |
Packaging content | |
---|---|
Package type | Box |
As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.
The right configuration for everyone
Outstanding cooling performance through liquid cooling. The Liquid Freezer range offers impressively high performance at moderate prices.
Uncompromisingly quiet
Powerful fans for every need. Low noise levels and high airflow.
Multiple award-winning
Easy-to-use thermal paste and thermal pads with excellent thermal conductivity.
Perfect complements
The right accessories to fit our product range — SLI bridges, PST cables, case fan hubs, and more.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Number of LEDs | 12 |
Illumination LED | Yes |
Number of heat pipes | 4 |
Fins material | Aluminium |
Product colour | Black |
Power | |
---|---|
Rated current | 0.11 A |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 1.26 kg |
Package height | 117 mm |
Package depth | 190 mm |
Package width | 186 mm |
Cable length | 0.28 m |
Weight | 917 g |
Height | 159 mm |
Depth | 104 mm |
Width | 126 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, REACH, RoHS, UKCA |
Compliance certificates | CE, REACH, RoHS, UKCA |
Packaging content | |
---|---|
Package type | Box |
NO COMPROMISE SILENCE AND PERFORMANCE
Dark Rock TF 2 offers maximum cooling performance even under extreme overclocking conditions and a virtually inaudible operation. The top-flow design provides ideal cooling, not only for the CPU but also for surrounding components. Numerous features like the included Silent Wings fans make Dark Rock TF 2 the ideal choice for all who strive for highest yet quiet cooling performance.
Performance | |
---|---|
Mean time between failures (MTBF) | 300000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level (high speed) | 27.1 dB |
Noise level (low speed) | 11.1 dB |
Rotational speed (max) | 1400 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 13.5 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 6 |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Product colour | Black |
Power | |
---|---|
Thermal Design Power (TDP) | 230 W |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 1.61 kg |
Package height | 230 mm |
Package depth | 210 mm |
Package width | 190 mm |
Heat pipes diameter | 6 mm |
Fan 2 dimensions (W x D x H) | 135 x 135 x 25 mm |
Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
Weight | 945 g |
Height | 134 mm |
Depth | 163 mm |
Width | 140 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Compliance certificates | CE, RoHS |
Packaging content | |
---|---|
Manual | Yes |
Screws included | Yes |
Mounting kit | Yes |
Other features | |
---|---|
Country of origin | Germany |
Thermal grease | Yes |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 21 kg |
Shipping (inner) case height | 47 cm |
Shipping (inner) case length | 60 cm |
Shipping (inner) case width | 44 cm |
Products per shipping (inner) case | 12 pc(s) |
Harmonized System (HS) code | 84733080 |
As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.
The right configuration for everyone
Outstanding cooling performance through liquid cooling. The Liquid Freezer range offers impressively high performance at moderate prices.
Uncompromisingly quiet
Powerful fans for every need. Low noise levels and high airflow.
Multiple award-winning
Easy-to-use thermal paste and thermal pads with excellent thermal conductivity.
Perfect complements
The right accessories to fit our product range — SLI bridges, PST cables, case fan hubs, and more.
Performance | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | Intel LGA1851, LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin + 4-pin |
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Product colour | Black, Silver |
Power | |
---|---|
Rated current | 0.1 A |
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 1.23 kg |
Package height | 117 mm |
Package depth | 190 mm |
Package width | 186 mm |
Cable length | 0.28 m |
Heat pipes diameter | 6 mm |
Weight | 890 g |
Height | 159 mm |
Depth | 104 mm |
Width | 126 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS, UKCA |
Compliance certificates | CE, RoHS, UKCA |
Packaging content | |
---|---|
Package type | Box |
Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
Excellent Price-Performance Ratio
With two powerful, pressure-optimised BioniX P-fans and its updated, thermal-coated heatsink, the Freezer 34 eSports DUO offers a lot of performance for a fair price. In internal tests levelled to 28 dB(A), the Freezer 34 eSports DUO was able to surpass many competitors, even much bigger and more expensive double tower cooling solutions. More information about our performance test and the max.
Better Cooling - Better Performance
No thermal throttling on your CPU - even at high turbo clock speeds and overclocking, the Freezer 34 eSports DUO cools quietly, so you can reach the maximum FPS with minimal noise levels for the smoothest possible gaming experience.
Improved Heat Dissipation
Evenly spread direct-touch heat pipes and an optimised heat sink design with 54 cooling fins lead to ideal heat dissipation for the Freezer 34 eSports DUO.
Ideal airflow
The two BioniX P-fans of the Freezer 34 eSports DUO work in push-pull-configuration The resulting increase of airflow ensures that more cold air is transported into the heatsink for cooling and the heat from the CPU is dissipated even faster from the heat sink. This ensures the best possible performance of the CPU.
Thermal Coating
A thermal coating creates micro-turbulences with a special surface structure. Combined with offset heat pipes this leads to an optimised heat-dissipation and to an increased cooling performance.
High Performance for High-End CPU
The contact surface of the Freezer 34 eSports DUO heat pipes does not cover the full heatspreader, but, more importantly, is right where the processor DIE is and covers even the largest versions (18 core) completely.
Easy Installation & Secure Hold
Fast and easy to install and extremely reliable, the Freezer 34 eSports DUO mounting system is compatiblewith Intel and AMD sockets. Thanks to a backplate and its low weight, the Freezer 34 eSports DUO is not onlyfoolproof to install, but also absolutely transport safe.
Optimal RAM Compatibility
Thanks to its compact dimensions of only 124 x 157 x 103 mm, there are almost no restrictions when using RAM modules. Even RAM modules with larger heat sinks can be mounted without any issues and are not blocked by the CPU Cooler.
Multilingual Manuals
We offer a regularly updated user manual in many languages conveniently at your fingertips anywhere and anytime. Put the QR code sticker somewhere convenient and never waste time again looking for product instructions.
Performance | |
---|---|
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.5 sone |
Noise level (high speed) | 28 dB |
Rotational speed (max) | 2100 RPM |
Rotational speed (min) | 200 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Cooler |
Suitable location | Processor |
Design | |
---|---|
Number of heat pipes | 4 |
Fins material | Aluminium |
Number of fins | 54 |
Number of fans | 2 fan(s) |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.13 A |
Weight & dimensions | |
---|---|
Package weight | 955 g |
Package height | 187 mm |
Package depth | 107 mm |
Package width | 129 mm |
Fins thickness | 0.4 mm |
Heat pipes diameter | 6 mm |
Weight | 764 g |
Height | 157 mm |
Depth | 124 mm |
Width | 103 mm |
Packaging content | |
---|---|
Number of screws | 2 |
Screws included | Yes |
Mounting kit | Yes |
Other features | |
---|---|
Country of origin | China |
Thermal grease | Yes |
Fan rated voltage | 12 V |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |

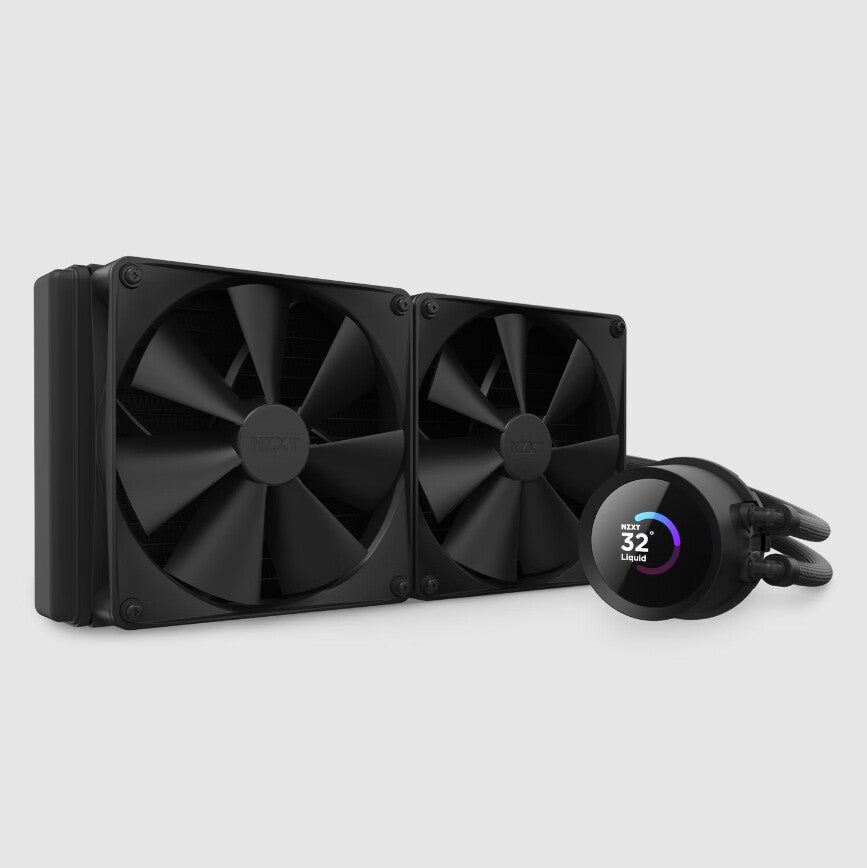

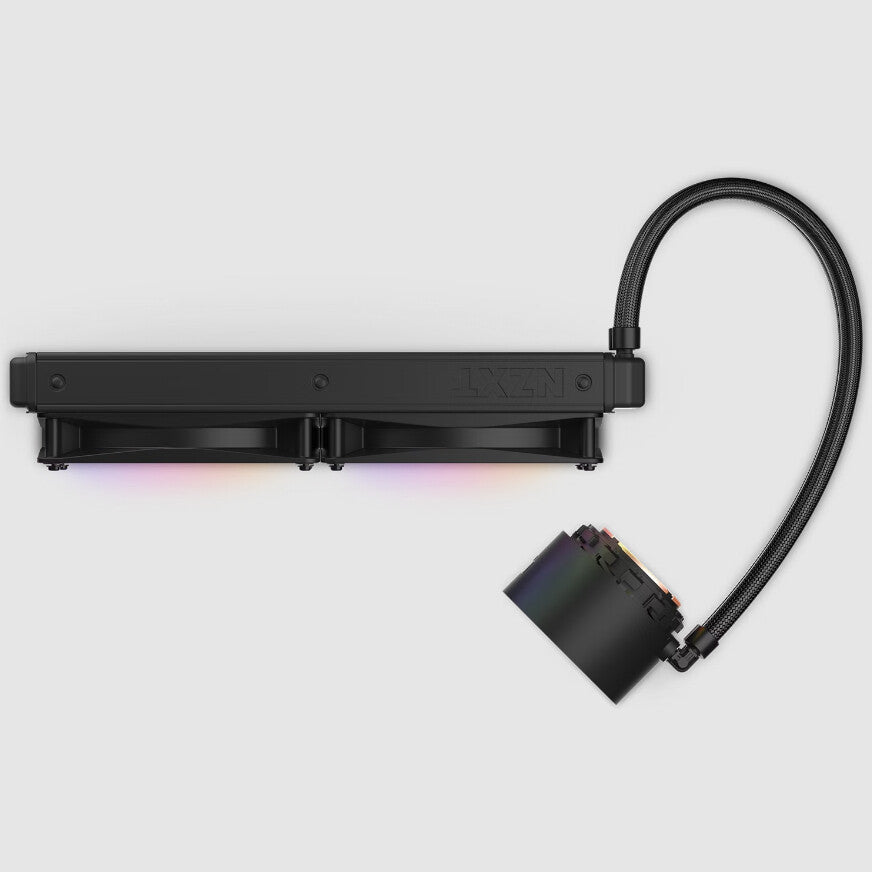

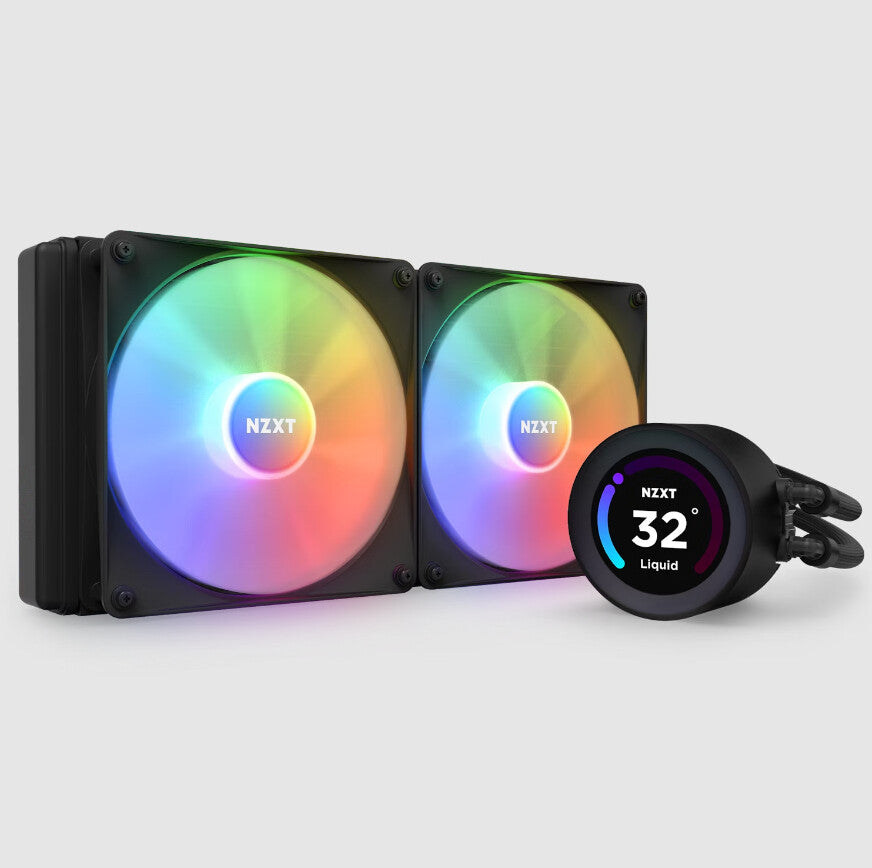

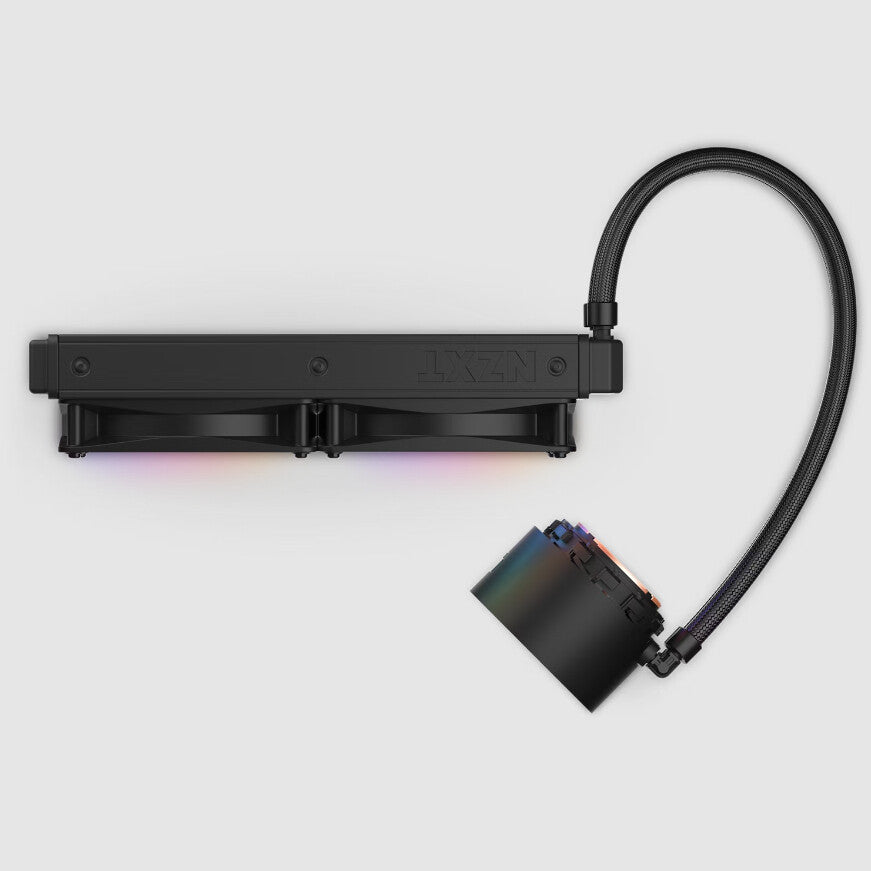

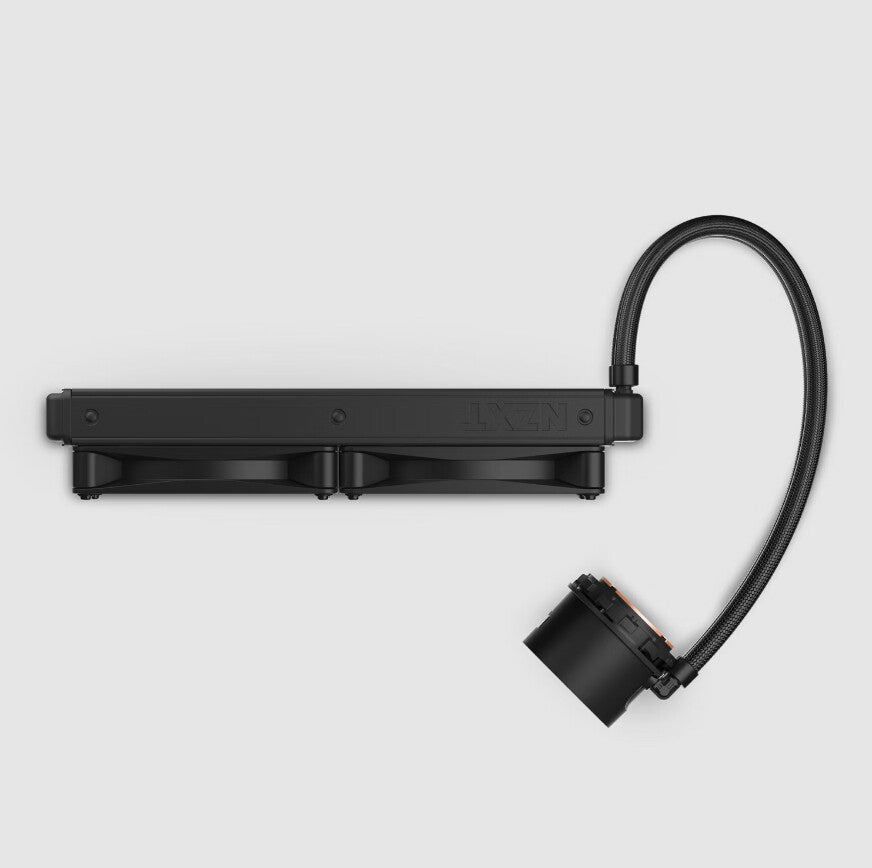

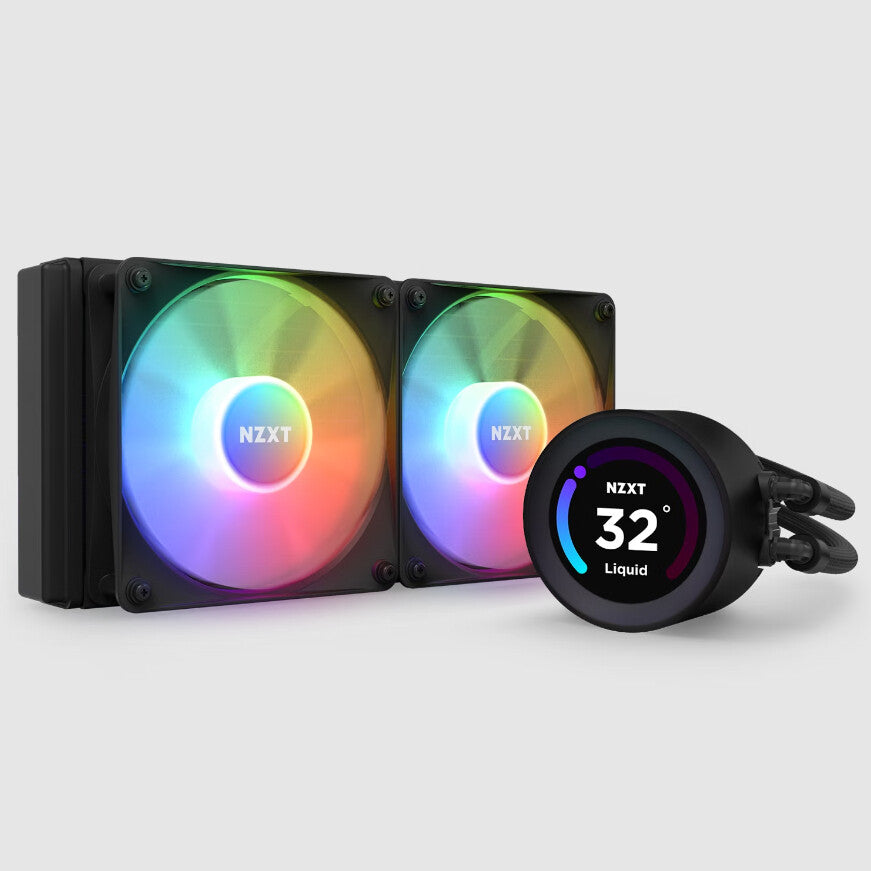

Kraken 280 RGB
280mm AIO Liquid Cooler with LCD Display and RGB Fans
Get high-performance cooling and display a favorite image or GIF, monitor real-time PC performance metrics, and more with NZXT CAM software.
LCD Display
1.54" square LCD display with 240x240 resolution, 30 Hz refresh rate, and high brightness.
High-Performance Pump
The powerful Asetek pump circulates coolant efficiently and quietly.
Colorful Cooling
RGB Core Fans with fluid dynamic bearings provide powerful cooling and vivid RGB lighting.
Installation Made Easy
- A single breakout cable from pump to motherboard streamlines installation.
- Includes compatible mounting brackets for Intel (LGA 1700/1200/115X) and AMD processors (AM4, AM5).
- Pre-applied NZXT High-Performance Thermal Paste.
- Extended rubber tubing with durable nylon-braided sleeves for worry-free handling.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 60000 h |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 500 RPM |
Fan speed (max) | 1500 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Fan noise level (max) | 34.48 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 3.22 mmH2O |
Maximum airflow | 90.79 cfm |
Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen™ Threadripper™, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i9, Intel® Pentium® |
Supported processor sockets | LGA 1150 (Socket H3), Socket TR4, LGA 1151 (Socket H4), Socket AM4, LGA 1155 (Socket H2), Socket AM5, LGA 1156 (Socket H), Socket sTRX4, LGA 1200 (Socket H5), LGA 1700 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Display size (HxV) | 39.1 x 39.1 mm |
Display type | TFT-LCD |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Material | Aluminium, Plastic |
Product colour | Black |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 300 mA |
Fan voltage | 12 V |
Fan current | 0.24 A |
Fan power consumption | 2.88 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 140 x 140 x 26 mm |
Weight | 52.8 g |
Height | 12.8 mm |
Waterblock height | 5.6 cm |
Waterblock depth | 7.47 cm |
Waterblock width | 7.47 cm |
Depth | 53.2 mm |
Tube length | 40 cm |
Radiator height | 3 cm |
Radiator depth | 31.5 cm |
Radiator width | 14.3 cm |
Width | 63.2 mm |
Packaging content | |
---|---|
RGB controller included | Yes |
Cables included | SATA |
MAG - Unite as One
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series’ circular shape represents the cyclical nature of time and the continuous flow of energy.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
ACHIEVE FULL CPU COVERAGE
By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.
PUMP COOLING DESIGN
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.
FAN CONSTRUCTION
The fan's FDB bearing helps reduce noise level while minimizing vibrations.
The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.
INTEGRATING WITH THE SYSTEM ENVIRONMENT
With the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
Performance | |
---|---|
Pump motor speed | 3000 RPM |
Pump noise level | 20 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 75.04 cfm |
Minimum airflow (imperial) | 25.5 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Motherboard, Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump power consumption | 4.8 W |
Fan power consumption | 3 W |
Weight & dimensions | |
---|---|
Cable length | 500 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Radiator height | 2.7 cm |
Radiator depth | 11.9 cm |
Radiator width | 39.4 cm |

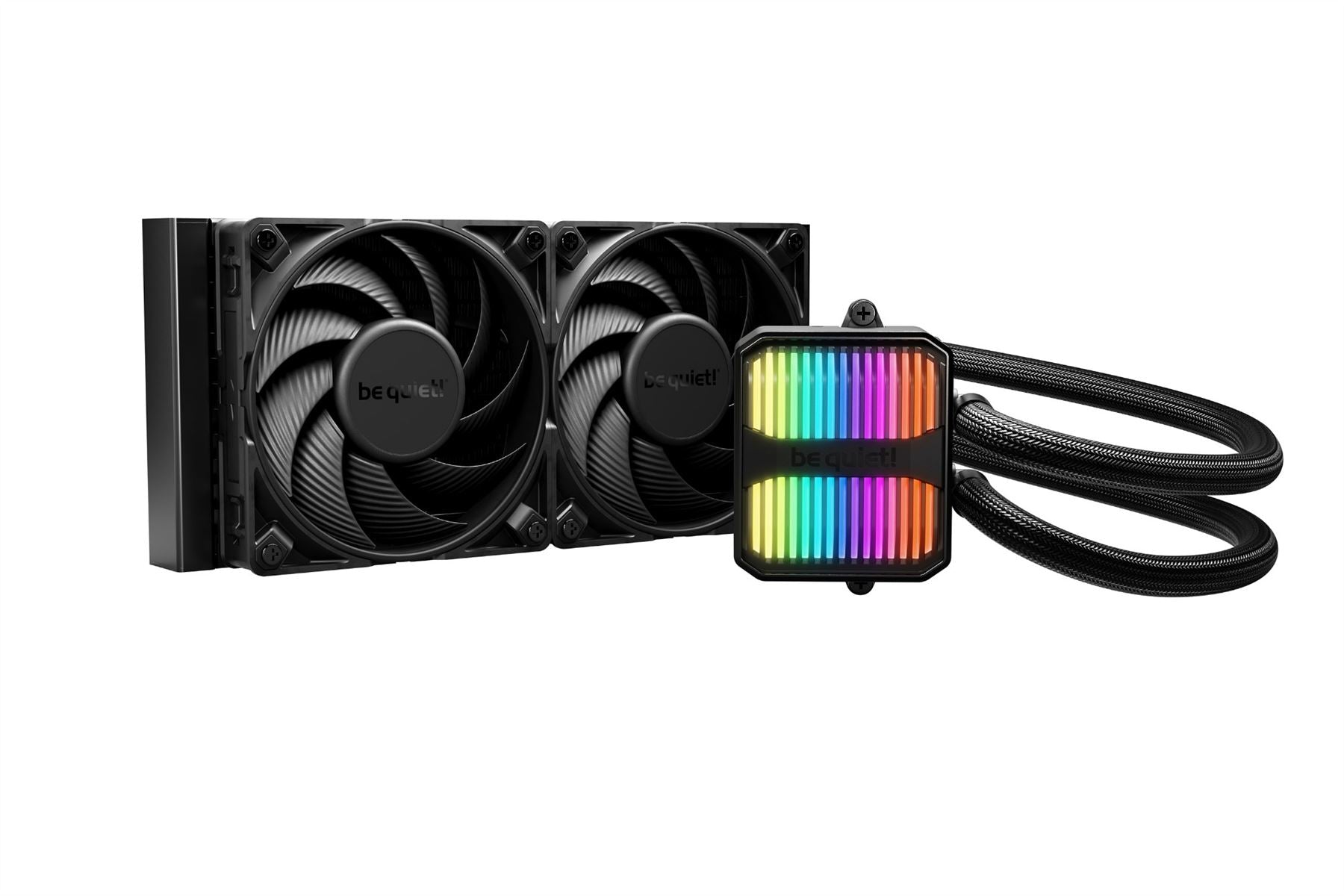

Silent Loop 2 280mm is the immensely high-performance and whisper-quiet all-in-one water cooling unit for demanding systems with overclocked CPUs. The wealth of technical features and illumination effects make the Silent Loop 2 280mm not only a very silent and performant water cooler, but also an eye-catcher in any PC case.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 300000 h |
Pump motor speed | 2800 RPM |
Fan speed (max) | 1600 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 3-pin |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Fan noise level (max) | 36.1 dB |
Fan noise level (min) | 16.5 dB |
Pulse-width modulation (PWM) support | Yes |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminium |
Product colour | Black |
Power | |
---|---|
Pump voltage | 9 - 12 V |
Fan voltage | 12 V |
Fan current | 0.5 A |
Fan power consumption | 1.68 W |
Weight & dimensions | |
---|---|
Package weight | 2.14 kg |
Package height | 171 mm |
Package depth | 369 mm |
Package width | 183 mm |
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Weight | 1.18 kg |
Height | 314 mm |
Depth | 52 mm |
Tube length | 40 cm |
Radiator height | 31.4 cm |
Radiator depth | 2.7 cm |
Radiator width | 14 cm |
Width | 140 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Packaging content | |
---|---|
Manual | Yes |
RGB controller included | Yes |
LED controller interface | 3-pin |
Mounting kit | Yes |
Cables included | Pulse Width Modulation (PWM) Y-cable |
Package type | Box |
Other features | |
---|---|
Country of origin | Germany |
Thermal grease | Yes |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 14.9 kg |
Shipping (inner) case height | 37.5 cm |
Shipping (inner) case length | 57 cm |
Shipping (inner) case width | 38.5 cm |
Products per shipping (inner) case | 6 pc(s) |
Harmonized System (HS) code | 84733080 |

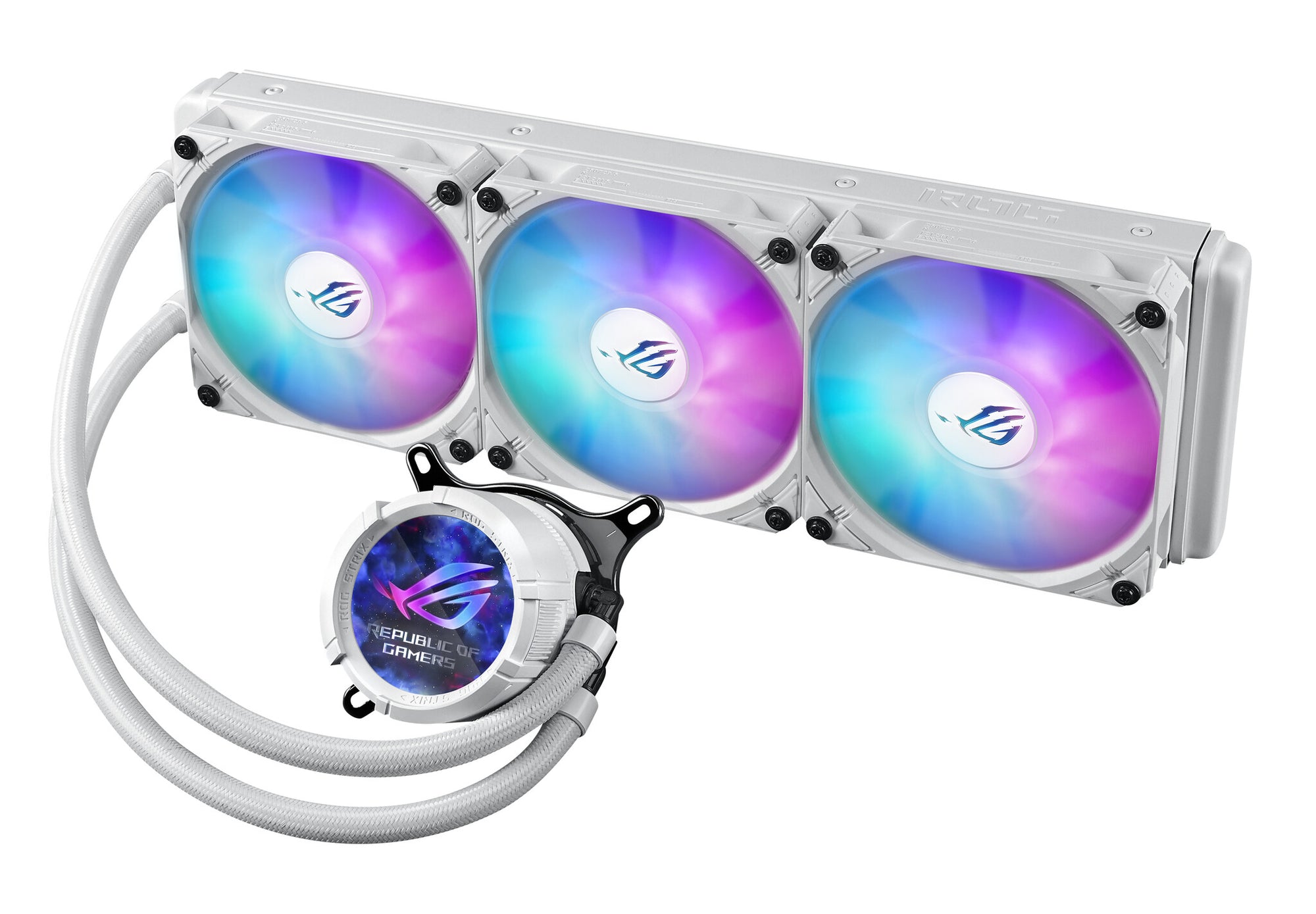

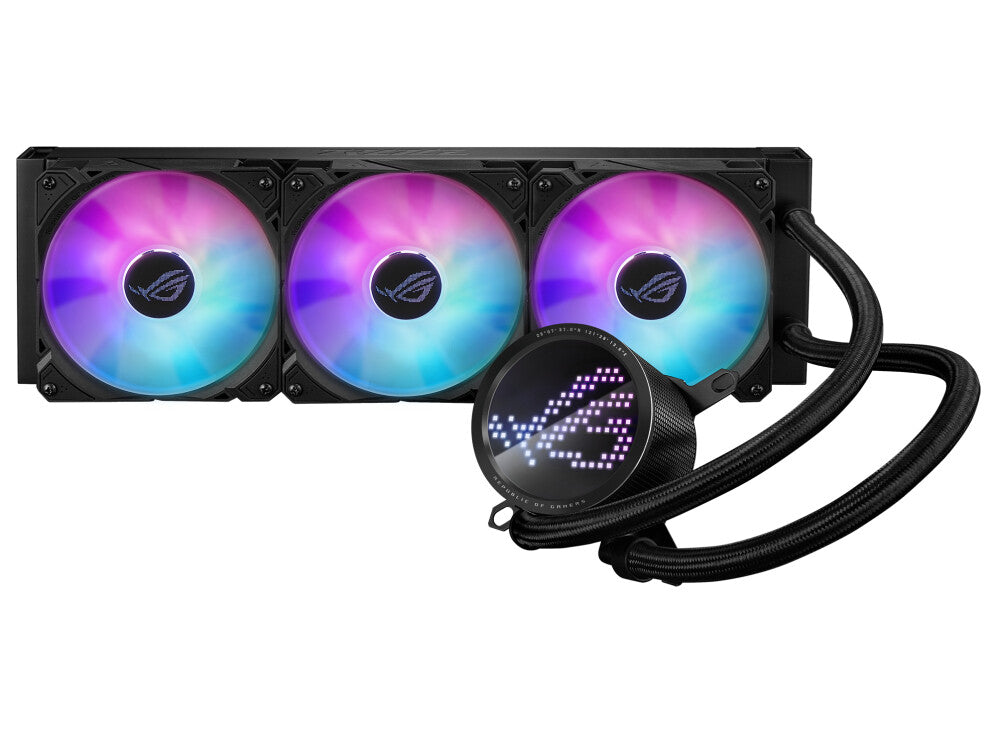

Elevate Your Style. Empower Your Cooling.
Achieve optimal performance and stunning aesthetics with the ROG Strix LC III 360 ARGB, featuring the latest generation Asetek’s new Gen7 v2 pump and ROG ARGB radiator fans. Effortlessly tackle the heat generated by AMD Ryzen™ and Intel® Core™ processors to unleash limitless power. Enjoy enhanced installation flexibility with a 360° rotatable water block that accommodates various mounting options. Explore a spectrum of Aura lighting modes to elevate the visual appeal of your gaming build. And embrace the perfect blend of efficiency and exquisite design for an unparalleled experience.
Cool Beyond Limits
The ROG Strix LC III 360 ARGB features a new and quieter Asetek Gen7 V2 pump with updated cold plate technology capable of an additional 100 watts of cooling and temperatures up to 0.5° C lower*. Elevate CPU cooling efficiency for unmatched stability under intense workloads.
* Compared to Asetek Gen7 pump
Experience the Freedom
An innovative 360° rotatable water block features a magnetic design, offering unprecedented flexibility in water cooling installation.
Lighting Brilliance
Elevate your gaming rig with a variety of Aura lighting effects to create a colorful spectacle. The smart mode takes it further with dynamic lighting to visualize different hardware loads. And with Aura Creator support, you can tailor your own unique lighting effects, making your setup truly one-of-a-kind.
Cool & Quiet Mastery
Aesthetic Ingenuity
Subtle details, uncompromising style in form and function.
Extensive Compatibility
The ROG Strix LC III 360 ARGB is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.
Cooling on Display
The addition of an LCD screen introduces a constellation of possibilities. Display live system stats, or customize animations to craft your unique gaming build.
Performance | |
---|---|
Fan static pressure | 3.92 mmH2O |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 800 RPM |
Fan speed (max) | 2200 RPM |
Fan noise level (max) | 36 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 70.38 cfm |
Noise level (high speed) | 36 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Processor |
Design | |
---|---|
Display type | LCD |
Water block material | Copper |
Illumination colour | Multi |
Illumination LED | Yes |
Number of heat pipes | 2 |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Package weight | 2.4 kg |
Package height | 135.5 mm |
Package depth | 207 mm |
Package width | 404 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.62 kg |
Waterblock height | 6.1 cm |
Waterblock depth | 7.2 cm |
Waterblock width | 7.2 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12.1 cm |
Radiator width | 39.4 cm |
Elevate Your Style. Empower Your Cooling.
Achieve optimal performance and stunning aesthetics with the ROG Strix LC III 240 ARGB White Edition, featuring the latest generation Asetek’s new Gen7 v2 pump and ROG ARGB radiator fans. Effortlessly tackle the heat generated by AMD Ryzen™ and Intel® Core™ processors to unleash limitless power. Enjoy enhanced installation flexibility with a 360° rotatable water block that accommodates various mounting options. Explore a spectrum of Aura lighting modes to elevate the visual appeal of your gaming build. And embrace the perfect blend of efficiency and exquisite design for an unparalleled experience.
Cool Beyond Limits

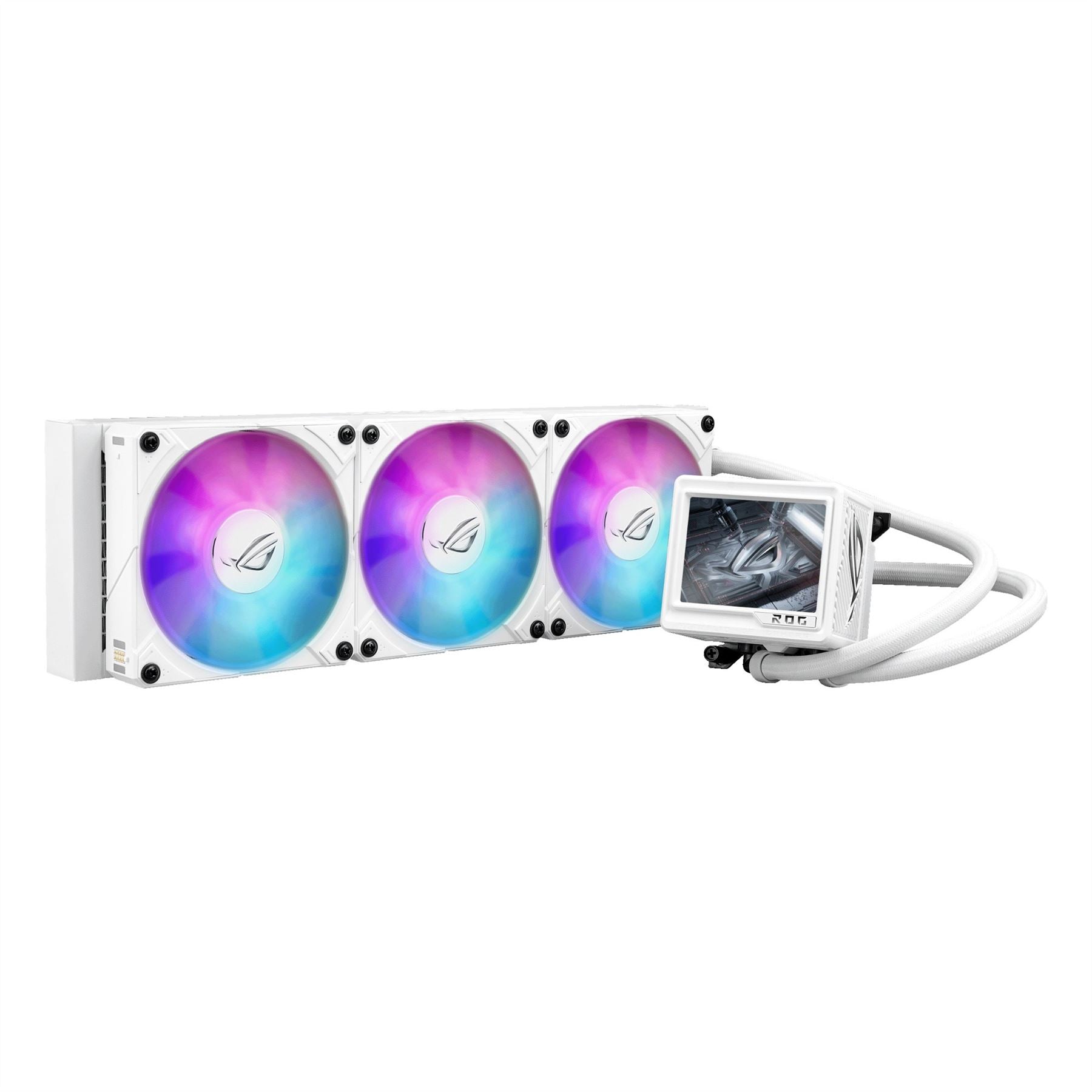

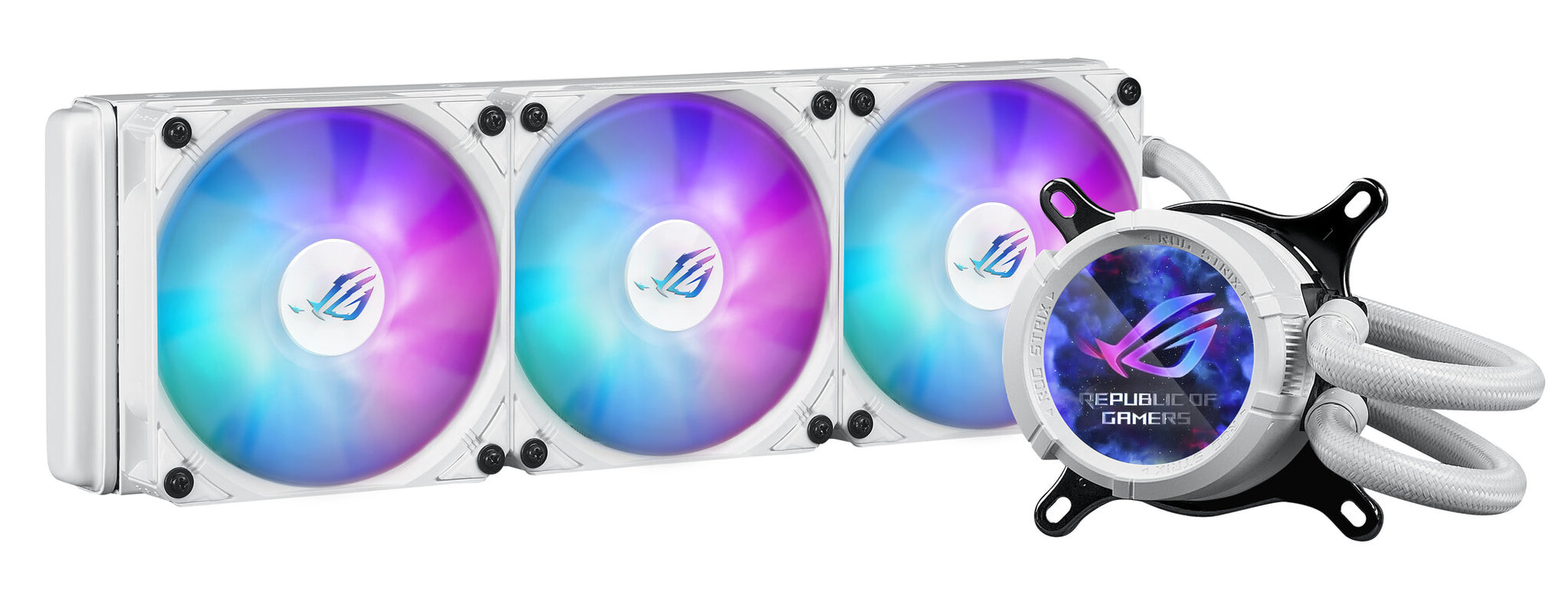

The ROG Strix LC III 240 ARGB White Edition features a new and quieter Asetek Gen7 V2 pump with updated cold plate technology capable of an additional 100 watts of cooling and temperatures up to 0.5° C lower*. Elevate CPU cooling efficiency for unmatched stability under intense workloads.
* Compared to Asetek Gen7 pump
Experience the Freedom
An innovative 360° rotatable water block features a magnetic design, offering unprecedented flexibility in water cooling installation.
Lighting Brilliance
Elevate your gaming rig with a variety of Aura lighting effects to create a colorful spectacle. The smart mode takes it further with dynamic lighting to visualize different hardware loads. And with Aura Creator support, you can tailor your own unique lighting effects, making your setup truly one-of-a-kind.
Cool & Quiet Mastery
Aesthetic Ingenuity
Subtle details, uncompromising style in form and function.
Extensive Compatibility
The ROG Strix LC III 240 ARGB White Edition is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.
Cooling on Display
The addition of an LCD screen introduces a constellation of possibilities. Display live system stats, or customize animations to craft your unique gaming build.
Performance | |
---|---|
Fan static pressure | 3.92 mmH2O |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 800 RPM |
Fan speed (max) | 2200 RPM |
Fan noise level (max) | 36 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 70.38 cfm |
Noise level (high speed) | 36 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Processor |
Design | |
---|---|
Display type | LCD |
Water block material | Copper |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | White |
Weight & dimensions | |
---|---|
Waterblock height | 6.1 cm |
Waterblock depth | 7.2 cm |
Waterblock width | 7.2 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12.1 cm |
Radiator width | 27.2 cm |
Elevate Your Style. Empower Your Cooling.
Achieve optimal performance and stunning aesthetics with the ROG Strix LC III 240 ARGB, featuring the latest generation Asetek’s new Gen7 v2 pump and ROG ARGB radiator fans. Effortlessly tackle the heat generated by AMD Ryzen™ and Intel® Core™ processors to unleash limitless power. Enjoy enhanced installation flexibility with a 360° rotatable water block that accommodates various mounting options. Explore a spectrum of Aura lighting modes to elevate the visual appeal of your gaming build. And embrace the perfect blend of efficiency and exquisite design for an unparalleled experience.
Cool Beyond Limits
The ROG Strix LC III 240 ARGB features a new and quieter Asetek Gen7 V2 pump with updated cold plate technology capable of an additional 100 watts of cooling and temperatures up to 0.5° C lower*. Elevate CPU cooling efficiency for unmatched stability under intense workloads.
* Compared to Asetek Gen7 pump
Experience the Freedom
An innovative 360° rotatable water block features a magnetic design, offering unprecedented flexibility in water cooling installation.
Lighting Brilliance
Elevate your gaming rig with a variety of Aura lighting effects to create a colorful spectacle. The smart mode takes it further with dynamic lighting to visualize different hardware loads. And with Aura Creator support, you can tailor your own unique lighting effects, making your setup truly one-of-a-kind.
Cool & Quiet Mastery
Aesthetic Ingenuity
Subtle details, uncompromising style in form and function.
Extensive Compatibility
The ROG Strix LC III 240 ARGB is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.
Cooling on Display
The addition of an LCD screen introduces a constellation of possibilities. Display live system stats, or customize animations to craft your unique gaming build.
Performance | |
---|---|
Fan static pressure | 3.92 mmH2O |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 800 RPM |
Fan speed (max) | 2200 RPM |
Fan noise level (max) | 36 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 70.38 cfm |
Noise level (high speed) | 36 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Processor |
Design | |
---|---|
Display type | LCD |
Water block material | Copper |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Waterblock height | 6.1 cm |
Waterblock depth | 7.2 cm |
Waterblock width | 7.2 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12.1 cm |
Radiator width | 27.2 cm |
MAG - Unite as One
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
The MAG CORELIQUID E Series, inspired by the passing of time and the shape of solar eclipse, is an innovative product that combines advanced cooling technology with a striking visual design. The MAG CORELIQUID E Series’ circular shape represents the cyclical nature of time and the continuous flow of energy.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
ACHIEVE FULL CPU COVERAGE
By enlarging the contact area between the coolant and the copper base of the water block, the MAG CORELIQUID E Series maximizes heat dissipation from the CPU. The enhanced density of the micro-channel design improves the efficiency of the water cooling system by enlarging the contact surface area.
PUMP COOLING DESIGN
Ensures that the cooled water temperature can be delivered to the desired location of the heat source, effectively reducing the temperature of the heat source.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
HIGH THERMAL DISSIPATION
The radiator has a 12 pathway designed to help rapidly dissipate heat.
EVAPORATION PROOF TUBING
The multi-layer structure effectively prevents the liquid from evaporating, while the reinforced mesh plastic tube enhances the durability of the exterior mesh.
FAN CONSTRUCTION
The fan's FDB bearing helps reduce noise level while minimizing vibrations.
The fan blades are constructed of low impurity acrylic for better ARGB lighting presentation.
INTEGRATING WITH THE SYSTEM ENVIRONMENT
With the MSI CENTER software, users can integrate MSI liquid cooling with MSI motherboard and adjust the speed of the cooling fan and pump through the motherboard. The MSI CENTER provides users with easy-to-use controls to fine-tune their hardware and achieve optimal computer performance.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
Performance | |
---|---|
Pump motor speed | 3000 RPM |
Pump noise level | 20 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 75.04 cfm |
Minimum airflow (imperial) | 25.5 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Motherboard, Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Radiator material | Aluminum |
Product colour | White |
Power | |
---|---|
Pump power consumption | 4.8 W |
Fan power consumption | 3 W |
Weight & dimensions | |
---|---|
Cable length | 500 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Radiator height | 2.7 cm |
Radiator depth | 11.9 cm |
Radiator width | 27.7 cm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Elevate Your Style. Empower Your Cooling.
Achieve optimal performance and stunning aesthetics with the ROG Strix LC III 360, featuring the latest generation Asetek’s new Gen7 v2 pump and ROG radiator fans. Effortlessly tackle the heat generated by AMD Ryzen™ and Intel® Core™ processors to unleash limitless power. Enjoy enhanced installation flexibility with a 360° rotatable water block that accommodates various mounting options. Explore a spectrum of Aura lighting modes to elevate the visual appeal of your gaming build. And embrace the perfect blend of efficiency and exquisite design for an unparalleled experience.
Cool Beyond Limits
The ROG Strix LC III 360 features a new and quieter Asetek Gen7 V2 pump with updated cold plate technology capable of an additional 100 watts of cooling and temperatures up to 0.5° C lower*. Elevate CPU cooling efficiency for unmatched stability under intense workloads.
* Compared to Asetek Gen7 pump
Experience the Freedom
An innovative 360° rotatable water block features a magnetic design, offering unprecedented flexibility in water cooling installation.
Lighting Brilliance
Elevate your gaming rig with a variety of Aura lighting effects to create a colorful spectacle. The smart mode takes it further with dynamic lighting to visualize different hardware loads. And with Aura Creator support, you can tailor your own unique lighting effects, making your setup truly one-of-a-kind.
Cool & Quiet Mastery
0dB Technology
Fans automatically drop to 0RPM in low-load mode, delivering a silent and peaceful environment.
Anti-vibration Rubber
The fans are equipped with Anti-Vibration Rubber at each of their four corners, effectively reducing resonance noise.
Strong Air Pressure
The new fan blade design offers strong static pressure for consistent performance.
Aesthetic Ingenuity
Subtle details, uncompromising style in form and function.
Extensive Compatibility
The ROG Strix LC III 360 is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor and build flexibility.
Cooling on Display
The addition of an LCD screen introduces a constellation of possibilities. Display live system stats, or customize animations to craft your unique gaming build.
Performance | |
---|---|
Fan static pressure | 3.92 mmH2O |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2800 RPM |
Fan speed (min) | 800 RPM |
Fan speed (max) | 2200 RPM |
Fan noise level (max) | 36 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 70.38 cfm |
Noise level (high speed) | 36 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Liquid cooling kit |
Suitable location | Processor |
Design | |
---|---|
Display type | LCD |
Water block material | Copper |
Illumination LED | Yes |
Number of heat pipes | 2 |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Waterblock height | 6.1 cm |
Waterblock depth | 7.2 cm |
Waterblock width | 7.2 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12.1 cm |
Radiator width | 39.4 cm |
FUTURE-PROOF COMPATIBILITY
At the end of 2022, AMD is expected to release the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we are able to guarantee the compatibility of ARCTIC coolers with AMD's new processors.
Additionally, all coolers shipped by ARCTIC are already compatible with Intel's Alder Lake LGA1700 processors.
Coolers purchased from resellers, however, may still have been shipped without the corresponding accessories. In this case, please contact our customer support.
LF2-Series-Feature-Offset-Mount_EN
OPTIMISED FOR AMD RYZEN
AMD has been using a new multi-die layout for its high-end AM4 processors for a few generations now. In these processors, the hotspot is not centered by the IHS (Integrated Heat Spreader). To still allow for optimal heat dissipation, we have developed a special mounting kit for the Liquid Freezer II that allows the cold plate to be placed directly over the hotspot of the CPU. AMD's upcoming 7000 series AM5 processors are also come with multi-die layouts and can therefore benefit from the Liquid Freezer II's unique offset mounting.
lf2-series-feature-eha-2022
BEST CPU WATER COOLER
The Liquid Freezer II series has been tested numerous times by independent reviewers and praised for its performance, price and quietness. It consistently exceeds all expectations and sets new standards in compact water cooling. As a further mark of recognition, the Liquid Freezer II series was awarded the “European Hardware Award 2022” for the best CPU water cooler.
LFII_280-Feature-Colours
CREATE YOUR OWN LOOK
The Liquid Freezer II A-RGB combines the Liquid Freezer II series' efficient, proprietary PWM water pump with ARCTIC's new A-RGB fans optimized for static pressure. This allows for perfectly matched, multi-color lighting effects. With the help of the advanced A-RGB Gen.2 technology and customizable LEDs, you can design your system with your very own look.
lf2-series-feature-pump_2
EFFICIENT, PROPRIETARY PUMP
While many competitors use a generic water pump, we‘ve gone to great lengths to develop our own. The results? Quieter operation and higher efficiency. And, like the Liquid Freezer II’s fans, the water pump is PWM-controlled and adjusts its speed accordingly. This not only leads to significantly lower noise levels at low and typical loads, but also a much lower power consumption for all components of the AiO.
lf2-series-feature-radiator
PREMIUM CLASS RADIATOR
Unlike most all-in-one liquid cooling manufacturers, we rely on 38mm thick radiators with a high fin density. This allows a larger amount of water to be used in the circuit and significantly increases the cooling surface area.
Water has a much higher heat capacity than aluminum or copper. This leads to a slower and an up to 5 °C lower temperature increase in the time-limited turbo mode of modern CPUs.
lf2-series-feature-voltage-regulator
QUIET VRM FAN
Small fans have the reputation of being particularly loud and not very durable; that’s why we set out to develop a quiet, sturdy diagonal fan especially for the Liquid Freezer II. We’re 100% convinced that this 40 mm fan is just as durable as our other case fans. If the fan doesn’t live up to our claims, our customer service team will send you a replacement free of charge (without you having to replace the entire unit).
The fan is PWM-controlled and can cool your voltage converters and the socket area almost inaudibly by up to 15 °C especially in overclocking scenarios, with insufficient VRM cooling or in cases with low airflow and thus allows continuous high load. Provided there is sufficient VRM cooling, it can be turned off at will.
LF2-Series-Feature-Cable_Management_ARGB_2-fans
HIGH QUALITY TUBING WITH INTEGRATED CABLE MANAGEMENT
The Liquid Freezer II's fiber-reinforced 45 cm tubing allows for installation even in large cases and effectively prevents coolant evaporation, so you don't have to worry about refilling your compact water cooling system.
Plus, our sophisticated cable management hides both the RGB and PWM cables of your radiator fans in the sleeving.
This makes installation easy and tidy: you only have to connect two connectors to the mainboard, and there are no other cables to hide.
LF2-Series-Feature-Optimised-Pressure_A-RGB
FANS OPTIMIZED FOR STATIC PRESSURE
The illuminated P-fans are already mounted on the radiator from the factory. During the development of the new P-serie fans, special emphasis was placed on a focused airflow and thus a high static pressure. The fans guarantee extremely efficient cooling, even with increased air resistance. Therefore, the P-series fans are particularly suitable for use on heatsinks and radiators.
THE RIGHT CONFIGURATION FOR EVERYONE
With its long tubing, availability in five sizes, and various lighting options, the Liquid Freezer II series is extremely versatile. It has high compatibility and can be used in Small Form Factor PCs (note radiator thickness!) as well as in Full Towers.
The Liquid Freezer II is the successor to the well-respected Liquid Freezer water cooler from ARCTIC.
Performance | |
---|---|
Fan static pressure | 2 mmH2O |
VRM fan speed (min) | 1000 RPM |
VRM fan speed (max) | 3000 RPM |
Pump motor speed (min) | 800 RPM |
Pump motor speed (max) | 2000 RPM |
Fan speed (min) | 200 RPM |
Fan speed (max) | 1900 RPM |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum airflow | 68.9 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan controller | Yes |
Fan connector | 3-pin + 4-pin |
Number of fans | 2 fan(s) |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.17 A |
VRM fan power consumption | 2.7 W |
Pump power consumption | 0.5 W |
Weight & dimensions | |
---|---|
Package weight | 2.12 kg |
Package height | 170 mm |
Package depth | 335 mm |
Package width | 155 mm |
Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
Weight | 1.6 kg |
Pump height | 9.8 cm |
Pump depth | 7.8 cm |
Pump width | 5.3 cm |
Tube diameter | 1.24 cm |
Tube inner diameter | 6 mm |
VRM fan diameter | 4 cm |
Tube length | 0.45 mm |
Radiator height | 13.8 cm |
Radiator depth | 31.7 cm |
Radiator width | 3.8 cm |
Packaging content | |
---|---|
Package type | Box |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
The brand-new Symphony ARGB AIO liquid cooler delivers a cooling solution with unique ARGB lighting. The mirror ARGB lighting bar gives a subtle and beautiful color scheme. Specifically designed using EPDM+IIP high-density tubes and 14 dense cooling fins, the Symphony ARGB not only extends its lifespan but also enhances the entire cooling performance. The Symphony ARGB is ready to bring you a brand-new user experience.
Mirror ARGB Lighting
Pump Head
Designed with the high liquid flow and the low-noise pump makes it easy to have better cooling and less noise.
EPDM+IIP High-Density Tubing
The EEPDM+IIP high-density tubing is very durable, making less loss of liquid.
Covered with aluminum alloy, the joints of the tubing highly decrease the chance of liquid leaking.
14 Dense Cooling Fins
The 14 dense cooling fins are specially designed for AIO coolers, delivering efficient cooling.
Sync with the Motherboard for
16.8 Million Possible Colors
Working in sync with the motherboard or the ARGB controller, the pump can display the colors you like anytime.
The ARGB PWM fan
The ARGB PWM fan delivers thermal control, shock absorption, and high airflow. Meanwhile, it provides the CPU a better cooling solution.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 40000 h |
Pump's mean time to failure (MTTF) | 70000 h |
Fan speed (min) | 800 RPM |
Fan speed (max) | 1600 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 3-pin |
Pump noise level | 30 dB |
Fan noise level (max) | 35 dB |
Fan noise level (min) | 20 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.1 mmH2O |
Maximum airflow | 72 cfm |
Supported processor sockets | LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 3-pin + 4-pin |
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Radiator material | Aluminium |
Product colour | Black |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Tube diameter | 8 mm |
Tube inner diameter | 1 cm |
Tube length | 38 cm |
Radiator height | 12 cm |
Radiator depth | 2.7 cm |
Radiator width | 27.7 cm |
Packaging content | |
---|---|
CPU socket spacer(s) | Yes |
CPU bracket(s) | Yes |
RGB controller included | Yes |
LED controller dimensions (W x D x H) | 66.7 x 67 x 56 mm |
LED controller interface | 4-pin |
Screws included | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Quiet and superior cooling
Pure Loop 2 360mm is the impressively high-performing and silent All-in-One water cooling unit with subtle ARGB lighting for users with overclocked systems. Its all-black design and ARGB on the cooling block makes Pure Loop 2 360mm a true eye-catcher in every PC case. Function, style and usability go hand in hand with Pure Loop 2 360mm, as the refill port and included coolant bottle allow easy maintenance for a long lifespan.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 80000 h |
Pump motor speed | 5500 RPM |
Pump motor speed (min) | 4000 RPM |
Pump motor speed (max) | 5500 RPM |
Fan speed (max) | 2100 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 4-pin |
Fan bearing technology | Rifle bearing |
Pulse-width modulation (PWM) support | Yes |
Noise level (high speed) | 36.8 dB |
Noise level (low speed) | 17.2 dB |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |
Number of fans | 3 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.45 A |
LED voltage | 5 V |
Fan power consumption | 5.4 W |
Weight & dimensions | |
---|---|
Package weight | 2.34 kg |
Package height | 138 mm |
Package depth | 206 mm |
Package width | 461 mm |
Cable length | 0.5 m |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.36 kg |
Waterblock height | 9.45 cm |
Waterblock depth | 4.2 cm |
Waterblock width | 8.3 cm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 12 cm |
Radiator width | 39.7 cm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS, Triman, UKCA, UL ECOLOGO, WEEE |
Logistics data | |
---|---|
Shipping (inner) case gross weight | 10.7 kg |
Shipping (inner) case height | 30.5 cm |
Shipping (inner) case length | 47.6 cm |
Shipping (inner) case width | 43 cm |
Products per shipping (inner) case | 4 pc(s) |
The CORSAIR iCUE H100x RGB ELITE liquid CPU cooler combines brilliant cooling and refined aesthetics, with two CORSAIR SP120 RGB ELITE Series PWM fans and stunning RGB lighting.
iCUE H100xRGB ELITE
ALL-IN-ONE LIQUID CPU COOLER
COOL OFF WITH THE LIGHTS ON
POWERFUL COOLING FOR YOUR CPU
Everything you need to keep your processor running at peak performance with liquid cooling, all in one box – perfect for first-timers and novice builders.
EFFORTLESS INSTALLATION
Compatible with the latest Intel® and AMD® motherboard sockets including LGA 1700, AMD AM5, and more. Installation is quick and easy with the included modular, tool-free mounting bracket and pre-applied thermal paste.
RGB THE EASY WAY
Enjoy amazing RGB lighting from 16 individually addressable LEDs on the pump head and eight more per fan. Simply plug into a standard 5V motherboard ARGB header for easy control.
For a complete iCUE experience check out our iCUE enabled CPU coolers, or upgrade your H100x with a Commander Core XT controller.
THE COOLING YOU NEED
A thermally optimized copper cold plate draws heat away from your CPU, dispersed from a 240mm radiator by CORSAIR SP120 RGB ELITE fans with AirGuide technology.
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together,
creating a fully immersive ecosystem with intuitive control.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Bearing type | Hydraulic |
Pulse-width modulation (PWM) support | Yes |
Fan 2 maximum air pressure | 1.46 mmH2O |
Fan 2 maximum airflow | 47.73 cfm |
Fan 2 noise level (high speed) | 28 dB |
Fan 2 noise level (low speed) | 7 dB |
Fan 2 rotational speed (max) | 1500 RPM |
Fan diameter 2 | 12 cm |
Maximum air pressure | 1.46 mmH2O |
Minimum air pressure | 0.28 mmH2O |
Maximum airflow | 47.73 cfm |
Minimum airflow (imperial) | 16.91 cfm |
Noise level (high speed) | 28 dB |
Noise level (low speed) | 7 dB |
Rotational speed (max) | 1500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Illumination colour | Multi |
Illumination LED | Yes |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Hub voltage | 5 V |
Weight & dimensions | |
---|---|
Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 1.79 kg |
Radiator width | 24 cm |
