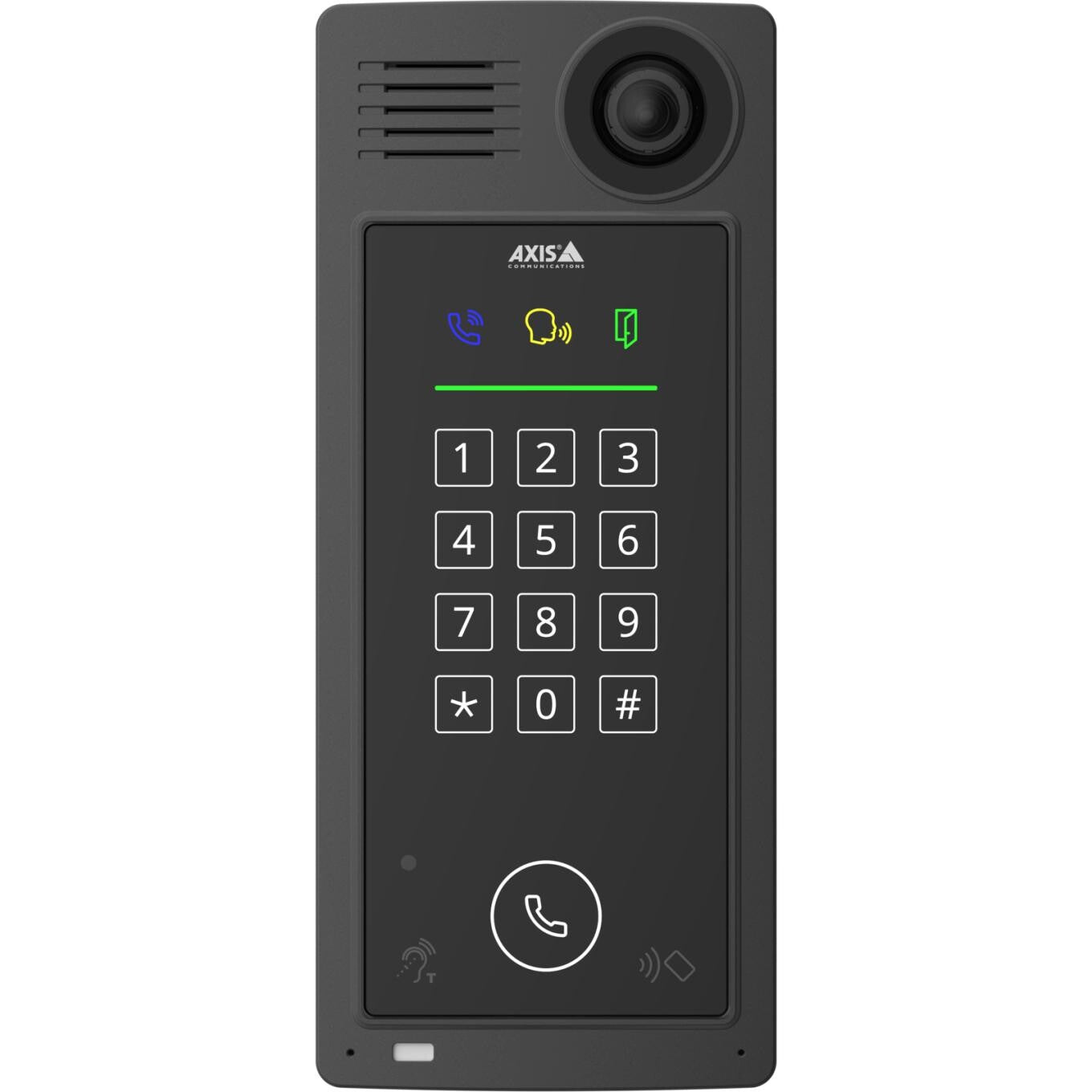

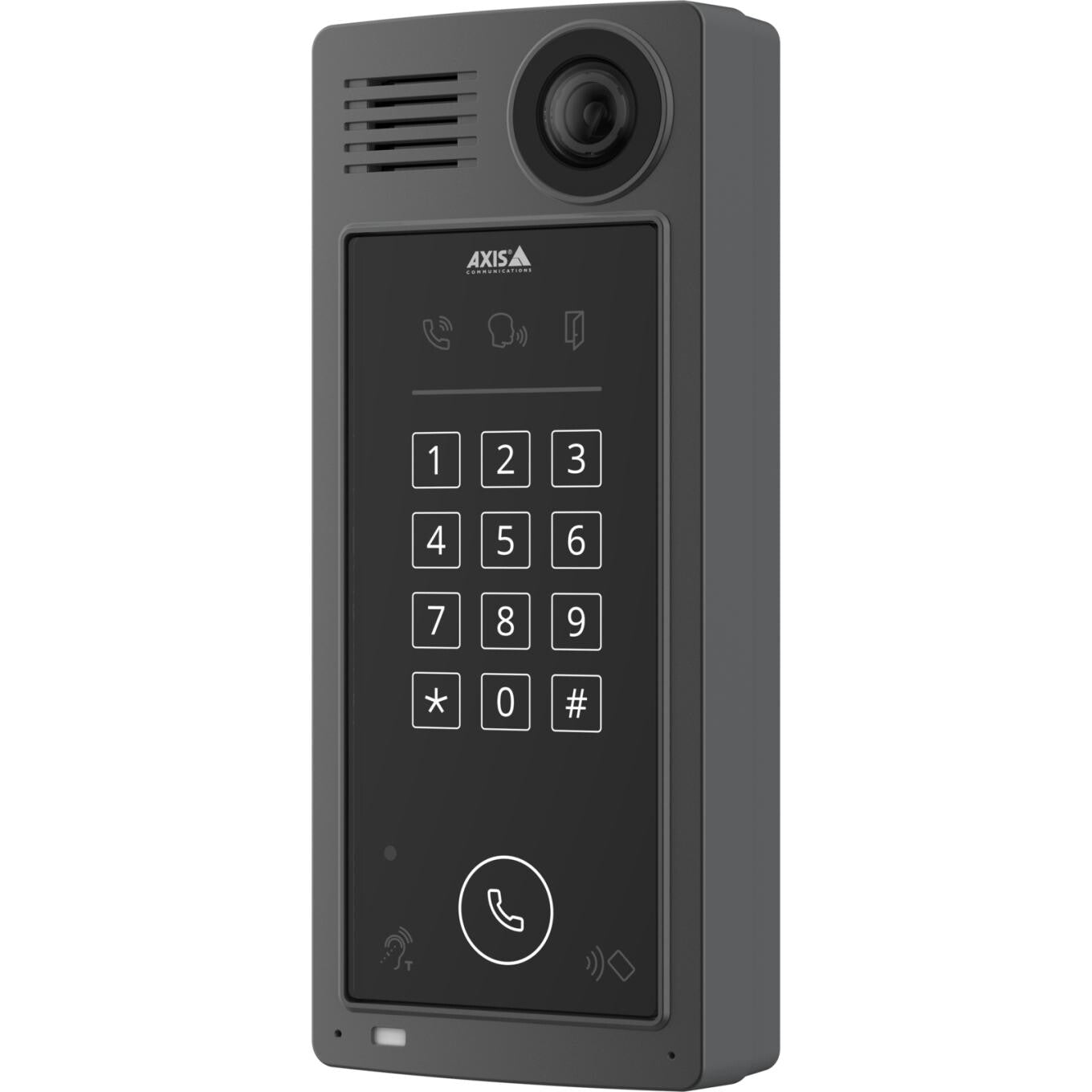

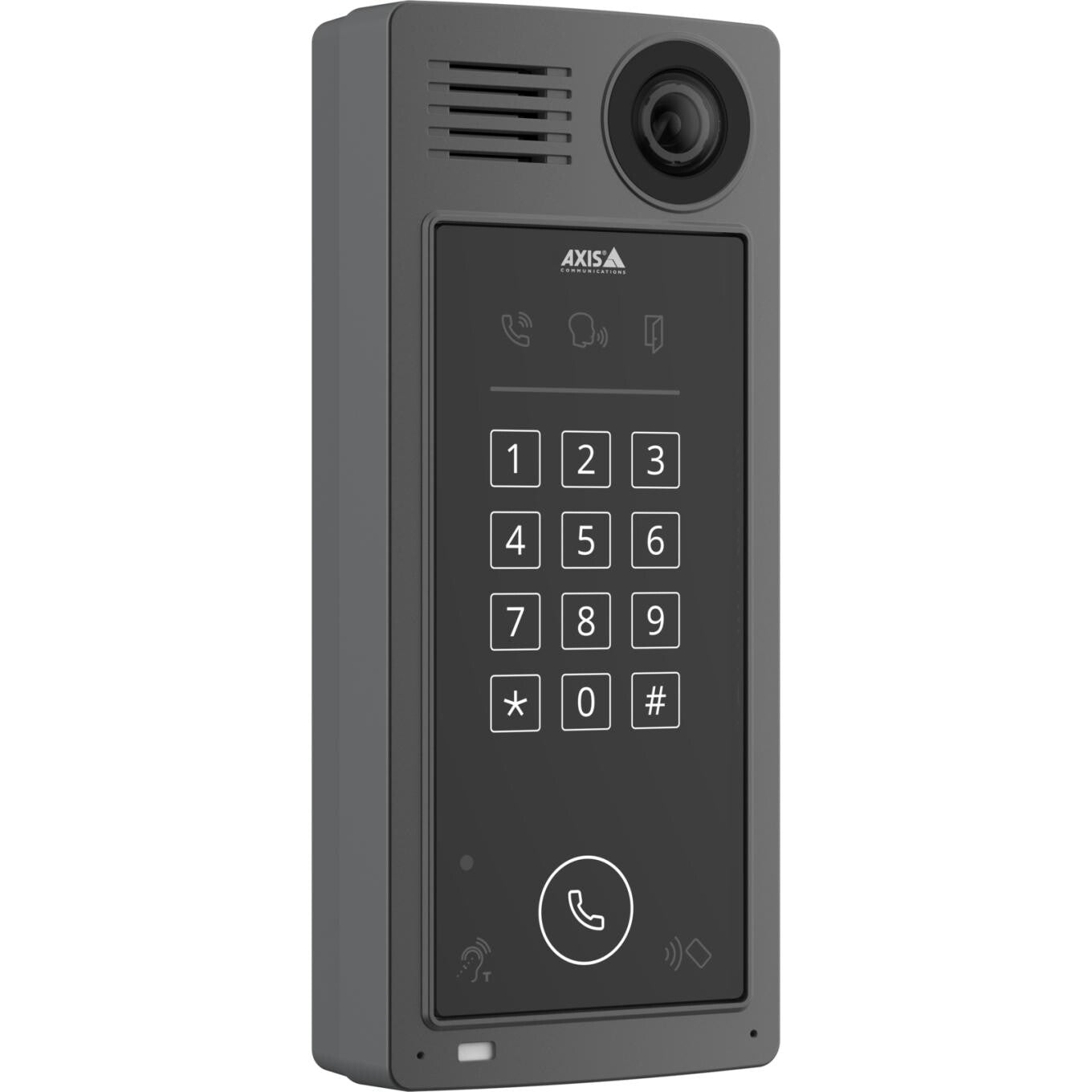

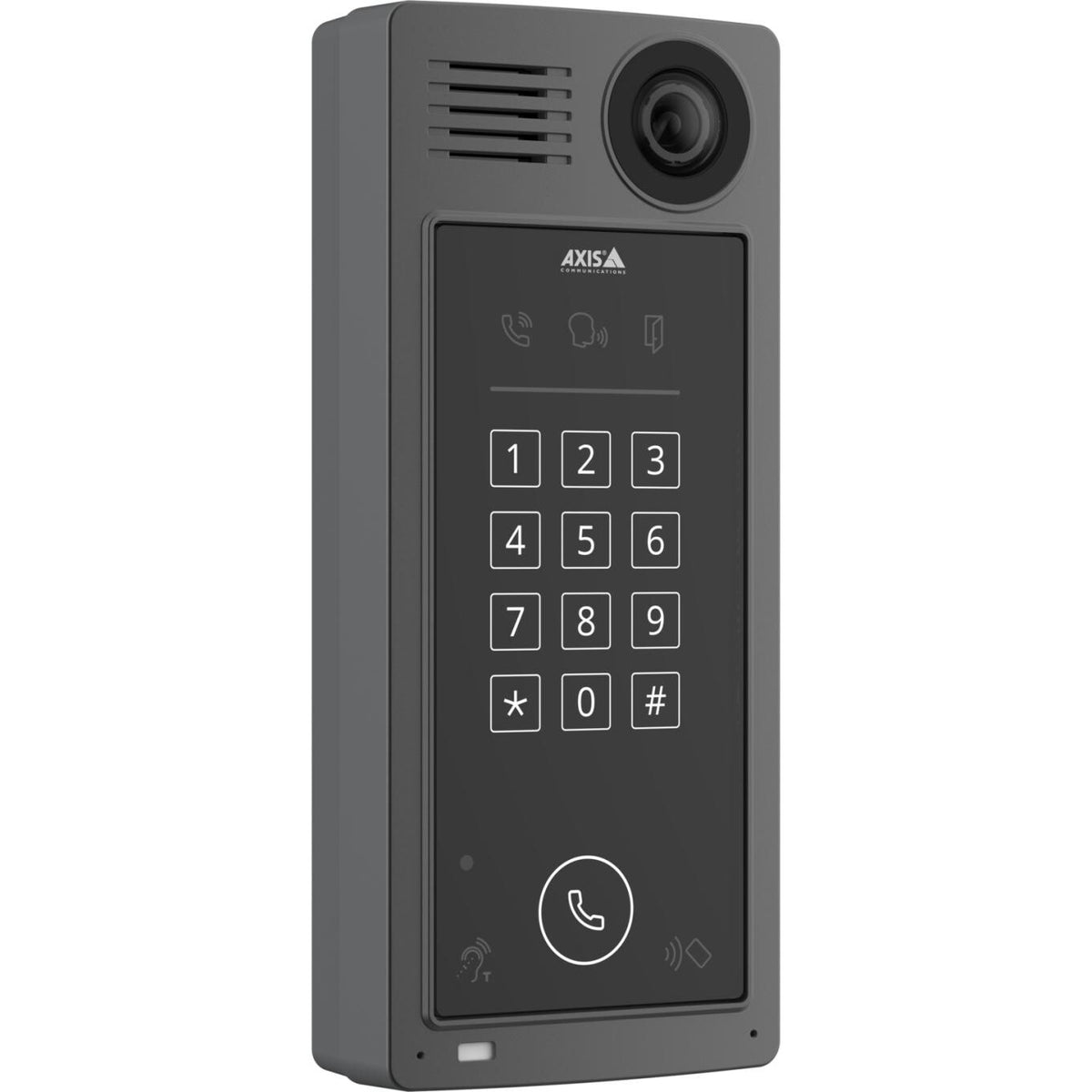

AXIS A8207-VE Mk II Network Video Door Station combines a fully featured 6 MP security camera with high-quality, two-way audio communication and remote entry control. It also has an integrated RFID multi-frequency reader with support for most standard credential types including HID® iClass®, allowing you to integrate with other access control systems. By providing both surveillance and access for visitors and employees, AXIS A8207-VE Mk II increases the efficiency while keeping down the number of devices at the door. Interaction is intuitive and accessible, with an induction loop for hearing aids. Analytics, such as motion or sound detection, are supported.
Features | |
---|---|
Certification | EN 55032 Class A, EN 55024, EN 61000-6-2, FCC Part 15 Subpart B Class A and Subpart C and Subpart E, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, UL 293, UL 294, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068–2–6, IEC 60068–2–78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X, EN 300330, EN 62311, RSS-Gen, RSS-210, EN 301 489-3, EN 303 348 |
Product colour | Black, Grey |
Housing material | Aluminium, Glass |
International Protection (IP) code | IP66 |
Performance | |
---|---|
Audio formats supported | ADPCM, G.711, G.726, LC-AAC, LPCM, OPUS, PCM |
Video formats supported | AVC, H.264, M-JPEG, MPEG4 |
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Camera | |
---|---|
Horizontal field of view | 180° |
Vertical field of view | 120° |
Fixed focal length | 1.56 mm |
Sensor type | CMOS |
Image sensor size | 1/2.9" |
Maximum frame rate | 30 fps |
Maximum video resolution | 3072 x 2048 pixels |
Megapixel (approx.) | 6 MP |
Built-in camera | Yes |
Ports & interfaces | |
---|---|
Connectivity technology | Wired |
Power | |
---|---|
Input voltage | 8-28 V |
Power source type | DC |
Weight & dimensions | |
---|---|
Bell weight | 1.3 kg |
Bell height | 24.8 cm |
Bell depth | 5.1 cm |
Bell width | 10.6 cm |
Weight | 1.3 kg |
Height | 248 mm |
Depth | 51 mm |
Width | 106 mm |
Operational conditions | |
---|---|
Storage temperature (T-T) | -40 - 65 °C |
Operating temperature (T-T) | -40 - 55 °C |
Packaging content | |
---|---|
Quick start guide | Yes |
