Purpose-built for enterprise applications and workloads
Trusted. Efficient. Versatile
For everything Enterprise storage, there's Exos E — the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads.

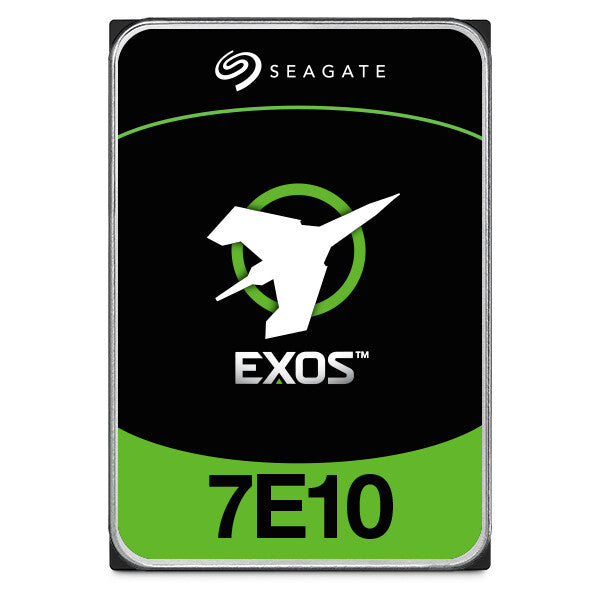

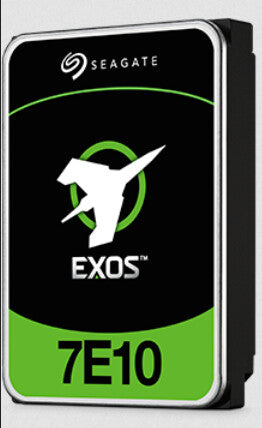

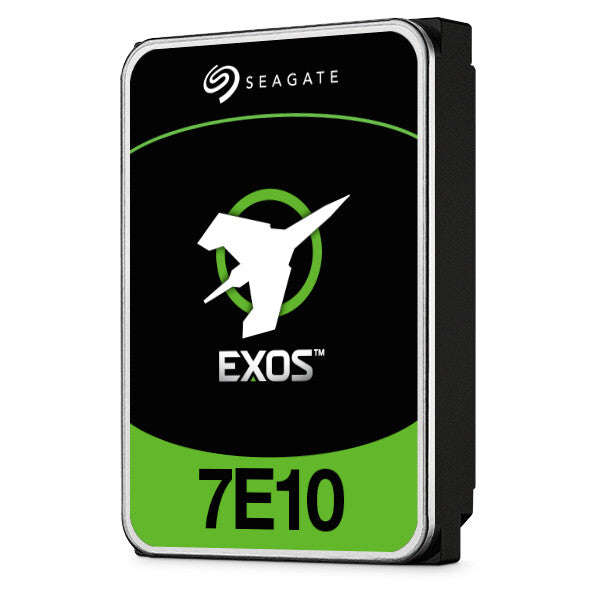

Exos 7E10
Specifically designed to address the needs of storing unstructured data cost-effectively.
Features | |
---|---|
Mean time between failures (MTBF) | 2000000 h |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Average latency | 4.16 ms |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Disk array |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 8 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 7.24 W |
Power consumption (typical) | 11.34 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 7E10 |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 70 G |
Non-operating vibration | 5 G |
Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions | |
---|---|
Weight | 716 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Purpose-built for enterprise applications and workloads
Trusted. Efficient. Versatile
For everything Enterprise storage, there's Exos E — the safest and most powerful way to traverse the datasphere and harness its full potential. Always on and always working, the Exos E series of hard drives is loaded with advanced options for optimal performance, reliability, security and user-definable storage management. Built on generations of industry-defining innovation, Exos E is designed to work and perform consistently in enterprise-class workloads.
Exos 7E10
Specifically designed to address the needs of storing unstructured data cost-effectively.
Features | |
---|---|
Mean time between failures (MTBF) | 2000000 h |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Average latency | 4.16 ms |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Disk array |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 2 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 5.9 W |
Power consumption (typical) | 10.3 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 7E10 |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 70 G |
Non-operating vibration | 2.27 G |
Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions | |
---|---|
Weight | 620 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

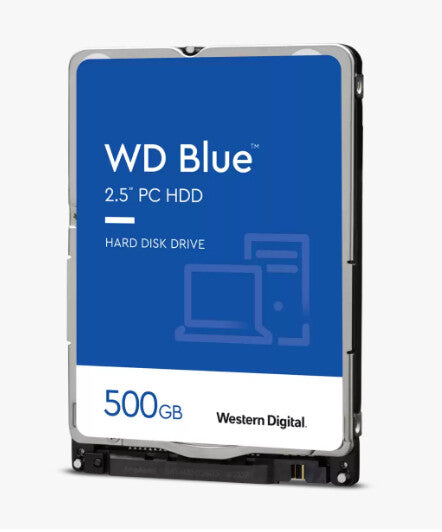

WD Quality
Built to the high standards of quality and reliability of the WD brand, these
drives offer the features and capacity ideal for everyday computing needs.
The Original
WD Blue 2.5-inch PC Hard Drives are designed and manufactured with the proven technology found in WD’s original award-winning hard drives.
Compatible
The latest generation of 7 mm 2.5-inch mobile drives is designed for thin and light mobile
applications, and is also compatible with most standard 9.5 mm bays.
SATA 6 Gb/s interface
The SATA 6 Gb/s interface provides greater flexibility for use with the latest chipsets as
well as backwards compatibility to legacy systems with SATA 3 Gb/s requirements.
Low Power Consumption
State-of-the-art seeking algorithms and advanced power management features help
ensure low power consumption.
Quiet
In a notebook, silence is golden. WD’s exclusive noise reducing technologies yield some
of the quietest 2.5-inch hard drives on the market.
Upgrading Your Drive is Easy
Acronis™ True Image™ WD Edition cloning software is available as a free download on
the WD Support site enabling you to copy all your data to a new drive. You don’t have to
reinstall your operating system to get all the benefits of a new drive.
Enhanced Availability (EA)—for 24x7 Access to Data
Western Digital provides enhanced availability models of WD Blue 2.5-inch PC Hard
Drives (WD5000LQVX) that deliver 24x7 access to information for data-intensive applications requiring round-the-clock operation. WD Blue EA models support the stringent
demands of “always-on” applications in lower-transaction environments and come with a
3-year standard warranty.
Features | |
---|---|
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 32 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 5400 RPM |
HDD capacity | 500 GB |
HDD size | 2.5" |
Operational conditions | |
---|---|
Storage temperature (T-T) | -40 - 65 °C |
Operating temperature (T-T) | 0 - 60 °C |
General | |
---|---|
Product Family | Blue |
Weight & dimensions | |
---|---|
Weight | 90.71 g |
Height | 7.11 mm |
Depth | 100.2 mm |
Width | 69.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

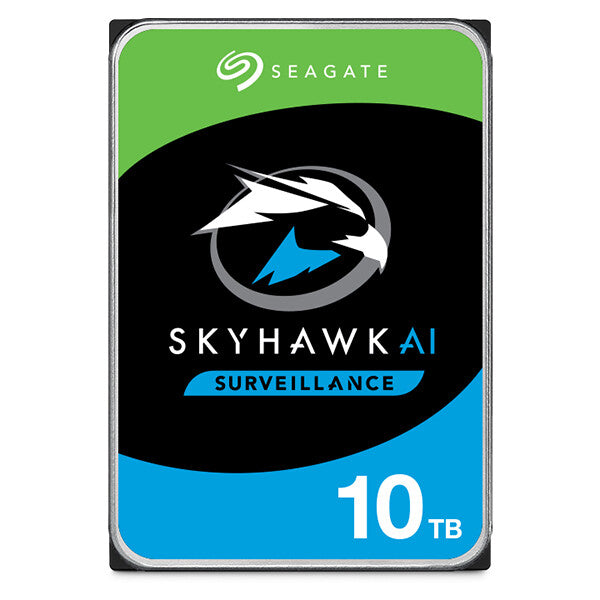

SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 18 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.
Features | |
---|---|
Component for | Surveillance system |
Type | HDD |
HDD speed | 7200 RPM |
HDD capacity | 10 TB |
HDD size | 3.5" |
General | |
---|---|
Product Family | SkyHawk |
Weight & dimensions | |
---|---|
Weight | 720 g |
Height | 26 mm |
Depth | 146 mm |
Width | 101 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

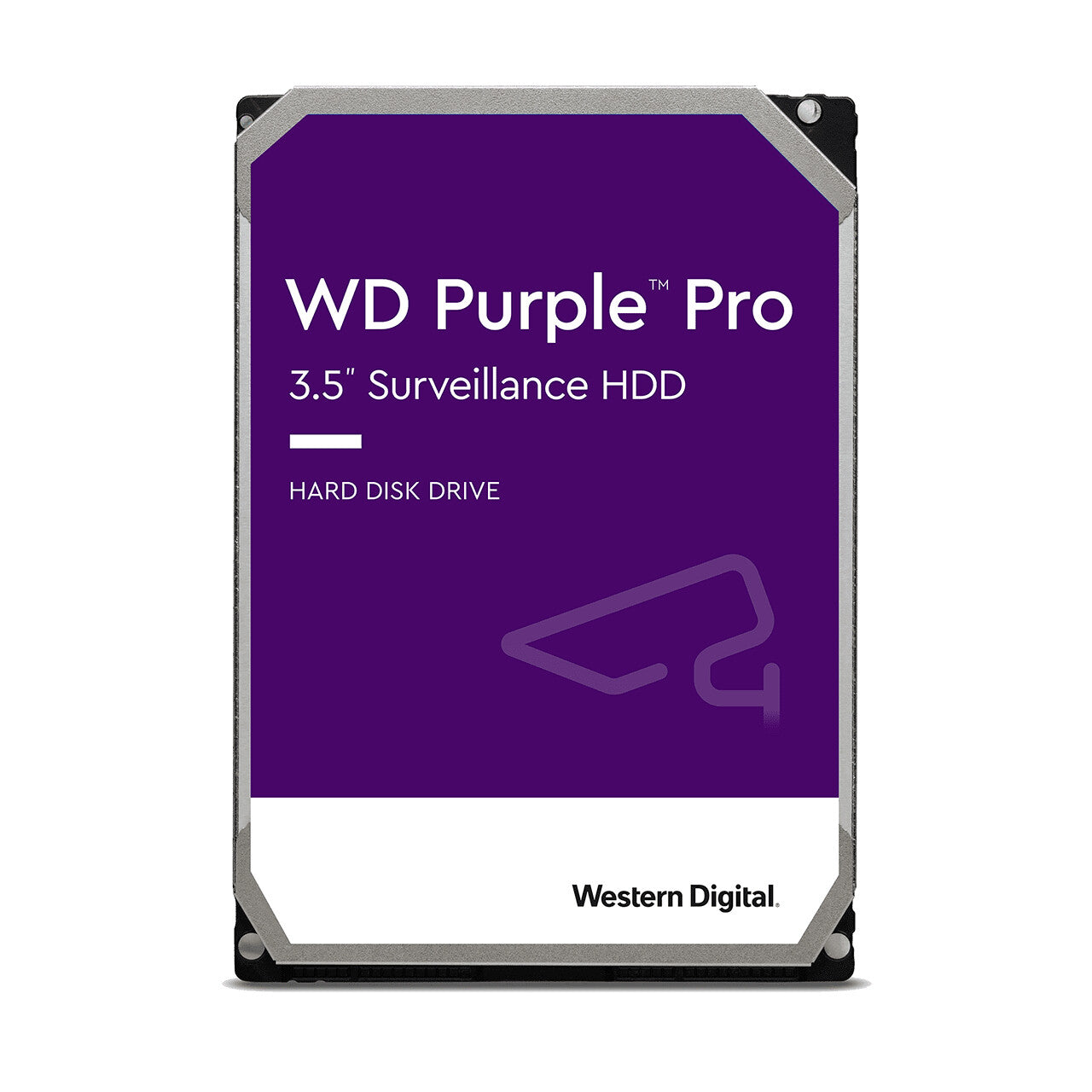

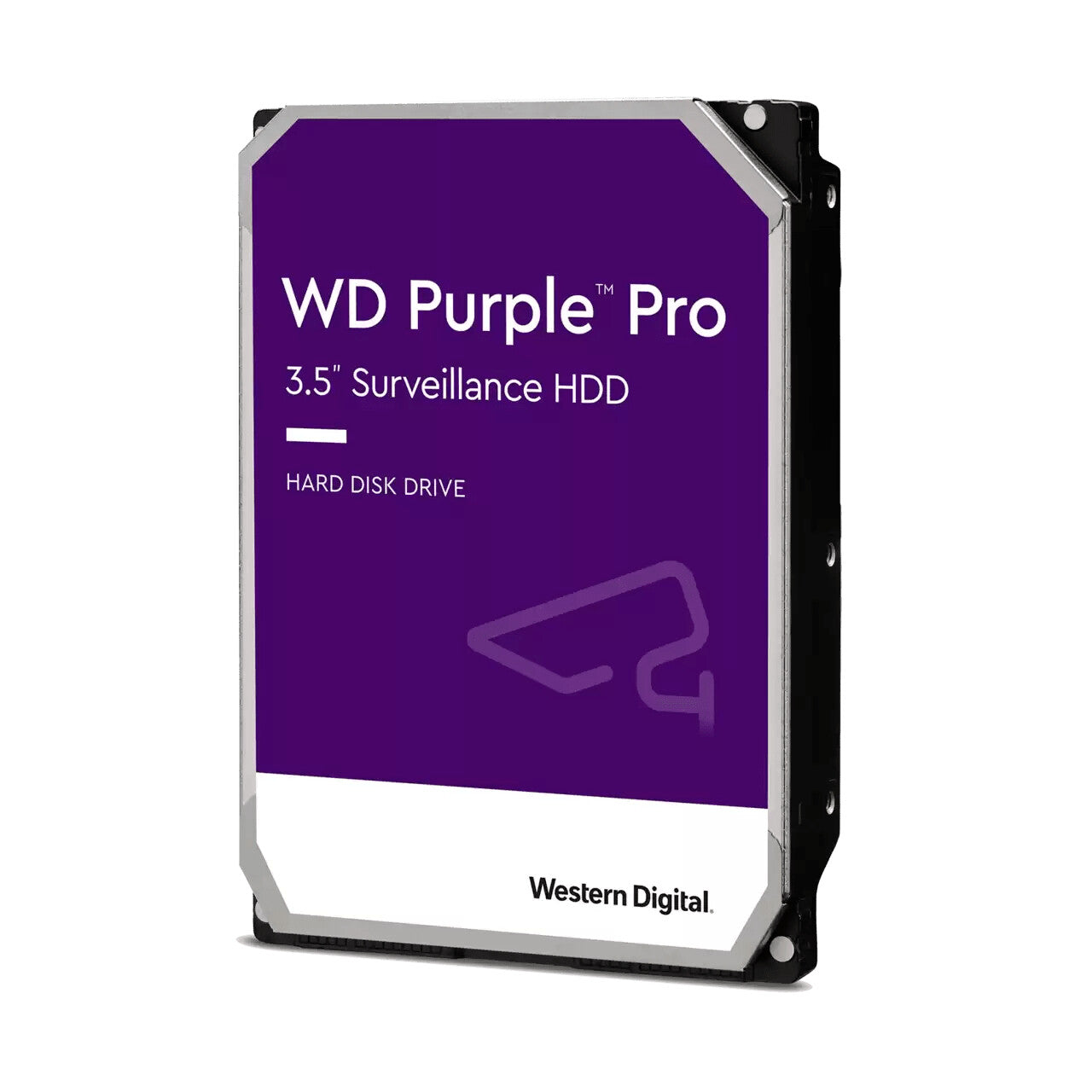

Advanced Storage for Smart Video Solutions
WD Purple™ Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.
Storage for advanced smart video solutions
WD Purple™ Pro drives are designed for new generations of high-end AI-enabled recorders, video analytics appliances, deep-learning servers and cloud solutions that can benefit from high-capacity storage with high performance and additional workload capability. WD Purple Pro drives feature AllFrame™ AI technology, which helps reduce frame loss, improve overall video playback, and not only enables recording of multiple streams per camera but also supports up to 32 AI streams per drive for deep learning analytics within the system. WD Purple Pro drives also feature enterprise-class performance, data integrity and drive reliability, especially in larger-scale systems and enclosures where operational vibration is present.
Empower your smart video solution.
Western Digital is a worldwide leader in the hard drive industry. With WD Purple™ Pro smart video storage, you have a drive engineered for high performance, durability and workload capability for advanced always-on AI-enabled smart video recorders, appliances, and servers. Efficiently and effectively extract value and insights from streamed and stored video, and help deliver a smarter world with advanced WD Purple Pro smart video storage.
Western Digital's exclusive AllFrame™ AI technology
All WD Purple™ Pro drives are equipped with AllFrame AI technology, which not only improves ATA streaming to help reduce frame loss and improve overall video playback, but supports up to 32 AI streams for Deep Learning analytics within the system.
Multiple cameras, multiple streams
Modern recorders now support multiple video streams per camera. WD Purple™ Pro drives are optimized to support up to 64 HD single-stream cameras4, and can also support many of the latest smart cameras that transmit multiple streams. With this flexibility, you can upgrade or scale your security or smart video solution in the future.
Advanced workload capability for advanced systems
WD Purple™ Pro drives feature a workload rating up to 550TB/year2 to support the heavy video data capture and analysis found in advanced AI-enabled recorders, video analytics appliances, deep learning analytics servers and cloud-based storage. The combination of streaming optimizations and enhanced durability and reliability make WD Purple Pro smart video storage ideal for all analytics servers, whether processing video streamed directly from cameras or large-scale captured video data sets.
Designed for reliable operation in advanced high-performance smart video solutions
With an MTBF of up to 2.5 million hours3 (12TB, 14TB, and 18TB1), WD Purple™ Pro drives are engineered for advanced smart video solutions that operate 24/7. With tarnish-resistant components and full multi-bay support, WD Purple Pro drives deliver reliable operation in large scale surveillance systems even in harsh environments.
Field-proven high capacity
Now on its 6th generation, field-proven HelioSeal™ technology delivers trusted high-capacity WD Purple™ Pro hard drives (12TB, 14TB and 18TB1) for the massive storage needs of AI-driven smart video and deep learning analytics.
Proactive storage management with WDDA
Western Digital® Device Analytics™ (WDDA) provides a wealth of storage device parametric operational and diagnostic data to compatible systems; algorithms interpret the data and direct the system to alert system administrators of specific recommended actions to address potential issues. WDDA is intended to empower OEMs, system integrators, and IT professionals to better monitor and proactively manage supported storage devices to maintain optimal operation.
Features | |
---|---|
Certification | RoHS |
Mean time between failures (MTBF) | 2500000 h |
Noise level (idle) | 20 dB |
Workload rate limit | 550 TB/year |
Start/stop cycles | 600000 |
Shock sensor | Yes |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 512 MB |
Component for | Server/workstation |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 14 TB |
HDD size | 3.5" |
Power | |
---|---|
Power consumption (read) | 6 W |
Power consumption (write) | 6 W |
Power consumption (idle) | 5.7 W |
Power consumption (standby) | 0.8 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 70 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 65 °C |
Weight & dimensions | |
---|---|
Weight | 690 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

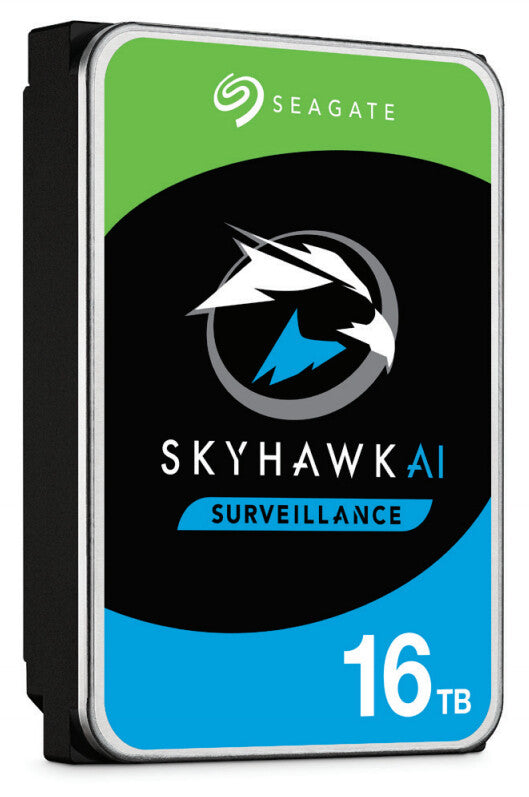

Market Leader in Surveillance Storage
Seagate has dominated the data storage industry for 40 years because we understand your unique data storage challenges.
We crafted SkyHawk™ AI 18 TB surveillance hard drives to help you achieve your goals.
See More. Store More.
24×7 workloads can leverage up to 18 TB with drives designed for DVR and NVR systems. SkyHawk surveillance drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.
Designed for AI Surveillance
We’ve made the right drive for your unique surveillance challenges.
- Supports up to 64 HD cameras and 32 additional AI streams
- Now offering capacities up to 18 TB
- Delivers zero dropped frames with ImagePerfect AI
- Enterprise-class workload rates at 550TB/yr for high reliability
Smart Surveillance
SkyHawk’s innovative ImagePerfect and ImagePerfect AI firmware are the clearest choices in the industry.
Watch a video that explains how ImagePerfect firmware enables better performance in surveillance environments.
Manage Drive Health
Video data is increasingly becoming more important within video surveillance applications. To better protect that data and provide peace of mind, Seagate is including three years of their industry-leading Rescue Data Recovery Services.
Data is important, and Rescue Data Recovery Services provide peace of mind in case of unexpected or accidental data corruption and drive damage. This service gives you access to a global team of world-class data recovery experts and has a 95% customer satisfaction rating.
SkyHawk Health Management (SHM) drive monitoring software is designed for prevention, intervention and recovery. It is available on standard SkyHawk and SKyHawk AI surveillance hard drives.
Protect Your Drive
Every SkyHawk and SkyHawk AI hard drive offers three years of Seagate’s Rescue Data Recovery Services plan to protect against problems that can cause data loss.
Features | |
---|---|
Mean time between failures (MTBF) | 2000000 h |
Workload rate limit | 550 TB/year |
Start/stop cycles | 300000 |
SMART technology | Yes |
HDD average transfer rate | 250 MB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Surveillance system |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 16 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 1.8 A |
Operating voltage | 5 / 12 V |
Power consumption (idle) | 5.1 W |
Power consumption (standby) | 1.05 W |
Power consumption (typical) | 6.71 W |
Operational conditions | |
---|---|
Operating temperature (T-T) | 5 - 70 °C |
General | |
---|---|
Product Family | Surveillance HDD |
Weight & dimensions | |
---|---|
Weight | 670 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

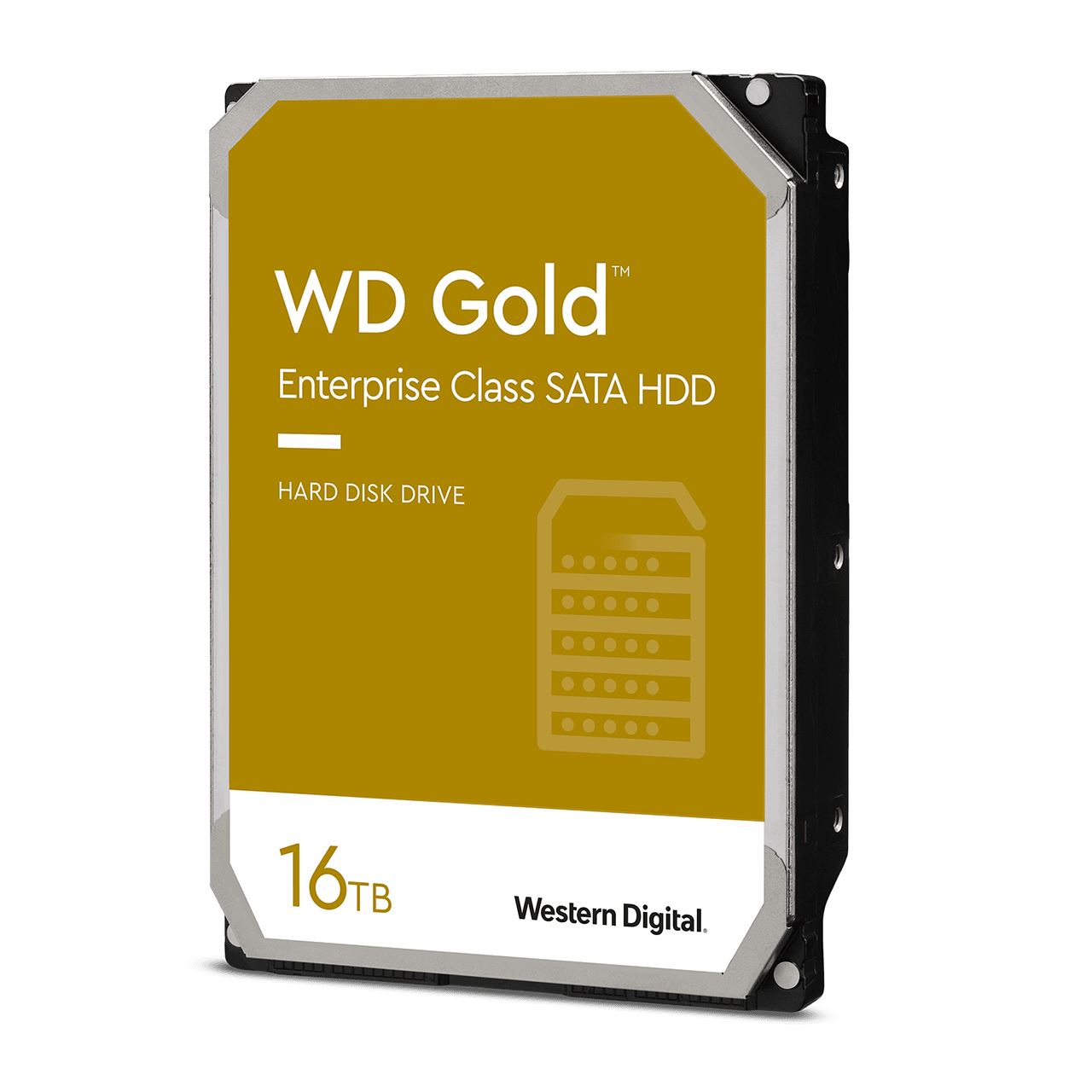

Beyond Expectations
WD Gold™ hard drives are performance-optimized for heavy application workloads, whether you need 1TB or 18TB1. The WD Gold HDD’s wide capacity range solves for the most demanding storage environments.
Enhanced Reliability
With up to 2.5M hours MTBF, WD Gold™ hard drives deliver enhanced levels of dependability and durability.
A World-Class Performer
Delivering excellent service to any storage environment, WD Gold™ hard drives are designed to handle workloads up to 550TB2 per year – among the highest of any 3.5-inch hard drive.
Vibration Protection
WD Gold™ has sophisticated monitoring electronics that help correct linear and rotational vibrations in real time using enhanced vibration protection technology for improved performance in high-vibration environments.
Play Well with Others
Broadly compatible with most PC and major enterprise operating systems. Specifically designed for use in enterprise-grade data centers and storage systems.
Features | |
---|---|
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
Storage drive buffer size | 512 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA |
HDD speed | 7200 RPM |
HDD capacity | 16 TB |
HDD size | 3.5" |
Weight & dimensions | |
---|---|
Weight | 690 g |
Height | 147 mm |
Depth | 26.1 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

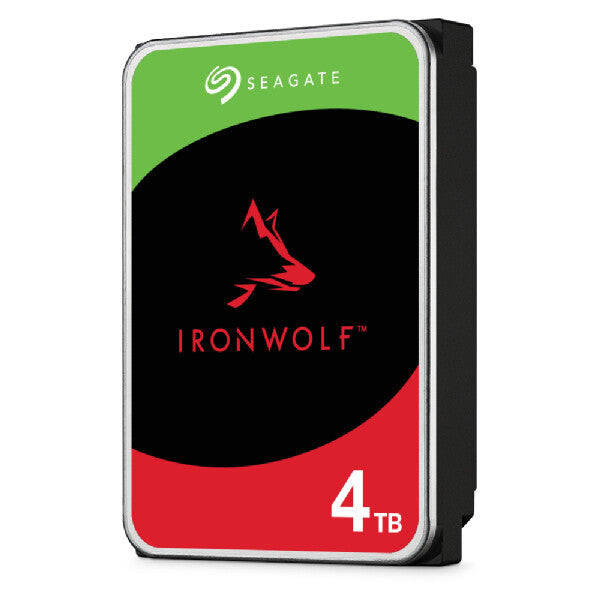

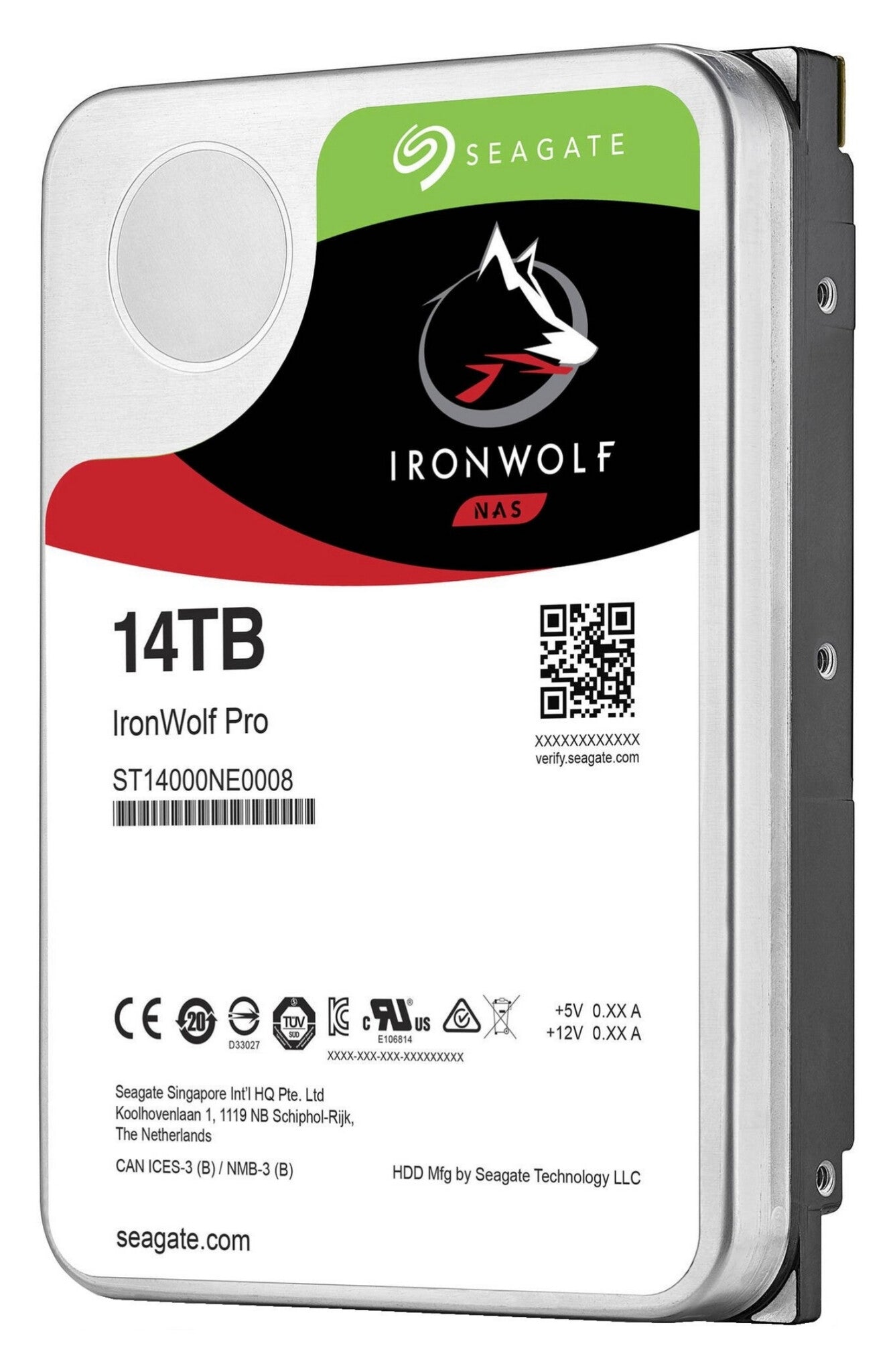

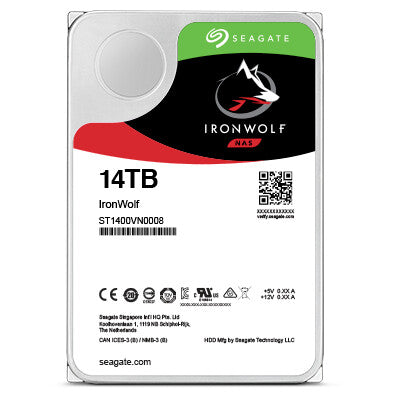

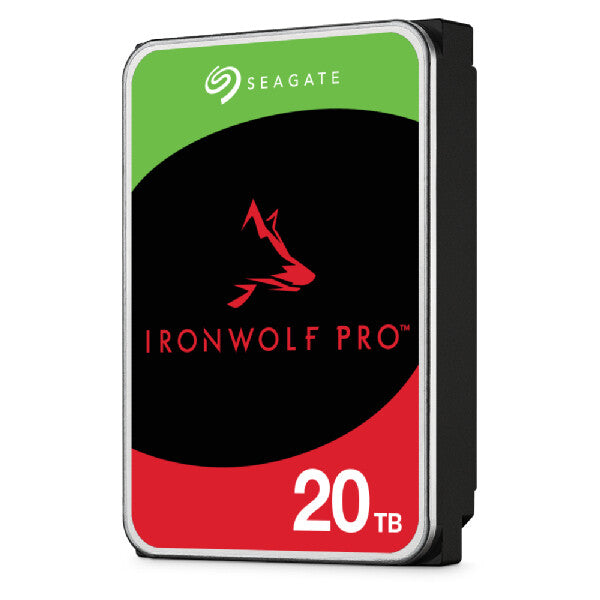

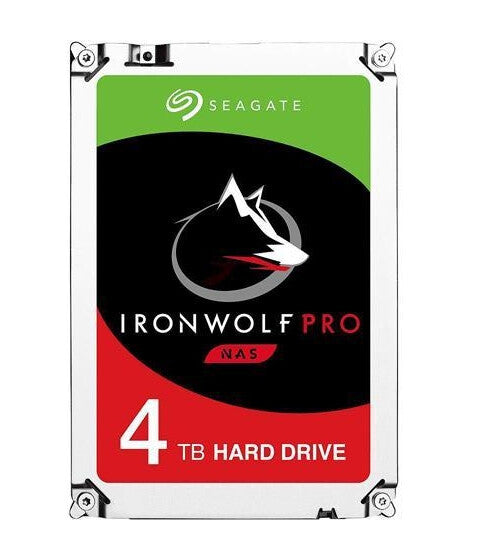

Tough. Ready. Scalable

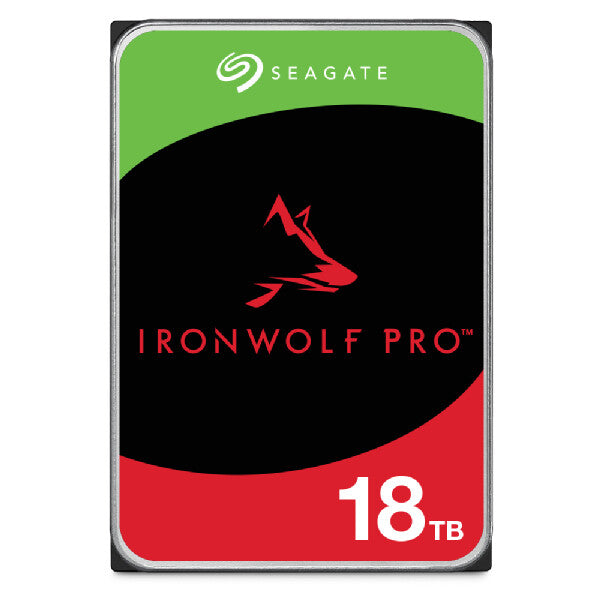

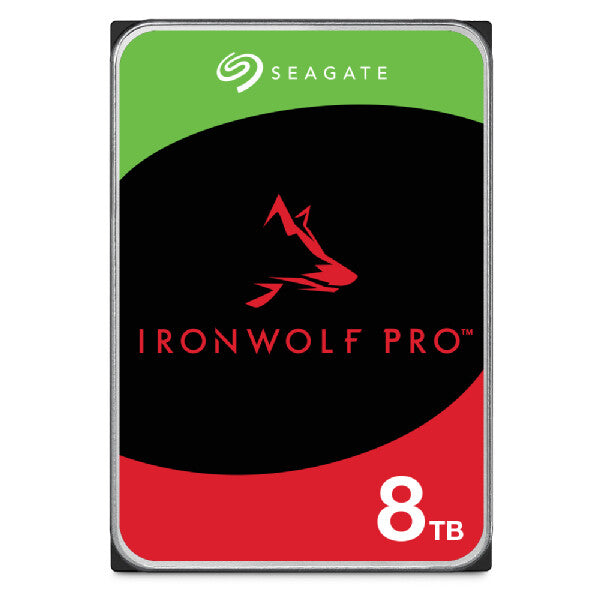

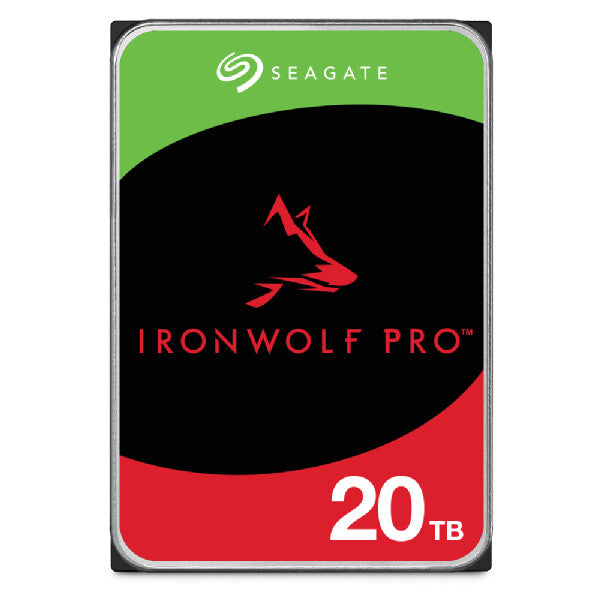

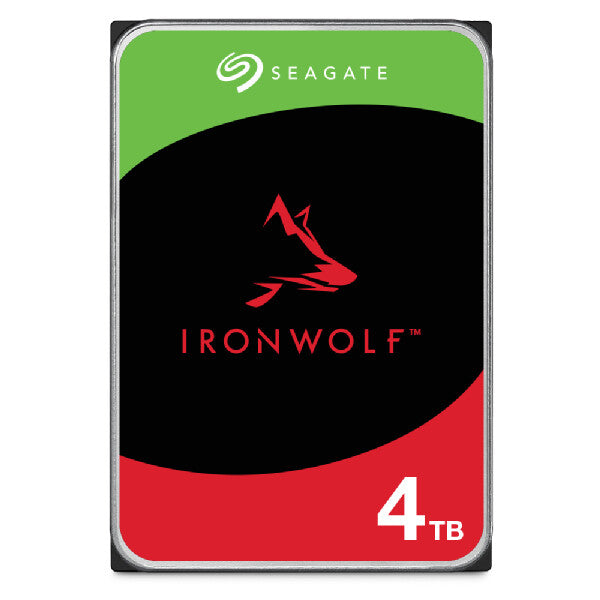

For everything NAS, there’s IronWolf and IronWolf Pro. Always on and always working, IronWolf is enhanced with AgileArray technology for optimal reliability and system agility. Multi-user technology and extreme workload rates allow IronWolf to perform and scale up with your enterprise.
IronWolf + the Power of AgileArray
- NAS-optimised hard drive for the best-possible user experience
- IronWolf Health Management in compatible NAS1 systems continuously helps to safeguard the health of your data
- Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
- RAID performance optimised that maximises responsiveness and uptime with NAS-aware Error Recovery Control
- Advanced power management saves energy and delivers the right power at the right time
Actively Protect Your Data With IronWolf Health Management in Popular and Enabled NAS
IronWolf Health Management is designed to operate on compatible NAS systems such as Synology and ASUSTOR. Populated with supported IronWolf or IronWolf Pro HDDs It improves the overall system reliability by displaying actionable prevention, intervention or recovery options for the user.
Multi-Bay and NAS-Ready With Built-In RV Sensor
First in its class, IronWolf drives are equipped with RV sensors on high capacity drives to maintain performance in multi-bay NAS enclosures. RV sensors on IronWolf Pro come standard, helping business and creative pros to have consistent performance for years to come.
Do More With Multi-User Optimisation
Do more with your NAS with multi-user optimisation. Enabling user workloads of up to 180 TB/year on IronWolf and 300 TB/year with IronWolf Pro, multiple users can confidently upload and download data to a NAS server. Whether you’re a creative pro or a small business, IronWolf is on your side.
IronWolf Pro Comes With 2-year Rescue Data Recovery Service
Your data is important and a Rescue plan provides peace of mind in case of unexpected data loss due to accidents or mechanical damage.
The Rescue plan gives you access to a global team of world-class data recovery experts.
Purchase and register an IronWolf Pro drive to activate your included Rescue plan and you are covered for 2 years. Extended coverage options available at registration.
Be Creative Anywhere With IronWolf and Your NAS
Extensible and reliable storage helps keep you and your creative business on schedule. IronWolf and IronWolf Pro are great companions for your NAS for 24×7 remote access, backups and file sharing from anywhere, making sharing ideas easy. For growing agencies and the need for more storage, IronWolf and IronWolf Pro are built to address NAS scalability challenges.
Grow Your Business NAS
A thriving small business needs storage that can thrive with it. IronWolf is optimised for NAS in multi-RAID environments that not only the vibration, but also handle the high user workload rate in a high data traffic network. Enter multi-user technology — up to 180 TB/yr for IronWolf, up to 300 TB/yr for IronWolf Pro.
Dominate The Media
Build your home NAS media empire with IronWolf HDDs. IronWolf and IronWolf Pro lead the class in storage capacity with drives as large as 12 TB, and the performance needed to run high definition content with your NAS. Store thousands of full-length HD films and even more photographs on your private server. Think of it as your home cloud.
Features | |
---|---|
Mean time between failures (MTBF) | 1200000 h |
Average latency | 4.16 ms |
HDD sustained transfer rate | 200 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | NAS |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 4 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Operational conditions | |
---|---|
Non-operating shock | 250 G |
Operating shock | 70 G |
Non-operating vibration | 2.27 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
General | |
---|---|
Product Family | IronWolf Pro |
Weight & dimensions | |
---|---|
Weight | 643 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Storage drive adapter included | No |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

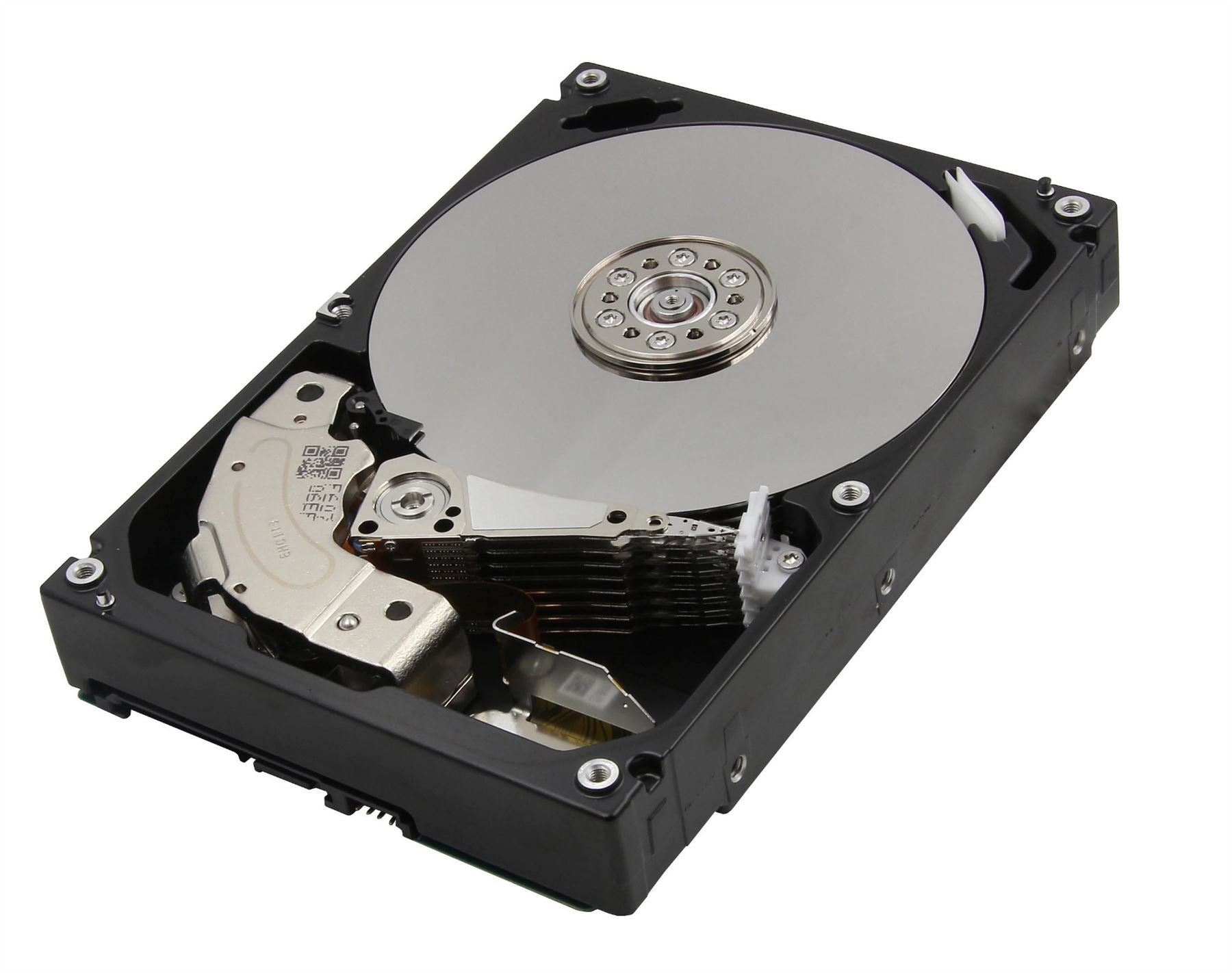

The MG06ACA Enterprise Capacity HDD models provides up to 10TB of capacity and 7,200 rpm performance, in a robust design engineered for nearline business-critical workloads.
The MG06ACA model generation utilizes industry-standard 3.5-inch 26.1 mm height form factor and Advanced Format sector technologies for optimum capacity and data reliability. Models support Toshiba Persistent Write Cache technology which helps enhance performance while assuring the consistency of write operations in the event of a sudden loss of power. Equipped with SATA 6.0 Gbit/s interface, the Enterprise Capacity MG06ACA models help to save rack space and reduce the footprint and operational burden of business critical servers and storage systems.
The MG06ACA Series improves sustained transfer rate performance to 237 MiB/s and increases MTTF by 25% when compared to the prior MG05ACA series. 4Kn or 512e Advanced Format Sector Technology models are available. 4Kn sector models (MG06ACAxxxA) offer suitable performance and compatibility with the 4Kn-capable applications and operating environments. 512e sector models (MG06ACAxxxE) provide support for legacy applications and operating environments that require 512 byte sector lengths.
Features | |
---|---|
Mean time to failure (MTTF) | 2500000 h |
Workload rate limit | 550 TB/year |
HDD sustained transfer rate | 230 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Type | HDD |
Interface | Serial ATA |
HDD speed | 7200 RPM |
HDD capacity | 6 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (write) | 8.3 W |
Power consumption (idle) | 5.6 W |
Operational conditions | |
---|---|
Non-operating shock | 250 G |
Operating shock | 70 G |
Non-operating altitude | -305 - 12192 m |
Operating altitude | -305 - 3048 m |
Non-operating vibration | 3 G |
Operating vibration | 0.75 G |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 770 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The Best Comes From Within
Seagate has dominated the data storage industry for 40 years.
We understand your unique data storage challenges, and crafted the IronWolf® and IronWolf Pro 14 TB NAS hard drives to help you achieve your goals.
Be Tough. Be Ready
For everything NAS, there’s IronWolf and IronWolf Pro — always on, always working.
Built for multi-user environments and high workload rates, these NAS hard drives are enhanced with AgileArray technology for optimal reliability and system scalability.
Drive Health and Data Recovery
IronWolf Health Management (IHM) means better drive health. When IronWolf or IronWolf Pro hard drives are integrated into compatible network attached storage (NAS) systems, the overall system reliability increases because the NAS system is constantly monitored and users are alerted if needed.
For further protection, a Rescue Recovery Data Plan is included for 2 years when you purchase and register an IronWolf Pro drive. You’ll have access to a global team of world-class data recovery experts in case of unexpected data loss.
Built for Work. Built for Performance
Multiple users can confidently upload and download data on a NAS system populated with IronWolf hard drives.
All IronWolf hard drives are equipped with RV sensors to maintain performance in multi-bay NAS enclosures.
Support Your Business
A small business needs data that can thrive.
IronWolf NAS hard drives can handle the vibrations and high workload rates of a high data network within a multi-RAID environment.
Be Creative. Keep Growing
IronWolf and IronWolf Pro help keep you on schedule with 24×7 remote access, backup, and file sharing.
So keep doing what you do best. These drives will keep pace with your growing data storage requirements.
Features | |
---|---|
Mean time between failures (MTBF) | 1200000 h |
Average latency | 4.16 ms |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | NAS |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 14 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 2 A |
Operating voltage | 5 / 12 V |
Power consumption (read) | 7.9 W |
Power consumption (write) | 7.9 W |
Power consumption (idle) | 5.3 W |
Power consumption (standby) | 0.8 W |
Operational conditions | |
---|---|
Non-operating shock | 250 G |
Operating shock | 70 G |
Non-operating altitude | -304.8 - 12192 m |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
General | |
---|---|
Product Family | IronWolf Pro |
Weight & dimensions | |
---|---|
Weight | 690 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Storage drive adapter included | No |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The new technology of physical 4k sectors for HDDs increases storage density, performance and
the capability to correct errors. The first of these HDDs are currently being introduced for PRIMERGY servers. Outwardly, they also emulate logical 512-byte sectors. Suitable versions of the involved software components should be used for optimal performance.

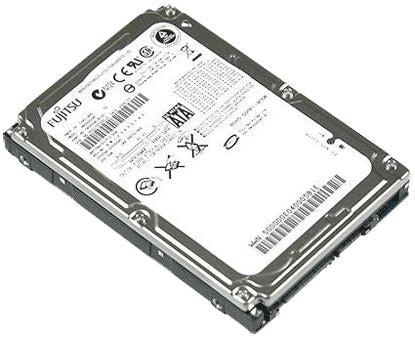

Fujitsu offers a full line of Hard Drives for all your computer needs. Know your computer is in good hands with our performance tested and quality assured in both the popular SAS and SATA designed formats. Each drive is simple to setup and easy to use. Strap one in today and equip your computer with the hard drives more and more businesses trust.
Features | |
---|---|
Certification | AF 512e |
HDD interface transfer rate | 12 Gbit/s |
Hot-swap | Yes |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 2.4 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
See More. Store More.
Optimised for DVRs and NVRs, SkyHawk™ surveillance drives are tuned for 24×7 workloads in capacities up to 10TB. Equipped with enhanced ImagePerfect™ firmware, SkyHawk helps to minimise dropped frames and downtime with a workload rating 3× that of a desktop drive and is ready to record up to 90% of the time while supporting up to 64 HD cameras.
SkyHawk AI:Designed for AI Surveillance
- Scalable AI workloads designed to support an additional 16 AI streams while simultaneously and flawlessly recording footage up to 64 HD cameras1
- ImagePerfect AI provides image integrity with no dropped frames or AI data from loss
- Built-in RV sensors to support multi-bay configurations of 16+ bays
- High reliability with 550TB/yr workload rate
- 2 years of Seagate Rescue Data Recovery Services activated with every SkyHawk AI
Smart Surveillance
SkyHawk’s innovative ImagePerfect and ImagePerfect AI firmware enables smooth, clear video streaming for always-on, 24×7 surveillance environments—helping to ensure your business has a formidable layer of protection. Plus ImagePerfect AI minimises AI data integrity loss for even better performance.
SkyHawk AI comes with 2-year Rescue Data Recovery Plan
Your data is incredibly important. Give yourself the ultimate peace of mind with Rescue Data Recovery Plans. Whether there is a hard drive mechanical issue, natural disaster, data corruption or virus, Seagate has you covered. Seagate provides industry leading data recovery and it’s all done in-house at one of Seagate’s secure design labs.
Keep Your Drive Healthy
SkyHawk Health Management (SHM) is first-to-market with in-depth analysis that helps to prevent data loss. SHM analyzes and provides detailed information on how to improve storage performance. SHM is built into Hikvision NVR 4.0 OS systems.
Features | |
---|---|
Mean time between failures (MTBF) | 1000000 h |
HDD sustained transfer rate | 180 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 5900 RPM |
HDD capacity | 6 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 1.8 A |
Operating voltage | 5 / 12 V |
Power consumption (idle) | 3.4 W |
Power consumption (standby) | 0.25 W |
Power consumption (typical) | 5 W |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 70 °C |
General | |
---|---|
Product Family | SkyHawk |
Weight & dimensions | |
---|---|
Weight | 610 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The Enterprise Capacity HDD 512 native, 7,200 rpm SATA models (MG04ACA-N) come in a robust design providing 1, 2 and 4TB in a 3.5-inch form factor. Features of MG04ACA-N series include a SATA 6Gbit/s interface, and industry-standard 512 native format sector technology for environments and applications that require 512 native. Model options supporting Sanitize Instant Erase (SIE) are also available. This feature randomizes data instantly in case of unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.
Features | |
---|---|
Mean time between failures (MTBF) | 1400000 h |
Workload rate limit | 550 TB/year |
Bytes per sector | 512 |
Average latency | 4.17 ms |
HDD sustained transfer rate | 195 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 128 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 1 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 11.3 W |
Power consumption (write) | 11.3 W |
Power consumption (idle) | 6 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 70 G |
Non-operating altitude | -305 - 12192 m |
Operating altitude | -305 - 3048 m |
Non-operating vibration | 5 G |
Operating vibration | 0.75 G |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 720 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Seagate® Exos™ 10E2400 enterprise hard drives are the industry's fastest 10KRPM drives, with capacities up to 2.4 TB in a 2.5-inch form factor, and intended for traditional data centres where density, power consumption and data integrity are paramount.
The Perfect Match of High Capacity and High Performance
The high capacity and small 2.5-inch footprint of the Exos 10E2400 drive enables data centres to keep pace with data growth and optimise data centre real estate. Exos 10E2400 delivers up to 2.4 TB of highperformance data access for write-intensive applications. A single advanced format interface model lets you future-proof your storage infrastructure. The Seagate Enhanced Caching feature accelerates read and write I/O operations, preventing applications from slowing down under peak usage conditions. The latest 12 Gb/s SAS interface provides improved scalability.
Maximise Storage Investments for the Long Haul
Exos 10E2400 offers Protection Information (PI) to help protect against data corruption, and Seagate PowerChoice™ technology for T10-compliant power management enables IT organisations to tailor systems for enhanced power consumption. RAID recovery is faster and safer with the help of the Seagate RAID Rebuild ® technology option.
Industry-Leading Data Security Features
Seagate Secure™ SED and FIPS 140-2 government-grade models offer hardware-based security to help protect data-at-rest. With Instant Secure Erase, drive retirement is safe, fast and cost-effective. Seagate Secure models meet the NIST 800-88 media sanitisation specification and support the Trusted Computer Group (TCG) standard.
Exos 10E300 Enterprise Hard Drives
The industry's fastest 10K-RPM drives are also available in 300 GB capacity and are a perfect choice for entry-level boot server applications.
Features | |
---|---|
Average latency | 2.9 ms |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 1.8 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 4.4 W |
Power consumption (typical) | 7.5 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 10E2400 |
Operational conditions | |
---|---|
Non-operating shock | 100 G |
Operating shock | 40 G |
Non-operating vibration | 3 G |
Operating vibration | 0.5 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 230 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 70.1 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Seagate® Exos™ 10E2400 enterprise hard drives are the industry's fastest 10KRPM drives, with capacities up to 2.4 TB in a 2.5-inch form factor, and intended for traditional data centres where density, power consumption and data integrity are paramount.
The Perfect Match of High Capacity and High Performance
The high capacity and small 2.5-inch footprint of the Exos 10E2400 drive enables data centres to keep pace with data growth and optimise data centre real estate. Exos 10E2400 delivers up to 2.4 TB of highperformance data access for write-intensive applications. A single advanced format interface model lets you future-proof your storage infrastructure. The Seagate Enhanced Caching feature accelerates read and write I/O operations, preventing applications from slowing down under peak usage conditions. The latest 12 Gb/s SAS interface provides improved scalability.
Maximise Storage Investments for the Long Haul
Exos 10E2400 offers Protection Information (PI) to help protect against data corruption, and Seagate PowerChoice™ technology for T10-compliant power management enables IT organisations to tailor systems for enhanced power consumption. RAID recovery is faster and safer with the help of the Seagate RAID Rebuild ® technology option.
Industry-Leading Data Security Features
Seagate Secure™ SED and FIPS 140-2 government-grade models offer hardware-based security to help protect data-at-rest. With Instant Secure Erase, drive retirement is safe, fast and cost-effective. Seagate Secure models meet the NIST 800-88 media sanitisation specification and support the Trusted Computer Group (TCG) standard.
Exos 10E300 Enterprise Hard Drives
The industry's fastest 10K-RPM drives are also available in 300 GB capacity and are a perfect choice for entry-level boot server applications.
Features | |
---|---|
Average latency | 2.9 ms |
HDD interface transfer rate | 12 Gbit/s |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 2.4 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 4.8 W |
Power consumption (typical) | 8.5 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 10E2400 |
Operational conditions | |
---|---|
Non-operating shock | 100 G |
Operating shock | 40 G |
Non-operating vibration | 3 G |
Operating vibration | 0.5 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 230 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 70.1 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The Seagate® Exos™15E900 enterprise hard drive is the world's fastest hard drive, with capacities up to 900 GB in a 2.5-inch form factor, and is intended for traditional data centres where density, power consumption and data integrity are paramount.
Performance You Need With the Affordability You Demand
Exos 15E900 hard drives accelerate I/O operations and complete more transactions faster — even during peak demand. The 900 GB model Exos 15E900 was the first to store 50% more mission-critical data than any other 15K hard drive. By providing higher capacities at lower cost than high-performance alternatives, Exos 15E900 drives help optimise TCO. They deliver more predictable performance (up to 27% more sustained data rate than previous generation) while helping to protect data from corruption due to unexpected power loss.
Unrivalled Versatility Is Key
The Exos 15E900 supports all drive formats, including 512 native and a single Fast Format TM model for advanced formats (4Kn and 512e) that simplifies drive management. Industry-leading read caching with TurboBoost® technology for optimum response times is perfect for OLTP applications. The Advanced Write Caching feature utilises enhanced algorithms for the industry’s highest mission-critical storage workload performance efficiencies. The Exos 15E900 uses traditional NAND and advanced algorithms to promote hot data and meet performance requirements (up to 2.6× improvements over last generation). By enabling high density with power efficiency, Exos 15E900 drives are ideal for space- and power-constrained enterprise data centres. Widely accepted, proven sixth-generation technology provides reliable access to demanding high-performance applications.
Industry-Leading Data Security Features
Seagate Secure TM models provide hardware-based security to help protect data-atrest. With Instant Secure Erase, drive retirement is safe, fast and cost-efficient. Seagate Secure models meet the NIST 800-88 media sanitisation specification and support the Trusted Computer Group (TCG) standard.
Features | |
---|---|
Average latency | 2 ms |
HDD number of heads | 4 |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 600 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 5.8 W |
Power consumption (typical) | 7.2 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 15E900 |
Operational conditions | |
---|---|
Non-operating shock | 400 G |
Operating shock | 40 G |
Non-operating vibration | 2.4 G |
Operating vibration | 0.5 G |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 230 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 69.8 mm |
Packaging data | |
---|---|
Storage drive adapter included | No |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The Seagate® Exos™15E900 enterprise hard drive is the world's fastest hard drive, with capacities up to 900 GB in a 2.5-inch form factor, and is intended for traditional data centres where density, power consumption and data integrity are paramount.
Performance You Need With the Affordability You Demand
Exos 15E900 hard drives accelerate I/O operations and complete more transactions faster — even during peak demand. The 900 GB model Exos 15E900 was the first to store 50% more mission-critical data than any other 15K hard drive. By providing higher capacities at lower cost than high-performance alternatives, Exos 15E900 drives help optimise TCO. They deliver more predictable performance (up to 27% more sustained data rate than previous generation) while helping to protect data from corruption due to unexpected power loss.
Unrivalled Versatility Is Key
The Exos 15E900 supports all drive formats, including 512 native and a single Fast Format TM model for advanced formats (4Kn and 512e) that simplifies drive management. Industry-leading read caching with TurboBoost® technology for optimum response times is perfect for OLTP applications. The Advanced Write Caching feature utilises enhanced algorithms for the industry’s highest mission-critical storage workload performance efficiencies. The Exos 15E900 uses traditional NAND and advanced algorithms to promote hot data and meet performance requirements (up to 2.6× improvements over last generation). By enabling high density with power efficiency, Exos 15E900 drives are ideal for space- and power-constrained enterprise data centres. Widely accepted, proven sixth-generation technology provides reliable access to demanding high-performance applications.
Industry-Leading Data Security Features
Seagate Secure TM models provide hardware-based security to help protect data-atrest. With Instant Secure Erase, drive retirement is safe, fast and cost-efficient. Seagate Secure models meet the NIST 800-88 media sanitisation specification and support the Trusted Computer Group (TCG) standard.
Features | |
---|---|
Average latency | 2 ms |
HDD number of heads | 2 |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 300 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 4.7 W |
Power consumption (typical) | 6.9 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 15E900 |
Operational conditions | |
---|---|
Non-operating shock | 400 G |
Operating shock | 40 G |
Non-operating vibration | 2.4 G |
Operating vibration | 0.5 G |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 225 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 69.8 mm |
Packaging data | |
---|---|
Storage drive adapter included | No |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
SCALE IT IN GOLD. UP TO TEN TIMES THE WORKLOAD CAPACITY OF DESKTOP DRIVES.
Reliability, capacity, power efficiency and performance for a multitude of Datacenter-specific applications. Robust storage with 24/7 premium customer support.
Full Range of Nearline Capacities
For the most demanding datacenter environments, from entry-level servers to high end enterprise storage systems.
High Workload Capability
Designed to handle workloads up to 550TB per year, which is among the highest workload capability of any 3.5-inch hard drive.
High Level of Reliability
One of the highest levels of reliability and durability for 24x7x365 operation within the most demanding storage environments.
COMPATIBILITY TESTING
All WD Gold hard drives are extensively tested across a variety of popular OEM storage systems, SATA controllers, and host bus adapters, to ensure ease of integration for a plug and play solution.
TIME-LIMITED ERROR RECOVERY (TLER)
Reduces drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
PREMIUM SUPPORT
Dedicated 24x7 over the phone support is included with every WD Gold hard drive.
Features | |
---|---|
Start/stop cycles | 600000 |
HDD sustained transfer rate | 184 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 128 MB |
Component for | Server/workstation |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 1 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 7.4 W |
Power consumption (write) | 7.4 W |
Power consumption (idle) | 5.9 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 65 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 641 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Storage drive adapter included | No |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The Seagate® Exos™ 7E2000 enterprise hard drives can store large amounts of data without using a ton of system space — up to 2,000 GB in a compact 2.5-inch form factor. Exos 7E2000 provides the density, low power consumption and data integrity needed in traditional data centres and the cloud.
Trusted Bulk Data Storage in a Small Data Centre Footprint
Exos 7E2000 drives optimise your data centre footprint in a proven 2.5-inch form factor for infrastructures requiring highly reliable access to bulk data. Conventional magnetic recording (CMR) technology helps Exos 7E2000 catalyse the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rock-solid reliability and ironclad security for demanding 24×7 operations. A 2M-hr. MTBF rating with supported workloads of 550 TB/year, dense data storage and low power consumption help you meet your storage SLAs while lowering TCO.
Significant Hard Drive Power Savings
Exos 7E2000 drives ensure data confidence with a reliable, low-power platform for efficient bulk storage operations, even in harsh data centre environments. Exos 7E2000 helps reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, lowpower consumption drive. Included PowerChoice™ technology empowers IT organisations to tailor systems for optimal performance and power consumption, resulting in power savings of up to 35% over traditional 3.5-inch drives, and potentially operating as low as 1.1 watts when idle.
Enhanced Enterprise Reliability, Data Protection and Security
Exos 7E2000 security features help protect data where it lives — on the drive. Exos 7E2000 drives help prevent unauthorised access and safeguard stored data with security levels that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS tamper-resistant hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Features | |
---|---|
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 128 MB |
Component for | NAS |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 1 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (typical) | 4.74 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 7E2000 |
Operational conditions | |
---|---|
Operating shock | 25 G |
Weight & dimensions | |
---|---|
Weight | 190 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 70.1 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The Seagate® Exos™ 7E2000 enterprise hard drives can store large amounts of data without using a ton of system space — up to 2,000 GB in a compact 2.5-inch form factor. Exos 7E2000 provides the density, low power consumption and data integrity needed in traditional data centres and the cloud.
Trusted Bulk Data Storage in a Small Data Centre Footprint
Exos 7E2000 drives optimise your data centre footprint in a proven 2.5-inch form factor for infrastructures requiring highly reliable access to bulk data. Conventional magnetic recording (CMR) technology helps Exos 7E2000 catalyse the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rock-solid reliability and ironclad security for demanding 24×7 operations. A 2M-hr. MTBF rating with supported workloads of 550 TB/year, dense data storage and low power consumption help you meet your storage SLAs while lowering TCO.
Significant Hard Drive Power Savings
Exos 7E2000 drives ensure data confidence with a reliable, low-power platform for efficient bulk storage operations, even in harsh data centre environments. Exos 7E2000 helps reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, lowpower consumption drive. Included PowerChoice™ technology empowers IT organisations to tailor systems for optimal performance and power consumption, resulting in power savings of up to 35% over traditional 3.5-inch drives, and potentially operating as low as 1.1 watts when idle.
Enhanced Enterprise Reliability, Data Protection and Security
Exos 7E2000 security features help protect data where it lives — on the drive. Exos 7E2000 drives help prevent unauthorised access and safeguard stored data with security levels that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS tamper-resistant hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Features | |
---|---|
Mean time between failures (MTBF) | 1400000 h |
Bytes per sector | 512 |
Average latency | 4.16 ms |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 128 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 2.05 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 3.53 W |
Power consumption (standby) | 1.52 W |
Power consumption (typical) | 6.02 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 7E2000 |
Operational conditions | |
---|---|
Non-operating shock | 400 G |
Operating shock | 25 G |
Non-operating vibration | 3 G |
Operating vibration | 0.5 G |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 198 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 70.1 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Internal | Yes |
Data transfer rate | 6 Gbit/s |
The Seagate® Exos™ 7E2000 enterprise hard drives can store large amounts of data without using a ton of system space — up to 2,000 GB in a compact 2.5-inch form factor. Exos 7E2000 provides the density, low power consumption and data integrity needed in traditional data centres and the cloud.
Trusted Bulk Data Storage in a Small Data Centre Footprint
Exos 7E2000 drives optimise your data centre footprint in a proven 2.5-inch form factor for infrastructures requiring highly reliable access to bulk data. Conventional magnetic recording (CMR) technology helps Exos 7E2000 catalyse the datasphere, enabling data centre architects and IT professionals to deliver trusted performance, rock-solid reliability and ironclad security for demanding 24×7 operations. A 2M-hr. MTBF rating with supported workloads of 550 TB/year, dense data storage and low power consumption help you meet your storage SLAs while lowering TCO.
Significant Hard Drive Power Savings
Exos 7E2000 drives ensure data confidence with a reliable, low-power platform for efficient bulk storage operations, even in harsh data centre environments. Exos 7E2000 helps reduce per-gigabyte cooling and energy costs by packing high capacities into an SFF, lowpower consumption drive. Included PowerChoice™ technology empowers IT organisations to tailor systems for optimal performance and power consumption, resulting in power savings of up to 35% over traditional 3.5-inch drives, and potentially operating as low as 1.1 watts when idle.
Enhanced Enterprise Reliability, Data Protection and Security
Exos 7E2000 security features help protect data where it lives — on the drive. Exos 7E2000 drives help prevent unauthorised access and safeguard stored data with security levels that include Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and government-grade FIPS tamper-resistant hard drive. Seagate Secure™ drives simplify drive repurposing and disposal, help protect data-at-rest, and comply with corporate and federal data security mandates.
Features | |
---|---|
Mean time between failures (MTBF) | 1400000 h |
Bytes per sector | 512 |
Average latency | 4.16 ms |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 128 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 1.02 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Power consumption (idle) | 3.29 W |
Power consumption (standby) | 1.52 W |
Power consumption (typical) | 5.9 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 7E2000 |
Operational conditions | |
---|---|
Non-operating shock | 400 G |
Operating shock | 25 G |
Non-operating vibration | 3 G |
Operating vibration | 0.5 G |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 190 g |
Height | 15 mm |
Depth | 100.5 mm |
Width | 70.1 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Internal | Yes |
Data transfer rate | 6 Gbit/s |

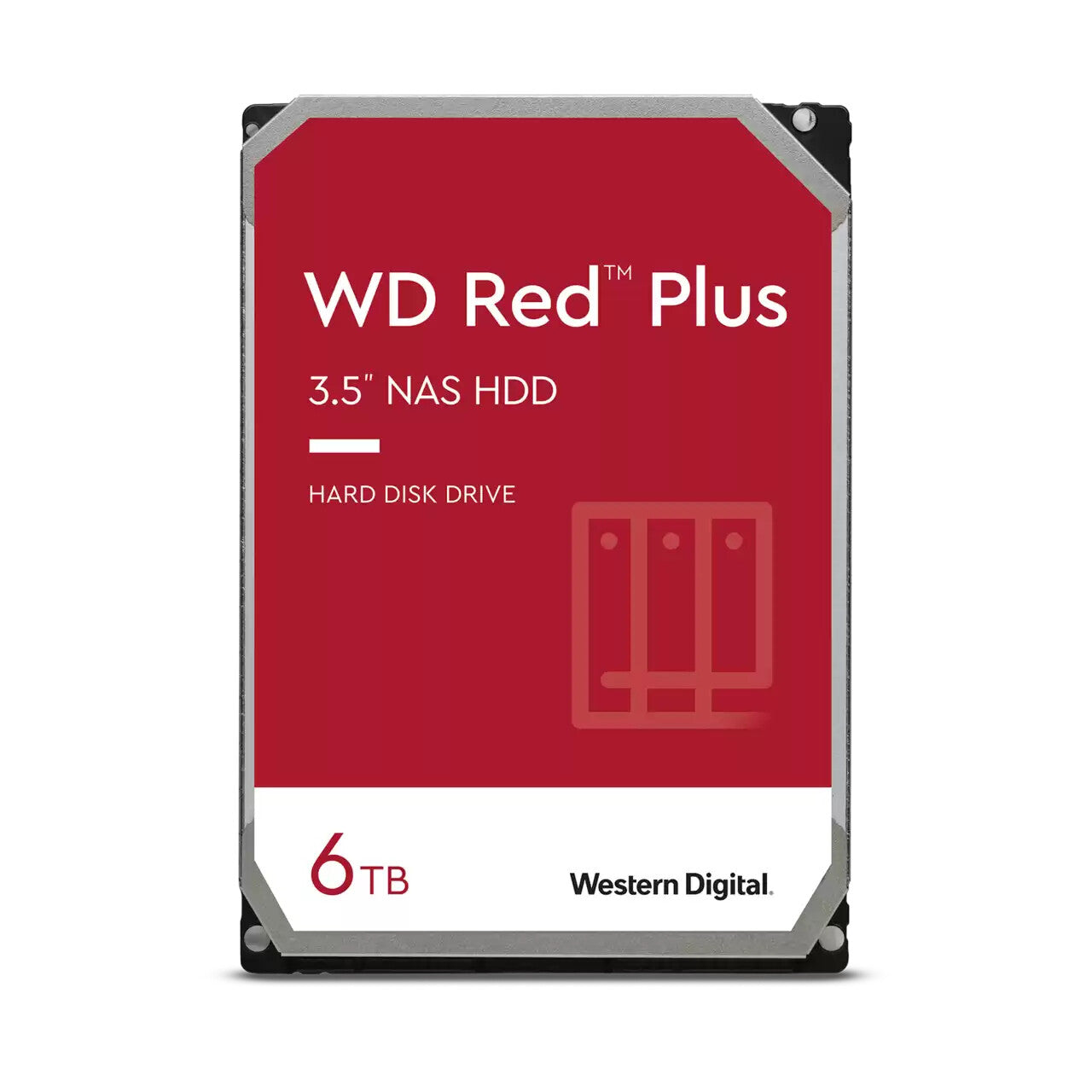

Tackle intensity with a WD Red™ Plus Hard Drive
Packed with power to handle the small- to medium-sized business NAS environments and increased workloads1 for SOHO customers, WD Red™ Plus is ideal for archiving and sharing, as well as RAID array rebuilding on systems using ZFS and other file systems. Built and tested for up to 8-bay NAS systems, these drives give you the flexibility, versatility, and confidence in storing and sharing your precious home and work files.
For Small or Medium Businesses
Stream, backup, share, and organize your digital content with a NAS and WD Red™ Plus drives designed to effortlessly share content with the devices at your home or business. NASware™ technology increases your drives’ compatibility with your existing network and devices. For larger businesses with up to 24 bays, count on WD Red™ Pro drives to deliver exceptional performance.
Exclusive NASware
Not just any drive will do. Get up to 112TB of capacity in your 8-bay NAS system and with Western Digital's exclusive NASware technology, you can optimize each and every drive. Built into every WD Red™ hard drive, NASware advanced technology improves storage performance by increasing compatibility, integration, upgradeability, and reliability.
Built for Optimum NAS Compatibility
WD Red™ Plus drives with NASware™ technology takes the guesswork out of selecting a drive. Optimized for NAS systems, our unique algorithm balances performance and reliability in NAS and RAID environments. Simply put, a WD Red™ Plus drive is one of the most compatible drives available for NAS enclosures. But don’t take our word for it. WD Red™ Plus drives are a reflection of extensive NAS partner technology engagement and compatibility-testing.
WD Red™ Pro for Big Business
If you’re looking for heavy-duty performance for NAS, WD Red™ Pro NAS hard drives deliver exceptional performance for medium to large business customers with extreme demands. For NAS environments with 9 to 24 bays, WD Red™ Pro drives deliver uncompromising performance and unwavering assurance backed by a 5-year limited warranty.
3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time.
24/7 Environment
Since your NAS system is always on, a reliable drive is essential. With an MTBF of up to 1 million hours, the WD Red™ Plus drive is engineered to tackle 24x7 environments.
Premium Support and a 3-year Limited Warranty
Confidently upgrade your NAS performance with the assurance of a 3-year limited warranty, coupled with world-class support services included with every WD Red™ Plus drive.
Features | |
---|---|
Mean time between failures (MTBF) | 1000000 h |
Start/stop cycles | 600000 |
HDD sustained transfer rate | 150 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 64 MB |
Hot-swap | Yes |
Component for | NAS |
Type | HDD |
Interface | Serial ATA |
HDD speed | 5400 RPM |
HDD capacity | 2 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 1.2 A |
Operating voltage | 5 / 12 V |
Power consumption (read) | 3.3 W |
Power consumption (write) | 3.3 W |
Power consumption (idle) | 2.3 W |
Power consumption (standby) | 0.4 W |
Operational conditions | |
---|---|
Non-operating shock | 350 G |
Operating shock | 30 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 65 °C |
General | |
---|---|
Product Family | Red Plus |
Weight & dimensions | |
---|---|
Weight | 450 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Tough. Ready. Scalable
Purpose-built for Connected-Home, SOHO
and Small-to-Medium Business NAS Environments
IronWolf™ is designed for consumer and commercial NAS.
Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.
Optimised for NAS with AgileArray™
AgileArray enables Dual-Plane Balancing and
Time-Limited Error Recovery to deliver best-in-class RAID performance in multi-bay
systems.
Always On, Always Accessible
IronWolf drives are designed for 24x7 usage, allowing
users to access their data any time, anywhere.
All-CMR Portfolio
All IronWolf drives utilize Conventional Magnetic Recording (CMR)
technology for consistent, best-in-class NAS performance.
Up to 12 TB
Broad range of capacity options to deliver scalable and cost-efficient
storage solutions.
Built Tough
IronWolf drives are rated for 180 TB/year workload, allowing consumer and
commercial NAS users to seamlessly store and work with large amounts of networked
data.
Superior Reliability and Dependability
IronWolf drives are rated for 1M hours MTBF and
include a 3-year limited warranty for hassle-free data storage and best-in-class total cost
of ownership (TCO)
Rotational Vibration (RV) sensors.
Built-in RV sensors for vibration tolerance and
consistent performance in multi-bay systems.
IronWolf Health Management (IHM)
Actively protect your NAS data with Prevention,
Intervention, and Recovery recommendations to ensure peak system health.
Peace of mind with Data Recovery
IronWolf drives include 3 years of complimentary
Rescue Data Recovery Services - in-house secure facilities, with an industry-leading
recovery rate of 95% - so you do not have to incur high recovery costs in the event of
accidental data corruption or drive damage.
Features | |
---|---|
Mean time between failures (MTBF) | 1000000 h |
Noise level (idle) | 26 dB |
Start/stop cycles | 600000 |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Error Recovery Control (ERC) | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^14 bits read |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | NAS |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 5400 RPM |
HDD capacity | 6 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 1.8 A |
Operating voltage | 5 / 12 V |
Power consumption (idle) | 4 W |
Power consumption (standby) | 0.25 W |
Power consumption (typical) | 5.3 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 80 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 65 °C |
General | |
---|---|
Product Family | IronWolf |
Weight & dimensions | |
---|---|
Weight | 630 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
SkyHawk™ leverages Seagate's extensive experience in designing drives purpose-built for surveillance applications.
ImagePerfect™ firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate's in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage.
1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability
Features | |
---|---|
Mean time between failures (MTBF) | 1000000 h |
Workload rate limit | 180 TB/year |
Start/stop cycles | 600000 |
Maximum number of cameras supported | 64 |
RV sensor(s) | Yes |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^14 bits read |
HDD sustained transfer rate | 180 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD capacity | 2 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 1.8 A |
Power consumption (idle) | 2.5 W |
Power consumption (off) | 0.25 W |
Power consumption (typical) | 3.7 W |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 60 °C |
General | |
---|---|
Product Family | SkyHawk |
Weight & dimensions | |
---|---|
Weight | 415 g |
Height | 20.2 mm |
Depth | 147 mm |
Width | 101.6 mm |
