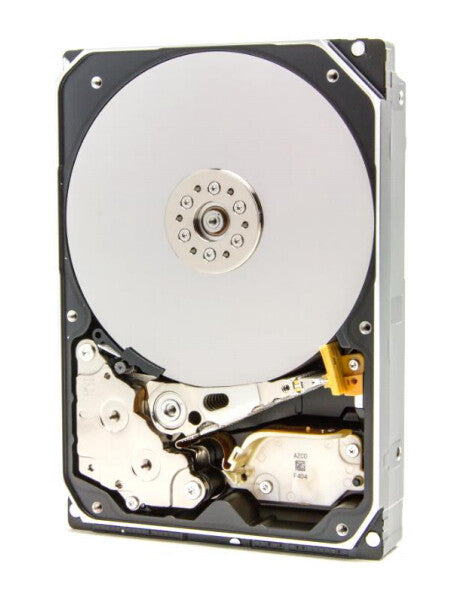

Ultrastar DC HC500 Series
High Capacity for Massive Data and Lower Total Cost of Ownership
Driving Up Capacity and Driving Down TCO for Cloud and Hyperscale Data Centers
The breadth and depth of Big Data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard disk drives (HDDs). The DC HC500 series is designed for public and private cloud environments where storage density and cost-efficient infrastructure is critical.

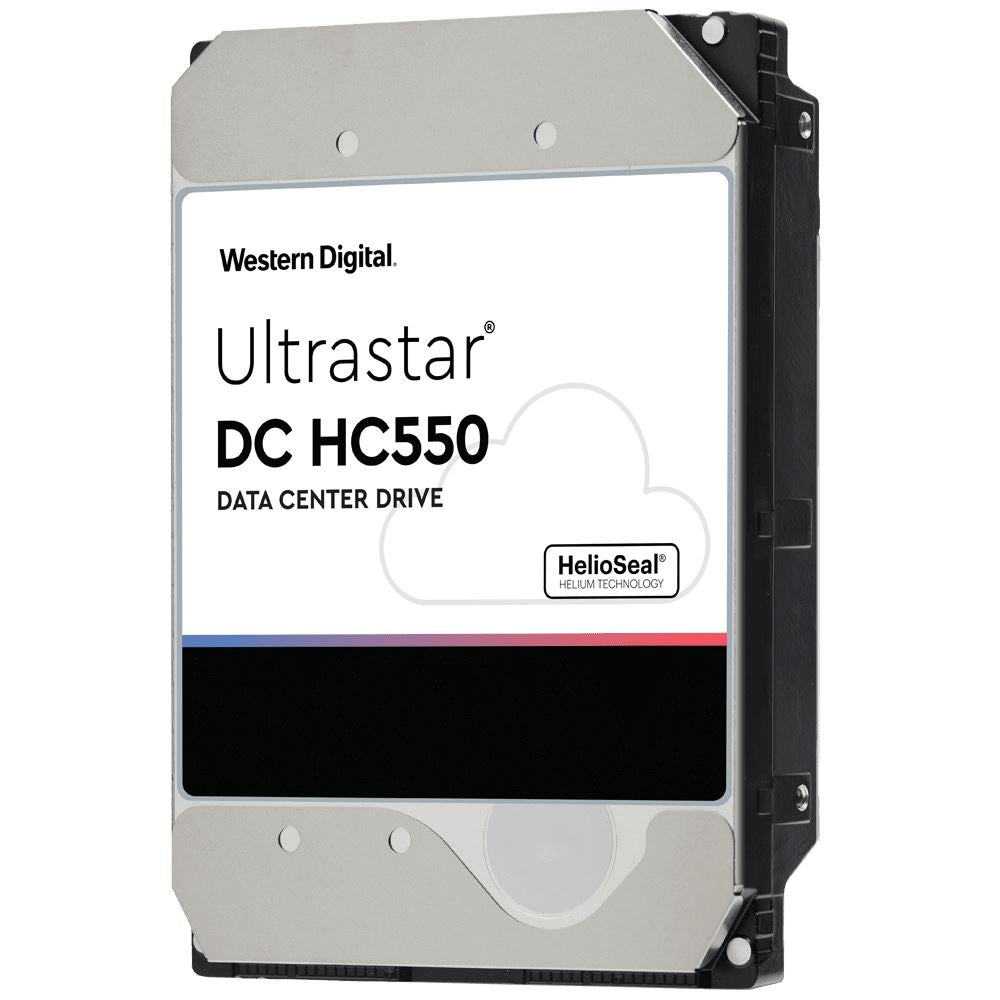

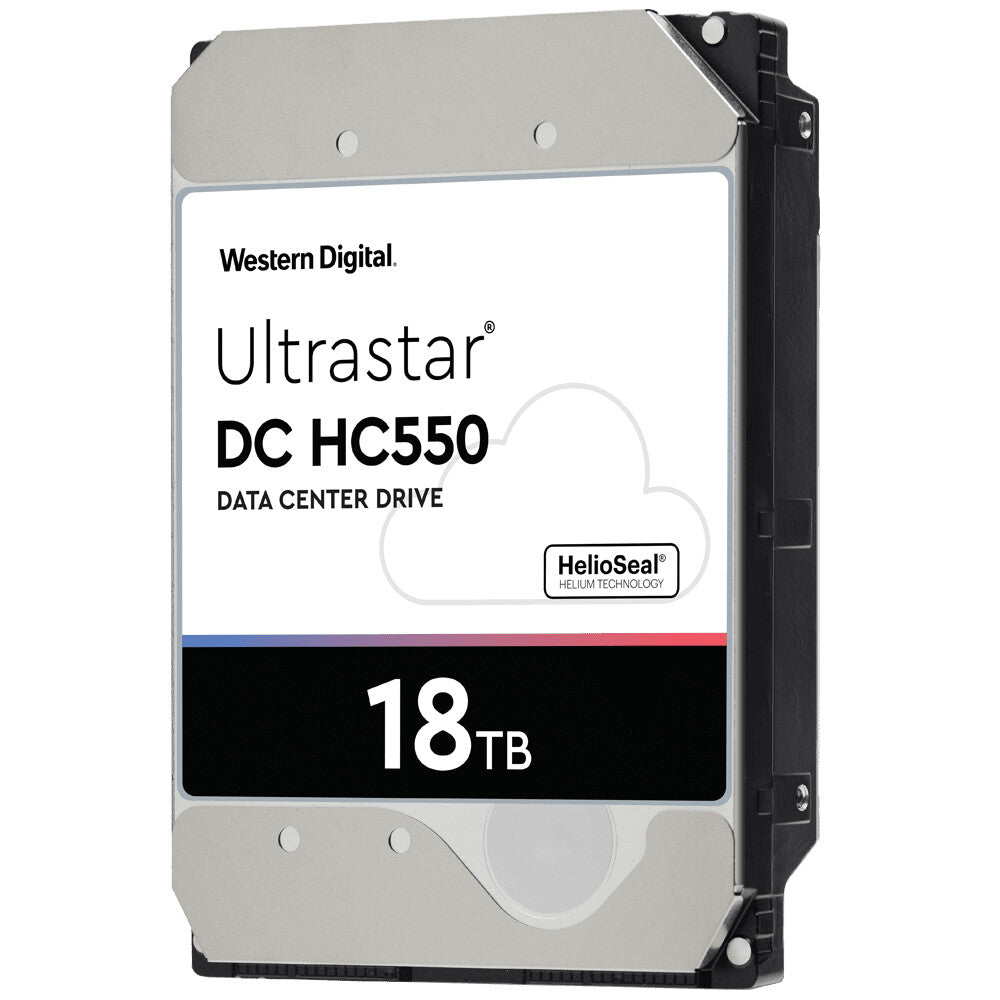

The 18TB/16TB Ultrastar DC HC550 HDDs are the first commercial implementation of Energy-Assisted Magnetic Recording technology and utilize the industry’s first Triple Stage Actuator. These technologies, integrated with HelioSeal on a 9-disk platform, deliver the highest areal density and unmatched Total Cost of Ownership for customer and market needs.
Solves TCO Challenges
- High Capacity
Up to 18TB HDDs, drop-in ready for Big Data workloads
- Low Power
Up to 61% lower idle W/TB than 10TB Ultrastar air-filled drives
- More Reliable
25% higher MTBF rating than air-filled HDDs
Continuous Innovation for Highest Capacities and Lower TCO
The Ultrastar DC HC550 18TB CMR HDD and Ultrastar DC HC650 20TB SMR HDD are delivering industry leading capacity for the data center through a combination of new and proven technologies.
Western Digital is the first to deliver Energy-Assisted Magnetic Recording (EAMR) technology and a Triple Stage Actuator (TSA). These new technologies combined with further mechanical innovations and HelioSeal technology provide the industry’s highest capacities to enable data at scale with optimized TCO for data center architectures, while maintaining workload reliability and performance.
Features | |
---|---|
Mean time between failures (MTBF) | 2500000 h |
Noise level (idle) | 2 dB |
Workload rate limit | 550 TB/year |
Start/stop cycles | 600000 |
24/7 operation | Yes |
Average latency | 4.16 ms |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 512 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 18 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 6.5 W |
Power consumption (write) | 6.5 W |
Power consumption (idle) | 5.6 W |
Operational conditions | |
---|---|
Non-operating shock | 250 G |
Operating shock | 50 G |
Non-operating vibration | 1.04 G |
Operating vibration | 0.67 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
General | |
---|---|
Product Family | Ultrastar |
Weight & dimensions | |
---|---|
Weight | 690 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Manual | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

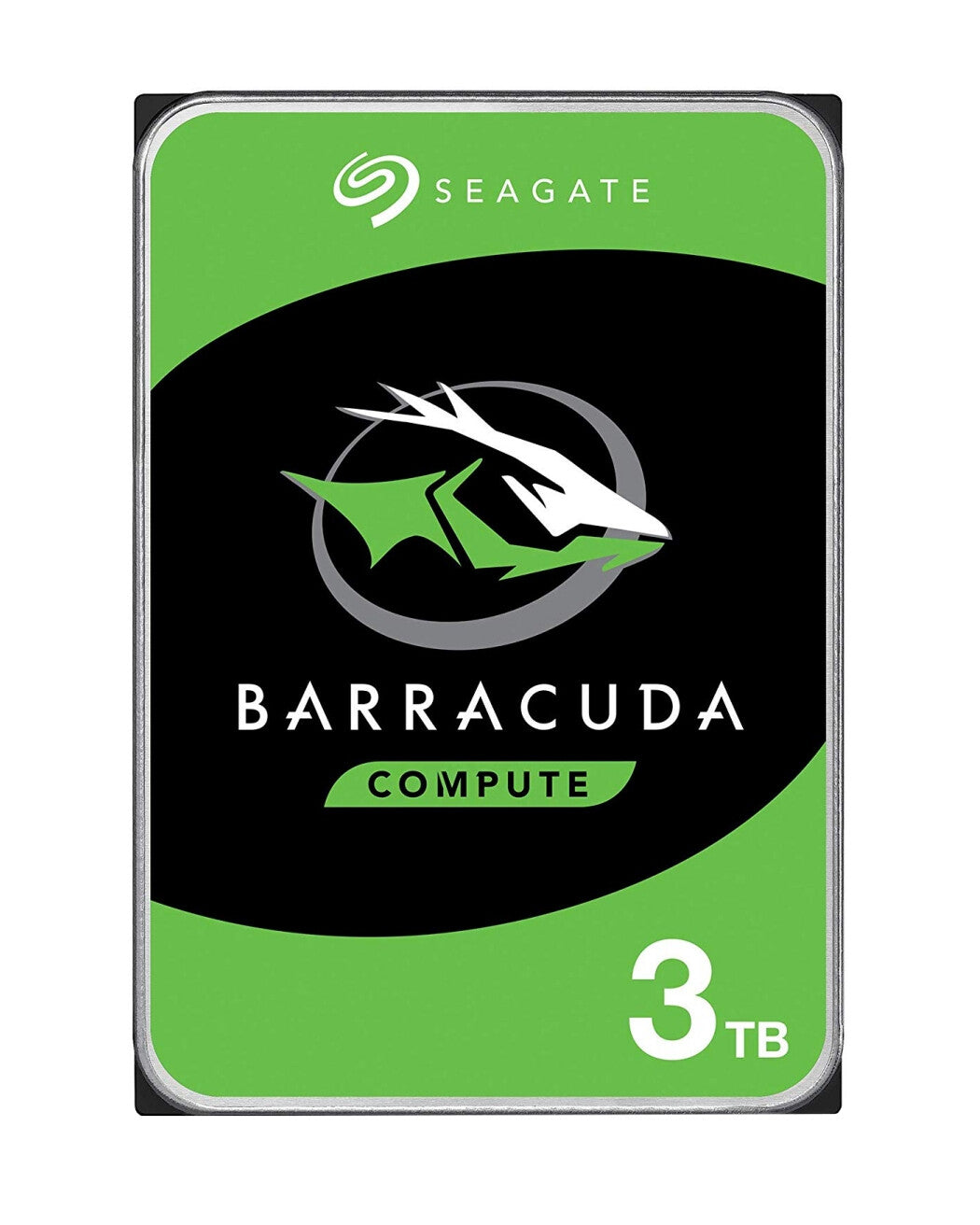

HDD capacity. SSD Attitude.
Coupled with Intel® Optane™ memory, a revolutionary class of non-volatile memory, BarraCuda hard drives deliver it all.
- SSD-like performance and responsiveness
- Massive capacity
- Twice the speed of standard drives for boot and load applications
- Affordability with zero compromises
Versatile, Fast and Dependable
BarraCuda leads the industry with the highest capacities for desktops and mobile computers. With drives available up to 10 TB, the BarraCuda portfolio is a great option for upgrades at any price point. The uncompromising BarraCuda Pro marries industry-leading storage capacity with 7,200-RPM spin speeds for snappy performance and load times when gaming or performing heavy workloads. BarraCuda Pro also comes equipped with a 5-year limited warranty.
Amazing Versatility
Get the most out of your storage with BarraCuda hard drives. From computers full of photos and memories to gaming PCs that need more room to play, BarraCuda grows with you.
3.5-Inch BarraCuda Hard Drives Deliver!
Rock-solid reliability built on over 20 years of BarraCuda innovation. Versatile mix of capacity and price point options to fit any budget. Multi-Tier Caching Technology™ for excellent hard drive performance.
Introducing the All-New BarraCuda Pro 3.5-Inch Hard Drive!
The BarraCuda Pro is a creative professional’s and tech enthusiast’s dream. Equipped with 7,200 RPM makes the BarraCuda Pro the fastest 10 TB desktop drive available. Large cache size pushes your PC to new performance heights so you can load applications and files even faster. Plus the BarraCuda Pro is backed by a best-in-class, 5-year limited warranty for your peace of mind.
Multi-Tier Caching Technology
All hard drives in the BarraCuda family come equipped with Multi-Tier Caching Technology (MTC). MTC takes your PC to new performance levels, so you can load applications and files faster than ever before. By applying intelligent layers of NAND Flash, DRAM and media cache technologies, BarraCuda delivers improved read and write performance by optimising data flow.
Multi-Tier Caching Technology White Paper
BarraCuda Pro Comes With Rescue Data Recovery Plans
Your data matters. And you rely on it. Rescue Data Recovery Plans provide peace of mind for creative pros and performance PC users alike, and now they come standard on BarraCuda Pro. Whether there is a hard drive mechanical issue or something accidently happened to your drive, Seagate has got you covered. A Rescue Data Recovery Plan gives you access to experienced data recovery experts who deliver a 95% customer satisfaction rating. Purchase a BarraCuda Pro drive and you are covered for 2 years—that’s 2 years you don’t ever have to worry about the data on your hard drive.
Trusted Dependability
The BarraCuda family of reliable hard drives is here to stay, for years to come.
Experience — For more than 20 years, Seagate has manufactured and delivered the super-reliable BarraCuda family of drives BarraCuda — Seagate's drive-reliability data simply speaks for itself, and the BarraCuda family is often recognised by leading publications and customers. Worry less with a hard drive that has your back — BarraCuda Pro comes equipped with a 5-year limited warranty.
Features | |
---|---|
Start/stop cycles | 300000 |
Bytes per sector | 4096 |
Average latency | 6 ms |
HDD number of heads | 3 |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 5400 RPM |
HDD capacity | 3 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 2 A |
Operating voltage | 5 / 12 V |
Power consumption (idle) | 2.5 W |
Power consumption (standby) | 0.25 W |
Power consumption (typical) | 5 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 80 G |
Non-operating altitude | -304 - 12192 m |
Operating altitude | -304 - 3048 m |
Non-operating vibration | 3 G |
Operating vibration | 0.25 G |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 60 °C |
General | |
---|---|
Product Family | Barracuda |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 490 g |
Height | 20.2 mm |
Depth | 147 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Storage drive adapter included | No |
Logistics data | |
---|---|
Master (outer) cases per pallet | 40 pc(s) |
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Drive ready time | 10 s |

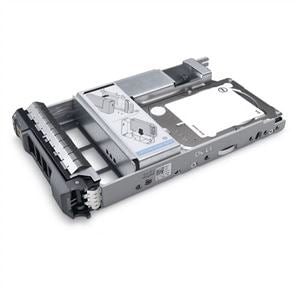

Increase the storage capacity of your system with the 600GB Hard Drive from Dell. Offering a rotational speed of 10000 RPM, this drive provides fast disk access.
Increase the storage capacity of your system with the 1TB Hard Drive from Dell.

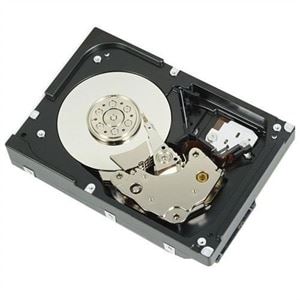

Increase the storage capacity of your system with the 600GB Hard Drive from Dell. Offering a rotational speed of 15000 RPM, this drive provides fast disk access.

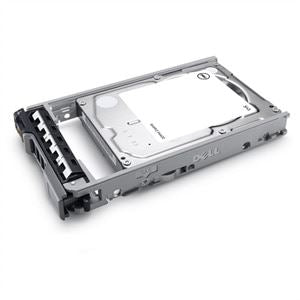

Increase the storage capacity of your system with the 1.2TB Hard Drive from Dell. Offering a rotational speed of 10,000 RPM, this drive provides fast disk access. Featuring SAS interface, this hard drive delivers enhanced data transfer speeds.
- Offers - 1.2TB capacity to store large amount of data
- SAS interface delivers high data transfer speeds
- 10K RPM spindle speed ensures excellent performance

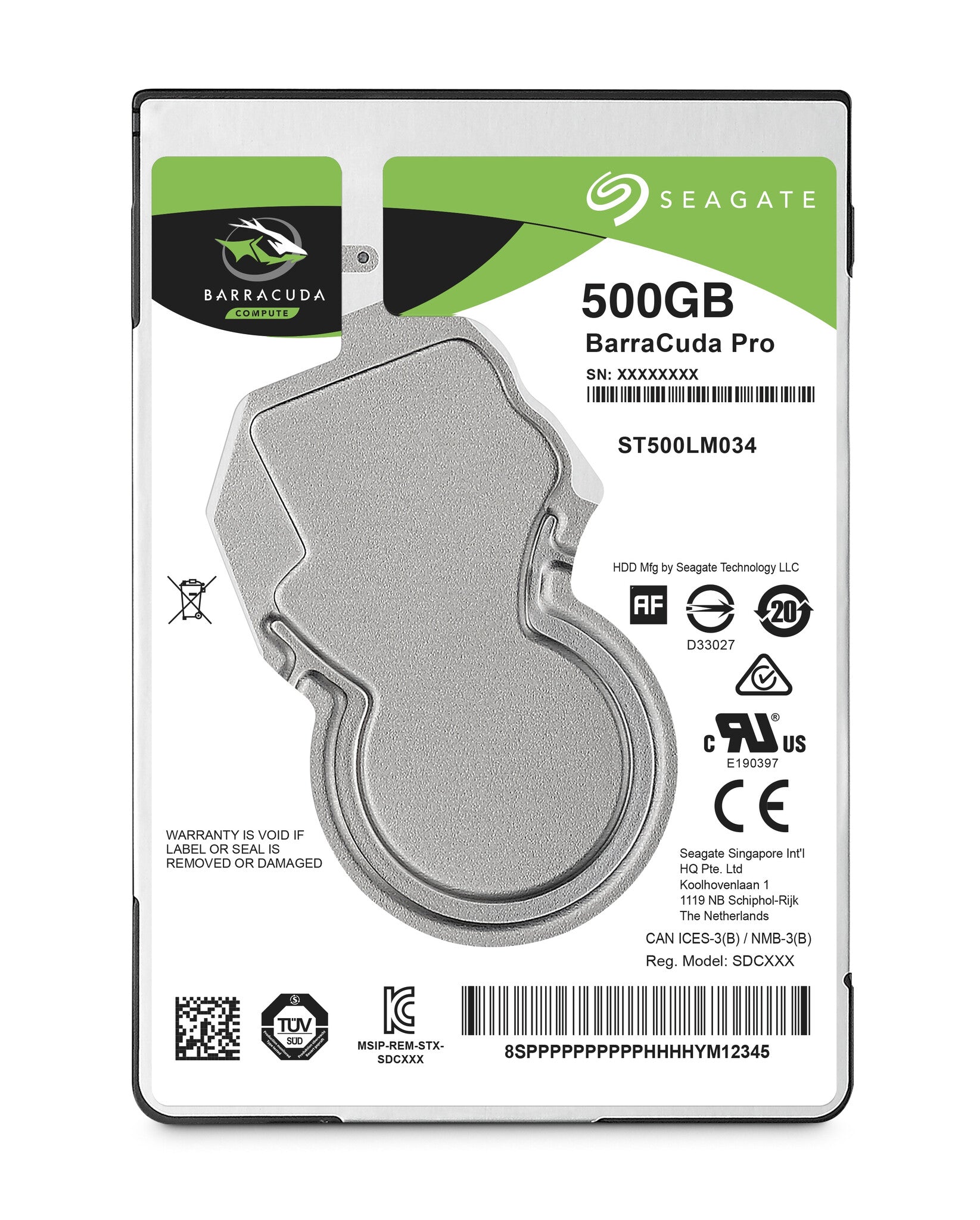

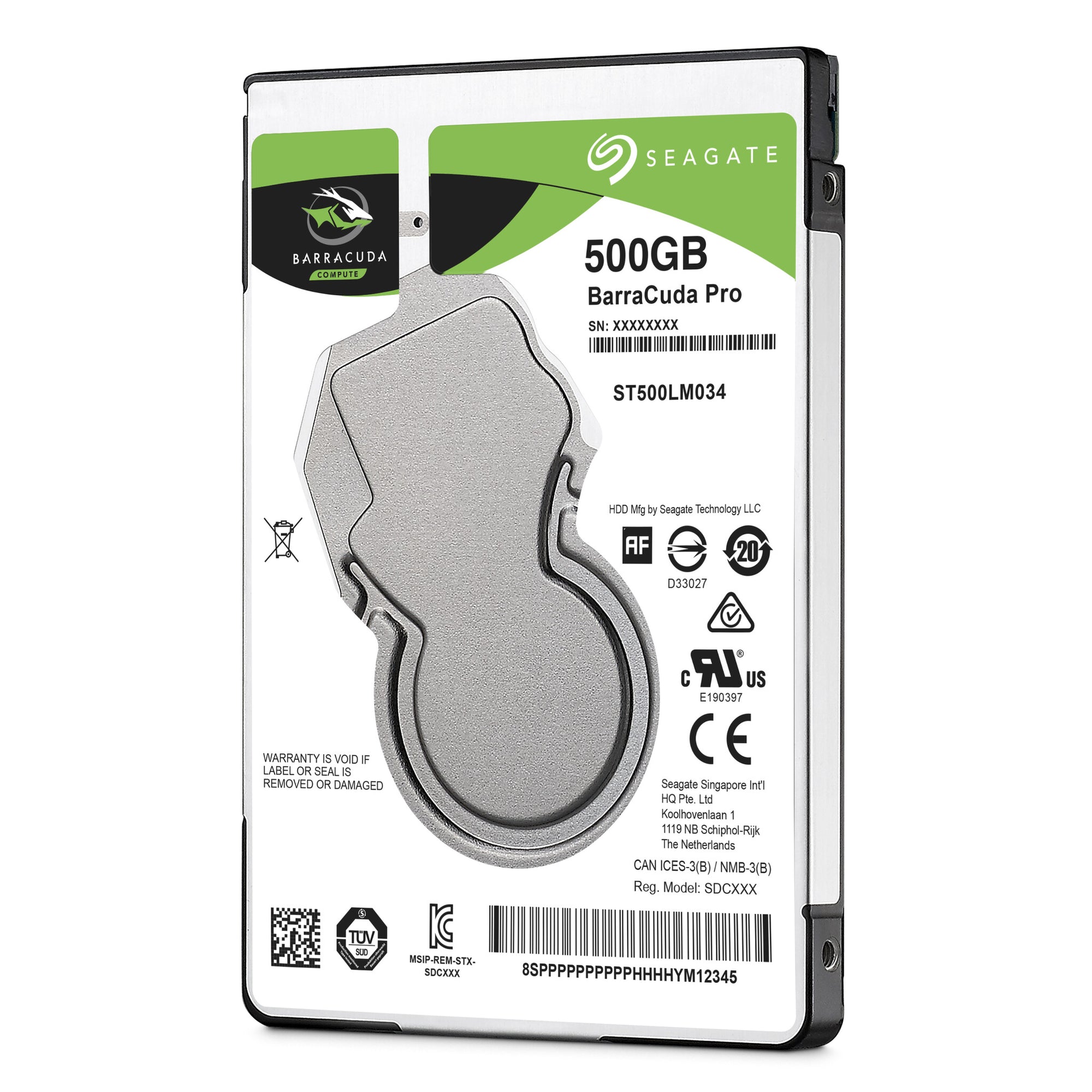

HDD capacity. SSD Attitude.
Coupled with Intel® Optane™ memory, a revolutionary class of non-volatile memory, BarraCuda hard drives deliver it all.
- SSD-like performance and responsiveness
- Massive capacity
- Twice the speed of standard drives for boot and load applications
- Affordability with zero compromises
Versatile. Fast. Dependable.
BarraCuda leads the industry with the highest capacities for desktops and mobile computers. With drives available up to 12 TB, the BarraCuda portfolio is a great option for upgrades at any price point. The uncompromising BarraCuda Pro marries industry-leading storage capacity with 7,200-RPM spin speeds for snappy performance and load times when gaming or performing heavy workloads. BarraCuda Pro also comes equipped with a 5-year limited warranty.
Multi-Tier Caching Technology
All hard drives in the BarraCuda family come equipped with Multi-Tier Caching Technology (MTC). MTC takes your PC to new performance levels, so you can load applications and files faster than ever before. By applying intelligent layers of NAND Flash, DRAM and media cache technologies, BarraCuda delivers improved read and write performance by optimising data flow.
BarraCuda Pro Comes With Rescue Data Recovery Plans
Your data matters. And you rely on it. Rescue Data Recovery Plans provide peace of mind for creative pros and performance PC users alike, and now they come standard on BarraCuda Pro. Whether there is a hard drive mechanical issue or something accidently happened to your drive, Seagate has got you covered. A Rescue Data Recovery Plan gives you access to experienced data recovery experts who deliver a 95% customer satisfaction rating. Purchase a BarraCuda Pro drive and you are covered for 2 years — that’s 2 years you don’t ever have to worry about the data on your hard drive.
Trusted Dependability
The BarraCuda family of reliable hard drives is here to stay, for years to come.
Experience — For more than 20 years, Seagate has manufactured and delivered the super-reliable BarraCuda family of drives BarraCuda — Seagate's drive-reliability data simply speaks for itself, and the BarraCuda family is often recognised by leading publications and customers. Worry less with a hard drive that has your back — BarraCuda Pro comes equipped with a 5-year limited warranty.
Features | |
---|---|
Workload rate limit | 55 TB/year |
Start/stop cycles | 600000 |
Bytes per sector | 4096 |
Average latency | 11.5 ms |
Track to track seek time | 0.5 ms |
HDD number of heads | 2 |
HDD sustained transfer rate | 160 MiB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 128 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 500 GB |
HDD size | 2.5" |
Power | |
---|---|
Start-up current | 1 A |
Operating voltage | 5 V |
Operational conditions | |
---|---|
Non-operating shock | 1000 G |
Operating shock | 400 G |
Non-operating altitude | -304.8 - 12192 m |
Operating altitude | -304.8 - 3048 m |
Non-operating vibration | 5 G |
Operating vibration | 2 G |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 60 °C |
General | |
---|---|
Product Family | Barracuda |
Weight & dimensions | |
---|---|
Weight | 90 g |
Height | 7 mm |
Depth | 100.3 mm |
Width | 69.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Drive ready time | 3.2 s |
Increase the storage capacity of your system with the 2TB Hard Drive from Dell. Offering a rotational speed of 7200 RPM, this drive provides fast disk access.
