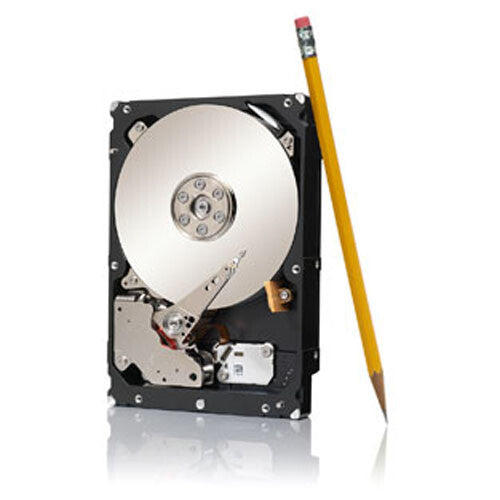

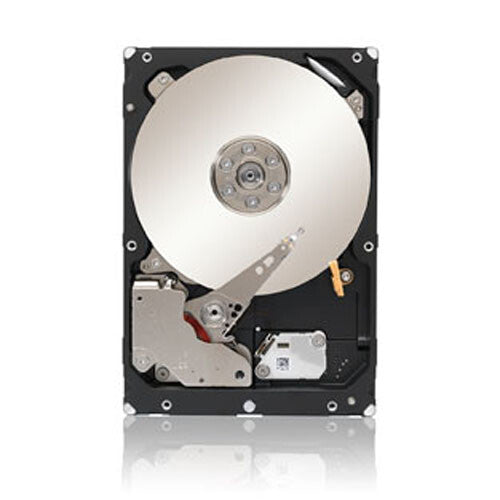

The Seagate® Constellation® ES.3 enterprise HDD delivers the scalability that data centres need to meet their demanding growth of unstructured data reliably.
- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 24×7 bulk data storage
- Predictable 7,200-rpm performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements
Features | |
---|---|
Mean time between failures (MTBF) | 1400000 h |
Bytes per sector | 512 |
Average latency | 4.16 ms |
Storage drive buffer size | 128 MB |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 4 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 7.80 W |
Power consumption (typical) | 11.86 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 70 G |
Non-operating vibration | 0.25 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
General | |
---|---|
Product Family | Constellation |
Weight & dimensions | |
---|---|
Weight | 700 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Internal | Yes |
Data transfer rate | 6 Gbit/s |
Power requirements | +12V & +5V |
Features | |
---|---|
Hot-swap | Yes |
Component for | Server/workstation |
Type | HDD |
HDD capacity | 1 TB |
Fast & Efficient - Back up and restore eight times faster than tape; drag-and-drop files.
Expandable & Easy - Add capacity when you need it; no maintenance required.
Durable & Secure - Virtually unlimited rewriteability; password protection
Compatibility:
Works with all Iomega REV 35GB drives.
Formatted for use with Mac only.
Features | |
---|---|
HDD capacity | 35 GB |
Weight & dimensions | |
---|---|
Weight | 100 g |
Other features | |
---|---|
Disks included quantity | 1 pc(s) |
Internal | Yes |
Mac compatibility | Yes |

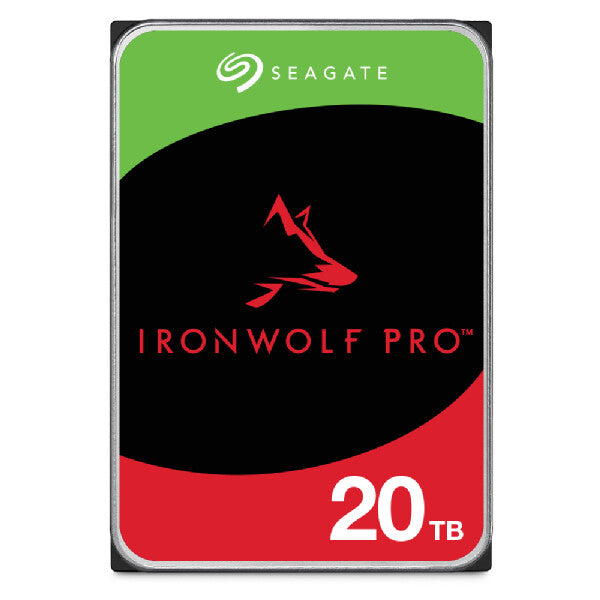

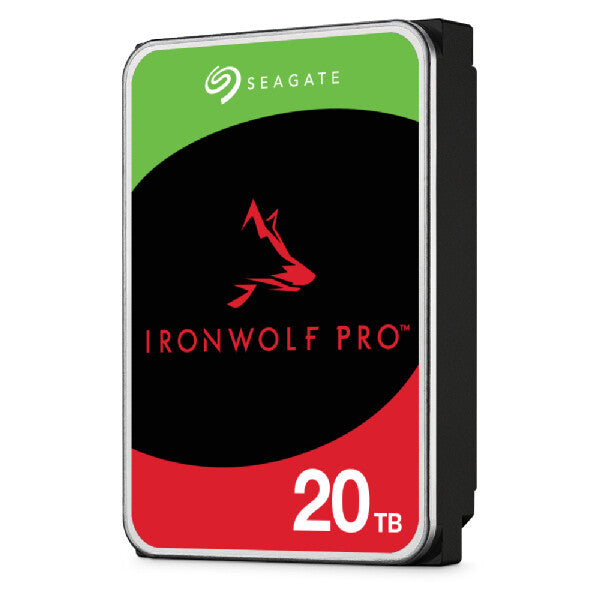

IronWolf Pro is designed for everything business NAS and provides a workload rate of 300 TB/year. It comes with scalable 24×7 performance for multi-bay NAS environments for creative professionals and small businesses.
Features | |
---|---|
Mean time between failures (MTBF) | 1200000 h |
Noise level (idle) | 28 dB |
HDD average transfer rate | 285 MB/s |
HDD interface transfer rate | 6 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 20 TB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 2 A |
Operating voltage | 5 / 12 V |
Power consumption (idle) | 5.5 W |
Power consumption (standby) | 1 W |
Power consumption (typical) | 7.7 W |
Operational conditions | |
---|---|
Non-operating shock | 200 G |
Operating shock | 40 G |
Non-operating vibration | 2.27 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 65 °C |
General | |
---|---|
Product Family | IronWolf Pro |
Weight & dimensions | |
---|---|
Weight | 670 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

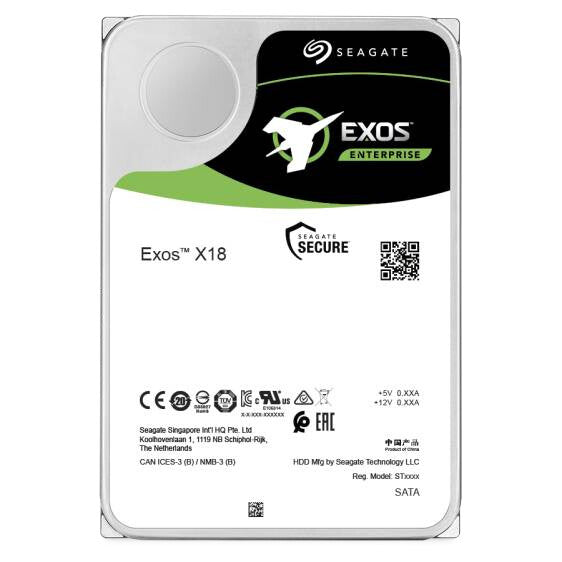

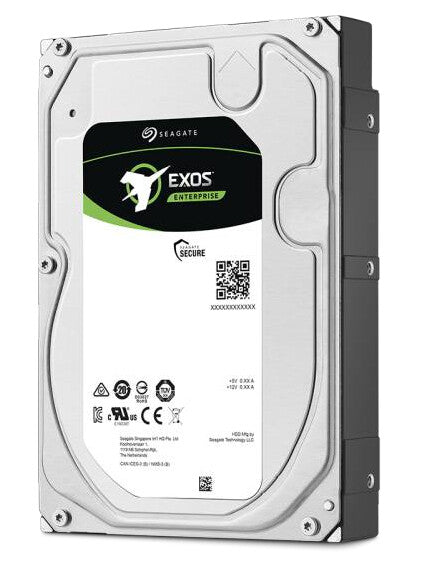

The most scalable drives in the datasphere, Exos X series hard drives integrate the latest technology in support of a secure and reliable cloud data centre.
Scalable. Responsive. Innovative
Designed to handle the most rigorous workloads, the Seagate Exos X series enterprise class drives are perfect, high-reliability solutions for servers, storage systems, and business-centric NAS systems. Whatever your applications, there’s an Exos drive for it.
Exos X18
Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 18 TB capacity.
Features | |
---|---|
Mean time between failures (MTBF) | 2500000 h |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Average latency | 4.16 ms |
HDD sustained transfer rate | 258 MiB/s |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Disk array |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 12 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 9.1 W |
Power consumption (write) | 6.2 W |
Power consumption (idle) | 5 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos X18 |
Operational conditions | |
---|---|
Non-operating shock | 200 G |
Operating shock | 50 G |
Non-operating vibration | 2.27 G |
Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions | |
---|---|
Weight | 650 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
**New Retail**
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 600 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |

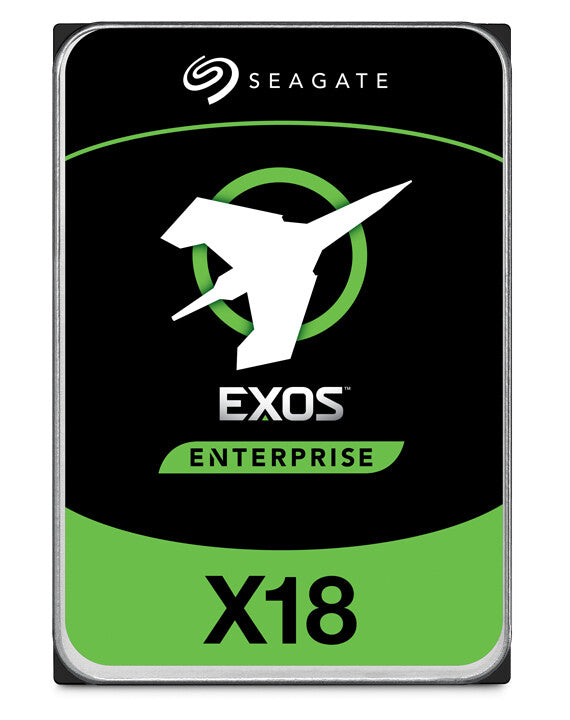

The most scalable drives in the datasphere, Exos X series hard drives integrate the latest technology in support of a secure and reliable cloud data centre.
Scalable. Responsive. Innovative
Designed to handle the most rigorous workloads, the Seagate Exos X series enterprise class drives are perfect, high-reliability solutions for servers, storage systems, and business-centric NAS systems. Whatever your applications, there’s an Exos drive for it.
Exos X18
Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 18 TB capacity.
Features | |
---|---|
Mean time between failures (MTBF) | 2500000 h |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Average latency | 4.16 ms |
HDD sustained transfer rate | 249 MiB/s |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Hot-swap | Yes |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 16 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 9.9 W |
Power consumption (write) | 7 W |
Power consumption (idle) | 5.8 W |
Operational conditions | |
---|---|
Non-operating shock | 200 G |
Operating shock | 50 G |
Operating vibration | 2.27 G |
Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions | |
---|---|
Weight | 670 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |

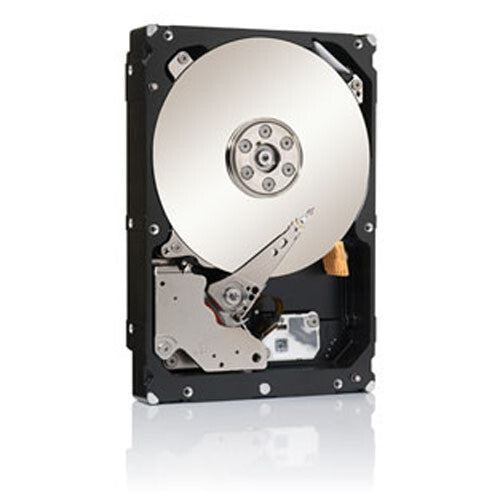

Supersize your storage
The Constellation ES.3, with the world’s highest capacities in a 3.5-inch HDD form factor, is the perfect foundation for building maximum density server and storage solutions. These capacity-optimized hard drives support up to152TB of storage per square foot for a great return-on-investment for your enterprise storage.
Reliable bulk data storage for a 24x7 world
Building high capacity RAID storage solutions requires predictable and consistent performance. With the Constellation ES.3, we take it a step further and ensure your data is reliably stored in multi-drive chassis solutions.
Boost your storage capacities – and conserve power
Storing massive amounts of unstructured data is easy and smart with the Constellation ES.3. Designed with best-in-class energy efficiency, it uses a minimum power and cooling envelope to store up to 152TB per square foot.
Features | |
---|---|
Average latency | 4.16 ms |
Read seek time | 8.5 ms |
Write seek time | 9.5 ms |
Storage drive buffer size | 64 MB |
Interface | Serial ATA |
HDD speed | 7200 RPM |
HDD capacity | 500 GB |
HDD size | 3.5" |
Power | |
---|---|
Start-up current | 1.9 A |
Operating voltage | 5 / 12 V |
Power consumption (read) | 6.47 W |
Power consumption (write) | 5.31 W |
Power consumption (idle) | 4.56 W |
Power consumption (typical) | 7.26 W |
Operational conditions | |
---|---|
Non-operating shock | 350 G |
Operating shock | 70 G |
Non-operating vibration | 4.9 G |
Operating vibration | 0.25 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
General | |
---|---|
Product Family | Constellation |
Weight & dimensions | |
---|---|
Weight | 640 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |

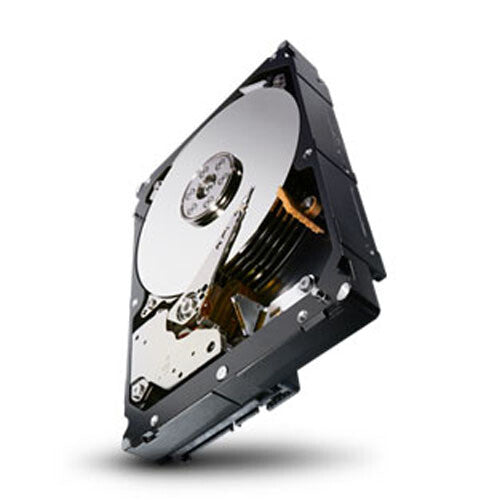

Enterprise Drive for Bulk Data Applications
Exos 7E8 hard drives support up to 8TB per drive, offering bulk data storage for data centerinfrastructures requiring a highly reliable enterprise hard drive. Exos 7E8 provides cost-effective, reliable access to unstructured data. Built on field-proven 10th-generation conventionalmagnetic recording (CMR) technology, the Exos 7E8 drive helps to catalyze the datasphere,enabling data center architects and IT professionals to deliver trusted performance, rock-solidreliability, ironclad security, and low TCO for demanding 24×7 operations.
Robust Bulk Data Storage for a 24×7 World
Exos 7E8 drives are backed by a 2 million hour MTBF rating and support workloads of 550TBper year—10× that of desktop hard drives. With state-of-the-art cache, on-the-fly error-correction algorithms, and rotational vibration design, the Exos 7E8 helps ensure consistentperformance in replicated and RAID multi-drive systems.
High Performance for Mainstream Data Center Applications
Meet your storage workload requirements in the most efficient and cost-effective data centerfootprint on the market today. The Exos 7E8 delivers easy integration into bulk storage systemswith 12Gb/s SAS and SATA 6Gb/s interface options. With user-definable innovative technologyadvancements like PowerChoice™ and Seagate RAID Rebuild®, you can tailor your nearlinestorage requirements for even greater improvements in lowering your TCO.
Enhanced Reliability, Data Protection, and Security
Advanced security features help protect data where it lives—on the drive. Exos 7E8 preventsunauthorized drive access and safeguards stored data with security features that includeSecure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive, and government-gradeFIPS/Common Criteria tamper-resistent hard drive. Seagate Secure™ drives simplify driverepurposing and disposal, help protect data-at-rest, and comply with corporate and federal datasecurity mandates.
Features | |
---|---|
Mean time between failures (MTBF) | 2000000 h |
Average latency | 4.16 ms |
HDD sustained transfer rate | 249 MiB/s |
HDD interface transfer rate | 12 Gbit/s |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 8 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 7.97 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos 7E8 |
Operational conditions | |
---|---|
Non-operating vibration | 5 G |
Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions | |
---|---|
Weight | 716 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The MG06SCA Enterprise Capacity HDD models provide capacities up to 10 TB and 7,200 rpm performance, in a robust design engineered for nearline business-critical workloads.
The MG06SCA series utilizes industry-standard 3.5-inch 26.1 mm height form factor and Advanced Format sector technologies for optimum capacity and data reliability. Toshiba Persistent Write Cache technology helps enhance performance while also maintaining data integrity in the event of a sudden loss of power. Equipped with 12 Gbit/s SAS interface, the Enterprise Capacity MG06SCA models help save rack space and reduce the footprint and operational burden of business critical servers and storage systems.
512e or 4Kn Advanced Format sector technology models are available. 4Kn models (MG06SCAxxxA) offer optimum performance and compatibility with 4K-capable applications and operating environments. 512e models (MG06SCAxxxE) are broadly supported today and also help provide support for legacy applications and operating environments that require 512 B sector lengths.
Features | |
---|---|
Mean time between failures (MTBF) | 2500000 h |
Workload rate limit | 550 TB/year |
HDD sustained transfer rate | 237 MiB/s |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 6 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 5.94 W |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | 5 - 55 °C |
Weight & dimensions | |
---|---|
Weight | 770 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |

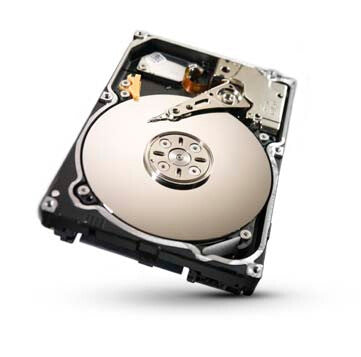

600GB SAS hard drive - 12 Gb/s interface, 10,000 RPM, 2.5-inch small form factor (SFF), smart carrier (SC), digitally signed firmware
Features | |
---|---|
HDD interface transfer rate | 12 Gbit/s |
Hot-swap | Yes |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 600 GB |
HDD size | 2.5" |
Features | |
---|---|
HDD interface transfer rate | 4 Gbit/s |
Component for | Server/workstation |
Type | HDD |
Interface | Fibre Channel |
HDD speed | 15000 RPM |
HDD capacity | 300 GB |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 300 GB |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
The HGST Ultrastar™ 7K3000 is the world’s first and only 7200 RPM hard drive rated at 2.0 million hours MTBF and backed by a five-year limited warranty. The Ultrastar 7K3000 represents the fifth-generation HGST 5-platter mechanical design, first introduced in 2004, and has been field proven by top server and storage OEMs as well as leading Internet giants. When the highest quality and reliability are a top requirement, customer field data proves that the Ultrastar 7K3000 delivers by reducing downtime, eliminating service calls and keeping TCO to a minimum. Engineered for the highest reliability, the Ultrastar 7K3000 is not only put through grueling design tests during development but must also pass stringent ongoing reliability testing during manufacturing. Across the entire Ultrastar family, world-class quality control, combined with scientific root-cause analysis and multi-faceted corrective actions, ensure that HGST remains the recognized leader in quality and reliability for enterprise-class hard drives.
Features | |
---|---|
Mean time between failures (MTBF) | 2000000 h |
Bytes per sector | 512 |
Storage drive buffer size | 64 MB |
Type | HDD |
Interface | Serial ATA |
HDD speed | 7200 RPM |
HDD capacity | 3 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 11.3 W |
Power consumption (write) | 11.3 W |
Power consumption (idle) | 5.6 W |
Operational conditions | |
---|---|
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
General | |
---|---|
Product Family | Ultrastar |
Weight & dimensions | |
---|---|
Weight | 690 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
- High quality
- Long life
- Easy installation
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 300 GB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Packaging data | |
---|---|
Quantity | 1 |
- High quality
- Long life
- Easy installation
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 300 GB |
Packaging data | |
---|---|
Quantity | 1 |
- High quality
- Long life
- Easy installation
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 300 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Packaging data | |
---|---|
Quantity | 1 |
- High quality
- Long life
- Easy installation
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 900 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
These high-performance 7,200, 10,000, and 15,000 rpm 6 Gbps NL SATA and SAS HDD options are positioned at the top of the IBM SATA and SAS HDD line. The SATA are available in a hot-swap or simple-swap version and the SAS is available in hot-swap version.
These HDDs support entry-level server and workstation applications, such as:
- Transaction processing
- Data mining
- Data warehousing
- Professional video and graphics
Features | |
---|---|
Linux operating systems supported | Yes |
Windows operating systems supported | Yes |
Component for | Server/workstation |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 1.2 TB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 90% |
Operating relative humidity (H-H) | 5 - 90% |
Storage temperature (T-T) | -40 - 65 °C |
Operating temperature (T-T) | 0 - 60 °C |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Other features | |
---|---|
Data transfer rate | 6 Gbit/s |

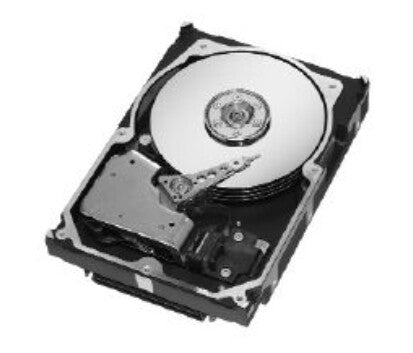

The higher performance and capacity of Seagate Cheetah 15K.7 drives reduce storage costs per GB and increase capacity per watt. The drive has the industry’s highest reliability rating, reducing drive replacement costs. The Cheetah 15K.7 drive includes Seagate PowerTrim technology, which dynamically optimizes drive power consumption at all levels of activity.
- Third-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 171 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 4Gb/s FC or 6Gb/s SAS interfaces
Features | |
---|---|
Mean time between failures (MTBF) | 1600000 h |
Average latency | 2 ms |
Read seek time | 3.4 ms |
Write seek time | 3.9 ms |
HDD number of heads | 8 |
Storage drive buffer size | 16 MB |
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 15000 RPM |
HDD capacity | 600 GB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 11.68 W |
Power consumption (typical) | 16.35 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 60 G |
Non-operating vibration | 3 G |
Operating vibration | 1 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 55 °C |
General | |
---|---|
Product Family | Cheetah |
Weight & dimensions | |
---|---|
Weight | 686 g |
Height | 25.4 mm |
Depth | 146.5 mm |
Width | 101.6 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
- High quality
- Long life
- Easy installation
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 10000 RPM |
HDD capacity | 300 GB |
HDD size | 2.5" |
Power | |
---|---|
Operating voltage | 5 V |
Packaging data | |
---|---|
Quantity | 1 |
- High quality
- Long life
- Easy installation
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | Fibre Channel |
HDD speed | 15000 RPM |
HDD capacity | 300 GB |
Packaging data | |
---|---|
Quantity | 1 |
Delivering Economics and Access Speed to Data Center Applications and Workloads
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to 8TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM performance and lower acquisition cost to help ease budget constraints.
Economical Capacity
4TB, 6TB, and 8TB models for lower acquisition cost
High Performance
Fast data access with 7200 RPM speed, transferring up to 255 MB/s
Drop-In Ready
SAS and SATA options support traditional servers and storage
Features | |
---|---|
Certification | REACH, UL, CE/ICES/VCCI, BSMI, RCM, KCC |
Mean time between failures (MTBF) | 2000000 h |
Noise level (idle) | 29 dB |
Start/stop cycles | 600000 |
24/7 operation | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Average latency | 4.16 ms |
Read seek time | 8 ms |
Write seek time | 8.6 ms |
HDD average transfer rate | 255 MB/s |
HDD sustained transfer rate | 243 MiB/s |
HDD interface transfer rate | 4.8 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | PC |
Type | HDD |
Interface | Serial ATA III |
HDD speed | 7200 RPM |
HDD capacity | 8 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (idle) | 7.4 W |
Power consumption (typical) | 8.8 W |
Operational conditions | |
---|---|
Non-operating shock | 300 G |
Operating shock | 70 G |
Non-operating vibration | 1.04 G |
Operating vibration | 0.67 G |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 5 - 60 °C |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 715 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.6 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
Increase the storage capacity of your system with the 4 TB Hard Drive from Dell. Offering a rotational speed of 7200 RPM, this drive provides fast disk access. Featuring SAS interface, this hard drive delivers enhanced data transfer speeds.
Features | |
---|---|
Component for | Server/workstation |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 4 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
