Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Features | |
---|---|
Temperature monitoring and logging | Yes |
Commodity Classification Automated Tracking System (CCATS) | G162706 |
Export Control Classification Number (ECCN) | 5A992C |
SSD ARK ID | 134910 |
Market segment | Server |
Mean time between failures (MTBF) | 2000000 h |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
SSD temperature monitoring | Yes |
Enhanced Power Loss Data Protection technology | Yes |
End-to-End Data Protection | Yes |
Write latency | 37 µs |
Read latency | 36 µs |
Random write (100% span) | 16000 IOPS |
Random read (100% span) | 90000 IOPS |
Write speed | 280 MB/s |
Read speed | 560 MB/s |
Data transfer rate | 6 Gbit/s |
Security algorithms | 256-bit AES |
Hardware encryption | Yes |
Component for | Server/workstation |
NVMe | No |
NAND flash type | TLC (Triple Level Cell) |
Memory type | TLC 3D NAND |
Interface | Serial ATA III |
SSD capacity | 240 GB |
SSD form factor | 2.5" |
Power | |
---|---|
Power consumption (idle) | 1 W |
Brand-specific features | |
---|---|
Intel Smart Response Technology version | 0.00 |
Intel® Smart Response Technology | No |
Intel High Endurance Technology (HET) | No |
Intel® Rapid Start Technology | No |
Intel® Remote Secure Erase | No |
Operational conditions | |
---|---|
Operating / non-operating shock | 1000 G/0.5 msec |
Non-operating shock | 1000 G |
Operating shock | 1000 G |
Non-operating vibration | 3.13 G |
Operating vibration | 2.17 G |
Maximum operating temperature | 70 °C |
Operating temperature (T-T) | 0 - 70 °C |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717070 |
Other features | |
---|---|
Product codename | Youngsville Refresh |

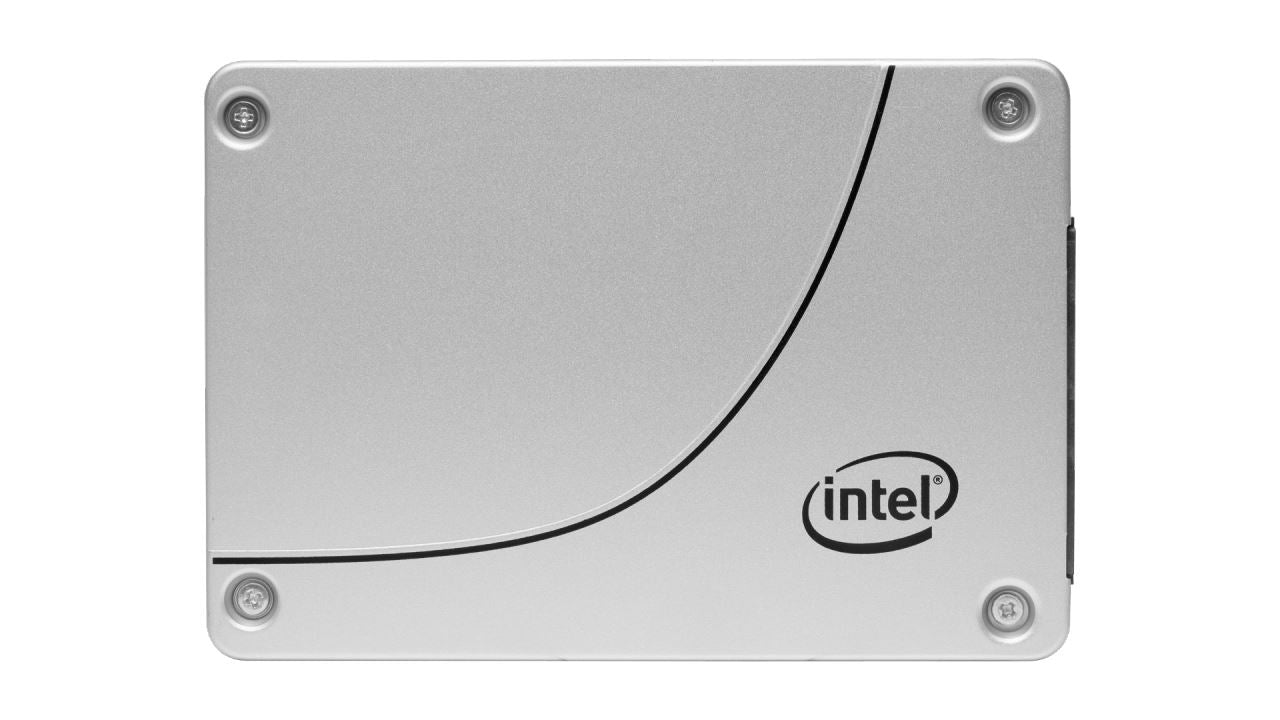

Product series | Intel® SSD D3-S4510 Series |
Product family | Data center SSD |
Launch date | Q3'18 |
Drive capacity | 240 GB |
SSD hardware encryption | AES 256 bit |
SSD power consumption (active) | 2.4W |
SSD power consumption (idle) | 1.0W |
Last change | 63903513 |
Intel Rapid Start Technology version | 0.00 |
Remote Secure Erase (RSE) technology version | 0.00 |
Power consumption (active) | 2.4 W |
SSD endurance rating | 0.9 PBW |
SSD shock | 1000 G/0.5 msec |
Sequential reading | 560 MB/s |
Sequential writing speed | 280 MB/s |
Status | Launched |
Processor family | Intel SSD D3 |
Product colour | Silver |
